VISION

Critical and intensive care bed

VISION are electrically adjustable beds designed specifically for critical care. Thanks to modern technology, they have been developed to reduce time during patient care or certain examinations. Healthcare staff as well as patients appreciate the easy handling, comfortable and intuitive operation and the full range of pre-programmed bed functions. Like all our beds, VISION beds stand out for their professional workmanship down to the last detail.

VISION
0%

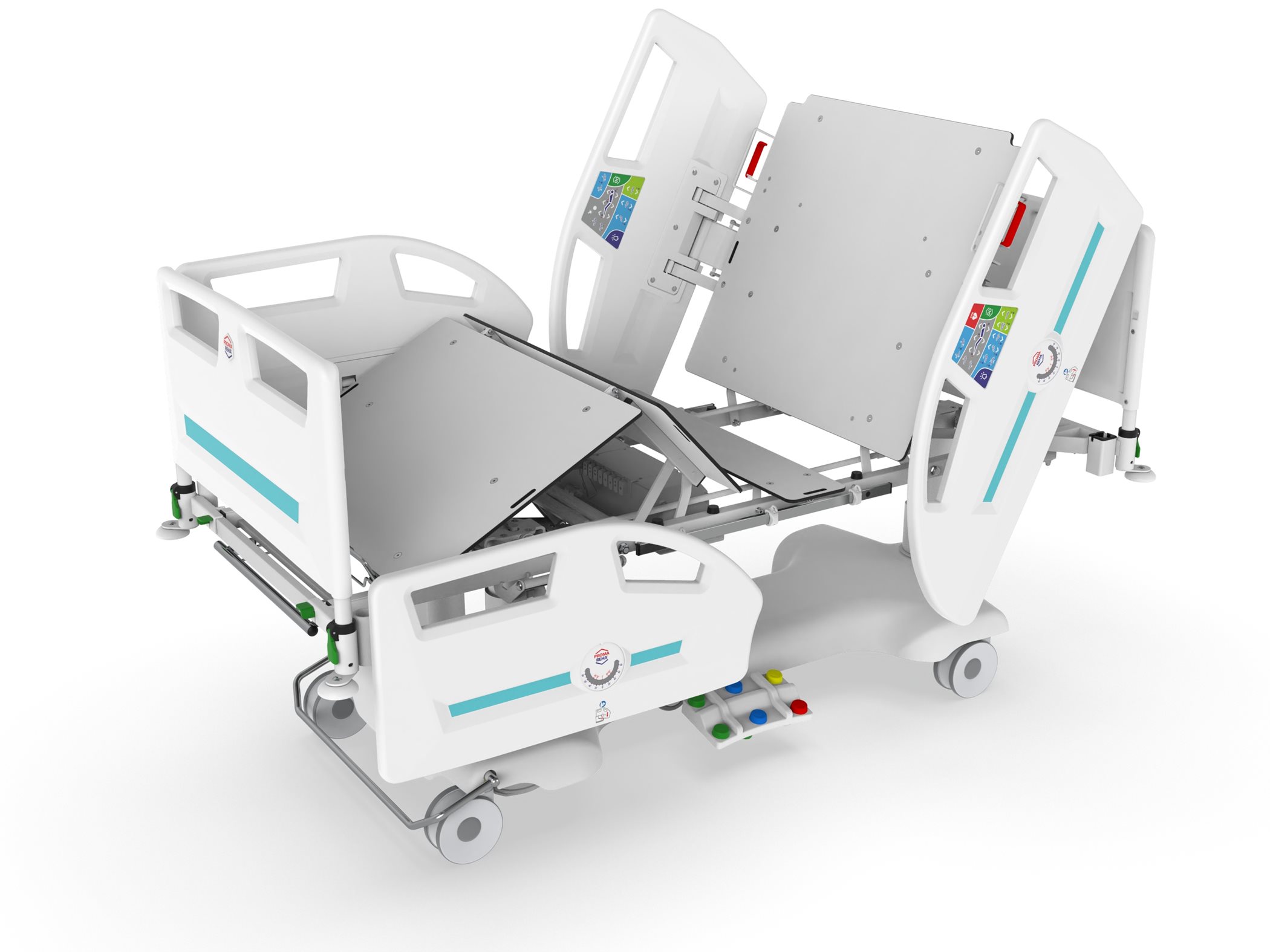

  • /getattachment/2ac3932b-159c-4642-986f-2f154454e074/VISION-29.jpg
  • /getattachment/d9329d51-2434-4cea-ba00-544f45abf836/VISION-30.jpg
  • /getattachment/3b022fa6-d225-4822-a4f7-4a1c1791035d/VISION-31.jpg
  • /getattachment/ebc62c5e-b9fe-4ec2-a542-19cd06839e3e/VISION-32.jpg
  • /getattachment/32692308-ec7b-4f50-a69e-f0cf8648c7a3/VISION-33.jpg
  • /getattachment/065d89a5-a446-4897-8b8d-adc96862e612/VISION-34.jpg
  • /getattachment/69b41982-ce2c-4ba0-a44c-1e8375d2a7d7/VISION-35.jpg
  • /getattachment/8b05531b-f438-4449-b3ee-e1753ce79c7e/VISION-36.jpg
  • /getattachment/618208fb-8cce-4015-a97a-dc40190a4ef6/VISION-37.jpg
  • /getattachment/61e1c399-16d9-4b7c-b966-901a5bbaa8cc/VISION-38.jpg
  • /getattachment/5a911cfd-6bd8-41b5-8954-cb5f535daa90/VISION-39.jpg
  • /getattachment/c6cd15d5-9609-4cb4-8dce-af0410c10092/VISION-40.jpg
  • /getattachment/c27eb4d9-93ab-4d59-a557-a760fe50335d/VISION-41.jpg
  • /getattachment/a01908db-a8b3-4456-8df4-caececfeed24/VISION-42.jpg
  • /getattachment/fb9eaa05-a6e5-4f1e-ba9e-d5f01ed35414/VISION-43.jpg
  • /getattachment/e7b1c40b-9365-40d9-a1d9-e1d96154fa26/VISION-44.jpg
  • /getattachment/a43e2be3-c3da-4b8f-ba3a-949a1c045ff8/VISION-45.jpg
  • /getattachment/1ed84d42-1db3-426e-b15e-c49fe5598adf/VISION-46.jpg
  • /getattachment/5220d82f-5932-4d5a-a978-b0c4bcaa1fc9/VISION-47.jpg
  • /getattachment/87588416-cef5-41bc-a40a-c3326755fe4c/VISION-48.jpg
  • /getattachment/078f5eb0-8ea9-4221-8d56-465e41f05c42/VISION-49.jpg
  • /getattachment/08c18a56-2bda-4ce3-b79f-afe532ef9ba4/VISION-50.jpg
  • /getattachment/f237852b-d07b-4913-8485-641bffbf31e9/VISION-51.jpg
  • /getattachment/ec5f1c29-e4cb-445e-8200-3505d6998736/VISION-52.jpg
  • /getattachment/132db76f-db69-4cf7-baeb-3bfd5b7cc62f/VISION-53.jpg
  • /getattachment/24ac2a61-79ab-43d4-a54e-078ab1a0b50a/VISION-54.jpg
  • /getattachment/81d178da-0aeb-4150-8bc3-97c1c0b3b5b6/VISION-55.jpg
  • /getattachment/9f9946df-3a7f-4391-a251-d9cbfcc105c2/VISION-56.jpg
  • /getattachment/db164bd0-b670-47d5-a654-77911220853f/VISION-57.jpg
  • /getattachment/d66af079-5c3e-405e-80ba-69d93886ce6f/VISION-58.jpg
  • /getattachment/fbd3fe29-1976-4a2b-97ad-5a8a89371dac/VISION-59.jpg
  • /getattachment/f702d173-9c29-4a0d-88ff-f80cd849b31d/VISION-60.jpg
  • /getattachment/4f18fa8d-71ea-46e6-8352-ca2c4ac09a84/VISION-61.jpg
  • /getattachment/c6e270e3-fc23-4ee7-a610-4a19e4cd91a3/VISION-62.jpg
  • /getattachment/be922589-c737-43f4-86f8-5e0e4fccd861/VISION-63.jpg
  • /getattachment/816e5f70-282d-4770-9b31-63fde822b339/VISION-64.jpg
  • /getattachment/8b610f3b-4e99-45ef-b872-6e8f3f7e08f1/VISION-65.jpg
  • /getattachment/f43b4c60-e1ca-42ce-b752-6e786e3d83ce/VISION-66.jpg
  • /getattachment/d10e5877-fb73-4d64-b74e-ffe4dfd3a582/VISION-67.jpg
  • /getattachment/032cdbc5-420c-4202-aa2d-20ff44680c22/VISION-68.jpg
  • /getattachment/84888c6b-10c4-4531-9b89-b9624725bafc/VISION-69.jpg
  • /getattachment/02df7514-ef01-4e86-b117-7e33beb4c36c/VISION-70.jpg
  • /getattachment/5a4a5d48-e5a5-4005-8181-febcfc23040a/VISION-71.jpg
  • /getattachment/ca3f76d0-3d6b-492d-891d-586d00ace34e/VISION-72.jpg
  • /getattachment/972ee5b0-9a6f-4748-bd23-795ade138d0d/VISION-73.jpg
  • /getattachment/908ada9e-f337-4ac7-a951-69edb3ff0762/VISION-74.jpg
  • /getattachment/fe73aba9-869c-4197-b93b-dd5143184287/VISION-75.jpg
  • /getattachment/7475b4b4-eeca-48c3-9eec-8496cd36bbfd/VISION-76.jpg
  • /getattachment/a4d89445-add6-4ac9-902d-7944686ddb79/VISION-77.jpg
  • /getattachment/4516cb91-679c-47c0-b616-d08e91742dc9/VISION-78.jpg
  • /getattachment/37ccf1fa-4df1-4c66-8a16-c199ee324ea6/VISION-79.jpg
  • /getattachment/eca70adc-eef4-4bf1-9f15-872637816eb4/VISION-80.jpg
  • /getattachment/e35ed741-b813-45e2-a8ea-687649452b28/VISION-81.jpg
  • /getattachment/4635cb61-ad7b-4bc0-9b00-7255f2faf721/VISION-82.jpg
  • /getattachment/4432651b-d6b8-4db4-b5eb-8cc178307c73/VISION-83.jpg
  • /getattachment/eb7ec8dc-ab92-4bab-94e5-0070b2ac4ab4/VISION-84.jpg
  • /getattachment/31e43d30-ee89-4361-80ed-bc1223e49351/VISION-85.jpg
  • /getattachment/f25ac60c-d77b-48bb-a7eb-c15731ac62a7/VISION-86.jpg
  • /getattachment/45789272-24e0-4314-bfe3-e8af8c77e9e7/VISION-87.jpg
  • /getattachment/2450f0af-fdab-454b-b973-2a93ce02ad3c/VISION-88.jpg
    Product advantages/ Highlights
    Technical parameters
    Downloads

    WE'RE FACING SECONDS!


    Direct control of functions with buttons

    All functions are available immediately, without annoying menu searches. You simply press a button. It doesn't matter if you're wearing gloves, have wet hands or are holding something.



    CPR function

    This feature ensures safe and rapid positioning of the bed in the optimal position for immediate cardiopulmonary resuscitation. The CPR buttons, easily accessible around the perimeter of the bed, are complemented by a pair of mechanical CPR back part levers.



    Quick access to the patient

    RRS (Rapid Remove System) head and foot board removal greatly speeds up access to the patient at critical moments.




    Folding plastic siderails

    Patient protection is provided by folding plastic split siderails with integrated controls. Robust mechanisms guarantee the high strength and superior durability of the siderails. In case of uncontrolled lowering, they are equipped with fall dampers. Thanks to the movement of the head board together with the back part, maximum protection of the patient in all bed positions is ensured. In the lowest position, the folded side rails are sufficiently below the mattress level and do not hinder the patient's exit.




    WE PROTECT YOUR HEALTH AND SAFETY!


    Safe operating loads

    The solid and stable construction with a load capacity of up to 300 kg forms a safe support even for heavier patients. Thanks to the materials and technologies used, extremely high durability is ensured even under repeated increased loads.



    Double autoregression

    Brings greater comfort to patients, reduces pressure in the abdominal area and reduces the risk of decubitus.



    Bed exit position

    The bed exit position is a one-button feature that helps the patient to safely exit the bed, thus reduces physical effort for staff.



    Central brake

    Safe handling of the bed is ensured by a centrally operated brake. Thanks to the possibility of locking one wheel in the straight direction of travel, the bed can be easily operated by only one person during transport.



    Fifth wheel

    The fifth wheel ensures easy and intuitive handling of the bed. This feature is particularly useful in rugged areas and when the bed is handled by one person.



    PROFESSIONAL WORKMANSHIP DOWN TO THE LAST DETAIL


    Stable 3 columns construction

    The lifting of the bed surface is ensured by three electric columns that firmly connect the chassis to the mattress platform and thus ensure its extreme stability and load-bearing capacity.



    Unique mattress platform extension system

    Comfort for taller patients is ensured by the unique bed extension system, which can easily extend the mattress platform by up to 30 cm.



    Reversible lateral tilt

    Significantly reduces the physical strain on the nursing staff during daily patient care, especially when turning the patient, performing personal hygiene and changing the bed linen.



    Tilt indicator

    The integrated tilt indicators for both the back and the mattress platform make it easy to set the correct treatment position for the patient. The tilt values are also displayed on the nurse control.



    Horizontal accessories holder

    The standardised stainless steel euro rail for hanging accessories is equipped with three universal plastic hooks on both sides of the bed.



    Bumper wheels

    The bumper wheels located at the four corners of the bed are a great help especially during transport.



    Controls with colour-coded functions

    User-friendly controls with uniform colour-coded functions for easier orientation in crisis situations. The colour and illuminated function resolution also makes it easier to operate the bed for persons with impaired vision, without glasses or at night.



    Nurse control with LCD panel

    The innovative nurse control panel with LCD brings convenient and safe bed control in any situation. The integrated LCD offers a clear display of current function statuses, warning and alarm indication, automatic weighing system and automatic lateral therapy functions. The nurse control also allows individual functions of all other controls to be locked.



    Siderails controls

    Allow easy, intuitive, one-handed operation of the bed. The controls are conveniently located in the centre of the head side rail, making them easily accessible to both patient and staff in any mattress platform position. The controls are equipped with an activation button to prevent accidental use.



    Foot controls

    The bed is equipped with foot controls with buttons for mattress platform elevation, lateral tilt, examination position and CPR. The foot control is equipped with a safety activation button located on the underside.



    X-rayable mattress platform

    The design of the mattress platform allows comfortable and safe continuous scanning with C-arm and conventional X-ray equipment.



    TENTE branded castors

    All PROMA REHA beds are equipped with TENTE branded castors.



    Bed linen shelf

    The pull-out shelf is a great tool for changing bed linen. The shelf can be used to protect the nurse control from damage or unauthorized use.



    Electric lifting of the mattress platform

    The increased range of the bed lift reduces the strain on staff and facilitates the patient handling. The reduced minimum height of the mattress platform assists the patient in exiting the bed and significantly reduces the risk of injury in the event of an accidental fall.



    Trendelenburg / Antitrendelenburg

    Quick and easy positioning into Trendelenburg (16°) and Antitrendelenburg (16°) positions with the push of a button.



    Plastic chassis cover

    Facilitates and speeds up daily cleaning of the bed. Protects the mechanisms and electrical circuits in the chassis, thus extending the life and reliability of the bed.




    Universal accessories holders

    Two are located at the head board and two at the foot board. They allow the use of accessories such as: lifting pole and handle, IV pole, monitor holder, additional side rails, bedside lamp or extension kit.




    Mattress platform

    The mattress platform is made of HPL boards. The main advantages of this material are its high resistance to chemicals used in healthcare, surface stability and resistance to moist.



    Technical parameters

    Type of chassis 2 - column 3 - column
    Mattress platform (length x width) 200 x 90 cm 200 x 90 cm
    Outer bed dimensions with bumper wheels  (length x width) 222 x 99,5 cm 222 x 99,5 cm
    Mattress platform height 40 - 80 cm (electrical) 43 - 83 cm (electrical)
    Autoregression back part 14 cm 14 cm
    Autoregression thigh part 7,5 cm 7,5 cm
    Mattress platform extension 30 cm 30 cm
    Calf part extension Yes Yes
    Weight of the bed 150 kg 153 kg
    Safe operating load of the bed 250 kg 300 kg
    Maximum patient weight 185 kg 235 kg
    Application environment for bed use  1, 2 1, 2
    Material of mattress platform HPL HPL
    Trendelenburg / Antitrendelenburg 16° / 16° (electrical) 16° / 16° (electrical)
    Lateral tilt - 20° / 20°
    Max. angles of adjustable sections - back part 70° (electrical) 70° (electrical)
    Max. angles of adjustable sections - thigh part 40° (electrical) 40° (electrical)
    Max. angles of adjustable sections - calf part 22° (rastomat) 22° (rastomat)


    Bed equipment

    Castors TENTE, 150 mm, plastic, double reduced plastic
    Central brake Yes
    5th wheel Yes (optional)
    Horizontal accessory holder Yes 2x
    Plastic hook Yes 6x
    X-Ray back part Yes
    Continuous scanning with C-arm Yes
    Nurse control with LCD panel Yes
    Siderail control    Yes (optional)
    Patient hand control Yes (optional)
    Foot pedal Yes (optional)
    Backup battery Yes
    Backlight chassis Yes (optional)
    Bed exit alarm Yes (optional)
    Automatic lateral therapy Yes (optional)
    Universal accessory holder Yes 4x
    Undercarriage cover Yes
    Zero connector Yes
    Bumper wheels Yes
    Aretation of bedheads Yes
    Bed linen shelf Yes (optional)


    Mattress

    Recommended mattress (lenght x width)         200 x 90 cm
    Mattress thickness in normal using   14 cm
    Recommended minimal mattress size 12 cm
    Recommended maximal mattress size                22 cm
