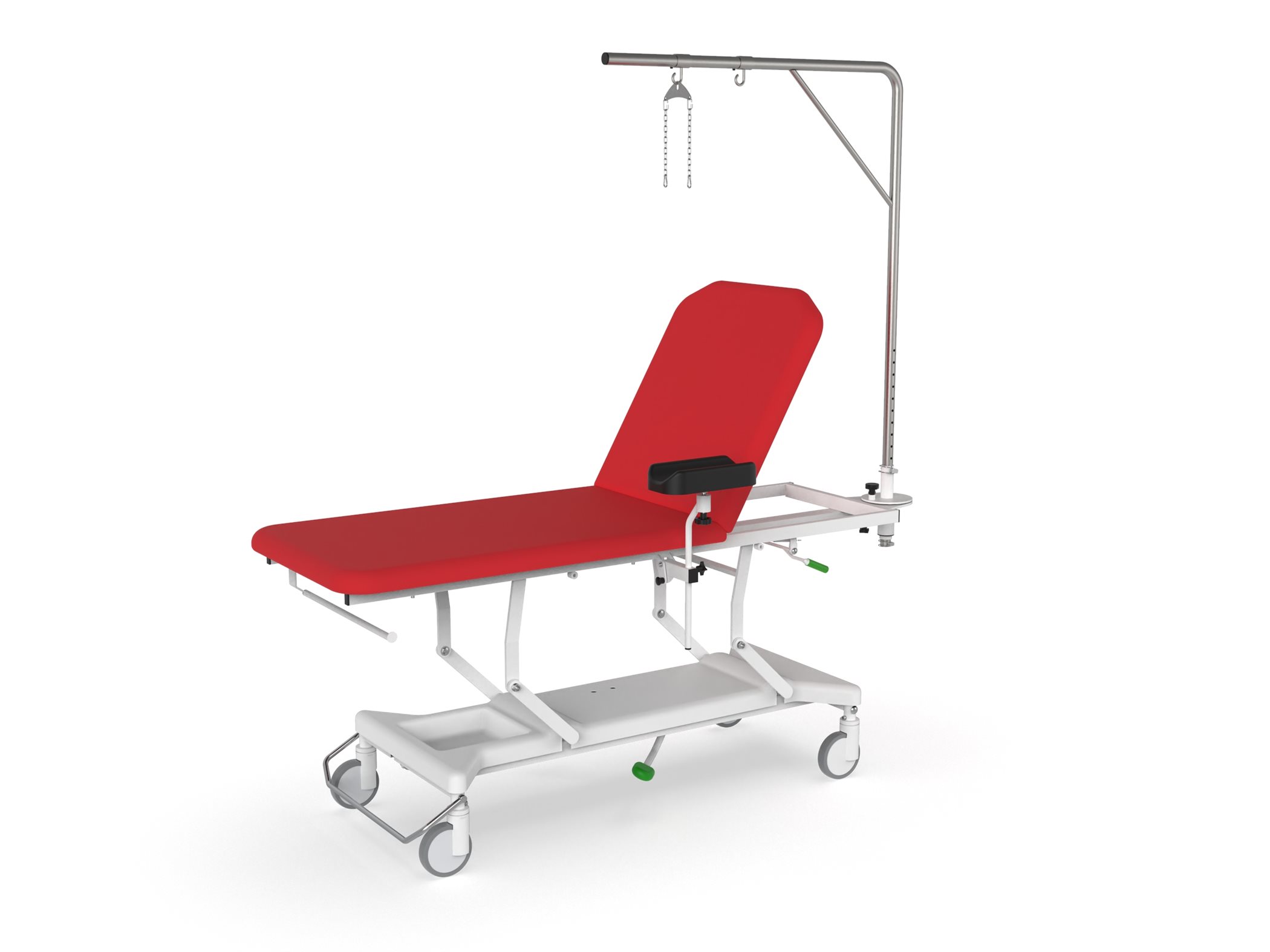

OSTEON
A special plastering couche developed in cooperation with leading specialists in the field of fracture fixation from the Brno University Hospital is a very useful tool for medical staff.
Hydraulic lifting of the mattress platform
For easier access to the patient, the bed is equipped with an hydraulic lifting of the mattress platform.
Positioning of the back part
Thanks to the gas piston rod, the positioning of the back part of the examination couch is easy and simple to control.
High load capacity
The solid and robust construction with a load capacity of up to 230 kg forms a secure support for patient care.
Adjustable armrest
Rotating, height-adjustable armrest with the possibility of placing it on both sides of the recliner. This armrest makes it easy to adjust the height and position to suit the needs of the attending staff.
Folding armrest holder
The folding armrest holder is used to fix the armrest and allows it to be folded under the mattress platform when not needed.
Height adjustable rotating trapeze
The height-adjustable rotating trapeze with a trapeze bar placed behind the patient's head is used to suspend the upper limb during plastering.
TENTE brand castors
High-quality anti-static medical castors, also suitable for outdoor use, reduce physical strain on nursing staff during transport and handling. The castors are made of permanent non-marking material. The covers of the castors facilitate cleaning, protect the bearings from dirt and significantly extend their service life.
Medical leatherette mattress
The comfortable mattress is upholstered in medical leatherette.
Hygienic paper roll holder
Hygienic paper holder can be found under the mattress platform.
Plastic chassis cover
The plastic cover makes daily cleaning easier and faster. It also protects the chassis mechanisms, thus extending the life of the components and the overall reliability of the plastering couche.
Storage space
The patient´s personal belongings or necessary accessories can be stored in the compartment under the mattress platform.
Central brake
The central brake operated by a metal handle ensures safe handling of the couche.
Choice of colour design
The choice of colour design for the leatherette of the examination couch allows patients and staff to create an aesthetically beautiful and inviting space that can help improve mood, comfort and reduce stress.
Technical parameters
| Outer dimensions | 220 x 72 cm |
| Mattress platform | 203 x 72 cm |
| Mattress platform height | 52 - 89 cm |
| Lift of mattress platform | Hydraulic |
| Back part positioning | 0°- 85° |
| Safe operating load | 230 kg |
| Weight | 85 kg |
| Castors | 150 mm, plastic |
| Material of mattress platform | Medical leatherette |
| Plastic chassis cover | Yes (optional) |
| Paper roll holder | Yes (optional) |
| Plastering trapeze including accessories | Yes (optional) |
| Armrest holders on both sides including one armrest | Yes (optional) |
