URGENT TOP

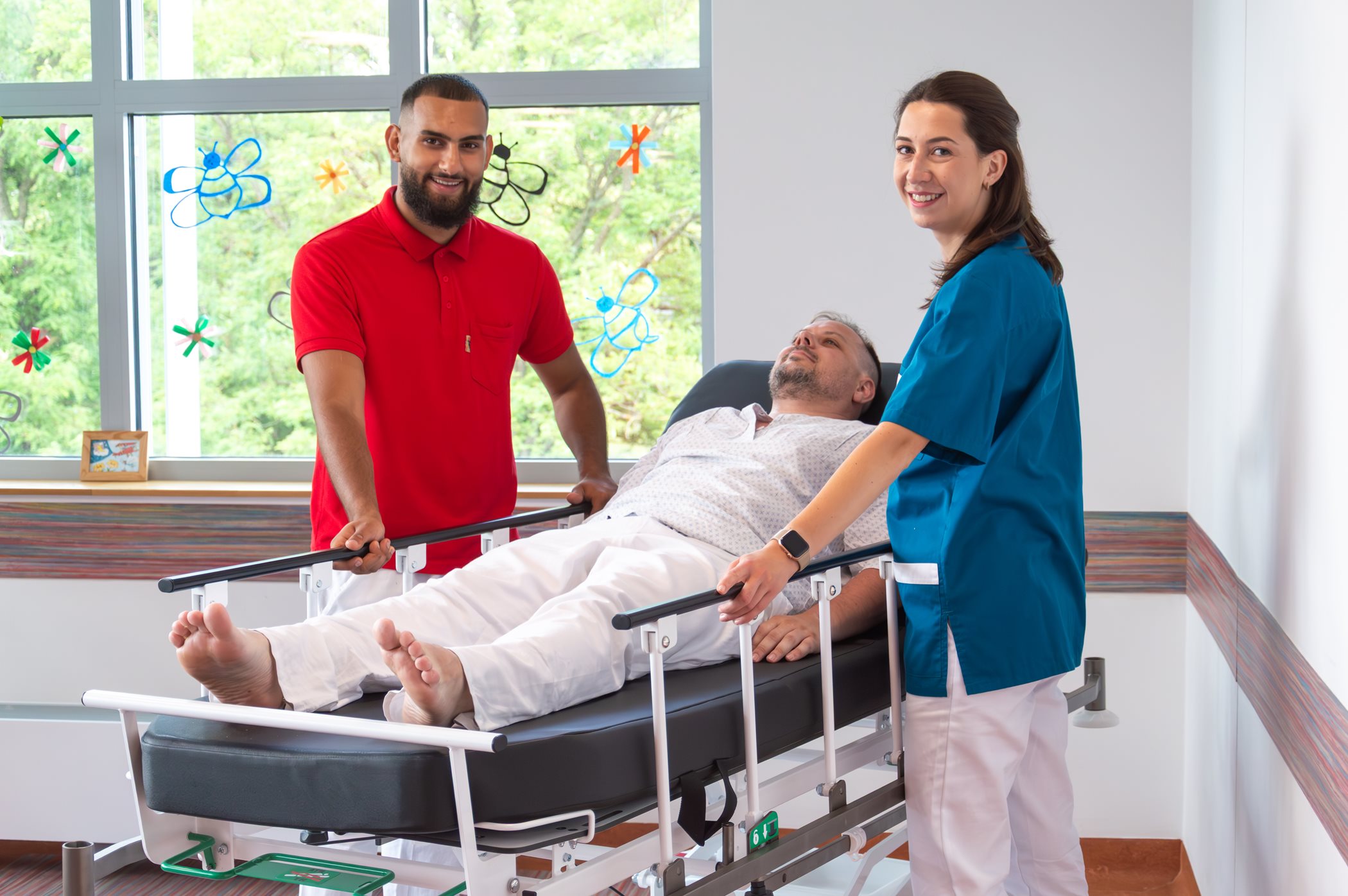

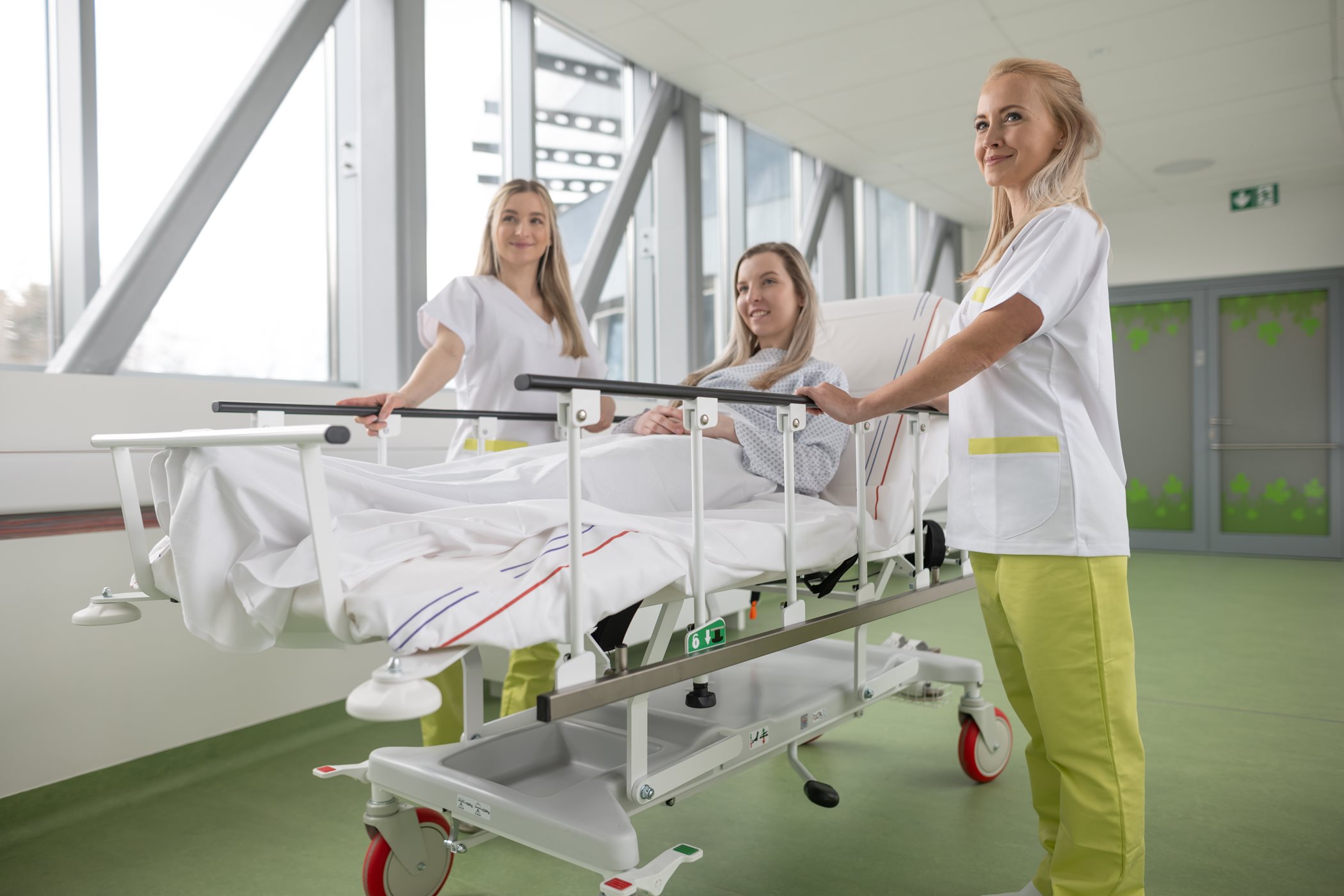

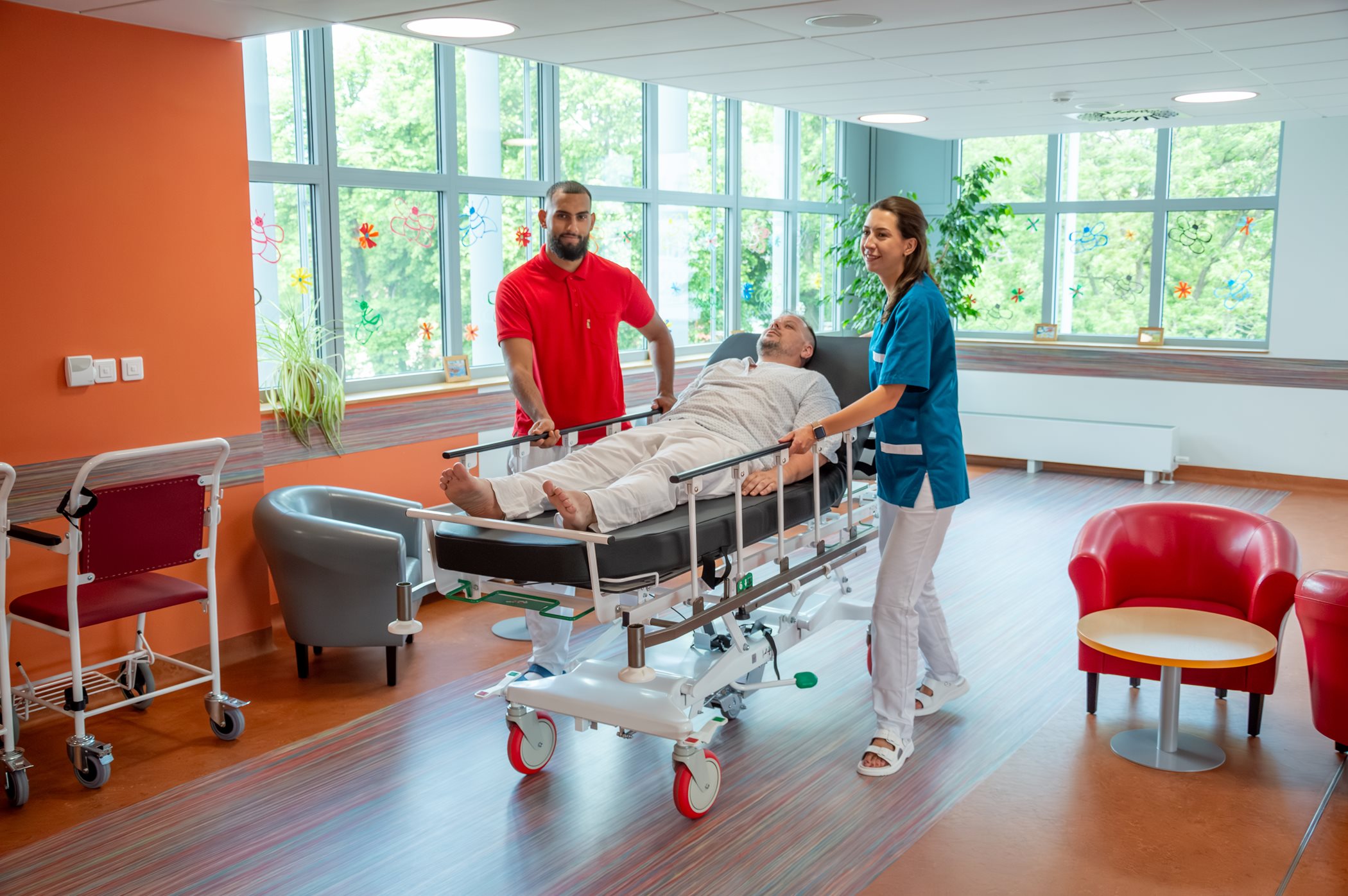

Transport stretcher for fast and safe transport of patients

Medical staff will appreciate the easy handling, ergonomic and intuitive controls and the full range of functions. Large castors and a lightweight design ensure high mobility and easy handling. The handrails are equipped with the SAFE GAPS safety system, which eliminates the risk of pinching or trapping the hands during folding. URGENT TOP can be complemented with a wide range of optional accessories.

URGENT TOP
0%
  • /getattachment/6cf7b237-6d9b-40f1-86f8-62712f4f6943/01.jpg
  • /getattachment/cb785327-21b7-4fa8-988e-32a1e9a81c83/02.jpg
  • /getattachment/4ec828b2-0057-409a-b7ac-b8f3db0d84a0/03.jpg
  • /getattachment/afd992df-05bf-4e64-9460-36cb888272ec/04.jpg
  • /getattachment/4924ced7-7597-419c-aa3b-b9f9e6bf19cc/05.jpg
  • /getattachment/de2278b6-3c36-4a78-aeda-b7b493ef43d0/06.jpg
  • /getattachment/e9d982ee-edf1-478b-8073-529b642d0c9e/07.jpg
  • /getattachment/9a71a573-0f4e-4ce7-aece-9c945c6d6aaa/08.jpg
  • /getattachment/9a7fd0a7-17be-4b38-b192-c305e7741bd3/09.jpg
  • /getattachment/0f07d4f5-d12a-4dc1-934a-65800adadb16/10.jpg
  • /getattachment/ec8c9019-5cb9-4a67-a5cc-5652edffe99d/11.jpg
  • /getattachment/319afbbd-8f7c-416f-9e4c-d5c44668fcb9/12.jpg
  • /getattachment/8e9d34bc-0eb6-4b31-9f5e-fbc25042a617/13.jpg
  • /getattachment/6cd95057-c5fb-4a96-86ec-67a1f0dae845/14.jpg
  • /getattachment/68deb7af-3a2c-4797-97a2-d9ae2a20f6e3/15.jpg
  • /getattachment/7a1668e6-1df5-488d-9487-19221479b362/16.jpg
  • /getattachment/9c7468d5-0276-42e3-b797-2771d31975b7/17.jpg
  • /getattachment/5e22e90c-bcfe-4ad7-bdd6-26fcaafe2a32/18.jpg
  • /getattachment/5930e9de-2906-4a0d-9fa1-adb7f28b66a4/19.jpg
  • /getattachment/5a9acba6-fed8-44fa-a406-8f95c03a008a/20.jpg
  • /getattachment/857727a5-e968-4fdc-95ad-b289b5104197/21.jpg
  • /getattachment/c17fab09-f42b-42c9-9df3-6cb97470bc9b/22.jpg
  • /getattachment/d82f4c7d-94c6-4a31-b72e-1fb94463037f/23.jpg
  • /getattachment/6b9abcf6-2ef5-48a2-aaf7-2eda0060ffc0/24.jpg
  • /getattachment/7d2c1e1f-88c3-4a9f-a0e3-616277c1cecf/25.jpg
  • /getattachment/07e40b39-9760-4110-a9c9-7b79068ce04e/26.jpg
  • /getattachment/acfe1edb-7e02-45f3-b245-220b4e6c50b4/27.jpg
  • /getattachment/3dfd54be-cdfc-4a9b-b373-5491fd79c037/28.jpg
  • /getattachment/7f2bb92f-37c6-4a2a-939c-78ca8d017267/29.jpg
  • /getattachment/3d4dea26-88a4-452e-ac7b-78956477d2d0/30.jpg
  • /getattachment/e19b0c16-d6ae-49a8-891a-56d83af0b84d/31.jpg
  • /getattachment/461e37c5-288d-47d8-99e0-4be1397504af/32.jpg
  • /getattachment/700cba2e-31a7-4592-bf23-c9f368ade62e/33.jpg
  • /getattachment/7628561b-4a69-47f8-b266-e07d5bf723a8/34.jpg
  • /getattachment/971595fc-cb57-4b9f-b66d-4b2bf62a2bd1/35.jpg
  • /getattachment/8d56a0e4-ab6e-4489-8958-88c3120edc9a/36.jpg
  • /getattachment/6ad62275-5879-4b59-95ef-13061d041f26/37.jpg
  • /getattachment/85270c5d-ad4a-449a-b7af-86dc27ac1919/38.jpg
  • /getattachment/3366fbcc-dd47-4a76-b24a-dc5c18567f1b/39.jpg
  • /getattachment/fc073296-2ac5-4f21-aa2b-6dc81c752c71/40.jpg
  • /getattachment/0fb0a237-cdb0-4228-87b4-b7eca1339897/41.jpg
  • /getattachment/c673b2b5-2422-4fa7-88c6-b9fc851f91a5/42.jpg
  • /getattachment/d8e027a5-a6b5-460a-91a8-1684df84dceb/43.jpg
  • /getattachment/abd2a6f9-96a3-43d5-94cf-cc341c1ca675/44.jpg
  • /getattachment/ef0478c9-1105-46b6-befc-224fb6871f6c/45.jpg
  • /getattachment/956e41d3-3dcc-4834-ab32-edbb959f4c3f/46.jpg
  • /getattachment/f36bed3c-f9d7-4840-a061-58a2eab4e143/47.jpg
  • /getattachment/7b2599ba-179a-4305-a7aa-99d311700bd4/48.jpg
  • /getattachment/3e49c1a0-f37c-4504-b614-cacfd3a622f8/49.jpg
  • /getattachment/a6c57d84-7b94-4a17-a2c7-fdd3407193be/50.jpg
  • /getattachment/c9af0515-47db-430d-bad9-dd208f3676d3/51.jpg
  • /getattachment/db1798e7-dbbd-42bc-a0bd-80cff78948bc/52.jpg
  • /getattachment/111adfee-8ed5-4b57-bd44-d4d09d769813/53.jpg
  • /getattachment/3ee40493-0009-4fd5-aa5c-15f86e81374b/54.jpg
  • /getattachment/f74ac3b6-a261-4015-8db6-145f6071d3e6/55.jpg
  • /getattachment/c7fca09e-c087-4706-a43f-650c009d27cb/56.jpg
  • /getattachment/6a4b128f-9c4f-4f7e-9174-2a63bbcedb2f/57.jpg
  • /getattachment/7dded182-874b-4c66-bfe0-28aca1704fa8/58.jpg
  • /getattachment/b4e60bae-f72d-483b-8a7f-e927e0d8b24a/59.jpg
  • /getattachment/a0cc43b0-9c59-4c6b-ace3-d4d7565efad4/60.jpg
    Product advantages/ Highlights
    Technical parameters
    Downloads

    High load capacity

    The solid and robust construction with a load capacity of up to 230 kg forms a secure support for patient care.

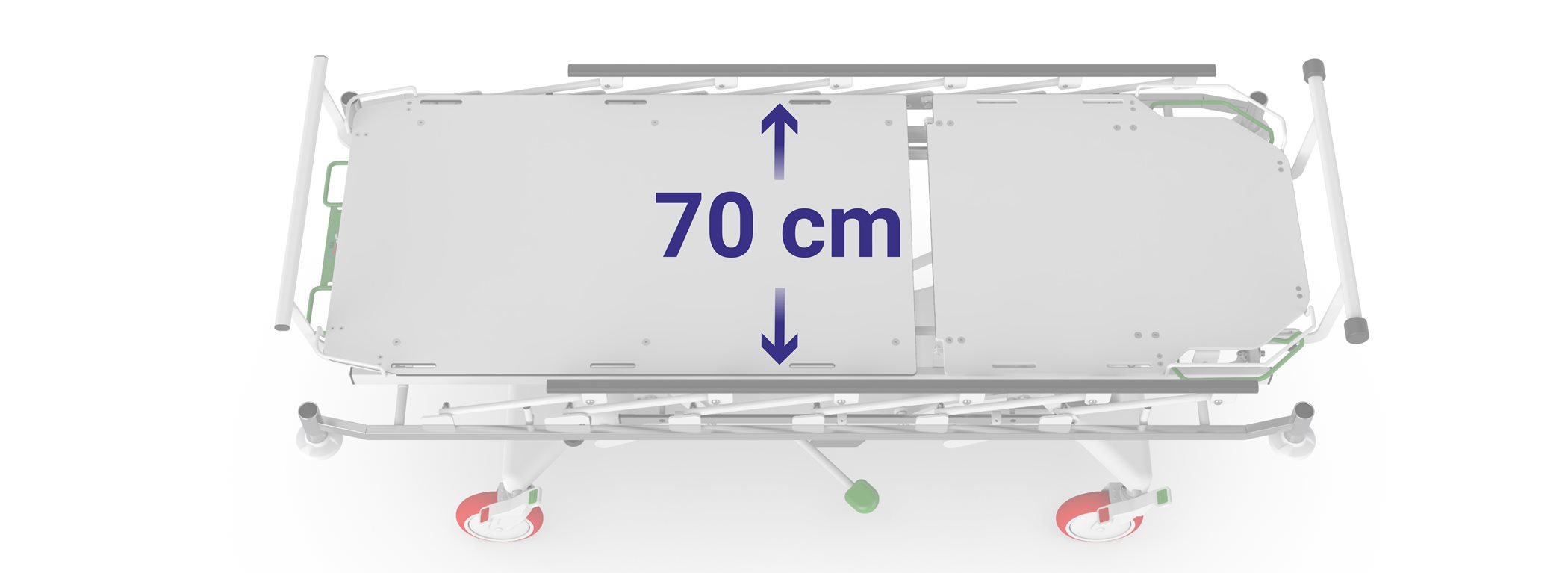

    Optimal width

    The width of the stretcher guarantees comfortable transport even for larger patients and at the same time allows perfect access for medical staff to the patient.



    Comfortable positioning

    The stretcher is hydraulically positionable and completely independent of the power source.

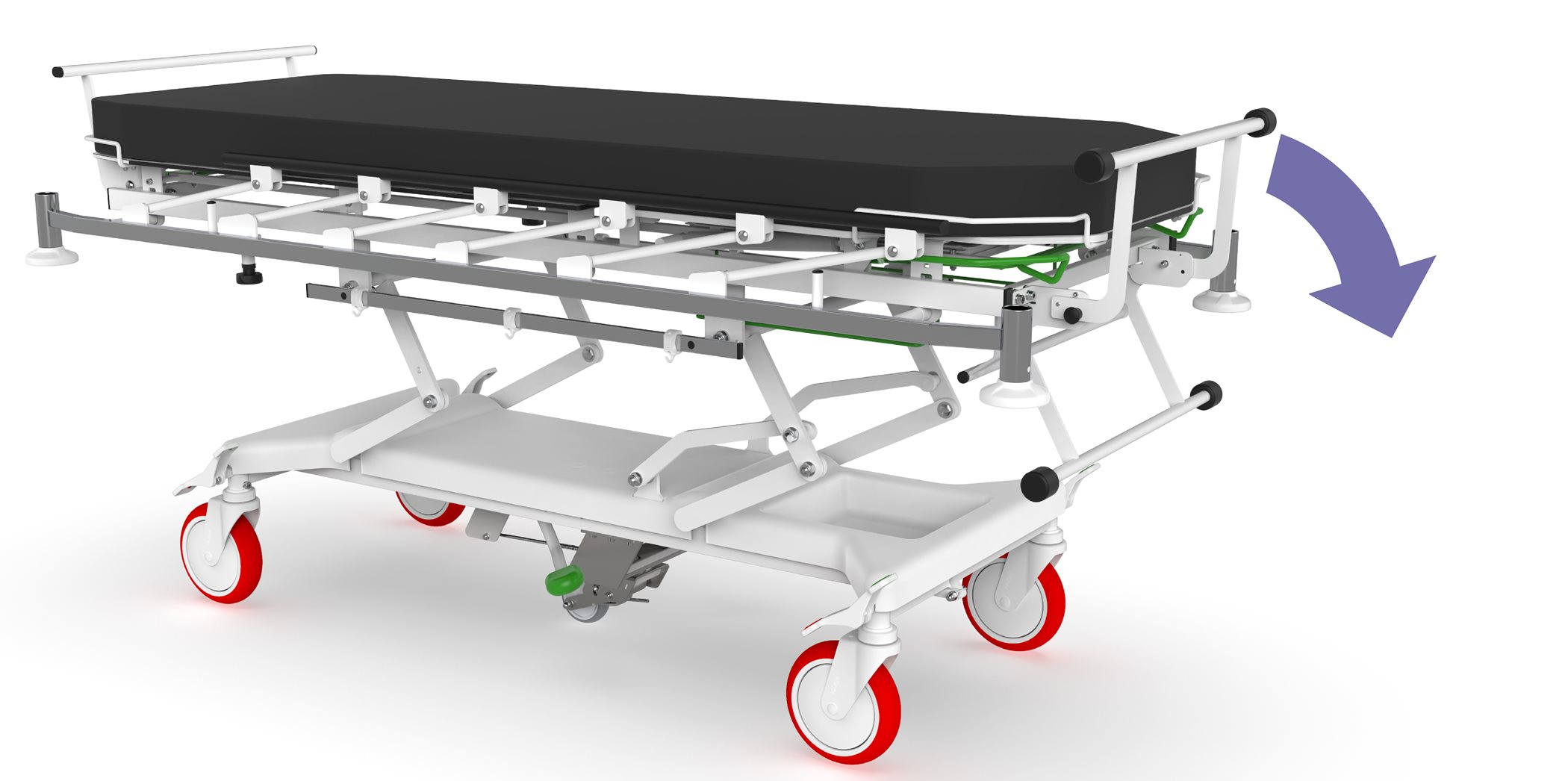

    Foldable transport handle at the head section

    The transport handle behind the patient's head allows quick folding when necessary, which is especially appreciated during resuscitation.

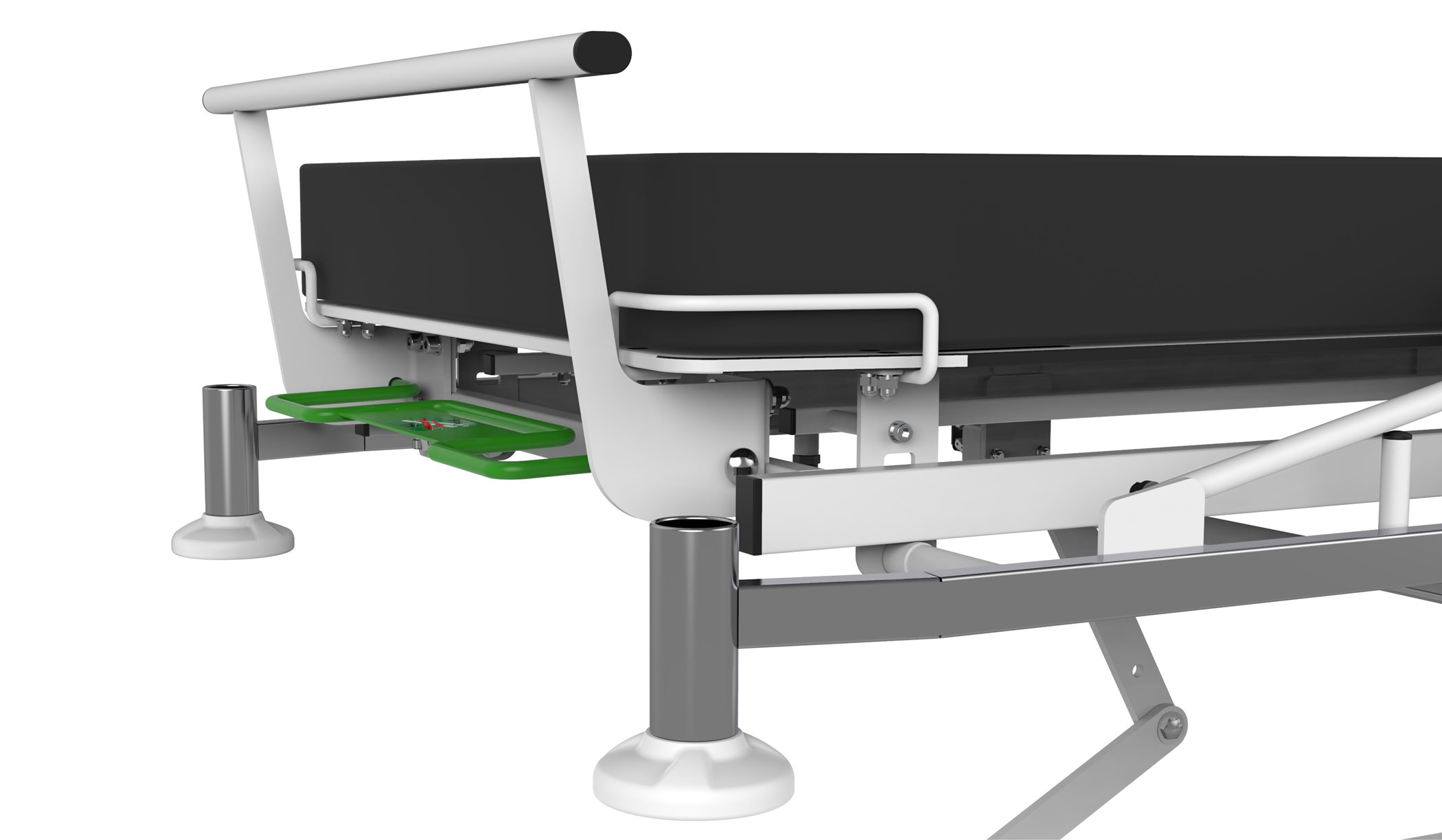

    Transport handle at the foot section

    For easy patient transport, the stretcher is equipped with a fixed handle in the foot section.

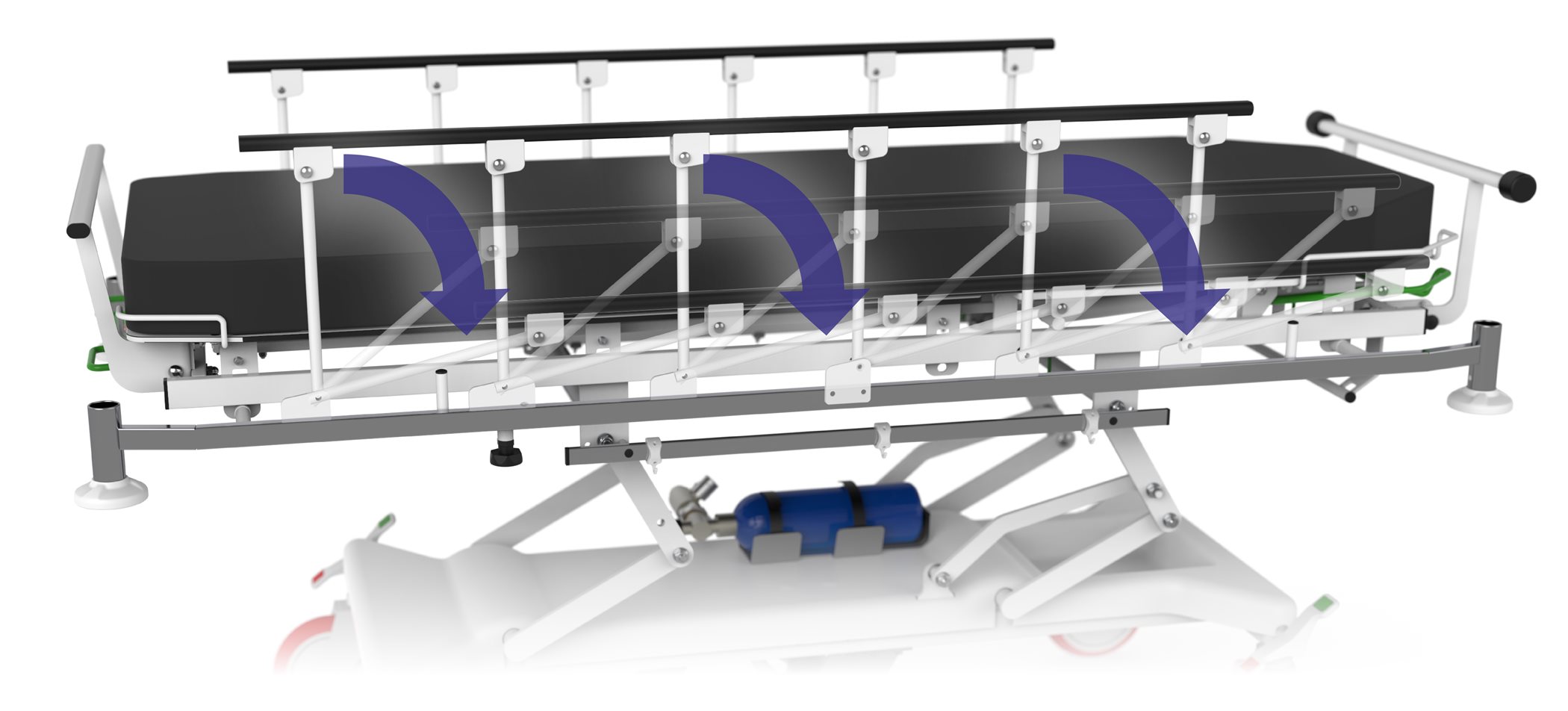

    Safe side rails

    The protective side rails along the mattress platform can be easily folded down to provide immediate access to the patient. Thanks to the SAFE GAPS safety system, the risk of pinching or trapping the arm during folding is eliminated.



    Easy height adjustment

    The elevation of the mattress platform is controlled by an easy-to-use foot pedal accessible from both sides.

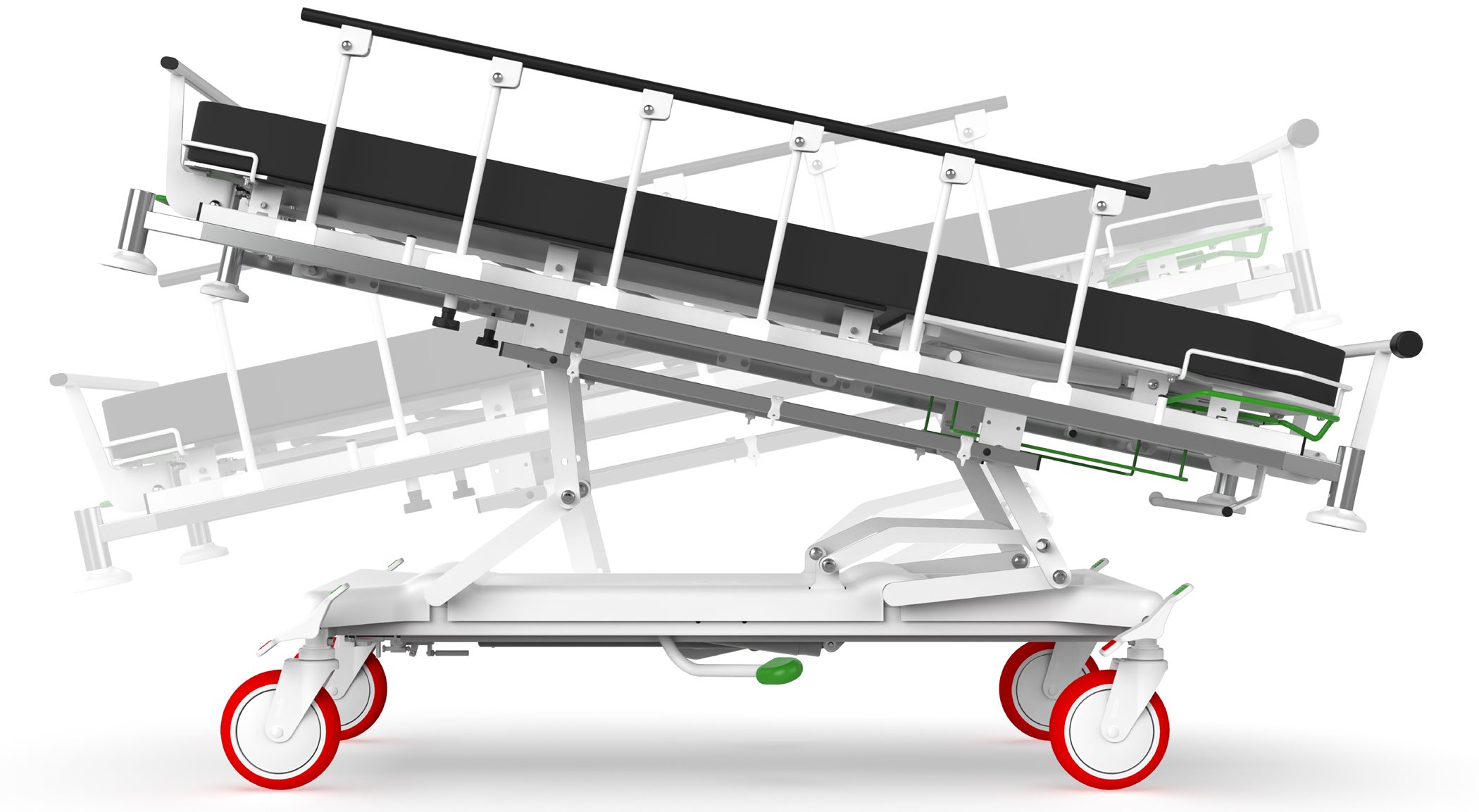

    Trendelenburg / Anti-trendelenburg

    The stretcher is equipped with a mechanism that allows adjustment of the mattress platform to the Trendelenburg and Anti-trendelenburg positions (12°/12°).



    X-rayable mattress platform along the entire length of the stretcher

    To speed up the patient examination and facilitate the work of the medical staff, the stretcher is equipped with a full-length radiolucent HPL surface.

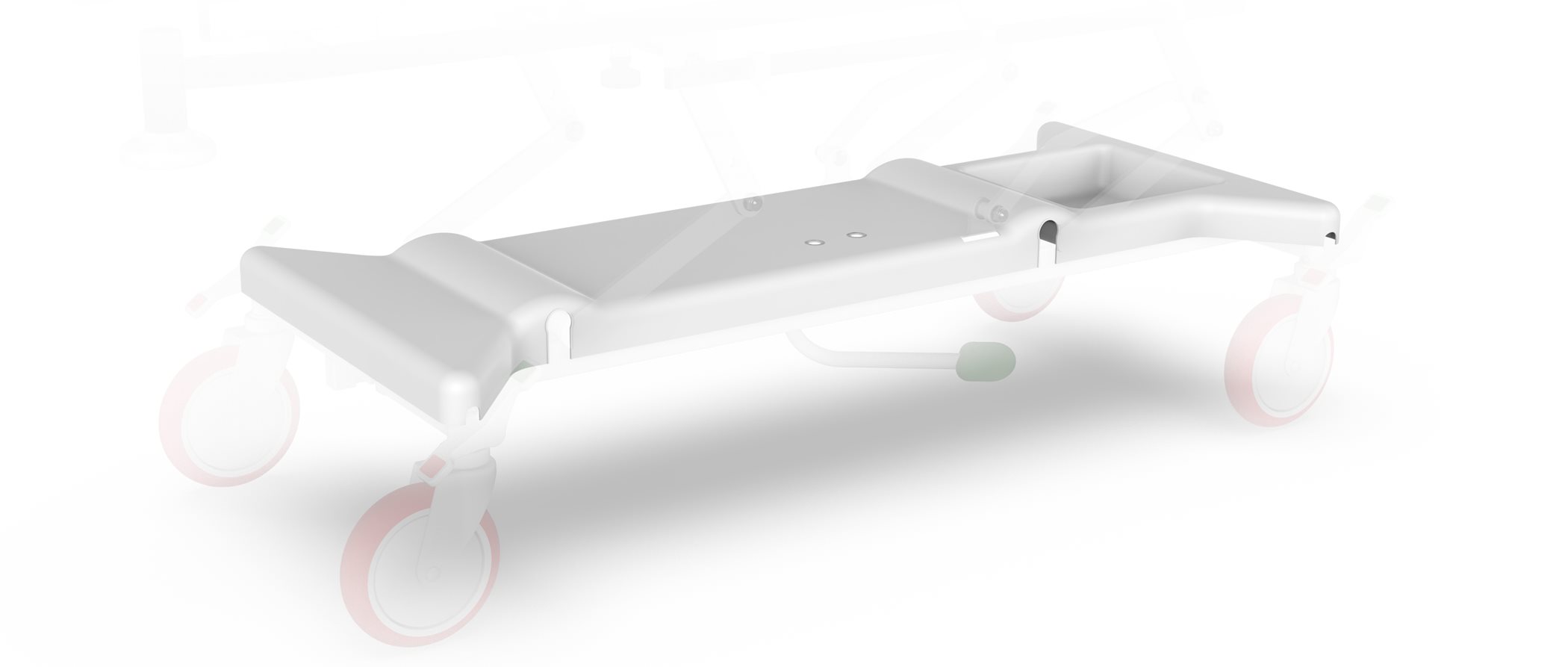

    Plastic chassis cover

    The plastic cover makes daily cleaning of the stretcher easier and faster. It also protects the chassis mechanisms, thus extending the life of the individual components and the overall reliability of the stretcher.

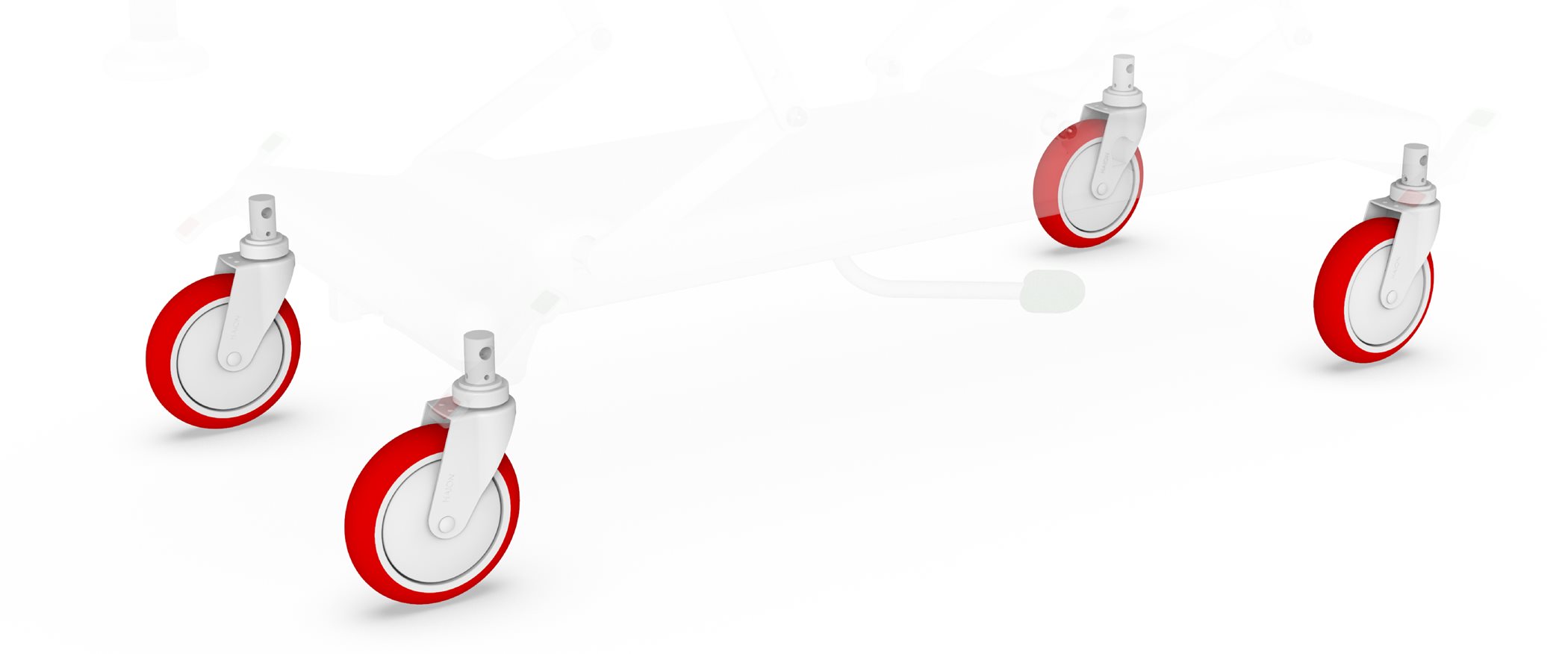

    TENTE brand castors

    High-quality anti-static medical castors, also suitable for outdoor use, reduce physical strain on medical staff during transport and handling. The castors are made of permanent non-marking material. The covers of the castors facilitate cleaning, protect the bearings from dirt and significantly extend their service durability.

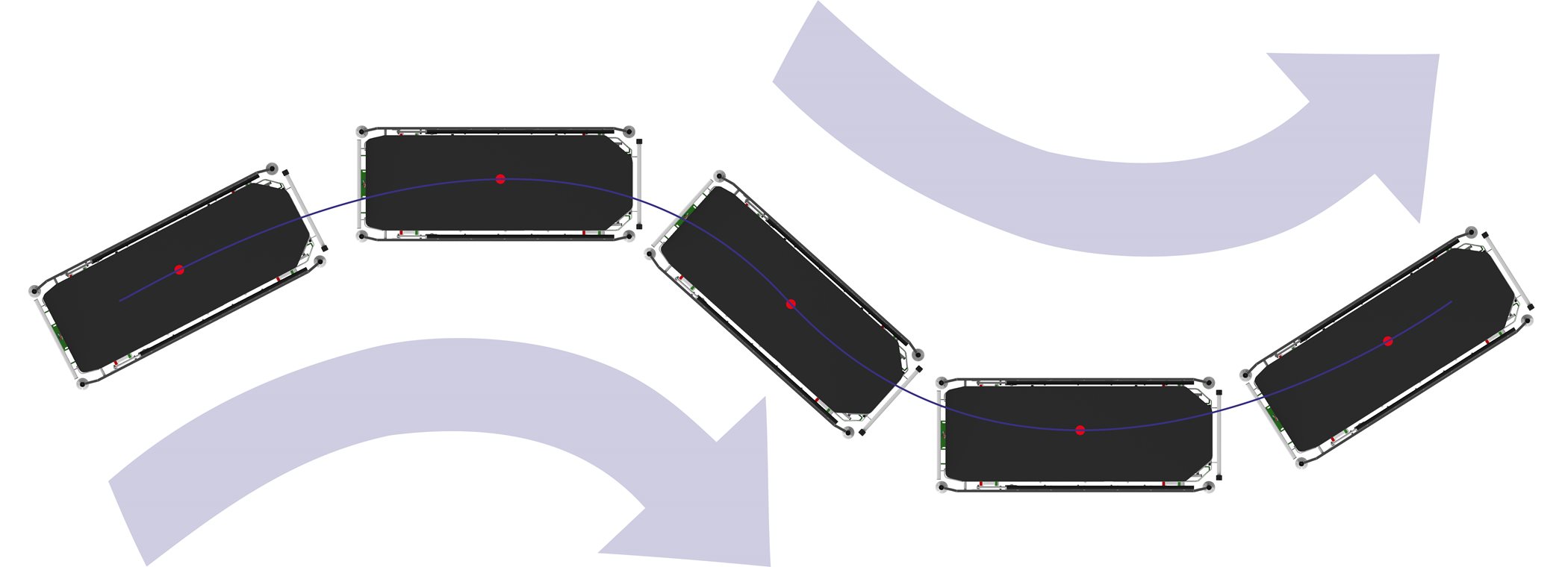

    Fifth wheel

    The fifth wheel ensures easy and intuitive handling of the stretcher. This feature is particularly appreciated in rugged areas and when handled by one person.

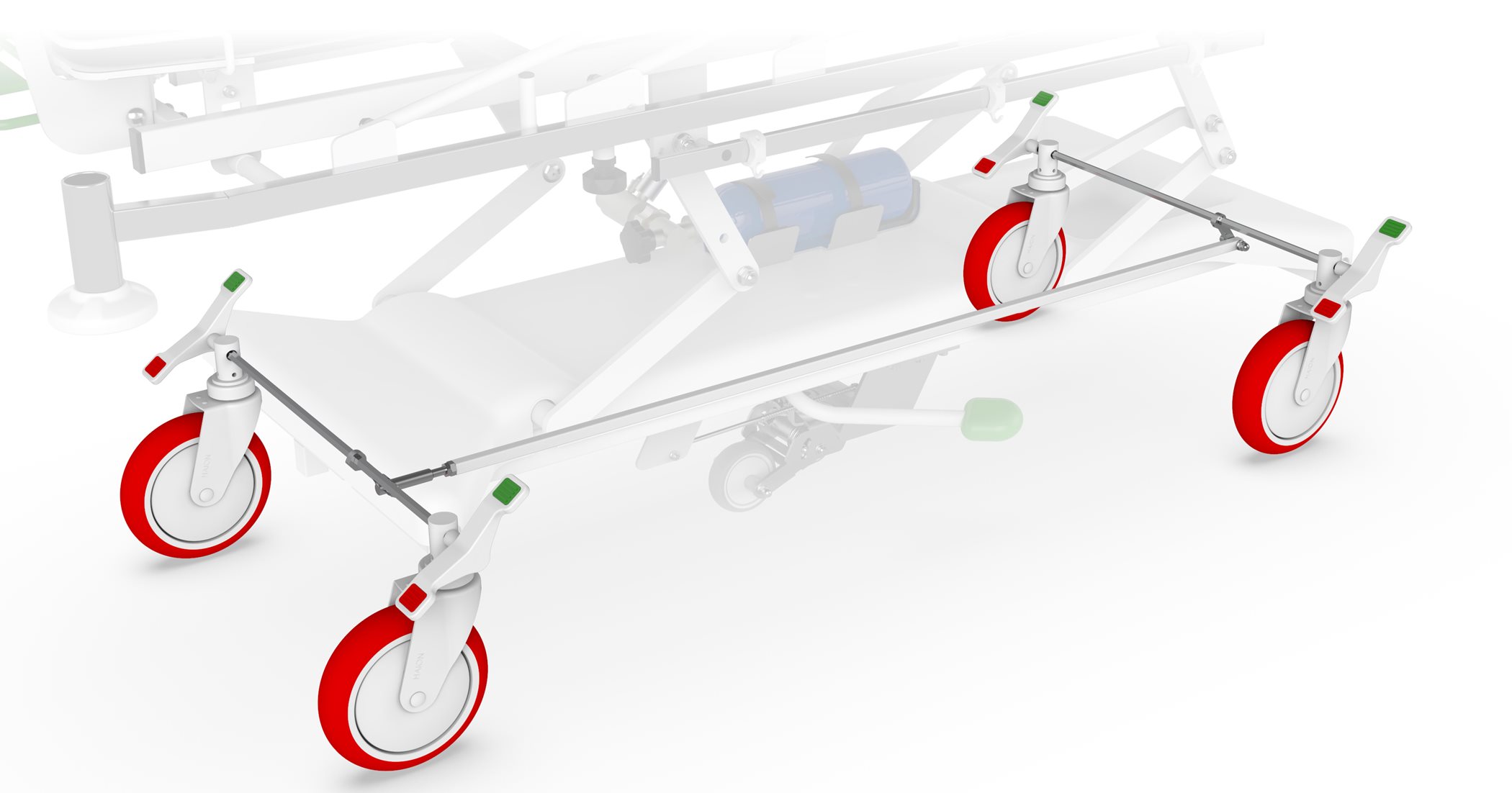

    Central brake

    The central brake pedals, accessible at both the head and foot sections, allow safe and quick braking. Thanks to the possibility of locking the castors in the straight direction of travel, the stretcher can be easily operated by only one person during transport.

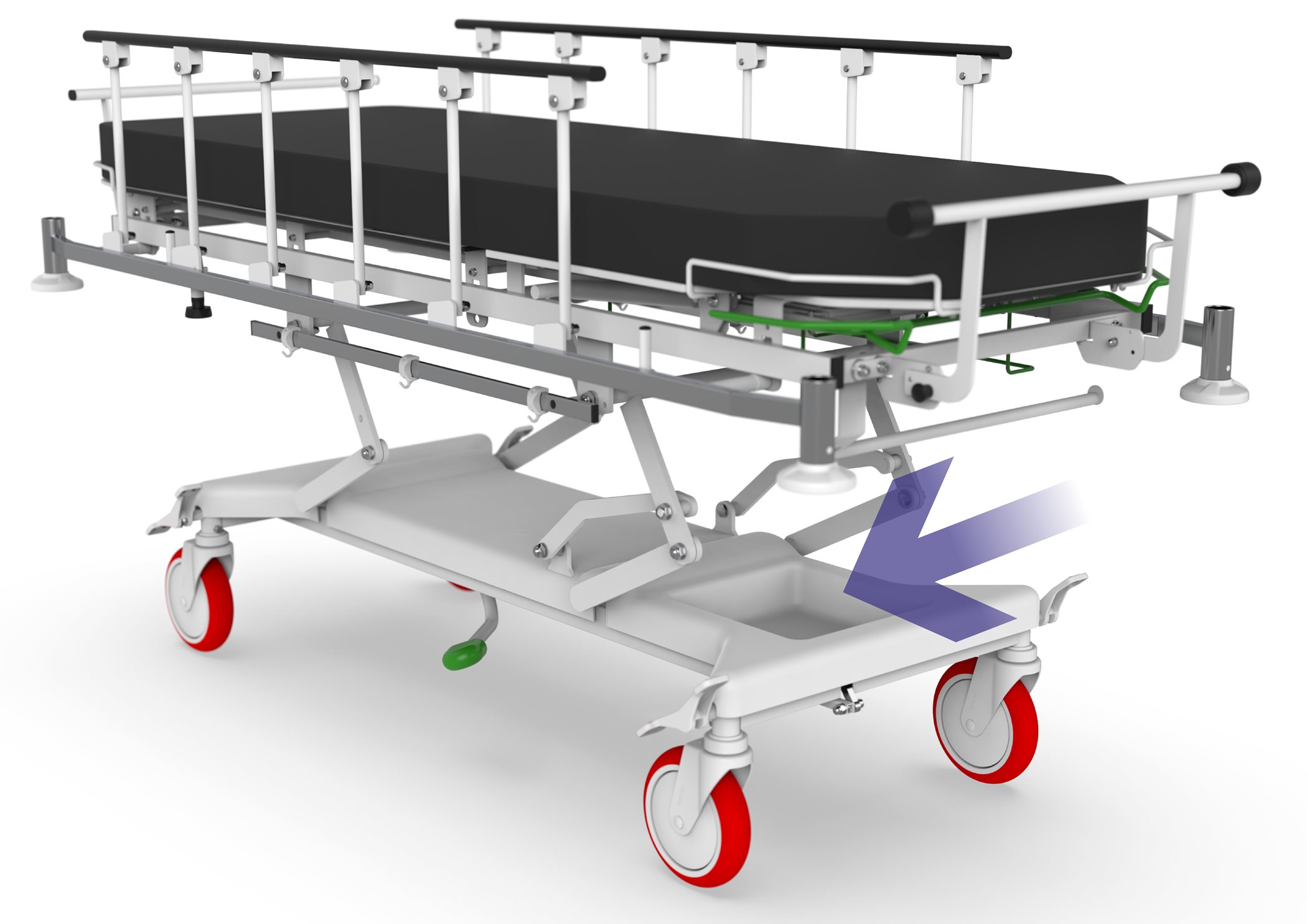

    Storage space

    The patient's personal belongings or necessary accessories can be stored in the compartment under the mattress platform.

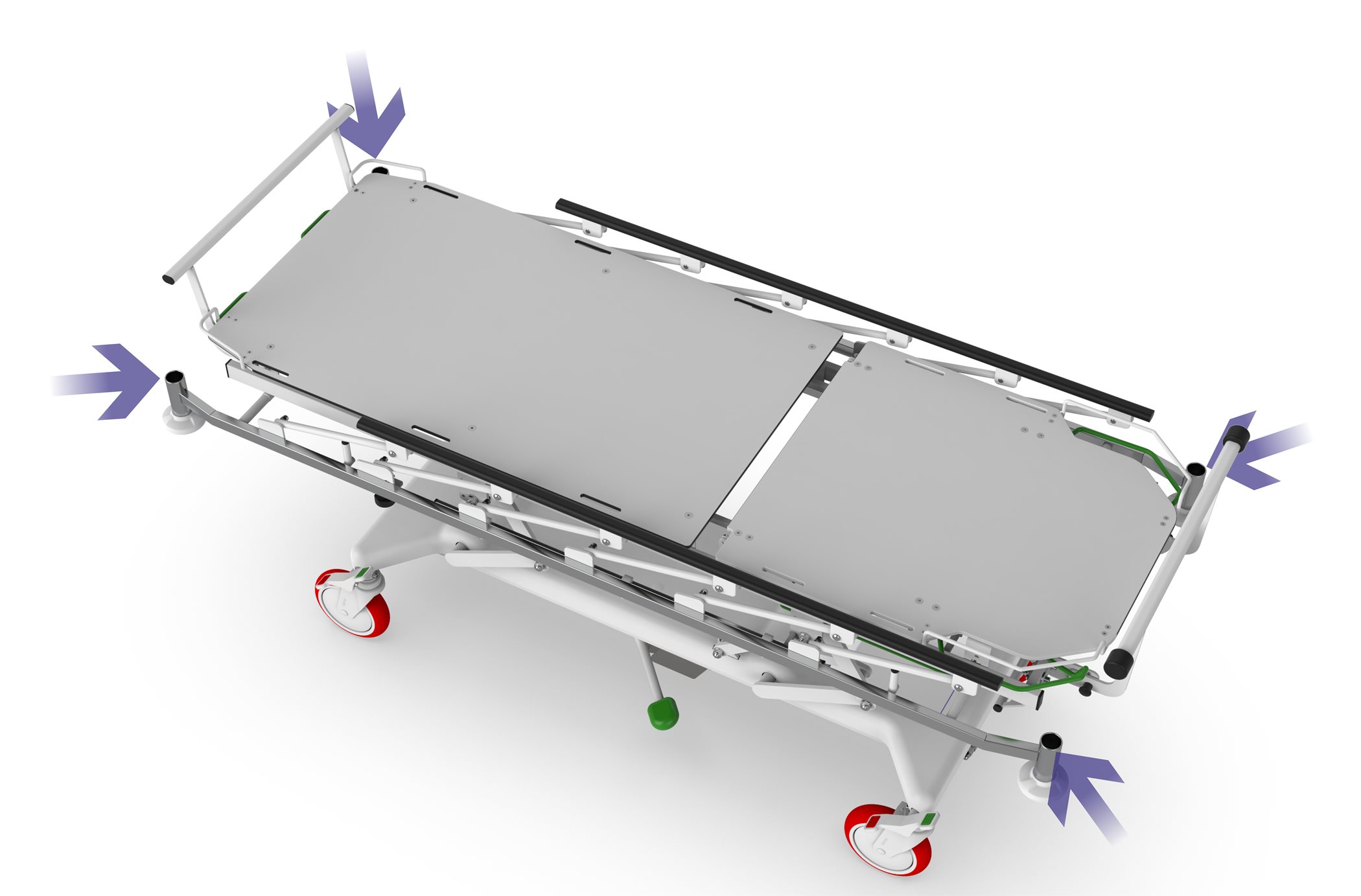

    Universal accessory holders

    The compatibility of the stretcher with accessories is ensured by universal accessory holders. They allow the use of the most common accessories such as infusion stands or monitor holders. When not in use, the infusion stand can be simply stored in the special holder below the mattress platform.



    Infusion stand transport holder below the mattress platform

    The infusion stand holder is conveniently placed below the mattress platform so that it is always immediately available.



    Paper roll holder

    The hygiene paper roll holder can be found under the mattress platform.

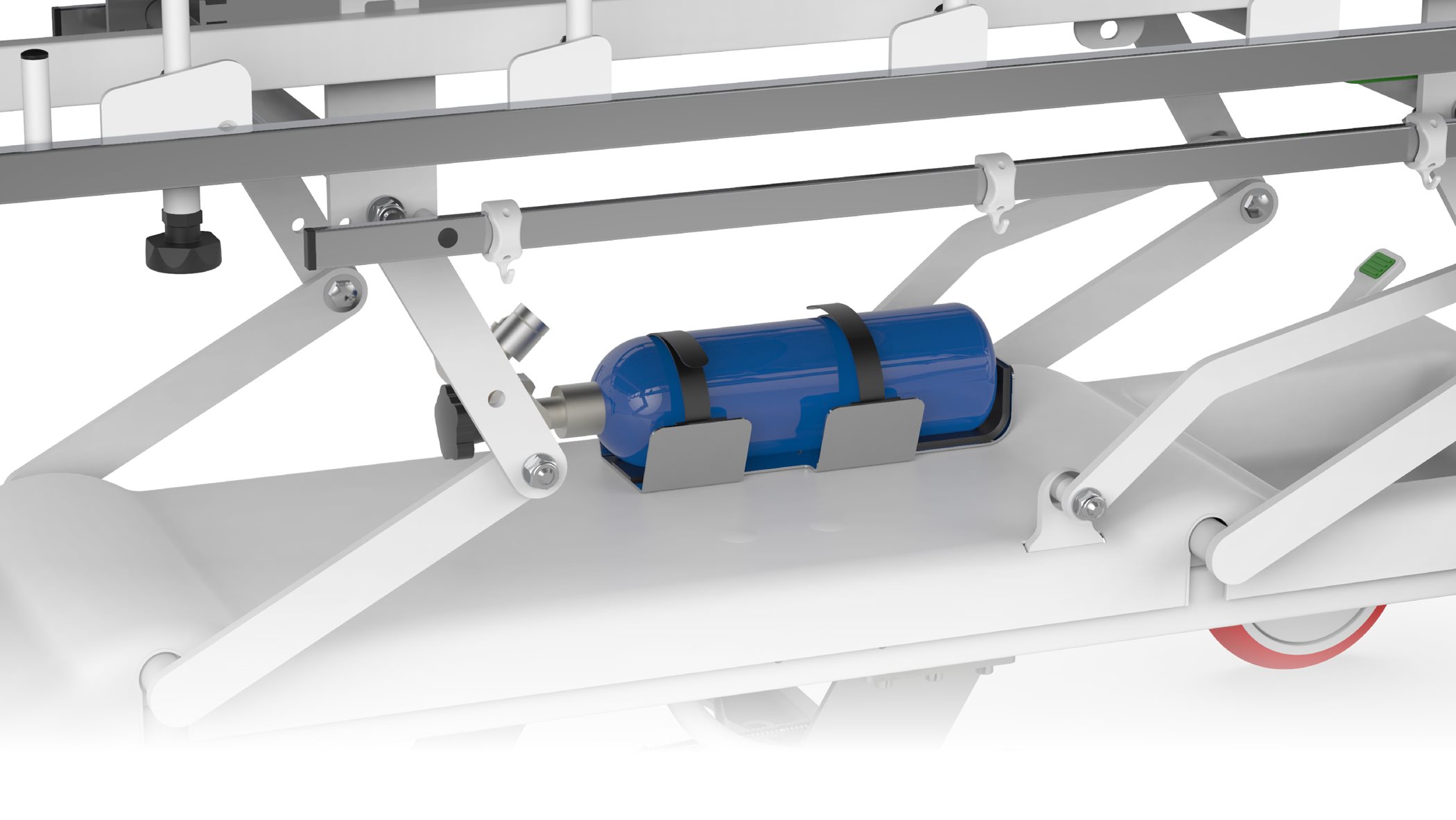

    Oxygen bottle holder

    The oxygen bottle can be safely stored and transported thanks to the special holder below the mattress platform.

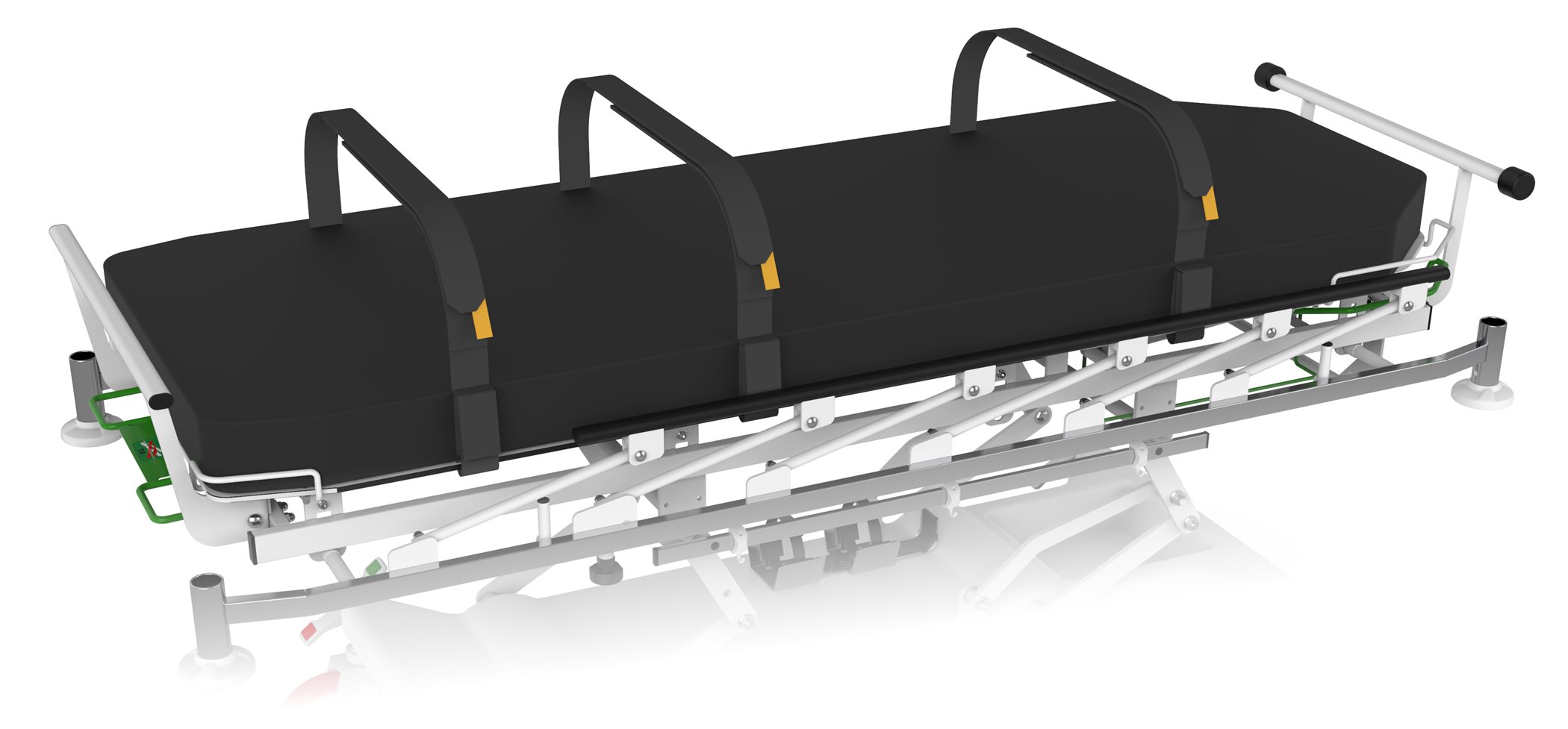

    Fixation belt set

    A set of three fixation belts is used to secure the patient to the bed during transport, ensuring safe movement.

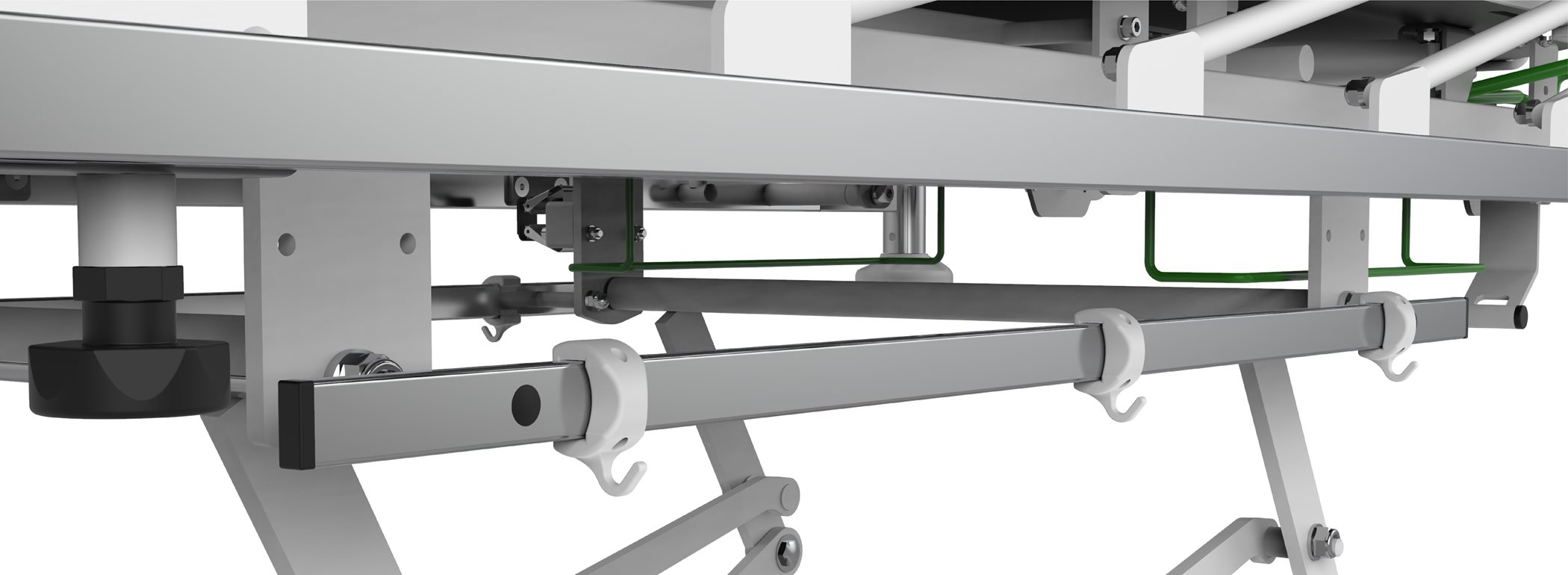

    Horizontal accessories holder

    The standardized stainless steel euro rail for hanging accessories is equipped with three universal plastic hooks on both sides of the stretcher.

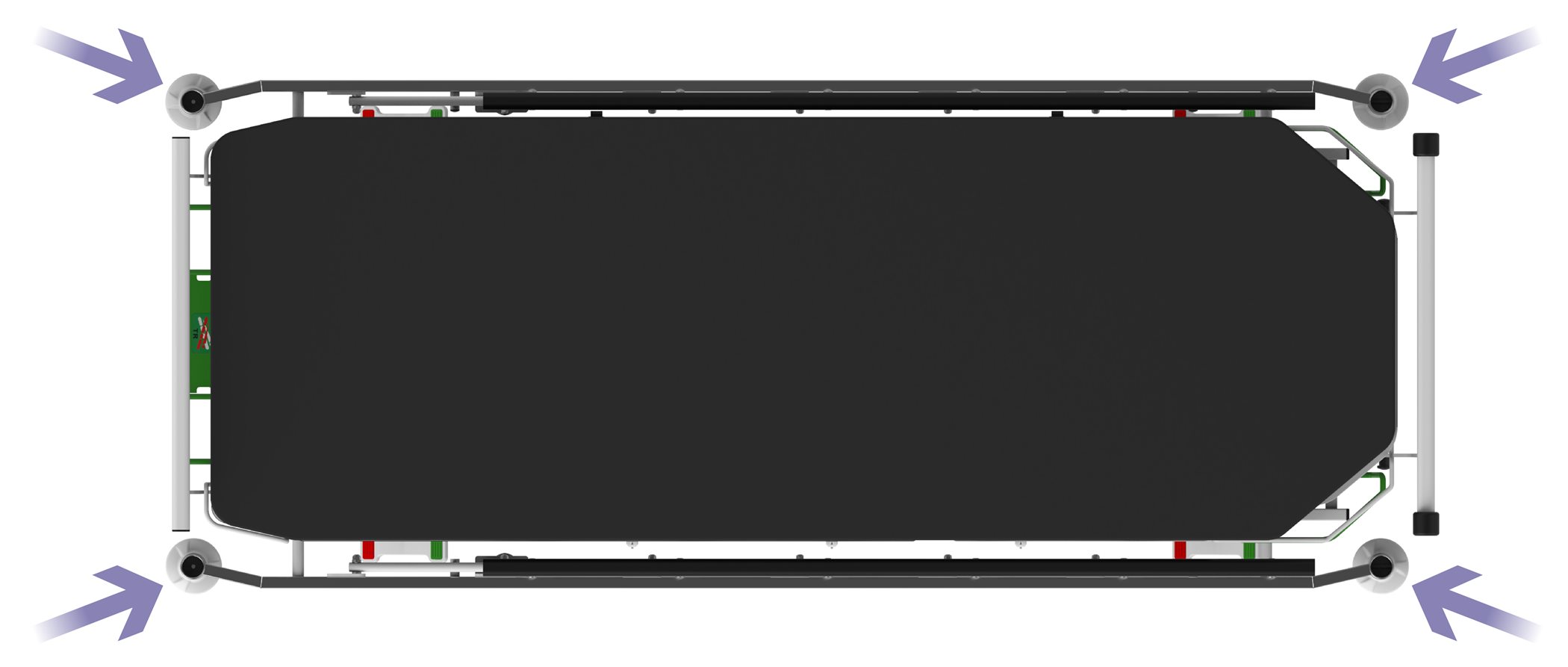

    Bumper wheels

    The bumper wheels located at the corners of the mattress platform are a great help especially during transport.



    Mattress made of medical leatherette

    The comfortable mattress is upholstered in medical leatherette, which has anti-static protection with antimicrobial properties.


    Technical parameters

    Mattress platform 200 x 70 cm
    Outer bed dimensions 216 x 88,5 cm
    Mattress platform height 57 - 94 cm
    Lift of mattress platform Hydraulic
    Trendelenburg / Antitrendelenburg   12°/ 12°
    Back part positioning 0° - 85°
    Safe operating load 230 kg
    Maximum patient weight 195 kg
    Weight 90 kg
    Type of siderails Tiltable
    Material of mattress platform HPL
    Length of back part 77 cm
    Length of pelvic part 120 cm


    Stretcher equipment

    Castors 200 mm, metal
    Type of brake Central
    X - Ray of mattress platform Yes
    Dimensions of X - Ray cassette holder 40 x 49 cm
    5th wheel Yes
    Plastic undercarriage cover Yes
    Bumper wheels Yes
    IV pole holder Yes
    Trasport holder of IV  pole under the bed  Yes
    Transport handrail foldable to head Yes
    Transport handrail to foot Yes
    Oxygen bottle holder Yes
    Holders for accessories Yes 2x
    Paper roll holder Yes
    Set of restraint straps  Yes (optional)
    Monitor shelf Yes (optional)
