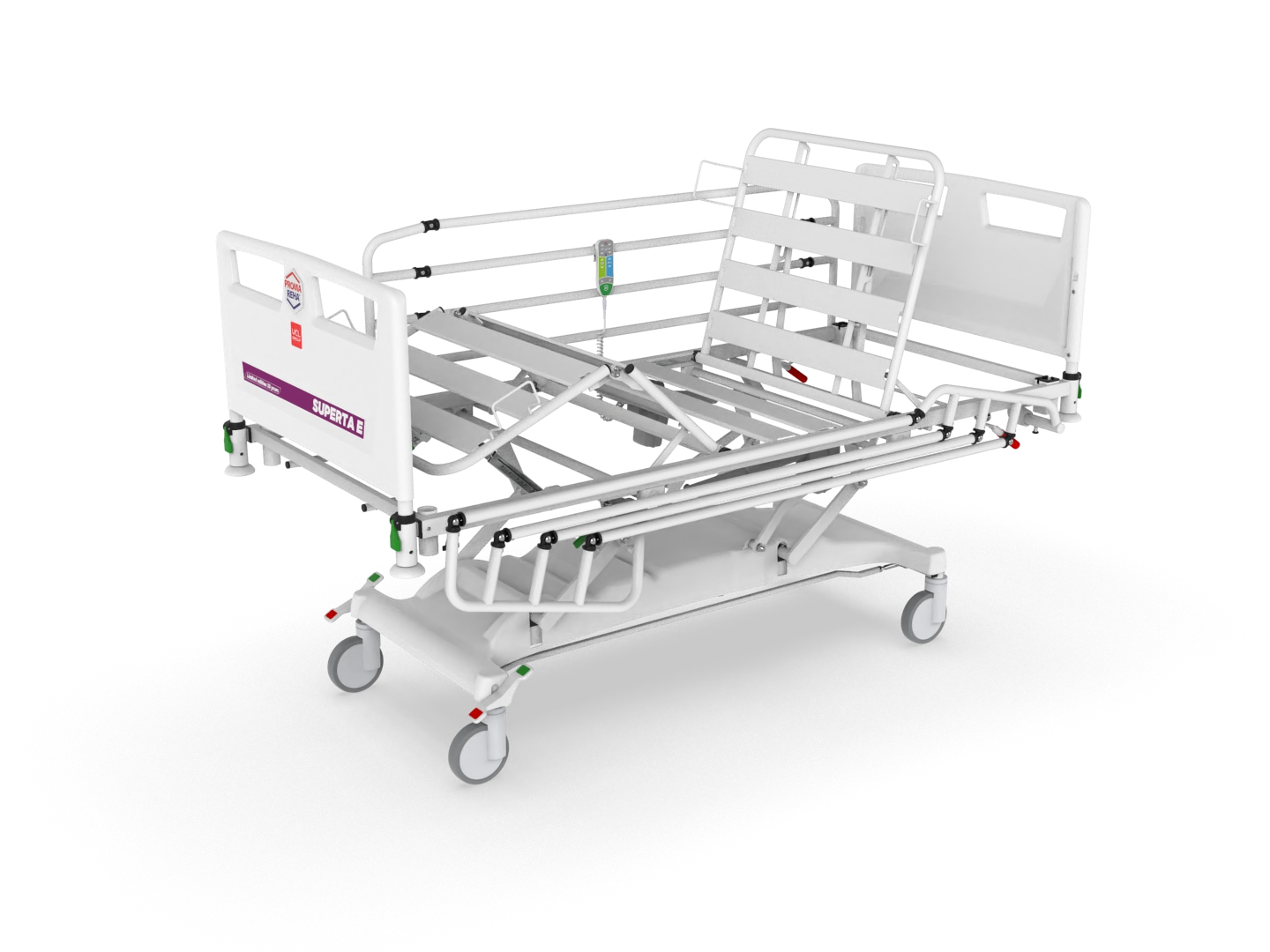

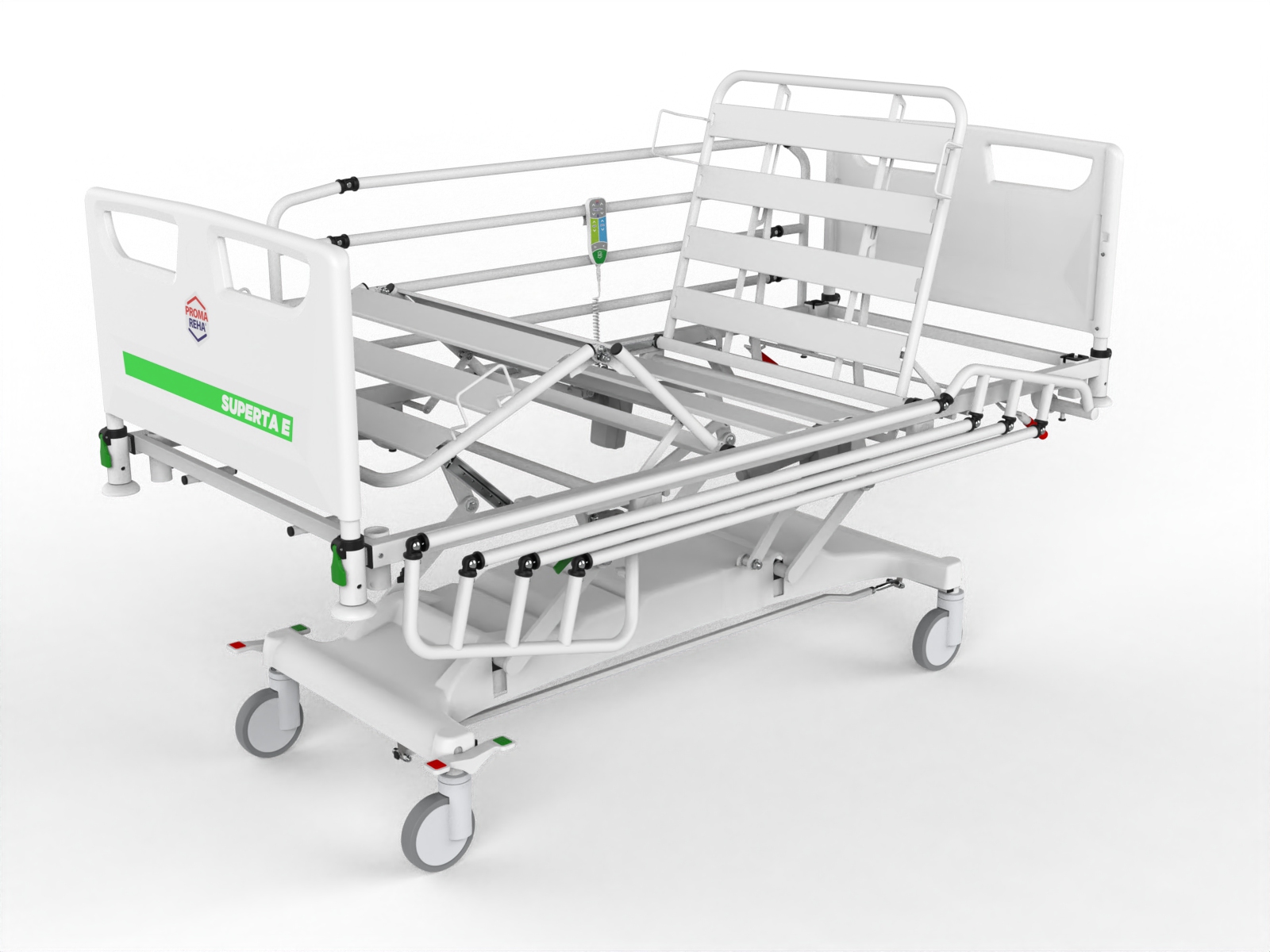

SUPERTA E

Bed for standard and supra-standard hospital care

SUPERTA E, like all our beds, are distinguished by their professional workmanship down to the last detail. The beds are equipped with electric positioning of the back and leg parts of the mattress platform.


SUPERTA E
0%
  • /getattachment/f3eaa5d8-1a77-4dac-81c3-7750ddd985ab/SUPERTA-E-059.jpg
  • /getattachment/0ca0fdae-2124-4b18-af91-f9768c6fe4e4/SUPERTA-E-060.jpg
  • /getattachment/aca2bb6e-0d89-4692-a845-6dabfbbebf79/SUPERTA-E-061.jpg
  • /getattachment/544e0a5c-d419-46ce-9bb2-bcdff3f332a0/SUPERTA-E-062.jpg
  • /getattachment/22217ed8-d362-4b6f-9d63-663cdcb32e2b/SUPERTA-E-063.jpg
  • /getattachment/2a3e7e65-8504-470c-ae47-b533c18e90e7/SUPERTA-E-064.jpg
  • /getattachment/ee55526d-6184-4dbf-98f7-fbbe1603286c/SUPERTA-E-065.jpg
  • /getattachment/ff638acc-61ca-4034-909f-6075b9f83e21/SUPERTA-E-066.jpg
  • /getattachment/7ef3584e-9c8f-40d5-a22f-a3bb3af3db8f/SUPERTA-E-067.jpg
  • /getattachment/1c04567b-00a2-418b-9ade-918c1f692fc7/SUPERTA-E-068.jpg
  • /getattachment/96338796-d62d-41c5-bc0a-38686fe983c8/SUPERTA-E-069.jpg
  • /getattachment/599cf8dd-260c-4ac0-96a8-8981f2704598/SUPERTA-E-070.jpg
  • /getattachment/d014470f-d03b-4e43-8edb-11cbe623bf23/SUPERTA-E-071.jpg
  • /getattachment/eb78ffa7-7ccf-4b8a-9a1e-c59313390265/SUPERTA-E-072.jpg
  • /getattachment/4350c6b1-4b52-4eea-a91c-286d727a0f7f/SUPERTA-E-073.jpg
  • /getattachment/3ae1a92f-fd07-41e8-9338-cfa6cc0c1e0b/SUPERTA-E-074.jpg
  • /getattachment/8ff6fa3e-98c7-48bf-ab1e-b75602180dba/SUPERTA-E-075.jpg
  • /getattachment/ed475ec2-daec-48de-8393-211f9f965fb0/SUPERTA-E-076.jpg
  • /getattachment/db55dd09-3b8d-4369-8b2e-19d213e59f05/SUPERTA-E-077.jpg
  • /getattachment/e197a7af-d84c-4754-a9b8-58d330df8ec9/SUPERTA-E-078.jpg
  • /getattachment/a0130b6b-db4d-4fea-8e3b-f78b693c8ed3/SUPERTA-E-079.jpg
  • /getattachment/e2ef4892-89ae-43a2-896e-4815deae1abe/SUPERTA-E-080.jpg
  • /getattachment/47a76fb2-45ec-44e4-85bc-f054c8182a1e/SUPERTA-E-081.jpg
  • /getattachment/ff9c8ded-52b5-4ca3-8964-bf14d86f1f88/SUPERTA-E-082.jpg
  • /getattachment/d74ef0de-5e98-44b8-b681-63cb145d7dcd/SUPERTA-E-083.jpg
  • /getattachment/52598482-1e9f-4a20-b484-29f8d38f2511/SUPERTA-E-084.jpg
  • /getattachment/7e33b2c0-b935-46c5-bb0c-8b3d5a363769/SUPERTA-E-085.jpg
  • /getattachment/c6ba7214-8352-4a95-beb5-eb9d87776f6f/SUPERTA-E-086.jpg
  • /getattachment/d2d6d7ec-6290-4f4d-b9a5-7f19a4f8c758/SUPERTA-E-087.jpg
  • /getattachment/330fd0a5-b7a8-47a0-a6d6-97175537fcbf/SUPERTA-E-088.jpg
  • /getattachment/51db5625-0bb2-478b-bbe4-d1ed19ea557c/SUPERTA-E-089.jpg
  • /getattachment/d974ba9e-9fdb-4d8e-b9b8-50455ca90d84/SUPERTA-E-090.jpg
  • /getattachment/8f25d5ba-d3a1-4c62-9852-d21a1a5c6ef8/SUPERTA-E-091.jpg
  • /getattachment/a5d6ce3f-1d3d-4e0f-a65d-bbd359a914f9/SUPERTA-E-092.jpg
  • /getattachment/3ea26ed3-f723-467b-8b4f-2fcb621ecdc3/SUPERTA-E-093.jpg
  • /getattachment/531ac3a8-5397-42d7-bc0b-121df4a306cb/SUPERTA-E-094.jpg
  • /getattachment/7f7662bb-c33d-4c22-ac61-ac26c764de27/SUPERTA-E-095.jpg
  • /getattachment/2c1c5024-2391-4652-b087-588c8b3b213c/SUPERTA-E-096.jpg
  • /getattachment/05574ba7-d34c-4344-8a2f-6f8d225dc090/SUPERTA-E-097.jpg
  • /getattachment/c3f7337d-1490-4899-a6c9-92884ff434de/SUPERTA-E-098.jpg
  • /getattachment/a393f364-a5d0-42d0-942d-77d00f6e5d0b/SUPERTA-E-099.jpg
  • /getattachment/fd3e7299-1ef8-4fb9-843b-90f44dbc4e4a/SUPERTA-E-100.jpg
  • /getattachment/0fa921f5-ab4d-40fa-818e-4bd5ab4965cd/SUPERTA-E-101.jpg
  • /getattachment/aac7a2fb-4722-4017-957b-c63217349d1d/SUPERTA-E-102.jpg
  • /getattachment/b991c437-32fb-471c-9112-f4f693e5e2aa/SUPERTA-E-103.jpg
  • /getattachment/6fa539d2-4ac3-4f9b-a93c-2d0bd4ae6476/SUPERTA-E-104.jpg
  • /getattachment/f04df484-15ba-4255-ae39-499691663f91/SUPERTA-E-105.jpg
  • /getattachment/d3b5da46-13a1-4967-8b6e-402c760919a6/SUPERTA-E-106.jpg
  • /getattachment/6d6225f8-9e73-457f-9cf8-2177e8f51173/SUPERTA-E-107.jpg
  • /getattachment/60e5e045-3ee5-4c65-8958-e4a6fa475551/SUPERTA-E-108.jpg
  • /getattachment/23c9e9a7-fbd9-43fc-94f1-85fee842c228/SUPERTA-E-109.jpg
  • /getattachment/6915ea72-acf5-4bfa-8abd-9084b102b080/SUPERTA-E-110.jpg
  • /getattachment/411adbe9-6acb-4b58-8d84-907f974557d3/SUPERTA-E-111.jpg
  • /getattachment/8f8ee5ee-c8f1-4b2e-b7b2-b5a64cd89119/SUPERTA-E-112.jpg
  • /getattachment/0144058c-6bbc-4a28-a7b0-d71e4097df8e/SUPERTA-E-113.jpg
  • /getattachment/d36f8b32-b18f-4def-afc5-3f45f7caec4f/SUPERTA-E-114.jpg
  • /getattachment/f03b0367-7151-4b10-a997-7740125a6d96/SUPERTA-E-115.jpg
  • /getattachment/5bf59a00-e229-4fd0-b34d-fa08b43ad5f2/SUPERTA-E-116.jpg
  • /getattachment/dae2d282-e2e9-441c-a354-03fc2216b39d/SUPERTA-E-117.jpg
  • /getattachment/ee914714-396d-4b52-8953-7a2ed983671f/SUPERTA-E-118.jpg
    Product advantages/ Highlights
    Technical parameters
    Downloads

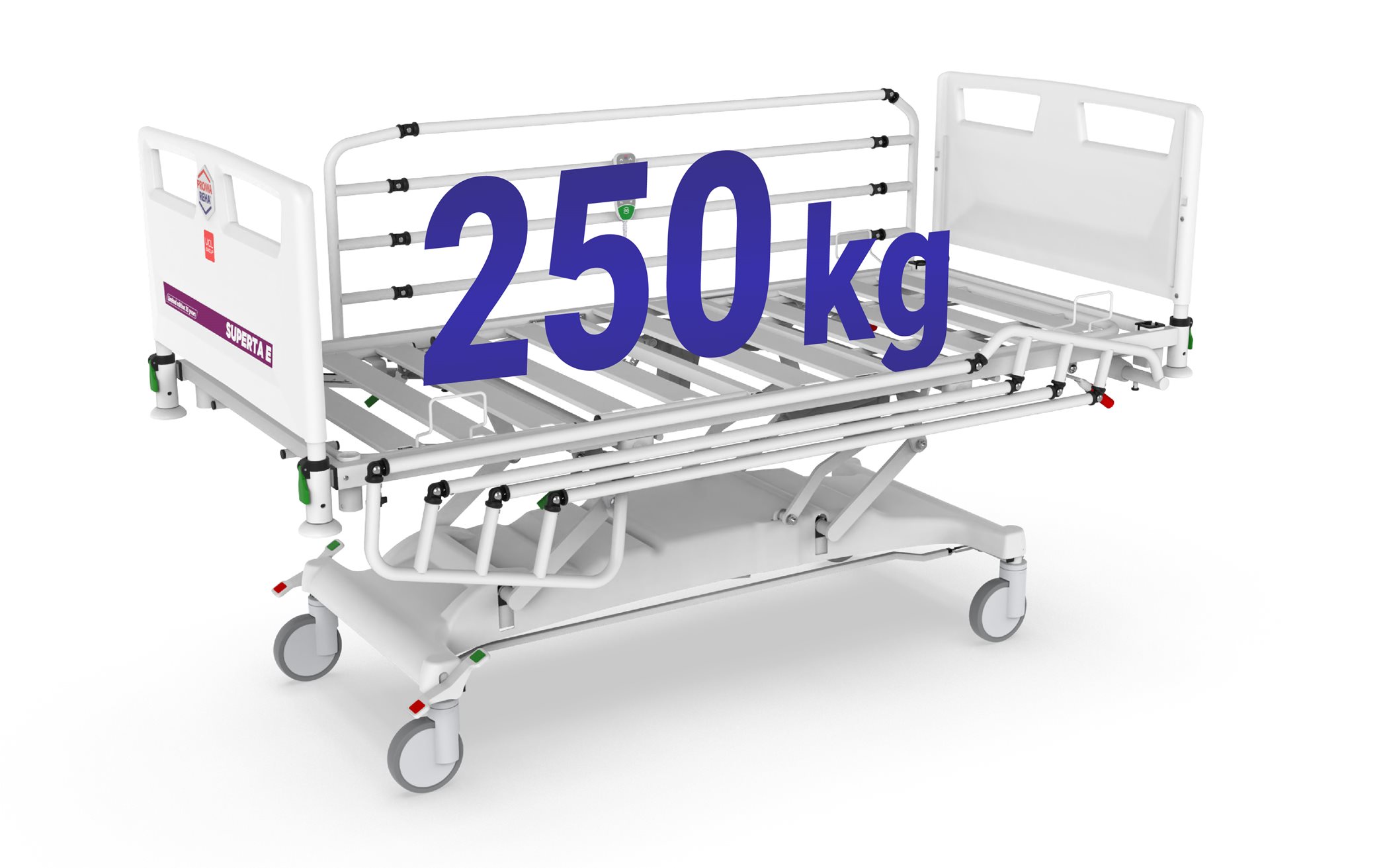

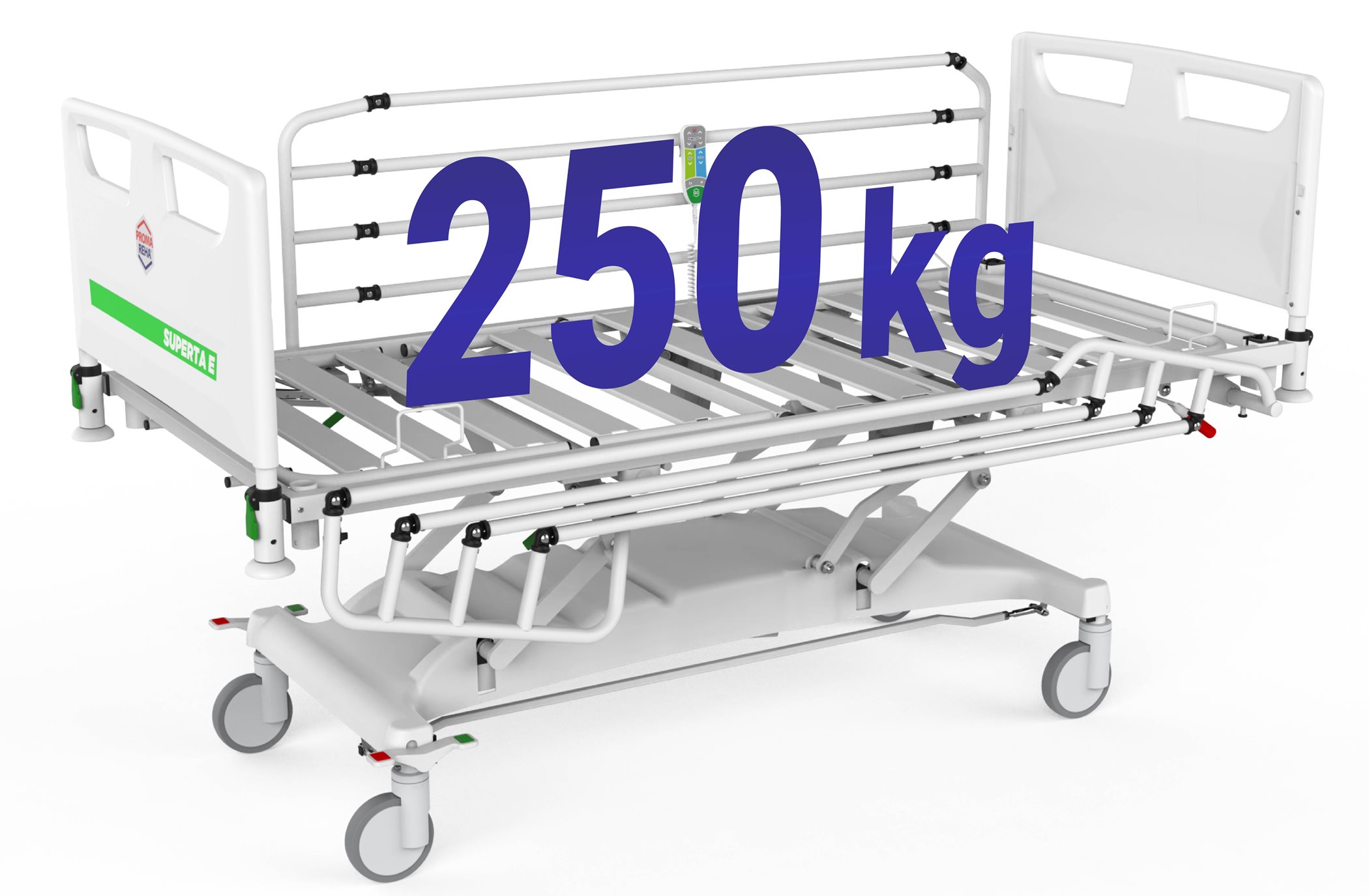

    Safety load capacity

    The solid and stable construction with a safe operating load of up to 250 kg provides safe support even when caring for patients with higher weight. Thanks to the materials and technologies used, extremely high durability is ensured even under repeated increased loads.

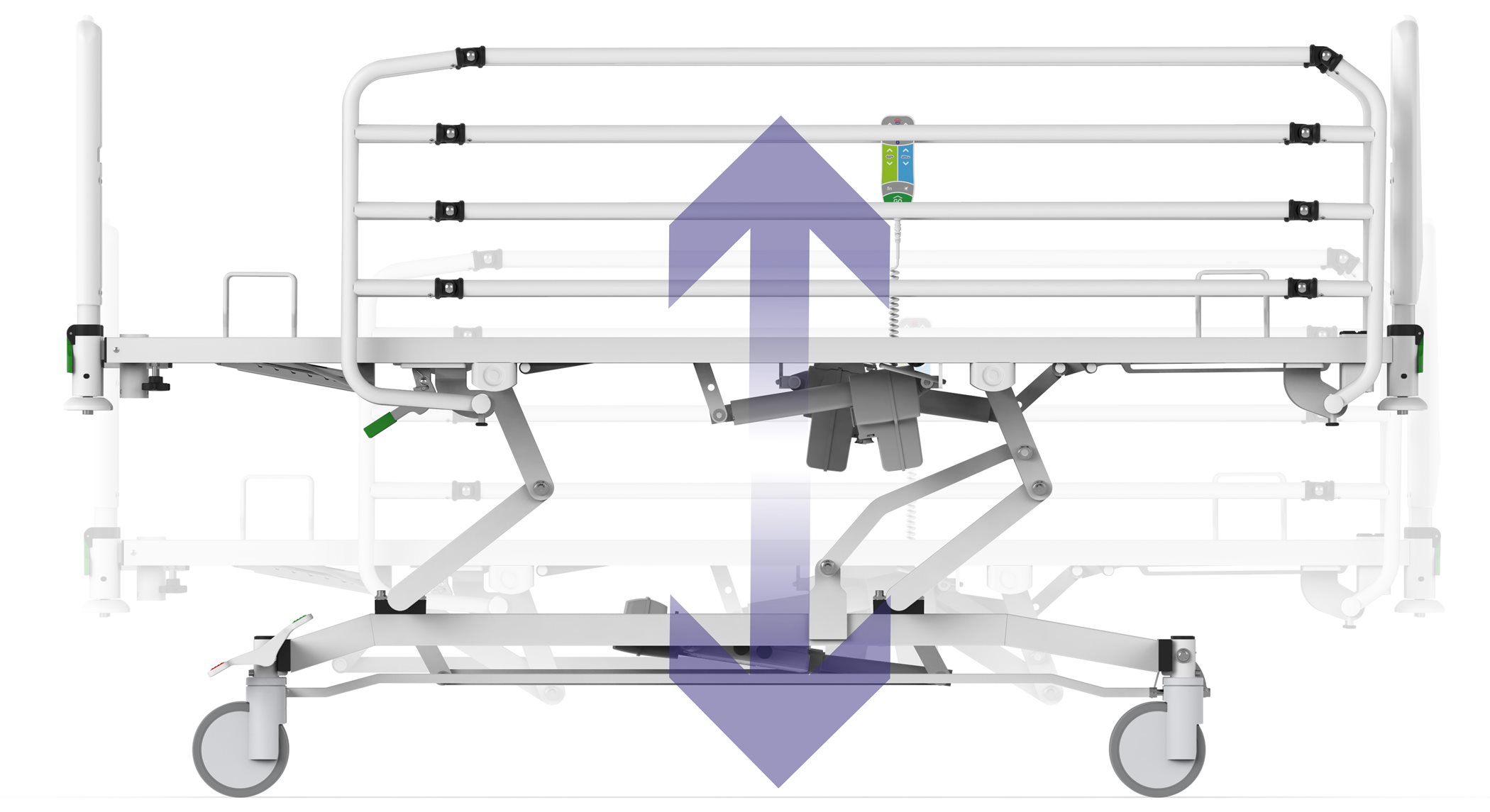

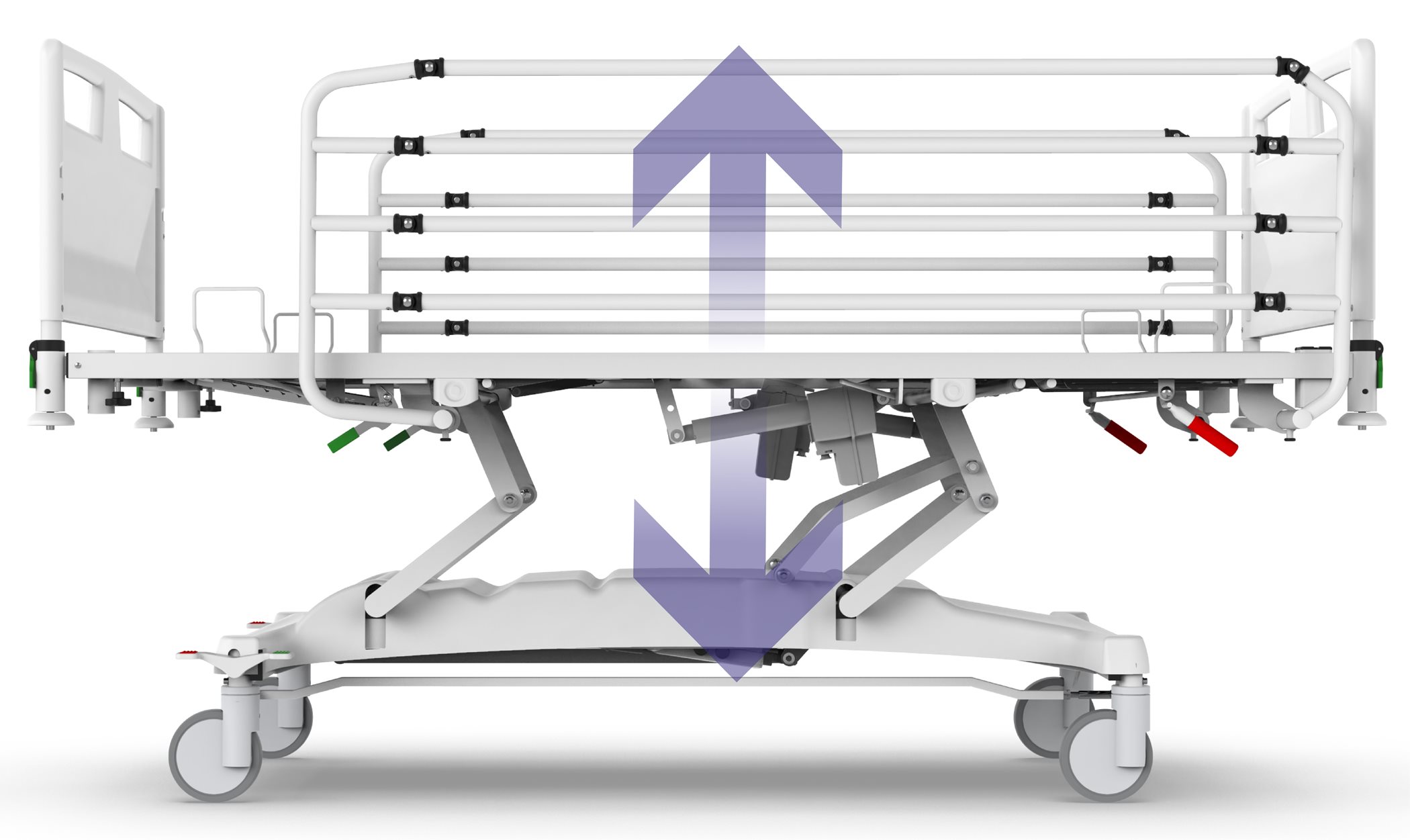

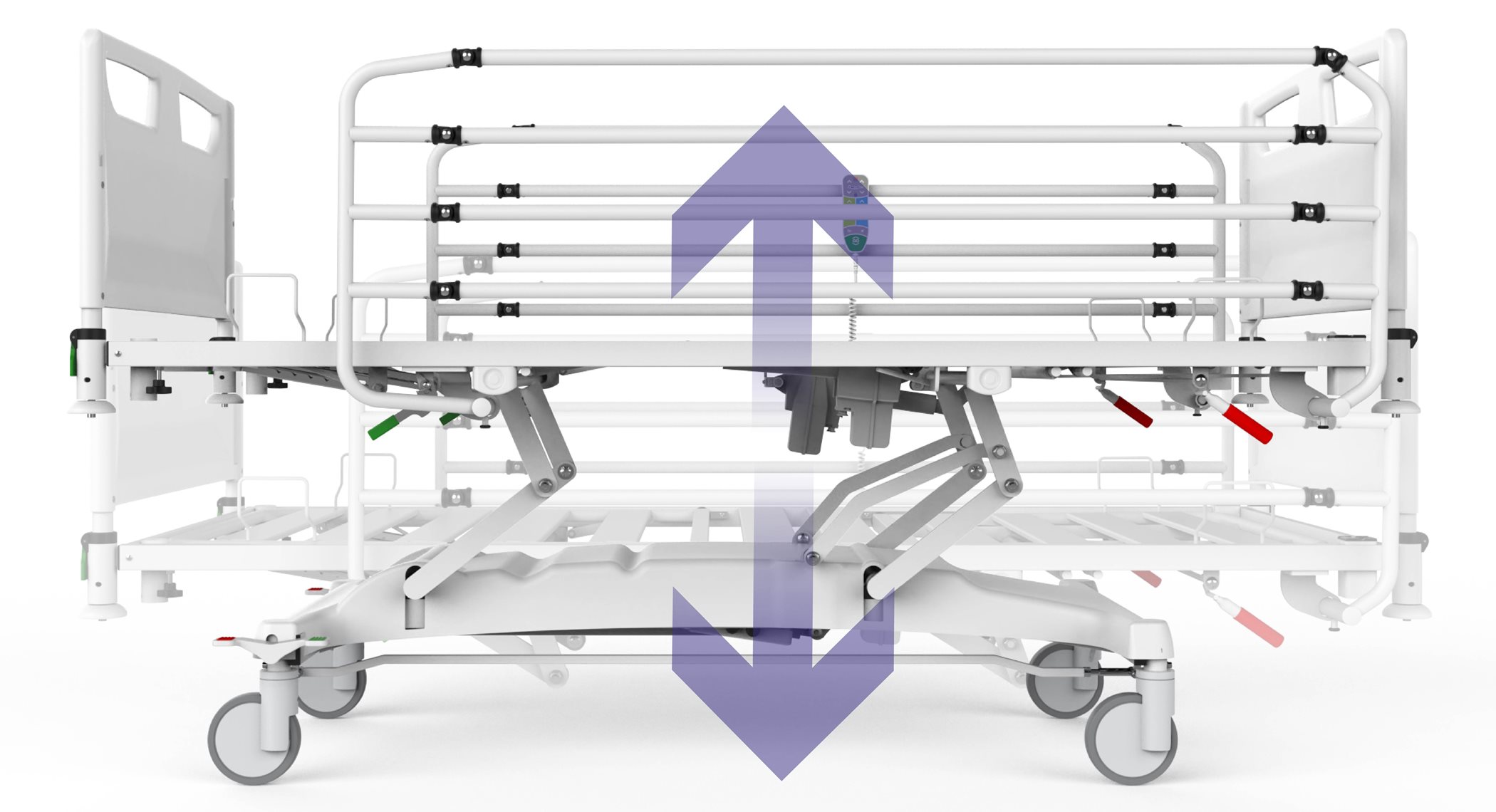

    Electric lifting of the mattress platform

    The increased range of the bed lift reduces the strain on staff and facilitates the patient handling. The reduced minimum height of the mattress platform assists the patient in exiting the bed.

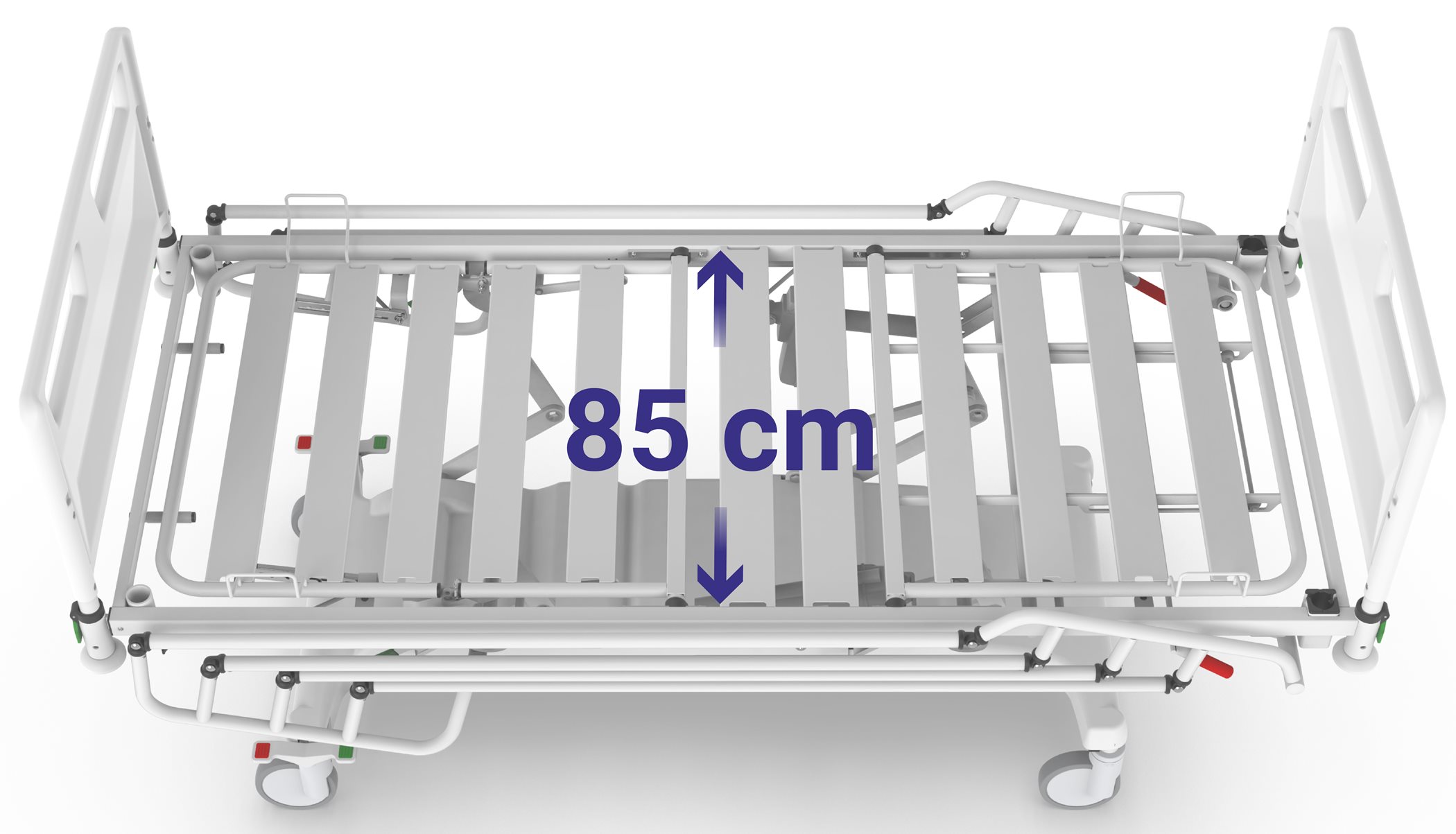

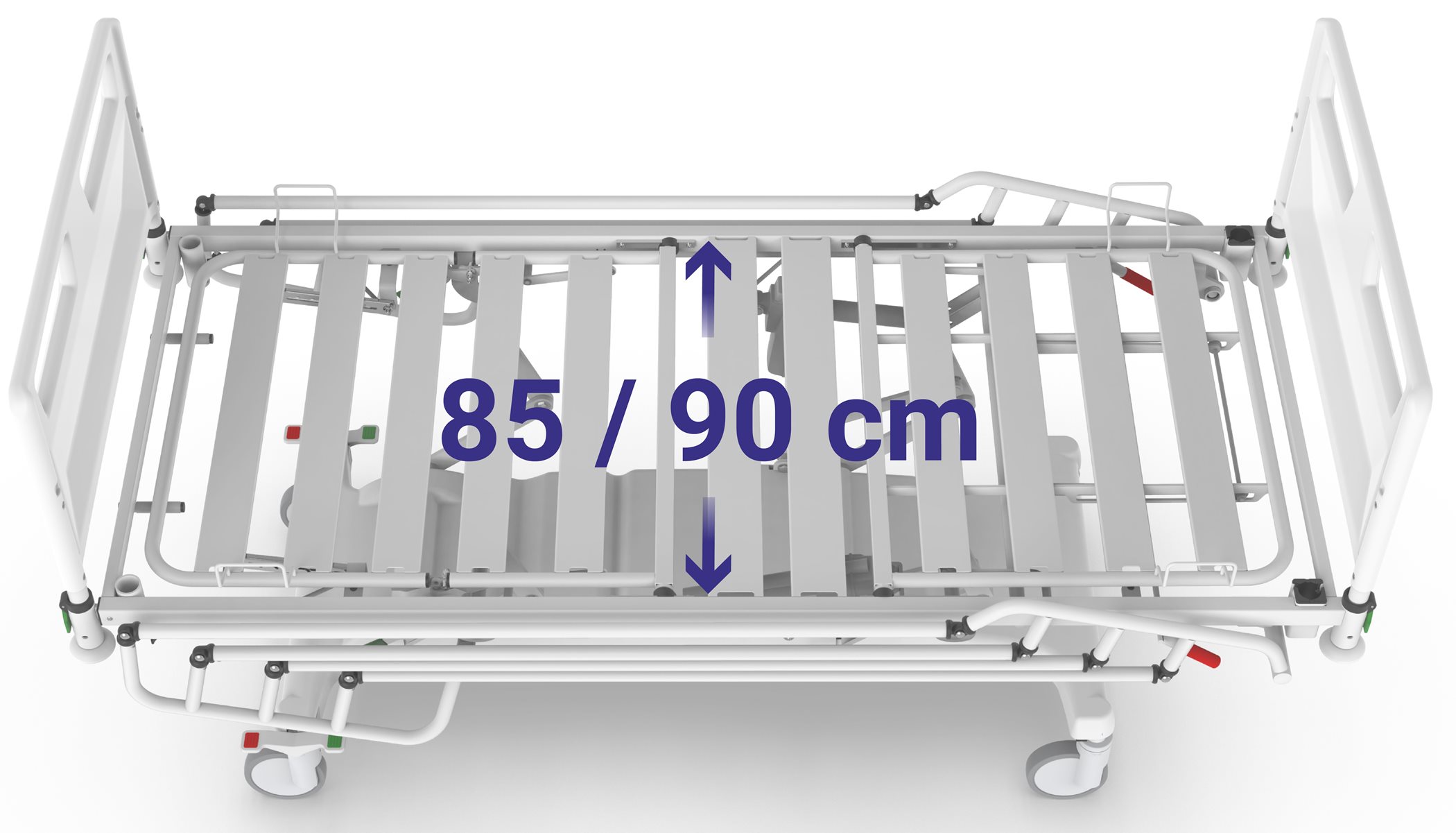

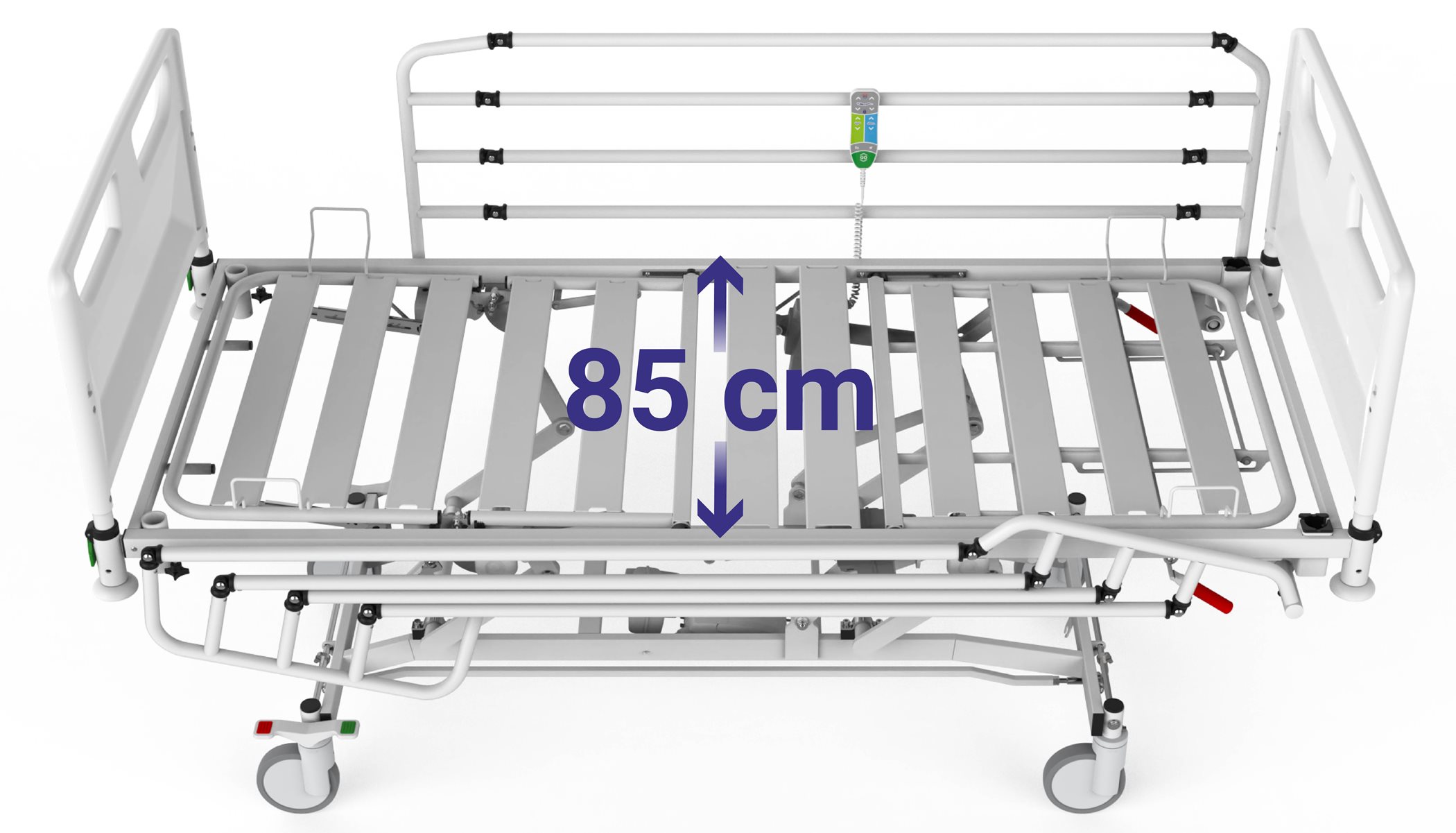

    Width of the mattress platform

    The choice of bed width offers the customer the opportunity to choose a variant that fully suits the bed positioning and mobility requirements, while providing maximum comfort for the patient.

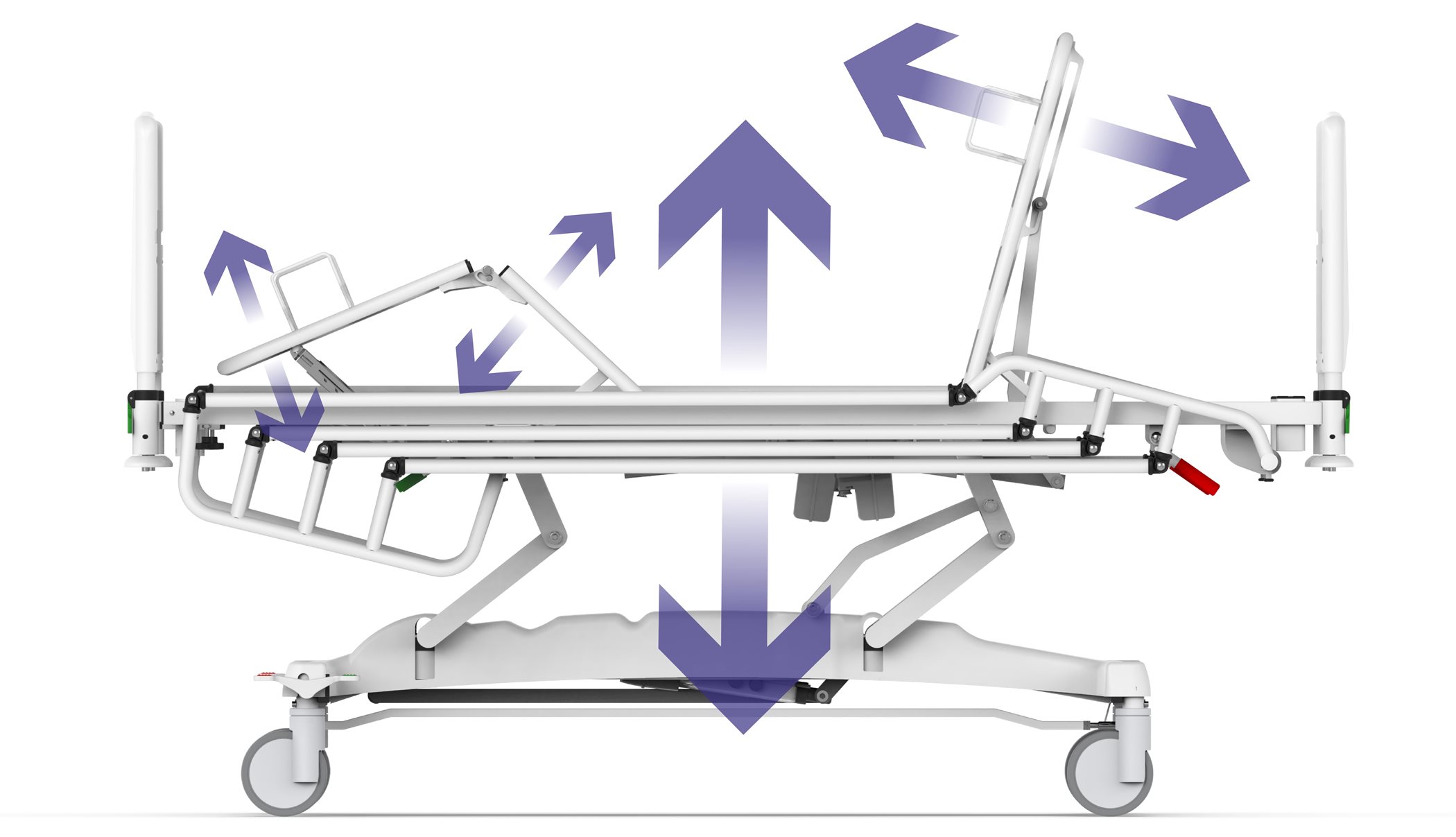

    Comfortable positioning

    The electric positioning of the back and thigh section in combination with the mechanical positioning of the calf section allows a wide range of adjustment of the individual parts of the mattress platform. The staff and patient can conveniently adjust the individual positions using the hand control.

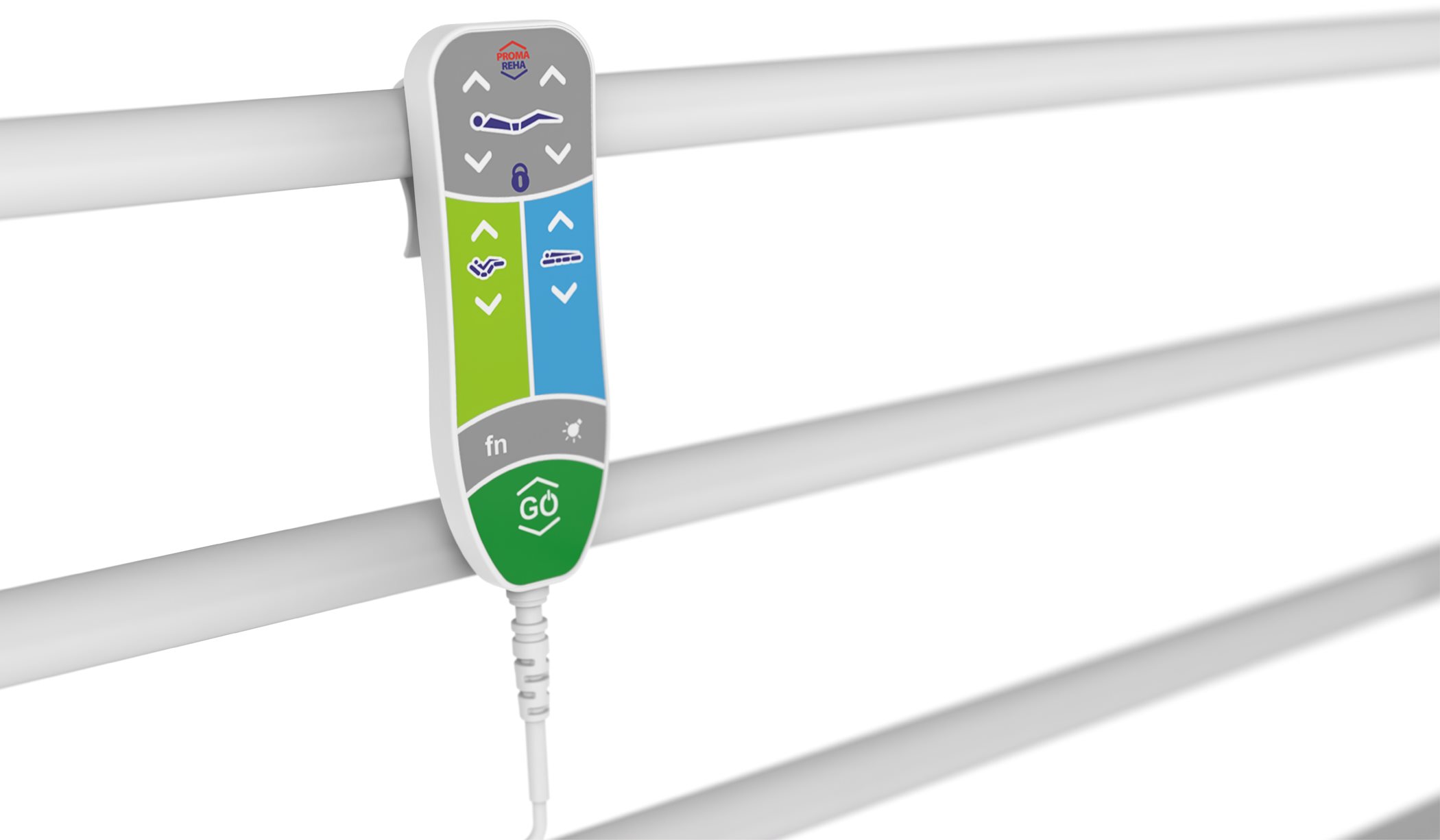

    Patient control

    The bed is equipped with an ergonomic patient control, which is always at hand of the patient and allows easy control of all basic functions thanks to the colour-coded functions.

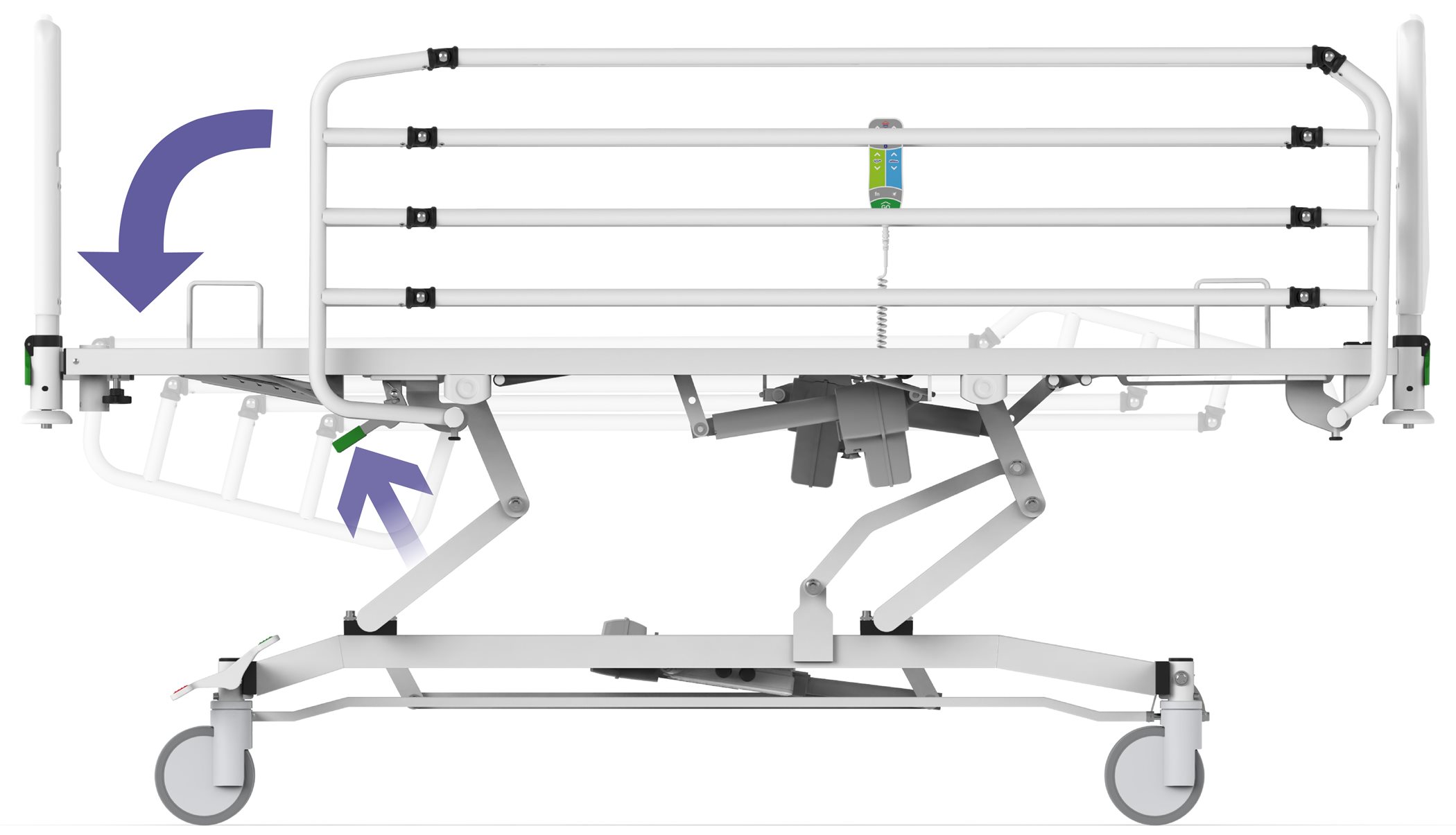

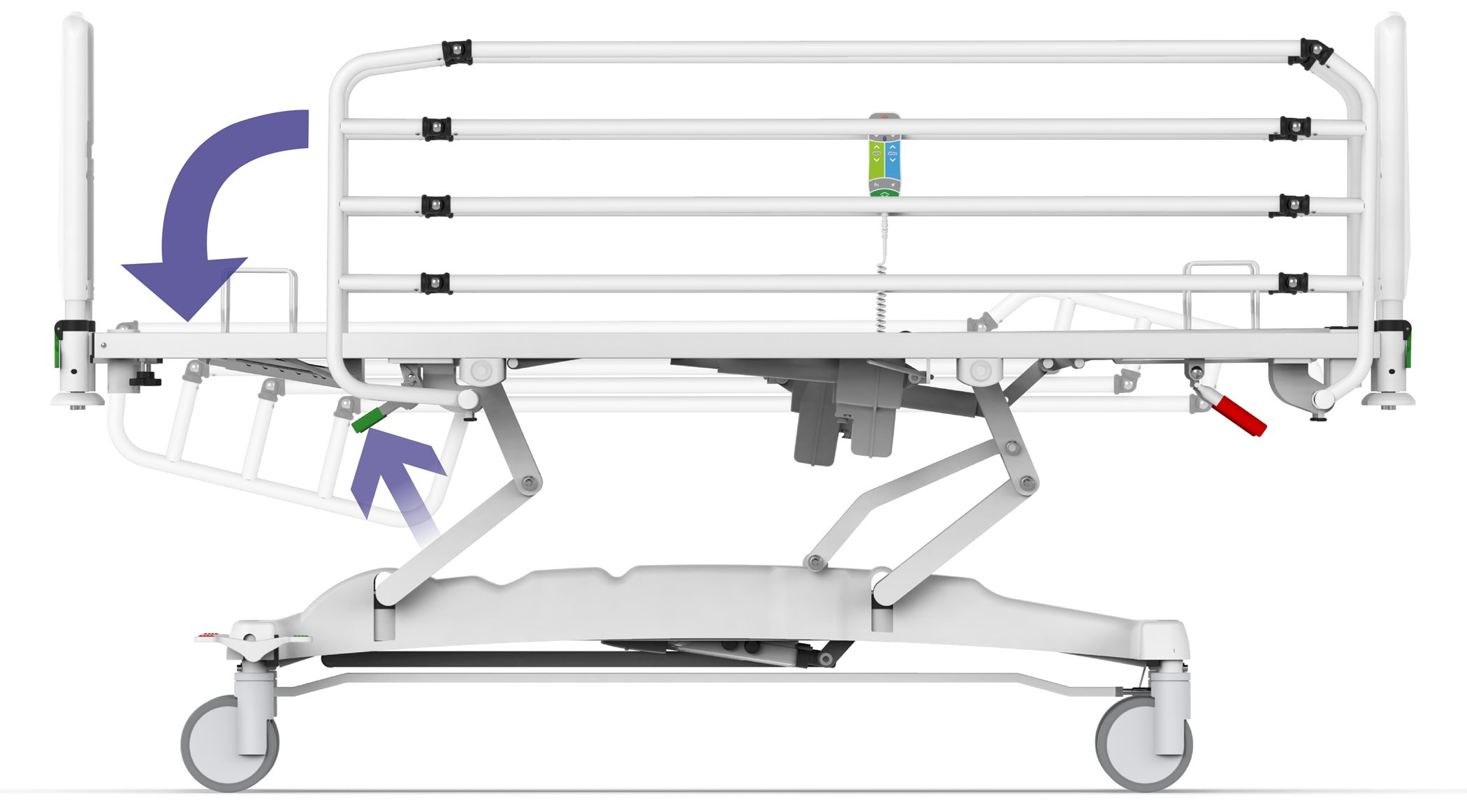

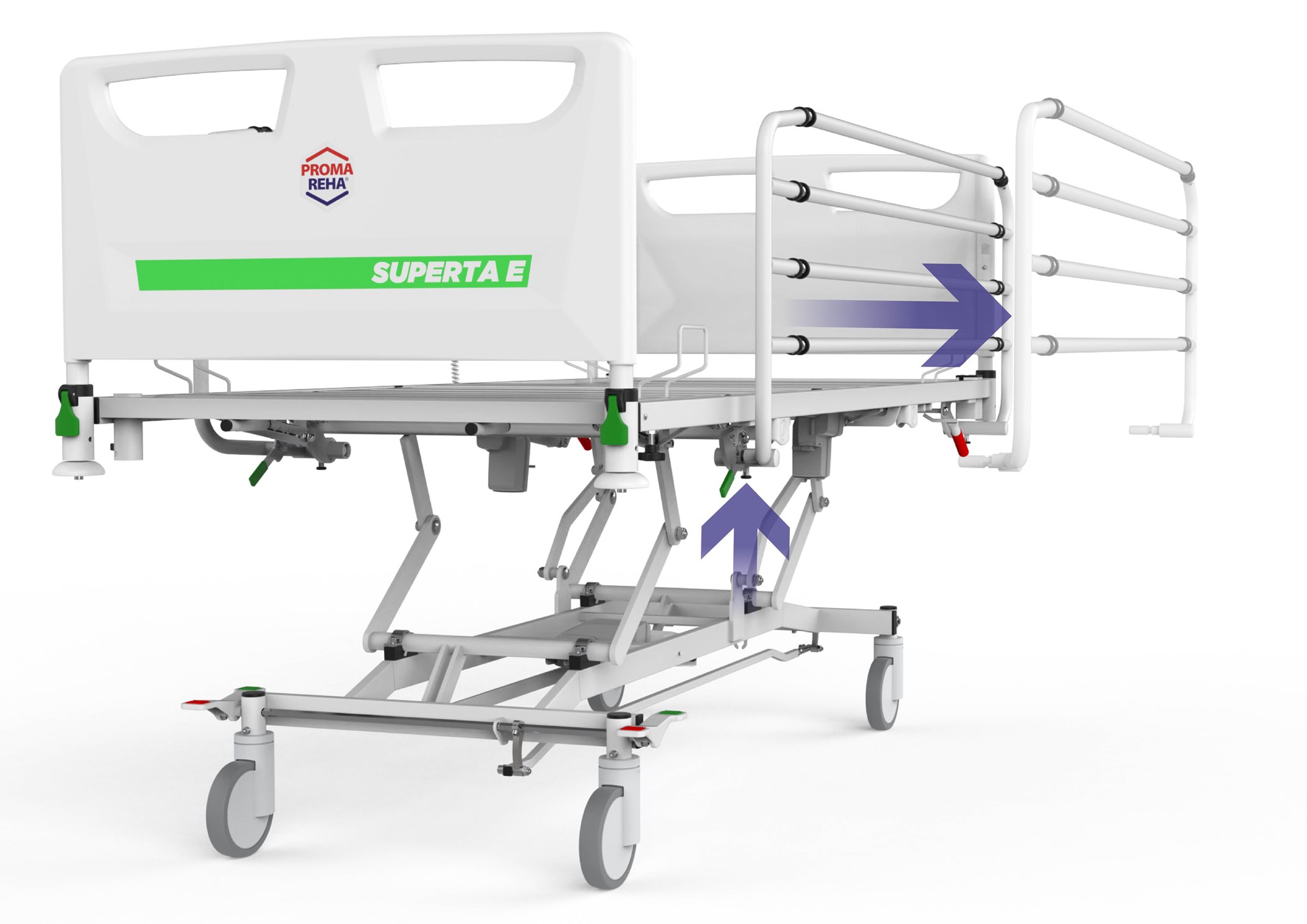

    Foldable siderails

    The safety of the patient on the bed is ensured by the removable folding siderails. Easy folding of the siderails with two independent movements significantly reduces the risk of accidental folding. The folded siderails are stored sufficiently below the level of the mattress and thus do not hinder the patient when getting out of bed.

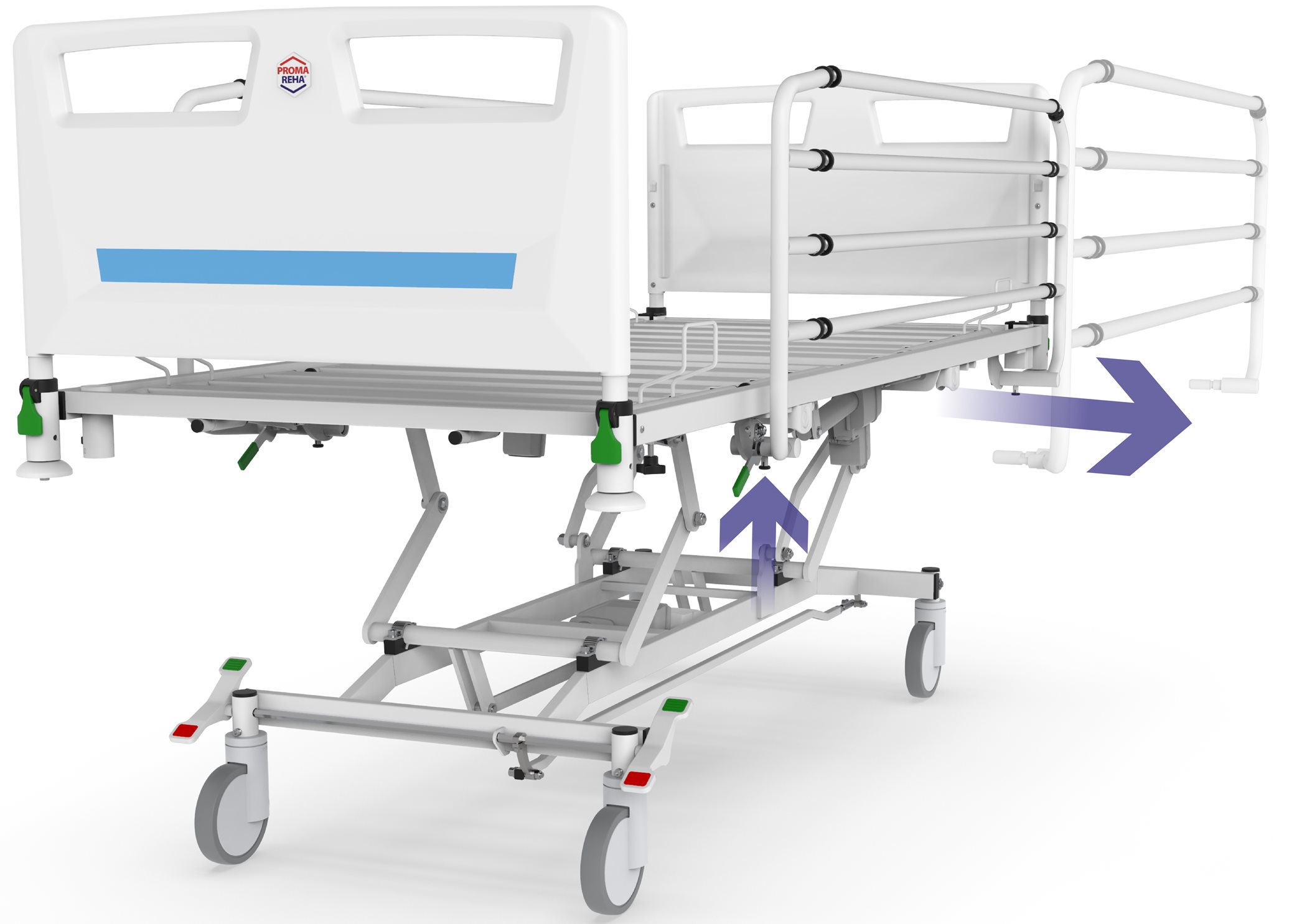

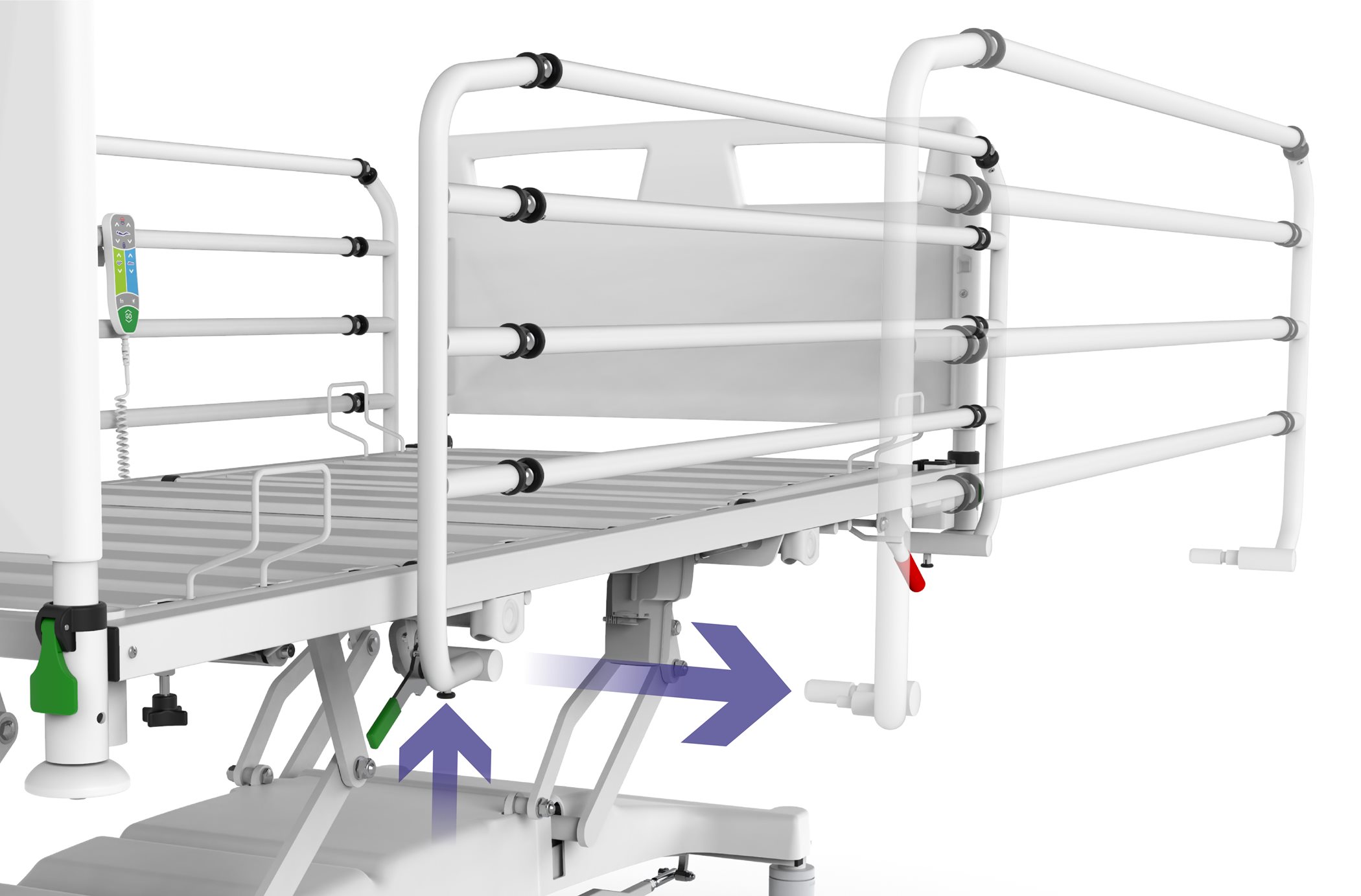

    Removing of the siderails

    Easily removable siderails improve bed clearance through narrow spaces, without the requirement of any tools.

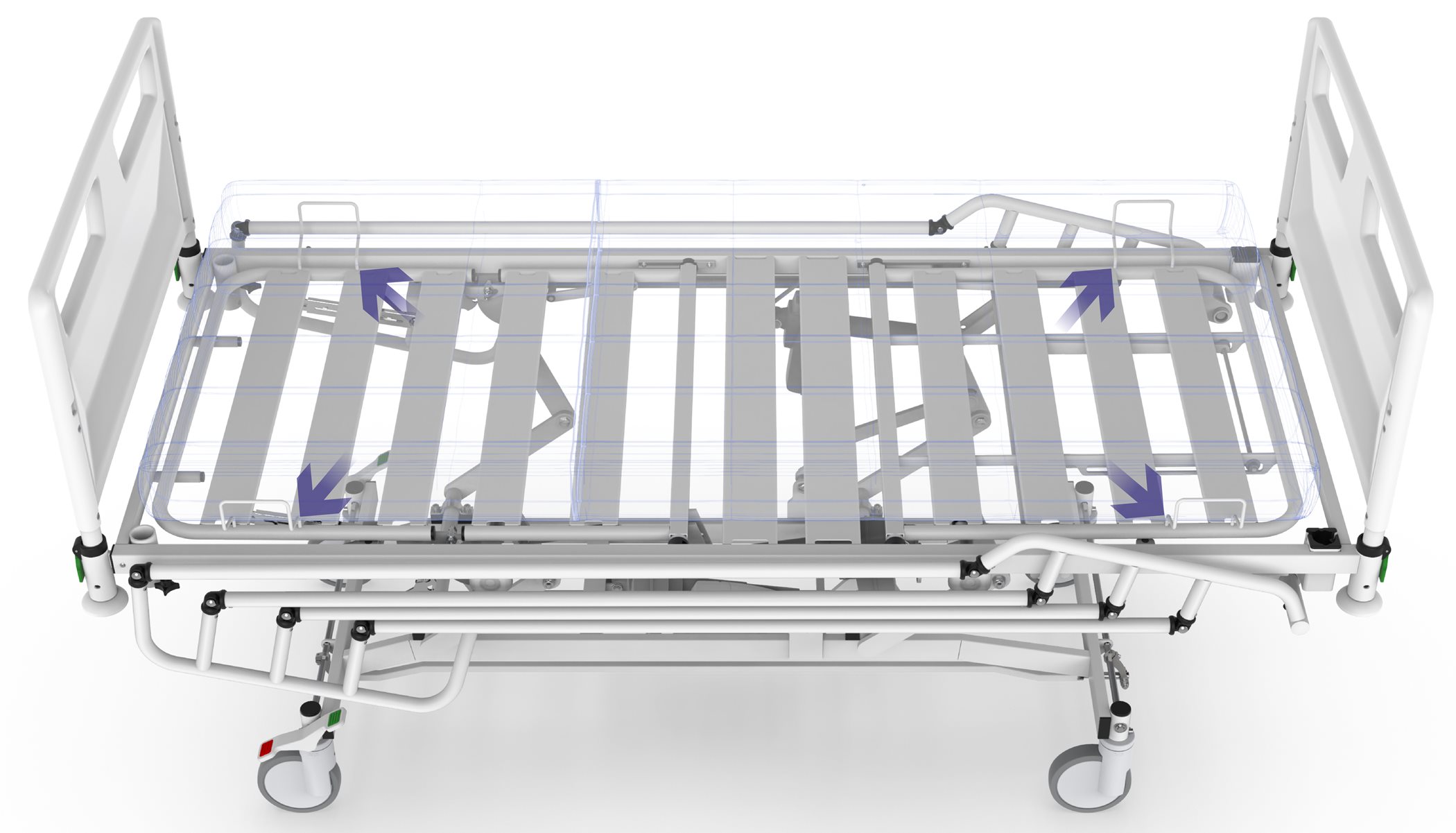

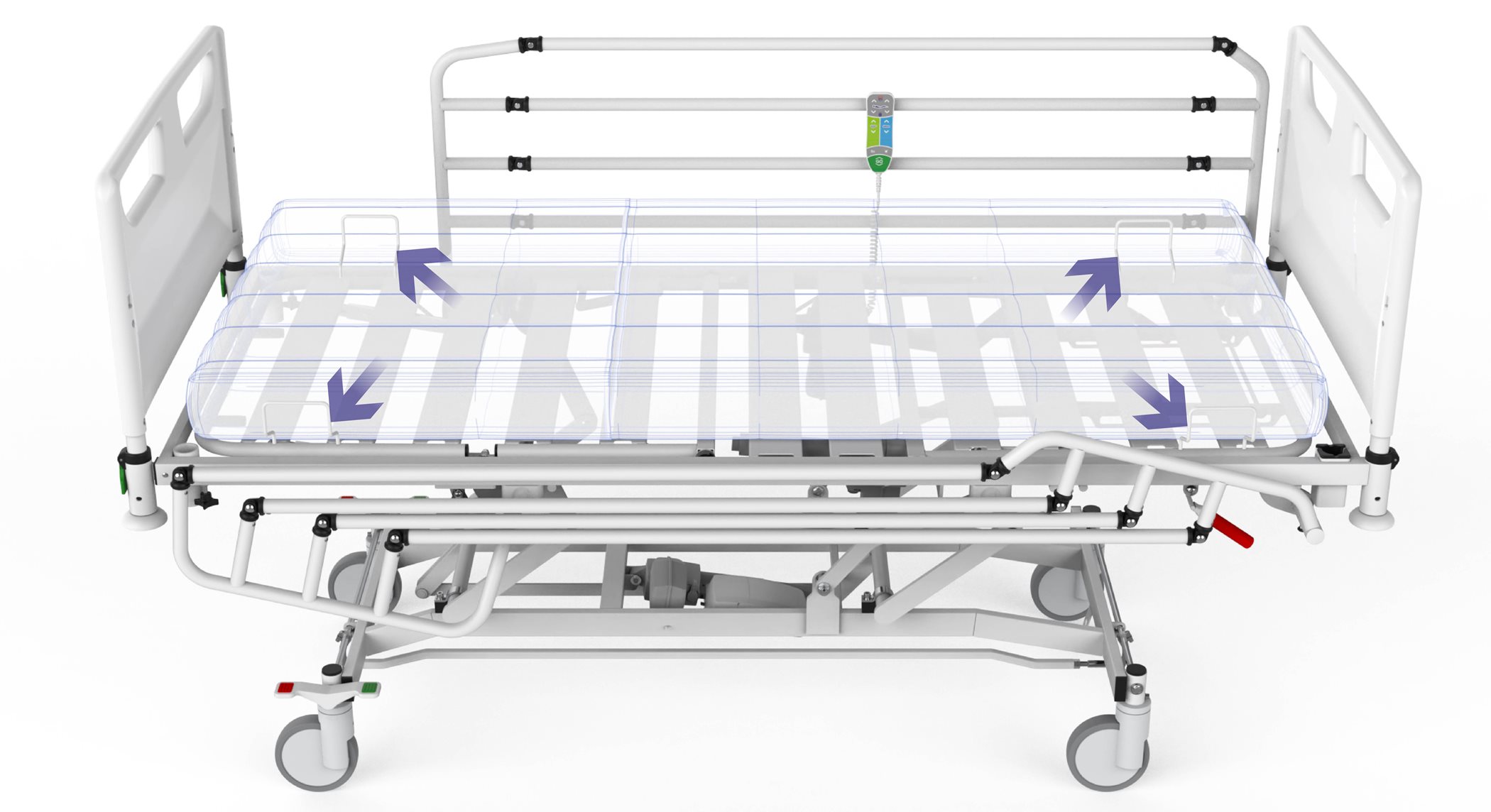

    Mattress holders

    The mattress holders ensure optimal positioning of the mattress when positioning the mattress platform. The holders are positioned so as not to obstruct the positioning of the evacuation mat.

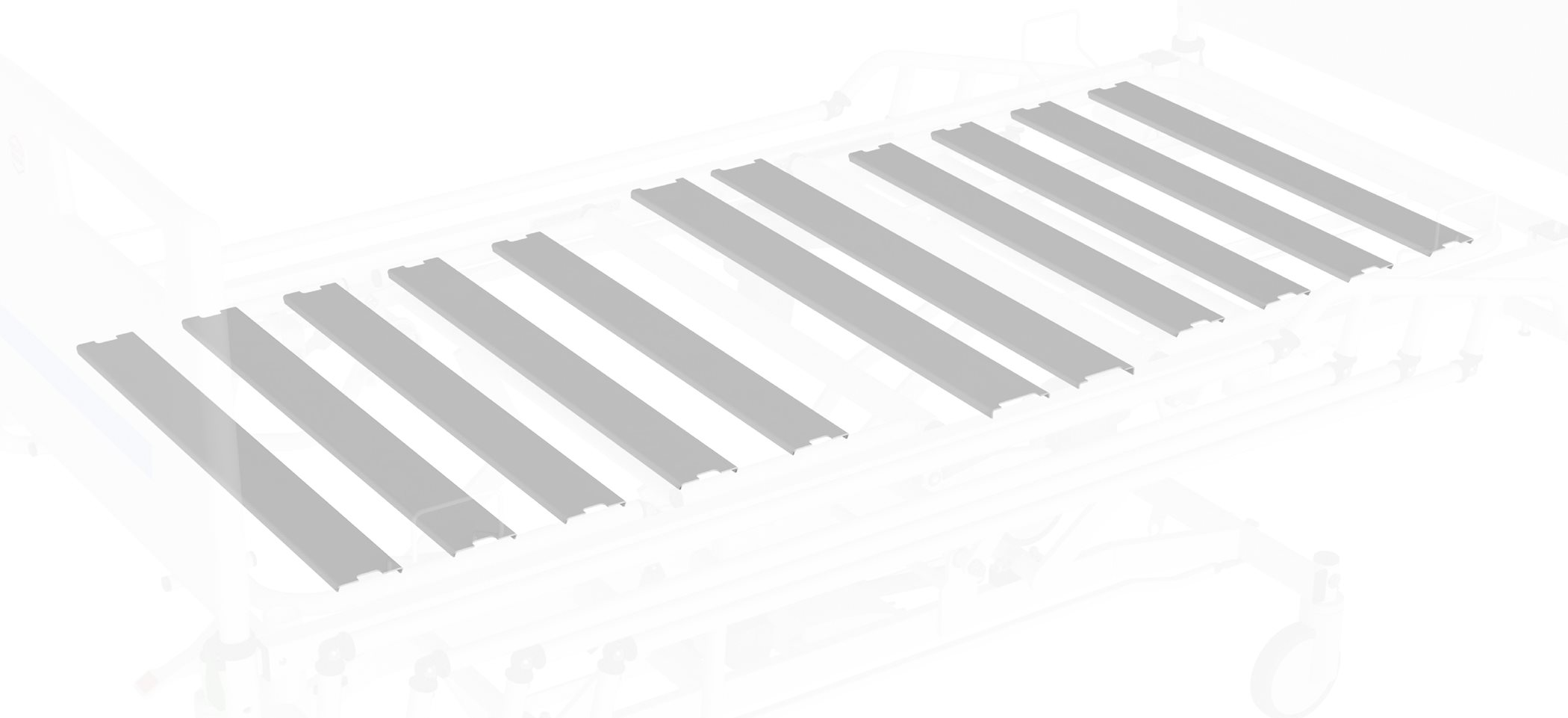

    Mattress platform

    The mattress platform can be made of profiled metal slats. The main advantages of these materials are their high resistance to chemicals used in the medical field, surface stability and resistance to wetting.

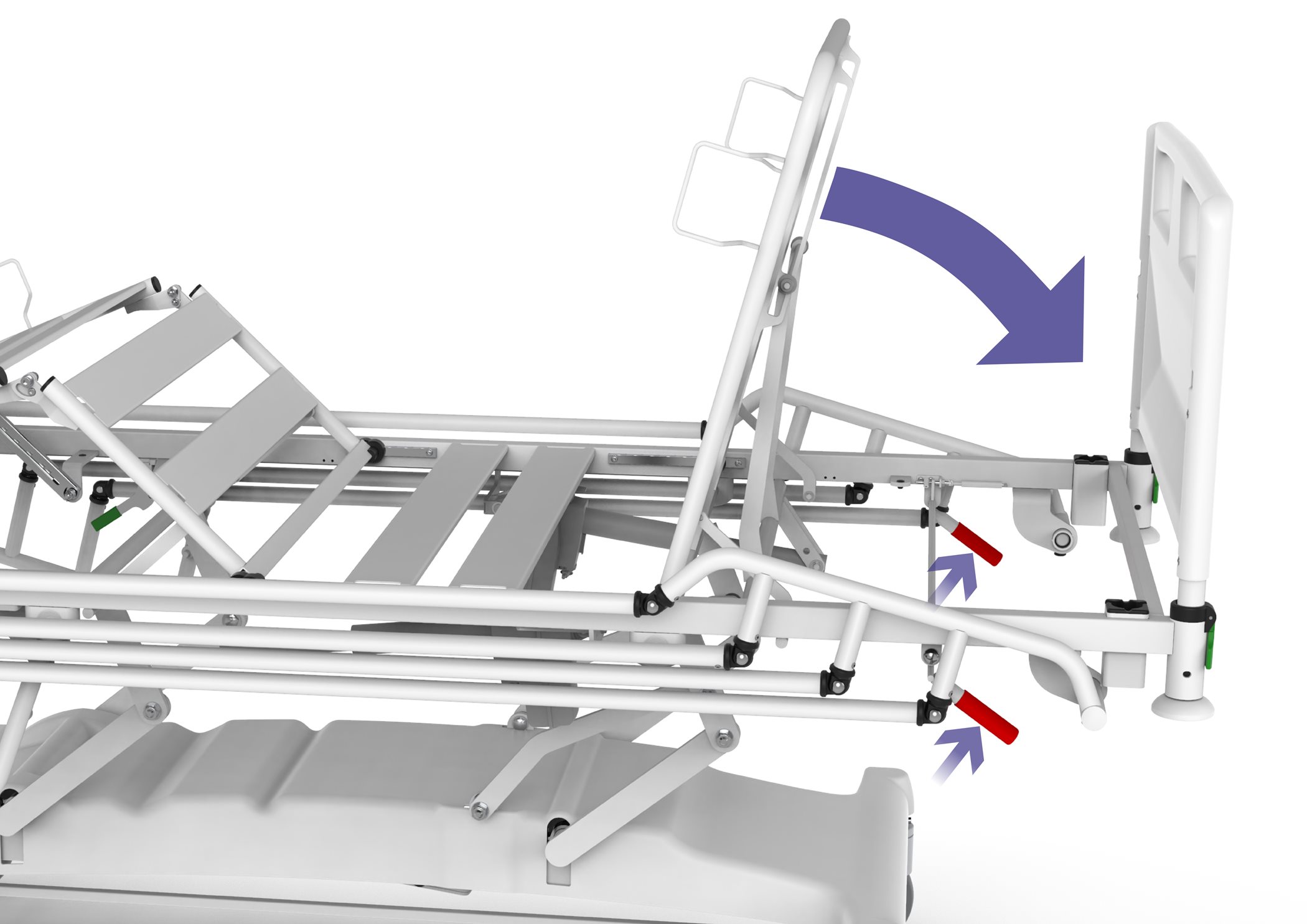

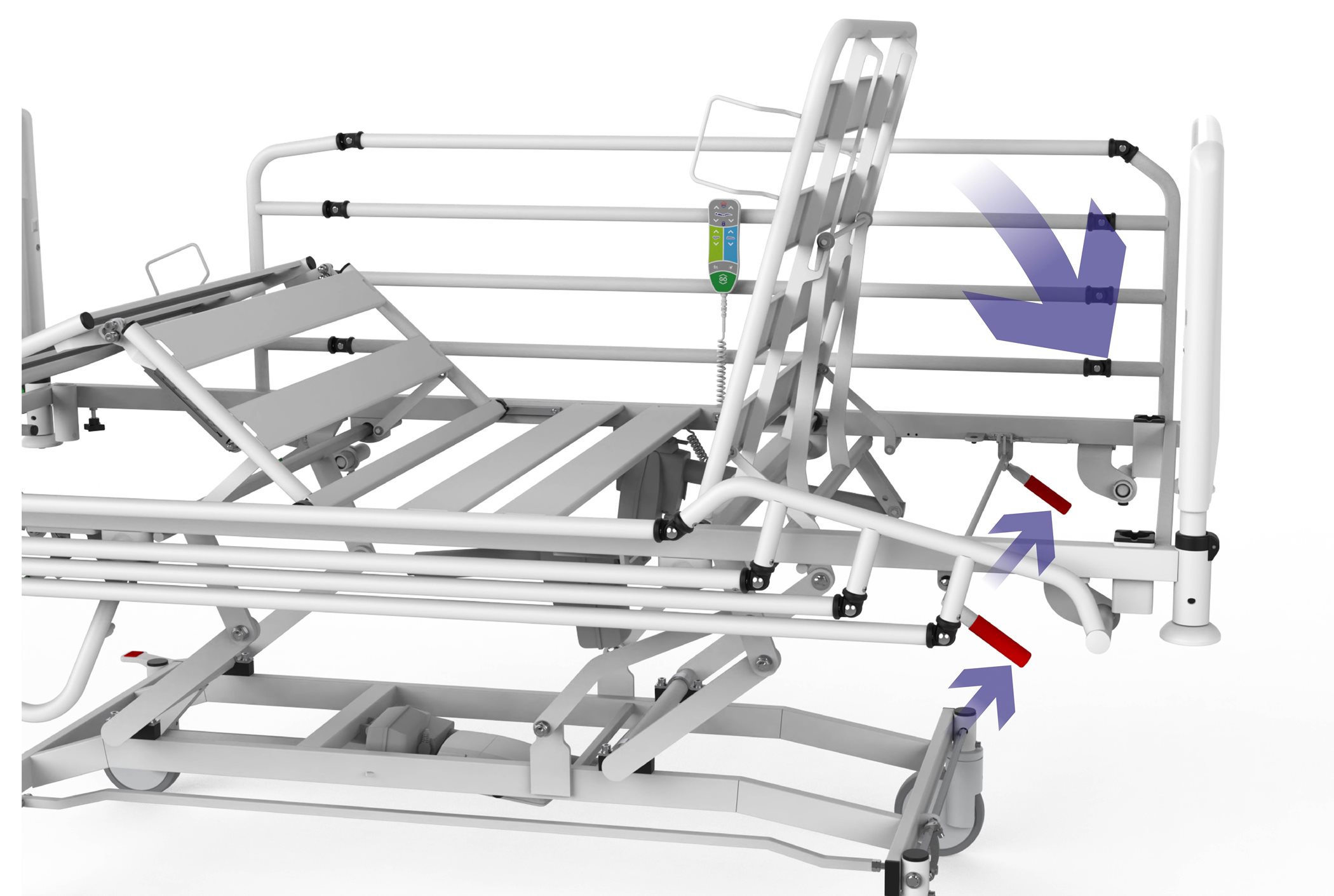

    CPR function

    This feature ensures safe and rapid positioning of the bed in the optimal position for immediate cardiopulmonary resuscitation.

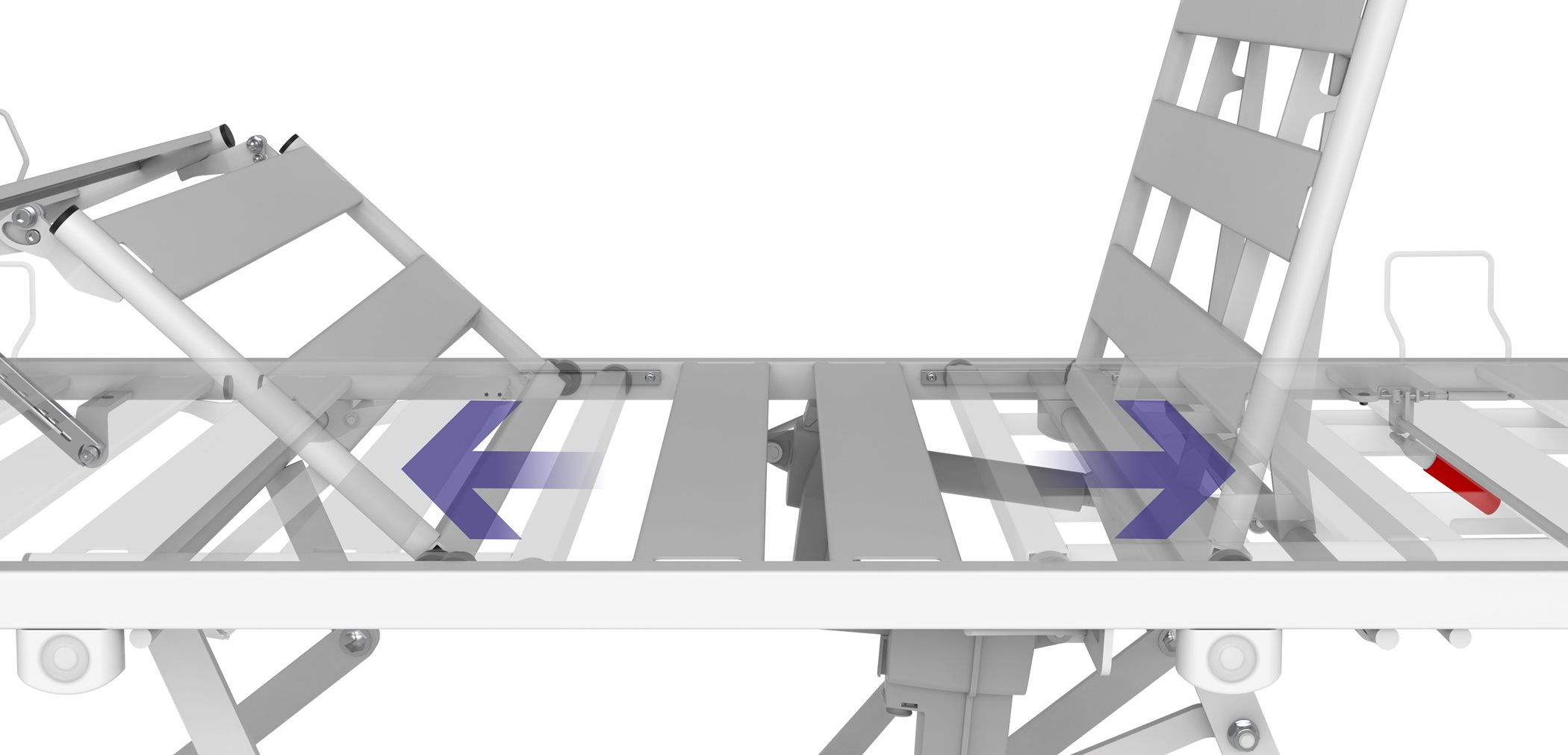

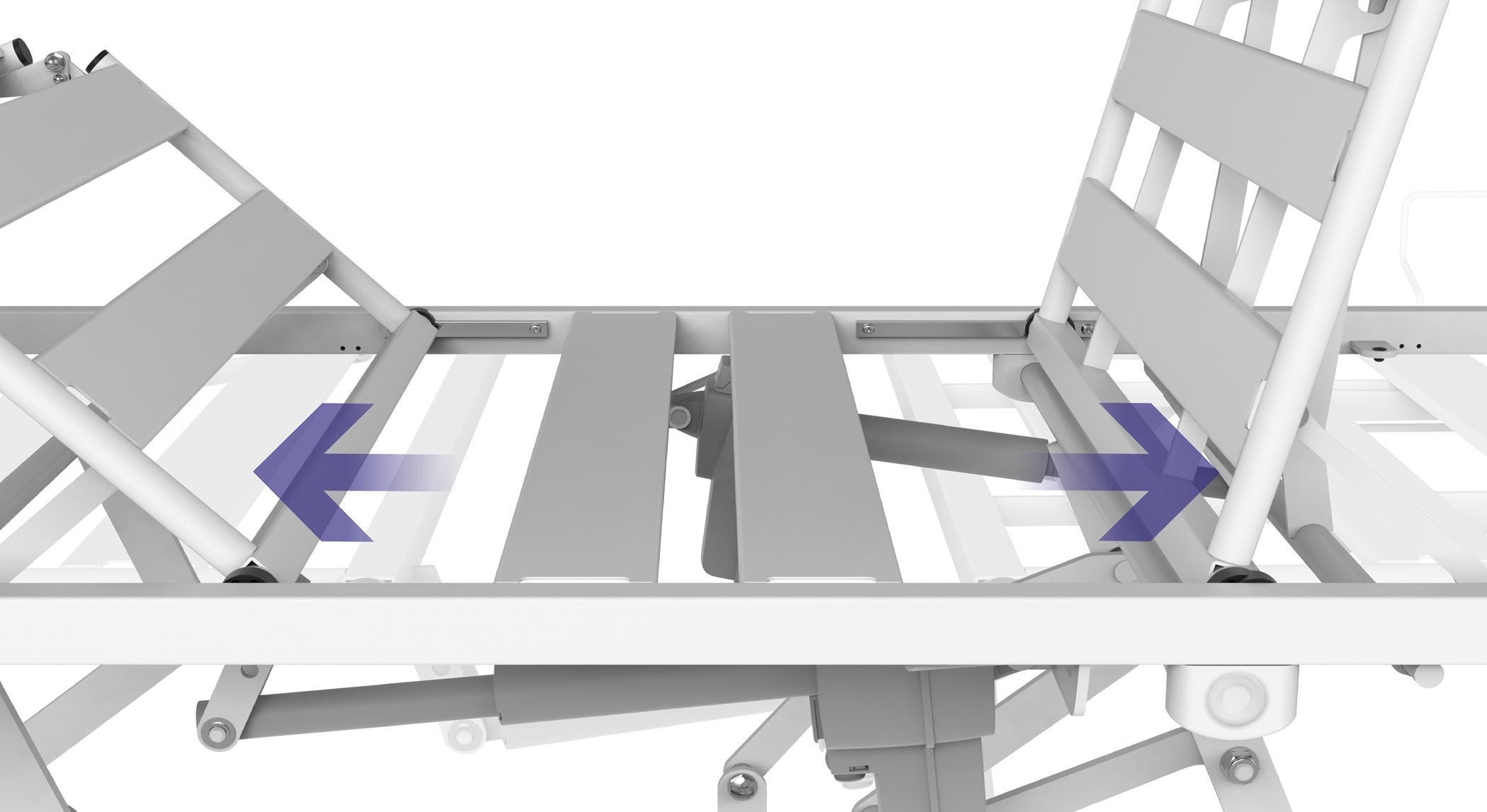

    Double autoregression

    Brings greater comfort to patients, reduces abdominal pressures and reduces the risk of decubitus.

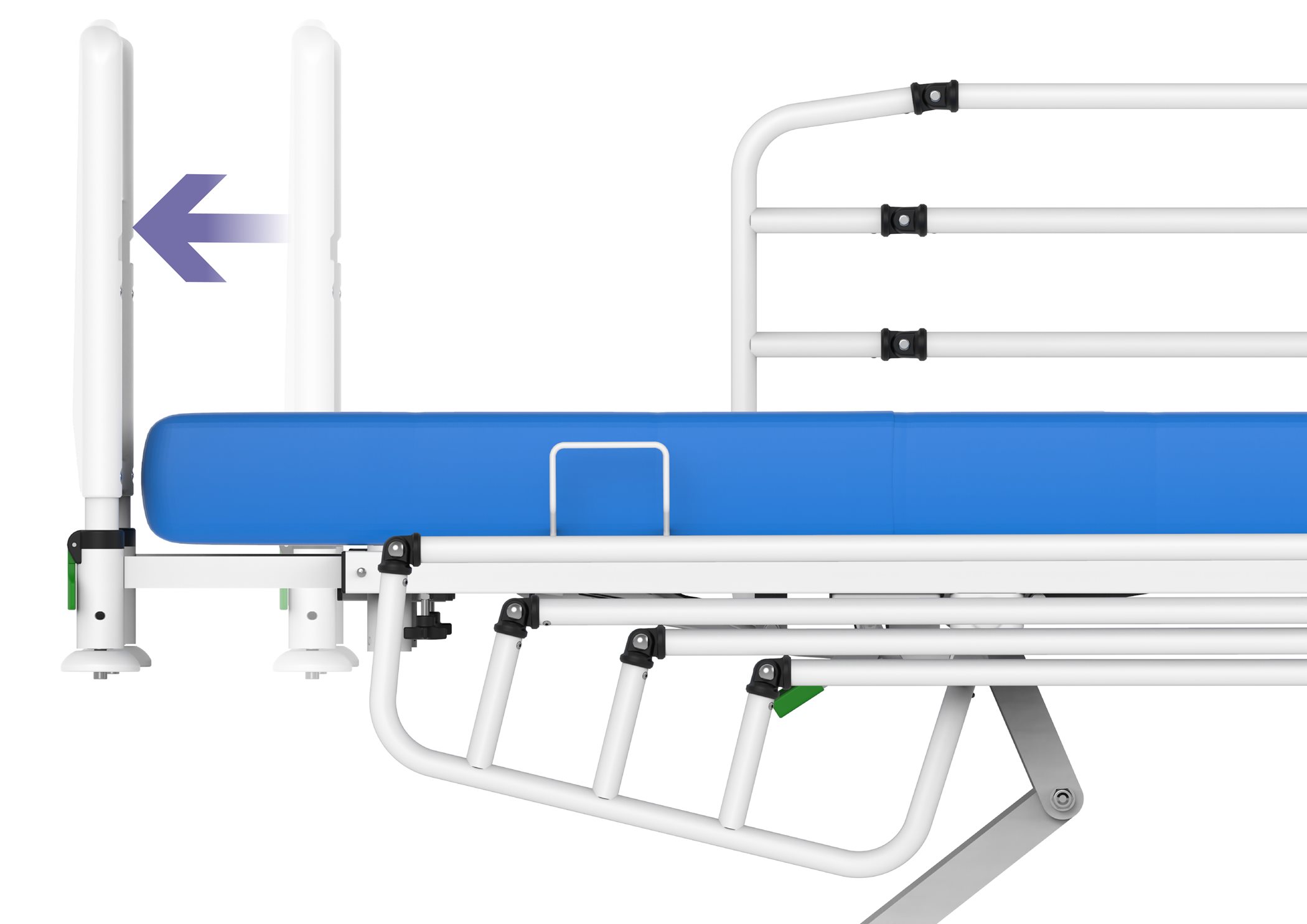

    Extension of the mattress platform

    Extending the bed mattress platform by up to 20 cm brings comfort even to taller patients.

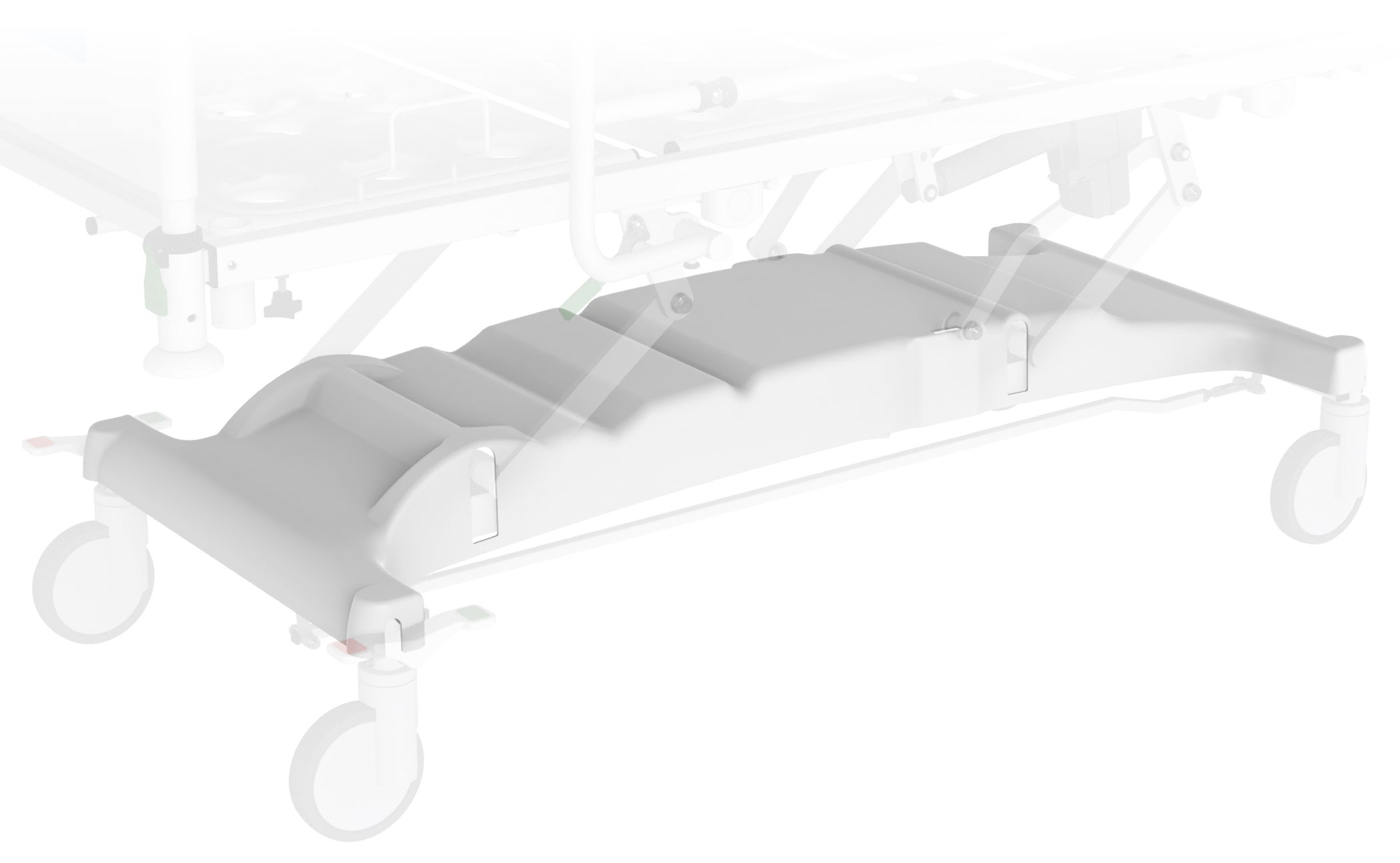

    Plastic chassis cover

    Facilitates and speeds up daily cleaning of the bed. Protects the mechanisms and electrical circuits in the chassis, thus extending the life and reliability of the bed.

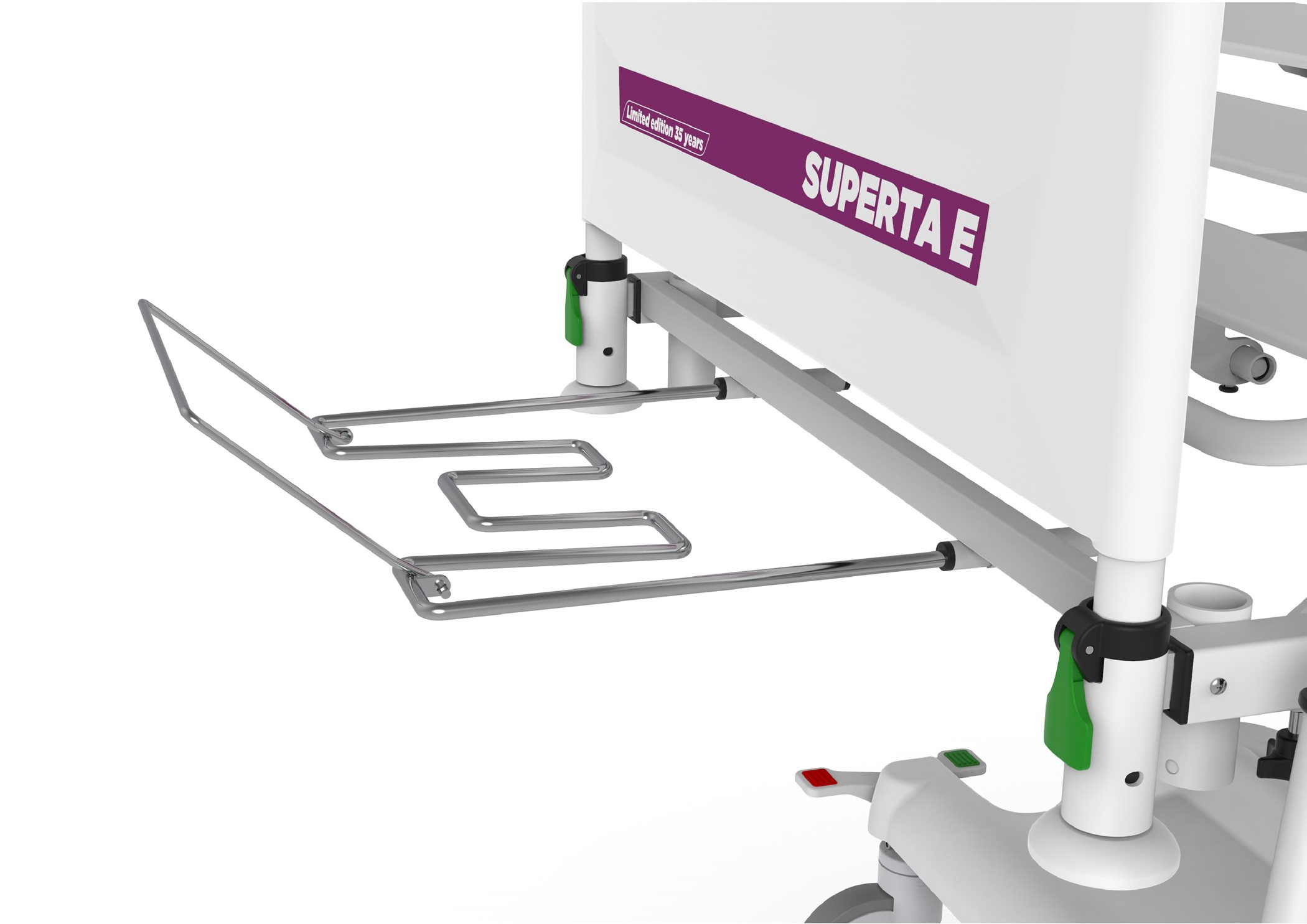

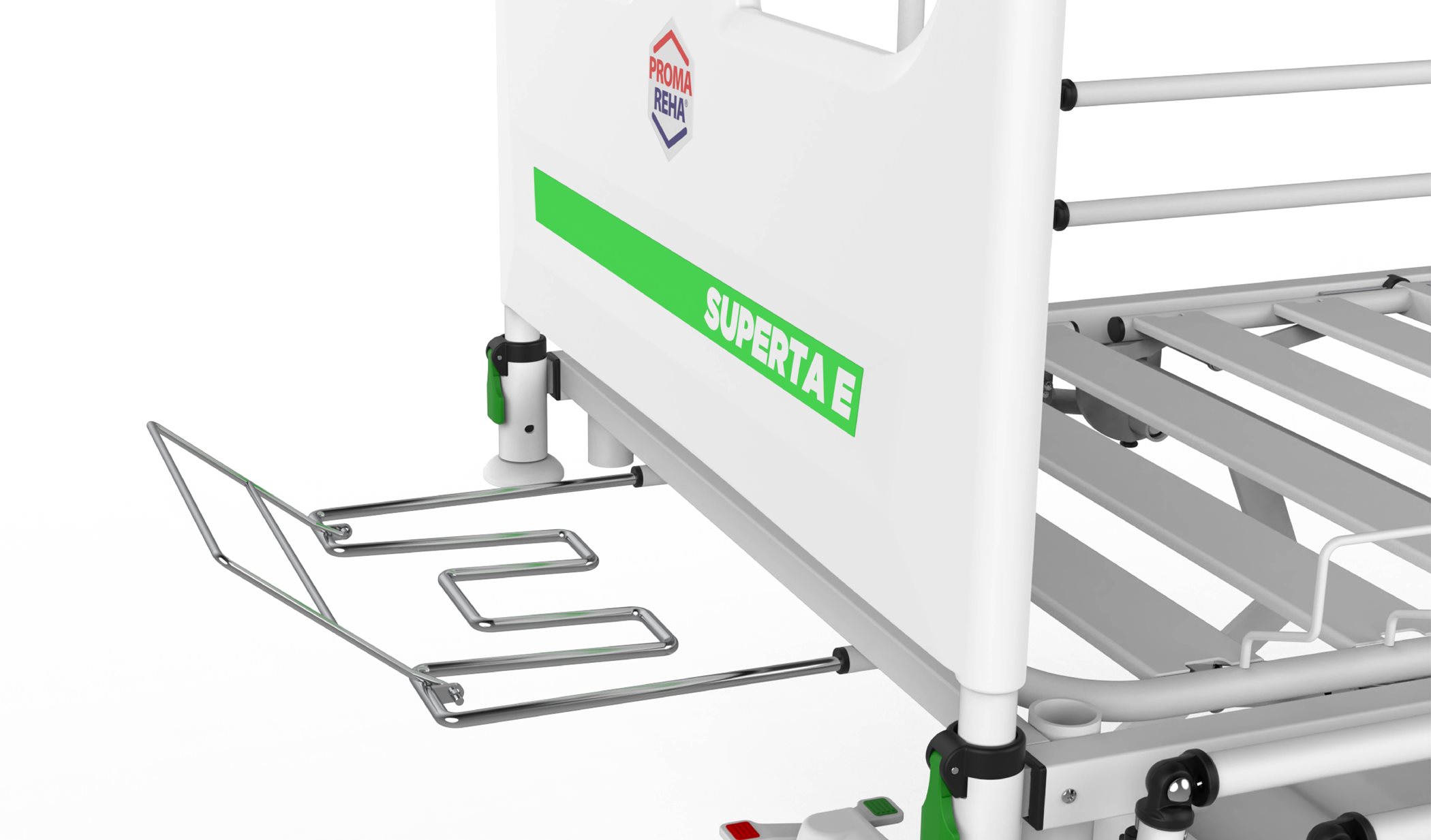

    Bed linen shelf

    The extendable bed linen shelf for storing bedding is a great helper when changing bed linen.

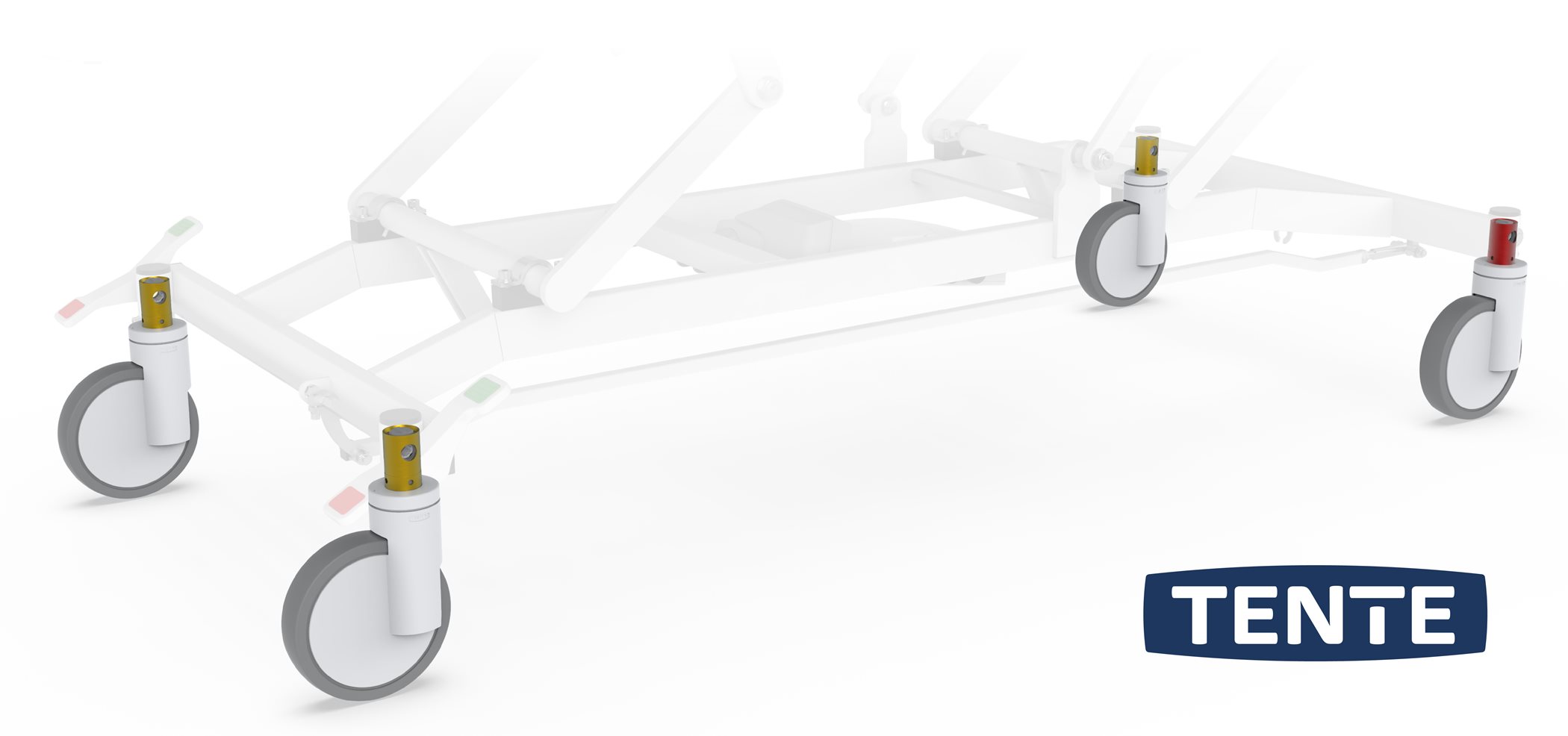

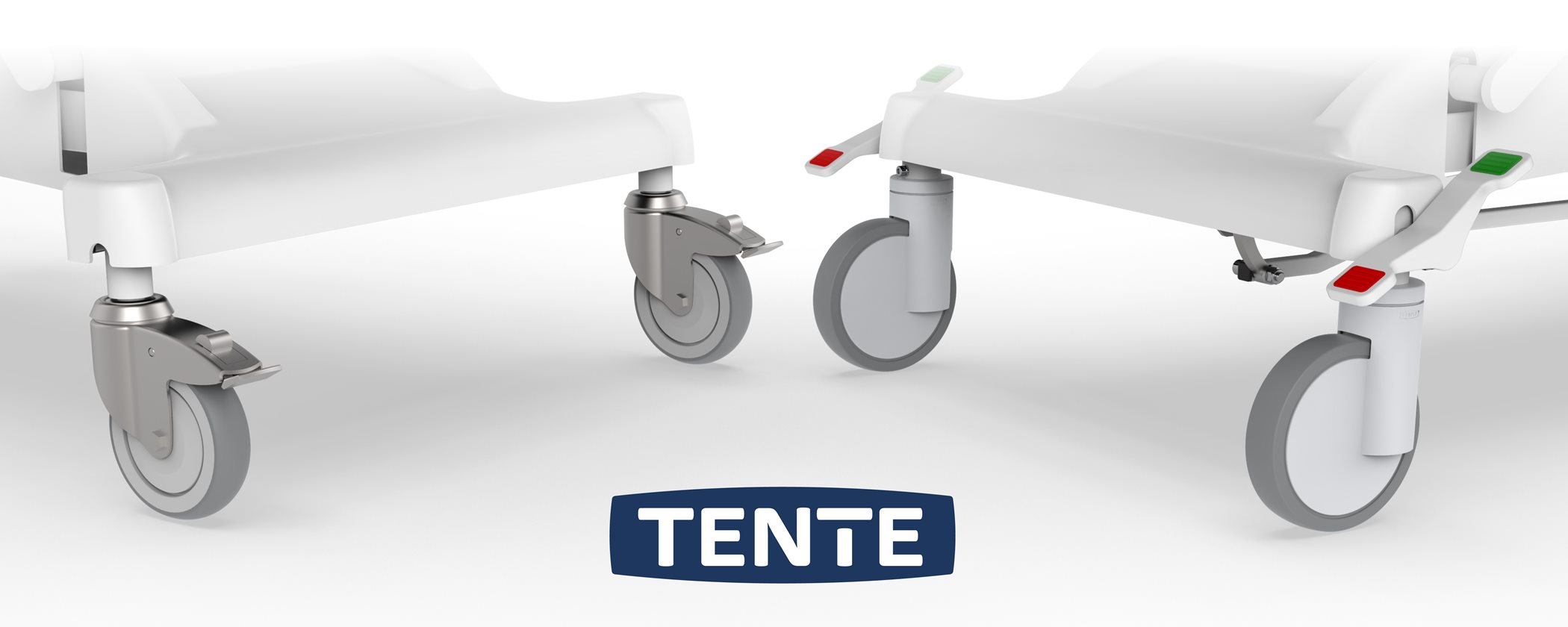

    Castors

    All PROMA REHA beds are equipped with TENTE branded castors. For this bed, it is possible to configure plastic castors with central brake or metal, independently braked castors.

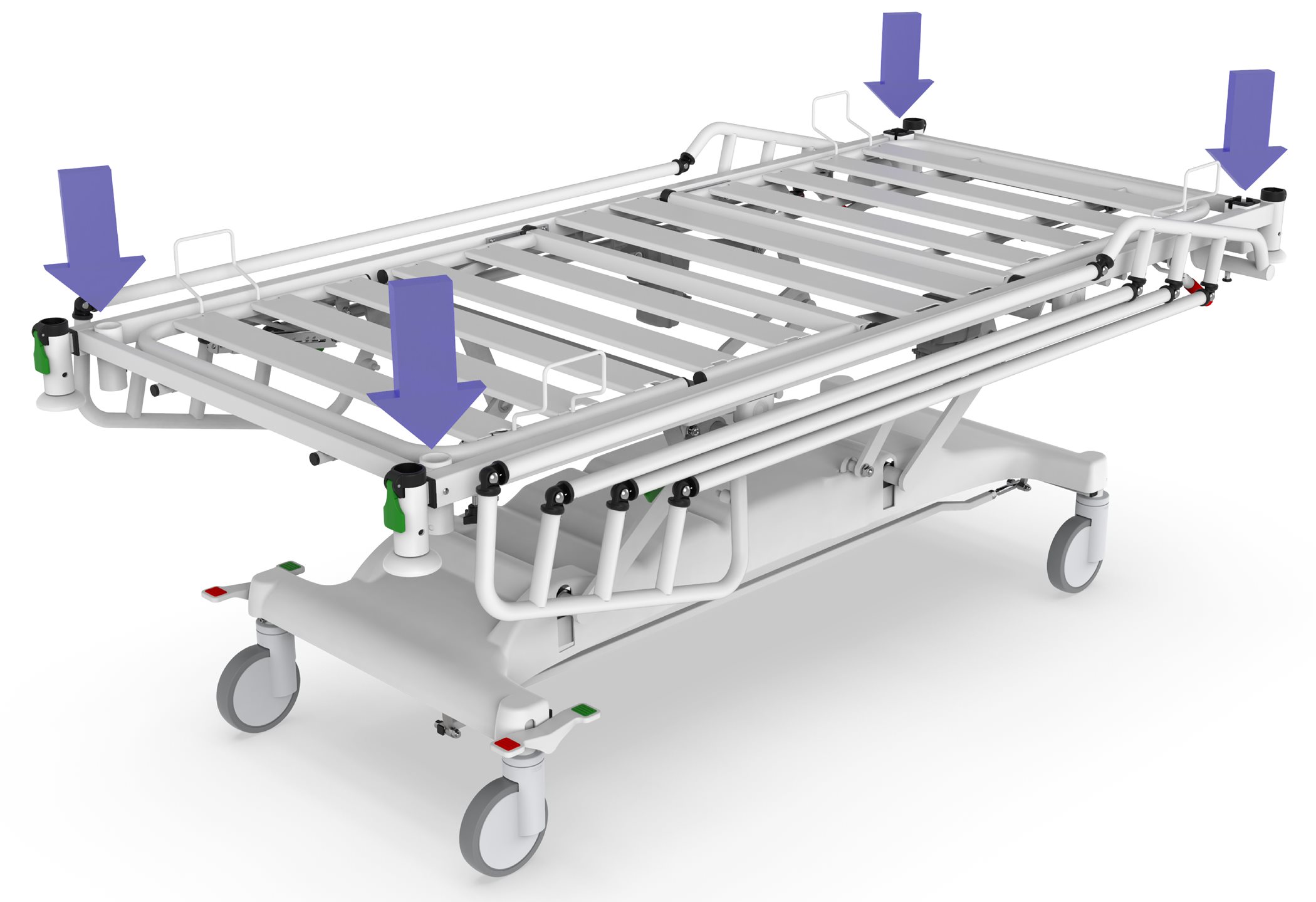

    Universal accessories holders

    The universal accessory holders are located at the headboard, possibly also at the footboard. They enable the use of the most common accessories such as bars, IV pole, bedside lamps or extension sets.

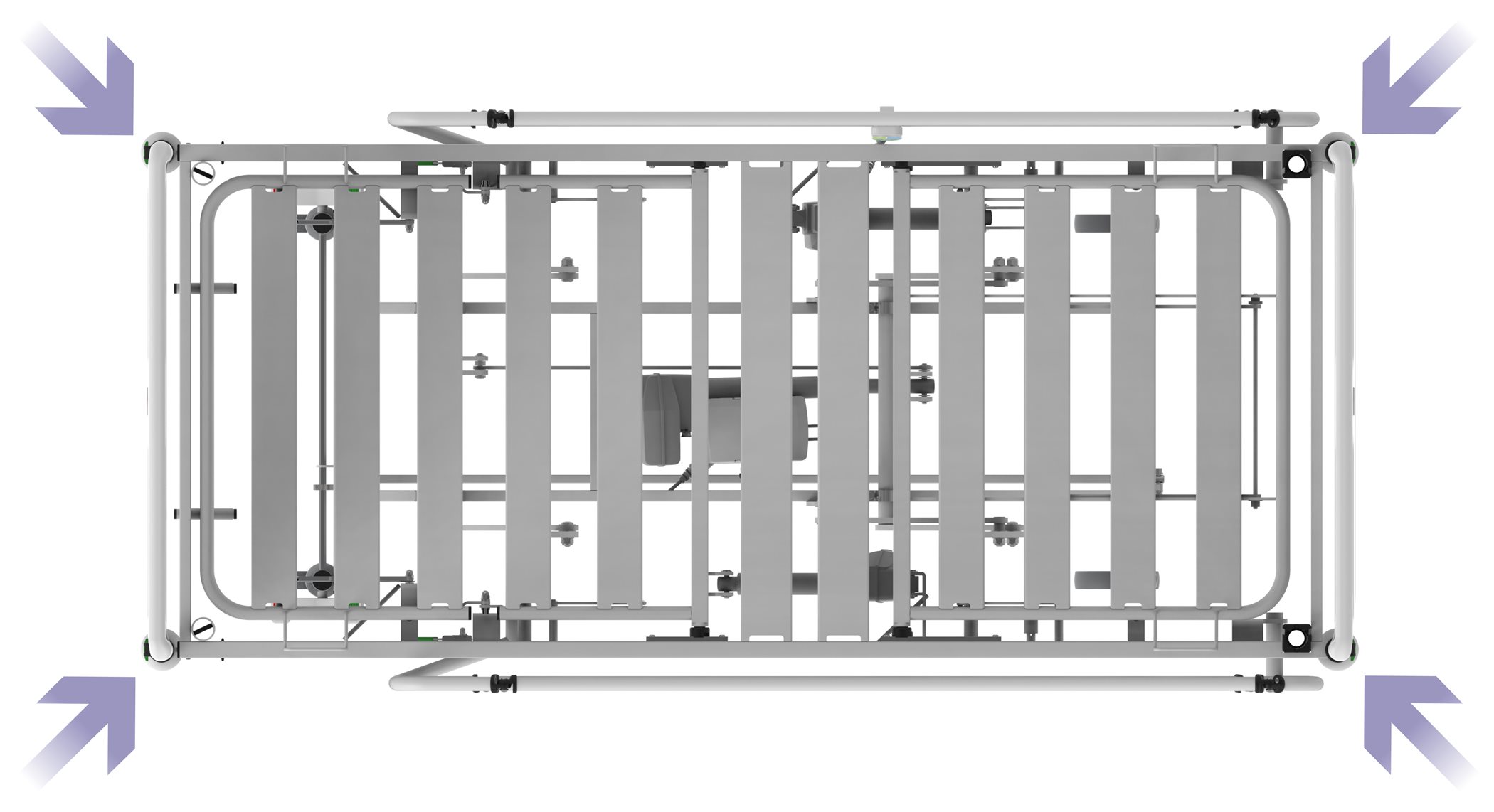

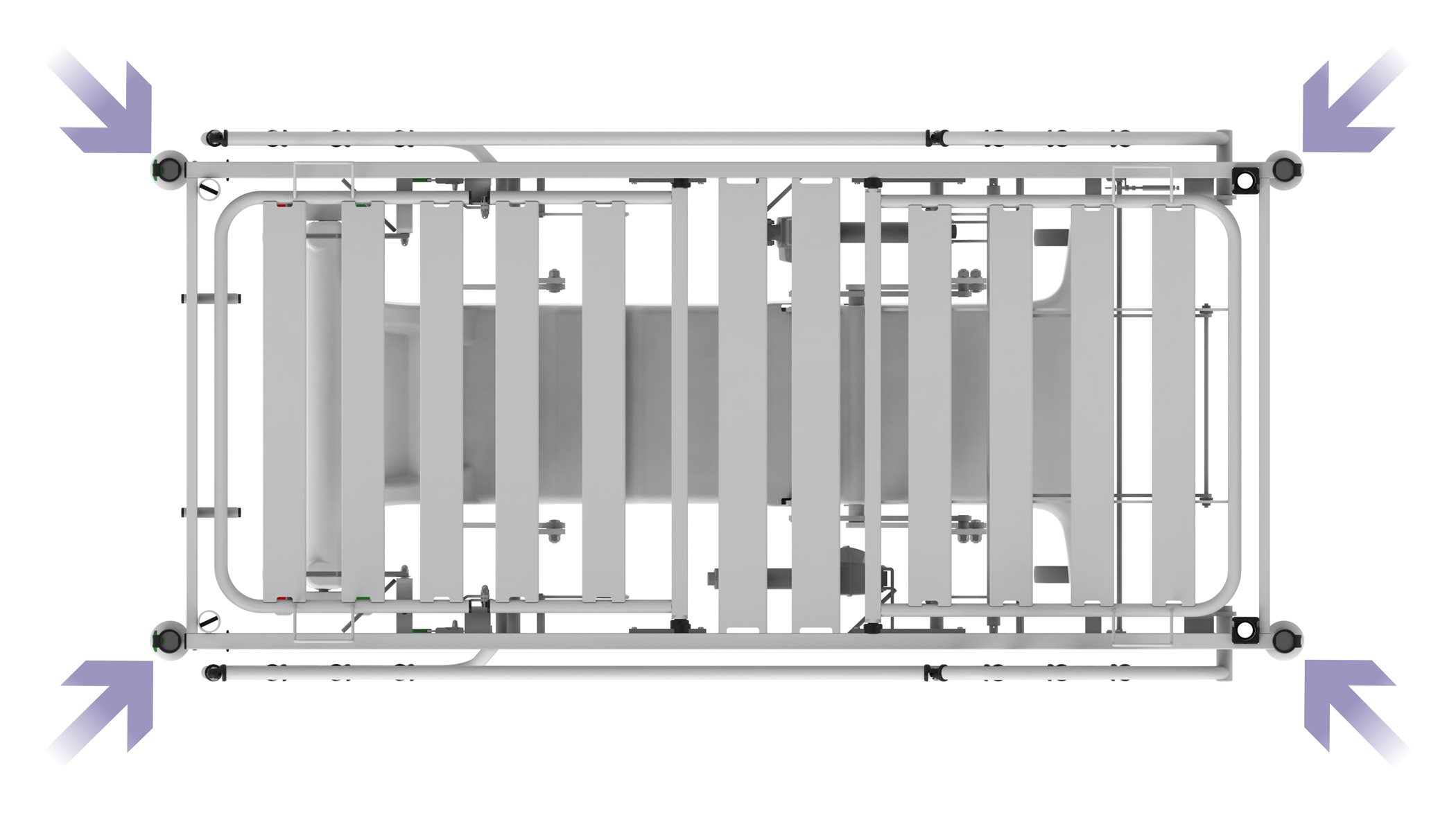

    Bumper wheels

    The bumper wheels located at the four corners of the bed are a great help especially during transport.

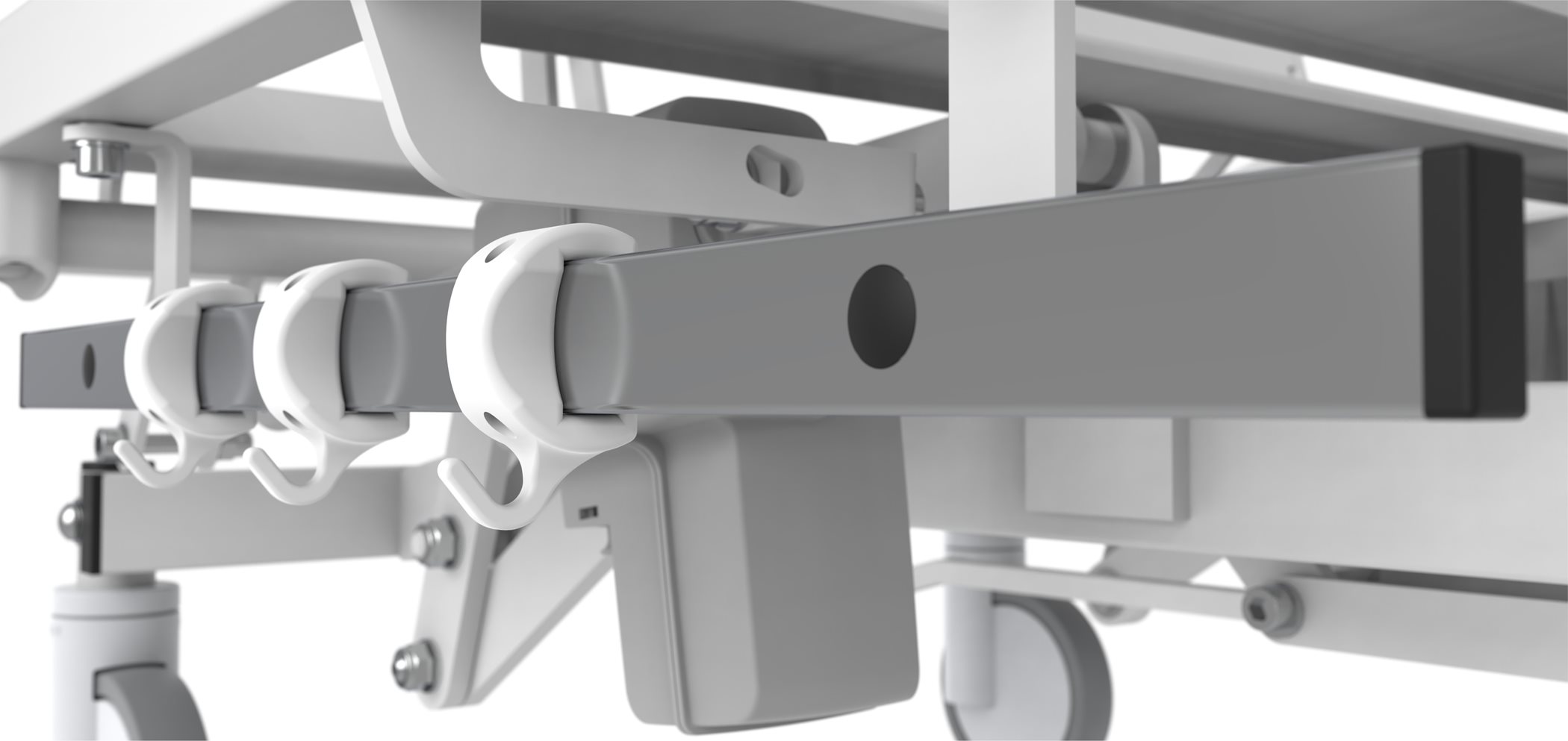

    Horizontal accessories holder

    The standardised stainless steel euro rail for hanging accessories is equipped with three universal plastic hooks on both sides of the bed.

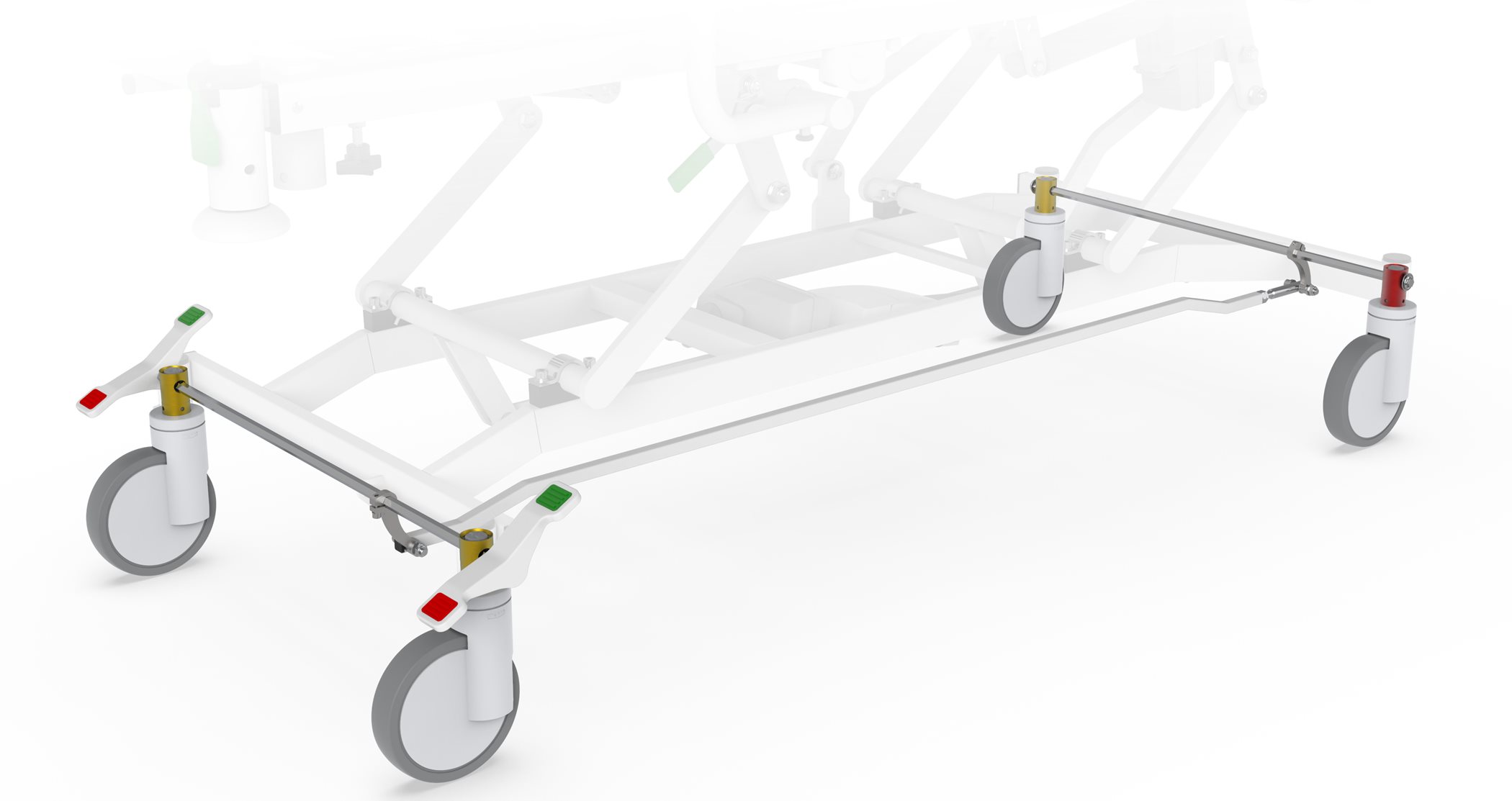

    Central brake

    Safe handling of the bed is ensured by a centrally operated brake. Thanks to the possibility of locking one wheel in the straight direction of travel, the bed can be easily operated by only one person during transport.


    Technical parameters

    Mattress platform (length x width) 200 x 85 (90) cm
    Outer bed dimensions with bumper wheels
    (length x width)
    214 x 97 (102) cm
    Mattress platform height 39,5 - 78,5 cm
    Autoregression back part 12 cm
    Autoregression thigh part 6 cm
    Mattress platform extension 20 cm
    Weight of the bed 125 kg
    Safe operationg load of the bed 250 kg
    Maximum patient weight 215 kg
    CPR Yes
    Application environment for bed use 2, 3
    Mattress platform parts - metal slats Yes
    Type of boards - plastic Yes
    Type of siderails Foldable metal siderails - 4 tubes
    Max. angles of adjustable sections - back part  70°
    Max. angles of adjustable sections - thigh part  40°
    Max. angles of adjustable sections - calf part 25° (rastomat)


    Bed equipment

    Castors Plastic, metal
    Bumper wheels Yes
    Central brake Yes
    Universal accessory holder     Yes 4x
    Bed linen shelf Yes
    Patient control Yes
    Aretation of bedheads Yes
    Bed linen shelf Yes (Optional)
    Universal accessories holder Yes (Optional)
    Plastic chassic cover Yes (Optional)


    Mattress

    Recommended mattress (lenght x width) 200 x 85 cm
    Mattress thickness in normal using 14 cm
    Recommended minimal mattress size 12 cm
    Recommended maximal mattress size 22 cm
