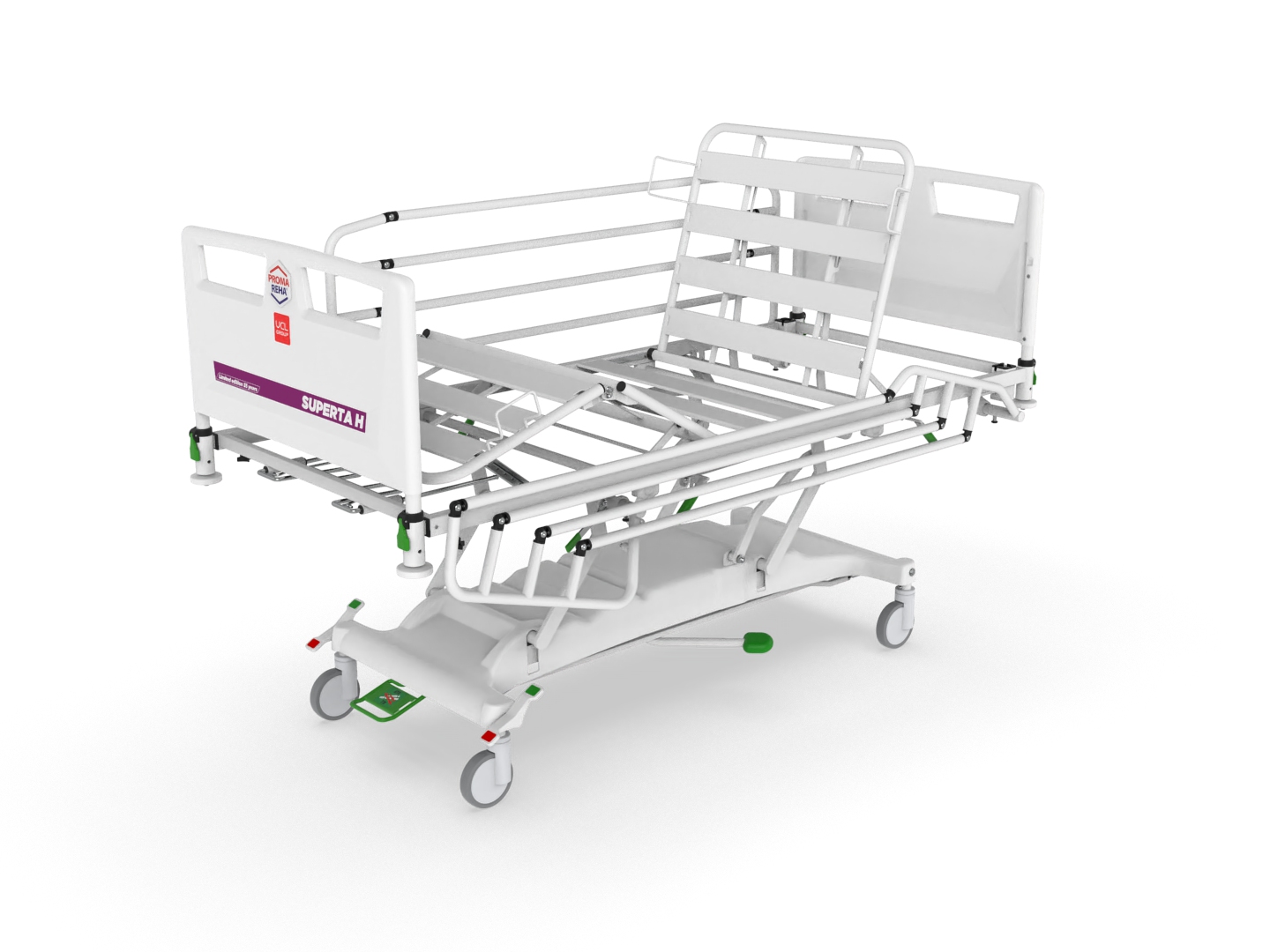

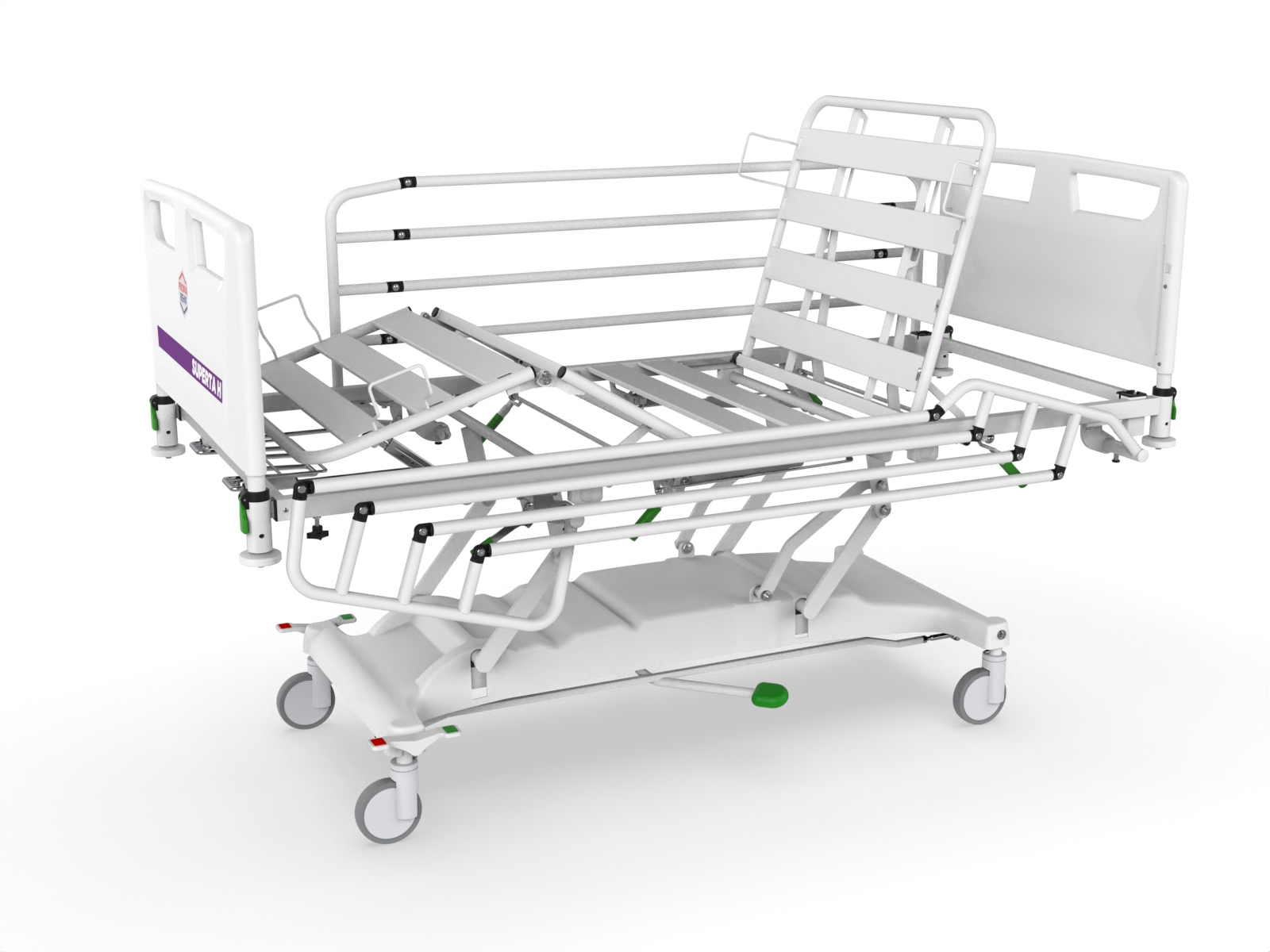

Mechanical hospital bed SUPERTA H

Home

Hospital beds

SUPERTA H beds are designed for standard and above-standard hospital care. They are equipped with hydraulic positioning of the back and foot part of the loading area. The hydraulic positioning of the lift of the loading surface can be supplemented by the mechanical function Trendelenburg. The main advantages of SUPERTA H beds are their independence from electricity, the possibility to configure them according to specific customer requirements and a wide range of accessories. The beds fully comply with the European standard IEC 60601-2-52: 2010.

Inquire about this product

/getattachment/0fd3057a-6722-40d3-bcf1-59d5acc13a34/PLH-nem_30.jpg

/getattachment/d2d87091-ddac-4ac2-8026-765637791e3b/PLH-nem_31.jpg

/getattachment/c55b7180-1b2d-4a1c-917a-665e724b7901/PLH-nem_32.jpg

/getattachment/6d18c061-ef68-4a3e-a8d4-d028b6a1fc1a/PLH-nem_33.jpg

/getattachment/26186fbe-a64a-49c1-b4df-4547e6df16ff/PLH-nem_34.jpg

/getattachment/8c841eae-eaf4-4adb-9d82-50eee7c22a97/PLH-nem_35.jpg

/getattachment/89b7d88a-cd14-4125-85ab-7ab178cd7639/PLH-nem_36.jpg

/getattachment/aa022ec3-2da2-468a-b107-403507dfb0e9/PLH-nem_37.jpg

/getattachment/600904dd-8ca4-4c19-8da6-65c7367b6b8e/PLH-nem_38.jpg

/getattachment/95ea7889-4699-4582-a701-27bab97f1634/PLH-nem_39.jpg

/getattachment/09c69751-03be-442a-a2d9-1eeefdd96d42/PLH-nem_40.jpg

/getattachment/9493cf80-988e-4f23-8ddc-ddf2ed987fae/PLH-nem_41.jpg

/getattachment/b0e9700b-153f-48dd-a292-60143cd6d87f/PLH-nem_42.jpg

/getattachment/9e586fee-b6f6-4da8-a3fa-35d3f2626db6/PLH-nem_43.jpg

/getattachment/f77f62cd-849f-41b1-abb4-39bd62a046f3/PLH-nem_44.jpg

/getattachment/89607884-41a0-44d1-9952-251f9e1406d6/PLH-nem_45.jpg

/getattachment/620289a8-036d-42a1-87f8-e88b8222ae6e/PLH-nem_46.jpg

/getattachment/2d83a4aa-6773-4a19-8715-376c390354a9/PLH-nem_47.jpg

/getattachment/d9174130-1b50-4361-afb3-25f11afdfa42/PLH-nem_48.jpg

/getattachment/f2fbfccf-4d64-4081-9ad0-ab13f6eeea75/PLH-nem_49.jpg

/getattachment/5984fad9-3dda-4caa-980c-b3dc1727d0d9/PLH-nem_50.jpg

/getattachment/ab537917-e1c1-48f0-b334-ffde9bcf2191/PLH-nem_51.jpg

/getattachment/6963f408-5c9b-476d-a51d-81b27fe207ad/PLH-nem_52.jpg

/getattachment/5897e8bb-4030-485f-9834-888691f7260d/PLH-nem_53.jpg

/getattachment/7c6ac862-b753-4024-aed4-8f181135c31b/PLH-nem_54.jpg

/getattachment/27945c86-d684-49a4-a788-d941b8d8deca/PLH-nem_55.jpg

/getattachment/f8d02a2a-5789-4d86-83e0-03f08d0e93b4/PLH-nem_56.jpg

/getattachment/192a3ad9-8226-4a47-bfaa-02c0d3022da6/PLH-nem_57.jpg

/getattachment/f0f99f8e-0855-42e5-ae5b-2981200be2b8/PLH-nem_58.jpg

/getattachment/8020583e-9803-40ed-9a01-ba33a2b0992e/PLH-nem_59.jpg

/getattachment/0f363f5a-a11c-4859-a6c9-62b6944deac8/PLH-nem_60.jpg

/getattachment/754c3a10-236b-4180-8b14-4d6cadc66a4c/PLH-nem_61.jpg

/getattachment/f28b47a0-79e9-4891-935a-eb2600187d8b/PLH-nem_62.jpg

/getattachment/9e732938-e448-496f-8504-d510bf4be8eb/PLH-nem_63.jpg

/getattachment/366982cb-09ec-44cd-bea8-6af54d835f51/PLH-nem_64.jpg

/getattachment/1fe23417-8c37-44a2-91ef-77d623af7d50/PLH-nem_65.jpg

/getattachment/5bac459e-f627-4986-98d4-658f0a743ff4/PLH-nem_66.jpg

/getattachment/96b4b696-09b7-4722-b1f5-6b55eb33d6fd/PLH-nem_67.jpg

/getattachment/6a0b90c2-f577-4915-b4ea-5af3734ecdb4/PLH-nem_68.jpg

/getattachment/b80a6378-cb20-42ec-804b-a7141fe4be77/PLH-nem_69.jpg

/getattachment/b6865dbe-f6e7-4576-9076-6db8cf8a5207/PLH-nem_70.jpg

/getattachment/01879f3b-a6a1-4d32-b6fa-d489a5a80926/PLH-nem_71.jpg

/getattachment/f61d726f-1c27-4698-8b19-216340b8aef4/PLH-nem_72.jpg

/getattachment/086ee37c-a5d8-498c-b33a-9fa4dc6b93fb/PLH-nem_73.jpg

/getattachment/575c1de3-918c-4b74-8e3f-77c50f1ca976/PLH-nem_74.jpg

/getattachment/b8eb6226-c0f1-4ba6-956c-26c535a98aac/PLH-nem_75.jpg

/getattachment/afde5fb3-23a0-42fc-957e-10345b62fb0c/PLH-nem_76.jpg

/getattachment/524fc596-98b7-4bdf-8ad5-602f62ac74ba/PLH-nem_77.jpg

/getattachment/a2a4be08-8ae6-42cb-8110-ce8a1208f2ee/PLH-nem_78.jpg

/getattachment/81544369-cdd3-40a0-ae24-d8613b43e162/PLH-nem_79.jpg

/getattachment/732089a7-c96d-4e04-9da1-a3d4f5459dc0/PLH-nem_80.jpg

/getattachment/fefa014f-6d81-4d25-a51f-e689226d79d9/PLH-nem_81.jpg

/getattachment/dccb6bb6-09c3-44d2-b8db-78a5e3730c5d/PLH-nem_82.jpg

/getattachment/6266f3da-687e-4a73-8297-790b10c7c8eb/PLH-nem_83.jpg

/getattachment/2fad79f3-3eba-444d-a6f4-dd2a44b51cbf/PLH-nem_84.jpg

/getattachment/98022ce8-8304-471a-ab45-bee3fdca6a38/PLH-nem_85.jpg

/getattachment/96287a3b-fb19-4e96-b8fb-d2911ab79830/PLH-nem_86.jpg

/getattachment/73da59c9-f5ee-44b5-ace2-234e429a9ed8/PLH-nem_87.jpg

/getattachment/d7b0c880-8ac2-495c-8cb9-7384dc4eb160/PLH-nem_88.jpg

/getattachment/aad35367-0d4d-43b6-b941-13ee98fd58d2/PLH-nem_89.jpg

Mechanical positioning of the thigh part

Mechanical position of the cardiac chair

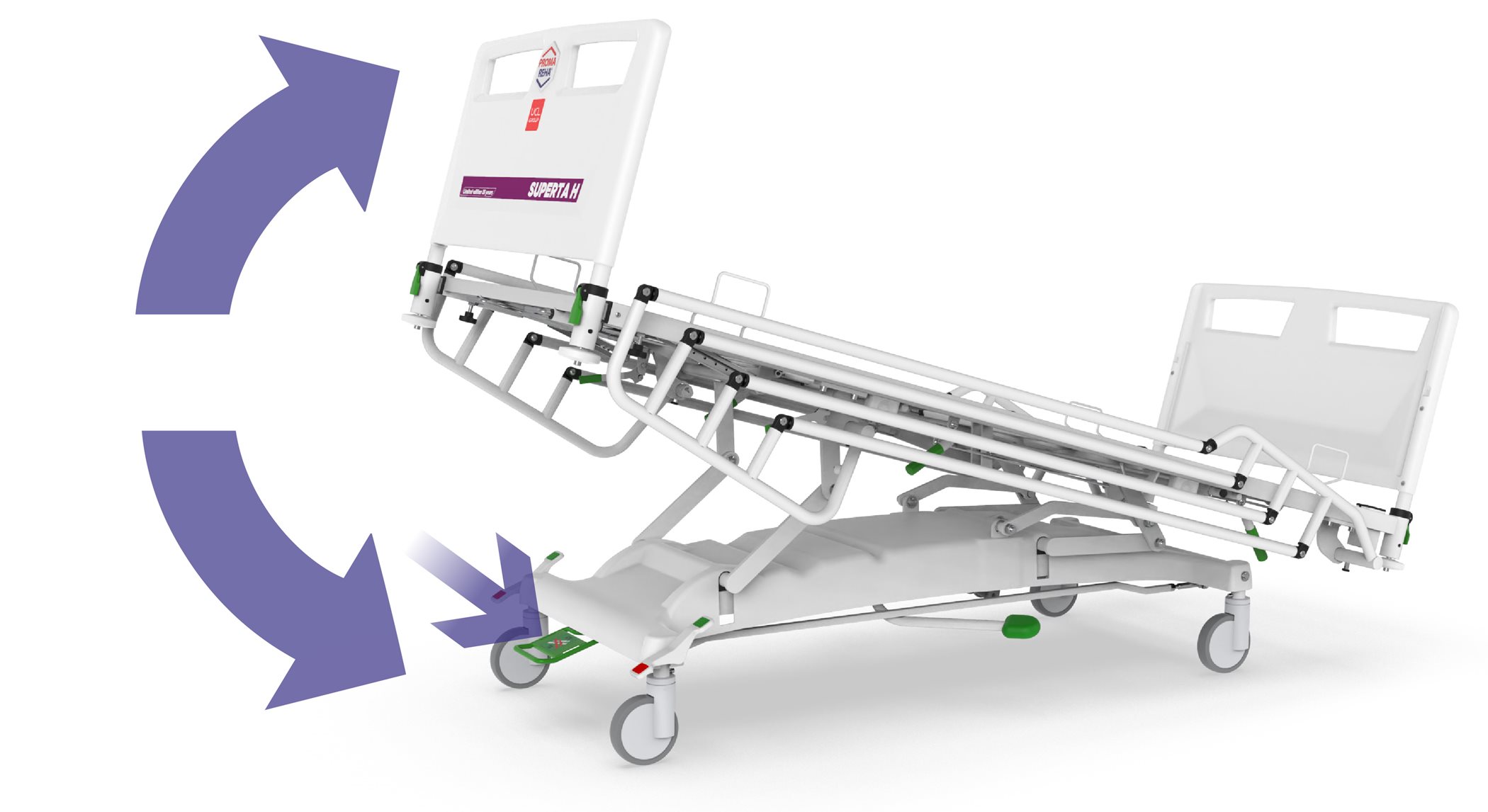

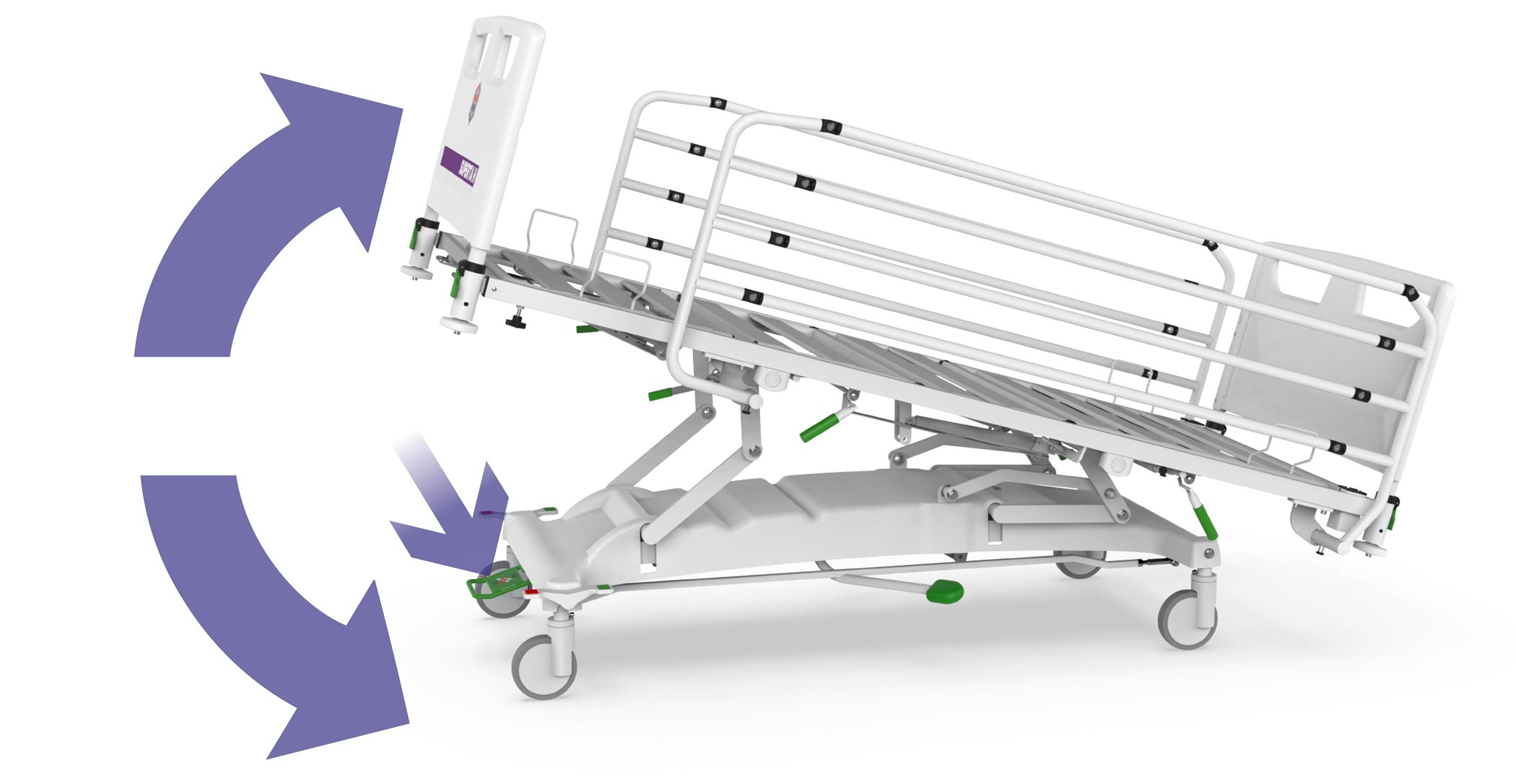

Mechanic Trendelenburg / Antitrendelenburg

Electric Trendelenburg / Antitrendelenburg

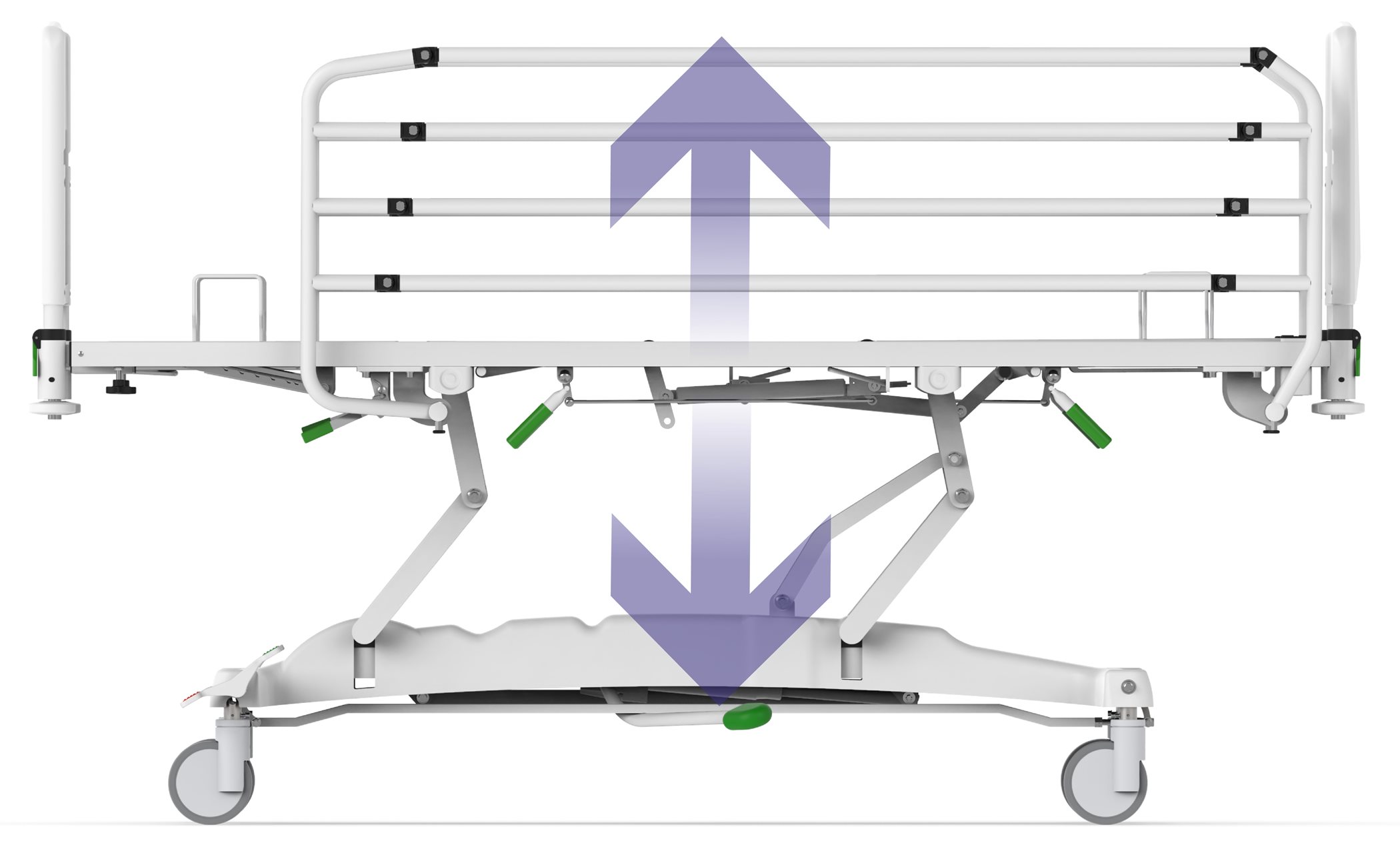

Mechanical lifting of the loading surface

suitable for standard hospital wards
modification for washing line

Technical parameters

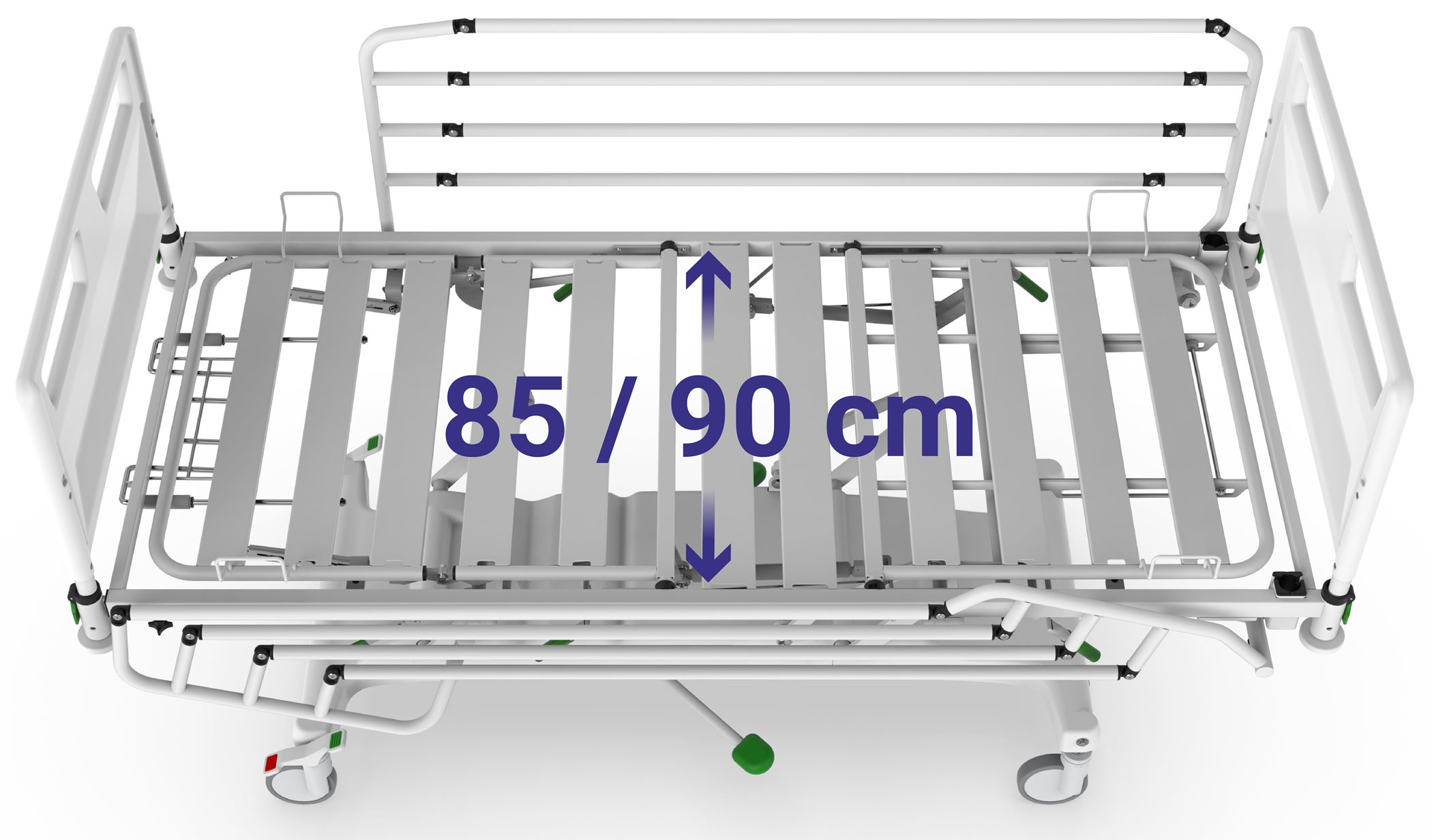

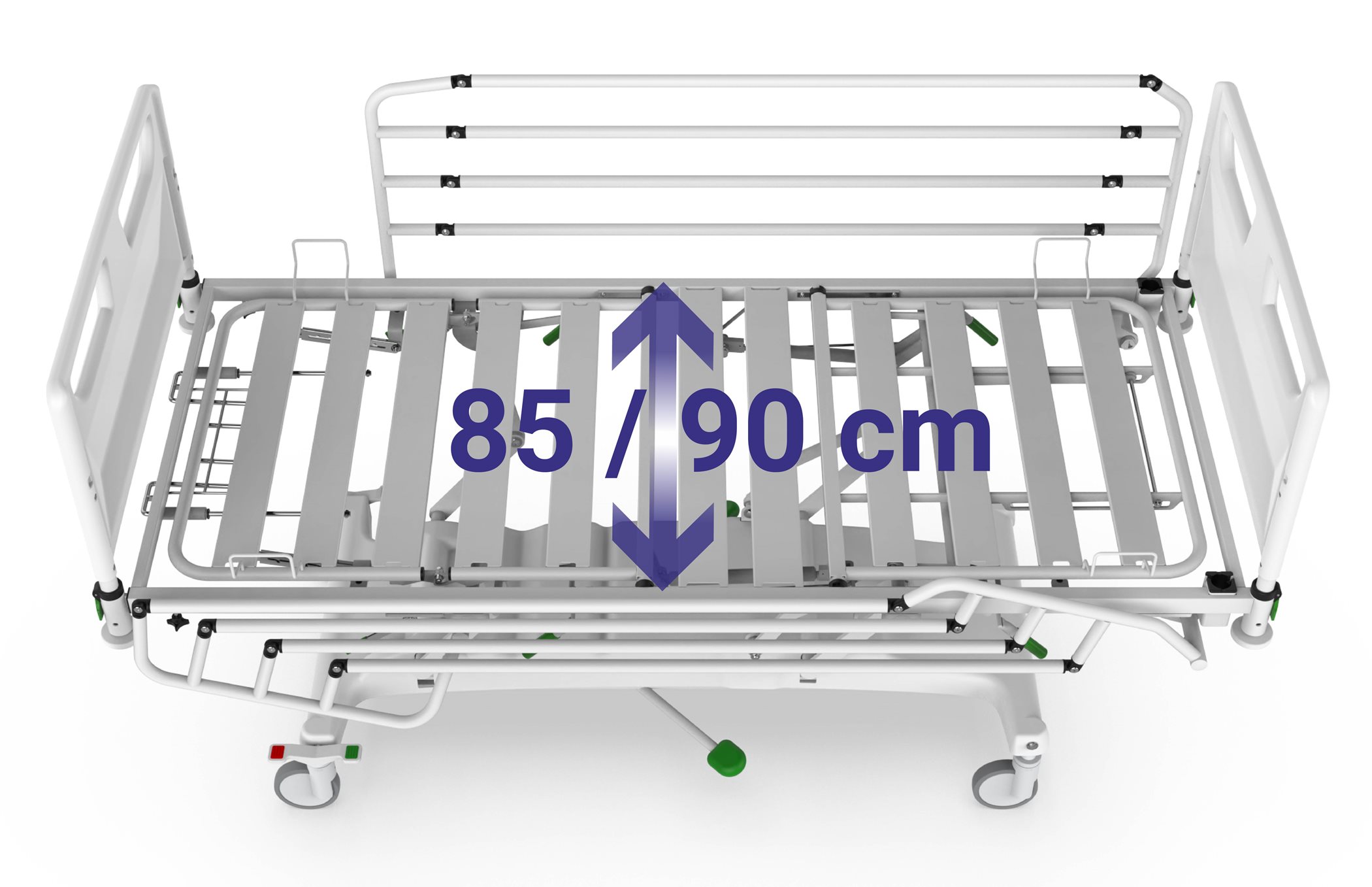

Mattress platform dimensions (lenght x width)	200 x 85 (90) cm
Overall dimensions (lenght x width)	214 x 97 (102) cm
Height of the loading area	39,5 - 78,5 cm

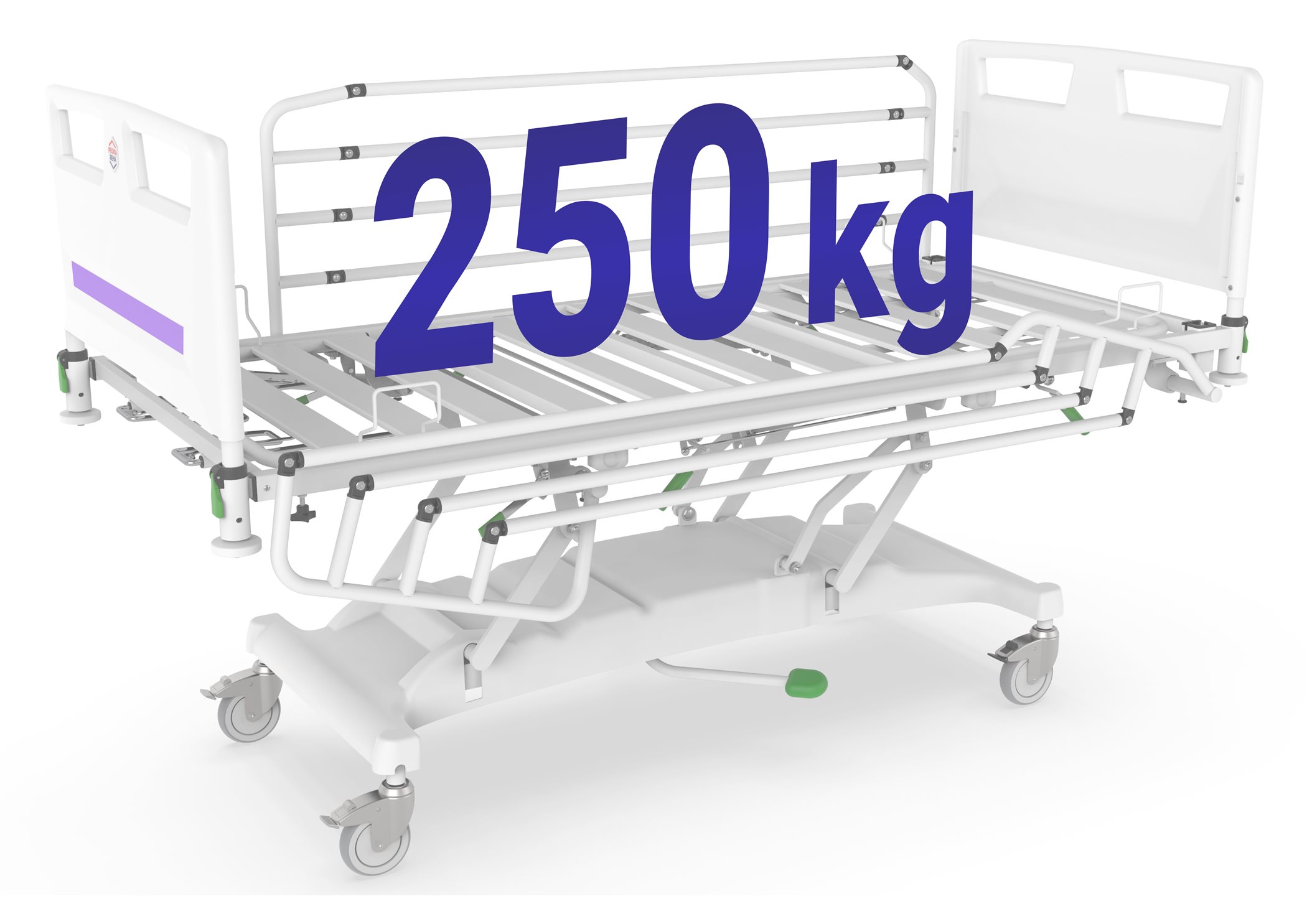

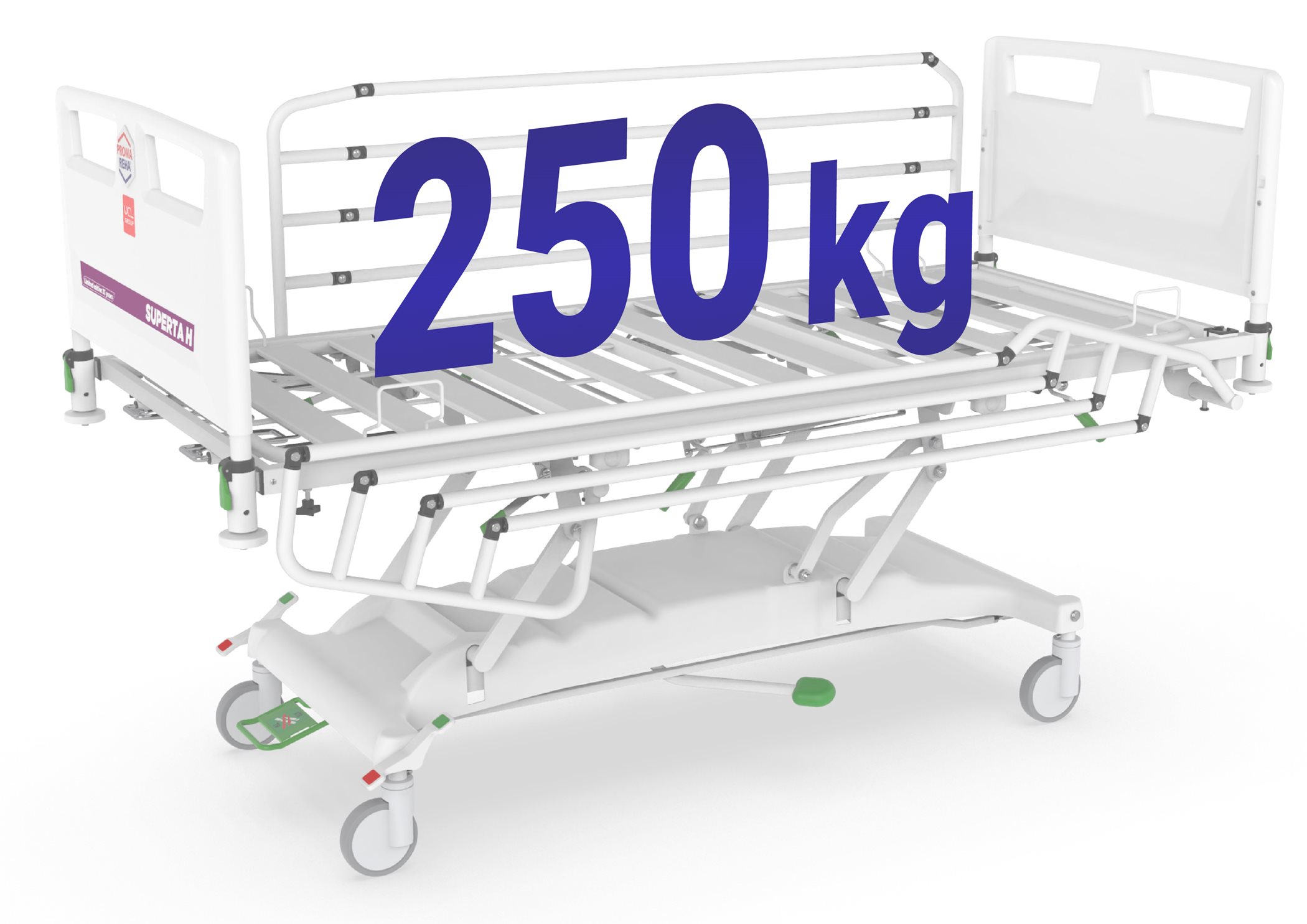

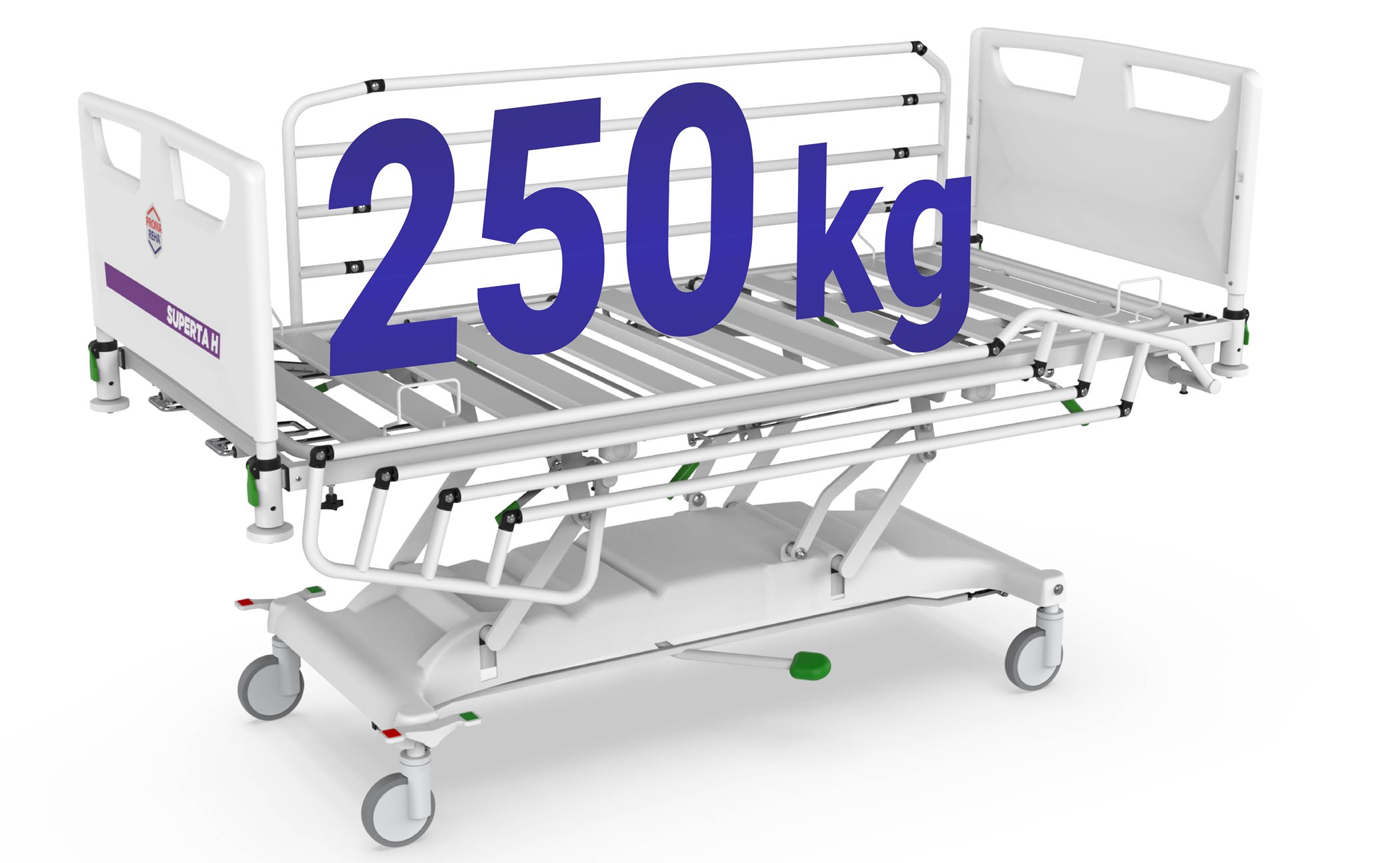

Safe working load	250 kg

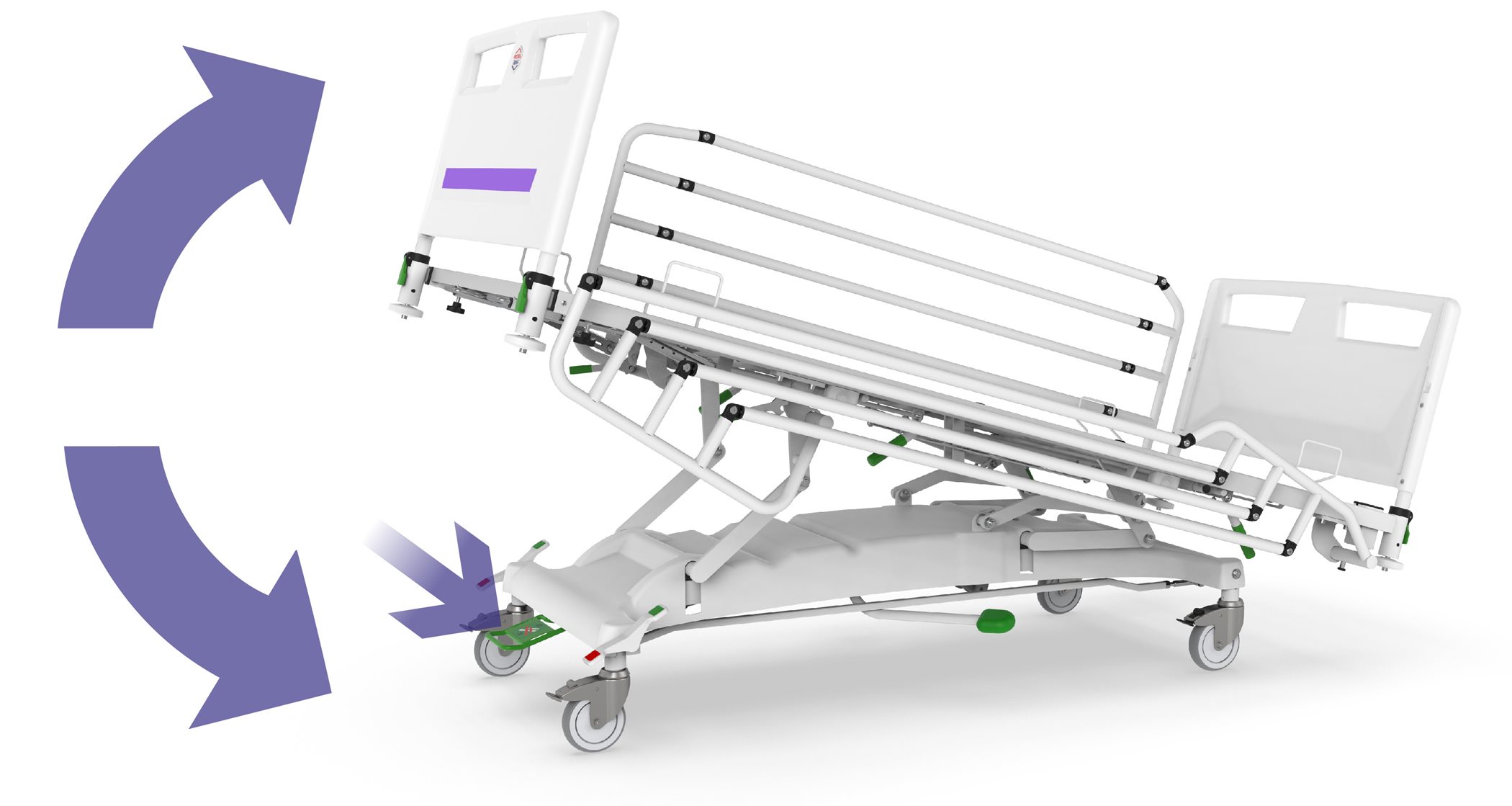

Trendelenburg / Antitrendelenburg	15° / 14°

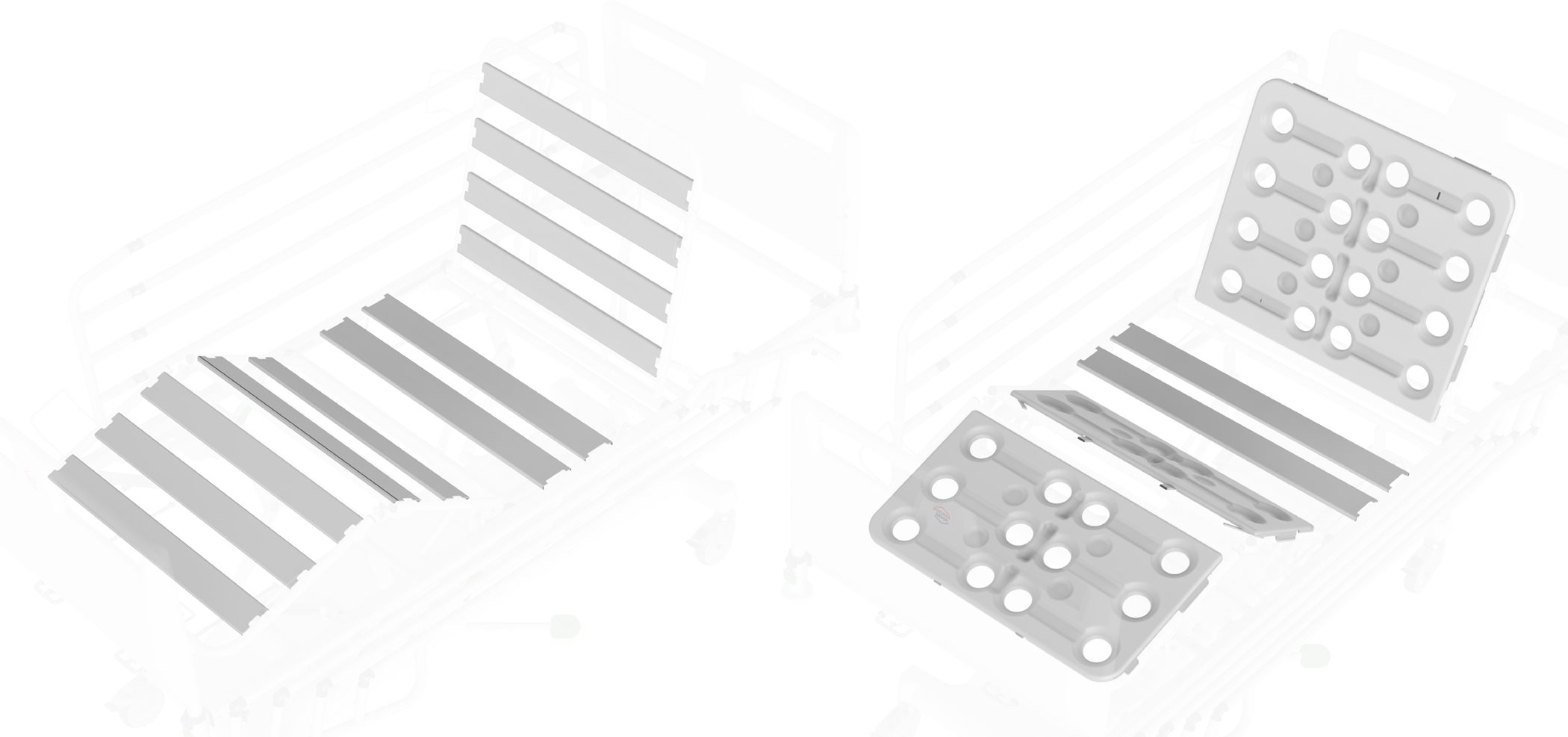

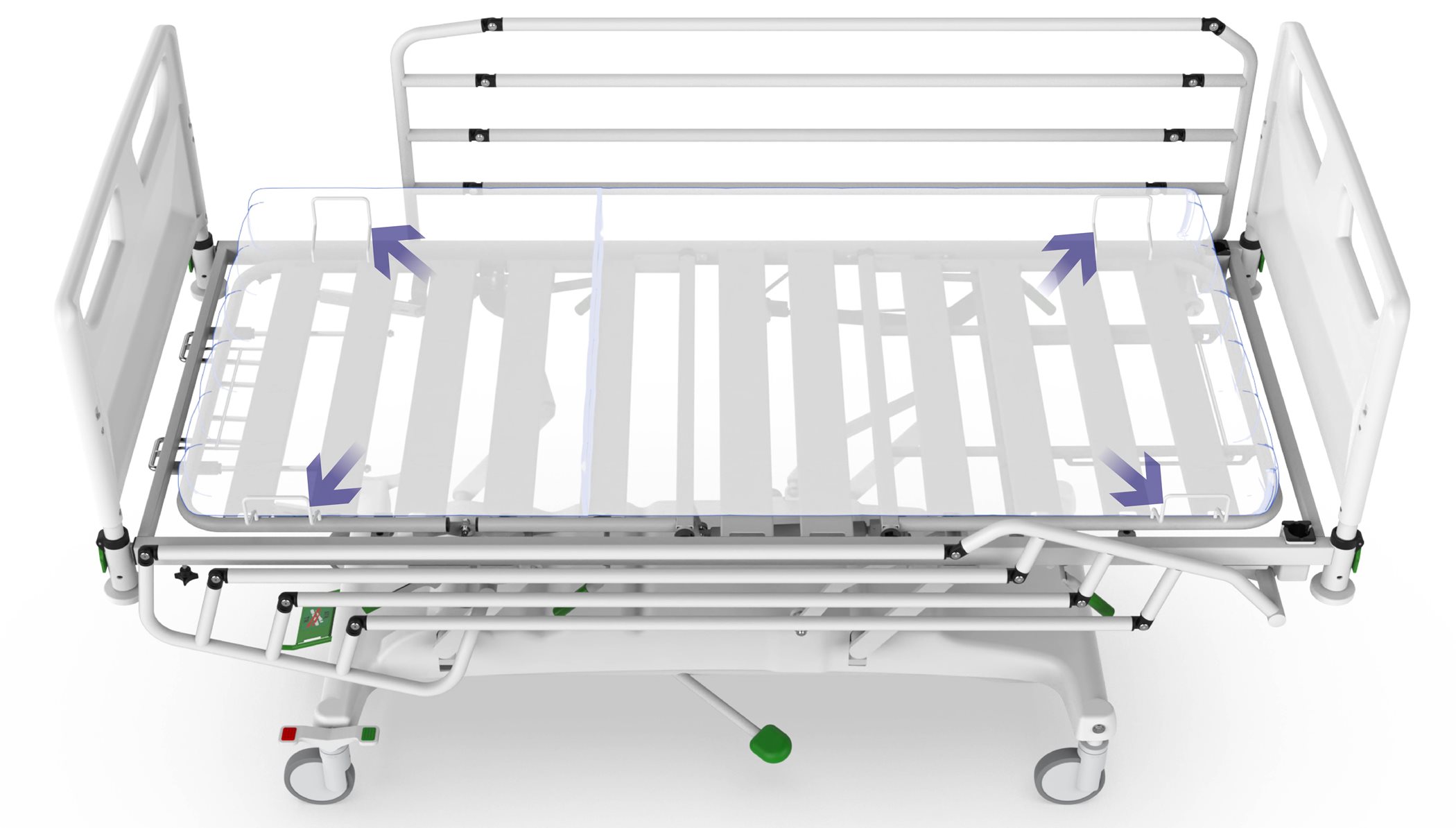

Load area	ABS removable plastic

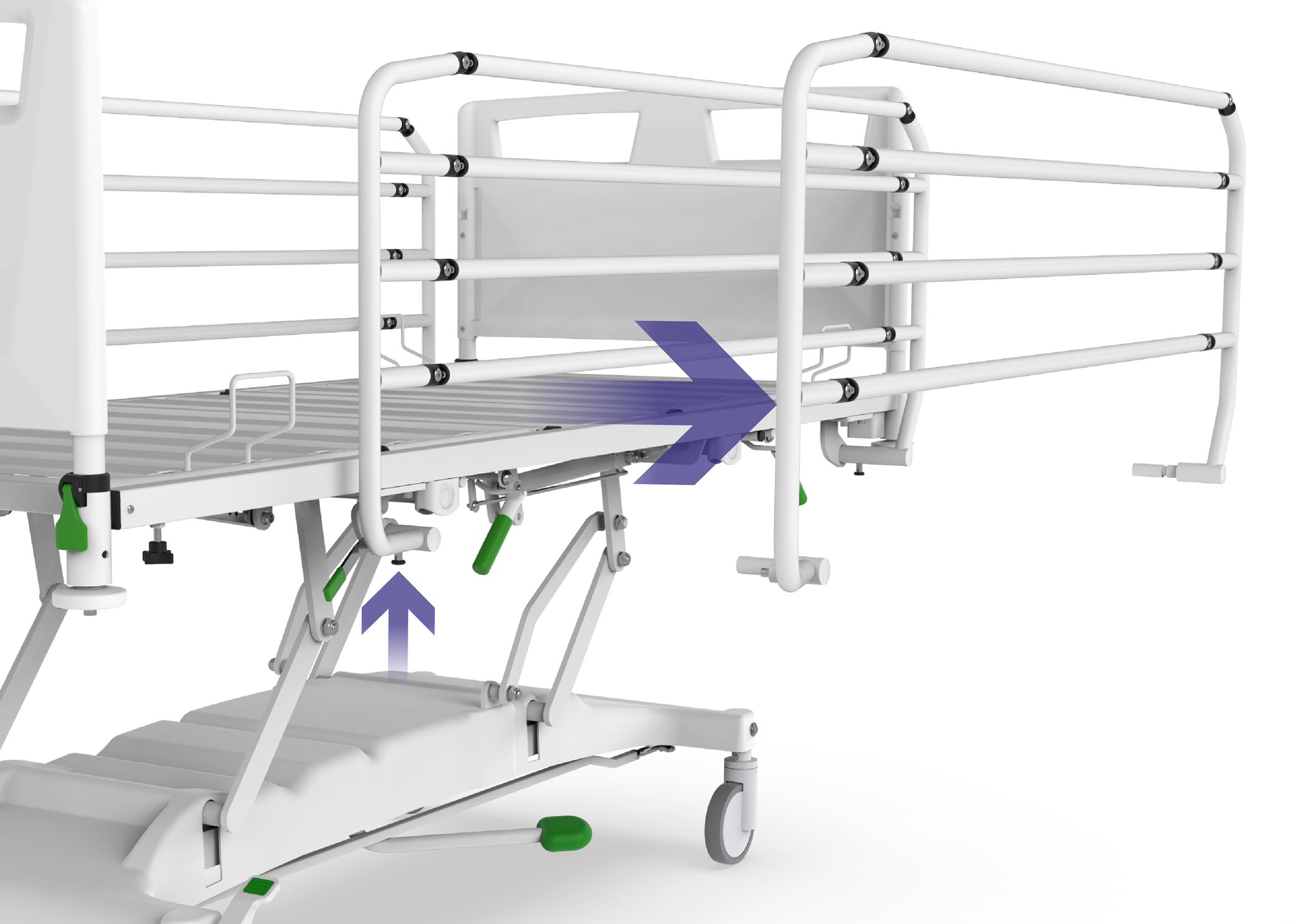

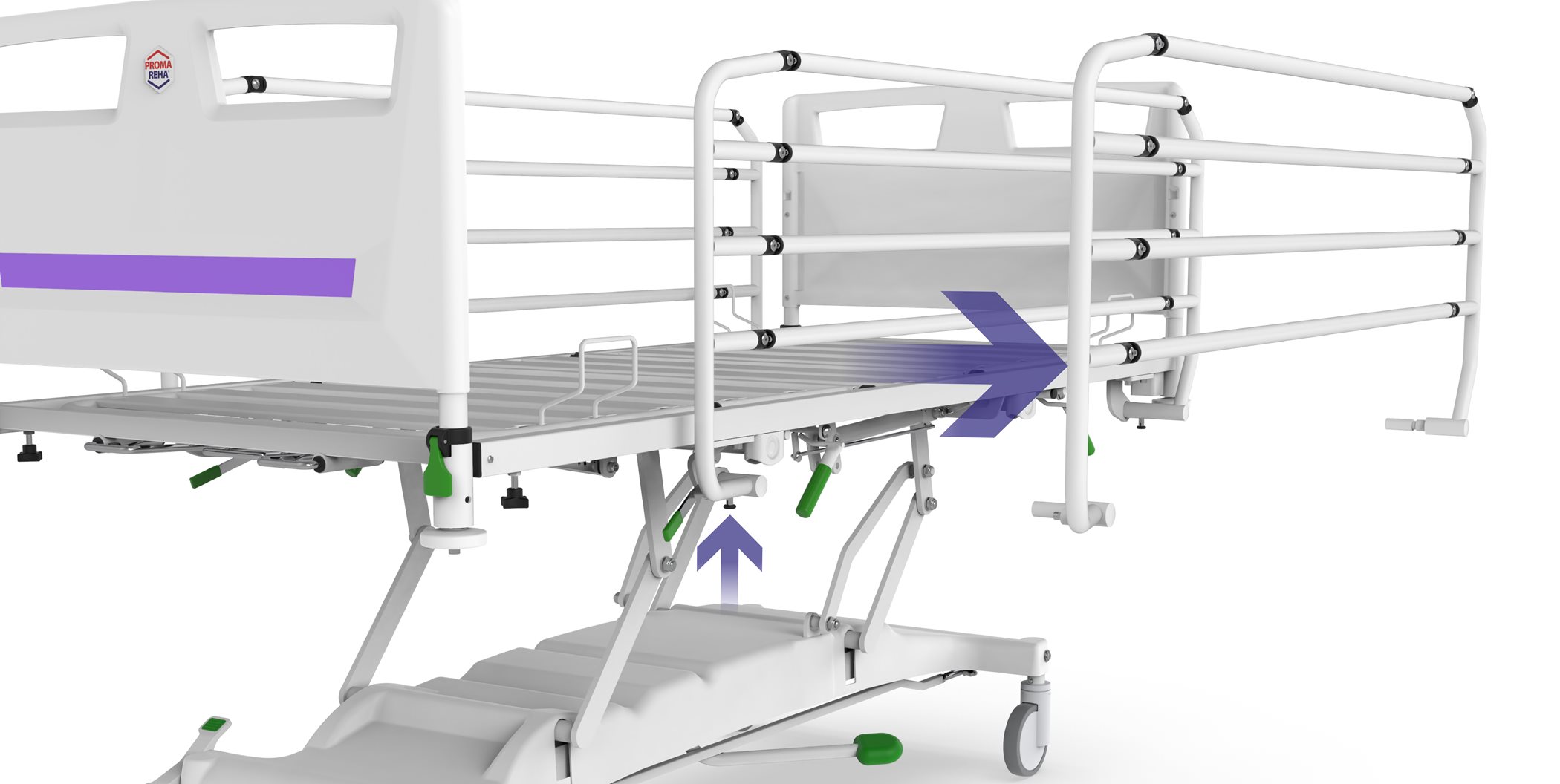

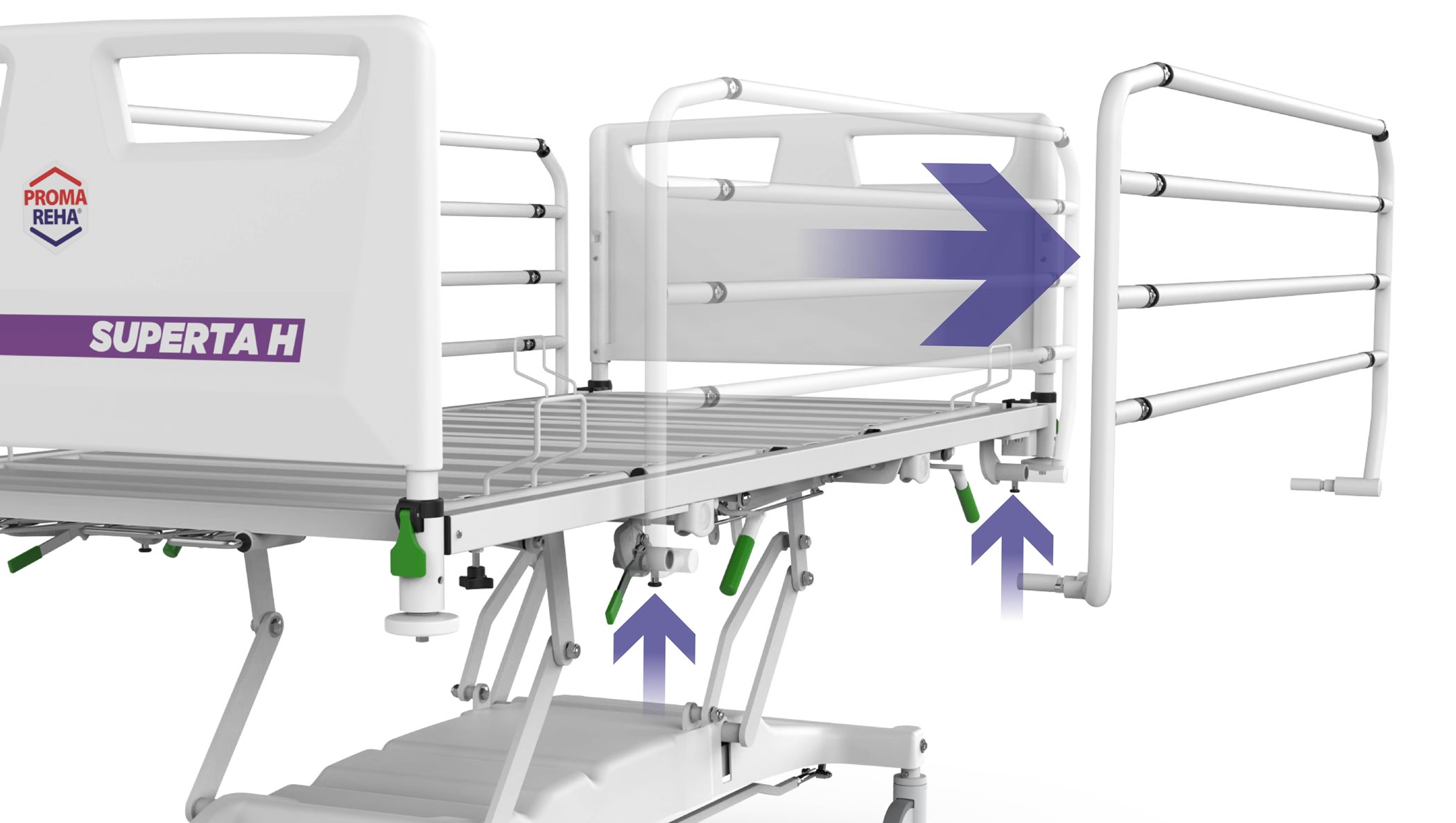

Side rails	metal, folding, removable

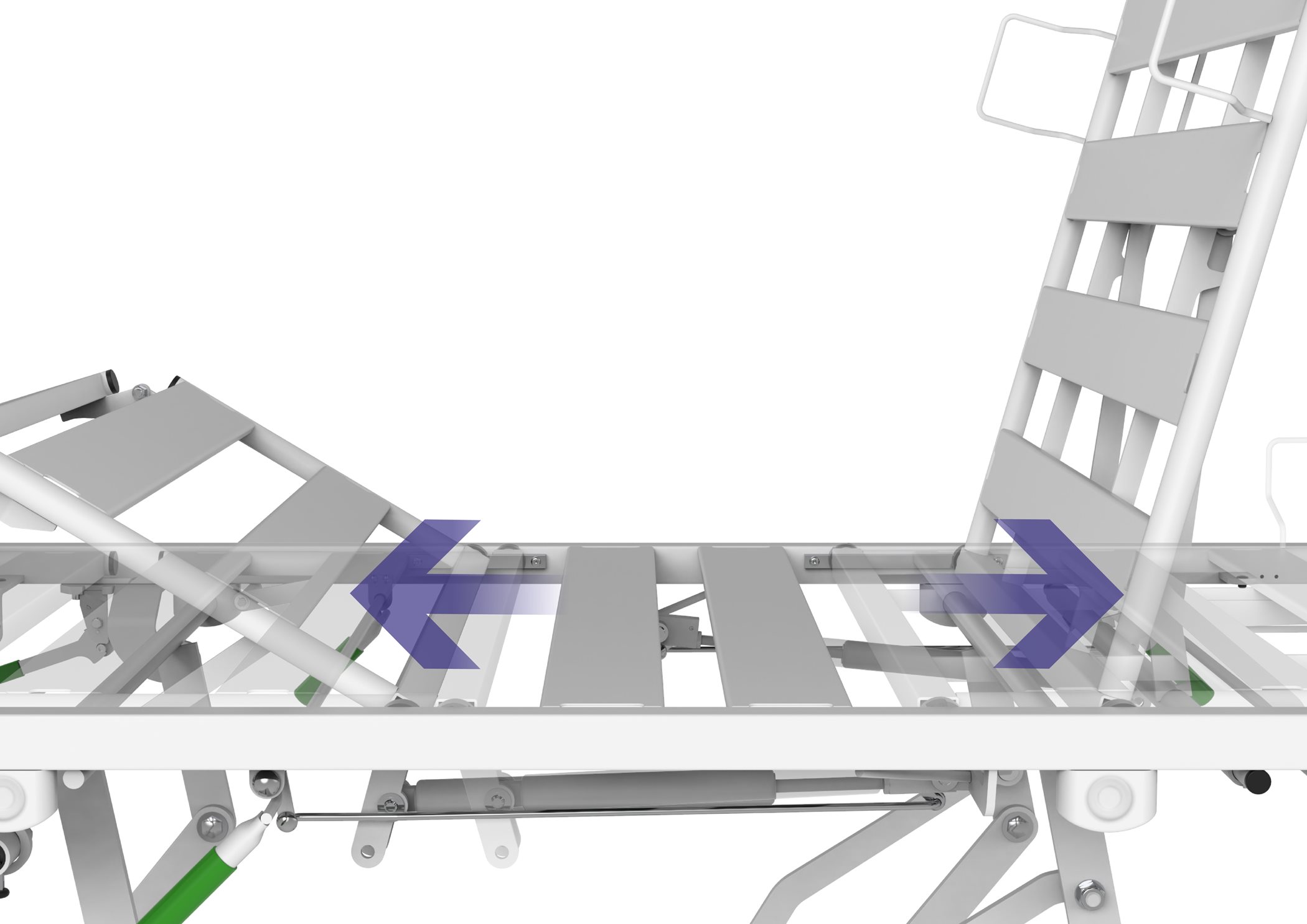

Double autoregression

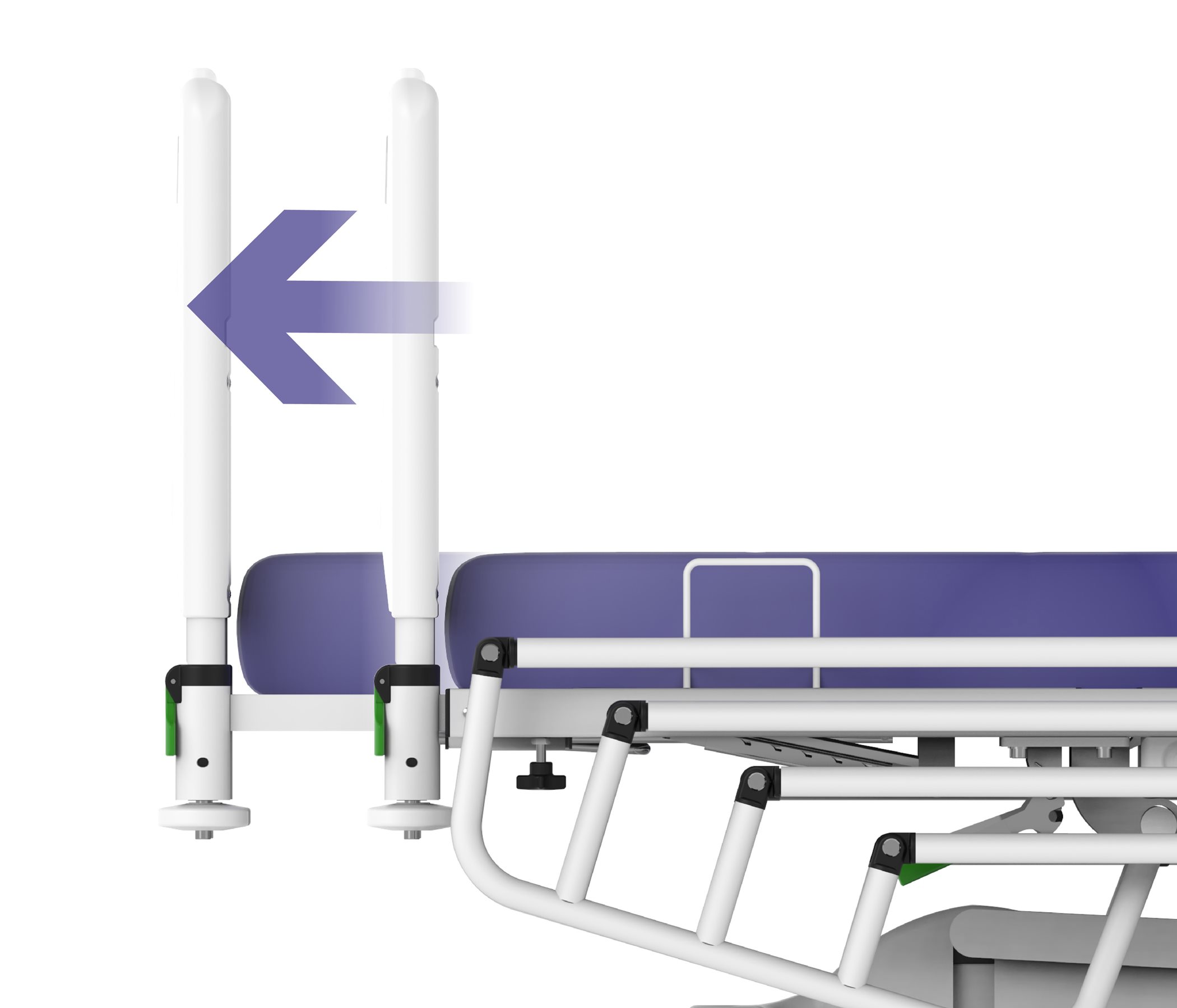

Extension of the loading area	20 cm

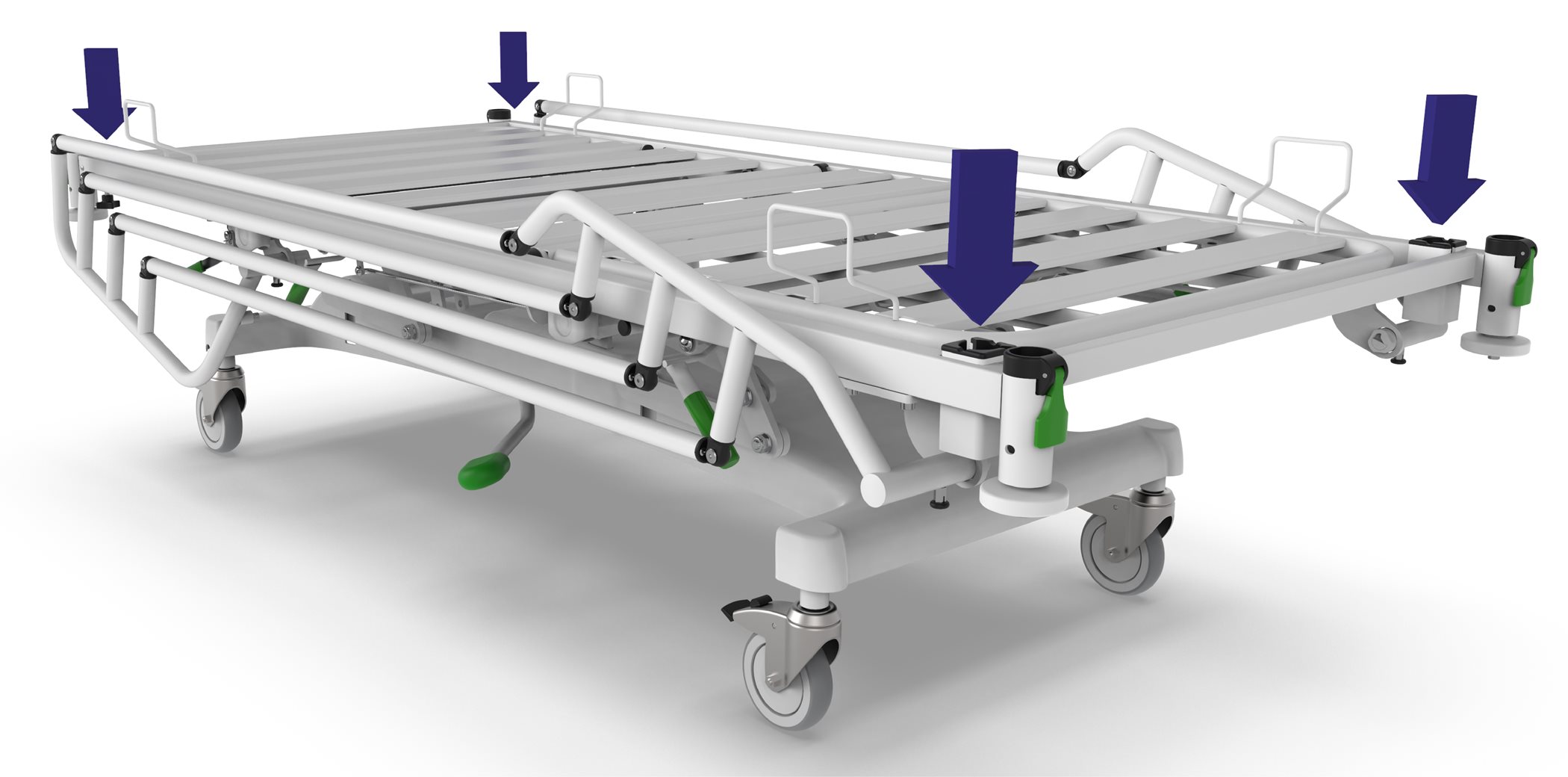

Universal accessory holders	4x

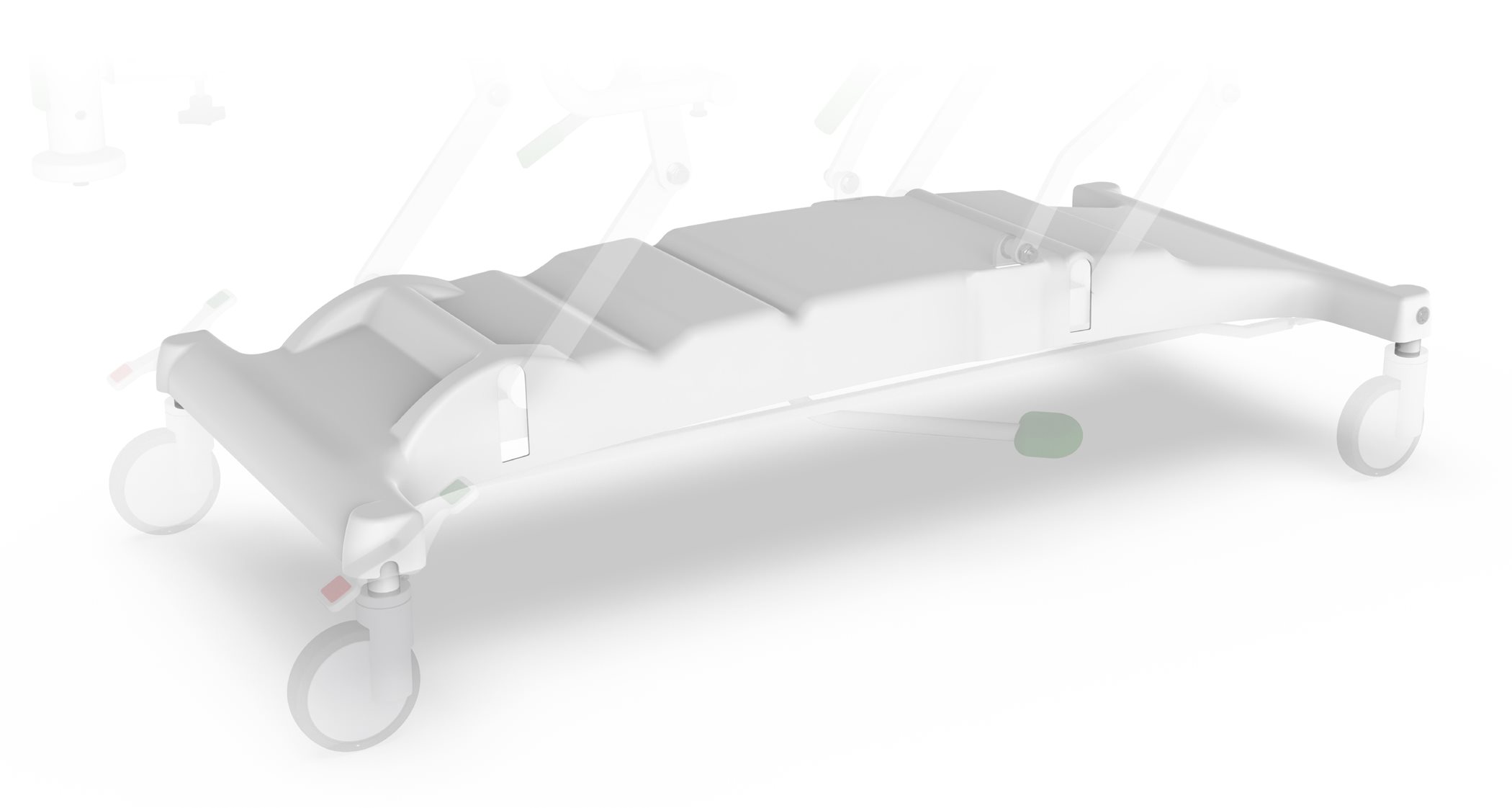

Plastic chassis cover

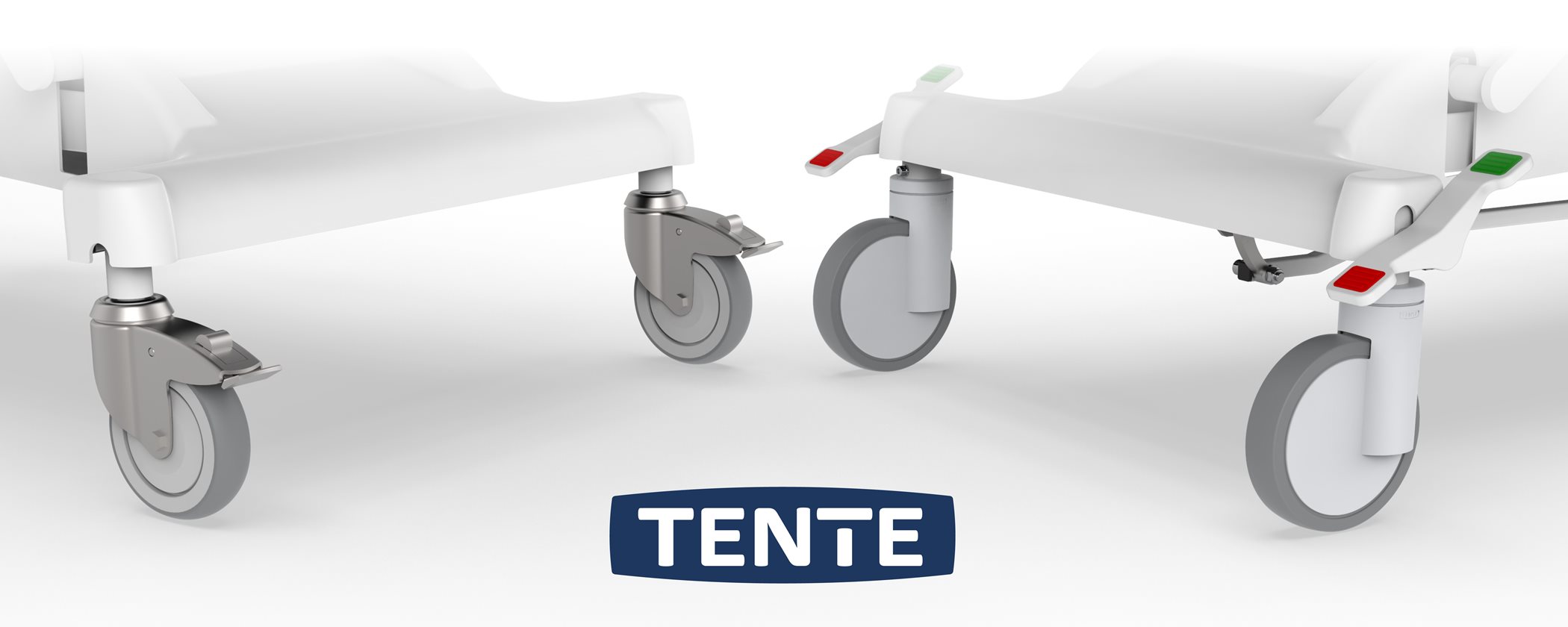

Wheels	150 mm central, plastic

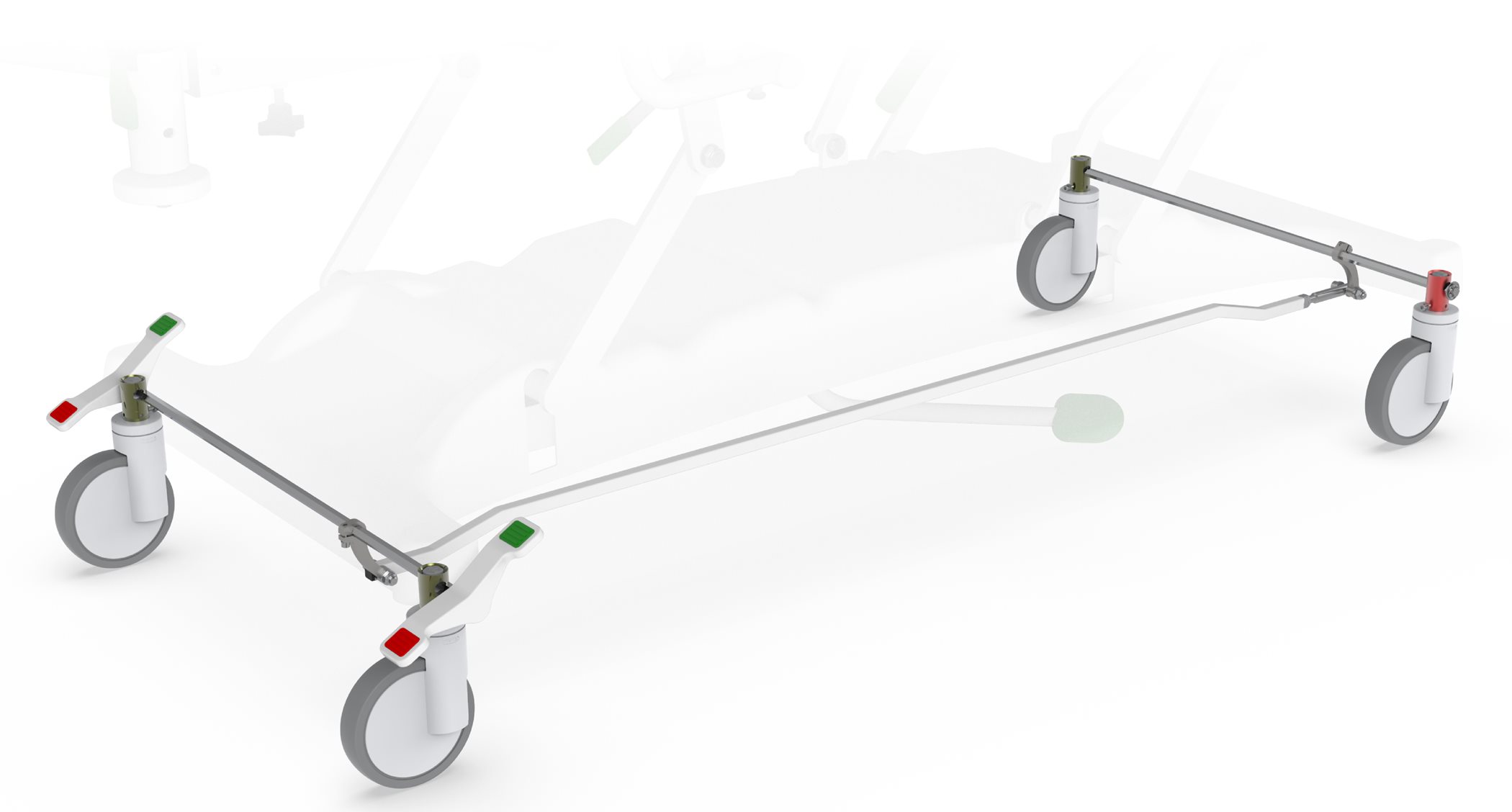

Central brake
