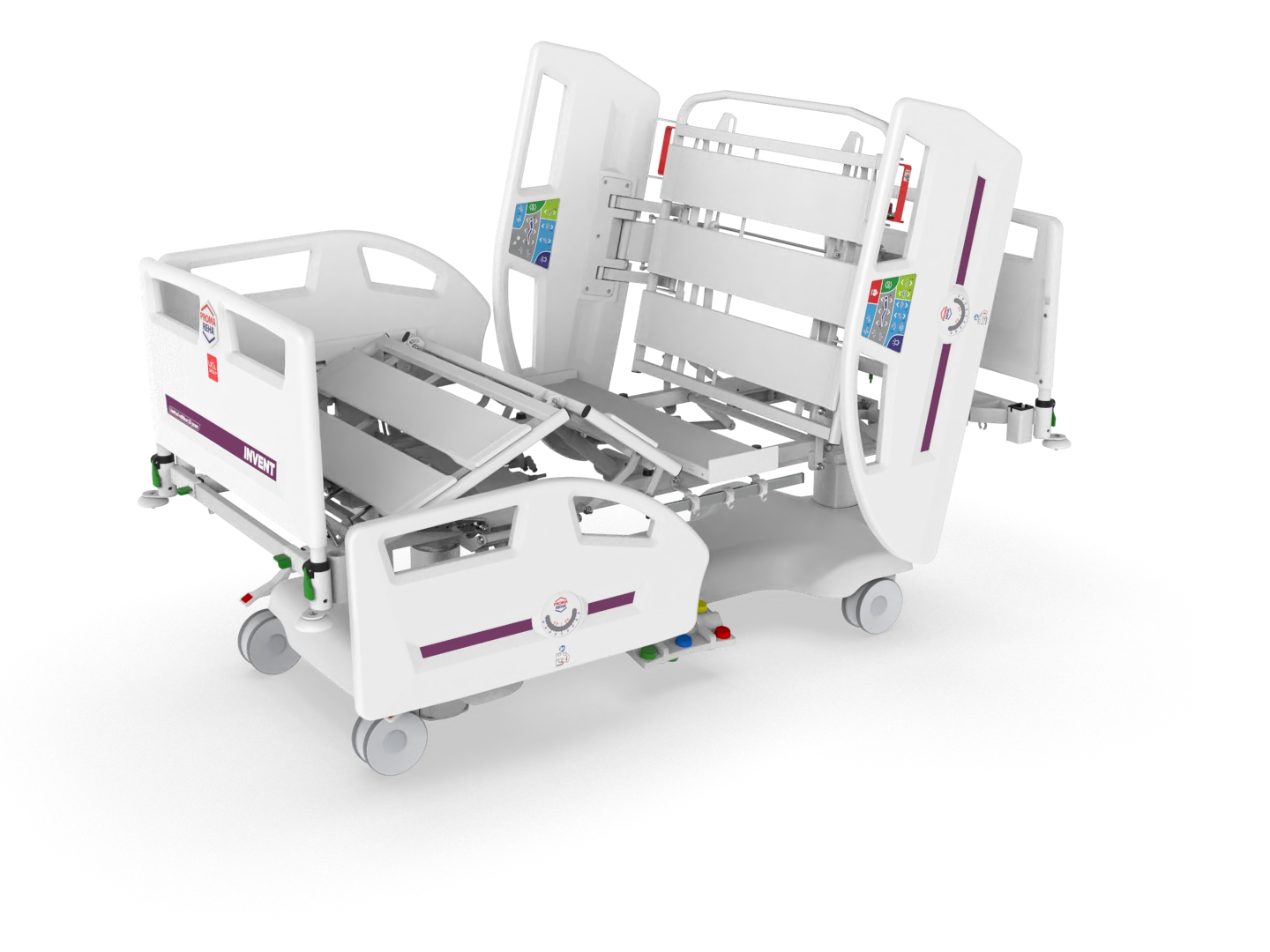

Bed with weighing system designed for standard, supra-standard and intensive hospital care
Hospital staff and patients alike will appreciate the easy handling of this bed, the comfortable and intuitive operation and the full range of pre-programmed functions. The INVENT bed is fully electrically adjustable with emergency operation on battery backup. Like all our beds, the INVENT stands out for its professional workmanship down to the last detail. Thanks to a wide range of options and modifications, it can be manufactured according to customer requirements.
WE PROTECT YOUR HEALTH AND SAFETY!
Quick access to the patient

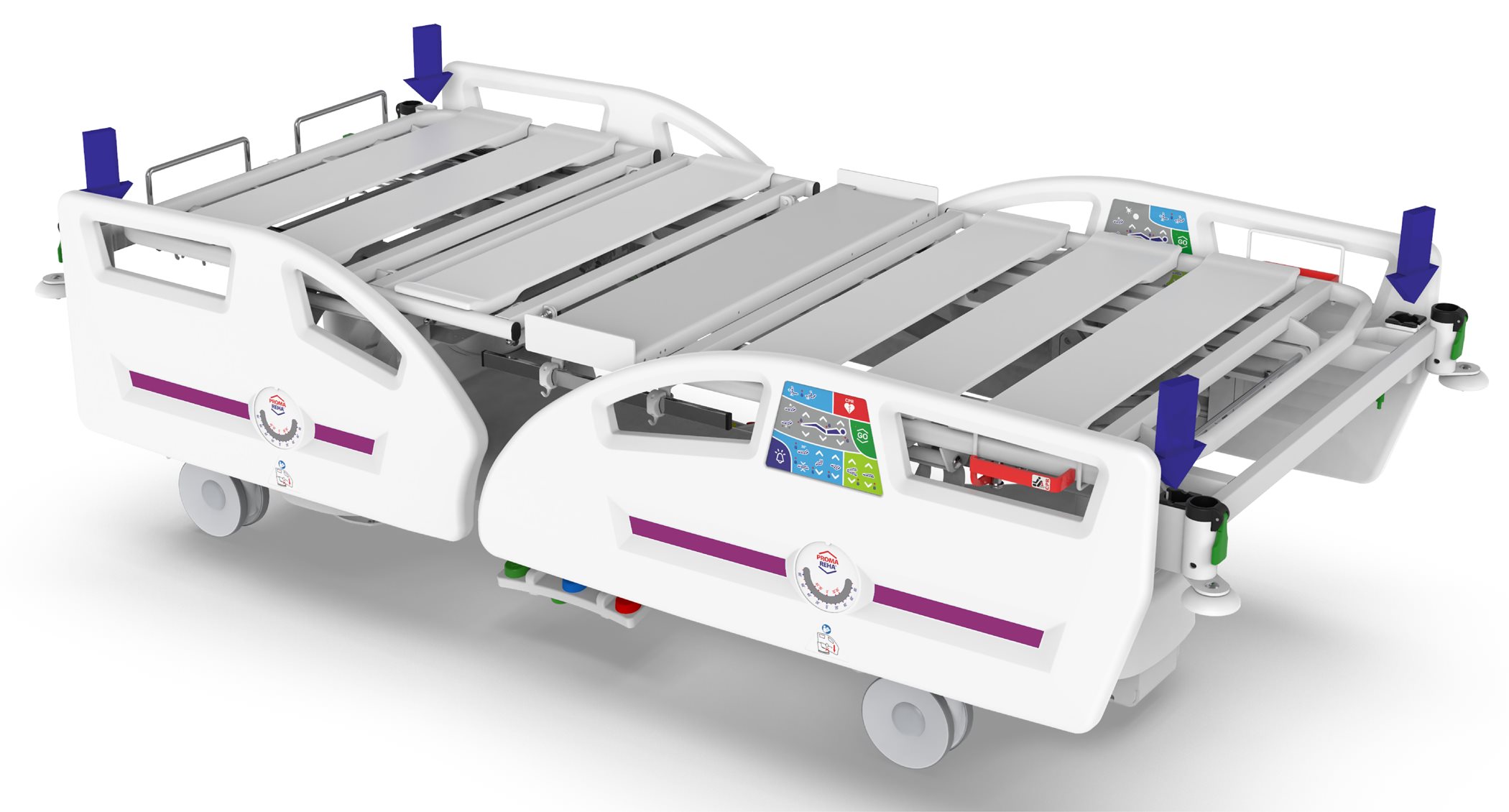

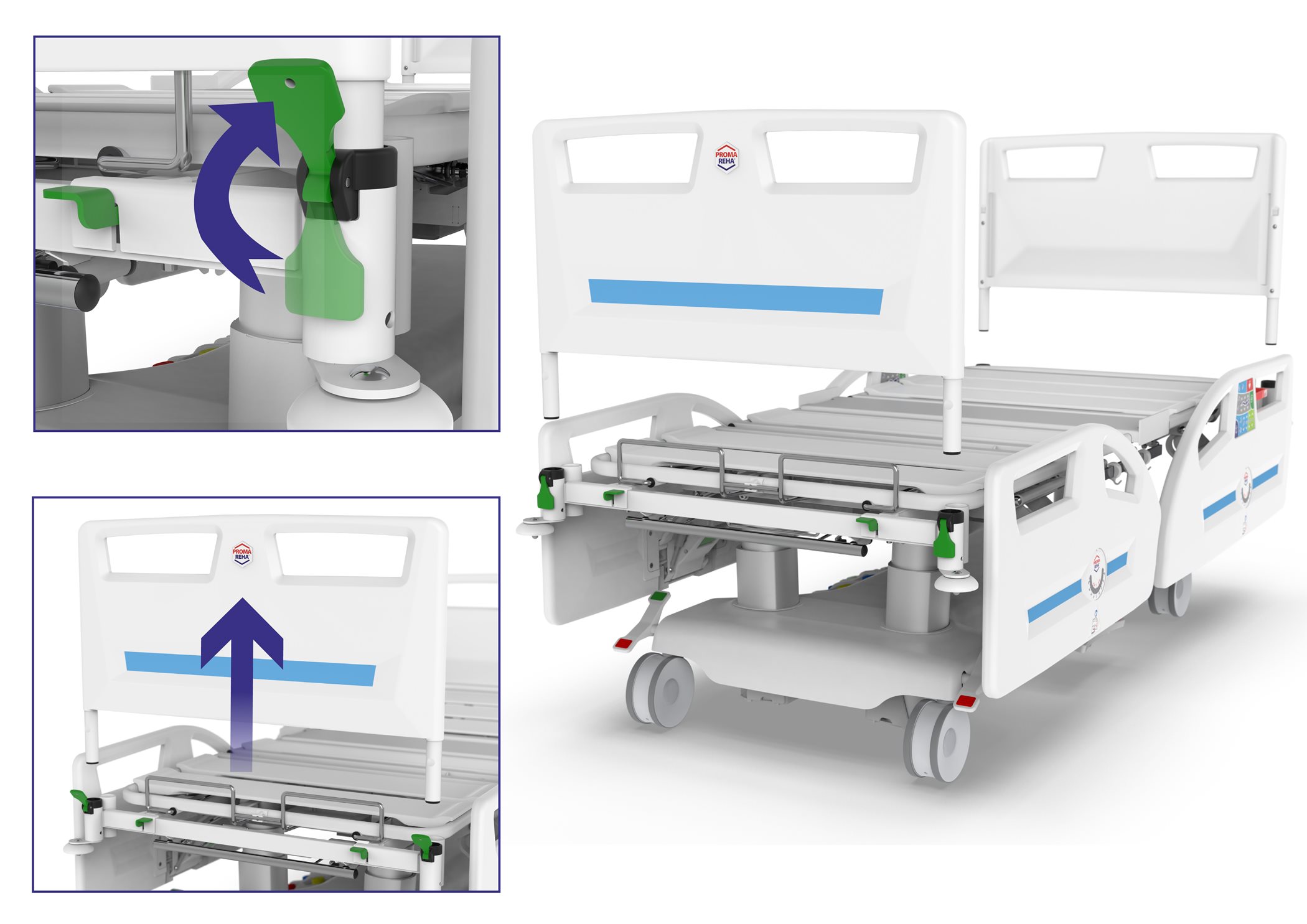

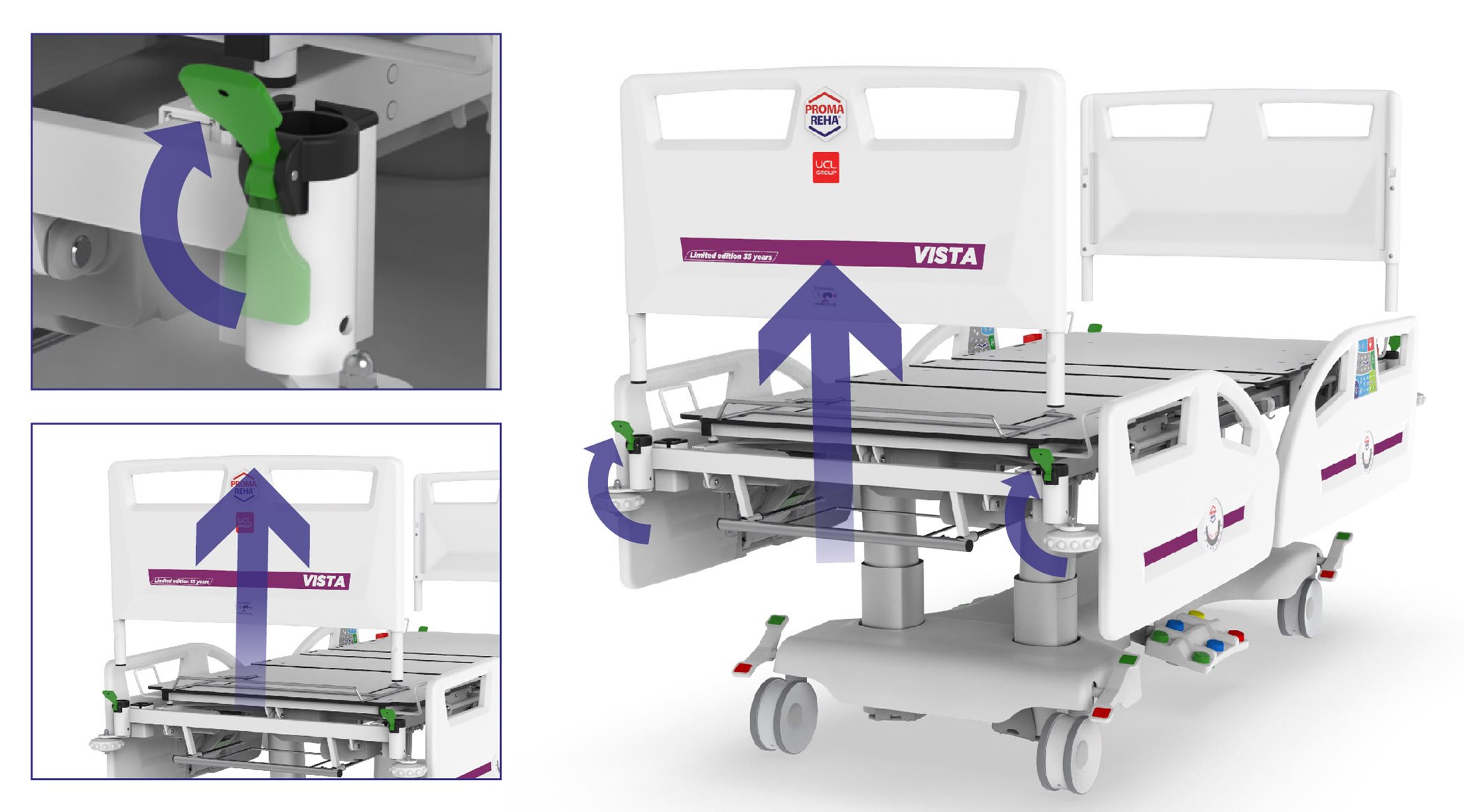

RRS (Rapid Remove System) head and foot board removal greatly speeds up access to the patient at critical moments.

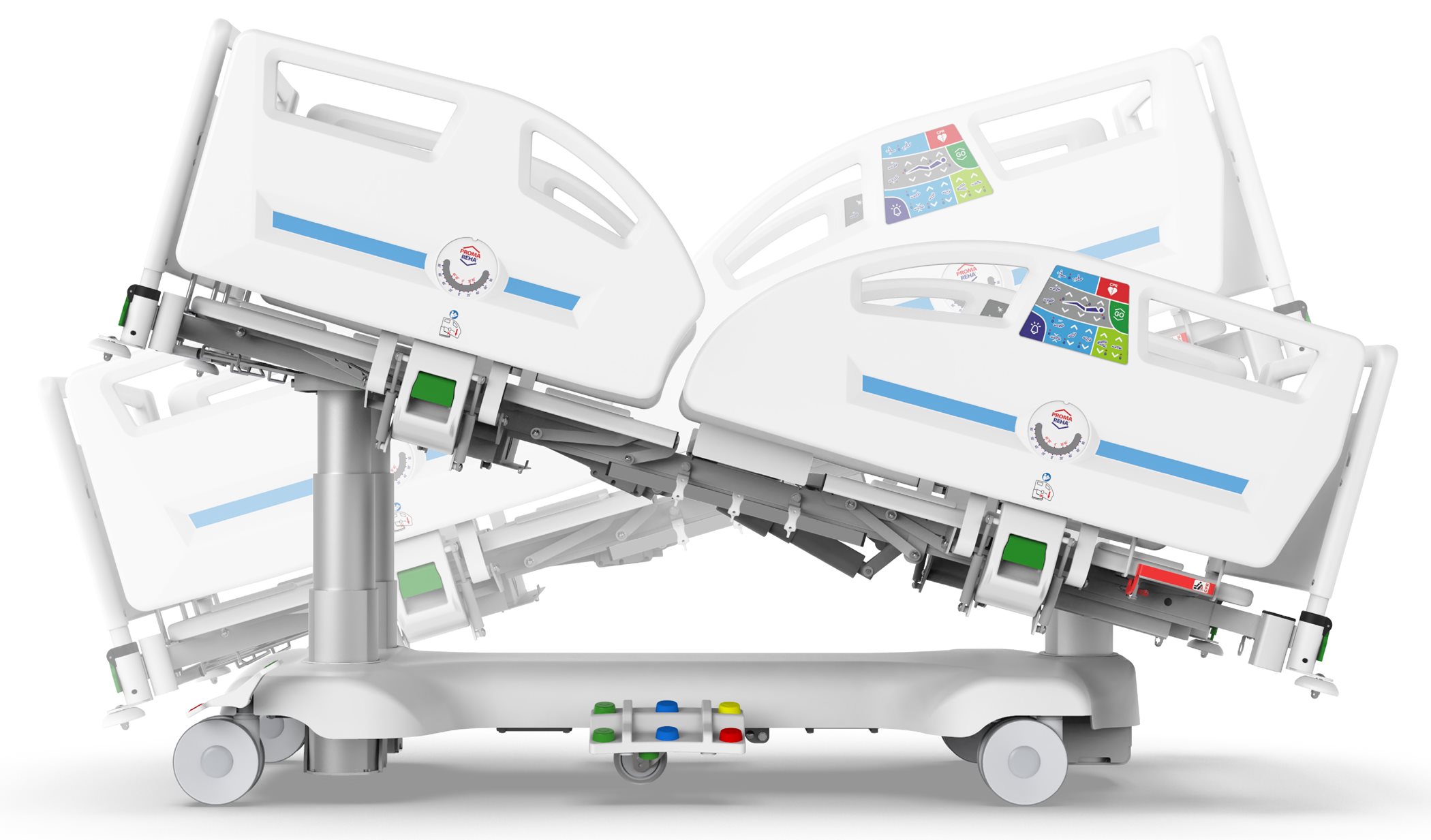

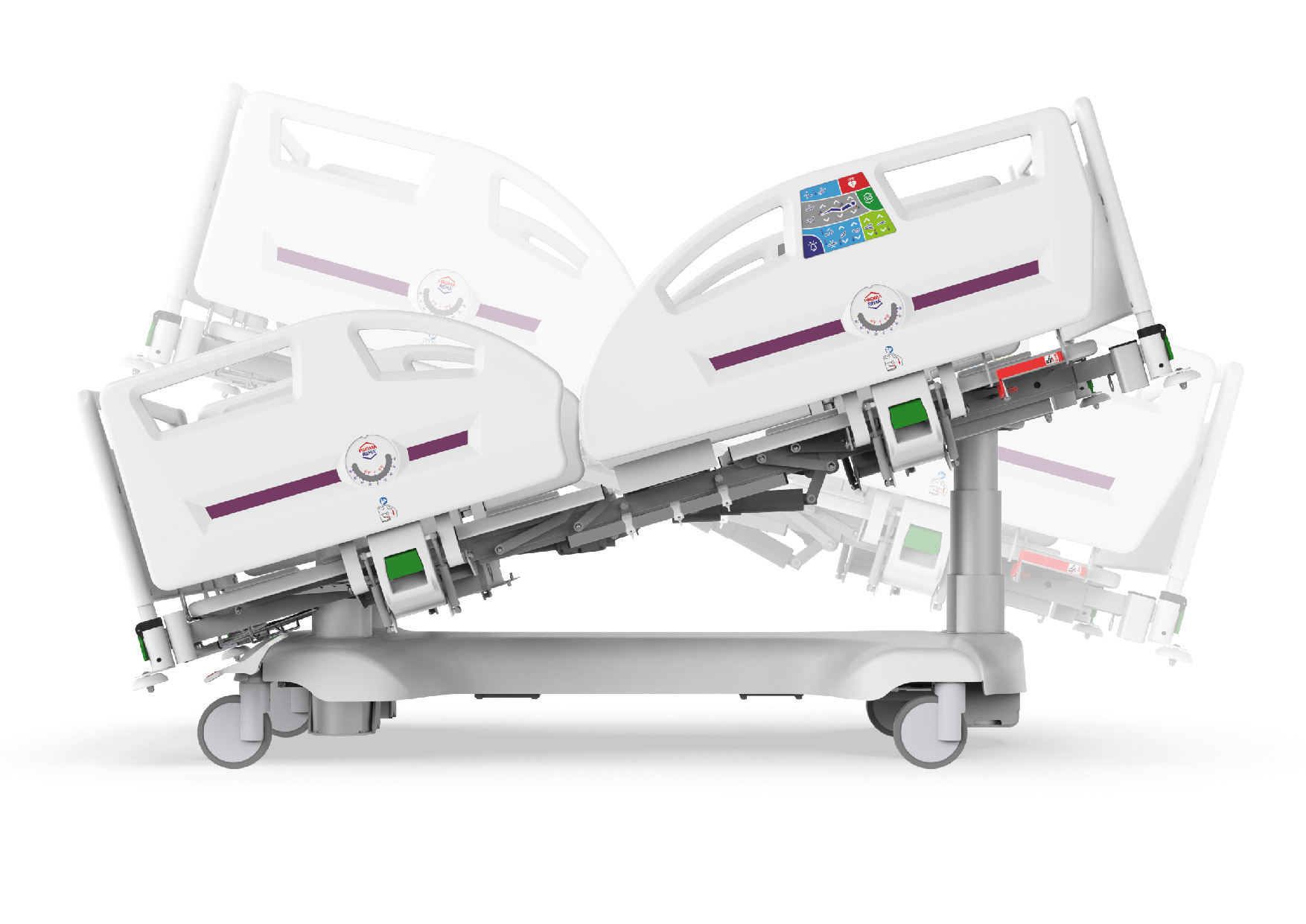

Trendelenburg / Antitrendelenburg
Quick and easy positioning into Trendelenburg (16°) and Antitrendelenburg (16°) positions with the push of a button.
Brings greater comfort to patients, reduces pressure in the abdominal area and reduces the risk of decubitus.

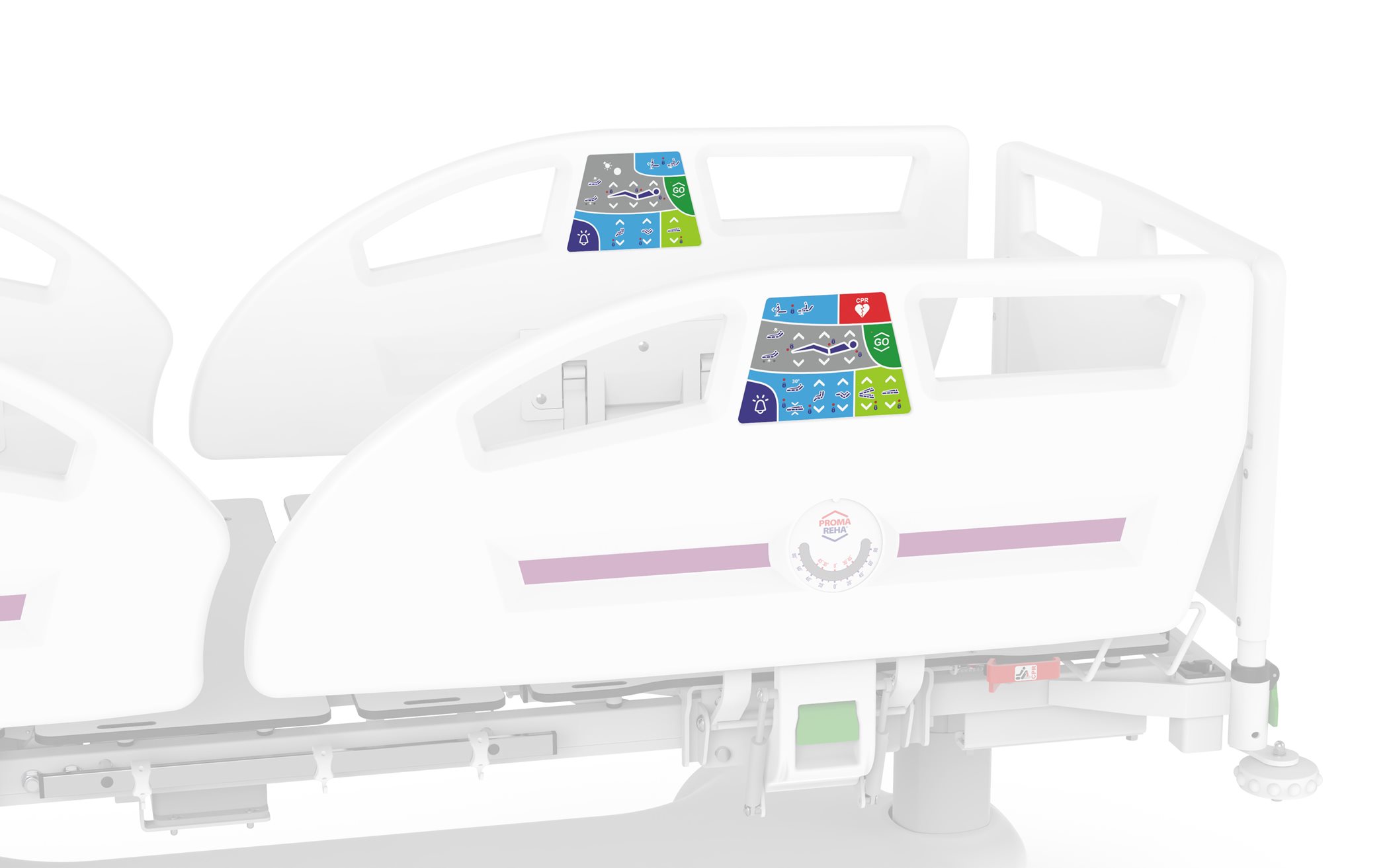

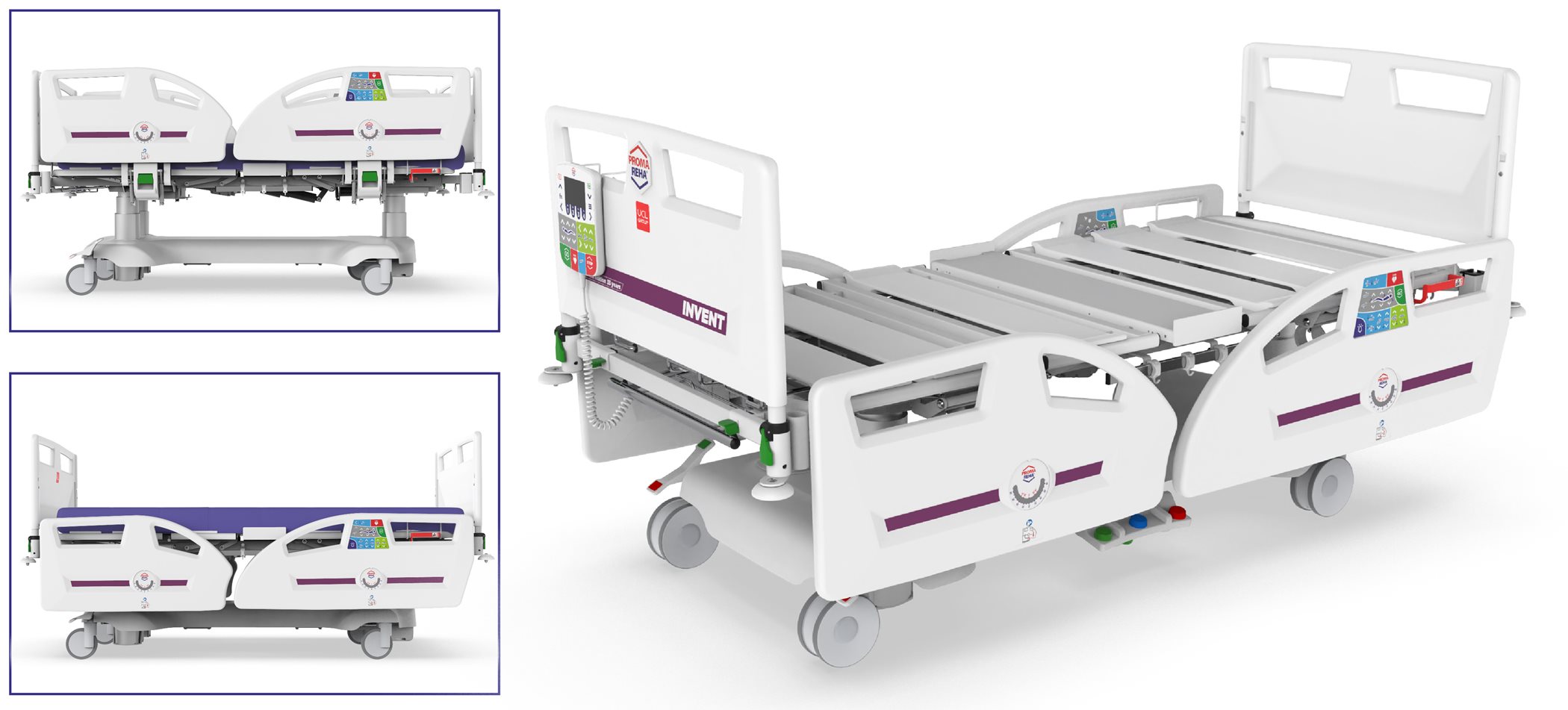

Foldable plastic side rails
Patient protection is provided by foldable plastic split side rails with integrated controls. Robust mechanisms guarantee high strength and superior durability. In case of uncontrolled lowering, they are equipped with fall arresters. Thanks to the movement of the head rail together with the back part, maximum protection of the patient in all bed positions is ensured. In the lowest position, the folded side rails are sufficiently below the mattress level and do not hinder the patient's exit.

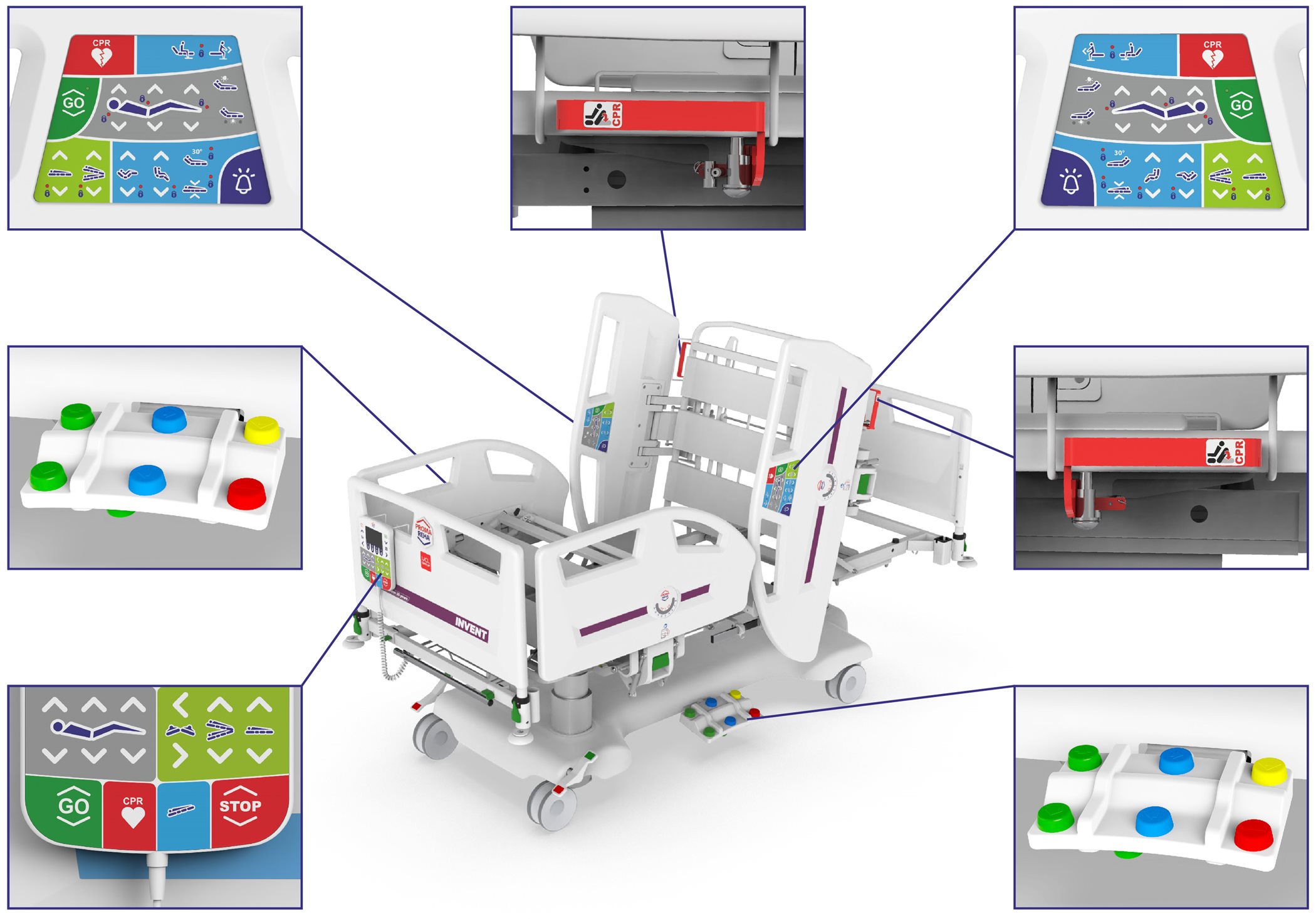

This feature ensures safe and rapid positioning of the bed in the optimal position for immediate cardiopulmonary resuscitation. The CPR buttons, easily accessible around the perimeter of the bed, are complemented by a pair of mechanical CPR back part levers.

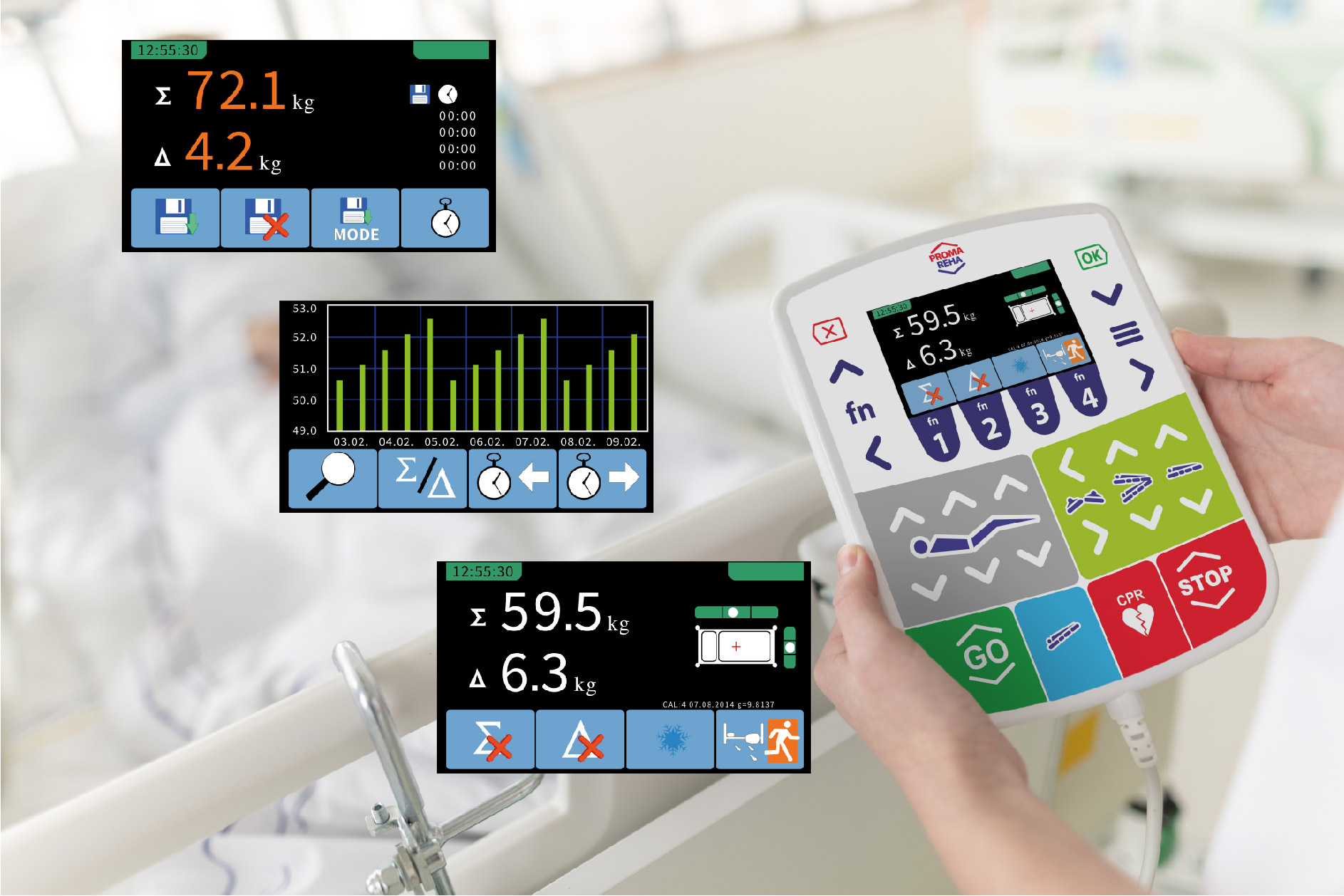

The beds can be equipped with a calibrated and certified automatic weighing system with the ability to easily set weighing modes, evaluate the measured values and display the results by means of graphs.

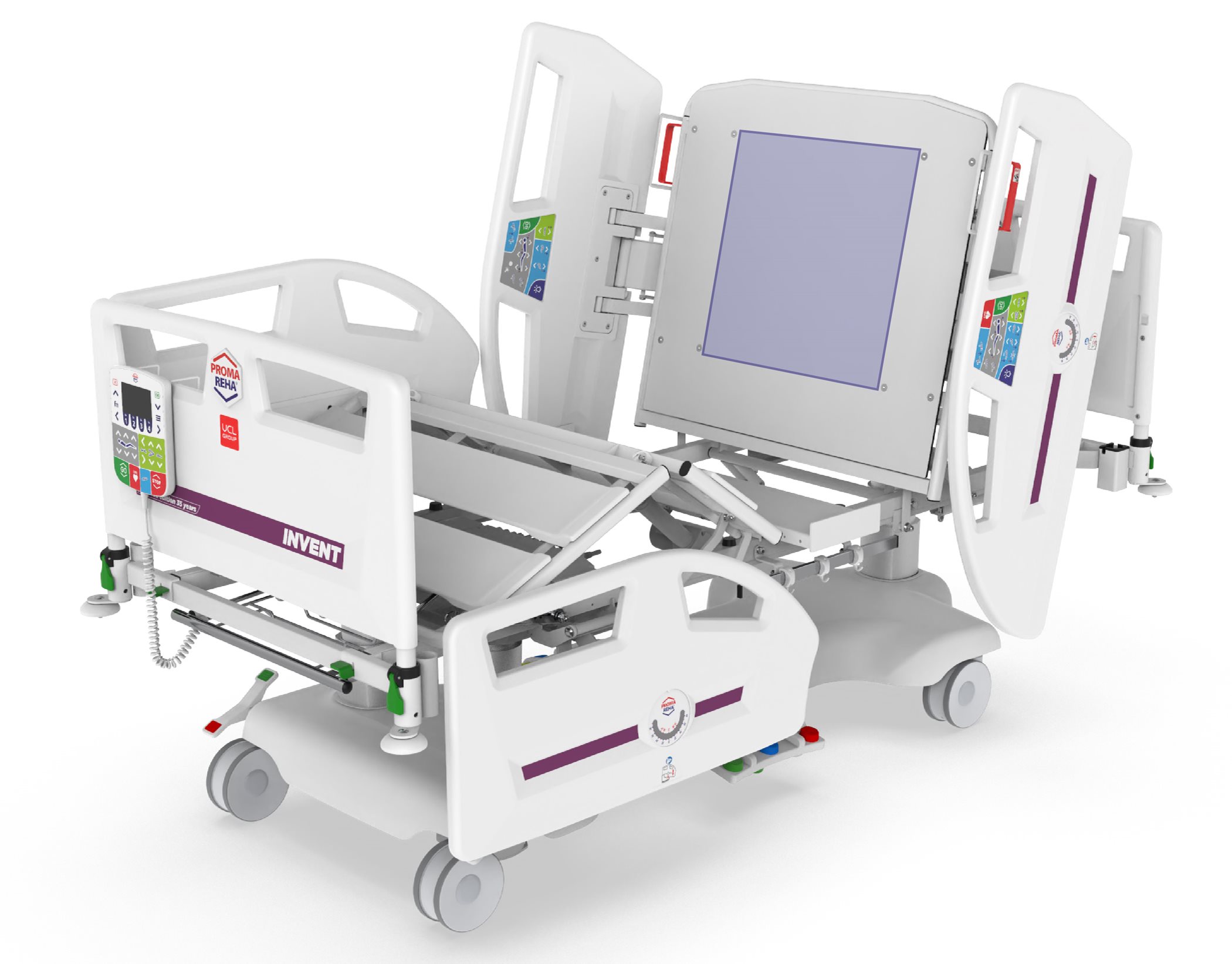

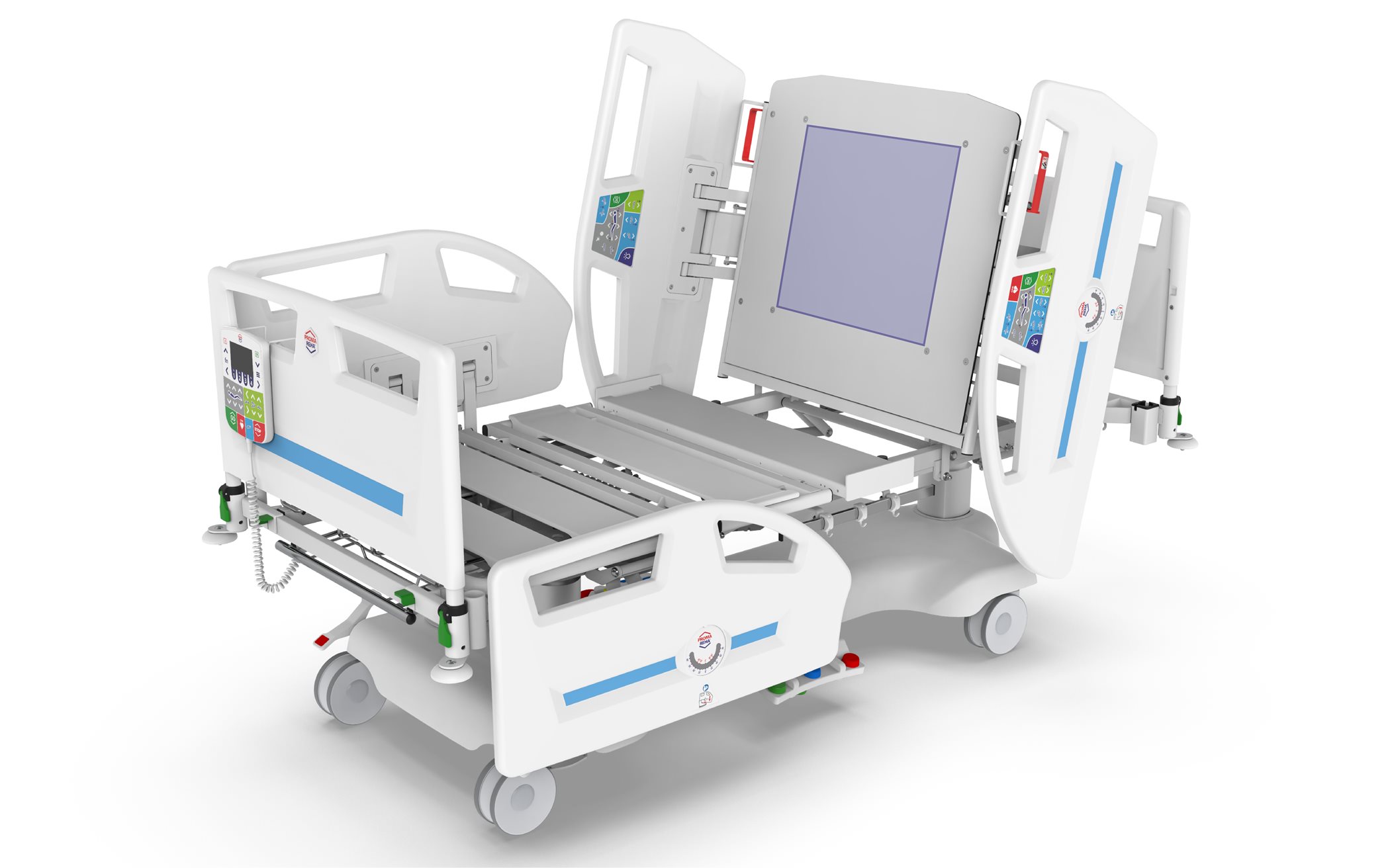

X-rayable mattress platform
The design of the mattress platform allows comfortable and safe continuous scanning with C-arm and conventional X-ray equipment.

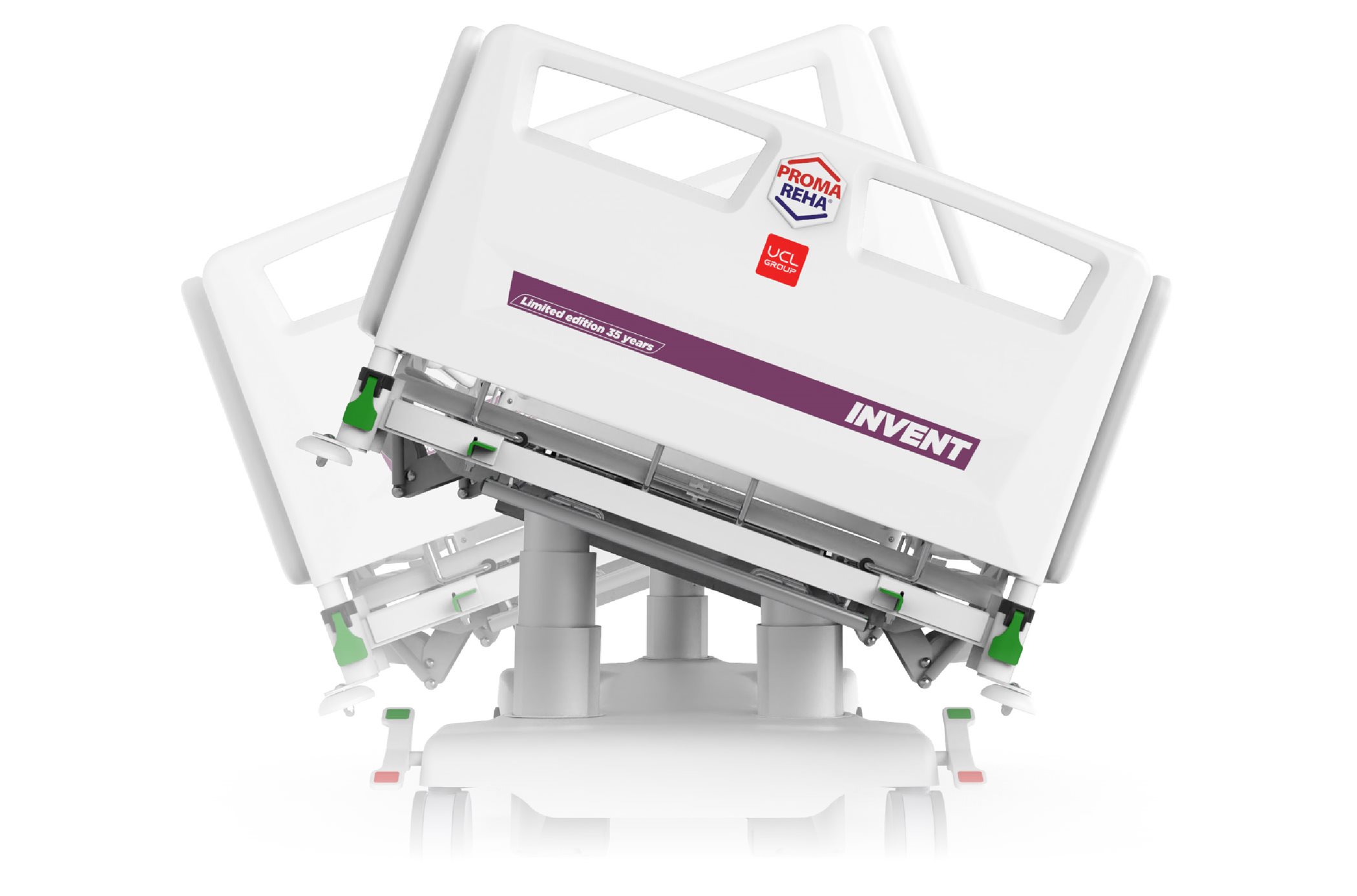

Reversible lateral tilt
Significantly reduces the physical strain on the nursing staff during daily patient care, especially when turning the patient, performing personal hygiene and changing the bed linen.
Automatic lateral therapy
It is a significant benefit especially for patients at high risk of post-operative respiratory complications and patients at high risk of developing decubitus. The hospital staff will appreciate the possibility of easy individual adjustment of all parameters of the selected therapy, in up to eight adjustable programs within a duration of 24 hours.
WE MAKE IT EASIER FOR YOU TO OPERATE AND HANDLE
Direct control of functions with buttons
All functions are available immediately, without the hassle of searching through menus. You simply press a button. It doesn't matter if you're wearing gloves, have wet hands or are holding anything.

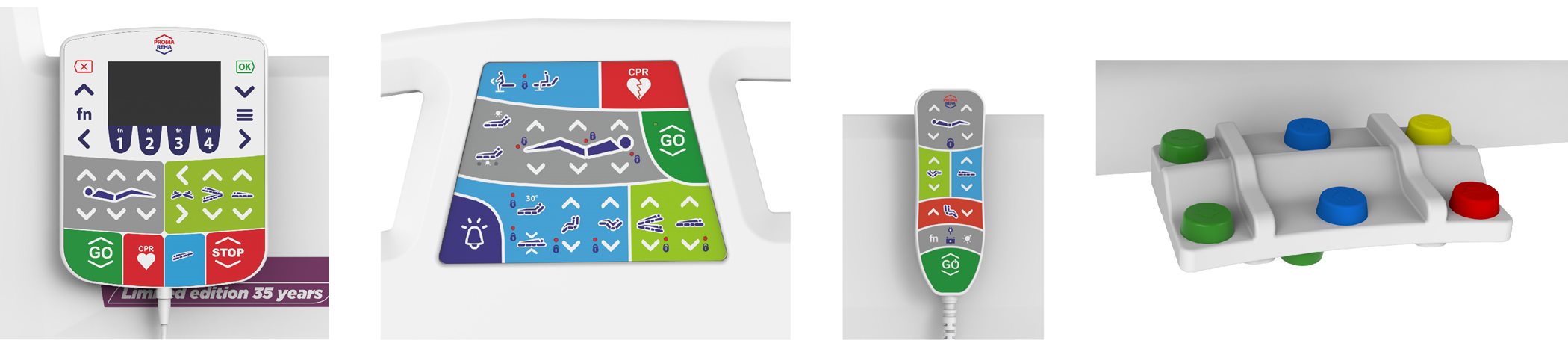

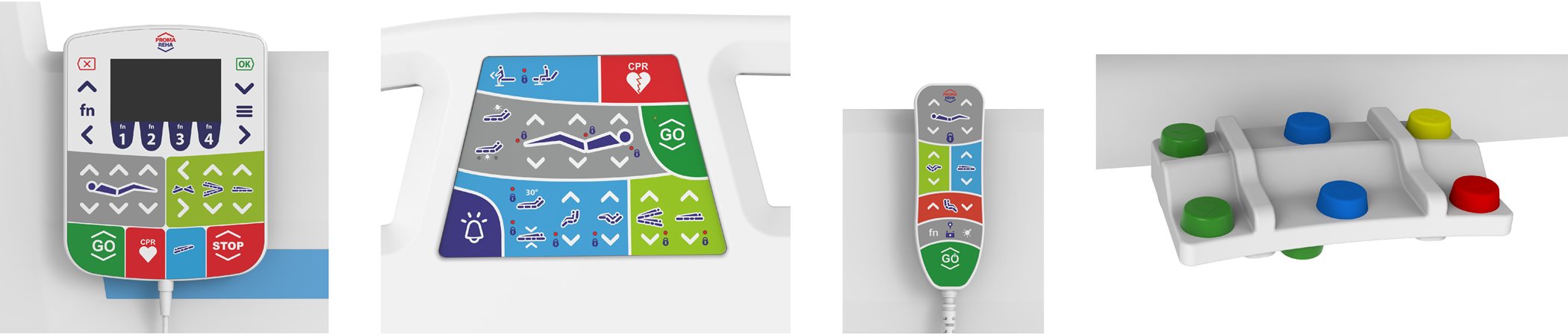

Controls with colour-coded functions
User-friendly controls with uniform colour-coded functions for easier orientation in crisis situations. The colour and illuminated function resolution also makes it easier to operate the bed for persons with impaired vision, without glasses or at night.

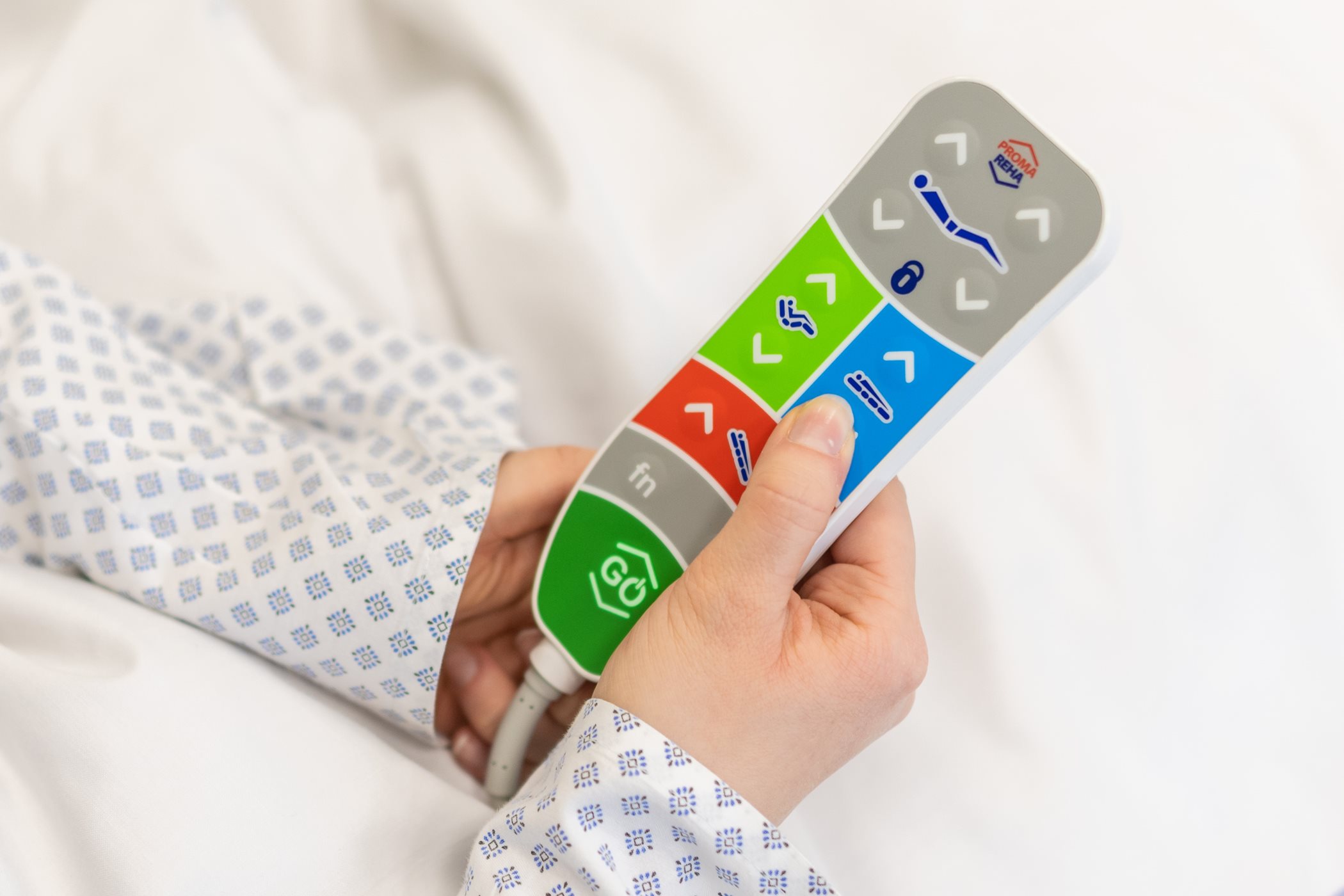

The bed can be optionally equipped with an ergonomic patient control, which is always at hand of the patient and allows easy control of all basic functions.

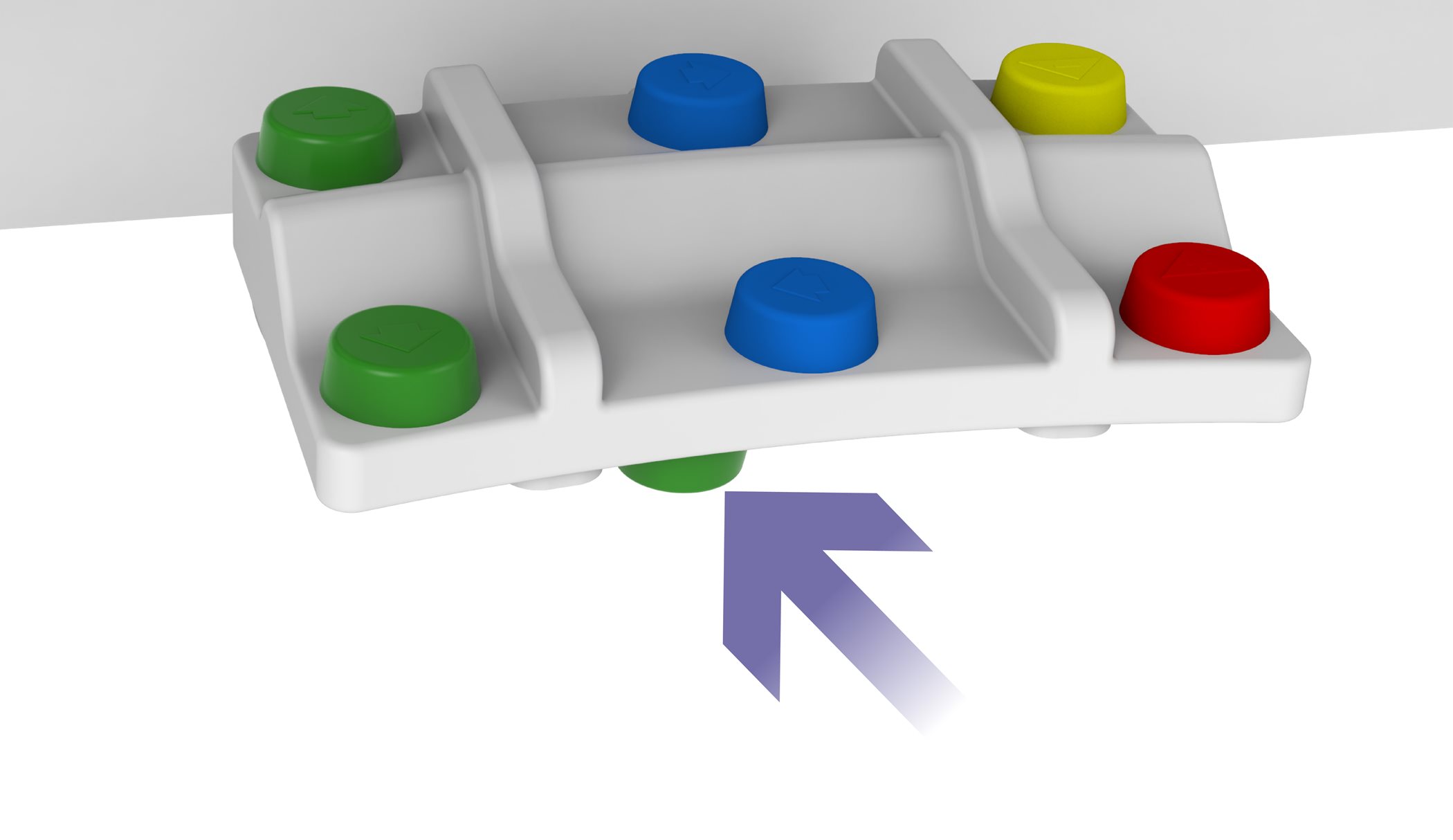

The bed is equipped with foot controls with buttons for mattress platform elevation, lateral tilt, examination position and CPR. The foot control is equipped with a safety activation button located on the underside.

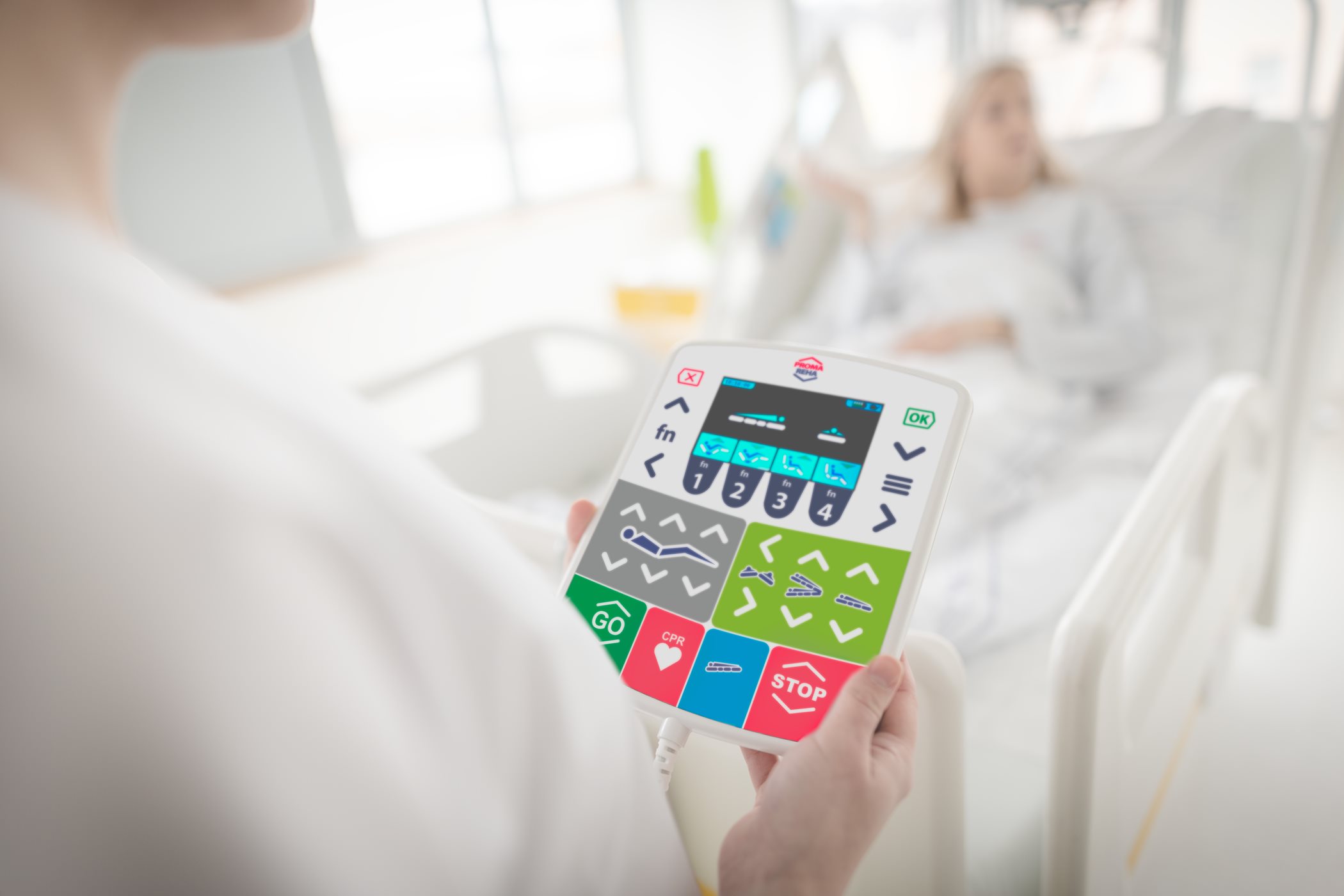

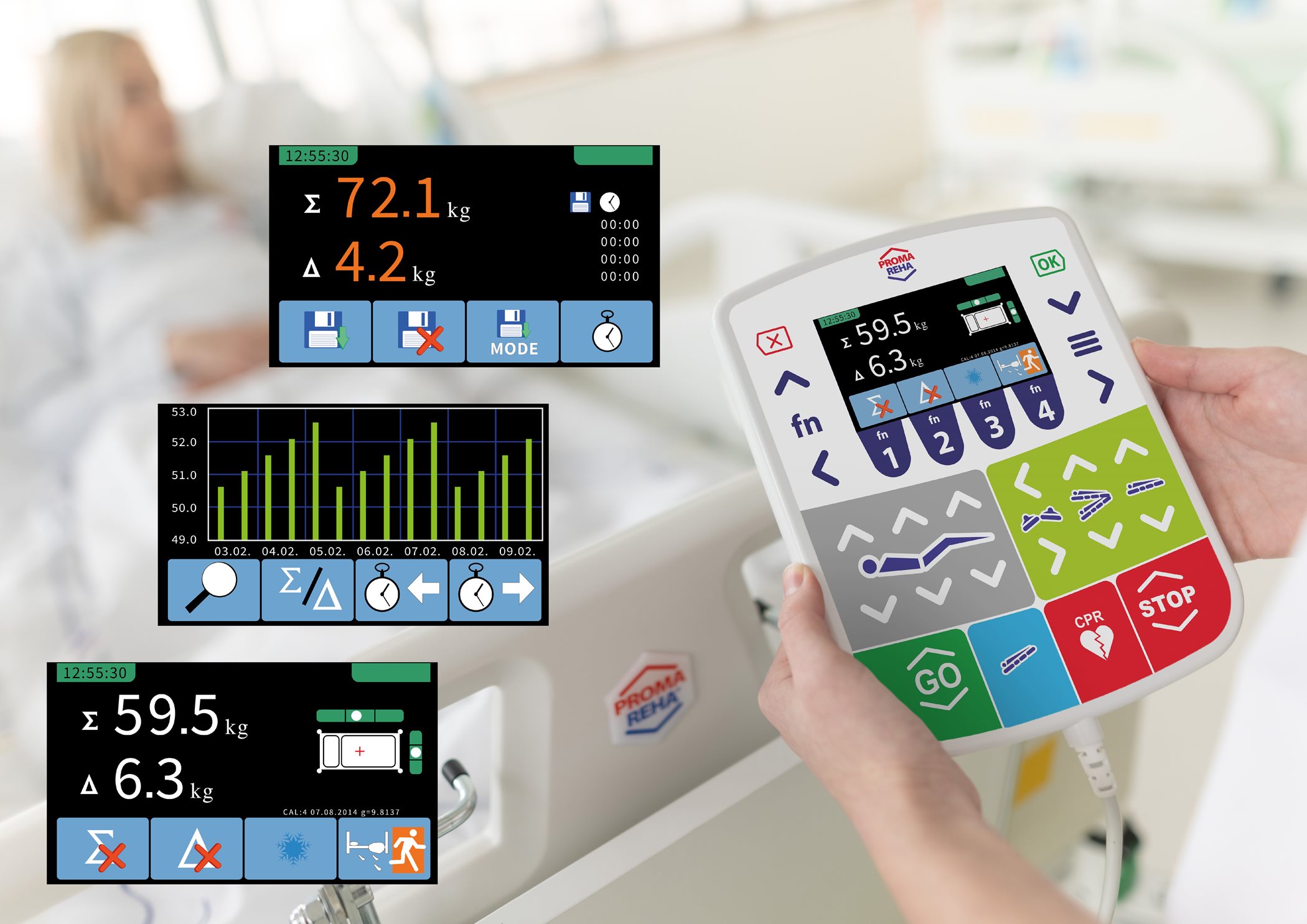

Nurse control with LCD panel
The innovative nurse control panel with LCD brings convenient and safe bed control in any situation. The integrated LCD offers a clear display of current function statuses, warning and alarm indication, automatic weighing system and automatic lateral therapy functions. The nurse control also allows individual functions of all other controls to be locked.

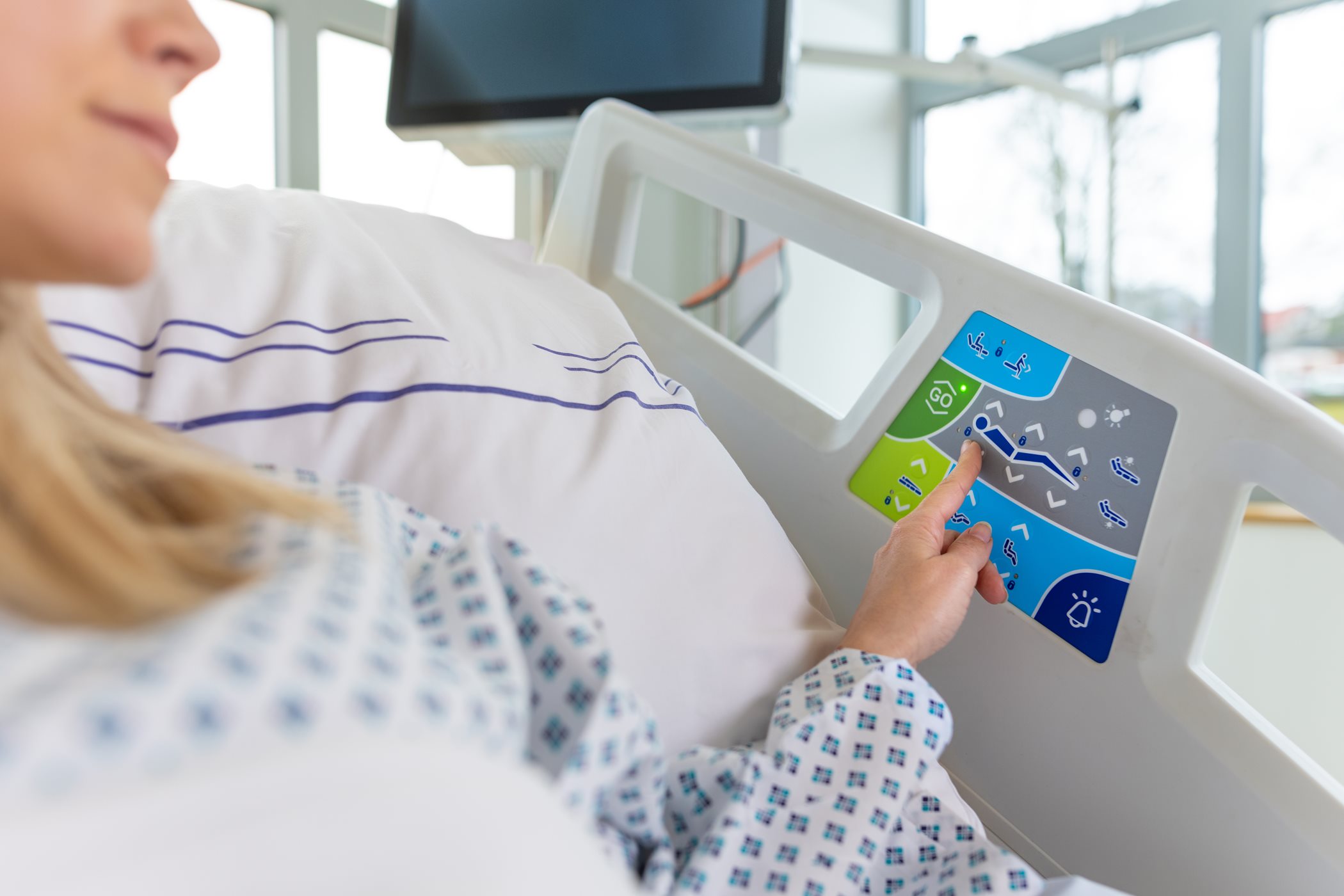

Allow easy, intuitive, one-handed operation of the bed. The controls are conveniently located in the centre of the head side rail, making them easily accessible to both patient and staff in any mattress platform position. The controls are equipped with an activation button to prevent accidental use.

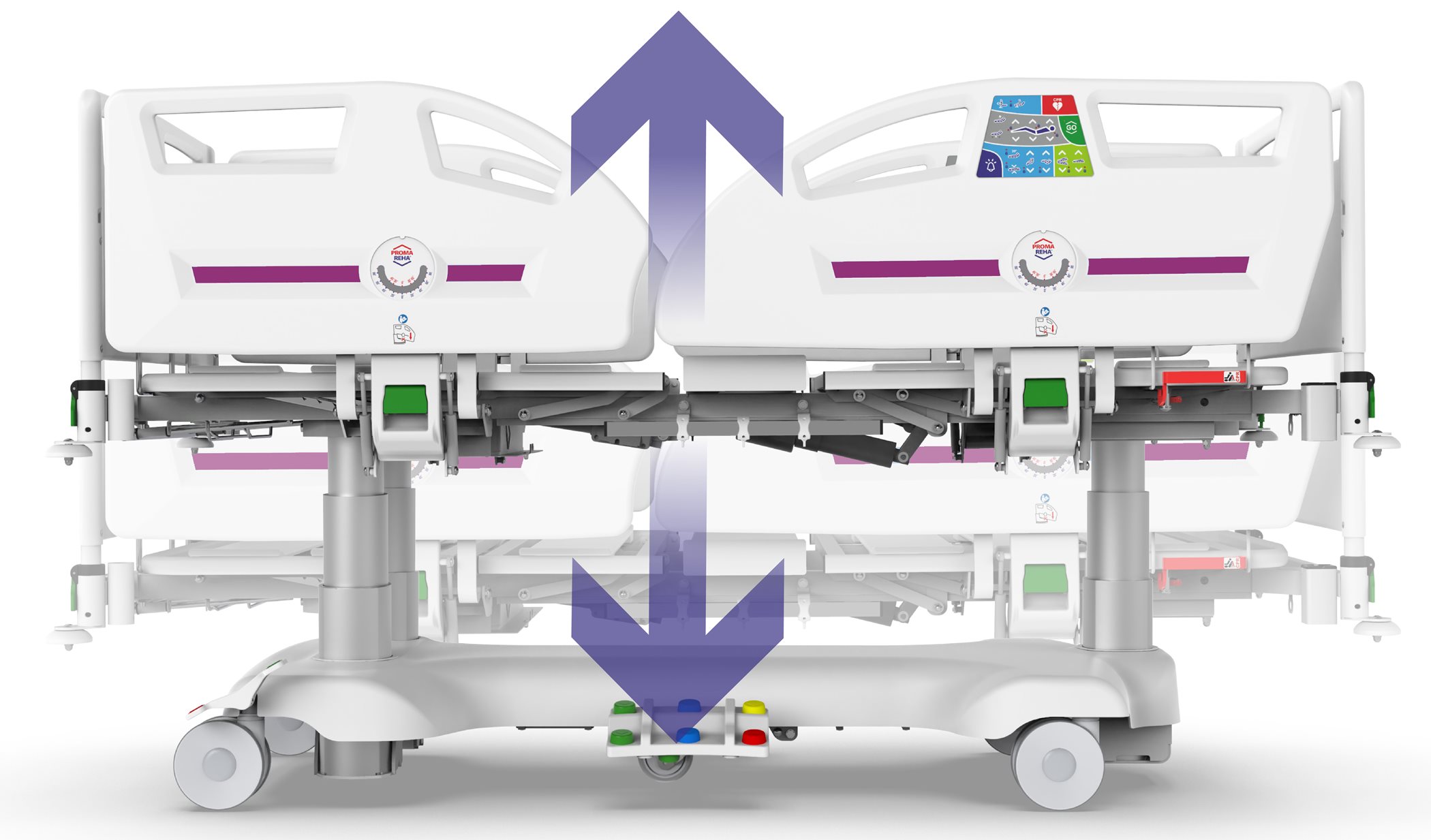

Electric lifting of the mattress platform
The increased range of the bed lift reduces the strain on staff and facilitates the patient handling. The reduced minimum height of the mattress platform assists the patient in exiting the bed and significantly reduces the risk of injury in the event of an accidental fall.

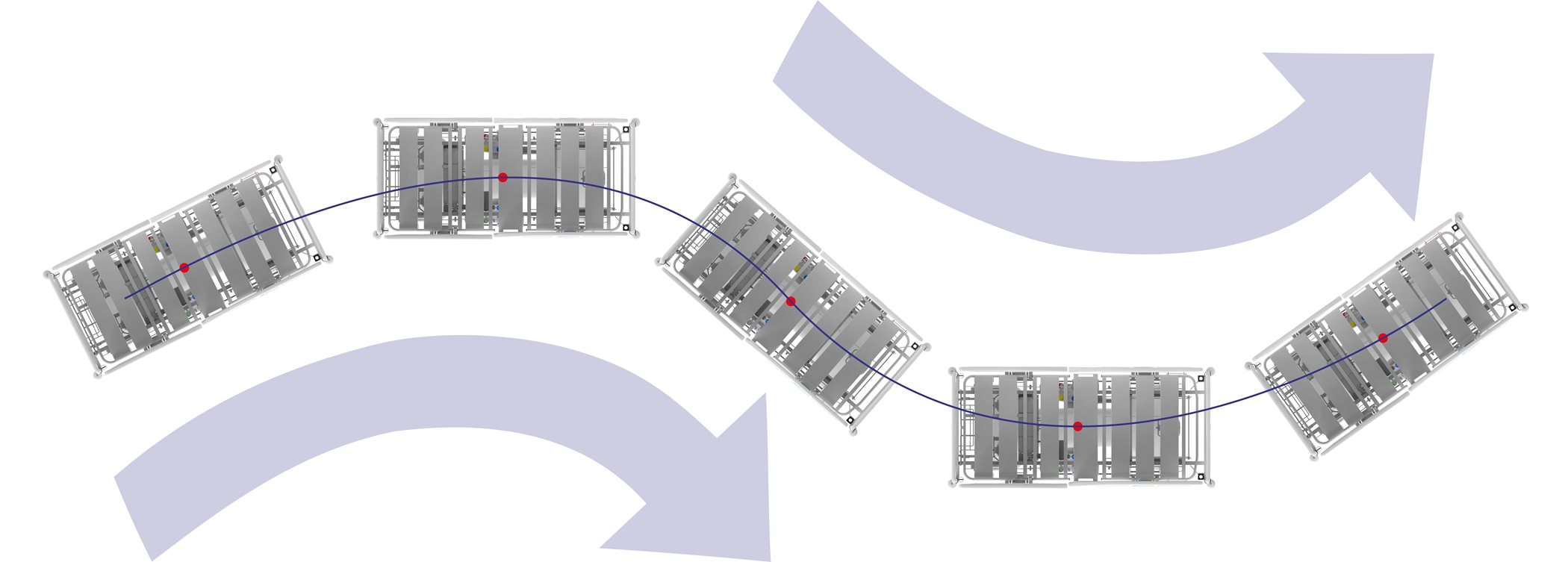

The fifth wheel ensures easy and intuitive handling of the bed. This feature is particularly useful in rugged areas and when the bed is handled by one person.

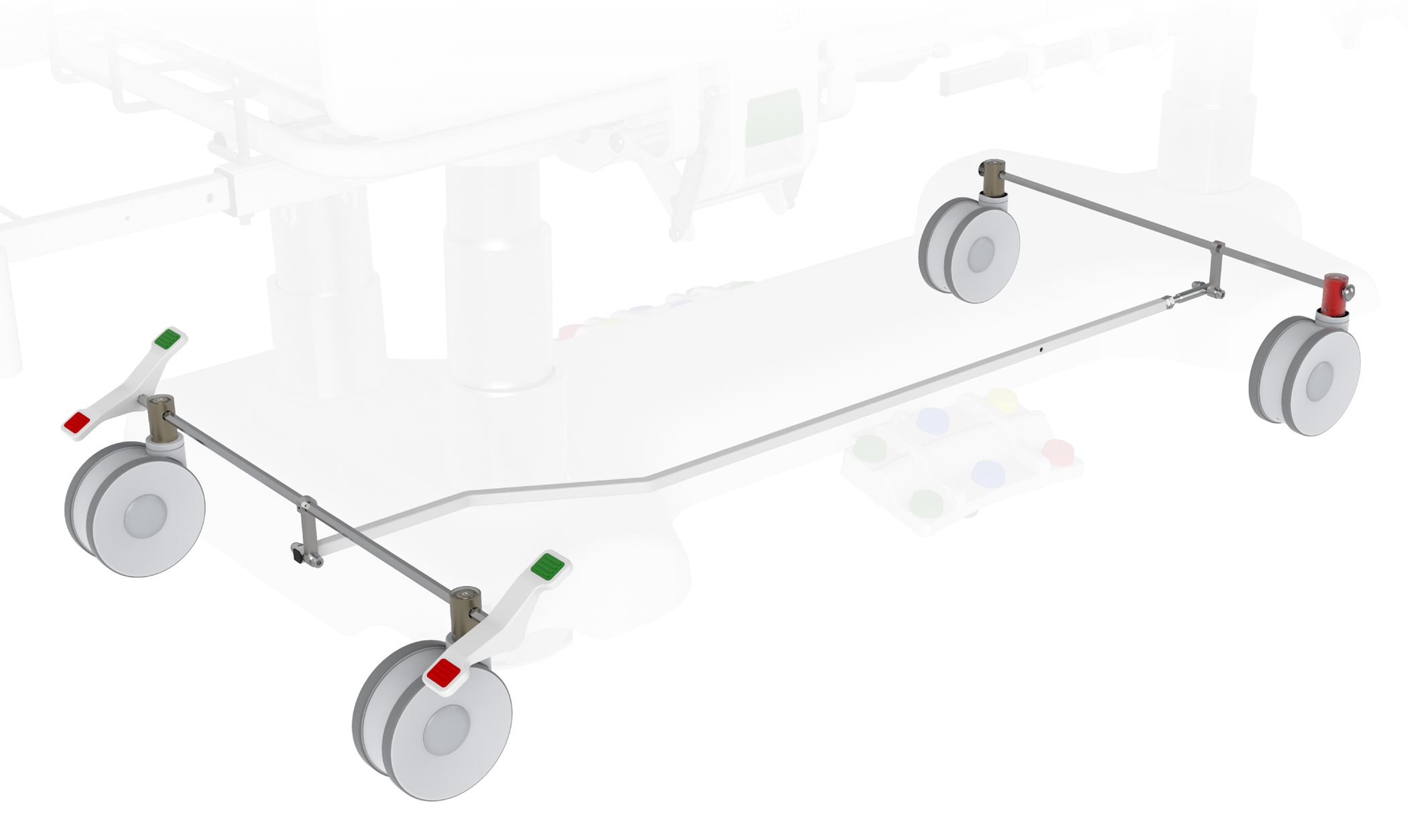

Safe handling of the bed is ensured by a centrally operated brake. Thanks to the possibility of locking one wheel in the straight direction of travel, the bed can be easily operated by only one person during transport.

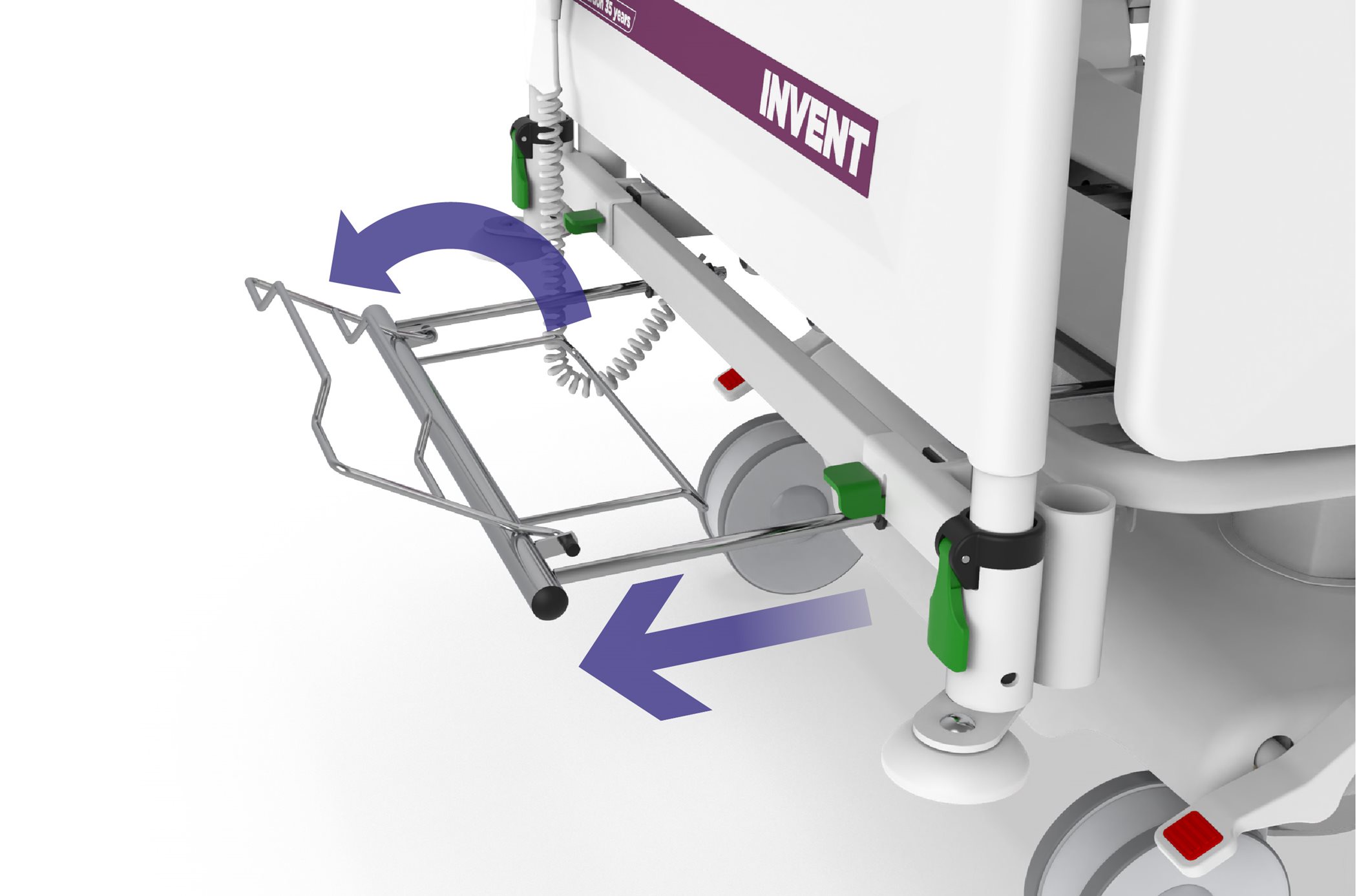

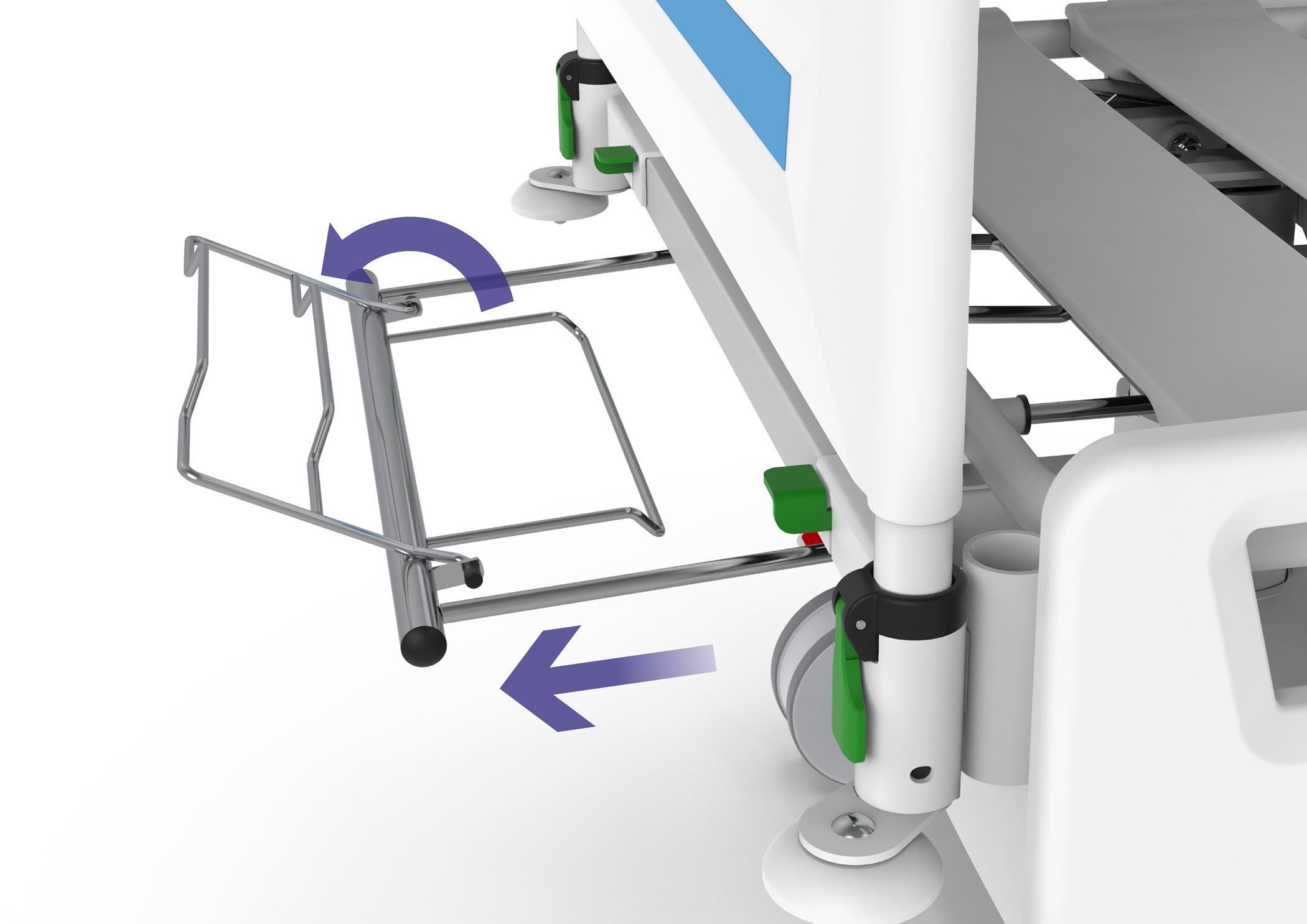

Bed linen shelf
The pull-out shelf is a great tool for changing bed linen. The shelf can be used to protect the nurse control from damage or unauthorized use.
PROFESSIONAL WORKMANSHIP DOWN TO THE LAST DETAIL!

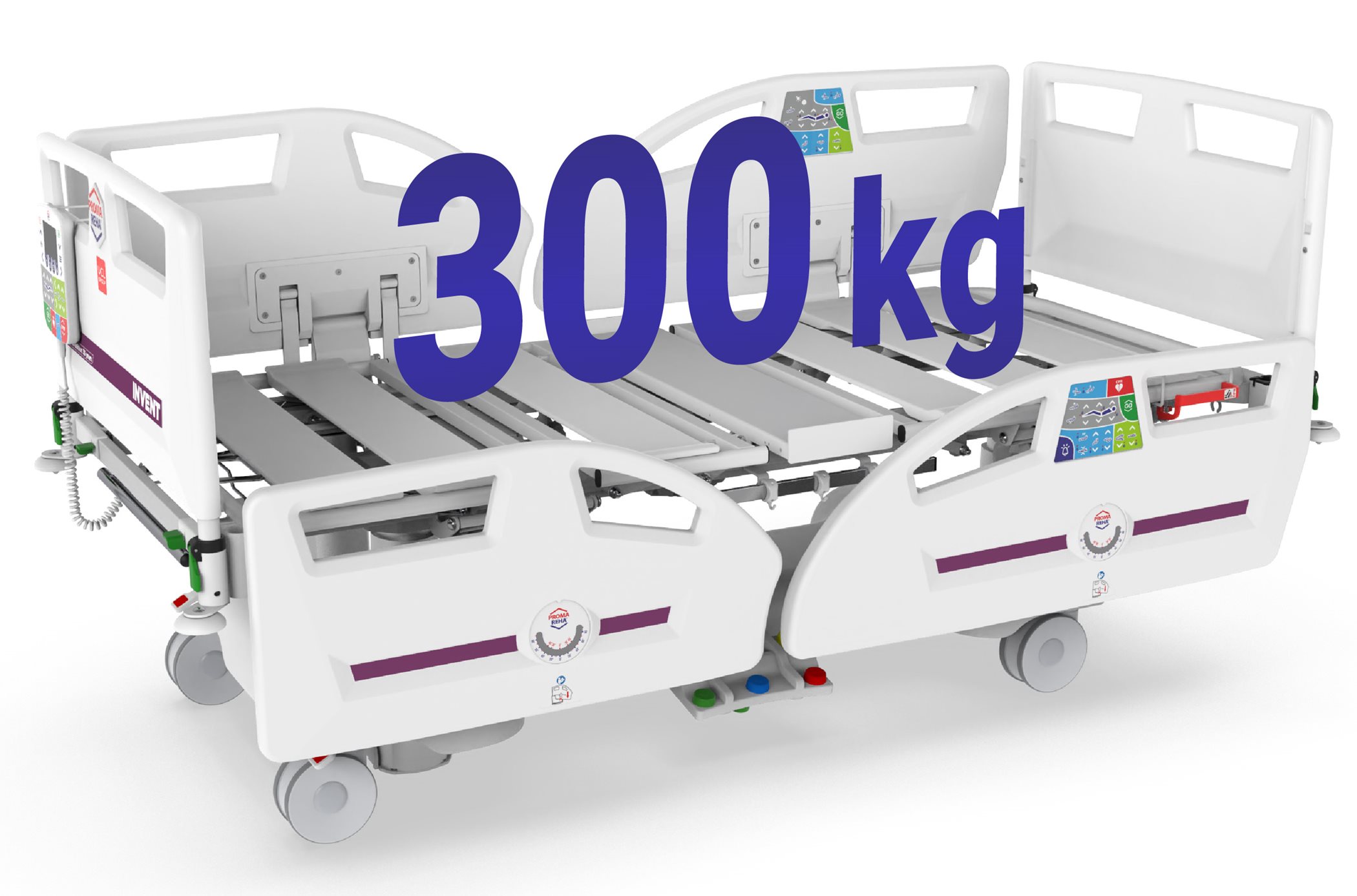

The solid and stable construction with a safe operating load of up to 300 kg provides safe support even when caring for patients with higher weight. Thanks to the materials and technologies used, extremely high durability is ensured even under repeated increased loads.

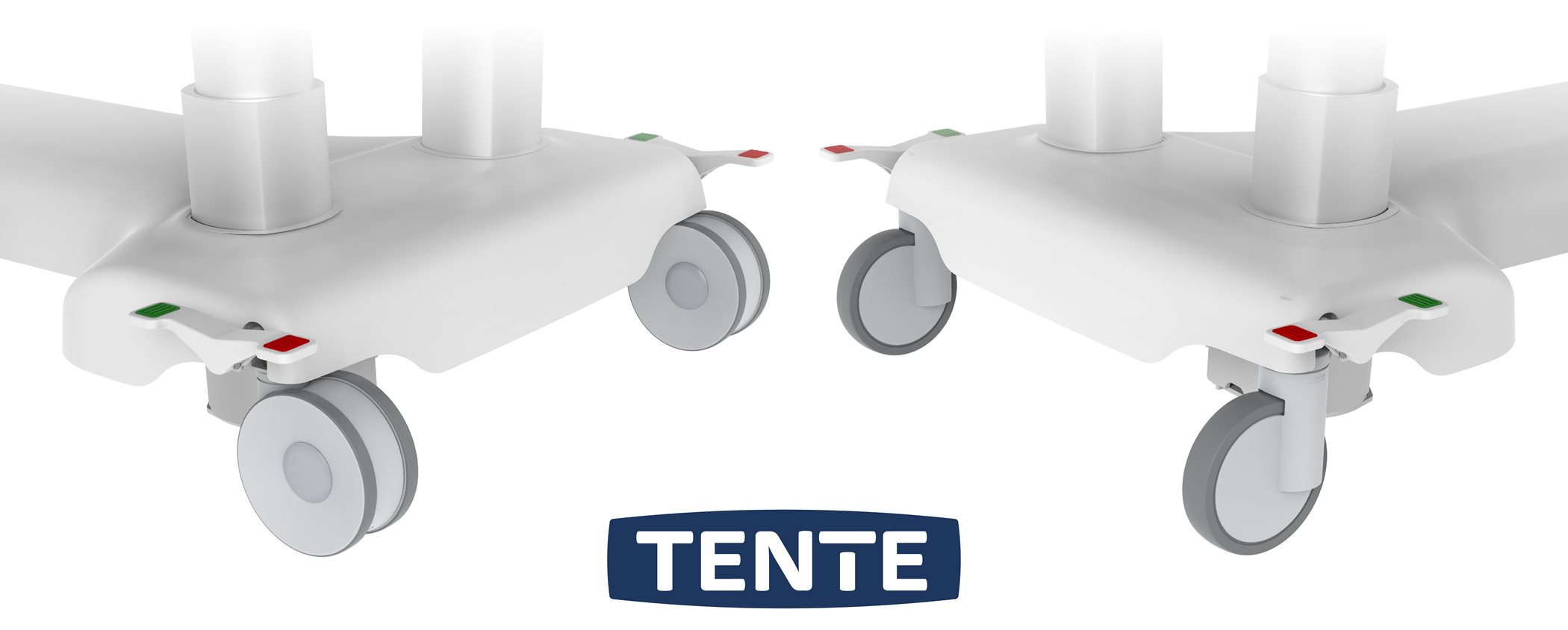

TENTE branded castors
All PROMA REHA beds are equipped with TENTE branded castors.

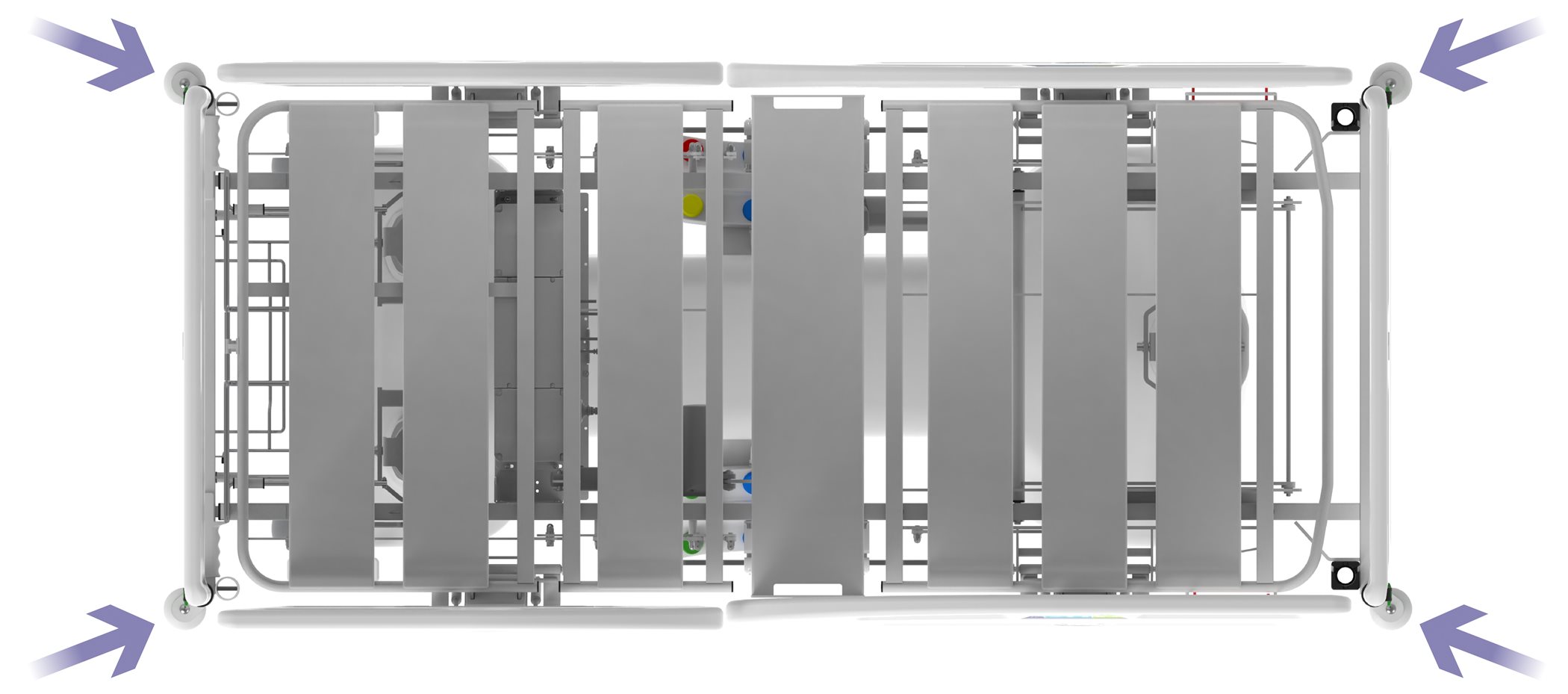

The bumper wheels located at the four corners of the bed are a great help especially during transport.

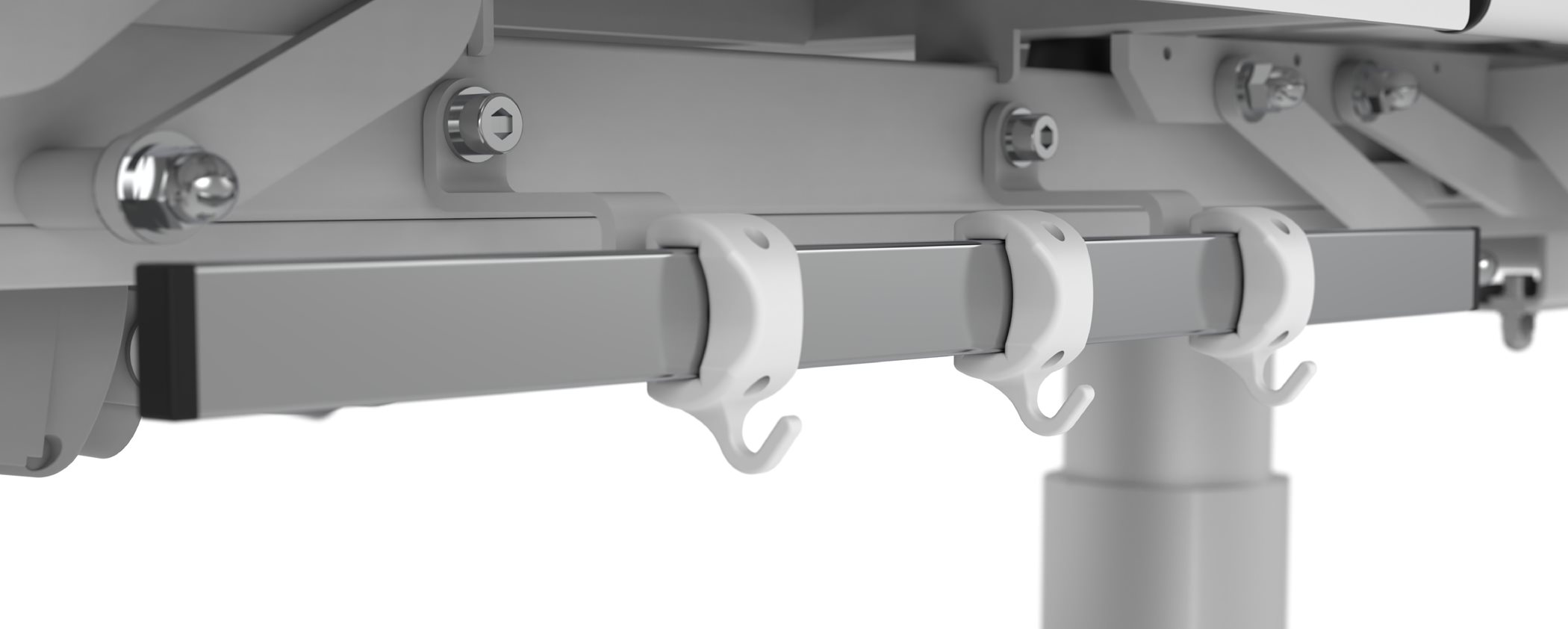

Horizontal accessories holder
The standardised stainless steel euro rail for hanging accessories is equipped with three universal plastic hooks on both sides of the bed.

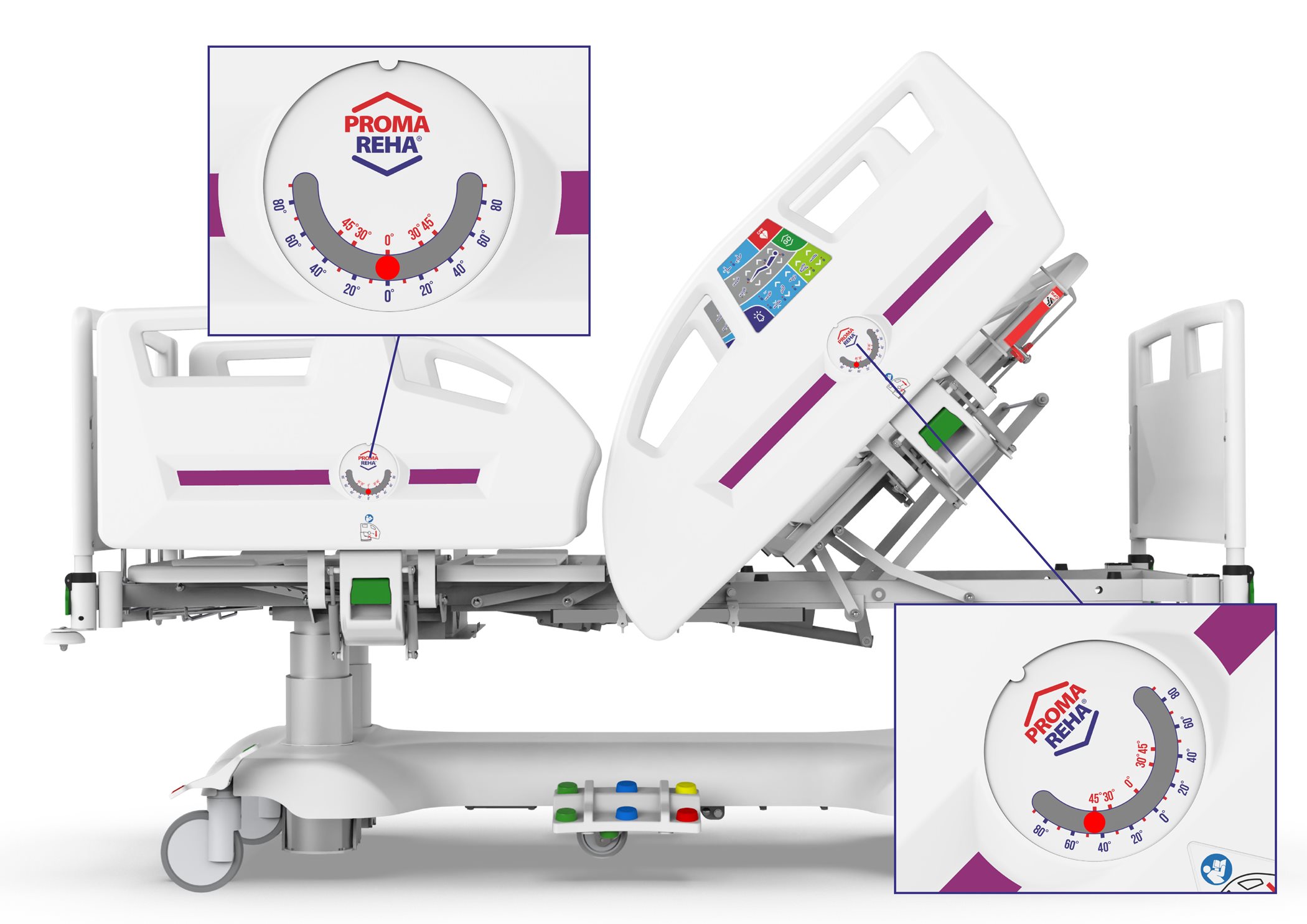

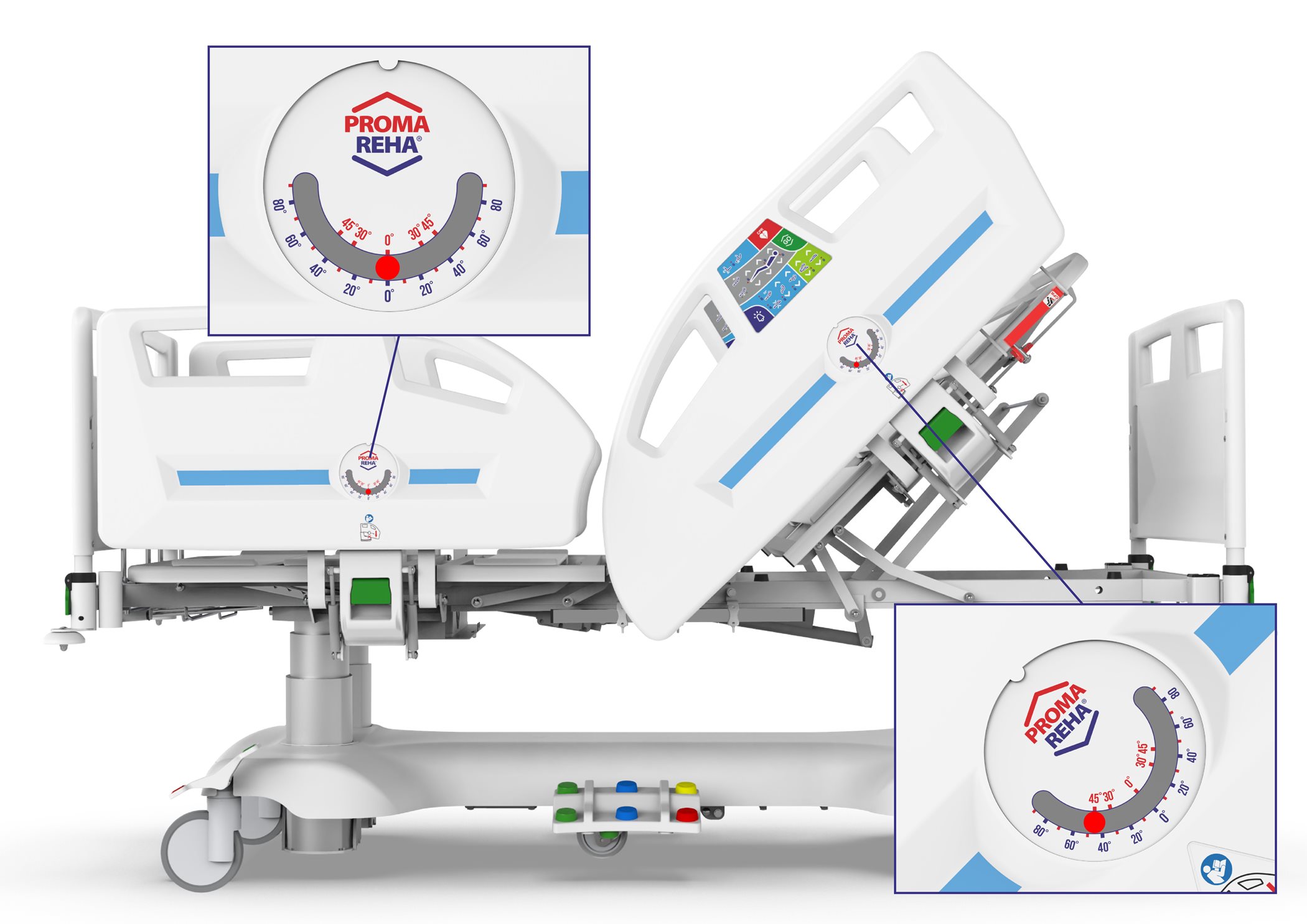

Integrated inclination indicators for both the back part and the mattress platform make it easy to set the correct treatment position for the patient. The inclination values are also displayed on the nurse control LCD panel.

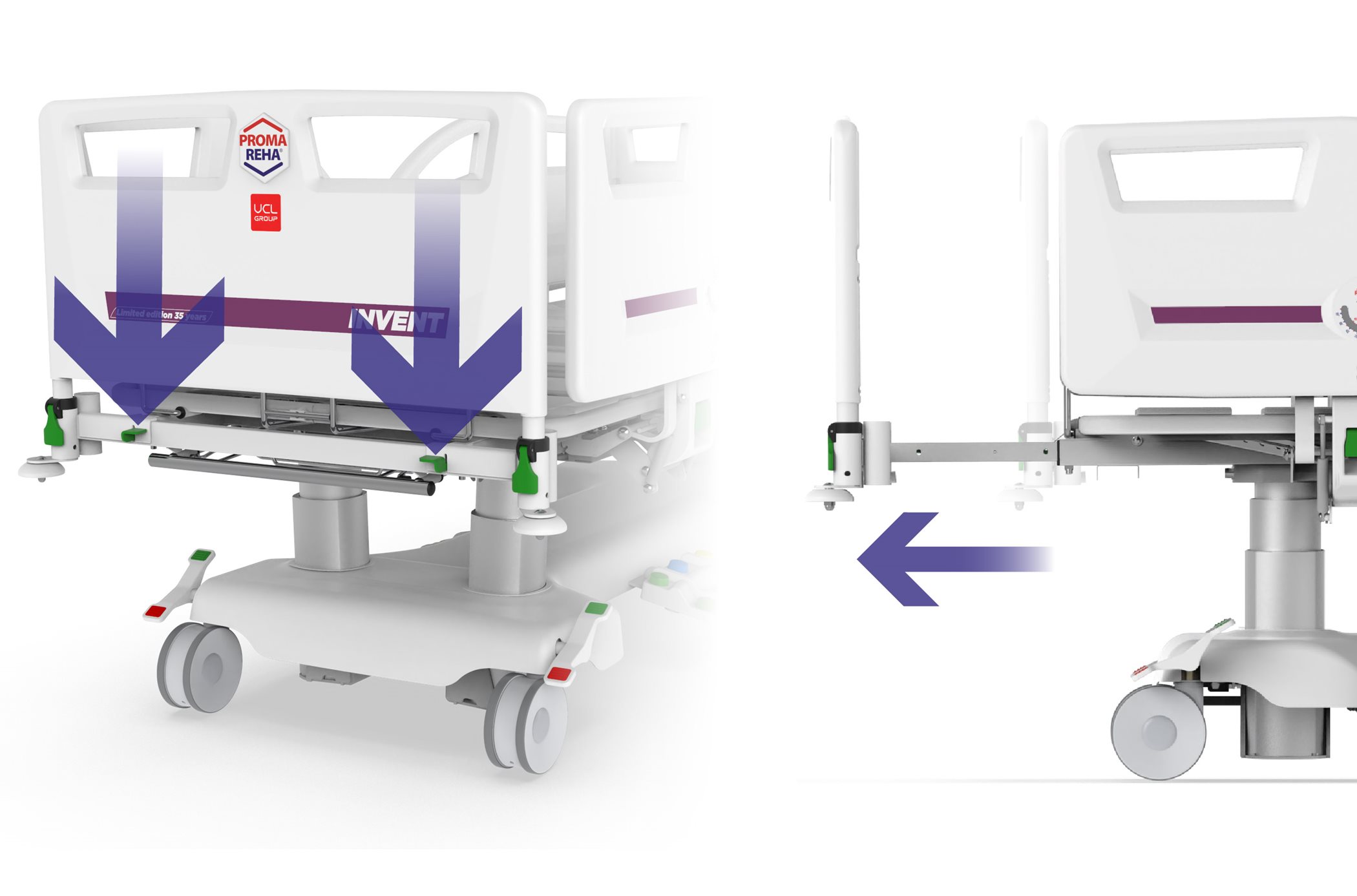

Unique bed surface extension system
The mattress platform extension of up to 30 cm brings comfort to taller patients.

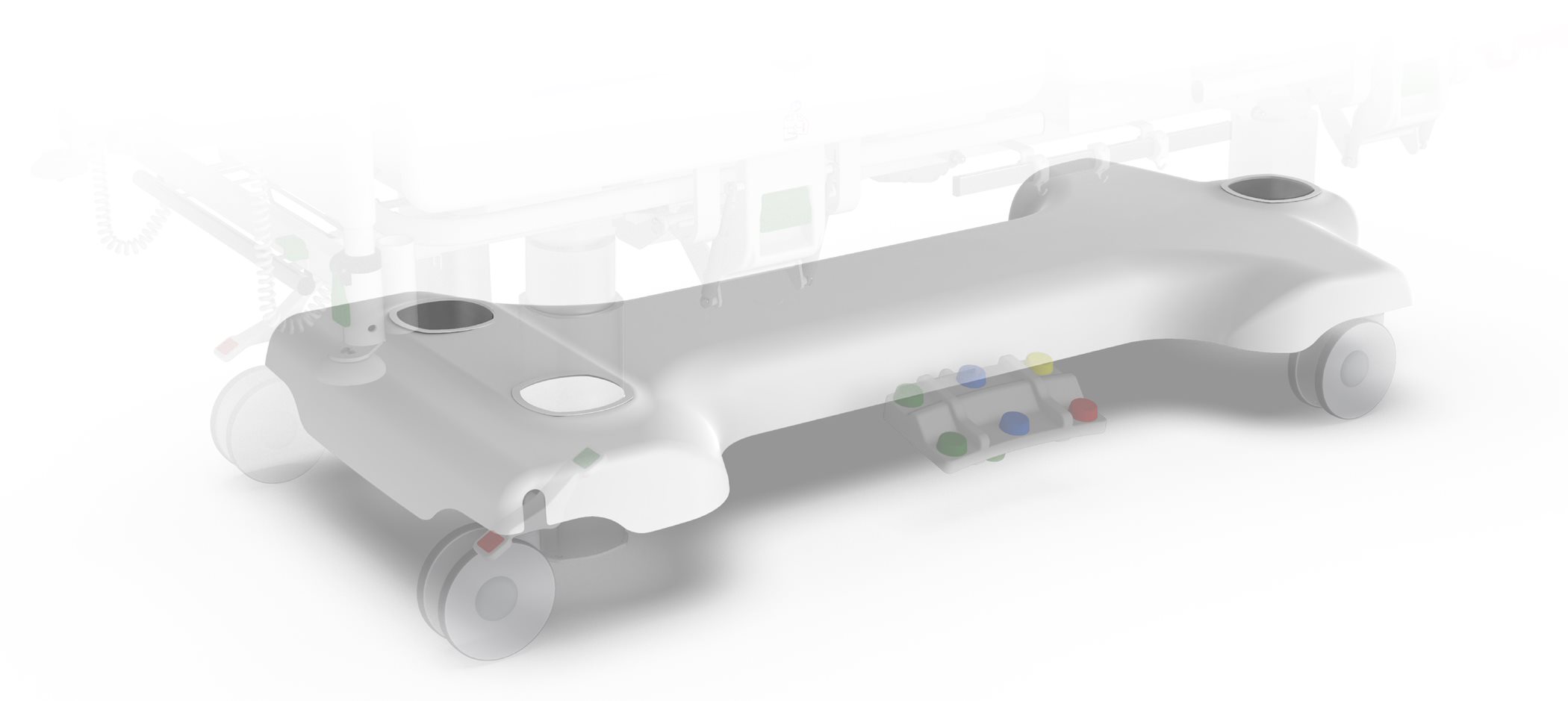

Plastic chassis coverMakes daily cleaning easier and faster. Protects the mechanisms and electrical circuits in the chassis, thus extending the life and reliability of the bed.

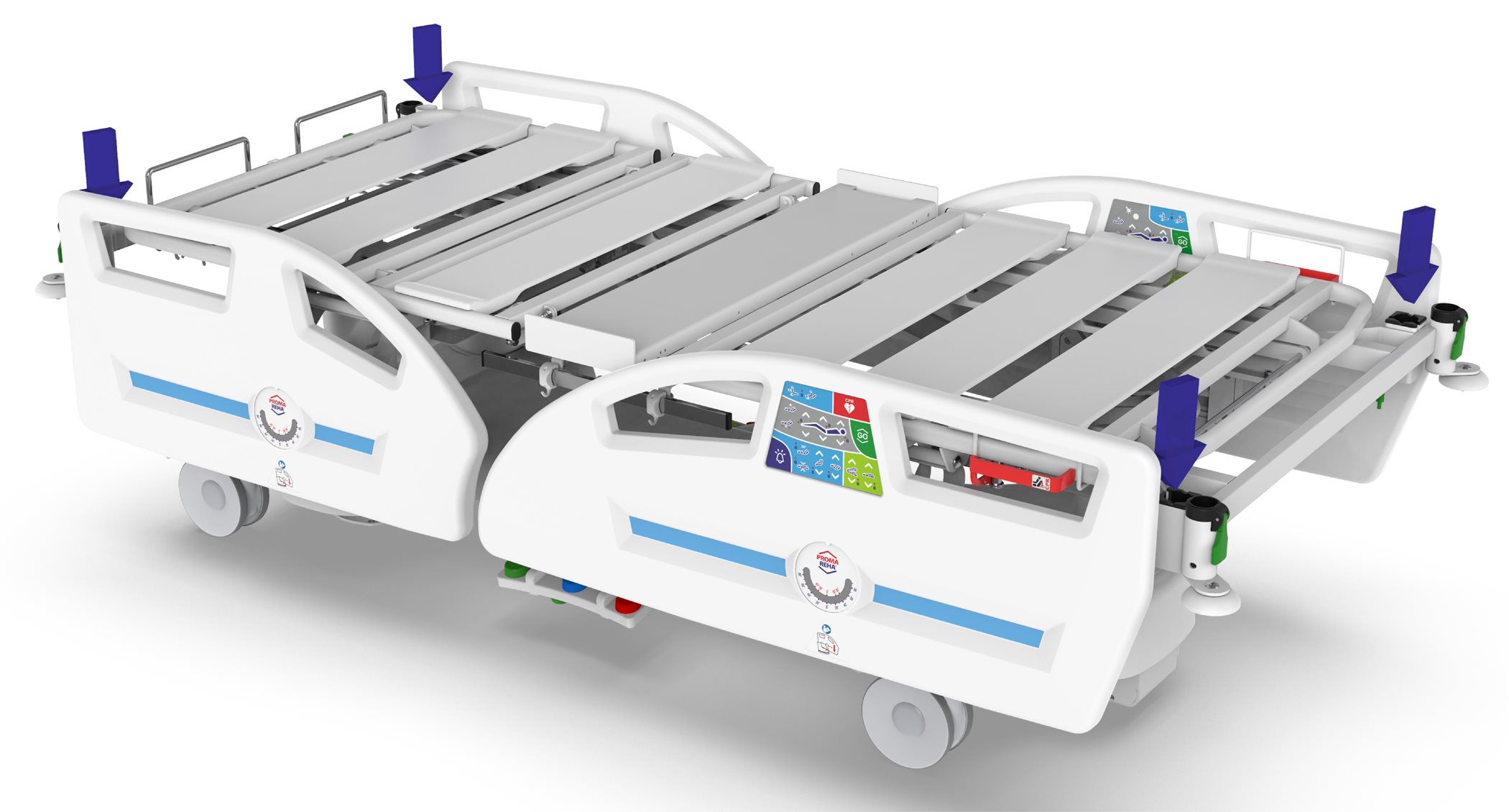

Universal accessories holders
Two are located at the head board and two at the foot board. They allow the use of accessories such as: lifting pole and handle, IV pole, monitor holder, additional side rails, bedside lamp or extension kit.
|Type of chassis||2 - column||3 - column|
|Mattress platform (length x width)||200 x 90 cm||200 x 90 cm|
|Outer bed dimensions with bumper wheels (length x width)||220 x 99,5 cm||220 x 99,5 cm|
|Mattress platform height||43 - 83 cm (electrical)||43 - 83 cm (electrical)|
|Autoregression back part||12,5 cm||12,5 cm|
|Autoregression thigh part||6,5 cm||6,5 cm|
|Mattress platform extension||30 cm||30 cm|
|Calf part extension||Yes||Yes|
|Weight of the bed||150 kg||153 kg|
|Safe operating load of the bed||250 kg||300 kg|
|Maximum patient weight||185 kg||235 kg|
|Application environment for bed use||1, 2||1, 2|
|Type of the mattress platform - metal slats||Yes||Yes|
|Type of the mattress platform - removable plastic lamellae||Yes||Yes|
|Trendelenburg / Antitrendelenburg||16° / 16° (electrical)||16° / 16° (electrical)|
|Lateral tilt||-||20° / 20°|
|Automatic lateral therapy||-||Yes (optional)|
|Max. angles of adjustable sections - back part||70° (electrical)||70° (electrical)|
|Max. angles of adjustable sections - thigh part||40° (electrical)||40° (electrical)|
|Max. angles of adjustable section - calf part||25° (rastomat)||25° (rastomat)|
|Castors||TENTE, 150 mm, double reduced plastic|
|5th wheel||Yes (optional)|
|Horizontal accessory holder||Yes 2x|
|Plastic hook||Yes 6x|
|X-Ray back part||Yes|
|Nurse control with LCD panel||Yes|
|Siderail control||Yes (optional)|
|Patient hand control||Yes (optional)|
|Foot pedal||Yes (optional)|
|Backlight chassis||Yes (optional)|
|Bed exit alarm||Yes (optional)|
|Universal accessory holder||Yes 4x|
|Bumper wheels||Yes (optional)|
|Aretation of bedheads||Yes|
|Bed linen shelf||Yes (optional)|
|Maximum weight capacity||300 kg|
|Accuracy of weighing in absolute mode||± 0,5 kg|
|Accuracy of weighing in differential mode||± 0,5 kg|
|Minimum permitted load of the scale||10 kg|
|Units||kg / lb|
|Bed exit alarm||Yes|
|Automatic saving of values||Yes|
|Recommended mattress (lenght x weight)||200 x 90 cm|
|Mattress thickness in normal using||14 cm|
|Recommended minimal mattress size||12 cm|
|Recommended maximal mattress size||22 cm|
