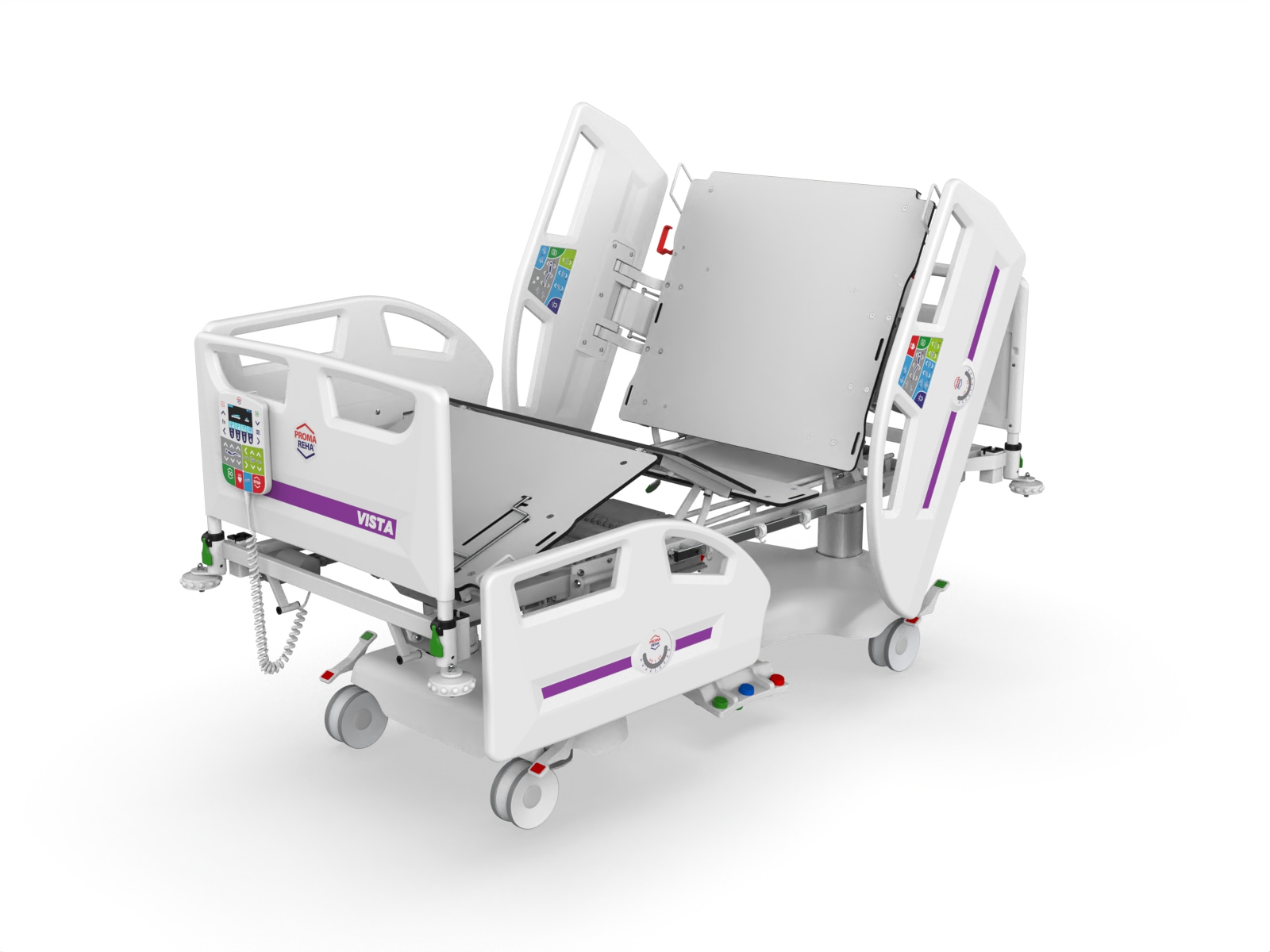

VISTA PRO (weighing system)

The most advanced bed for critical and intensive care

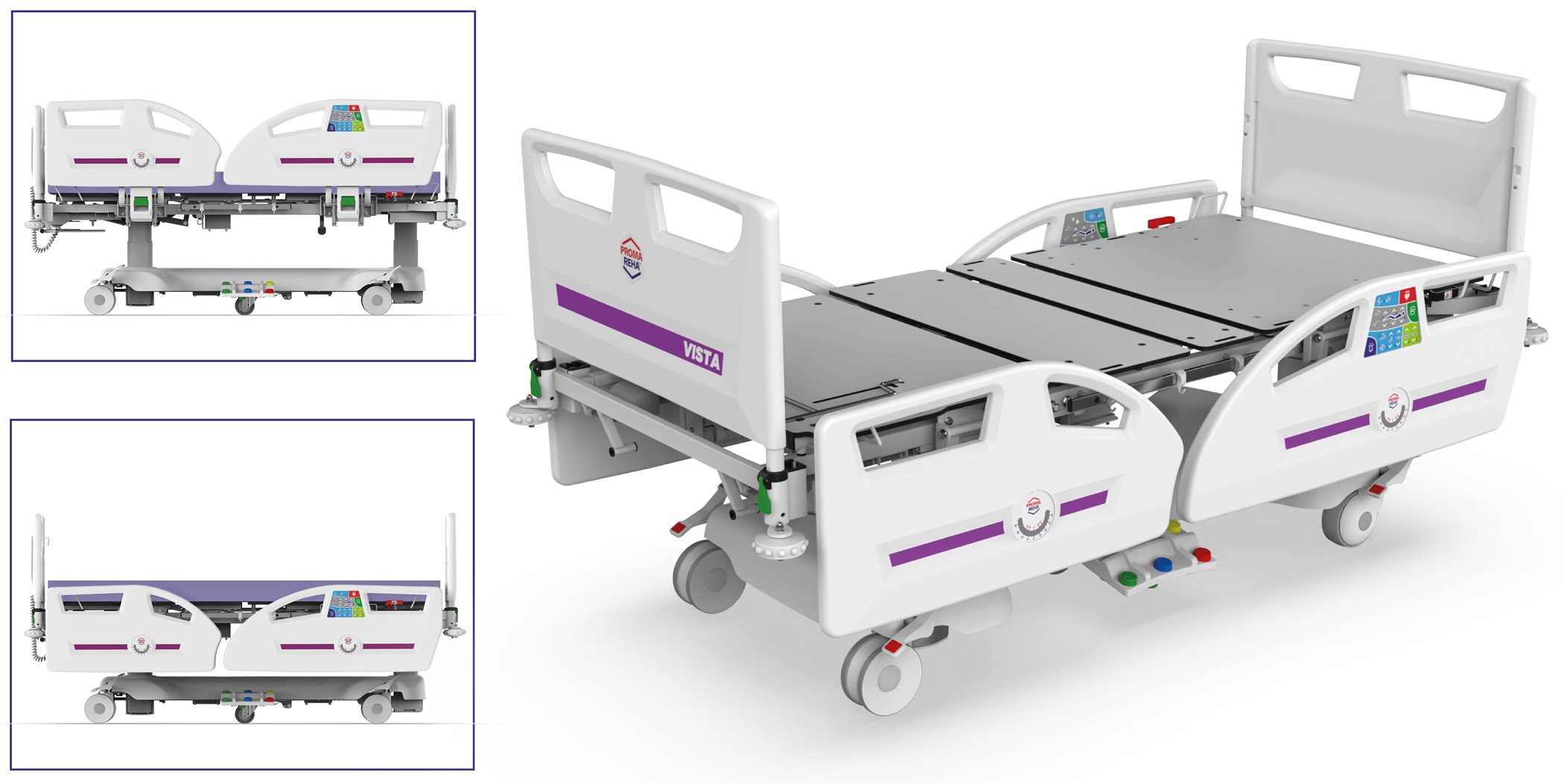

The fully electrically adjustable VISTA PRO bed is a huge help for medical staff. Thanks to modern technologies, it reduces the time when handling the patient or during some examinations. It offers lateral therapy and bedside x-rays. Hospital staff and patients alike will appreciate the well-thought-out design, easy handling, comfortable and intuitive control and a whole range of pre-programmed bed functions.

Product advantages/ Highlights
Technical parameters

WE'RE FACING SECONDS!

"In healthcare, seconds often make the difference. Thanks to modern technologies, time is reduced when handling a patient or during certain examinations."




Direct control of functions with buttons

All functions are available immediately, without annoying menu searches. You simply press a button. It doesn't matter if you're wearing gloves, have wet hands or are holding something.

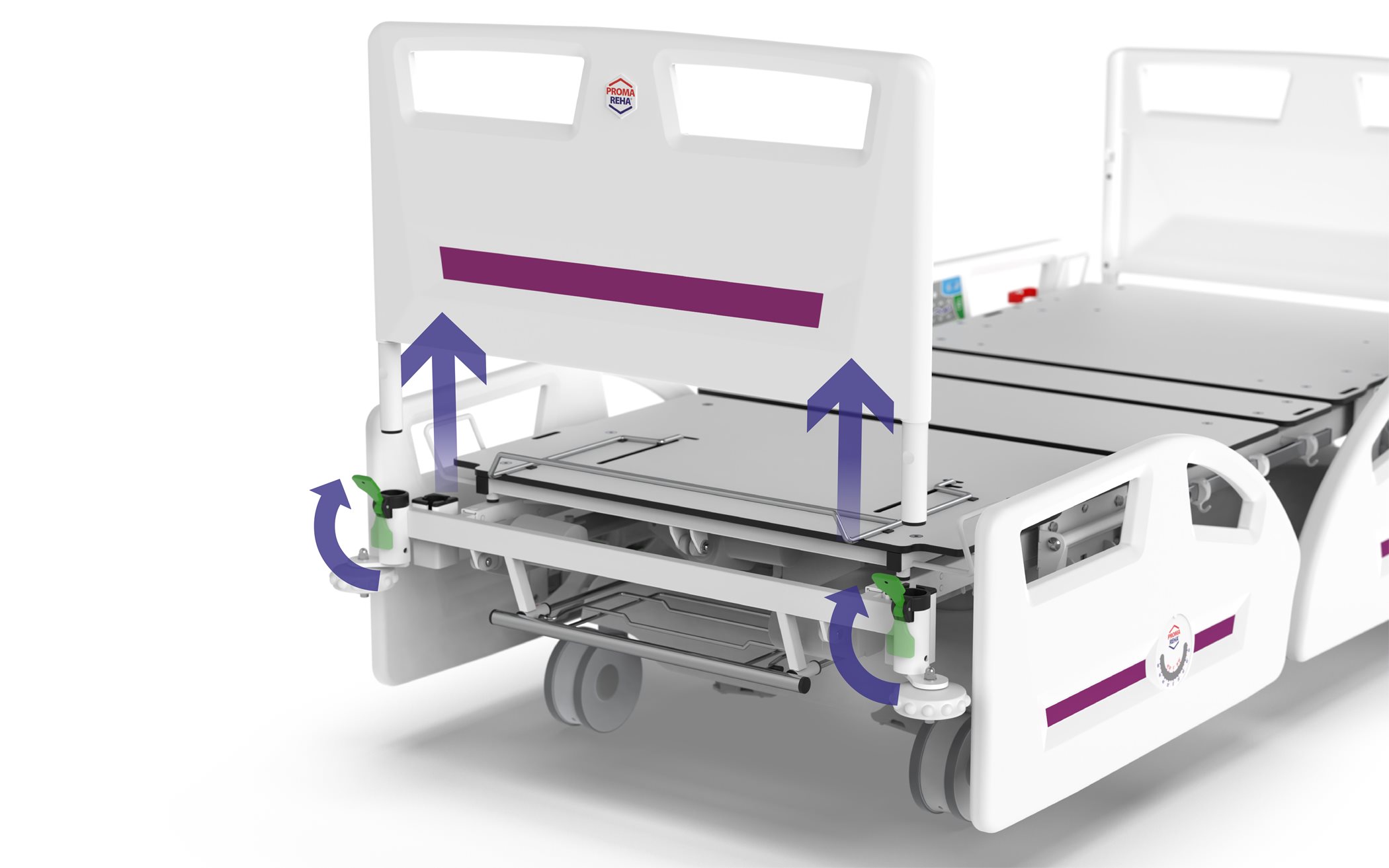

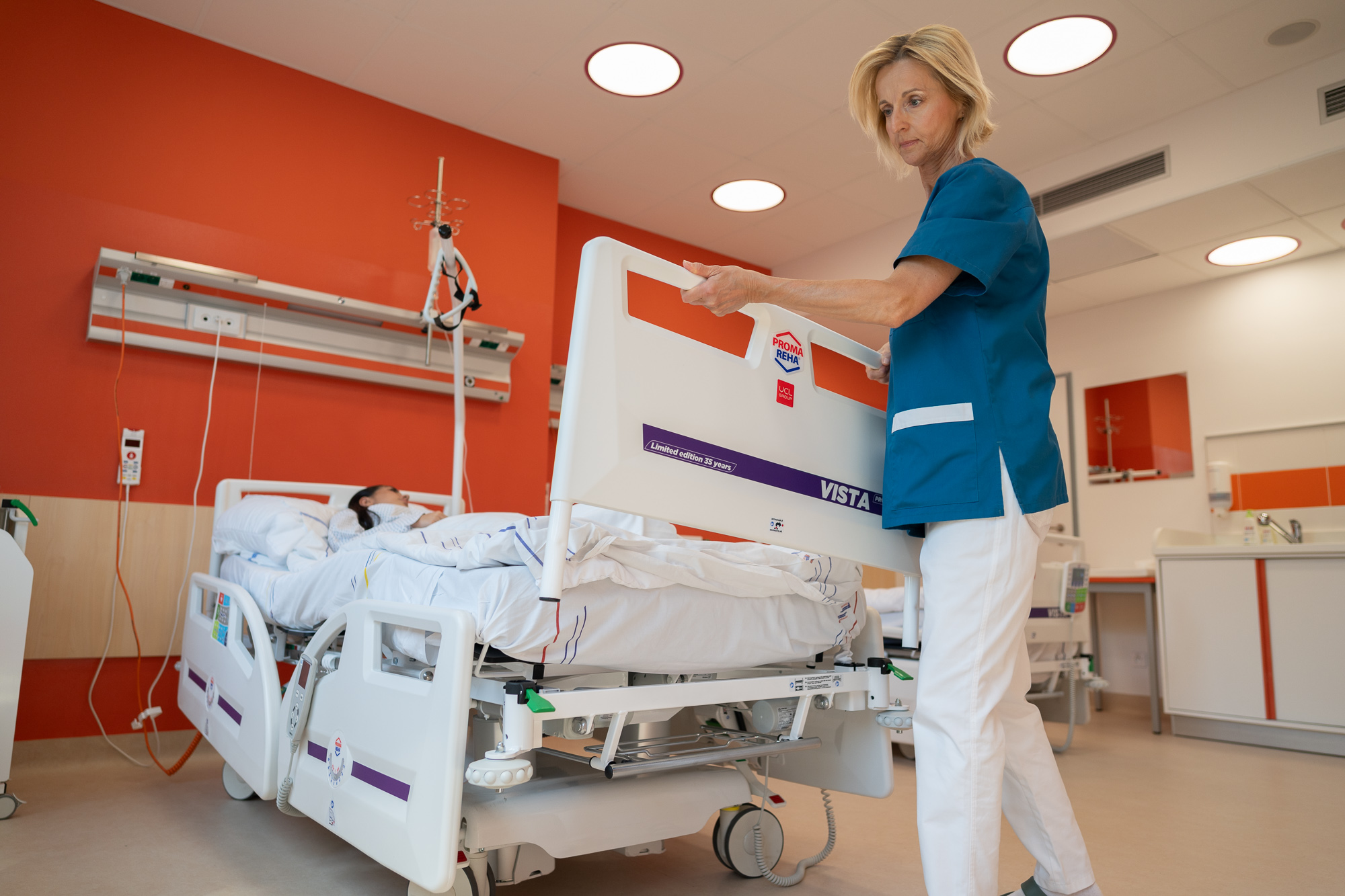

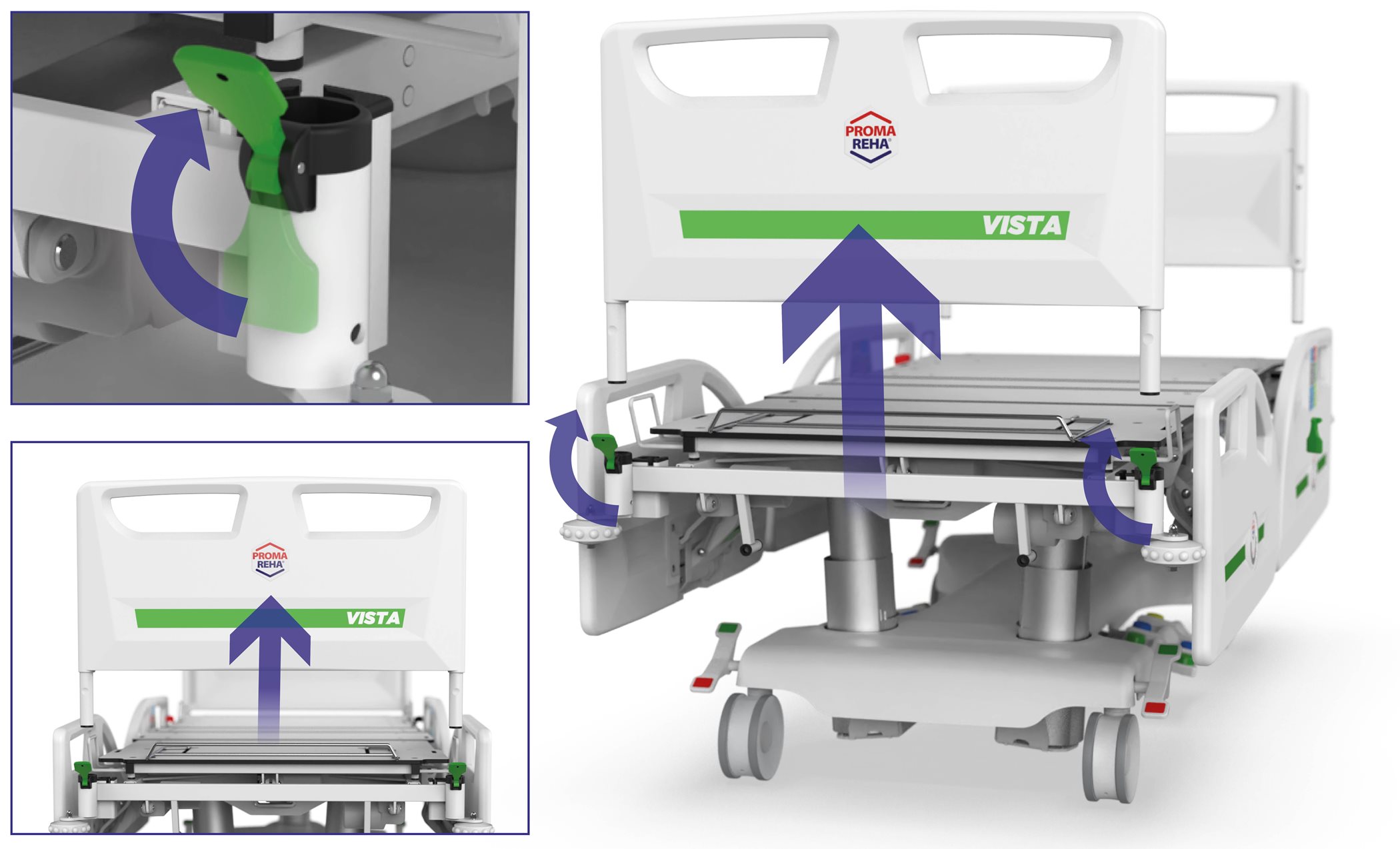

Quick access to the patient

RRS (Rapid Remove System) head and foot board removal greatly speeds up access to the patient at critical moments.

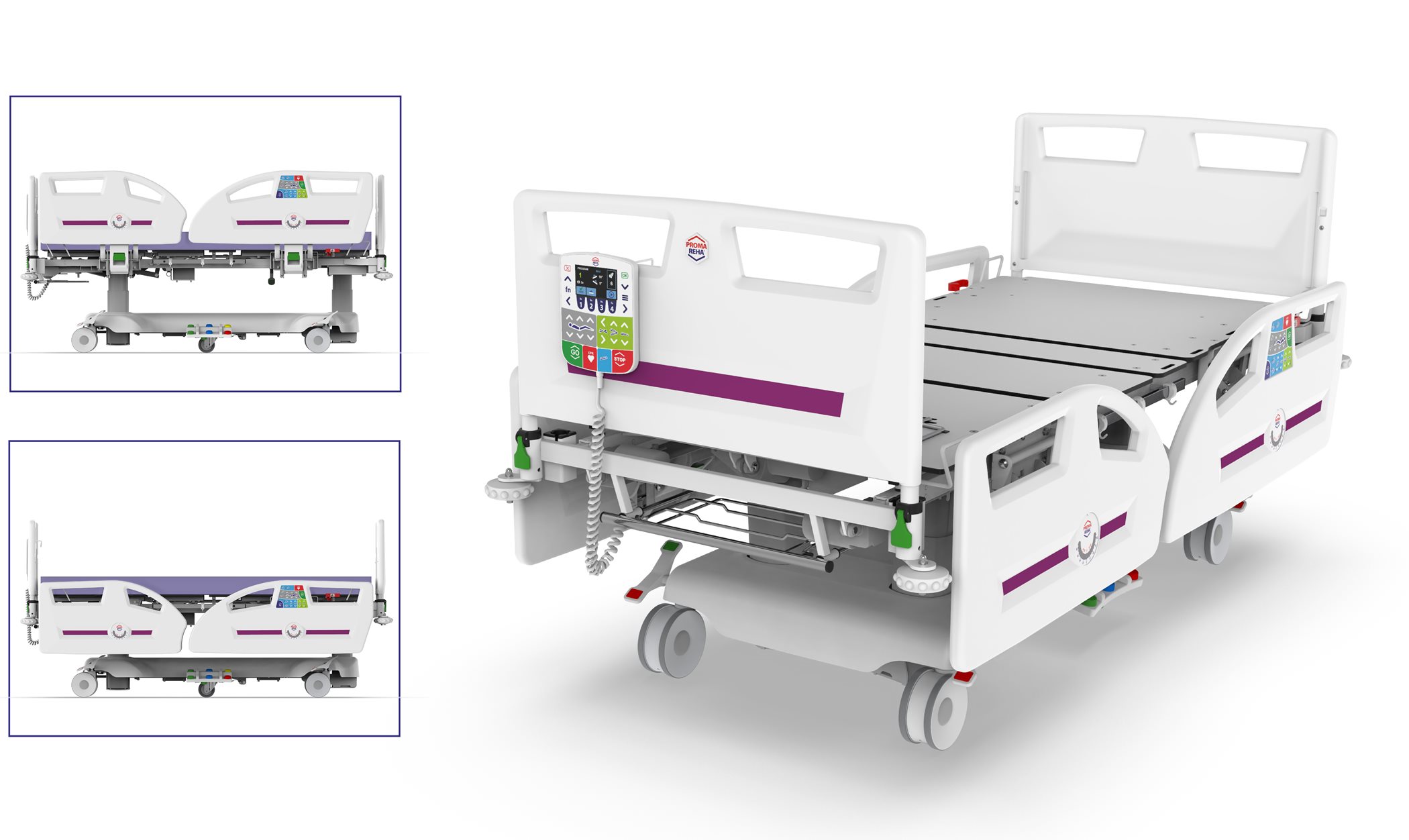

Folding side rails

Protecting the patient from falling is guaranteed thanks to folding side rails along the entire length of the bed. Folding is ensured by a robust yet one-handed mechanism equipped with fall dampers. In the lowest position, the side rails are placed sufficiently below the level of the mattress and do not hinder the patient's exit. The integrated controls make it easy to operate the bed intuitively with one hand.

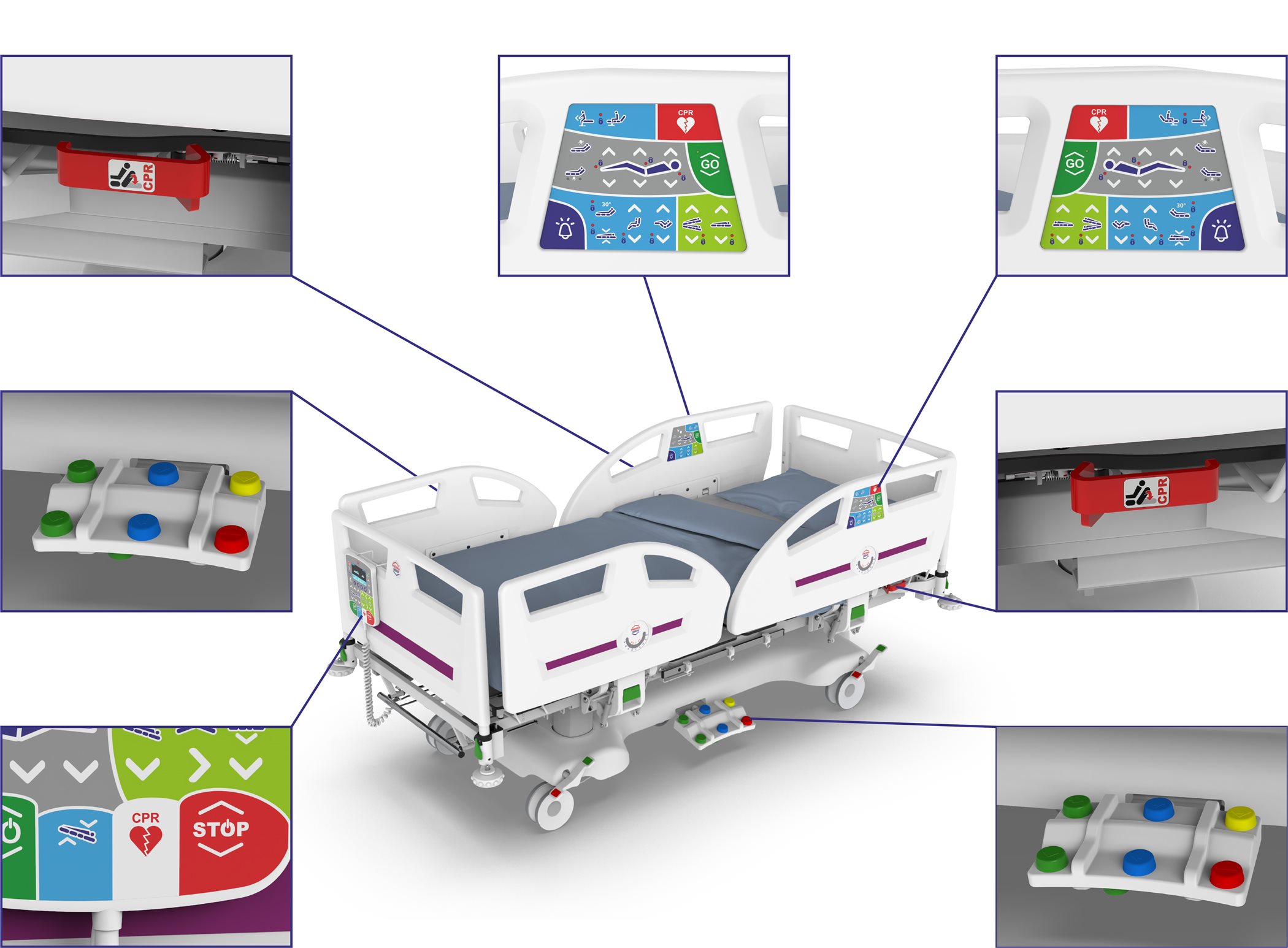

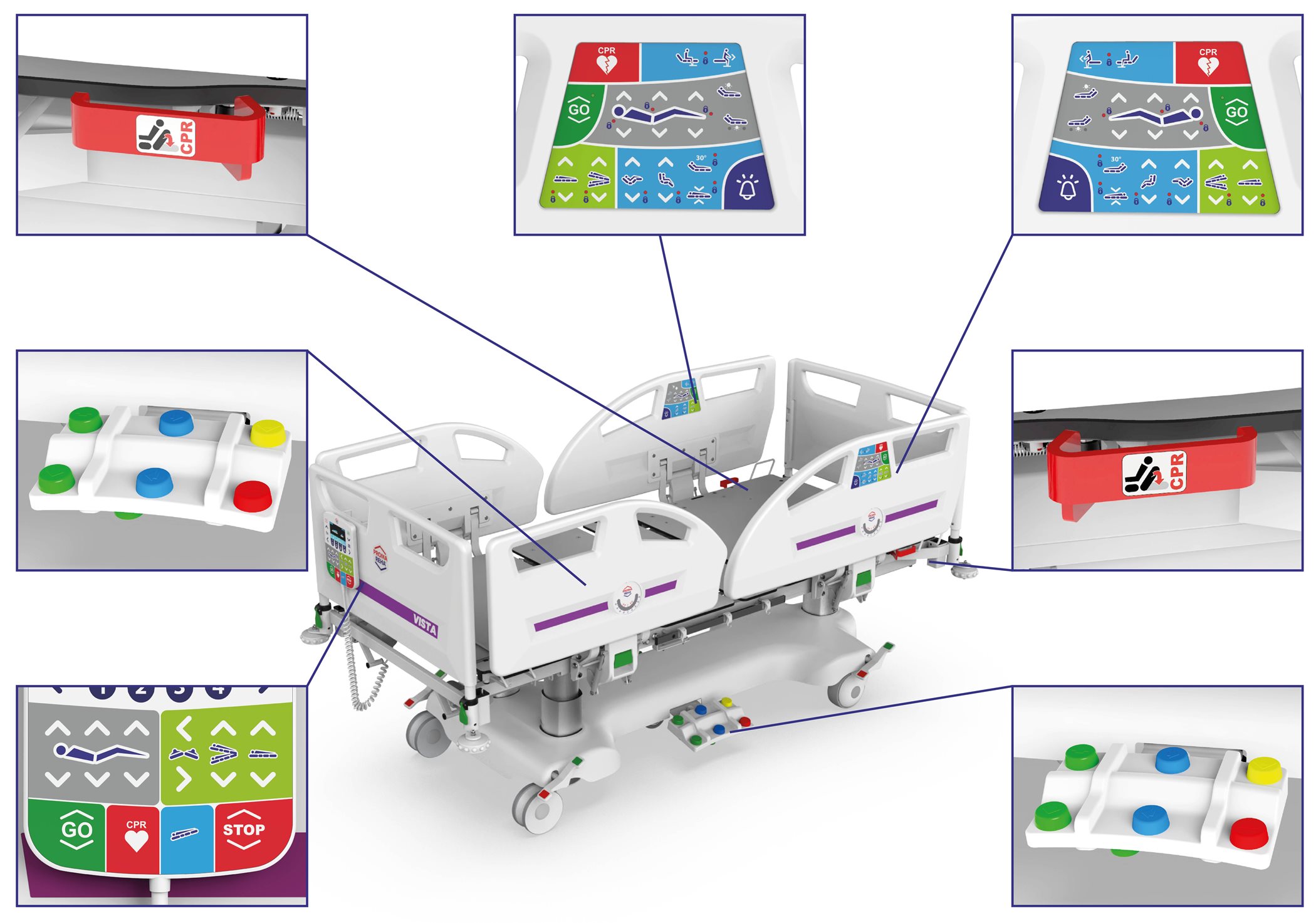

CPR function

This feature ensures safe and rapid positioning of the bed in the optimal position for immediate cardiopulmonary resuscitation. The CPR buttons, easily accessible around the perimeter of the bed, are complemented by a pair of mechanical CPR back part levers.

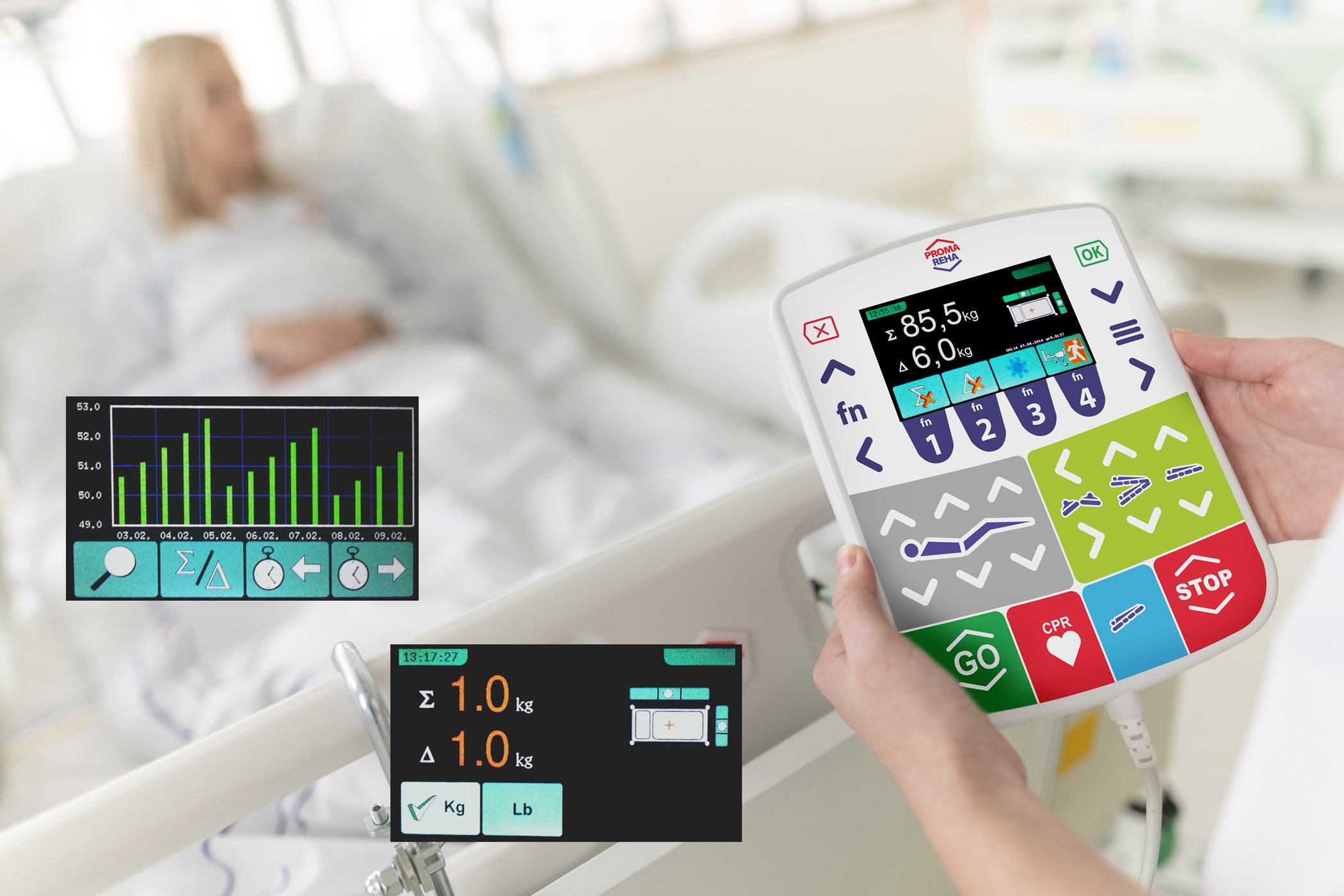

Weighing system

The beds can be equipped with a calibrated and certified automatic weighing system with the ability to easily set weighing modes, evaluate the measured values and display the results by means of graphs.

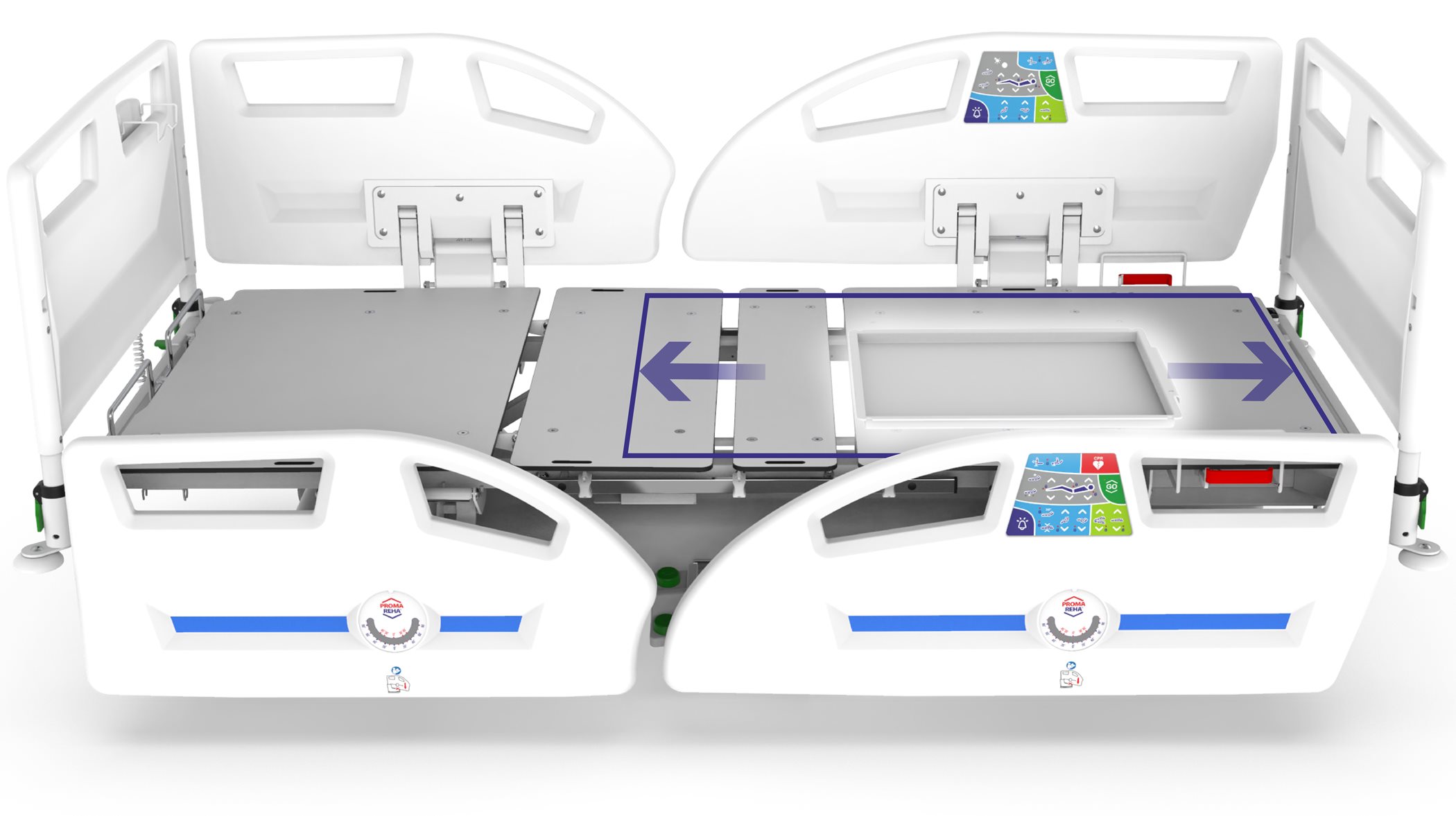

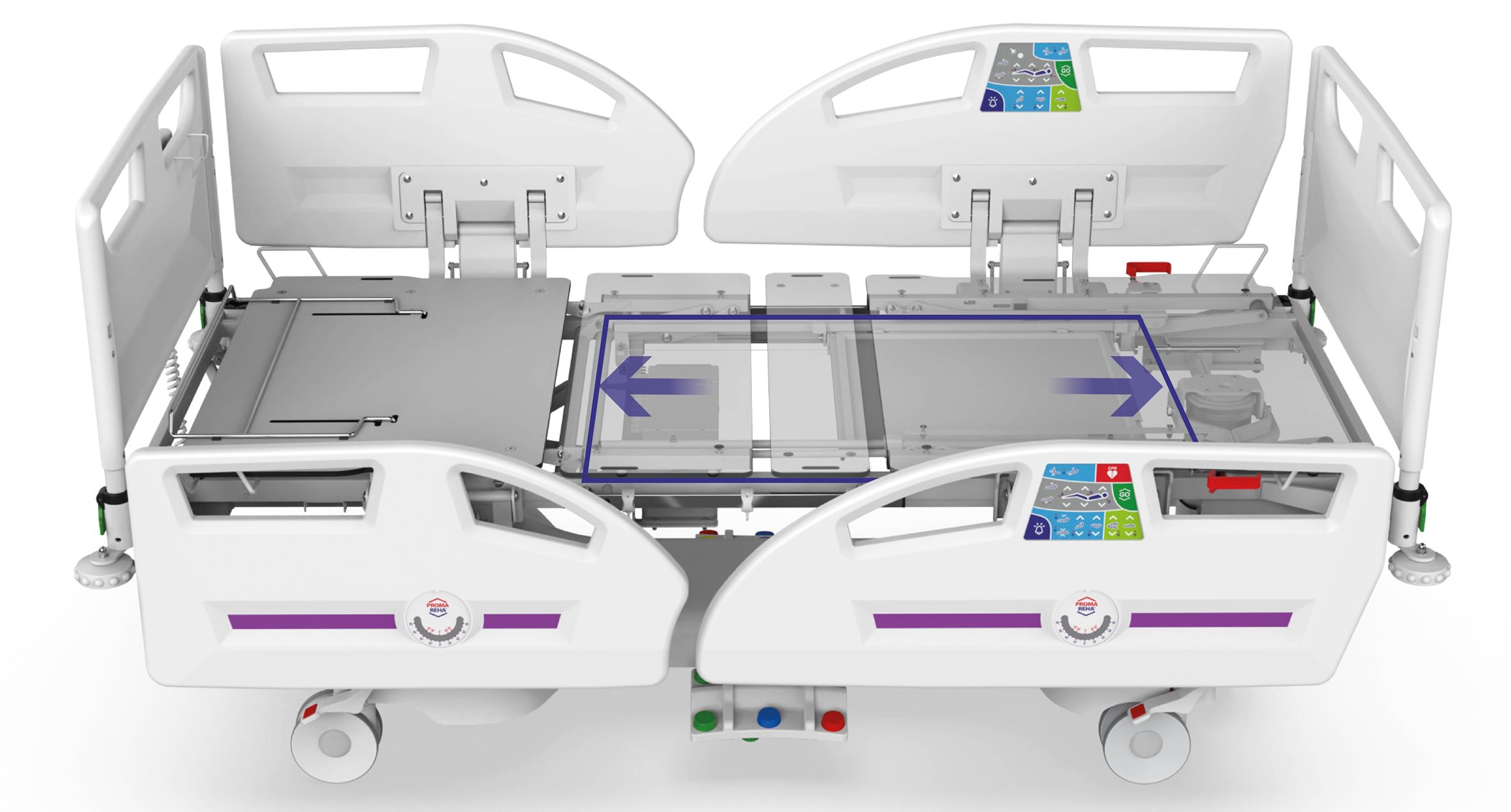

X-rayable mattress platform

The design of the mattress platform allows comfortable and safe continuous scanning with C-arm and conventional X-ray equipment.

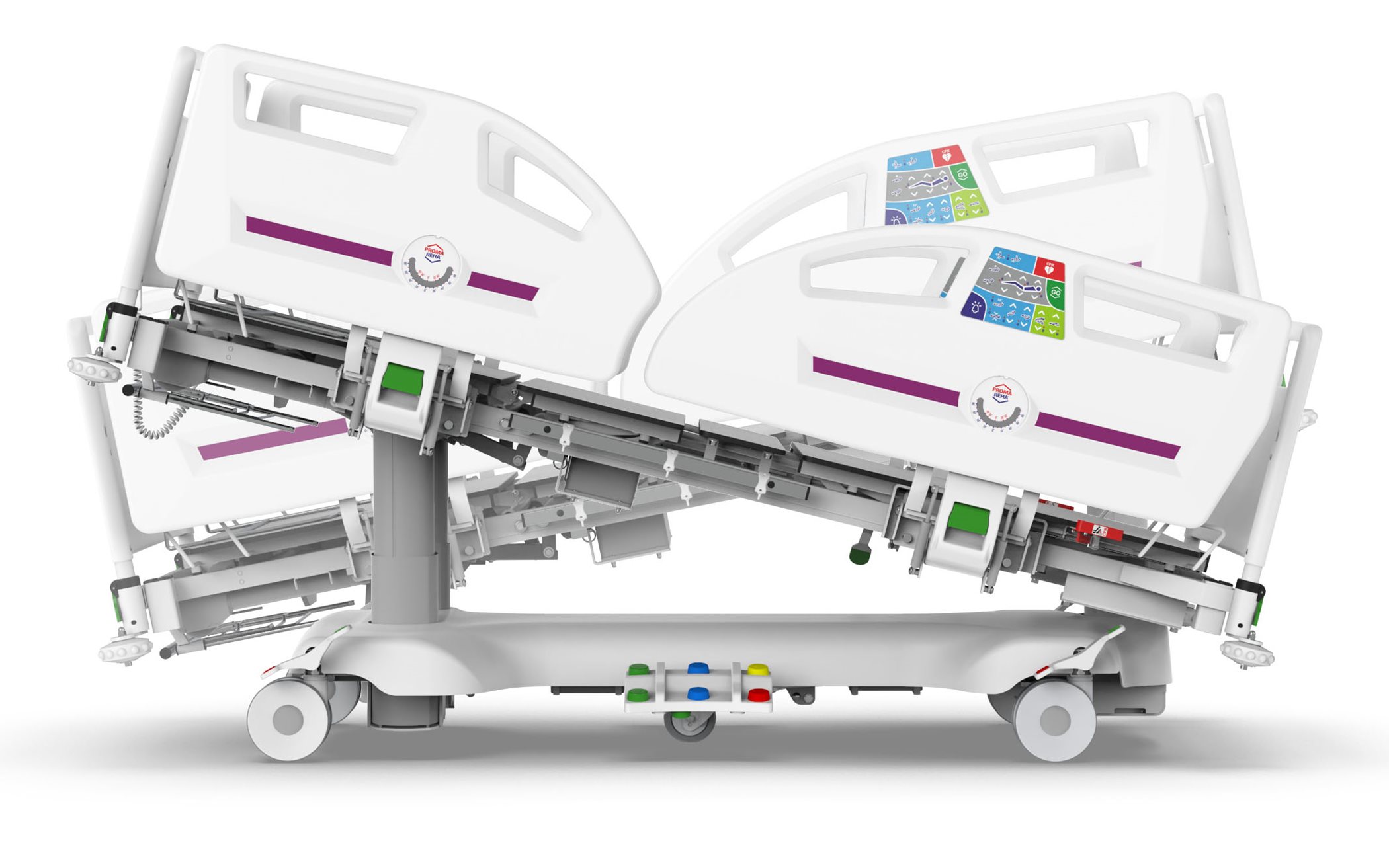

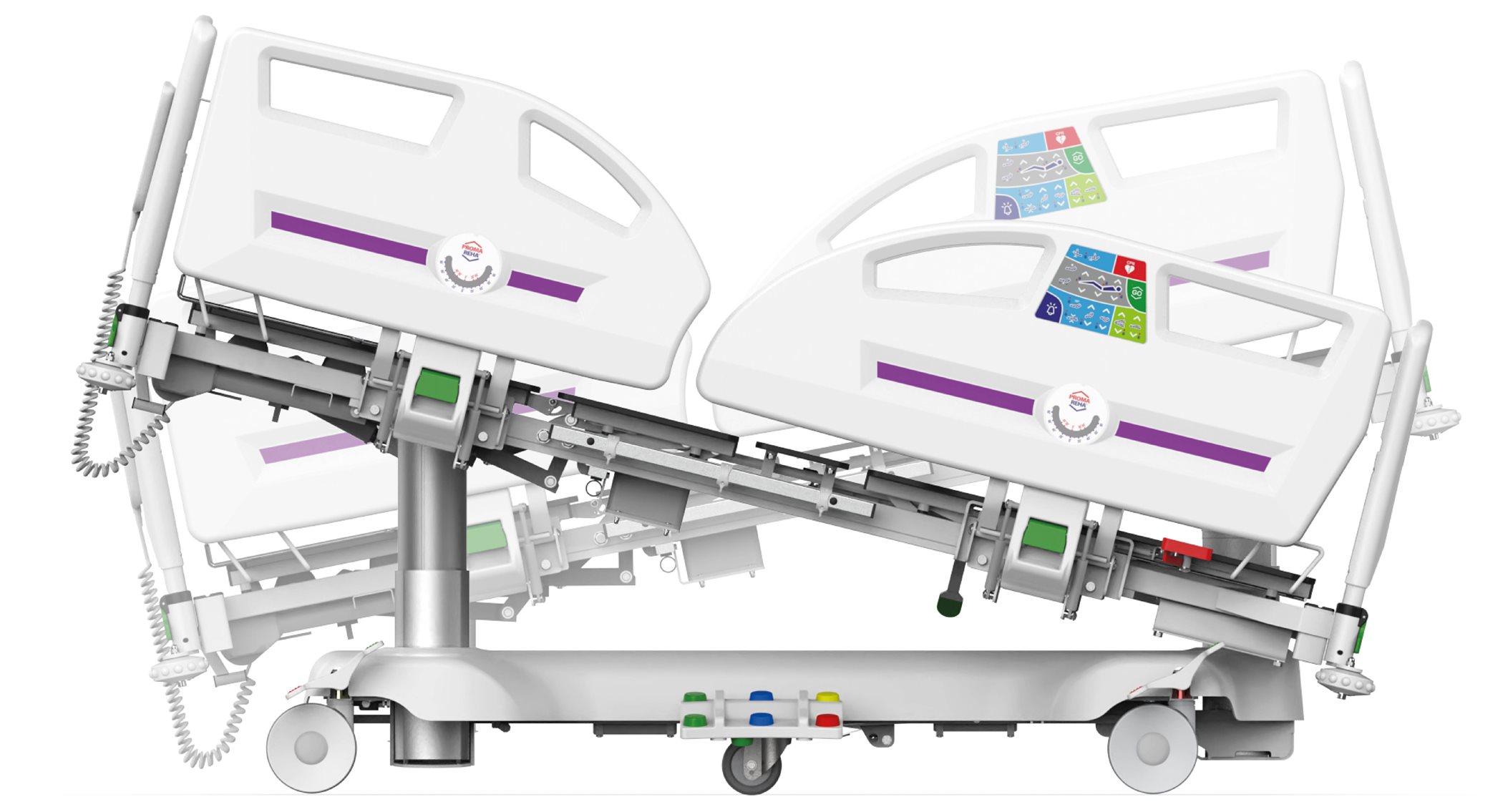

Trendelenburg / Antitrendelenburg

Quick and easy positioning into Trendelenburg (16°) and Antitrendelenburg (14°) positions with the push of a button.



WE PROTECT YOUR HEALTH AND SAFETY!

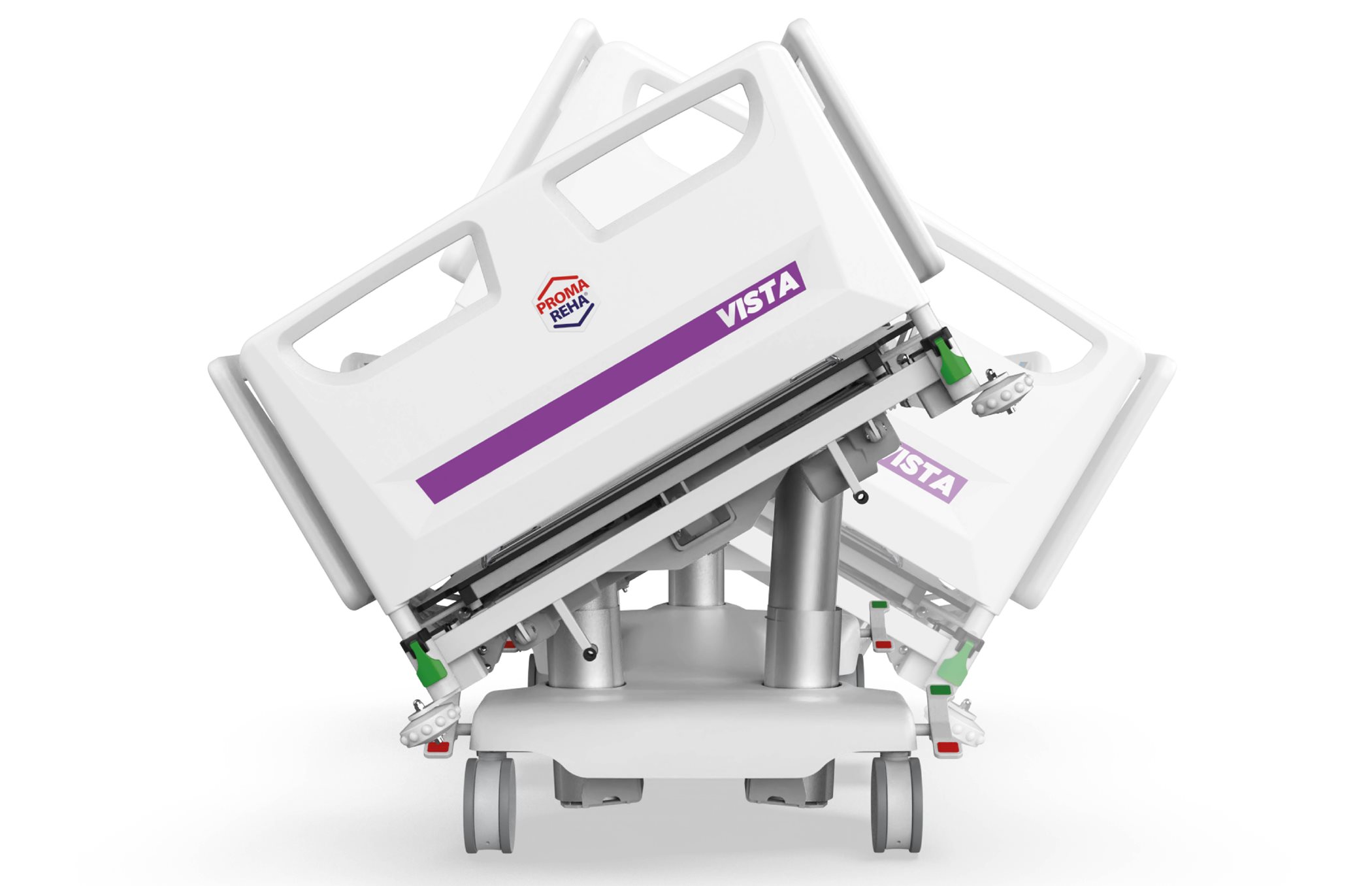

Automatic lateral therapy

It is a significant benefit especially for patients at high risk of post-operative respiratory complications and patients at high risk of developing decubitus. The hospital staff will appreciate the possibility of easy individual adjustment of all parameters of the selected therapy, in up to eight adjustable programs within a duration of 24 hours.

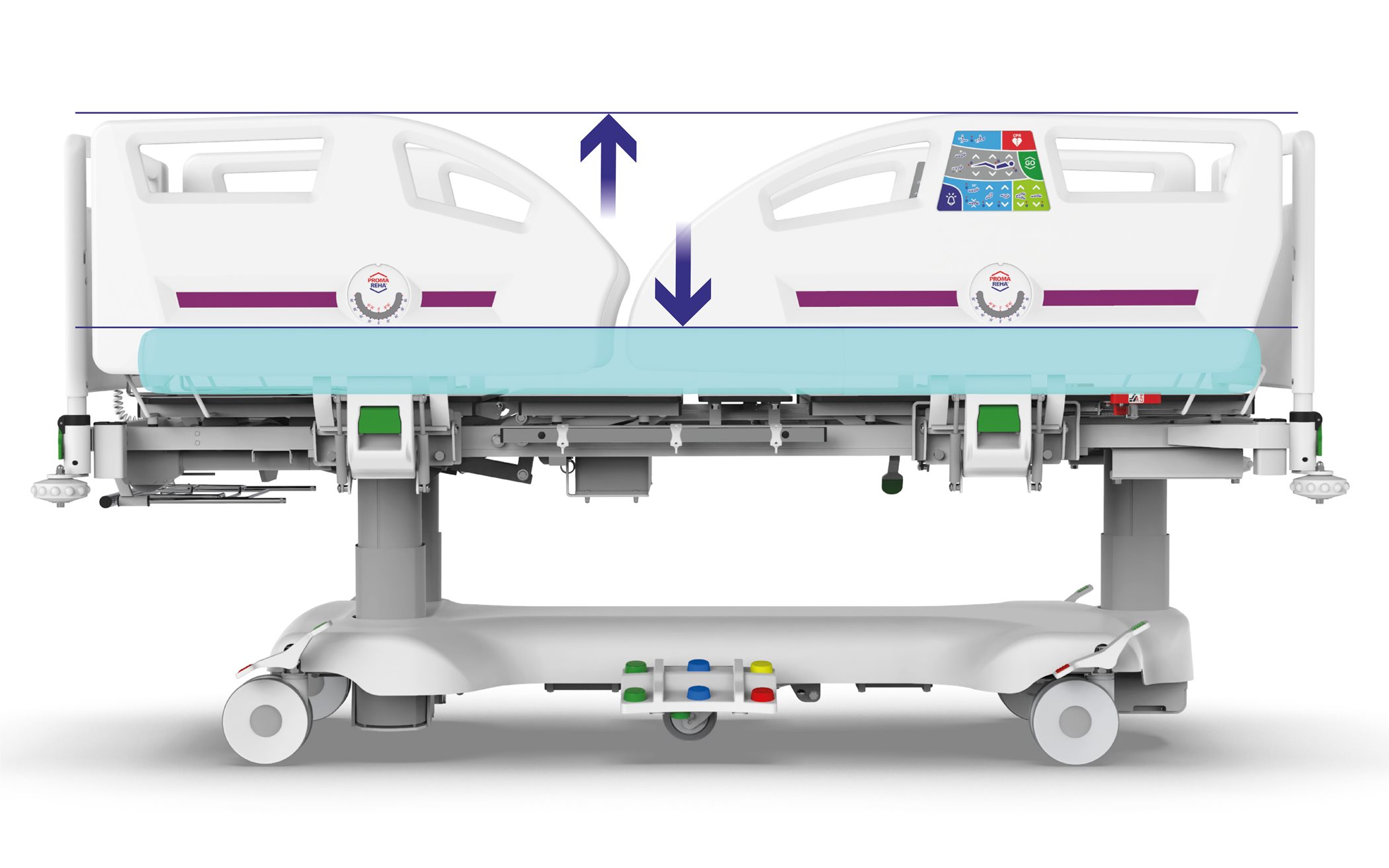

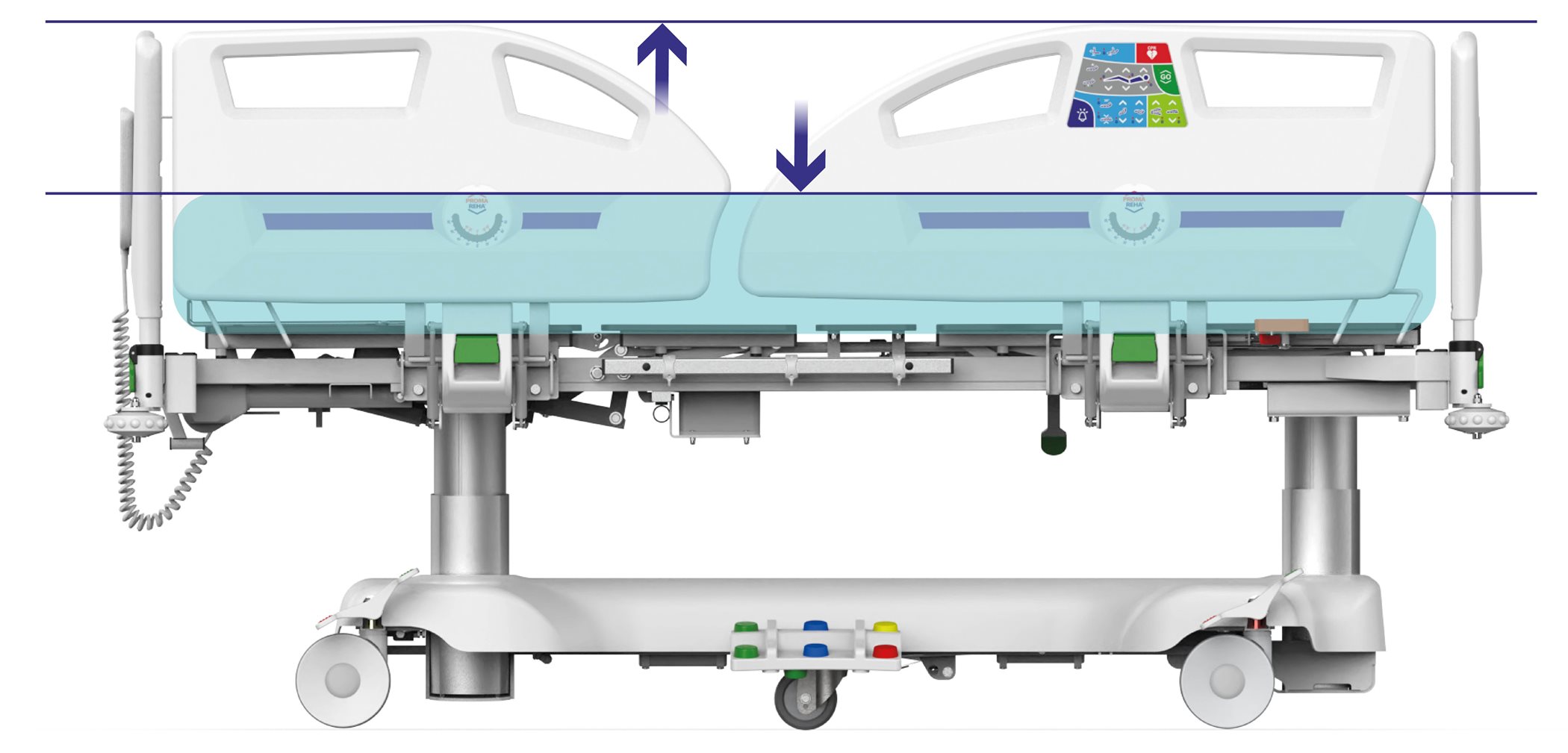

Side rails also suitable for higher mattresses

Specially designed siderails with a height of 45 cm above the bed surface guarantee maximum protection against falling out of bed even when using an anti-decubitus mattress up to 23 cm high.

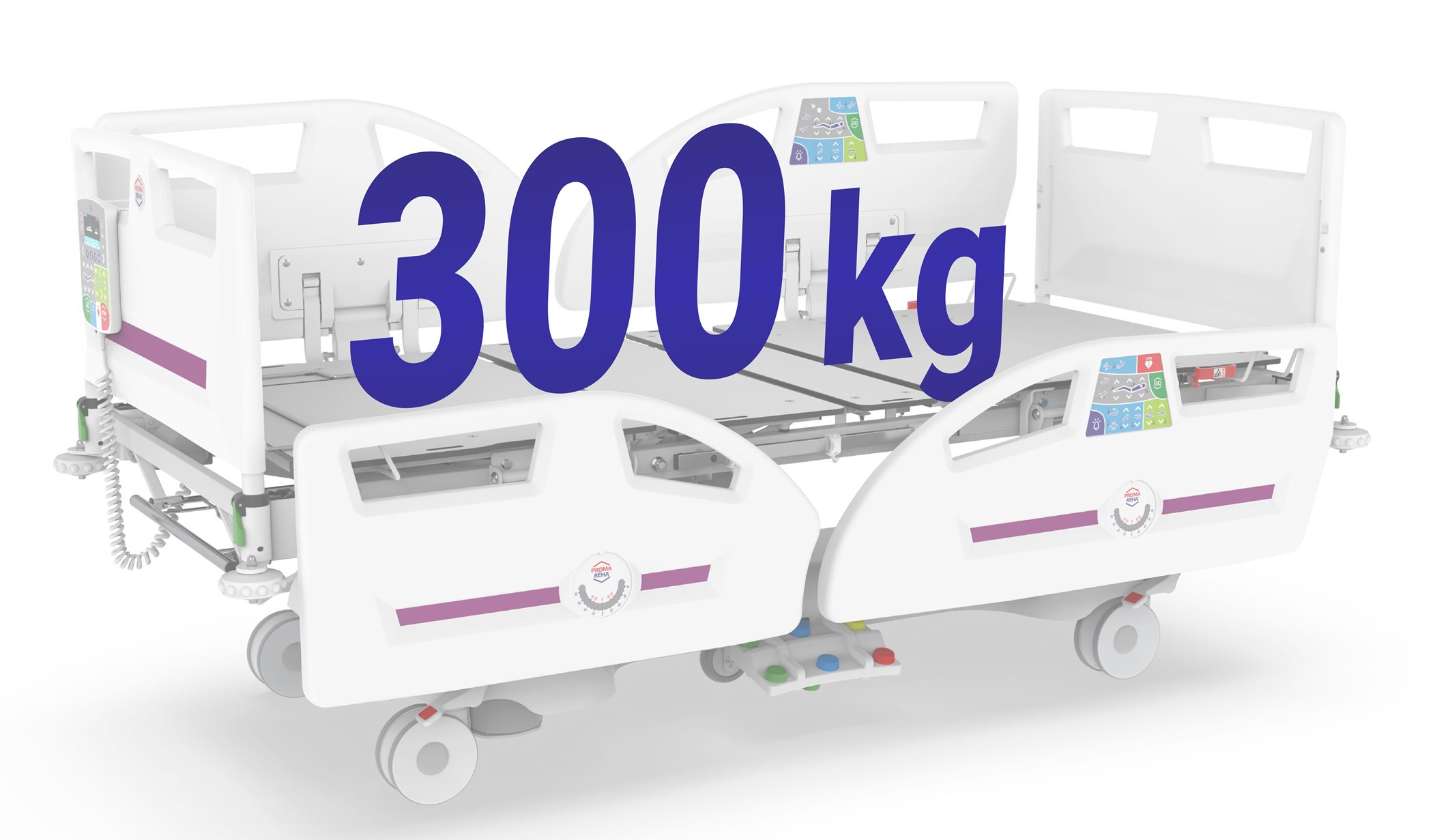

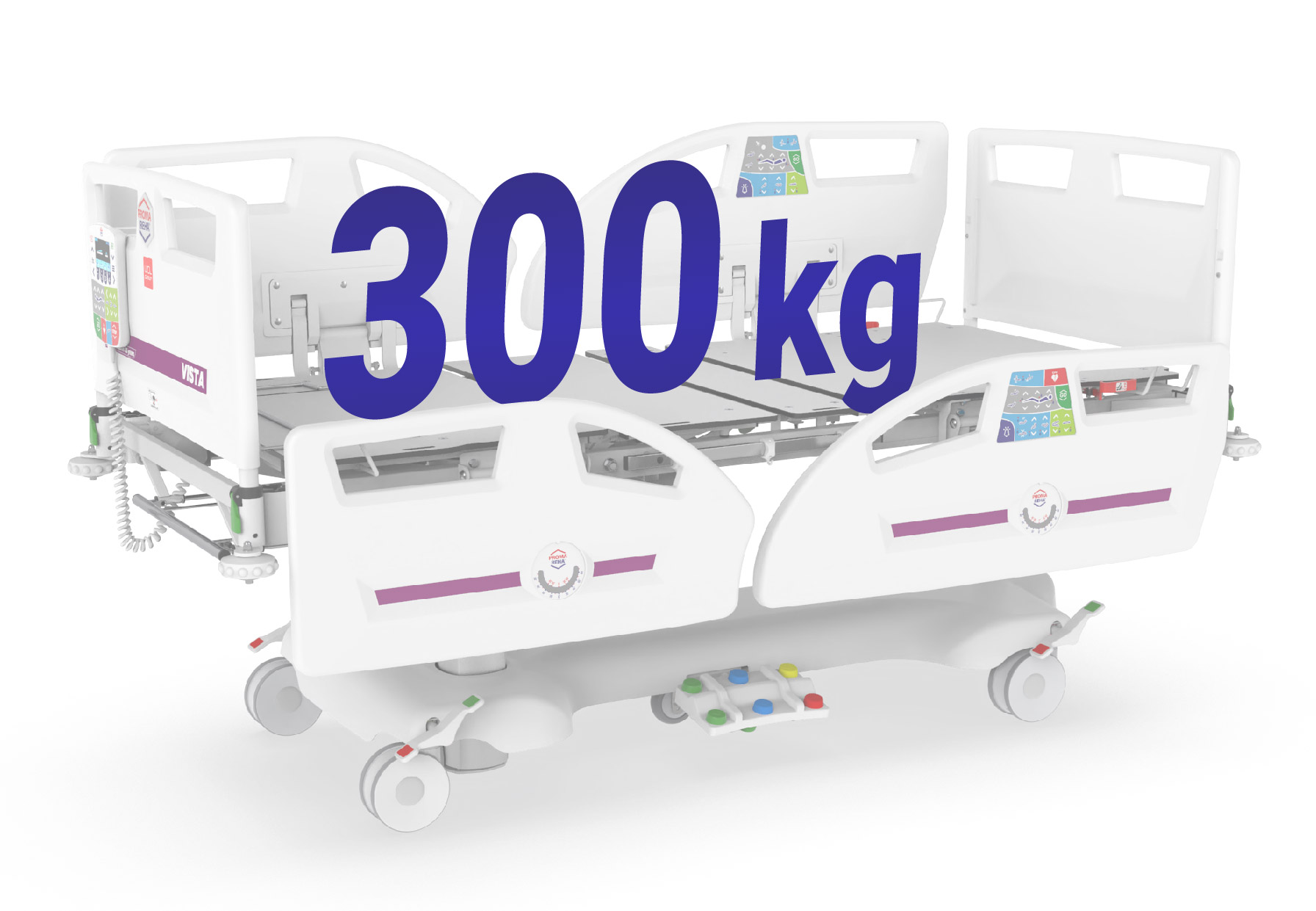

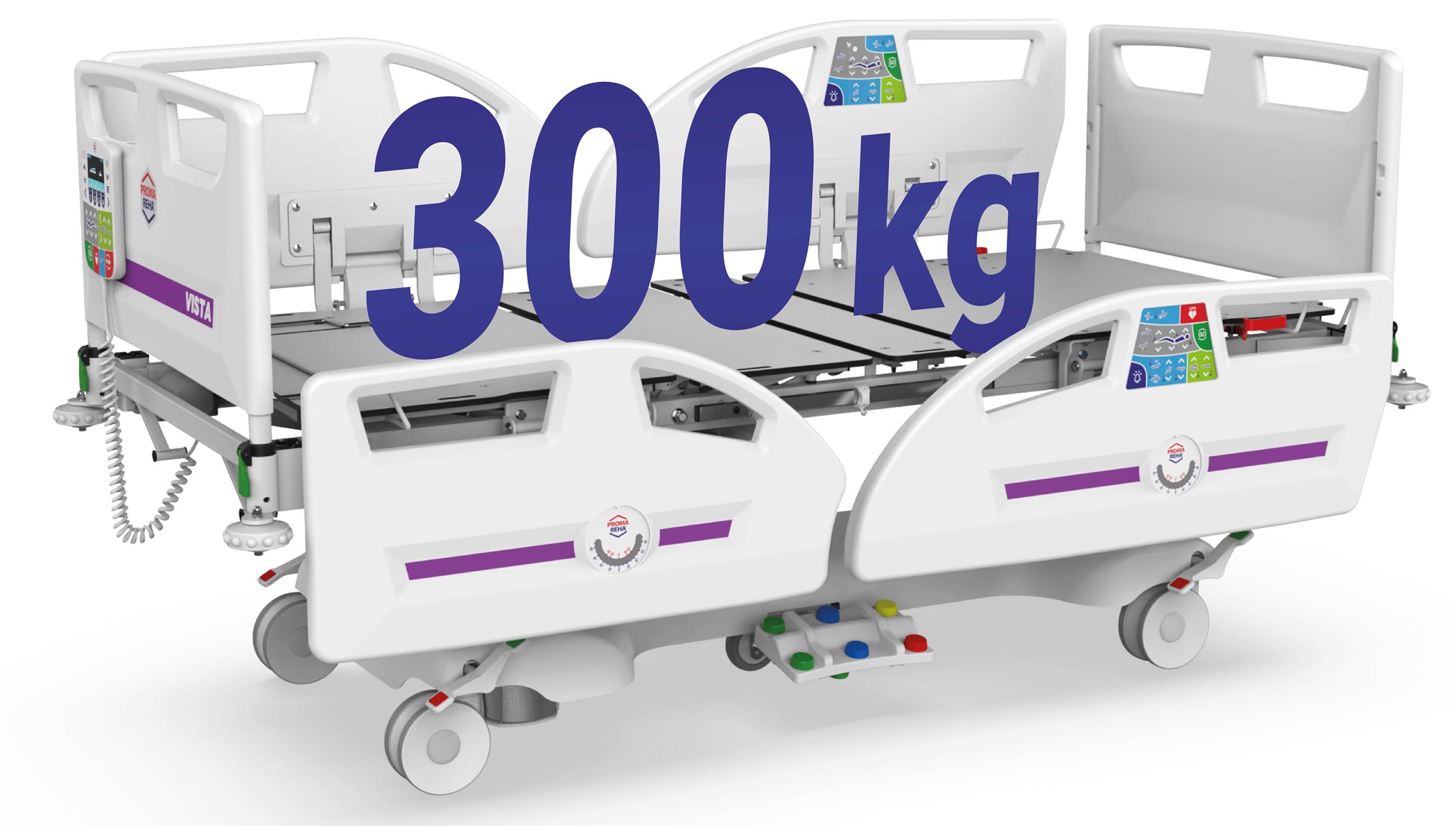

Increased safe operating load

The solid and stable construction allows a safe operating load of up to 300 kg.

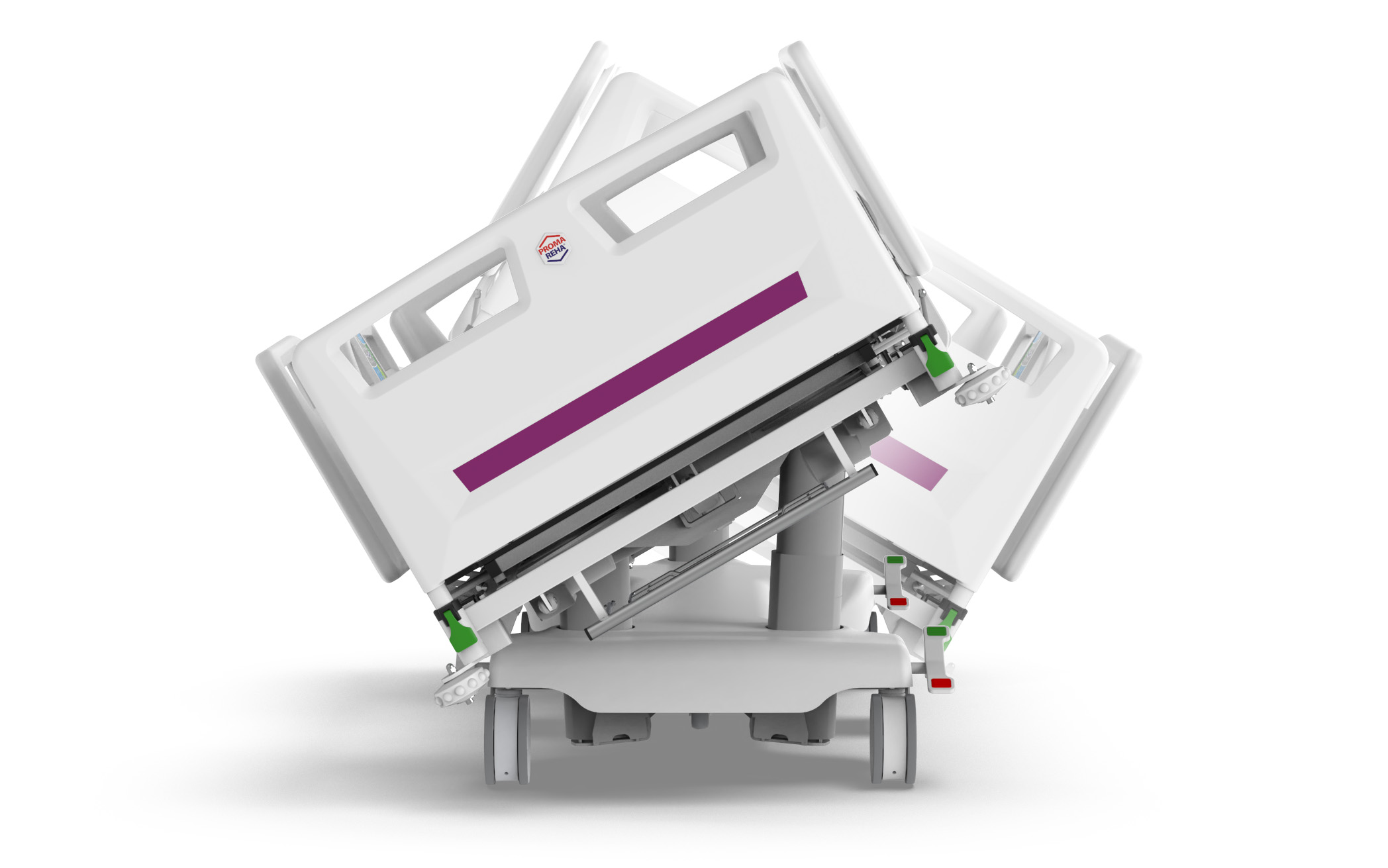

Reversible lateral tilt

Significantly reduces the physical strain on the nursing staff during daily patient care, especially when turning the patient, performing personal hygiene and changing the bed linen.

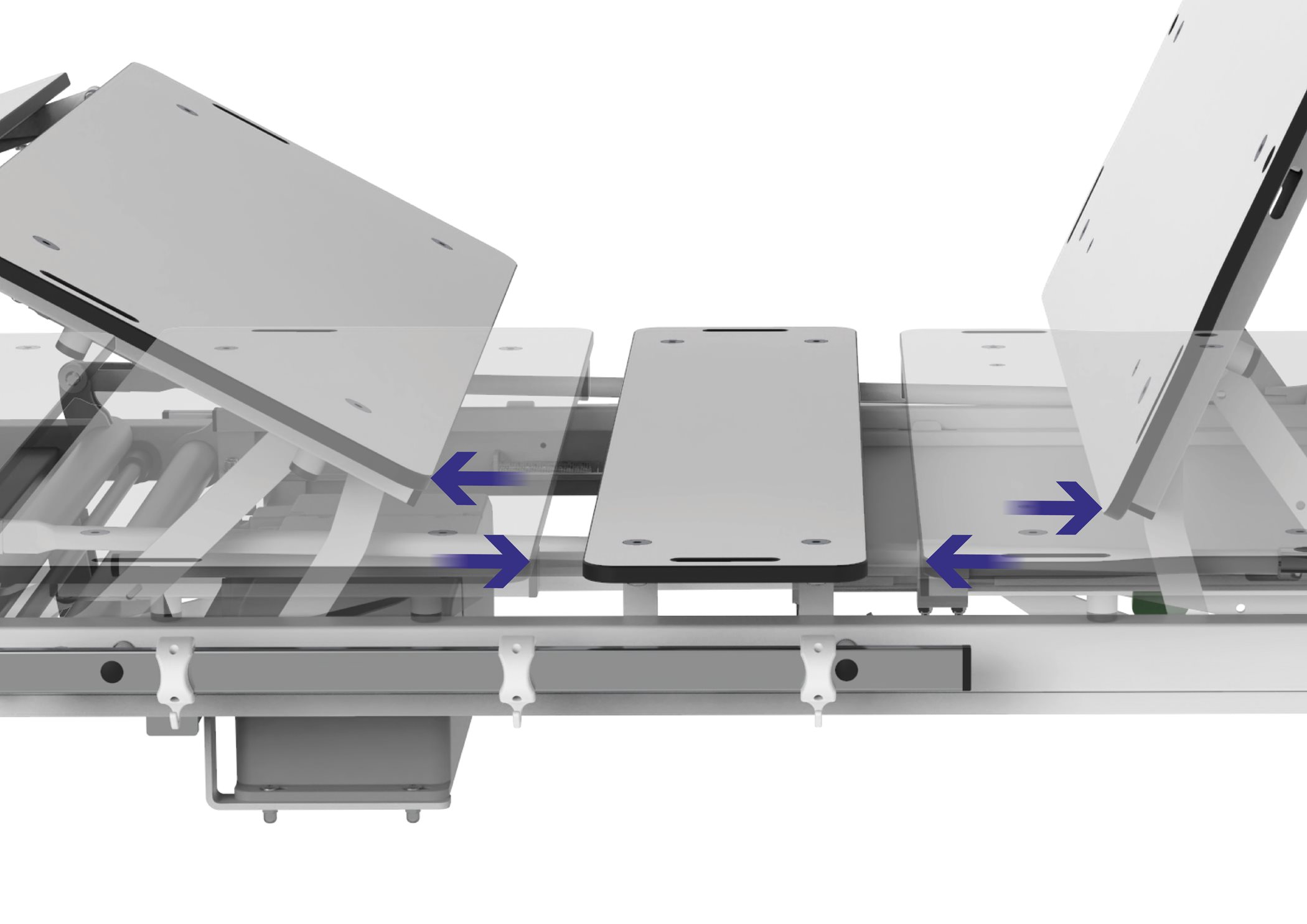

Double autoregression

Brings greater comfort to patients, reduces pressure in the abdominal area and reduces the risk of decubitus.

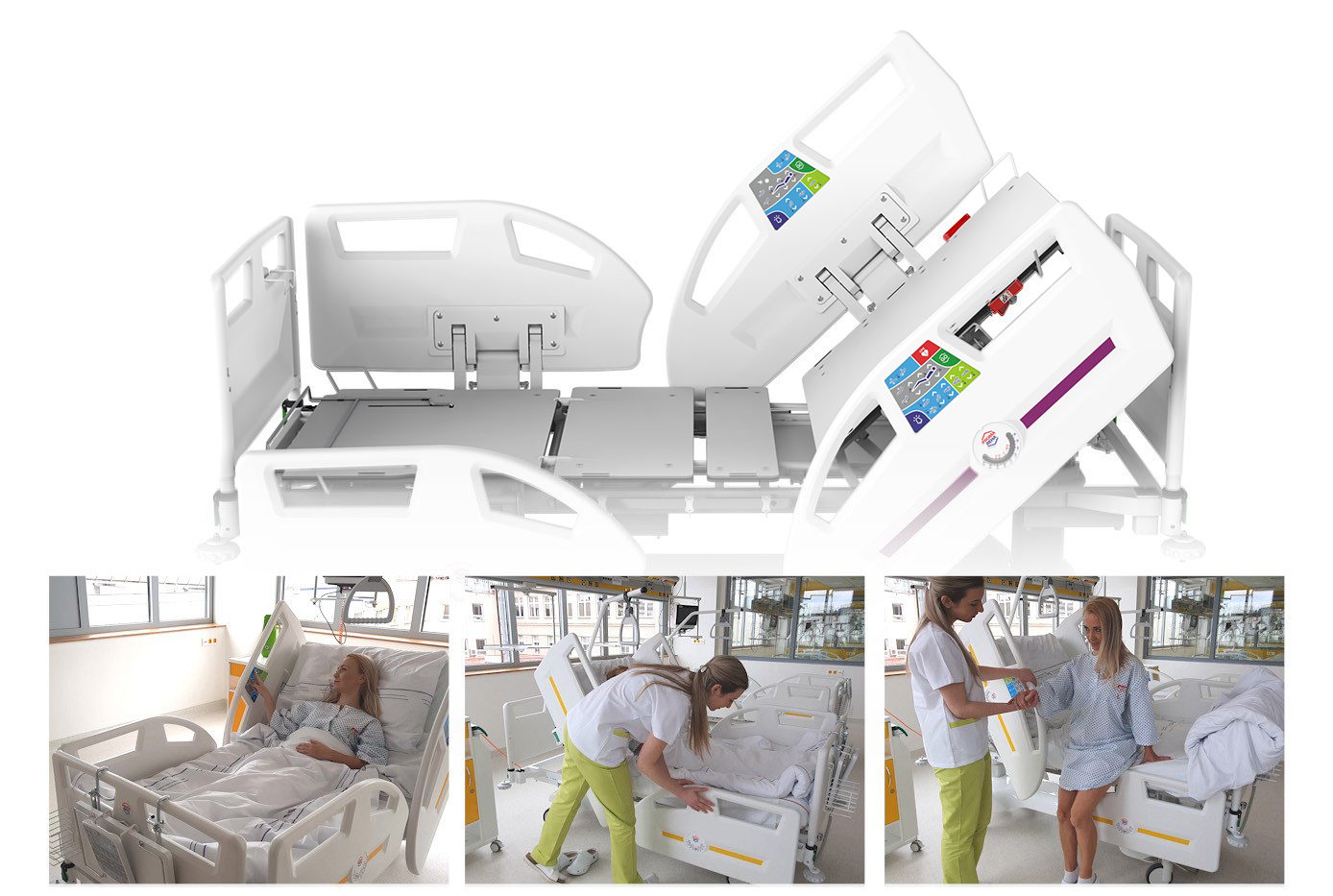

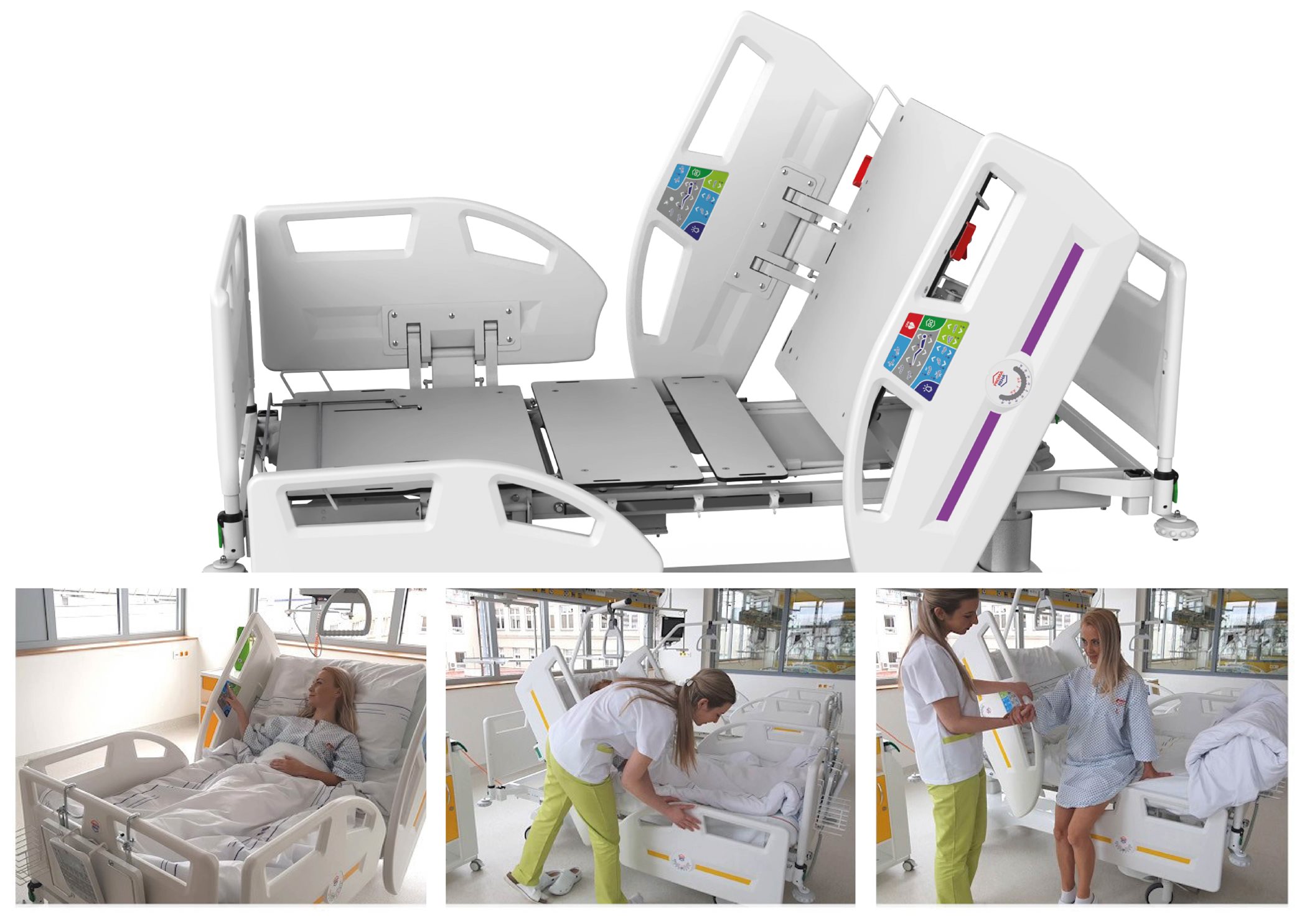

Bed exit position

The bed exit position is a one-button feature that helps the patient to safely exit the bed, thus reduces physical effort for staff.

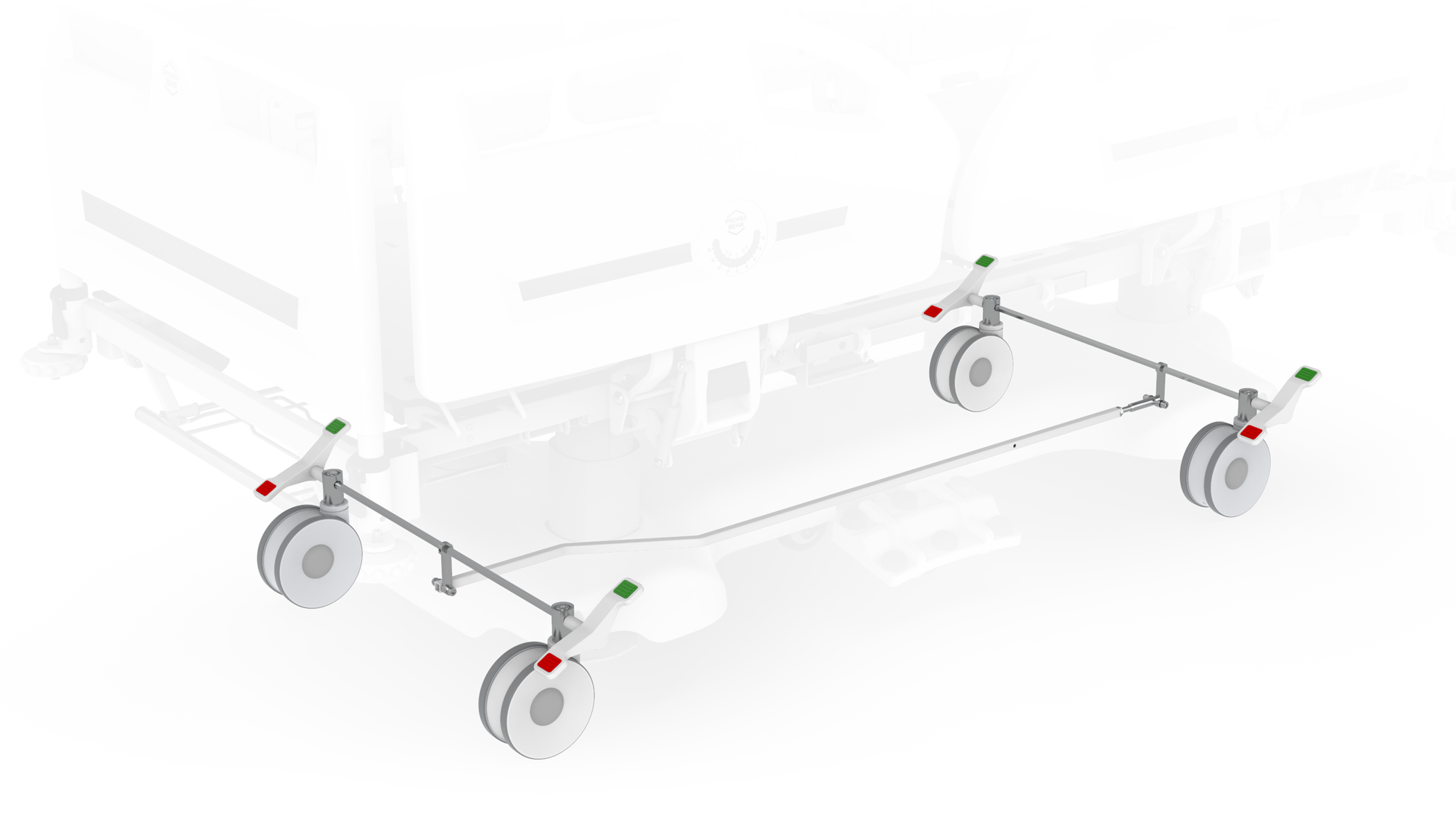

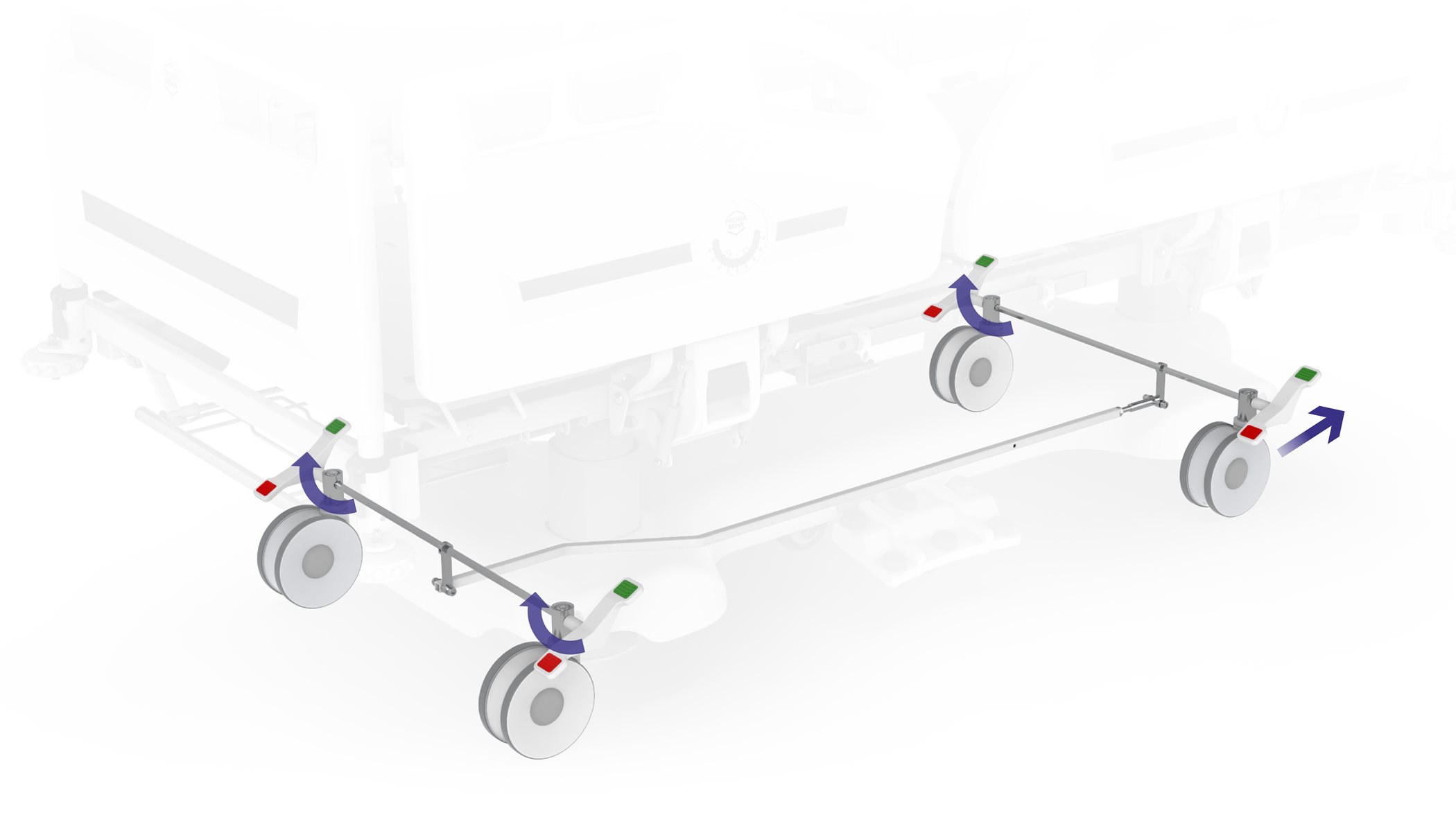

Central brake

Safe handling of the bed is ensured by a centrally operated brake. Thanks to the possibility of locking one wheel in the straight direction of travel, the bed can be easily operated by only one person during transport.

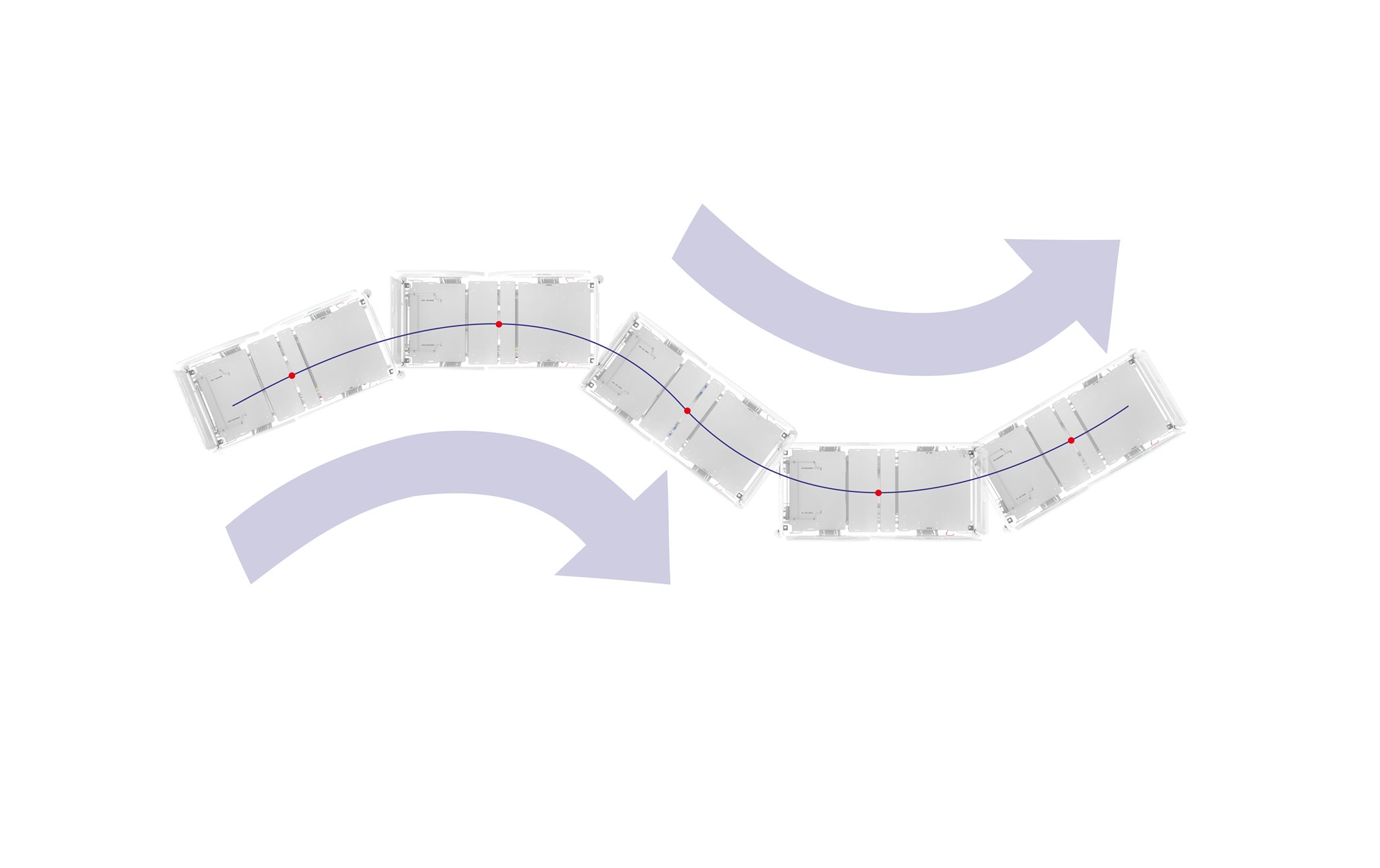

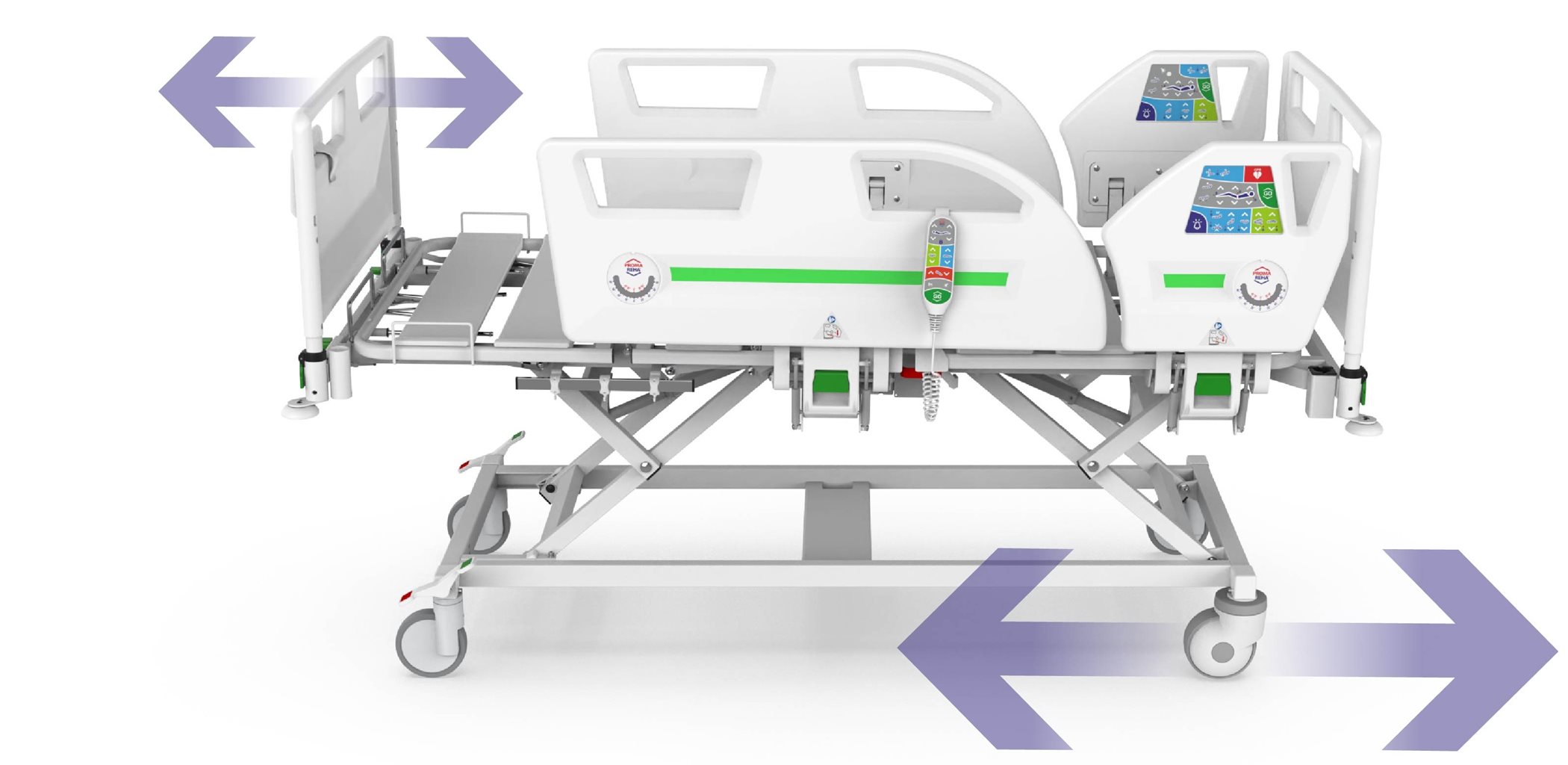

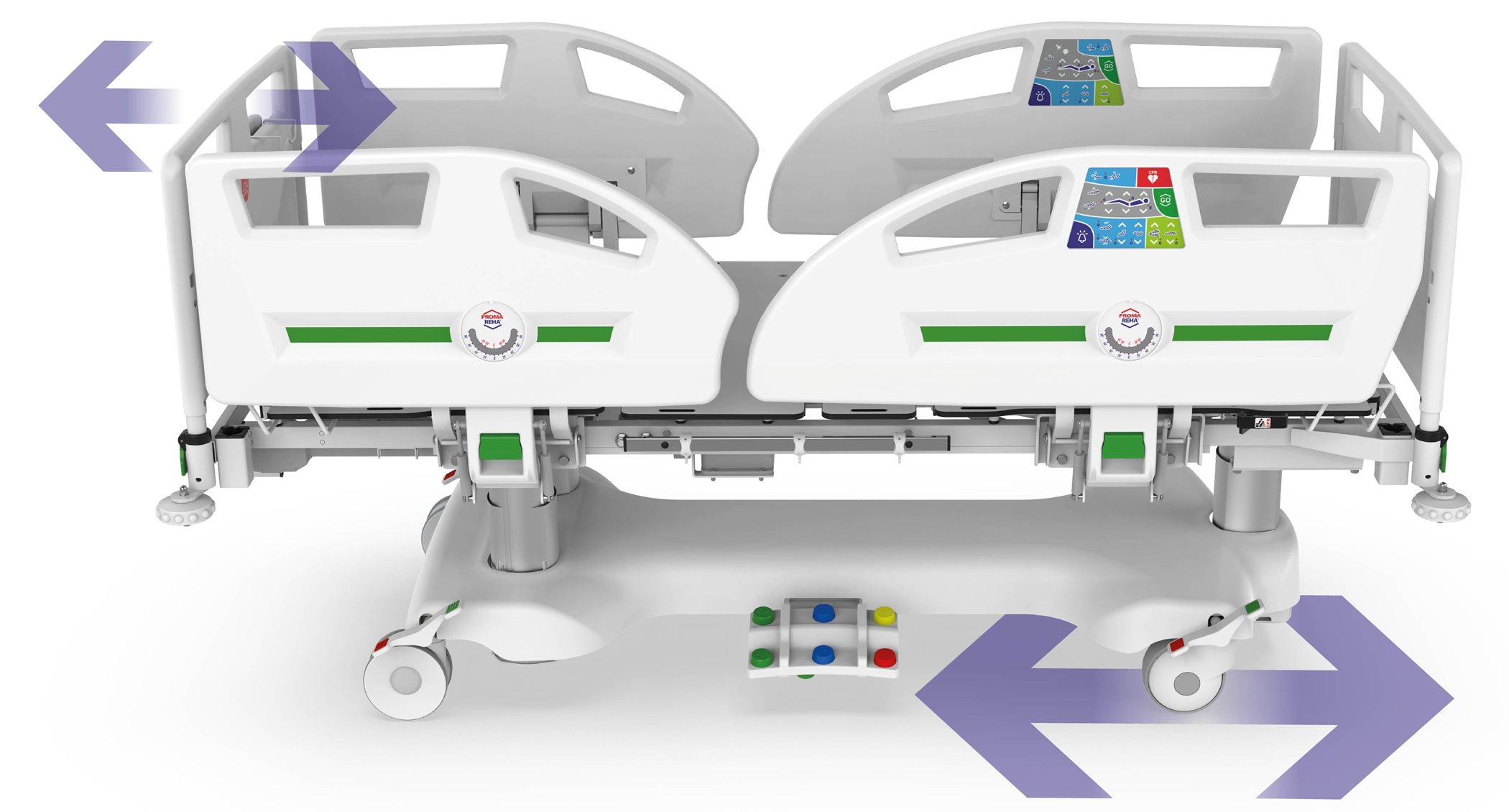

Fifth wheel

The fifth wheel ensures easy and intuitive handling of the bed. This feature is particularly useful in rugged areas and when the bed is handled by one person.



WE MAKE IT EASY FOR YOU TO OPERATE AND HANDLE

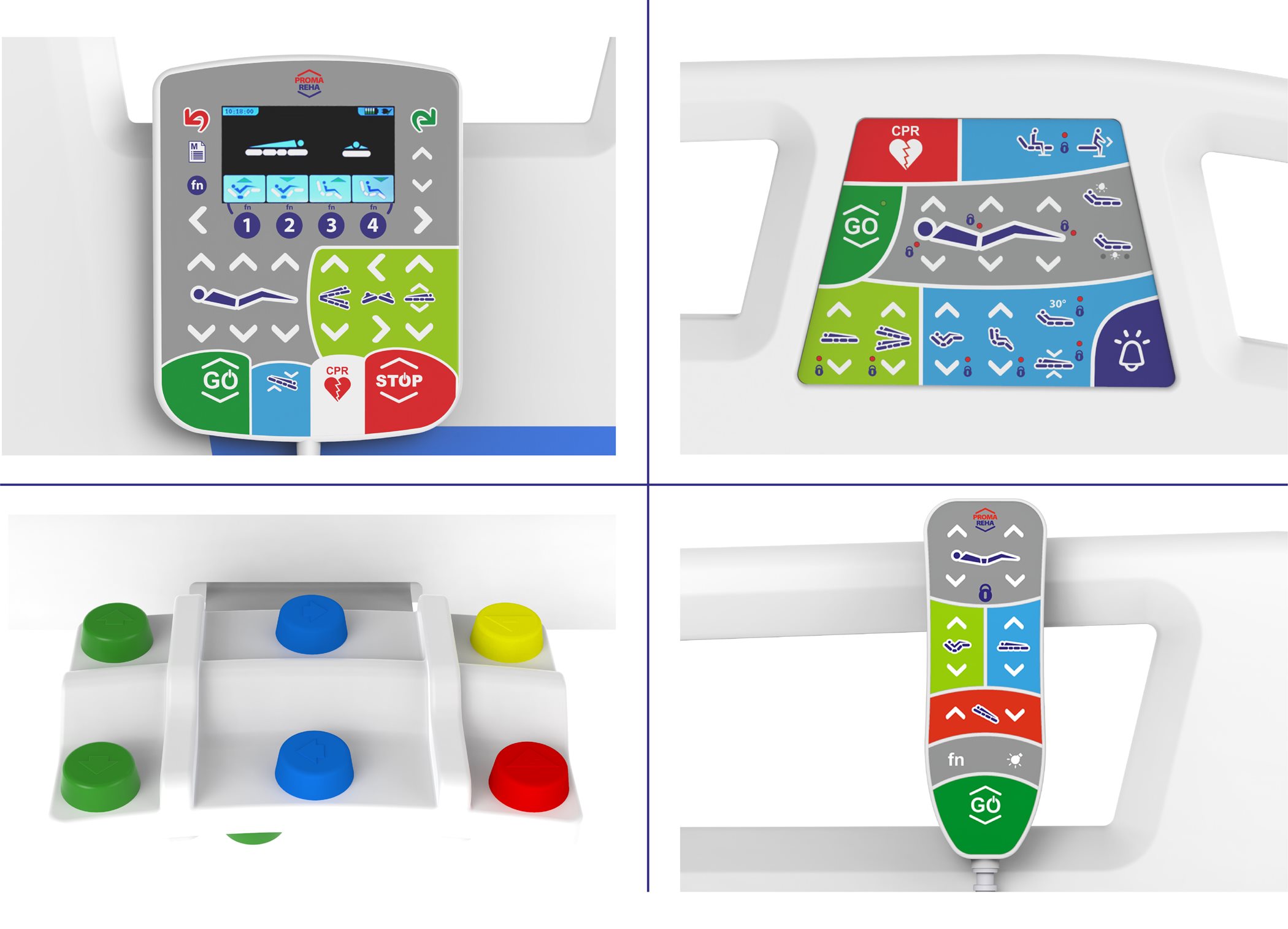

Controls with colour-coded functions

User-friendly controls with uniform colour-coded functions for easier orientation in crisis situations. The colour and illuminated function resolution also makes it easier to operate the bed for persons with impaired vision, without glasses or at night.

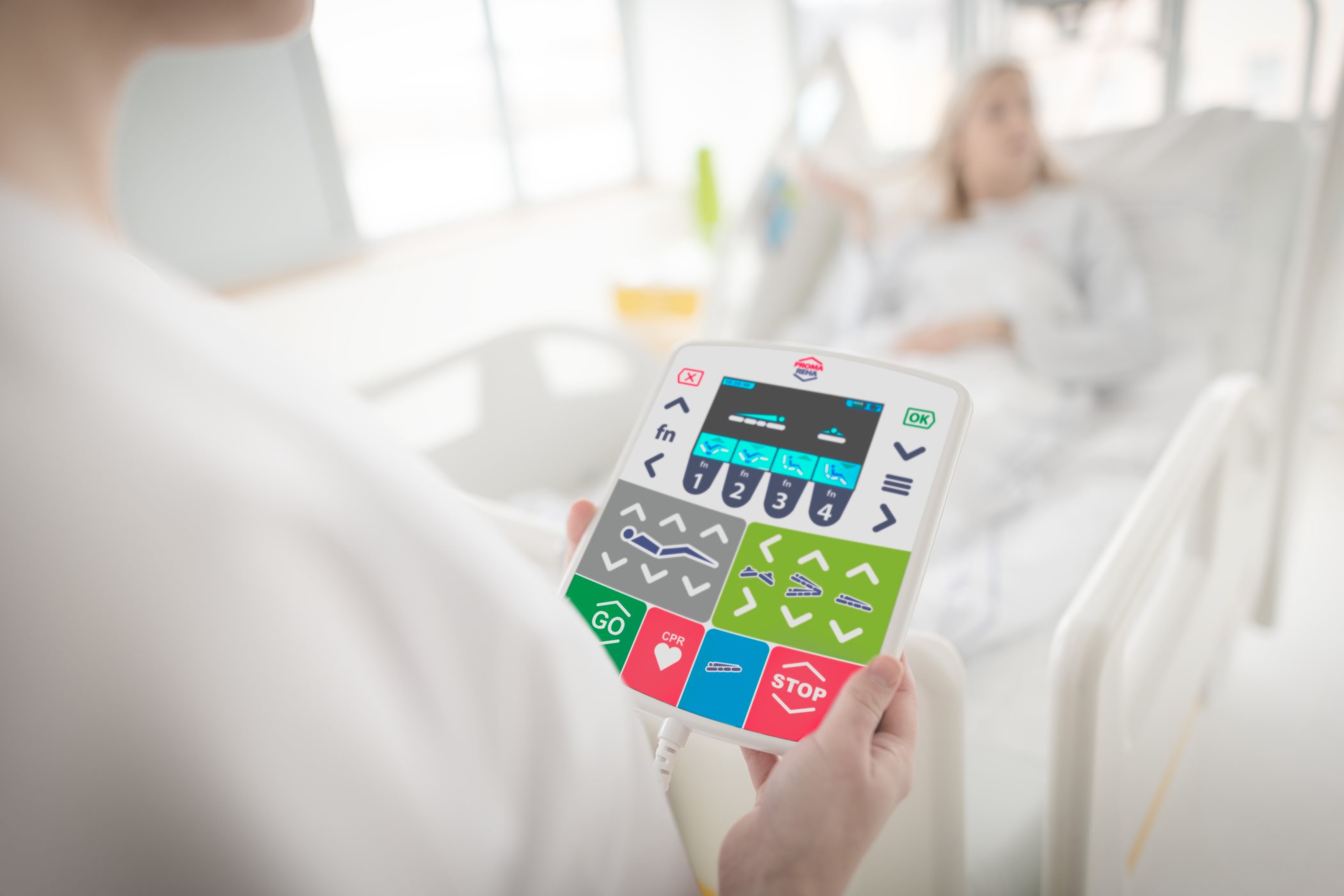

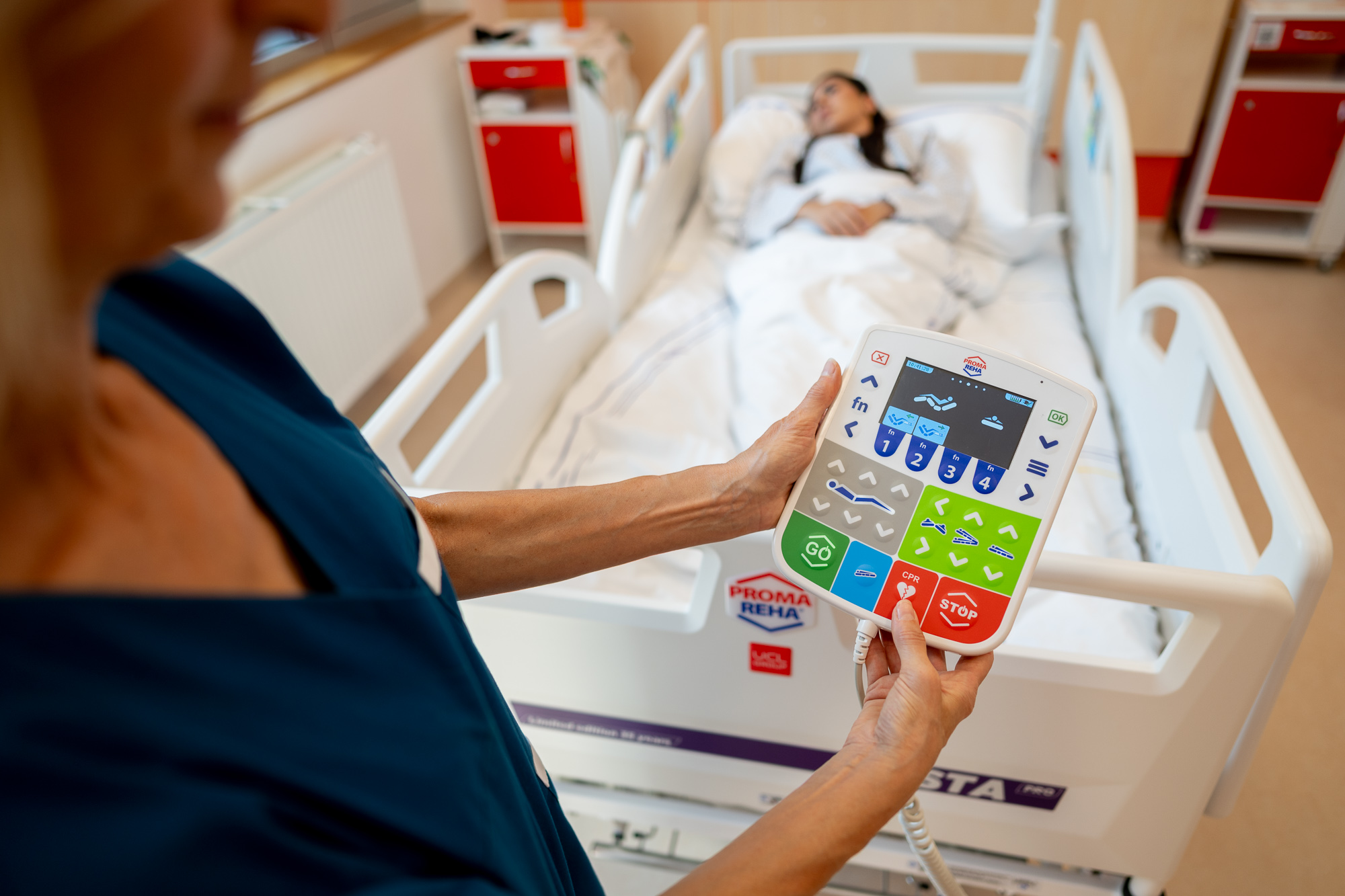

Nurse control with LCD panel

The innovative nurse control panel with LCD brings convenient and safe bed control in any situation. The integrated LCD offers a clear display of current function statuses, warning and alarm indication, automatic weighing system and automatic lateral therapy functions. The nurse control also allows individual functions of all other controls to be locked.

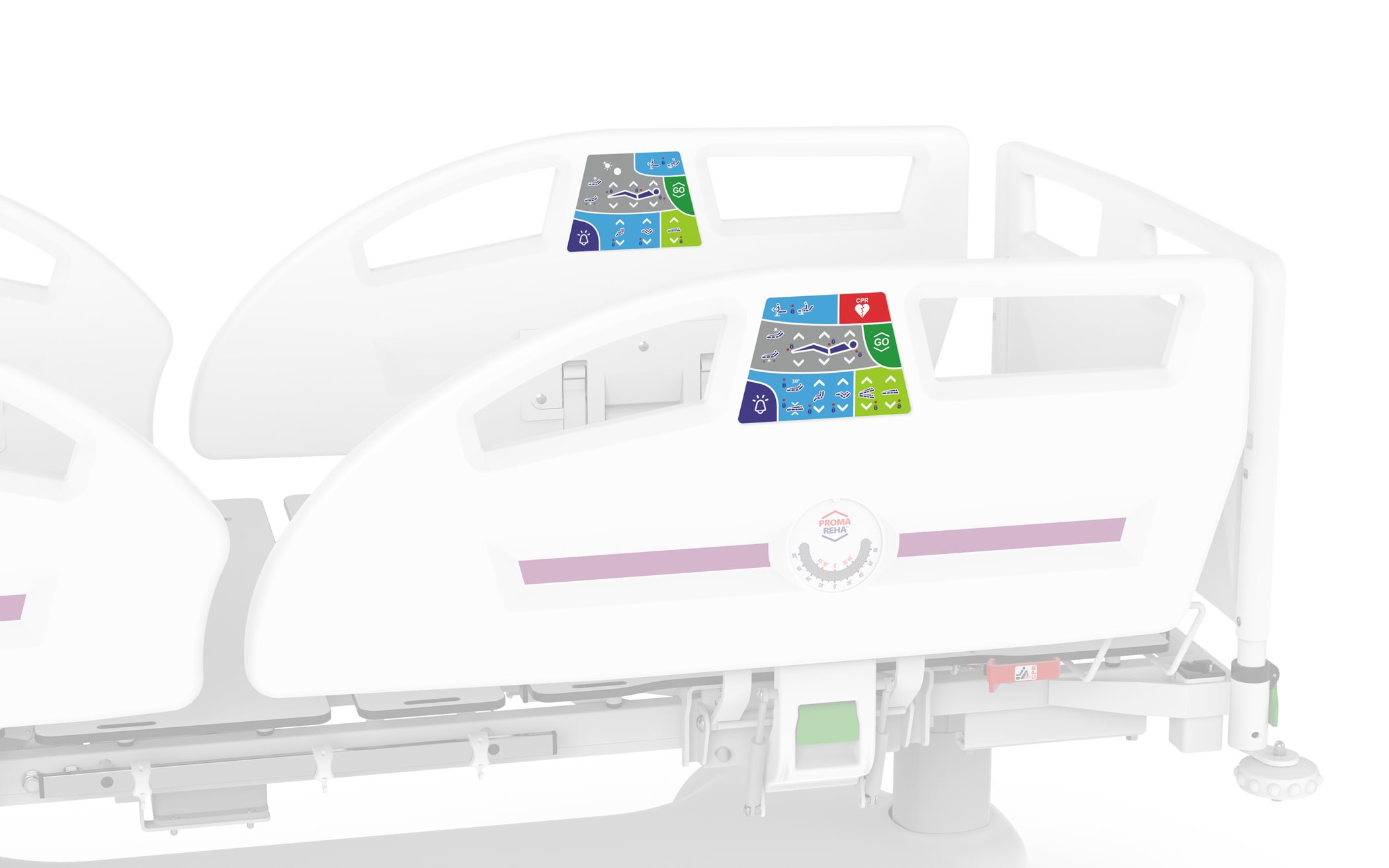

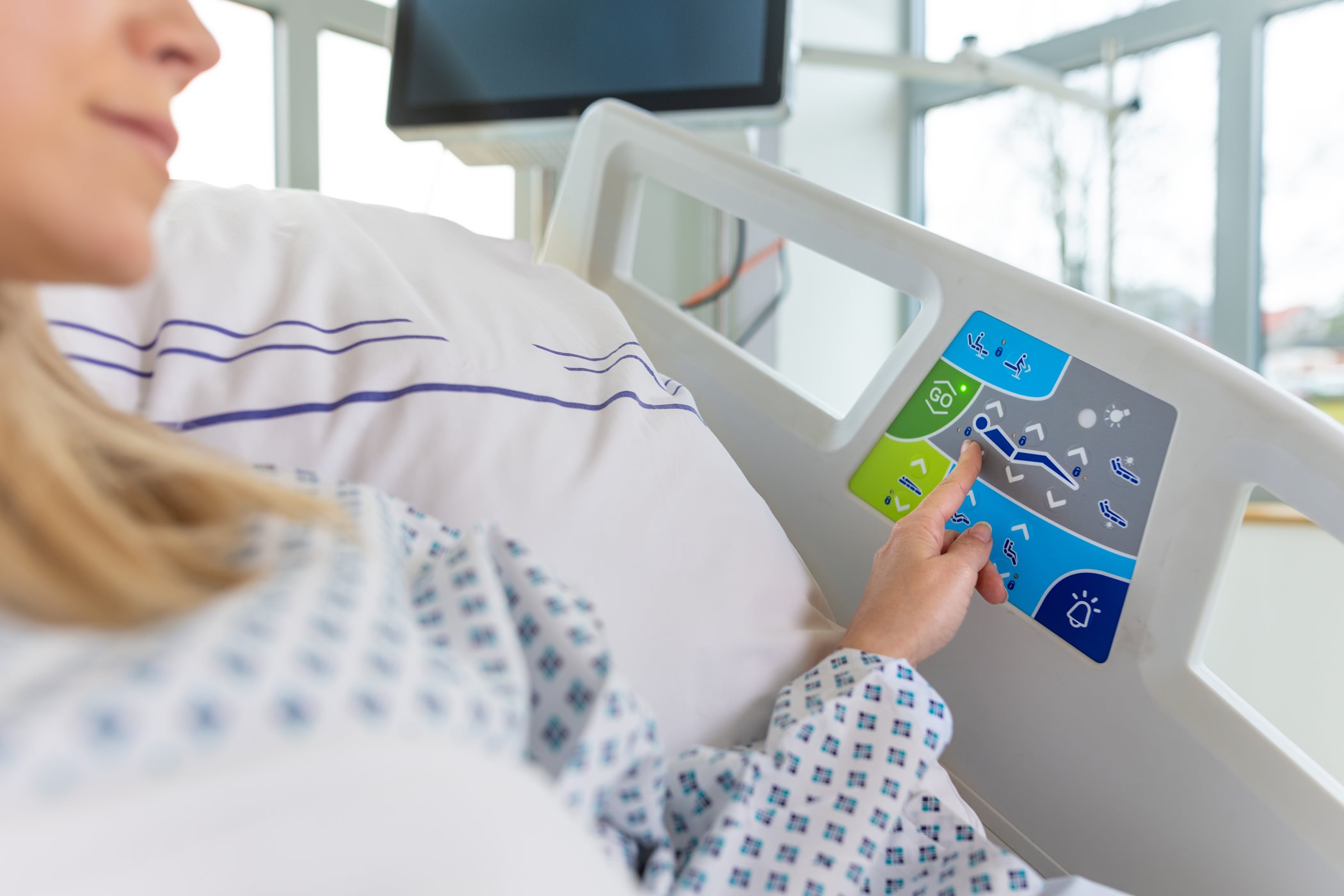

Siderails controls

Allow easy, intuitive, one-handed operation of the bed. The controls are conveniently located in the centre of the head side rail, making them easily accessible to both patient and staff in any mattress platform position. The controls are equipped with an activation button to prevent accidental use.



Foot controls

The bed is equipped with foot controls with buttons for mattress platform elevation, lateral tilt, examination position and CPR. The foot control is equipped with a safety activation button located on the underside.

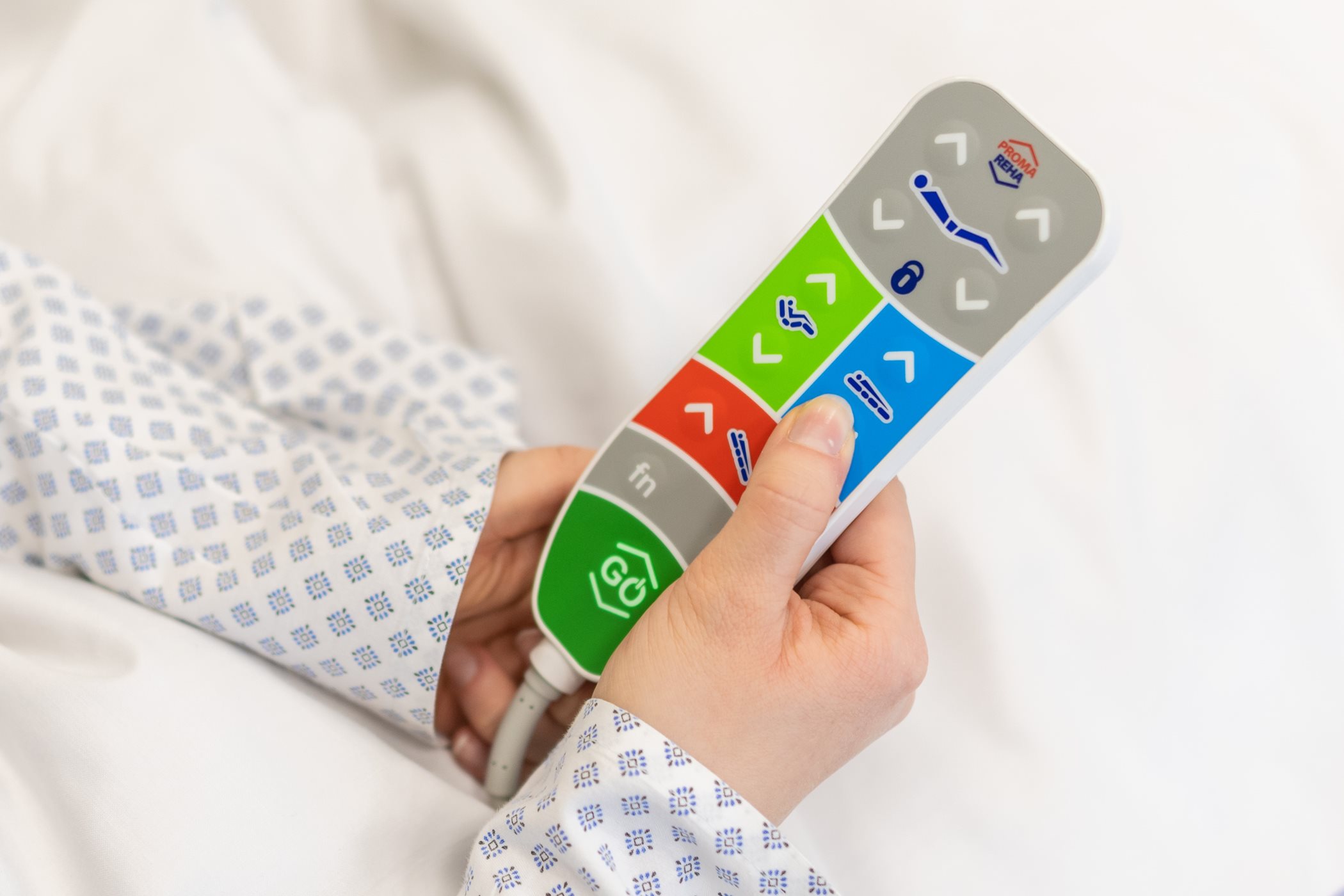

Patient control

The bed can be optionally equipped with an ergonomic patient control, which is always at hand of the patient and allows easy control of all basic functions.

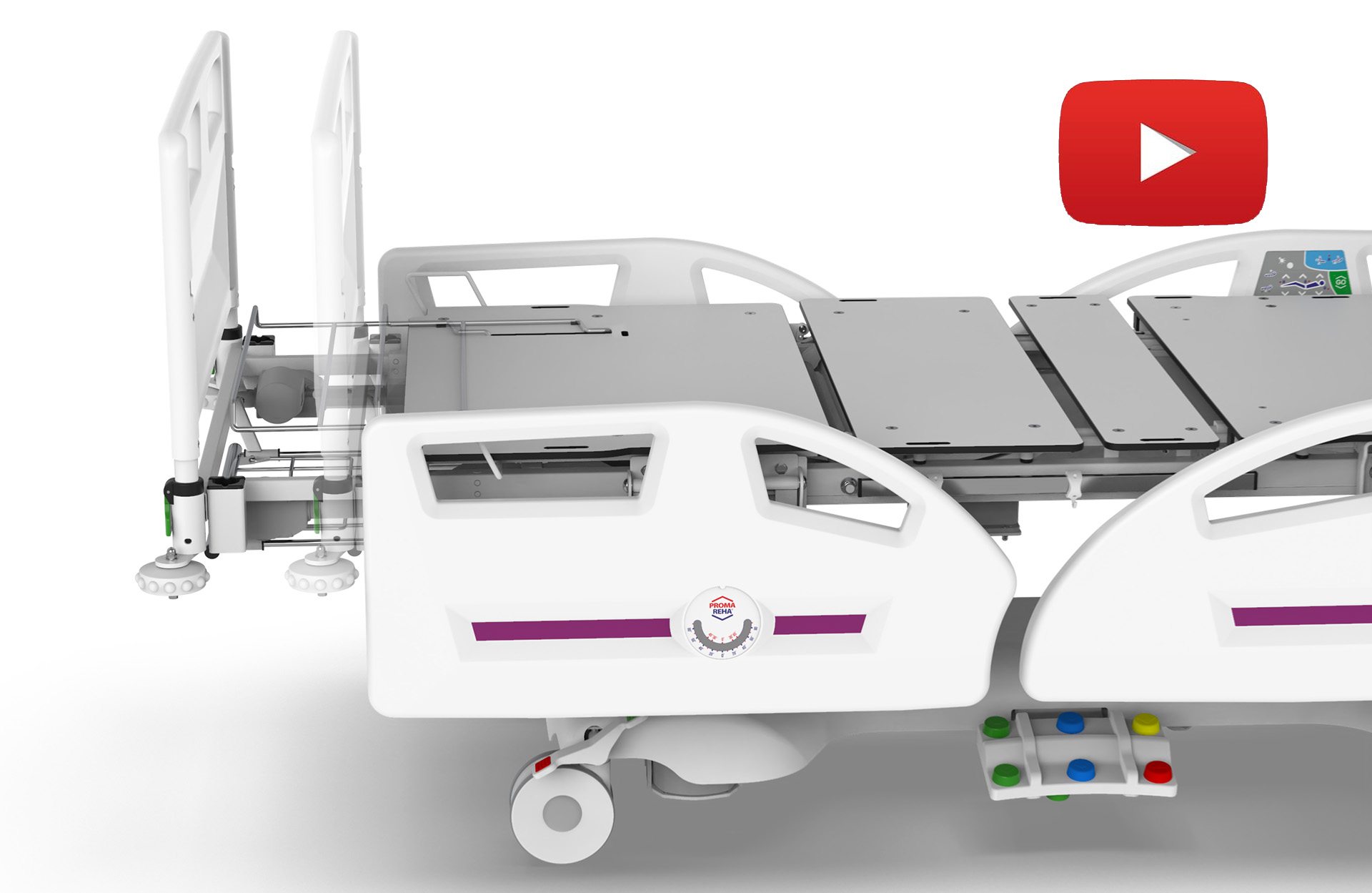

Electric bed extension

An electric bed extension of up to 20 cm brings comfort even to taller patients.

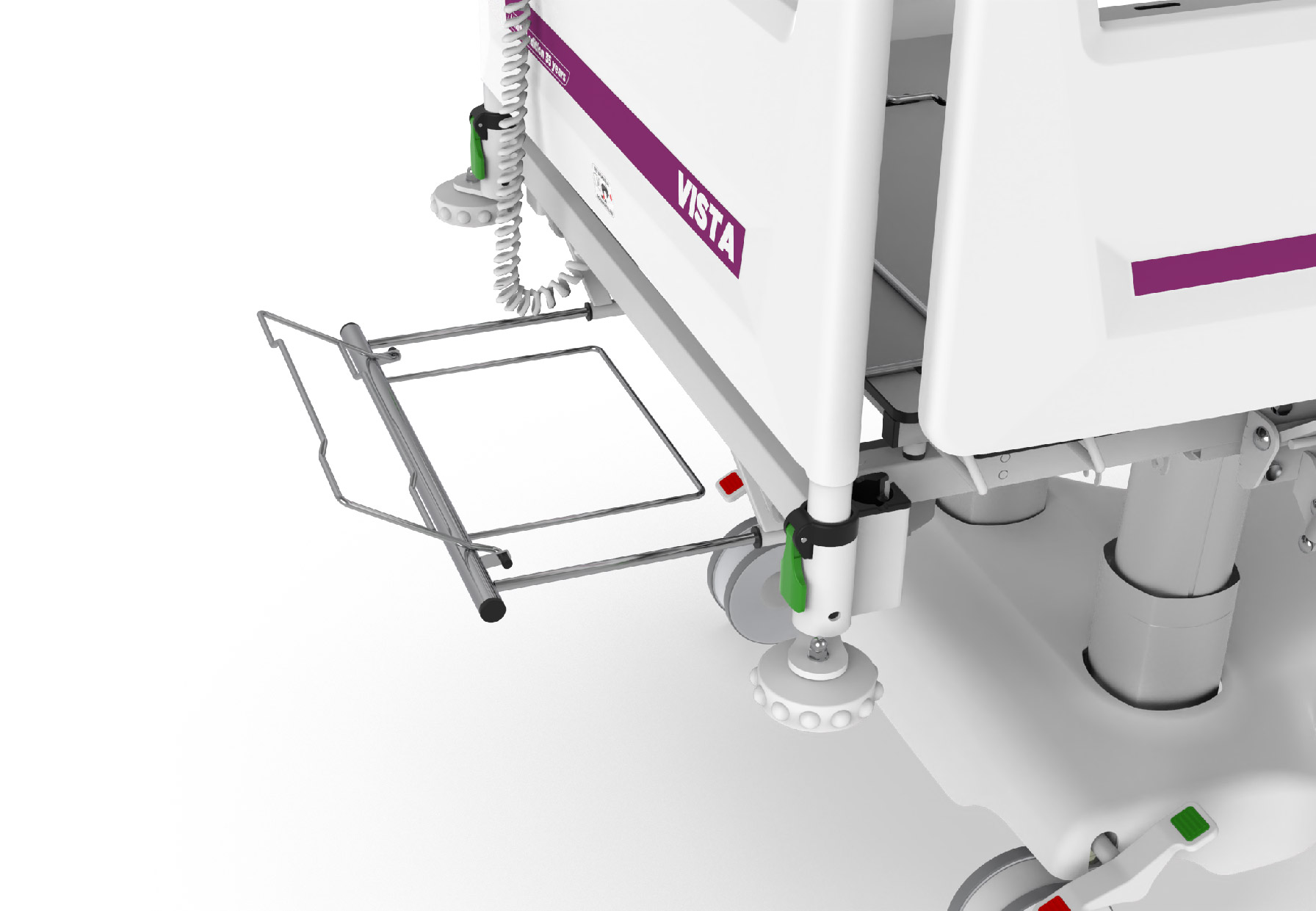

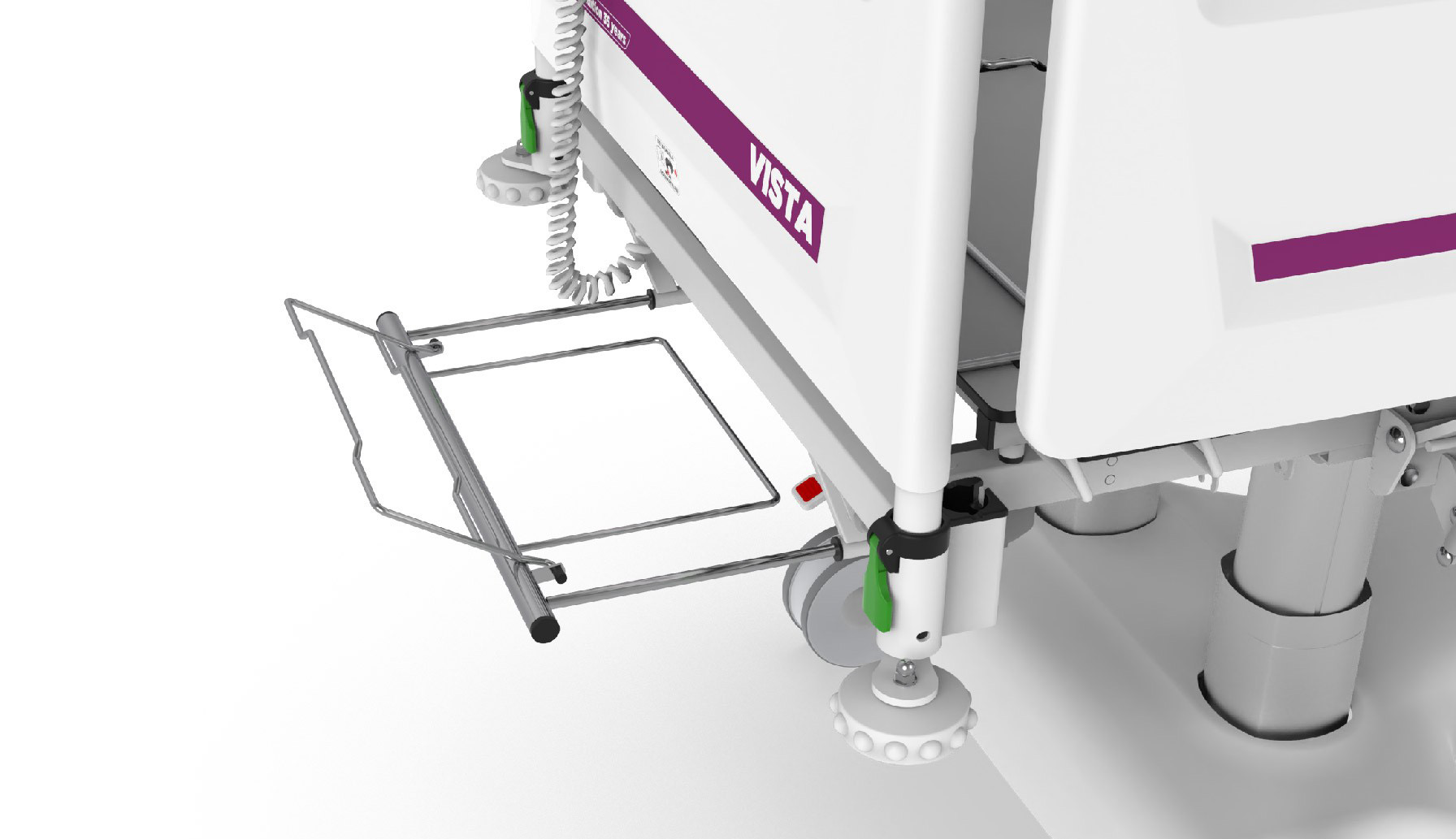

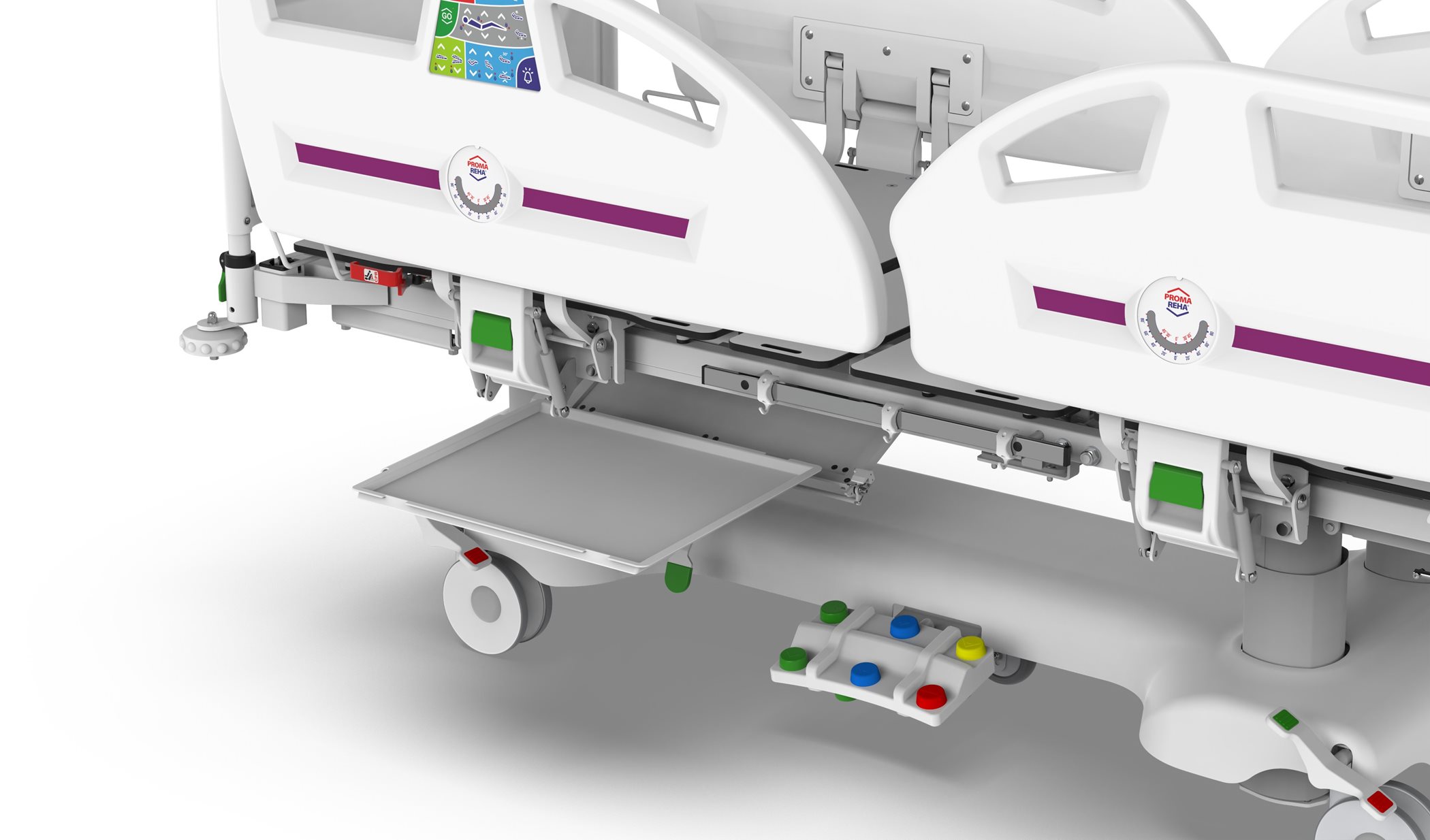

Bed linen shelf

The pull-out shelf is a great tool for changing bed linen. The shelf can be used to protect the nurse control from damage or unauthorized use.



WE AIM FOR PERFECT TECHNICAL WORKMANSHIP AND QUALITY COMPONENTS!

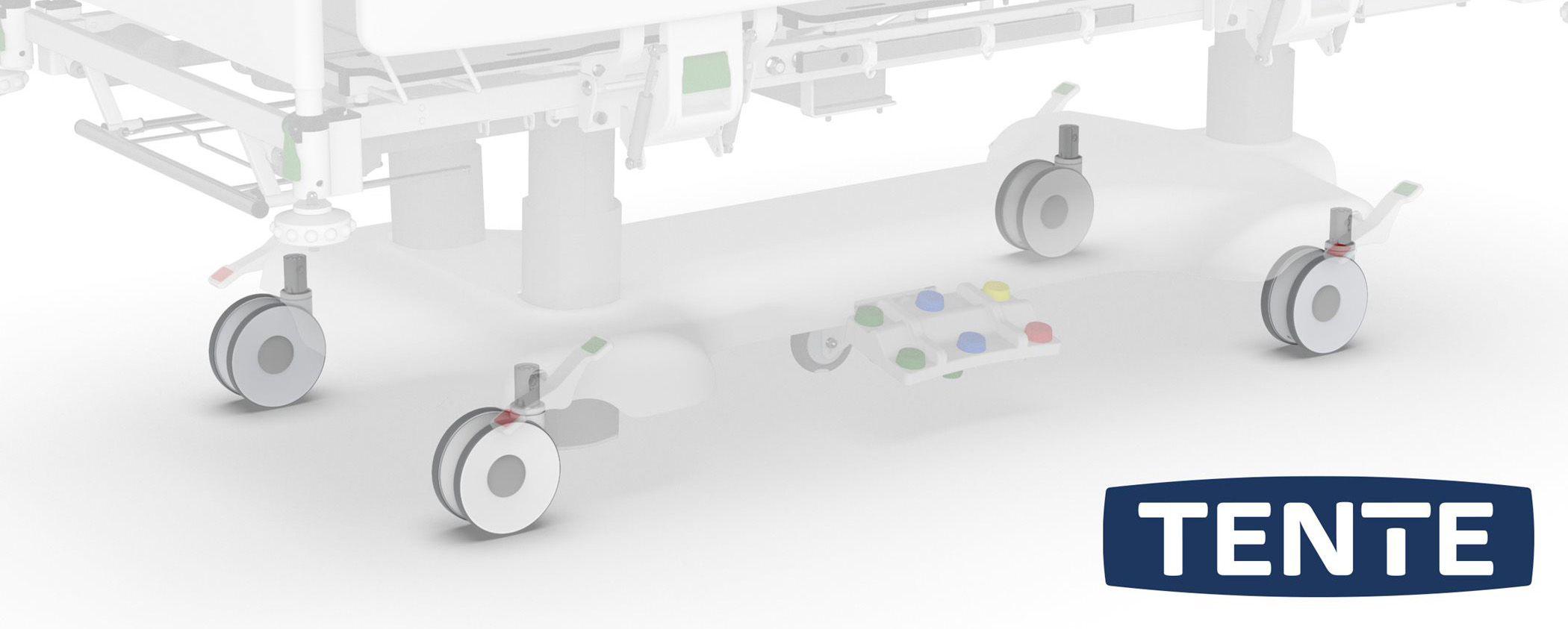

TENTE branded castors

All PROMA REHA beds are equipped with TENTE branded castors.




Bumper wheels

The bumper wheels located at the four corners of the bed are a great help especially during transport.



Horizontal accessories holder

The standardised stainless steel euro rail for hanging accessories is equipped with three universal plastic hooks on both sides of the bed.

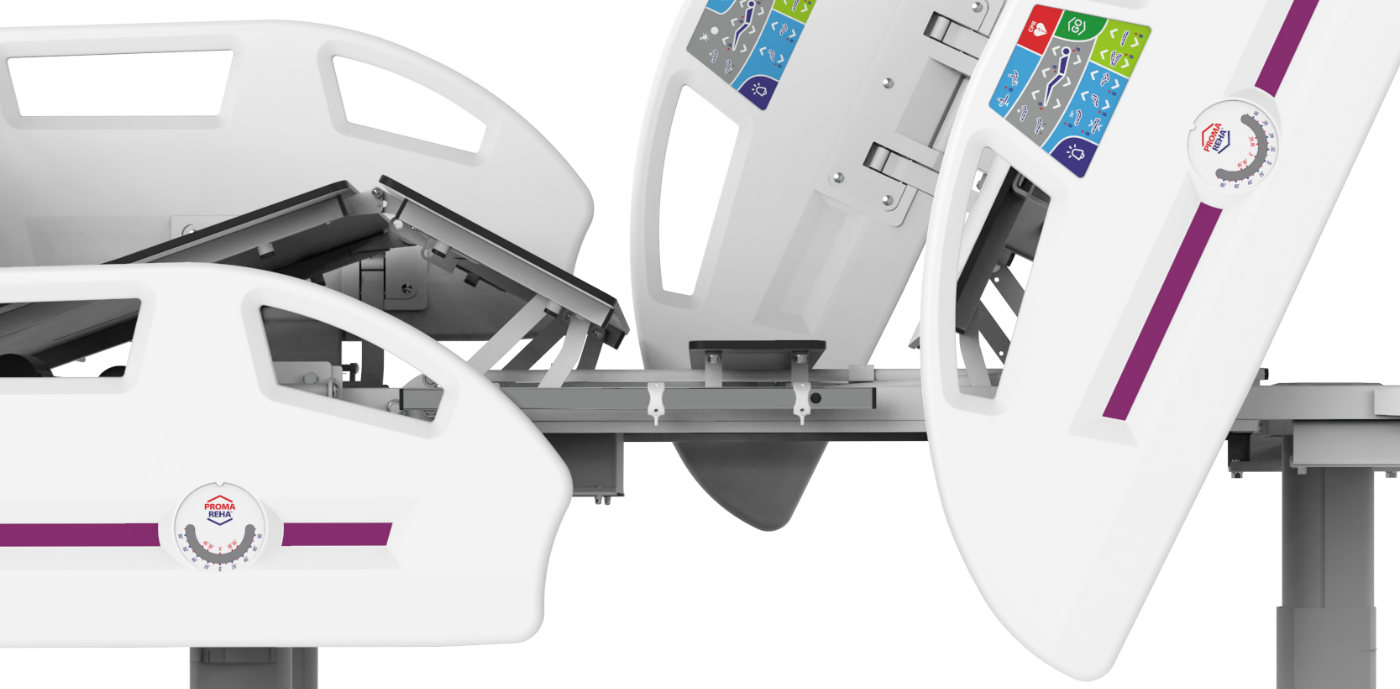

Inclination indicators

Integrated inclination indicators for both the back part and the mattress platform make it easy to set the correct treatment position for the patient. The inclination values are also displayed on the nurse control LCD panel.


Technical parameters

Type of chassis 3 - collumn
Mattress platform (length x width) 200 x 90 cm
Outer bed dimensions (length x width) 222 x 105 cm
Mattress platform height 44 - 84 cm (electrical)
Autoregression back part 14 cm
Autoregression thigh part 7,5 cm
Mattress platform extension 20 cm (electrical)
Calf part extension Yes
Weight of the bed 153 kg
Safe operating load of the bed 300 kg
Maximum patient weight 235 kg
Application environment for bed use   1, 2
Material of mattress platform HPL
Trendelenburg / Antitrendelenburg 16° / 14° (electrical)
Lateral tilt 30° / 30° (electrical)
Max. angles of adjustable sections - back part 70° (electrical)
Max. angles of adjustable sections - thigh part 40° (electrical)
Max. angles of adjustable sections - calf part 18° (electrical)


Bed equipment

Castors TENTE, 150 mm, double reduced plastic
Central brake Yes
5th wheel Yes (optional)
Horizontal accessory holder Yes 2x
Plastic hook Yes 6x
Continuous scanning with C-arm   Yes
X-Ray cassette holder Yes (optional)
Nurse control with LCD panel Yes
Siderail control Yes
Patient hand control Yes (optional)
Foot pedal Yes (optional)
Backup battery Yes
Bed exit alarm Yes (optional)
Backlight chassis Yes (optional)
Automatic lateral therapy Yes (optional)
Universal accessory holder Yes 4x
Undercarriage cover Yes
Zero connector Yes
Bumper wheels Yes
Aretation of bedheads Yes
Bed linen shelf Yes


Weighing system

Weight range 0 - 300 kg
Accuracy of weighing in absolute mode ± 0,5 kg
Accuracy of weighing in differential mode  ± 0,5 kg
Minimum permitted load of the scale 10 kg
Weighing class III
Units Kg / Lb
Exit alarm Yes
Value freezing Yes
Automatic saving of values Yes


Mattress

Recommended mattress (lenght x weight) 200 x 90 cm
Mattress thickness in normal using 14 cm
Recommended minimal mattress size 12 cm
Recommended maximal mattress size 22 cm
