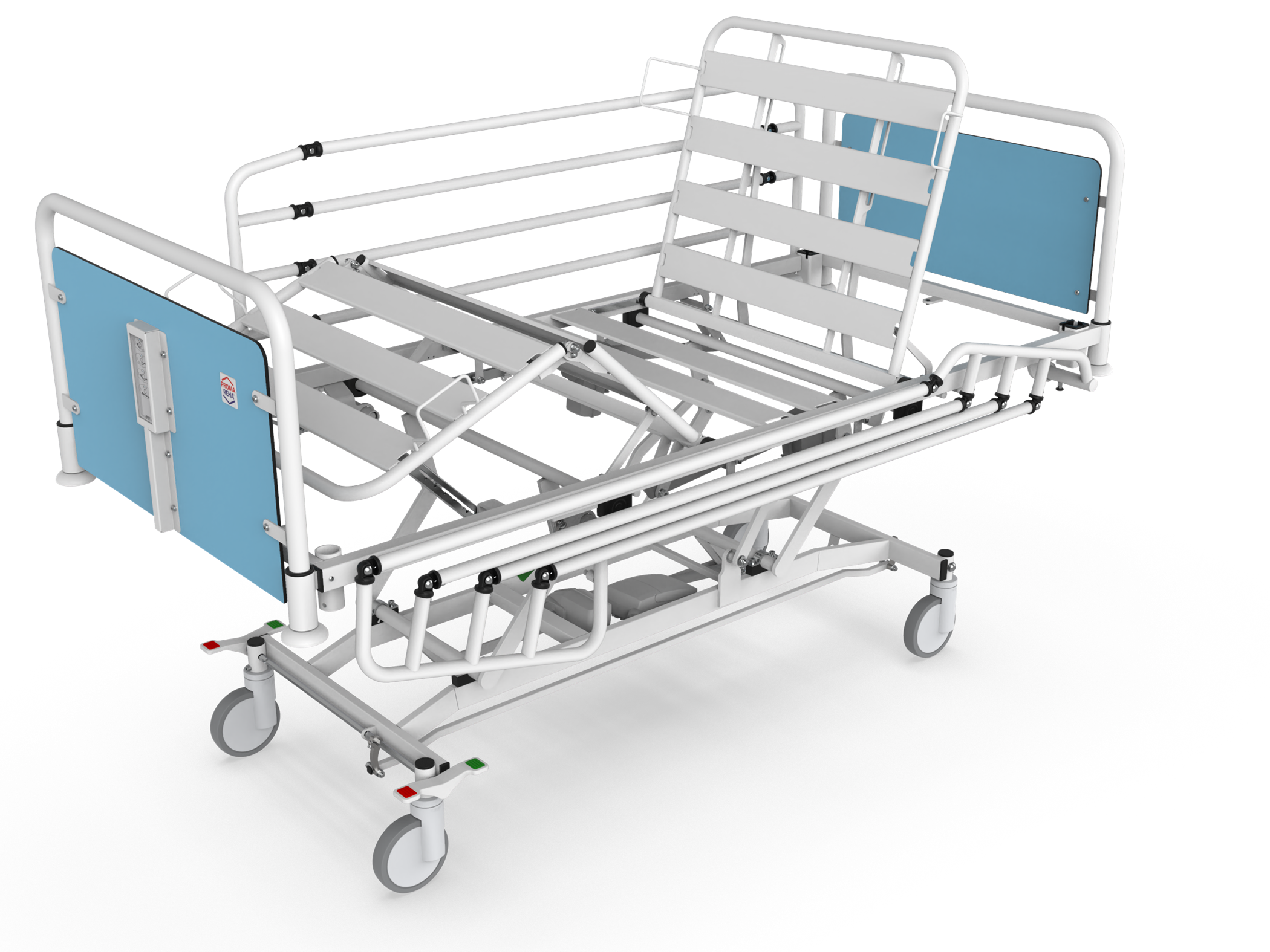

SUPERTA E also suitable for restless patients
Beds suitable also for restless patients SUPERTA E with electric mattress platform lift are designed to provide a safe environment for individuals and minimize the risk of injury to them and staff. These beds have several important functions and features, the most important of which include a controller firmly attached to the head of the bed, non-removable headboards and sides, and last but not least, the option of fixing belts.

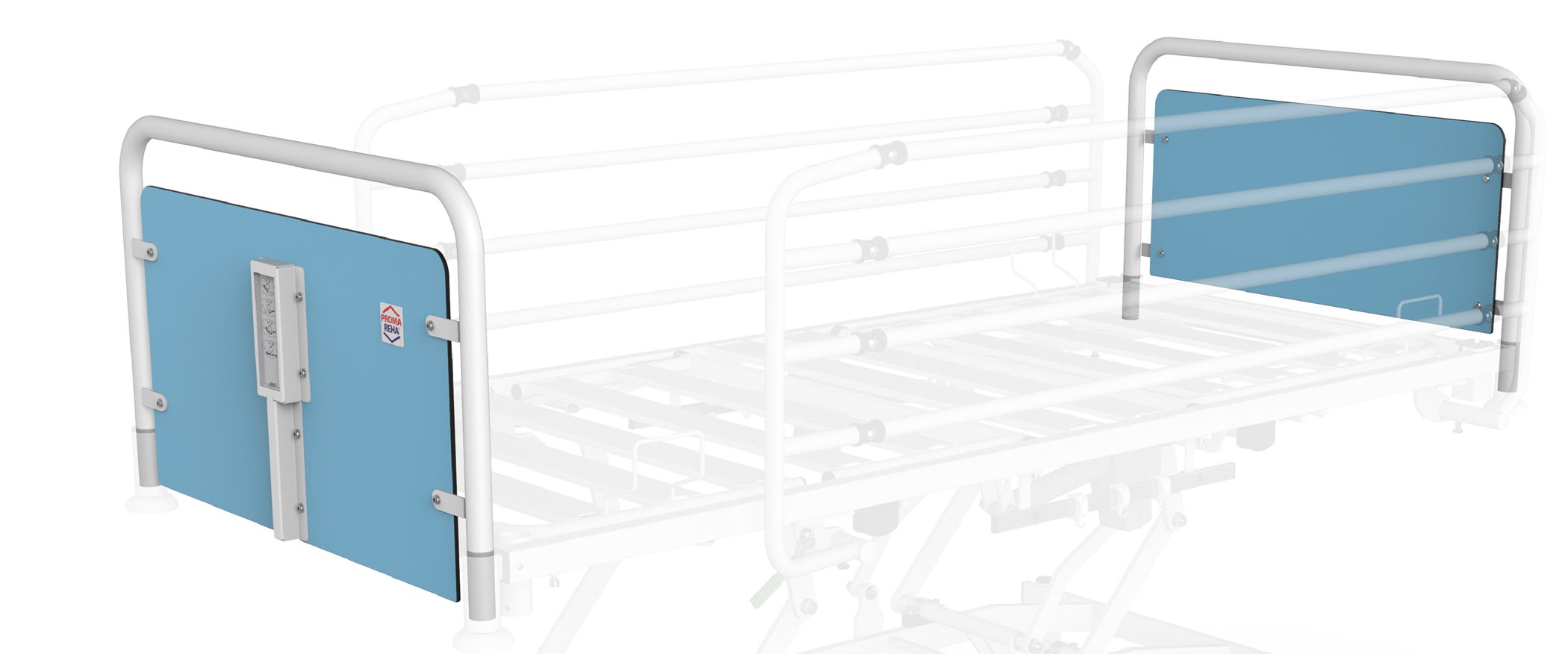

Safe non-removable bedhead
For greater patient safety, the bed is equipped with fixed, non-removable headboards.

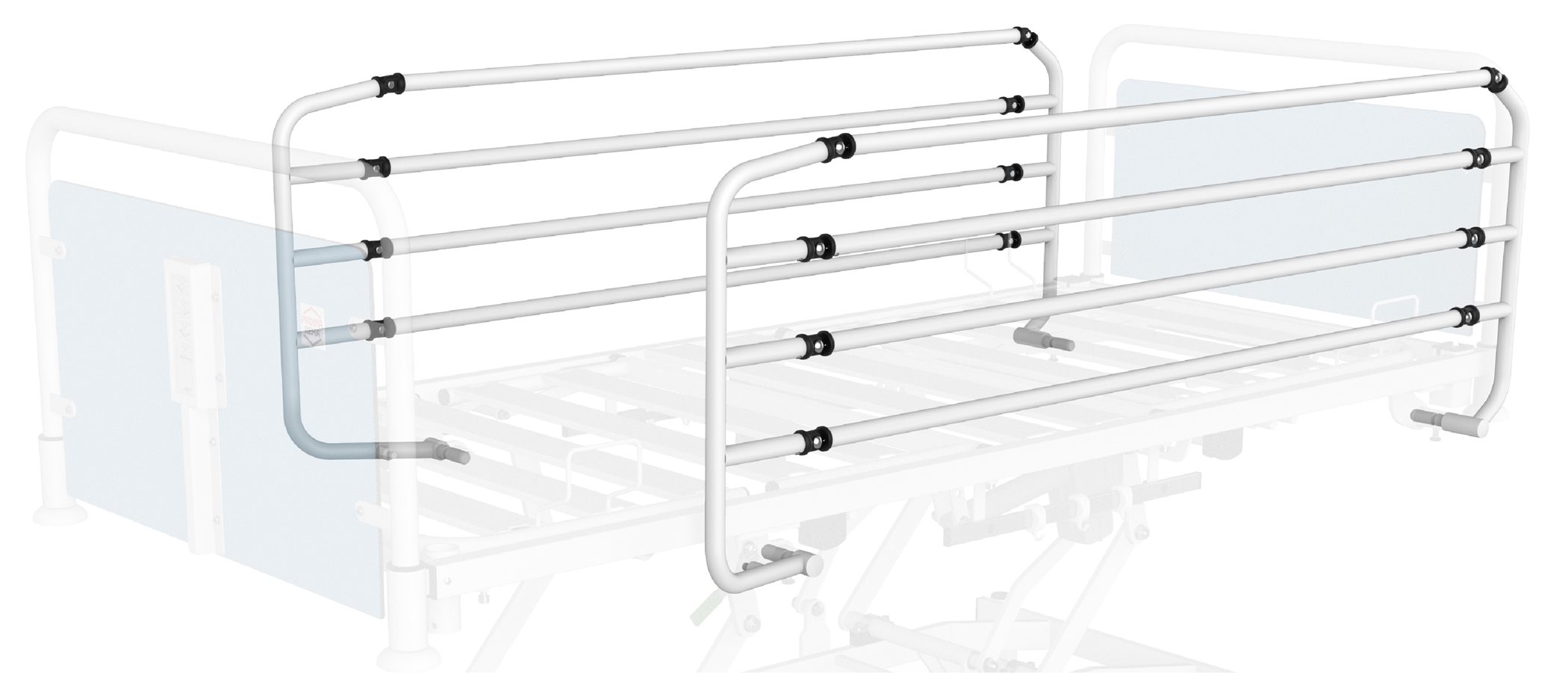

Non-removable siderails
For maximum patient safety, the bed can also be equipped with non-removable side panels at the customer's request. This eliminates all parts that can be disassembled by the user and the bed becomes one compact whole.

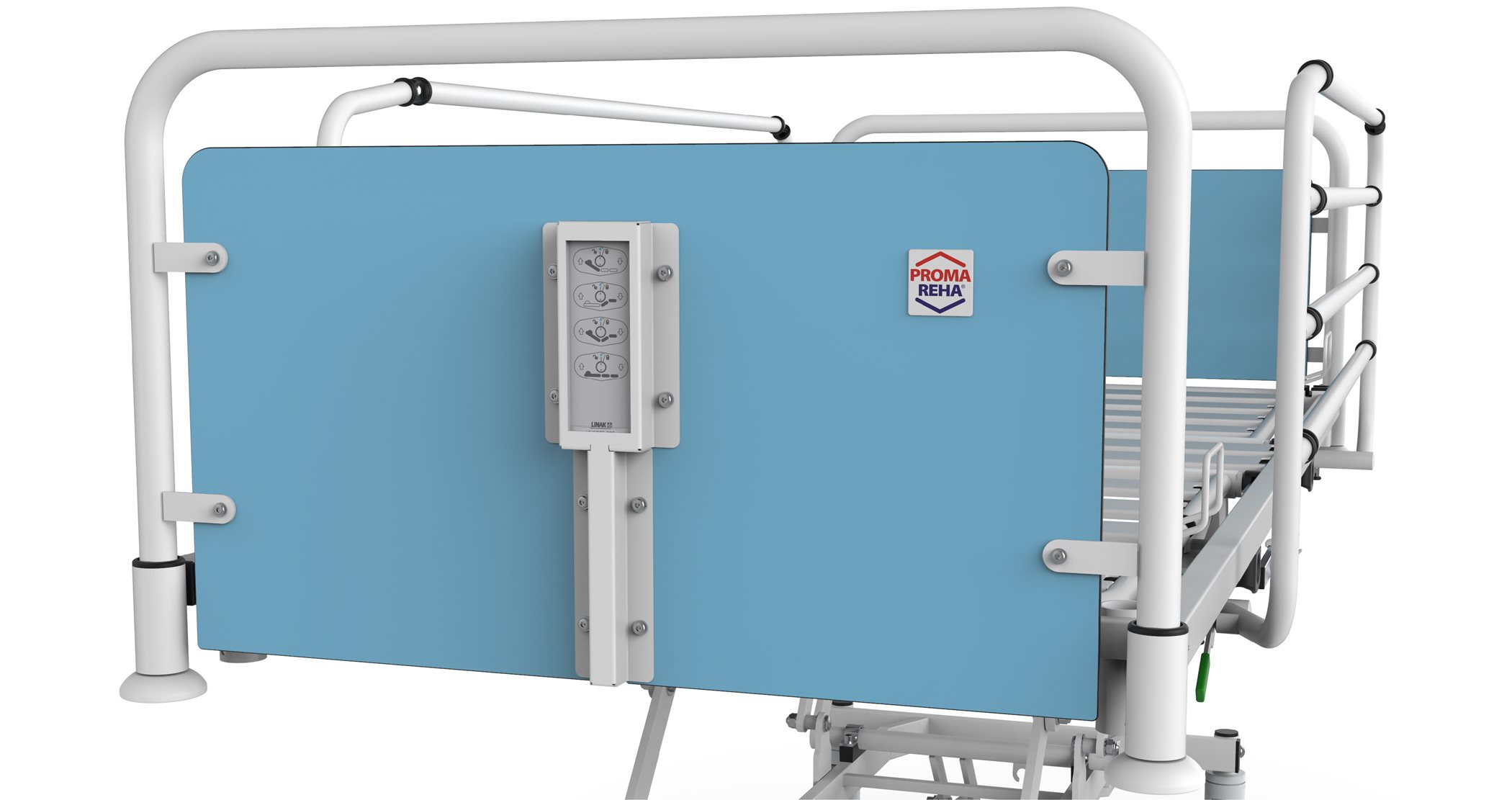

The controller is firmly attached to the foot board
The controller permanently placed on the foot board, which is always available to the staff and enables them to easily control all basic functions, also contributes to patient safety. Among the biggest benefits that the controller has is the ability to lock all of its functions.

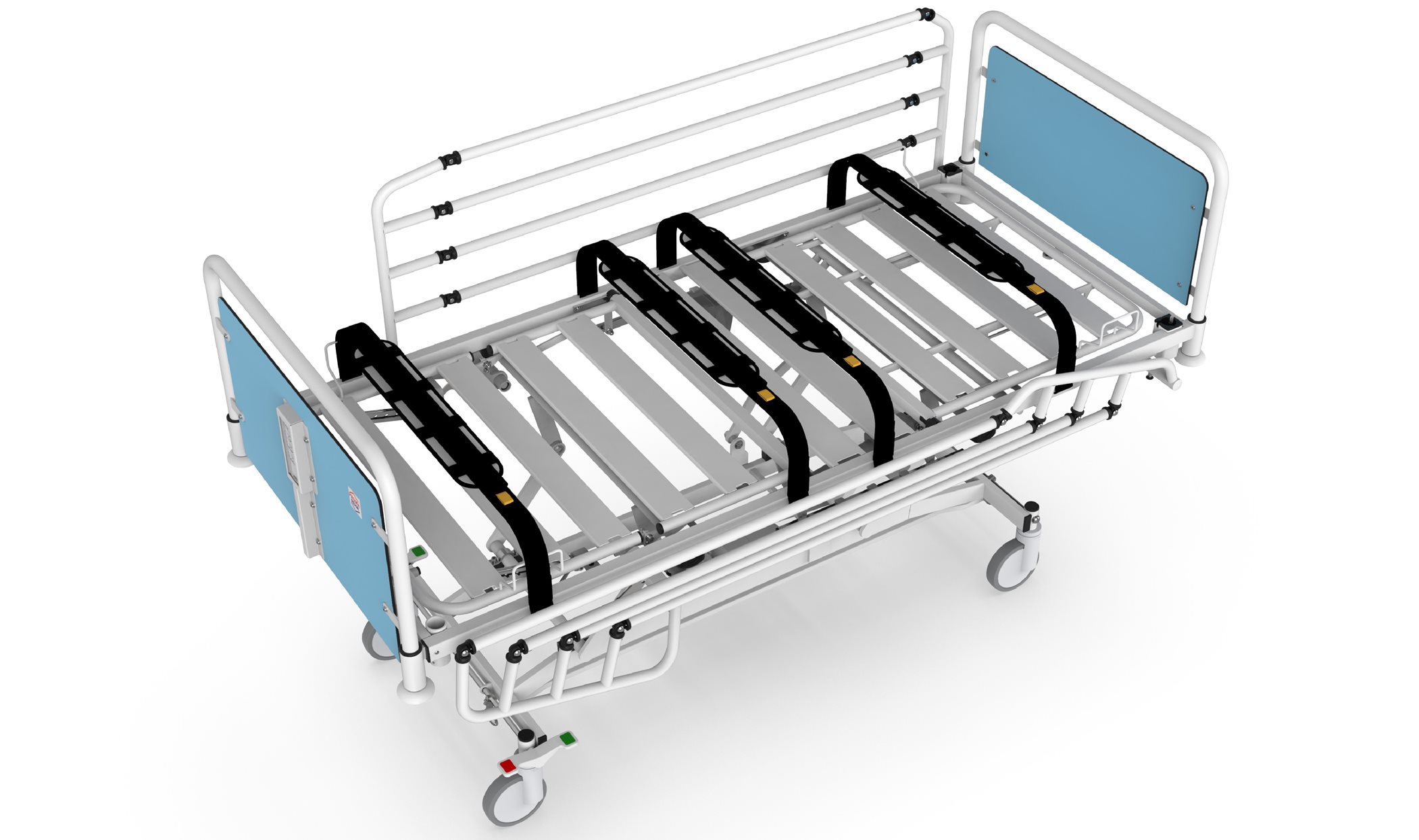

Fixation belt set
A special fixation mechanism using three restraining belts allows patients to move within an acceptable range while ensuring their safety and preventing them from leaving the bed unattended.

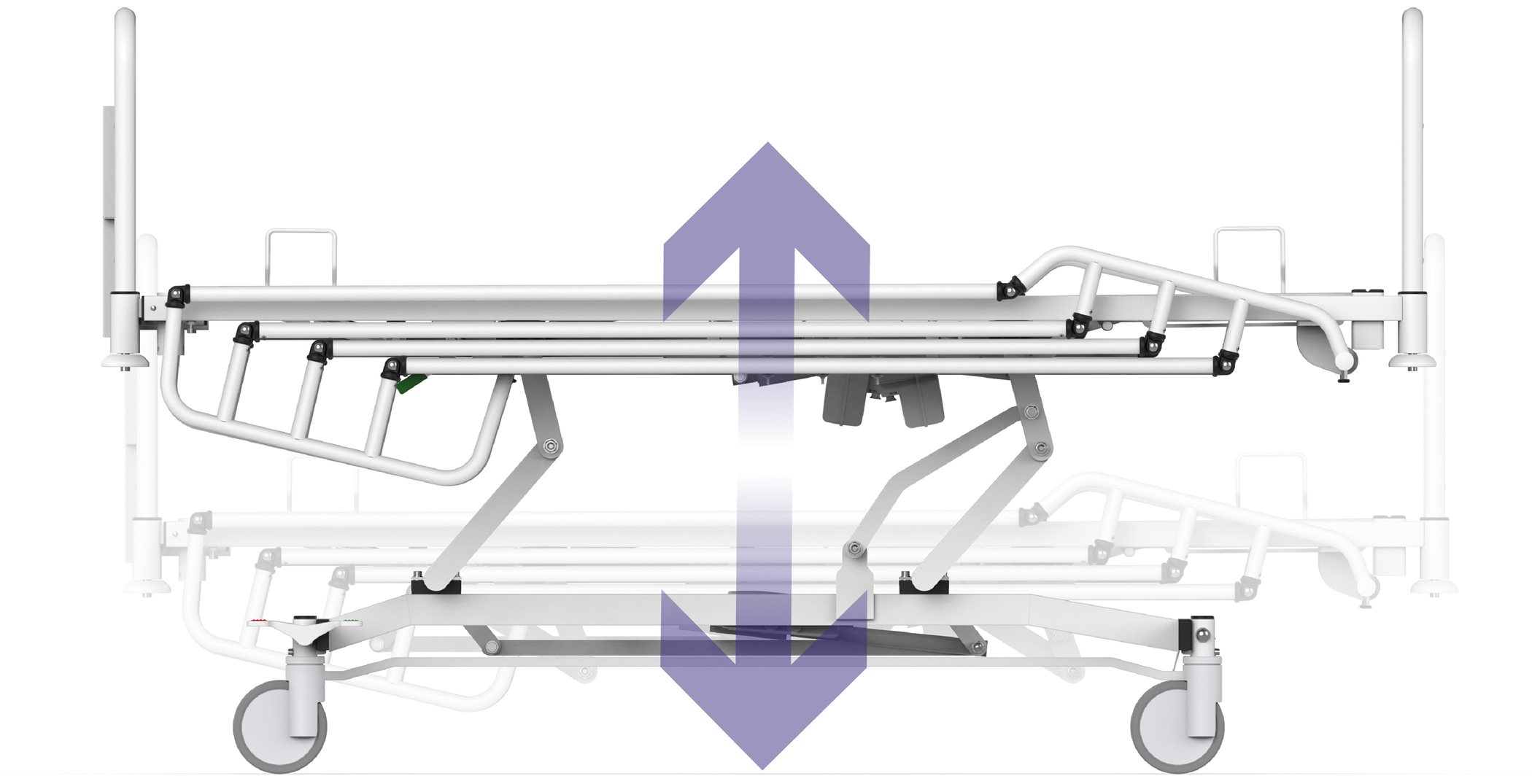

Electric lifting of the mattress platform
The increased range of lift of the bed surface reduces the strain on the nursing staff and facilitates handling of the lying patient. The reduced minimum height of the bed surface helps the patient when standing up.

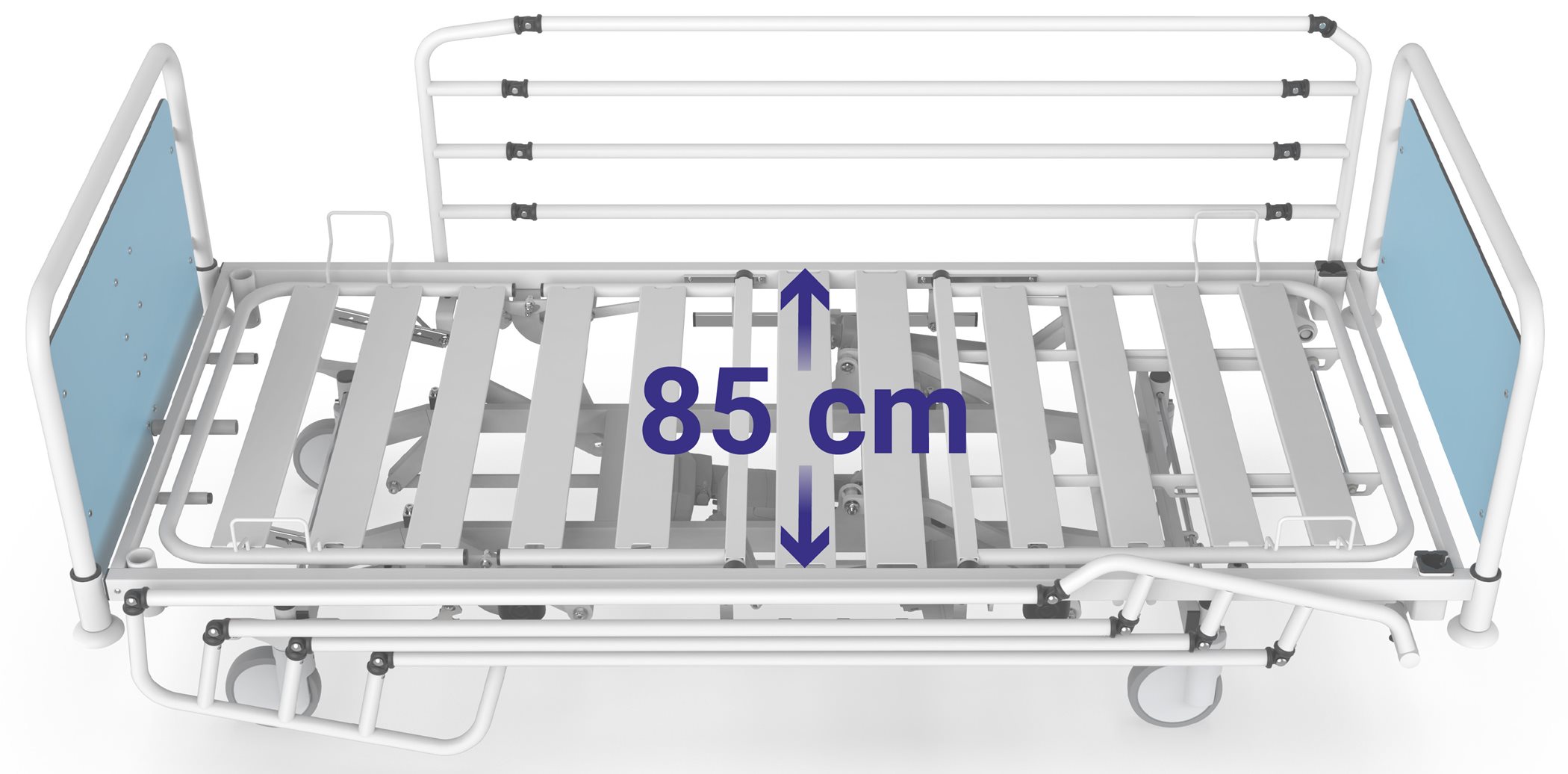

Width of the mattress platform
The optimal width of the mattress platform 85 cm ensures maximum comfort for the patient.

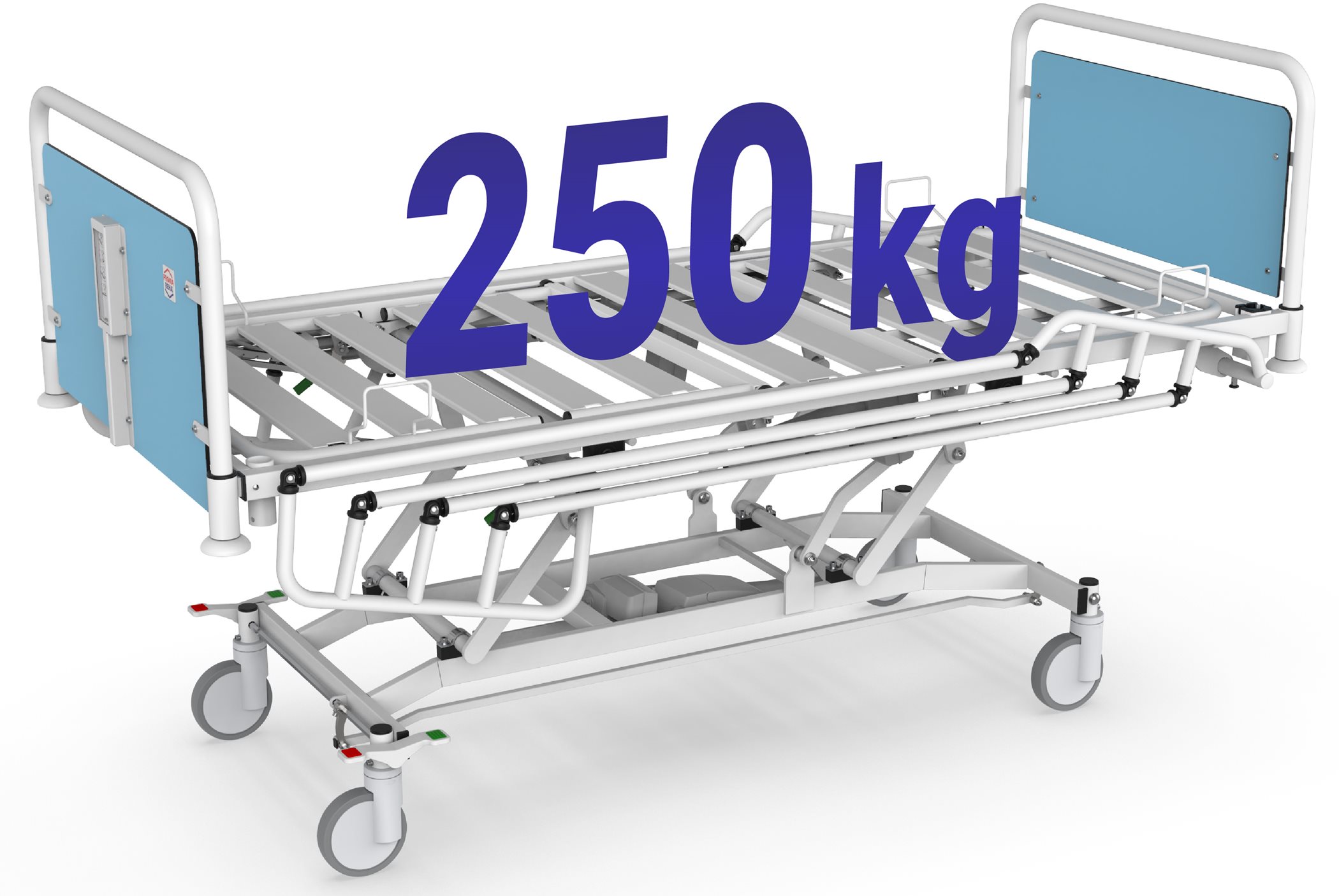

Load capacity
The solid and stable construction with a safe operating load of up to 250 kg provides safe support even when caring for patients with higher weight. Thanks to the materials and technologies used, extremely high durability is ensured even under repeated increased loads.

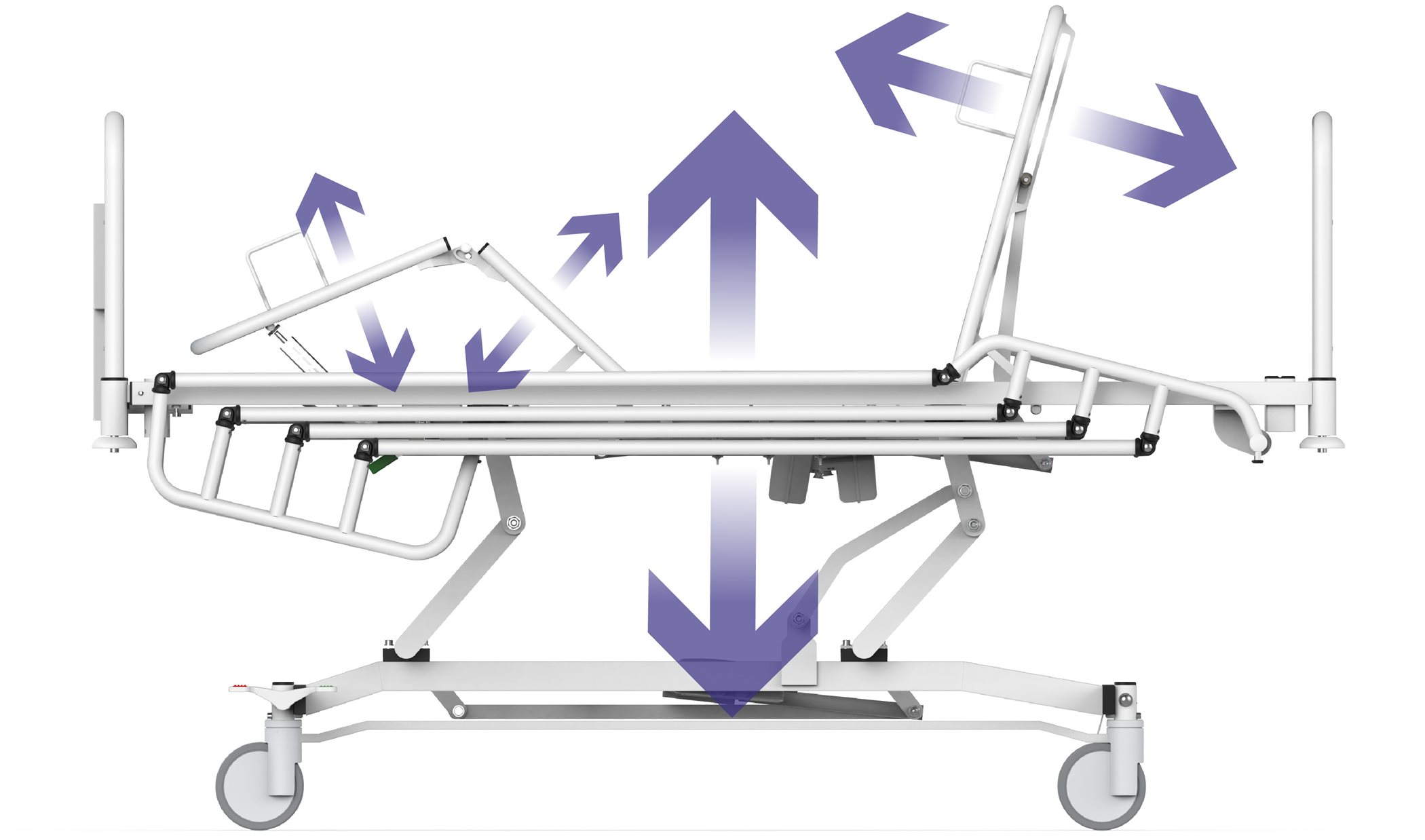

Comfortable positioning
The electric positioning of the back and thigh section in combination with the mechanical positioning of the calf section allows a wide range of adjustment of the individual parts of the mattress platform. The staff and patient can conveniently adjust the individual positions using the hand control.

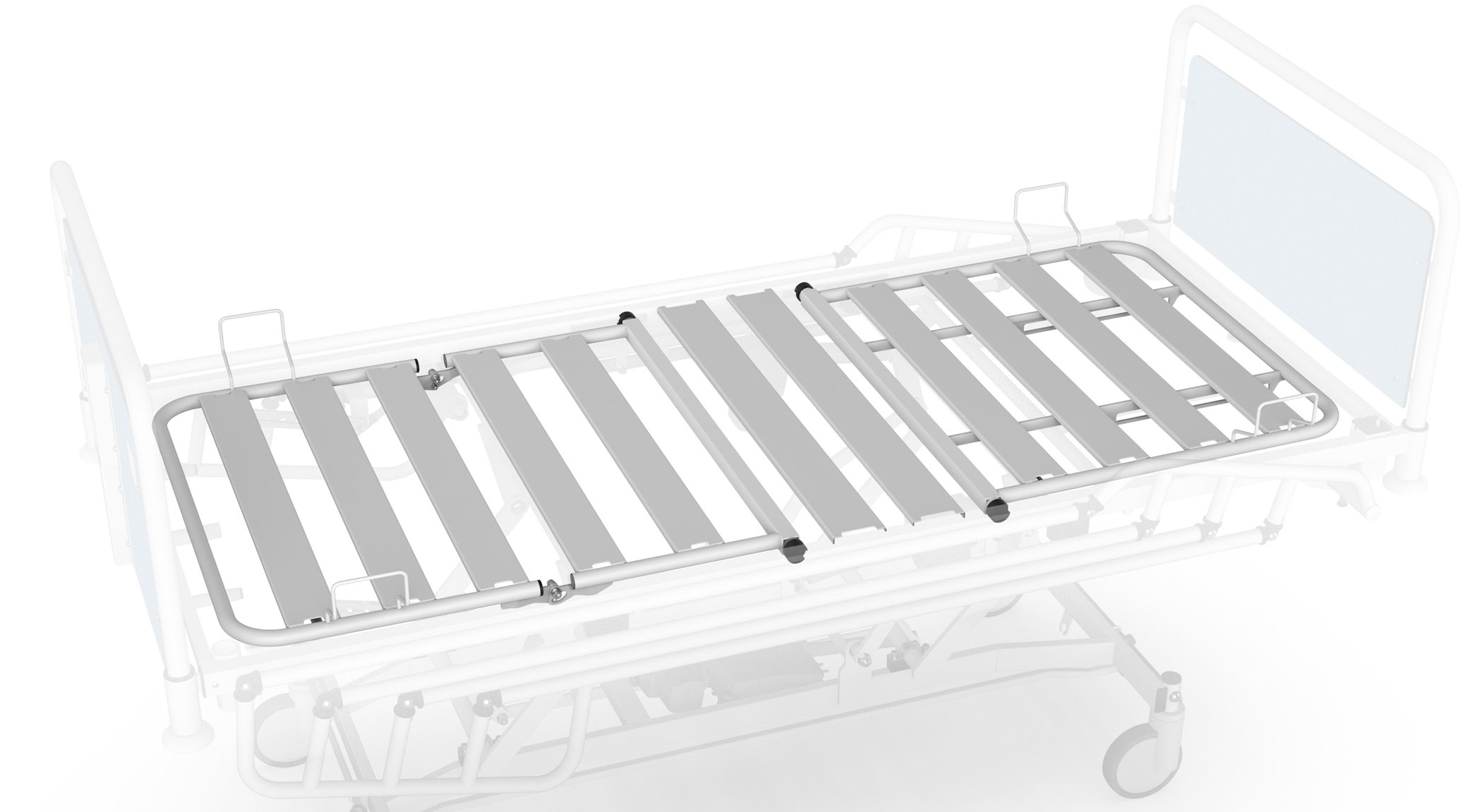

Mattress platform
The mattress platform is made of profiled metal slats. The main advantages of this material are their high resistance to chemicals used in the medical field, surface stability and resistance to wetting.

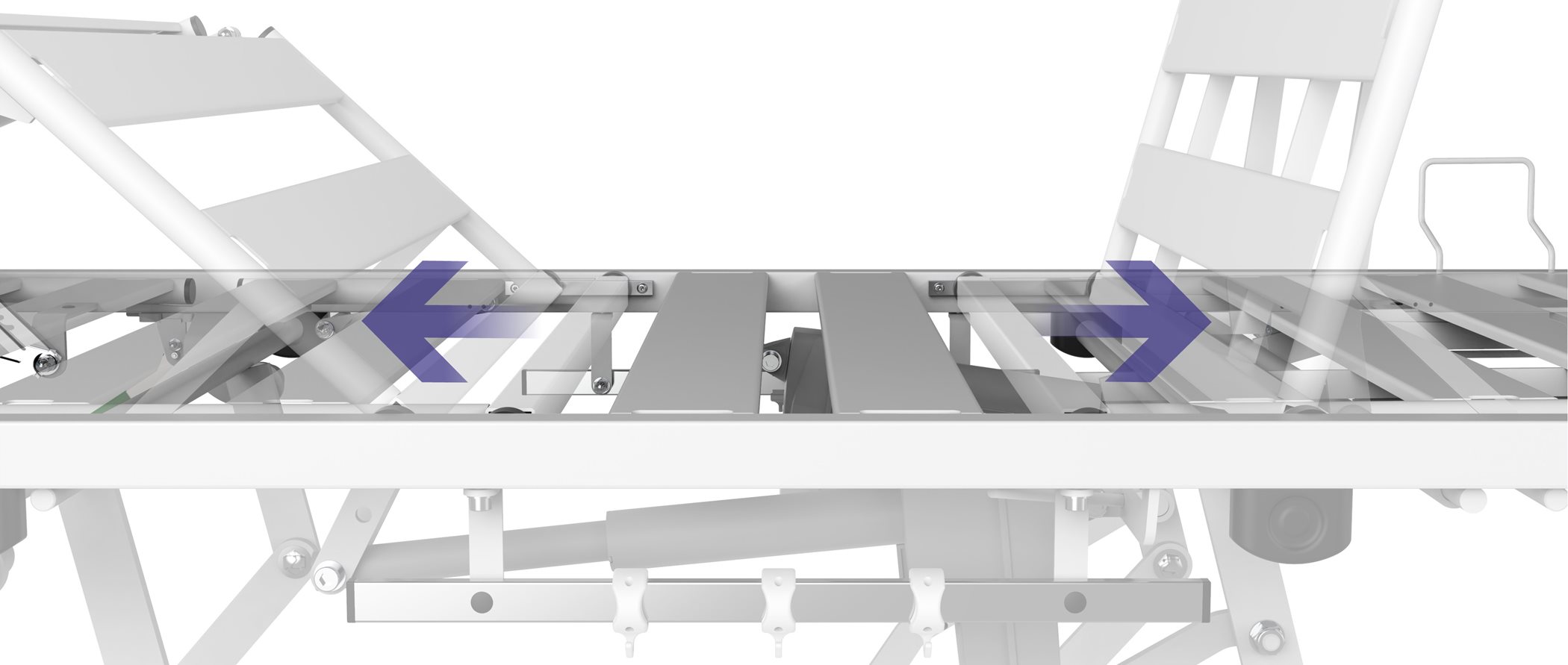

Double autoregression
Brings greater comfort to patients, reduces abdominal pressures and reduces the risk of decubitus.

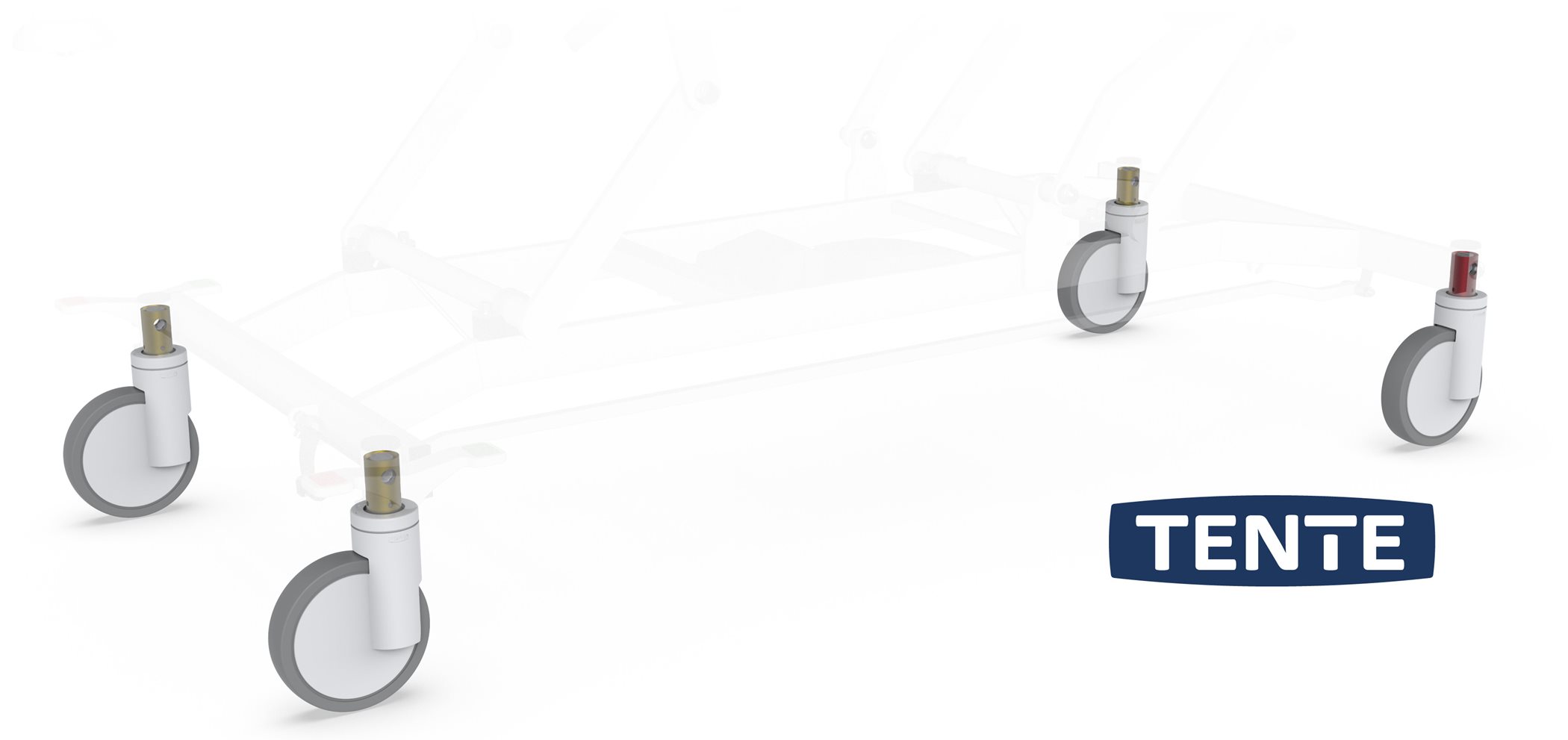

Castors TENTE
All PROMA REHA beds are equipped with TENTE branded castors.

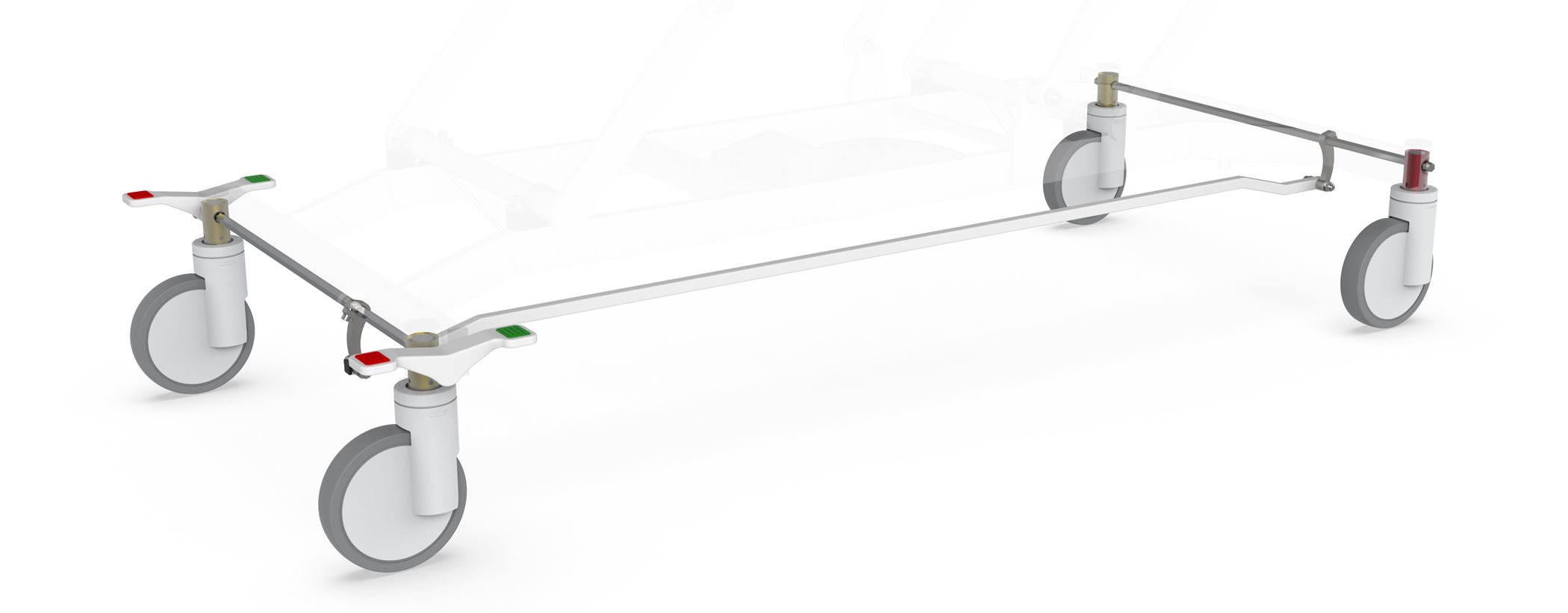

Central brake
Safe handling of the bed is ensured by a centrally operated brake. Easy operation via foot pedals accessible from both sides of the bed allows instant braking. Thanks to the possibility of locking the castors in the straight direction of travel, the bed can be easily operated by only one person during transport.

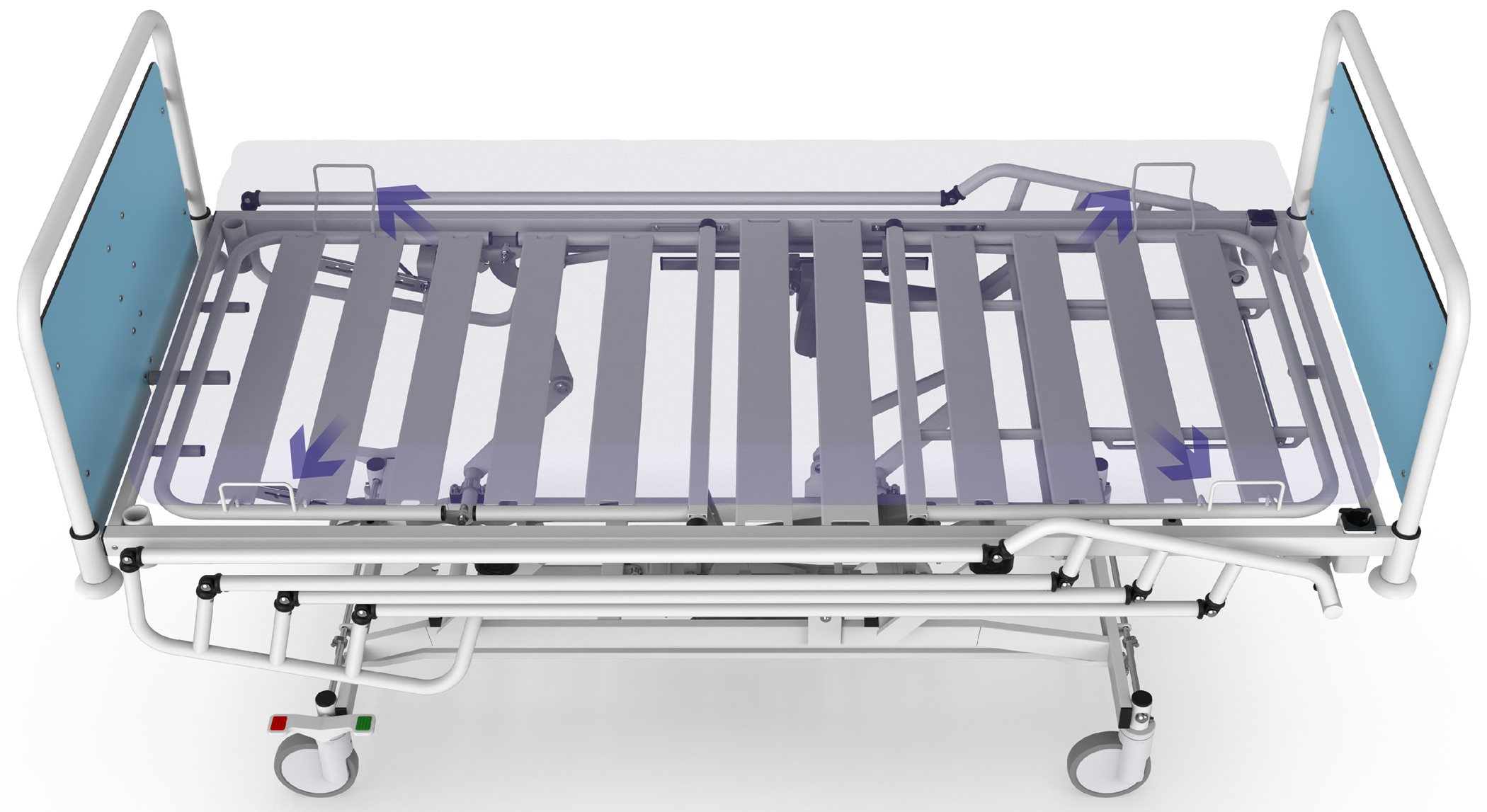

Mattress holders
The mattress holders ensure optimal positioning of the mattress when positioning the mattress platform. The holders are positioned so as not to obstruct the positioning of the evacuation mat.

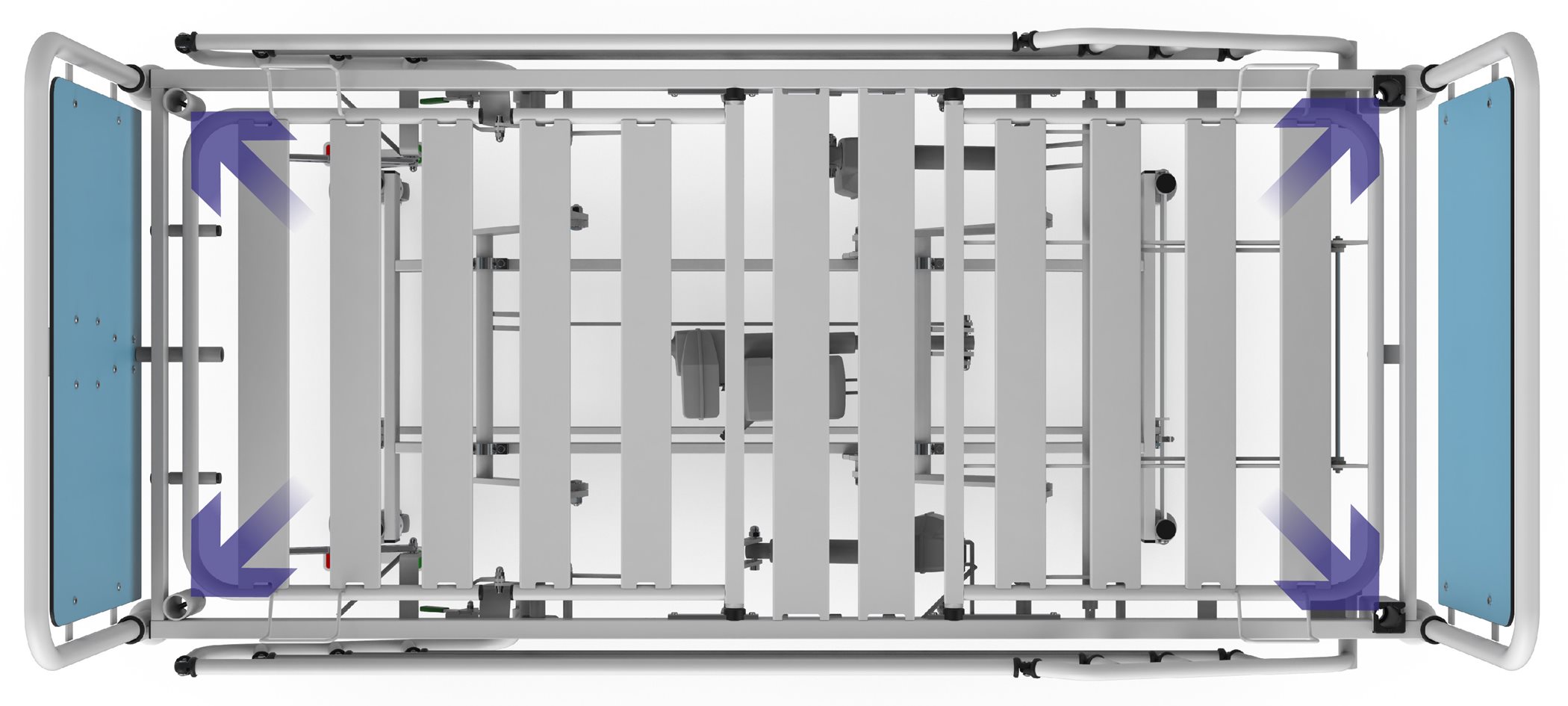

Universal accessories holders
Two are located at the head board and two at the foot board. They allow the use of accessories such as: lifting pole and handle, IV pole, monitor holder, additional side rails, bedside lamp or extension kit.

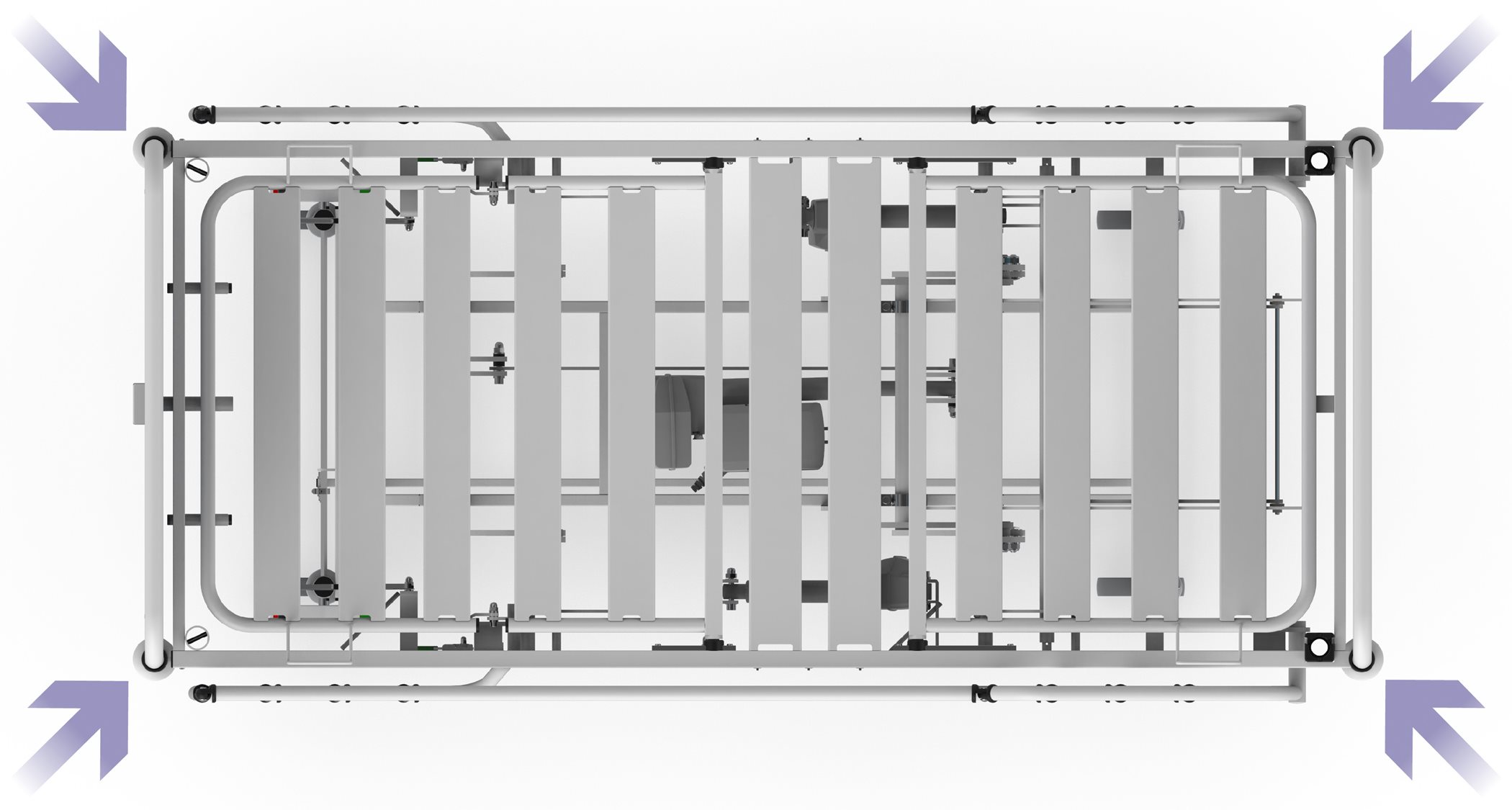

Bumper wheels
The bumper wheels located at the four corners of the bed are a great help especially during transport.
Technical parameters
| Mattress platform (length x width) | 200 x 85 cm |
| Outer bed dimensions with bumper wheels (length x width) | 214 x 97 cm |
| Mattress platform height | 39,5 - 78,5 cm |
| Autoregression back part | 12 cm |
| Autoregression thigh part | 6 cm |
| Weight of the bed | 125 kg |
| Safe operating load of the bed | 250 kg |
| Maximum patient weight | 215 kg |
| X-Ray back part | No |
| Application environment for bed use | 2, 3 |
| Mattress platform parts - metal slats | Yes |
| Type of boards - HPL | Yes |
| Type of siderails | Foldable metal siderails - 4 tubes |
| Max. angles of adjustable sections - back part | 70° |
| Max. angles of adjustable sections - thigh part | 40° |
| Max. angles of adjustable sections - calf part | 25° (rastomat) |
Bed equipment
| Castors | Plastic, metal (optional) |
| Bumper wheels | Yes |
| Central brake | Yes (optional) |
| Horizontal accessory holder | Yes 2x (optional) |
| Plastic hook | Yes 6x (optional) |
| Universal accessory holder | Yes 4x |
| Controller | Yes (fastening to the head of the bed) |
Mattress
| Recommended mattress (lenght x width) | 200 x 85 cm |
| Mattress thickness in normal using | 14 cm |
| Recommended minimal mattress size | 12 cm |
| Recommended maximal mattress size | 22 cm |
