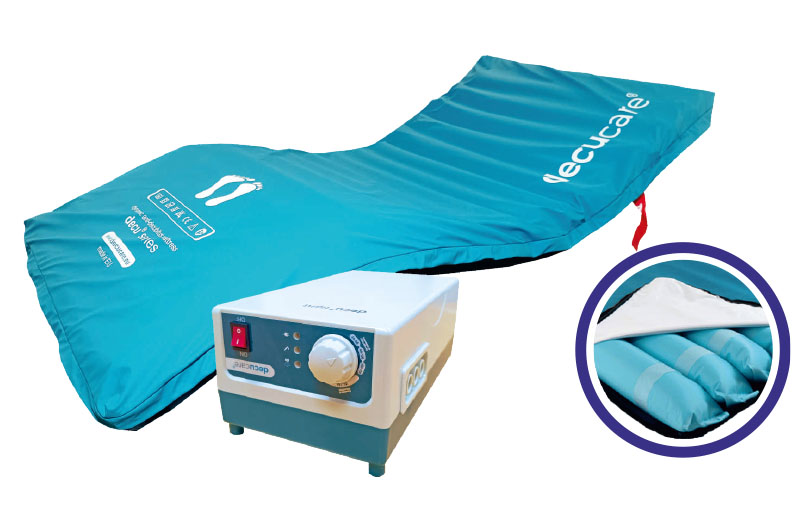

Decu plus
The traditional air mattress conception is widely used all over the world in home, social and hospital care. Overlay mattress with height 13 cm for decubitus stage lI. to III.(medium to high) with load capacity 200 kg. The mattress is composed of 20 cells, 4 cells under the head have a pillow function and 6 cells have a microventilation system. Available in two widths 80 or 90 cm. The safety Quick Release connectors for achieves zero ressure in high risk areas (option). Semi-automatic compressor with automatic pressure settings according to the patient weight.
0%
MATTRESS
- 6 cells under hull with micro-ventilation functionto reduce heat and moisture
- 2-way stretch, waterproof, breathable, fire-retardant cover
- Easy maintenance - washable up to 95°C
- Zipper 360° with perimeter protect flapwhich reduces the risk of contaminatio
- Integrated power cable fixation system
- 4 straps for easy fixation of the mattress to the bed
- Quick release CPR valve for acute resuscitation
- QR - safety Quick Release connectors for easy disconnection of the cells and to achieve zero pressure in high risk areas to reduce the risk of decubitus - 4 / 20 pes (option)
COMPRESSOR
- Automatic pressure setting according to the selected patient weight
- Alternate mode: APT - Alternate Pressure Therapy mode A-B-C (5/10/20 min)
- Static mode: CLP - Constant Low Pressure mode in all cells
- Auto-firm mode: LMP - time-Limited Maximum Pressure mode (30 minutes)
- Transport mode: TM - Transport Mode with memory function and easy disconnection
- Automatic key lock for unintentional changes to compressor settings
- Acoustic and visual alarm: low pressure, power failure, service
- AVS - Anti Vibration System for vibration reduction and quiet operation (noise < 23,8 dB)
- START/STOP system for energy reduction
- Memory function for keeping of the set values
- Integrated compressor holder
Technical parameters
MATTRESS
| load capacity | 200 kg |
|---|---|
| height | 13 cm |
| dimension | 80/90 x 200 cm |
| number of cells | 20 pes - width 10 cm |
| pillow function | 4 head cell without alternation |
| micro-ventilation | 6 cells under hull |
| CPR valve | quick release - manual |
| next functions | integrated power cable fixation system 4 straps for easy fixation to the bed |
| material | polyurethane |
| cleaning | thermal desinfection |
| weight | 5,9 kg |
| cover | PU, 2-way stretch, waterproof, breathable, fireretardant, 95°C washable, zipper 360°with flap |
COMPRESSOR
| type | semi-automatic with LCD |
|---|---|
| modes | 4 - alternate/static/auto-firm/transport |
| alternate mode | 3-chamber air exchange system A-B-C |
| time interval | 5/10/20 minutes |
| alarm | acoustic and visual |
| alarm type | low pressure/power failure/service |
| key lock | automatic |
| next functions | memory, Start/Stop, AVS |
| noise | <23,8 dB |
| holder | integrated |
| flow rate | 8 l/min |
| operating pressure | 25-28 mmHg |
| material | ABS housing |
| size | 17 x 26 x 12,5 cm |
| weight | 3,4 kg |
