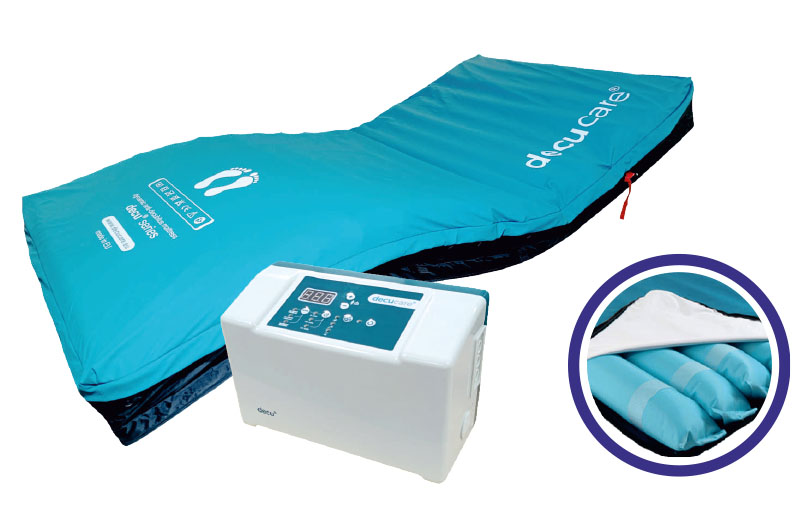

Decu pro
The traditional air mattress conception is widely used all over the world in home, social, hospital and intensive care. Mattress with .cell-in-cell" system - replacement mattress with height 20 cm for decubitus stage lI. to IV./ medium to very high with load capacity 220 kg. The mattress is composed of 20 cells, 5 cells under the head have a pillow function and 6 cells have a micro-ventilation system. Available in two widths 80 or 90 cm. The safety Quick Release connectors for achieves zero pressure in high risk areas (option). Semi-automatic compressor with automatic pressure settings according to the patient weight.
0%
MATTRESS
- 6 cells under hull with micro-ventilation functionto reduce heat and moisture
- 2-way stretch, waterproof, breathable, fire-retardant cover
- Easy maintenance - washable up to 95°C
- Zipper 360° with perimeter protect flapwhich reduces the risk of contaminatio
- Integrated power cable fixation system
- 4 straps for easy fixation of the mattress to the bed
- Quick release CPR valve for acute resuscitation
- QR - safety Quick Release connectors for easy disconnection of the cells and to achieve zero pressure in high risk areas to reduce the risk of decubitus - 4 / 20 pes (option)
- lncreased hose protection (option)
COMPRESSOR
- Automatic pressure setting according to the selected patient weight
- Alternate mode: APT - Alternate Pressure Therapy mode A-B-C (5/10/20 min)
- Static mode: CLP - Constant Low Pressure mode in all cells
- Auto-firm mode: LMP - time-Limited Maximum Pressure mode (30 minutes)
- Transport mode: TM - Transport Mode with memory function and easy disconnection
- Automatic key lock for unintentional changes to compressor settings
- Acoustic and visual alarm: low pressure, power failure, service
- AVS - Anti Vibration System for vibration reduction and quiet operation (noise < 23,8 dB)
- START/STOP system for energy reduction
- Memory function for keeping of the set values
- Integrated compressor holder
Technical parameters
MATTRESS
| load capacity | 220 kg |
|---|---|
| height | 20 cm |
| dimension | 80/90 x 200 cm |
| number of cells | 20 pes - width 10 cm |
| pillow function | 5 head cell without alternation |
| micro-ventilation | 6 cells under hull |
| CPR valve | quick release - manual |
| next functions | integrated power cable fixation system 4 straps for easy fixation to the bed |
| material | polyurethane |
| cleaning | thermal desinfection |
| weight | 6,9 kg |
| cover | PU, 2-way stretch, waterproof, breathable, fireretardant, 95°C washable, zipper 360°with flap |
COMPRESSOR
| type | semi-automatic with LCD |
|---|---|
| modes | 4 - alternate/static/auto-firm/transport |
| alternate mode | 3-chamber air exchange system A-B-C |
| time interval | 5/10/20 minutes |
| alarm | acoustic and visual |
| alarm type | low pressure/power failure/service |
| key lock | automatic |
| next functions | memory, Start/Stop, AVS |
| noise | <23,8 dB |
| holder | integrated |
| flow rate | 8 l/min |
| operating pressure | 25-94 mmHg |
| material | ABS housing |
| size | 17 x 26 x 12,5 cm |
| weight | 3,4 kg |
Download
Matrace-decu-Pro-EN
.pdf - 2.2 MB
