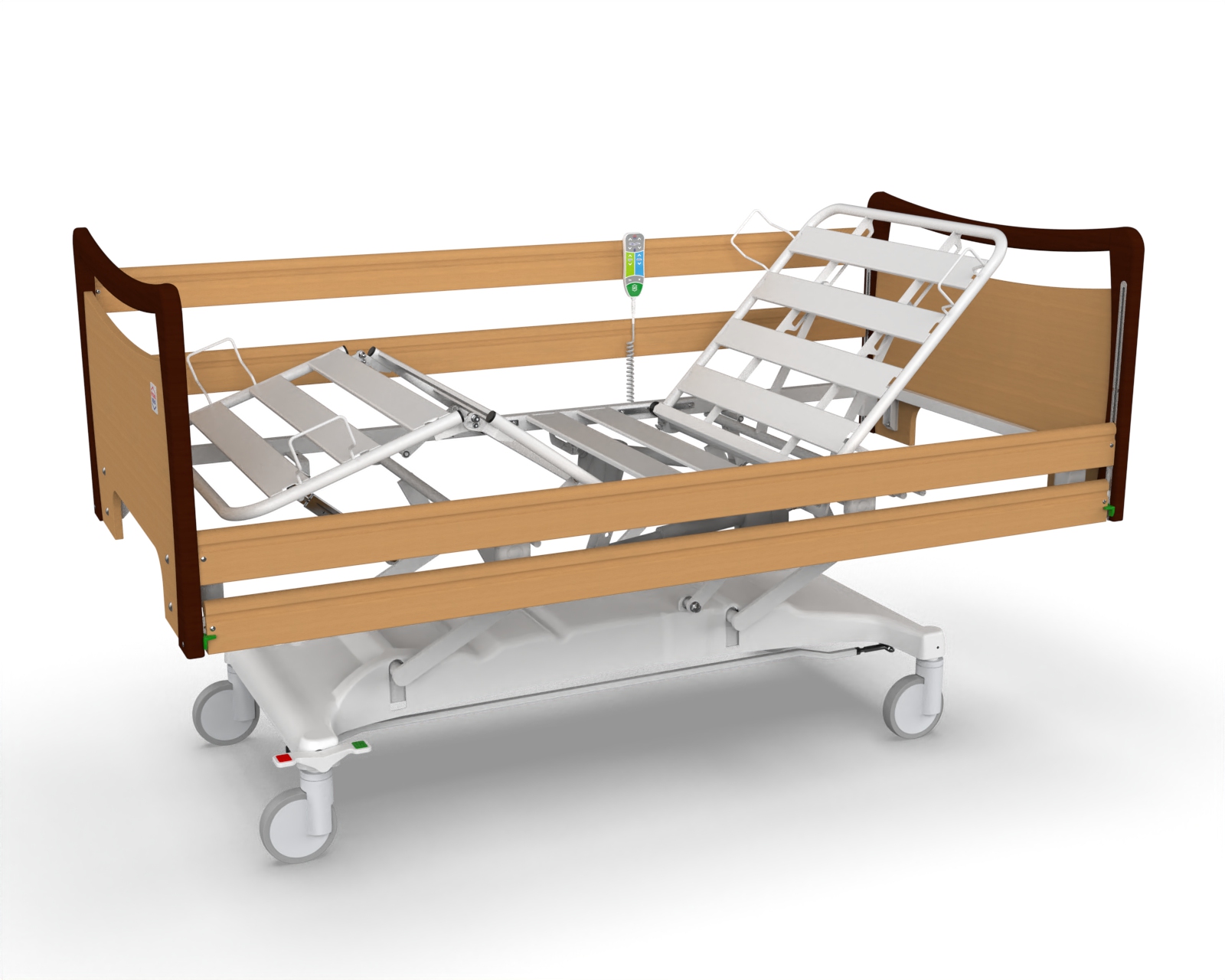

DOMEO E

DOMEO E electric care beds are specially designed for standard nursing care, especially for people with reduced mobility or those who need assistance with everyday activities. These beds are equipped with various features such as electric positioning, robust folding side rails and a controller with colour-coded functions that make the
nurses job easier and help the clients to be independent.
DOMEO E
0%
  • /getattachment/3a71e526-6df0-46c7-af79-a44e4e516fc3/Geneo-39.jpg
  • /getattachment/b853fb39-268b-4db6-80de-407d109a157e/Geneo-40.jpg
  • /getattachment/87bd311b-62e1-4279-9a72-908a058a8932/Geneo-41.jpg
  • /getattachment/cd6bcd07-f709-4db9-8044-c4622cf317d4/Geneo-42.jpg
  • /getattachment/26e5d3cc-ad69-4bdf-93f4-d9e87ab9464b/Geneo-43.jpg
  • /getattachment/15e0dac1-a66a-4f09-b2f9-5ccf90b0b5c6/Geneo-44.jpg
  • /getattachment/dc28f205-092f-4c03-ace9-f1c753e0c68d/Geneo-45.jpg
  • /getattachment/0e0ec969-354c-4589-9cca-5c4a4c8b03ea/Geneo-46.jpg
  • /getattachment/bc554355-6bda-4226-a5ba-3d8d0f32c2d8/Geneo-47.jpg
  • /getattachment/02cf7cdf-1f90-4001-8533-7f8753074fa5/Geneo-48.jpg
  • /getattachment/8487c931-ea9e-42c5-9a97-c5c628e9fbb7/Geneo-49.jpg
  • /getattachment/e3eb51d2-acb5-4f80-9839-7f8e88e0a313/Geneo-50.jpg
  • /getattachment/af07d4a9-62a3-410d-b2b7-74a997733aaa/Geneo-51.jpg
  • /getattachment/0b010e9b-3419-496a-84f8-e010324591b0/Geneo-52.jpg
  • /getattachment/0fd6e855-020f-44af-8655-64d793ca659b/Geneo-53.jpg
  • /getattachment/d1975e9c-7576-4990-a8b2-3124247d2778/Geneo-54.jpg
  • /getattachment/ee3738e5-c3b3-4022-9a34-68175e105c10/Geneo-55.jpg
  • /getattachment/a2720438-73ab-4670-accf-80c039f768b3/Geneo-56.jpg
  • /getattachment/21d1d4cc-f2d0-423a-9413-1a98f97351ae/Geneo-57.jpg
  • /getattachment/0a318c1b-f5b0-47de-9d11-080f7194f8df/Geneo-58.jpg
  • /getattachment/7f5d9f03-36d5-475a-8c91-07481af18097/Geneo-59.jpg
  • /getattachment/3a8f2078-380f-4359-ac3f-73bc9e2521fd/Geneo-60.jpg
  • /getattachment/32d5cfbd-2736-42cc-a16d-6f5da0d04300/Geneo-61.jpg
  • /getattachment/00f917fe-bb7f-4608-b228-689dc17045db/Geneo-62.jpg
  • /getattachment/4b5b0d21-edca-446a-925d-02ed1f6498e1/Geneo-63.jpg
  • /getattachment/dfc8eeea-47da-4188-bc7b-c4a63bee04bd/Geneo-64.jpg
  • /getattachment/594b043e-f8cd-4516-a77a-a38798f126db/Geneo-65.jpg
  • /getattachment/60d3b253-6ff3-415d-8d67-980af353b192/Geneo-66.jpg
  • /getattachment/dfa0c40e-3190-4f92-9d99-c1ddc140c50a/Geneo-67.jpg
  • /getattachment/9b3faef3-2c91-4000-9190-cfef1e1ae1c5/Geneo-68.jpg
  • /getattachment/7569a762-f458-4b4d-91d8-113731efd38d/Geneo-69.jpg
  • /getattachment/af890f2c-91b5-4aa2-afe7-2eb626608a1f/Geneo-70.jpg
  • /getattachment/1a8e8d8a-a191-48e7-aed3-5e3aba1a7093/Geneo-71.jpg
  • /getattachment/3d8079e6-4e4c-4c01-b3d2-561fa7d97457/Geneo-72.jpg
  • /getattachment/9551405c-5b50-4085-a1c4-357f710e30b9/Geneo-73.jpg
  • /getattachment/335e658b-08e6-4b6f-b772-7294959e6be2/Geneo-74.jpg
  • /getattachment/044376f1-3442-4980-b96c-7d02c905e5cc/Geneo-75.jpg
  • /getattachment/ae9b26ab-6247-4acf-a79e-6421d60ccf39/Geneo-76.jpg
  • /getattachment/26683ad6-e5f4-4536-aa43-5064191eda53/Geneo-77.jpg
  • /getattachment/1f7ecc36-ceae-4322-b5dc-96235df7f774/Geneo-78.jpg
  • /getattachment/074d42e7-1998-4d4f-aeeb-2688451becd7/Geneo-79.jpg
  • /getattachment/11438041-6f92-4132-84a2-87d181beae00/Geneo-80.jpg
  • /getattachment/2e8ca245-f17c-44e6-80dc-c73f0d25470e/Geneo-81.jpg
  • /getattachment/c3214c8c-ce37-4dbc-99d7-623f09dc7ca5/Geneo-82.jpg
  • /getattachment/5d5491ee-1a0e-43c1-b67b-deab7f5d9745/Geneo-83.jpg
  • /getattachment/f27d6f38-774f-43a3-a23c-8bd86bcb82cb/Geneo-84.jpg
  • /getattachment/1c8f3d12-6845-49b4-b766-2081bd4fac0c/Geneo-85.jpg
  • /getattachment/306a3790-6a61-4ff2-8e3f-ddb09e48d37f/Geneo-86.jpg
  • /getattachment/57ab717b-8f59-421e-9941-3febd5a75363/Geneo-87.jpg
  • /getattachment/ffd8eb6d-cbf3-4ab5-b679-a5dfed55505e/Geneo-88.jpg
  • /getattachment/9646b92d-5ba8-42aa-a963-91f653d212fd/Geneo-89.jpg
  • /getattachment/4d6aecdf-a606-4bb1-a2ff-9dde031ac624/Geneo-90.jpg
  • /getattachment/fe7bce82-1899-49ca-af03-e99014a820c8/Geneo-91.jpg
  • /getattachment/fa8b5722-beb0-4605-9c0e-7a8e49c5b47c/Geneo-92.jpg
  • /getattachment/4456f933-d545-4c40-af46-6ddc42a71fc5/Geneo-93.jpg
  • /getattachment/31999367-9e89-4a5b-8698-5c0213d585e3/Geneo-94.jpg
  • /getattachment/23973b56-9cd6-4757-ab2f-d5f646d043e8/Geneo-95.jpg
  • /getattachment/12bf47ba-4b06-4b61-8b66-12a0a07285a0/Geneo-96.jpg
  • /getattachment/c0f9bcde-3a21-49fb-bb38-7cb6ec738b4b/Geneo-97.jpg
  • /getattachment/e26cdb3b-5b6a-4777-9f22-0a66e7a324fc/Geneo-98.jpg
    Product advantages/ Highlights
    Technical parameters
    Downloads

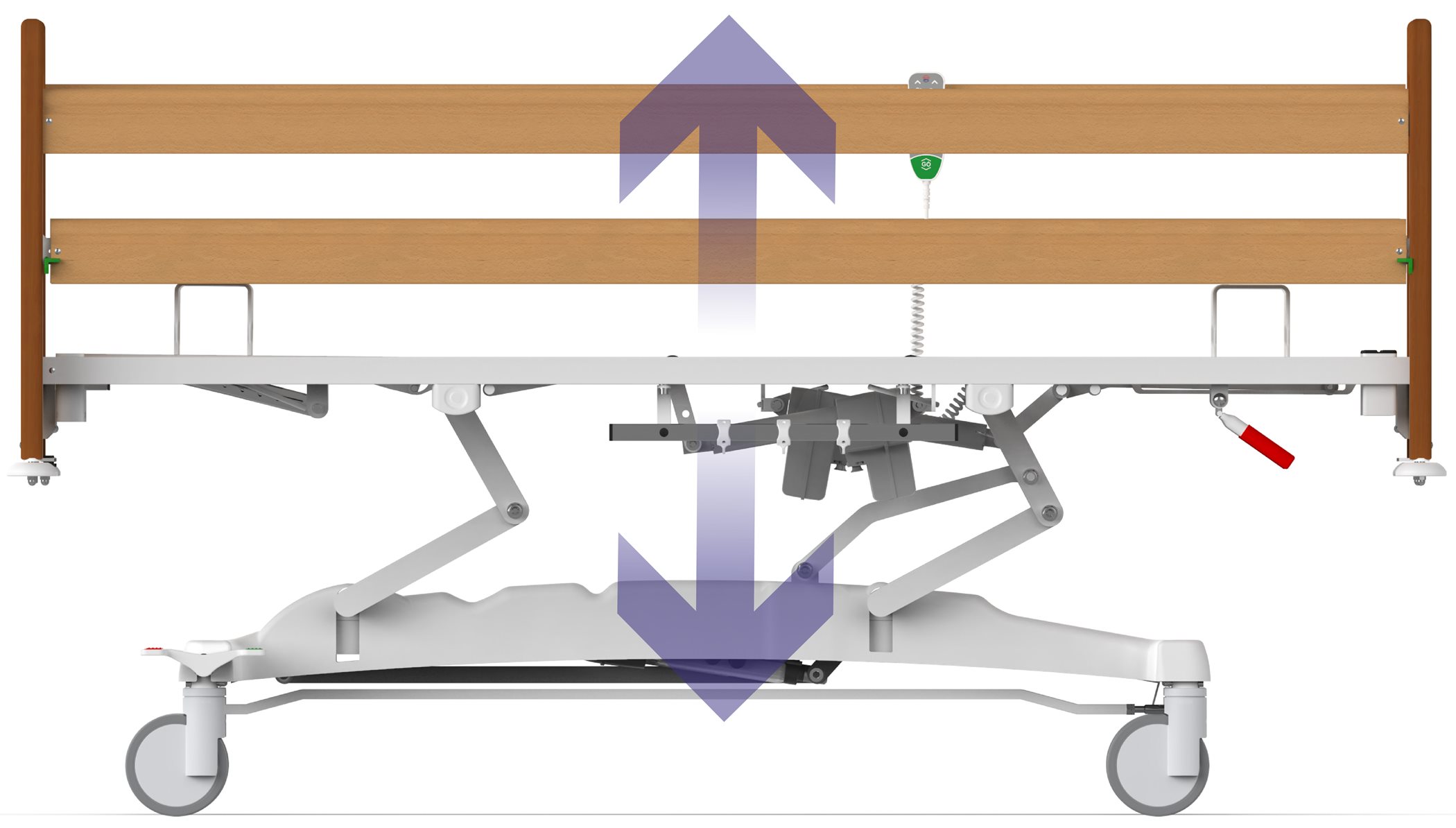

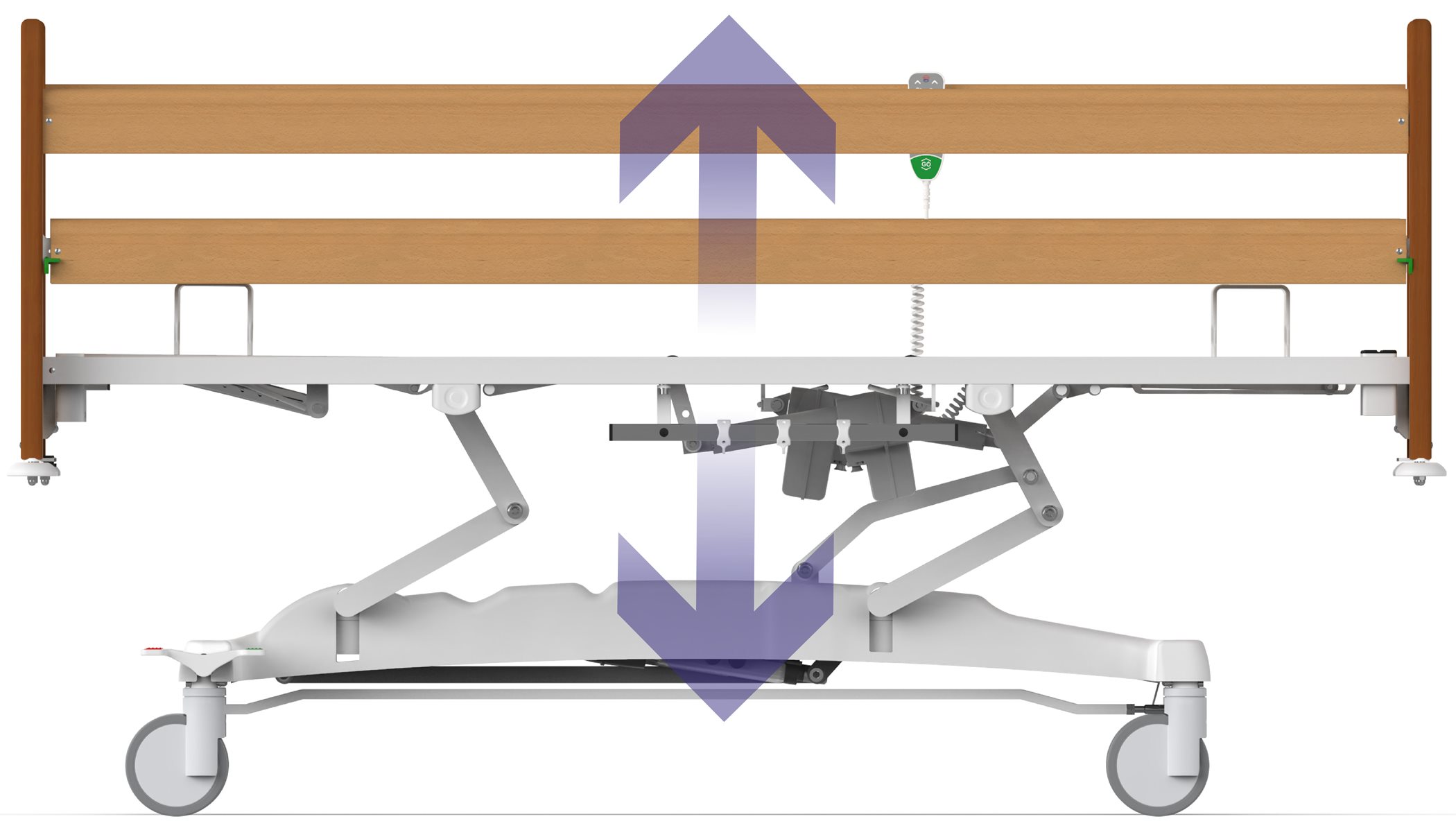

    Electric lifting of the mattress platform

    The increased range of the bed lift reduces the strain on staff and facilitates the patient handling. The reduced minimum height of the mattress platform assists the patient in exiting the bed.zdvyh-01.jpg

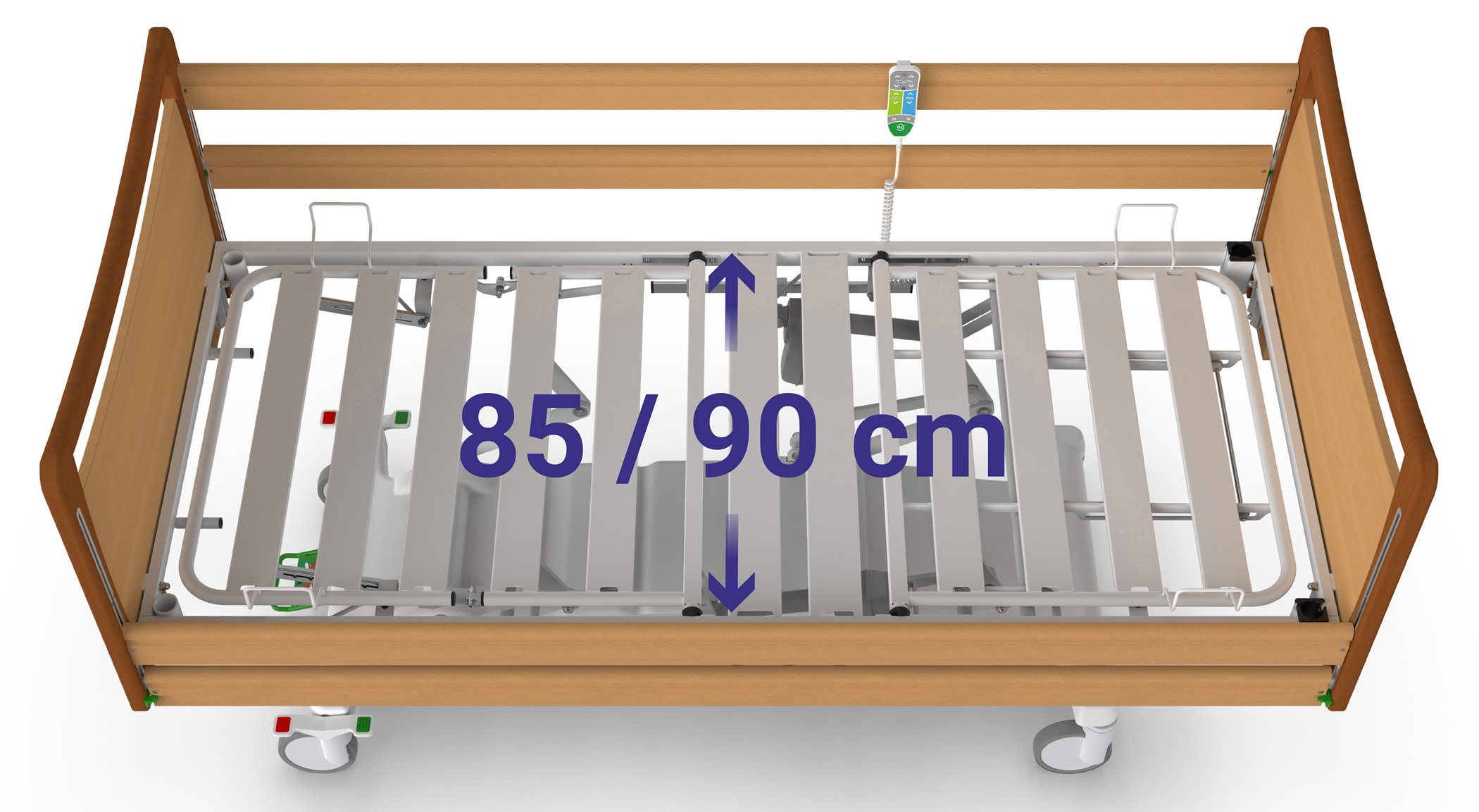

    Width of the mattress platform

    The optimal width of the mattress platform ensures maximum comfort for the patient and easy handling of the bed.lozna-plocha-01.jpg

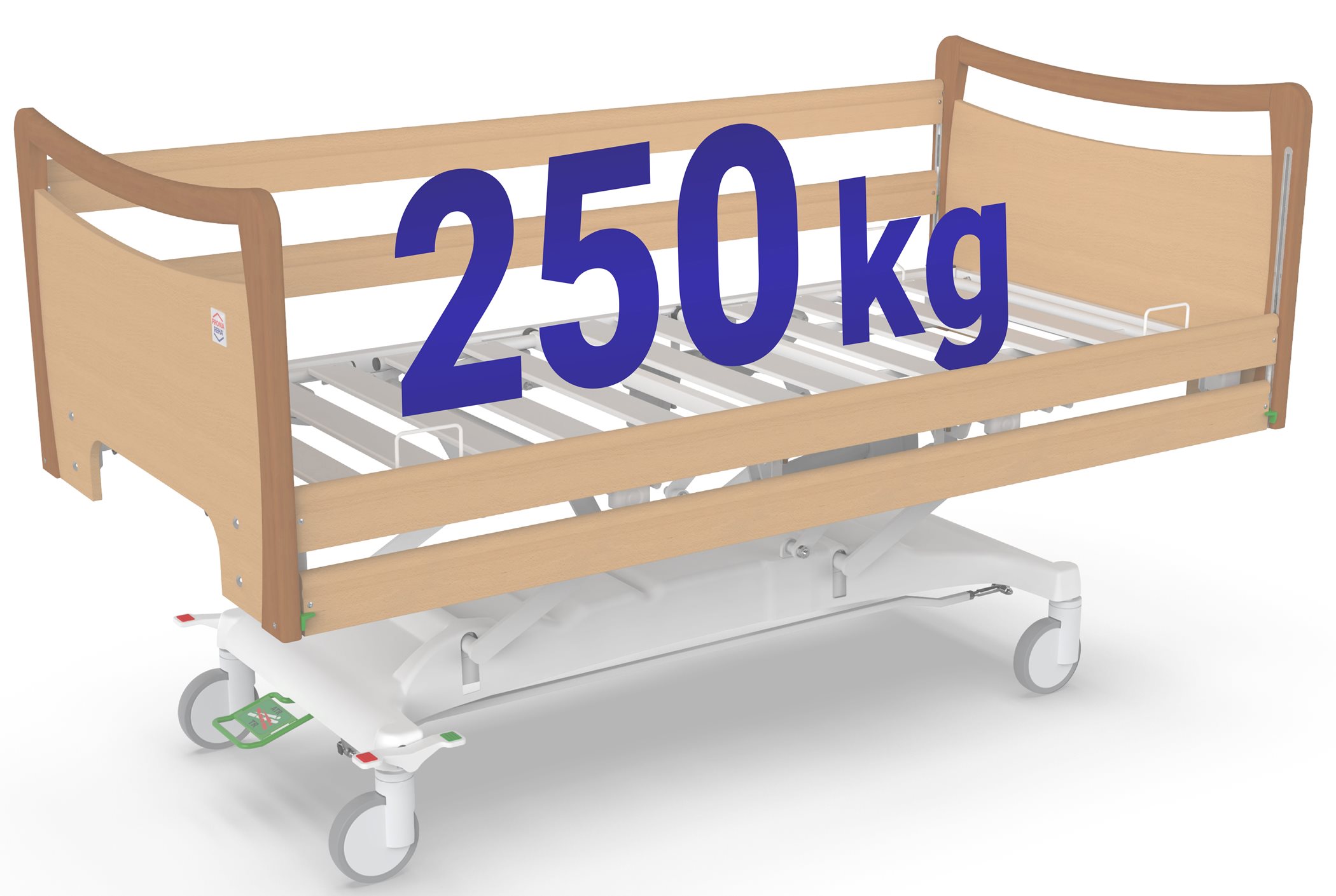

    Increased load capacity

    The solid and stable construction with a safe operating load of up to 250 kg provides safe support even when caring for patients with higher weight. Thanks to the materials and technologies used, extremely high durability is ensured even under repeated increased loads.BPZ-01.jpg

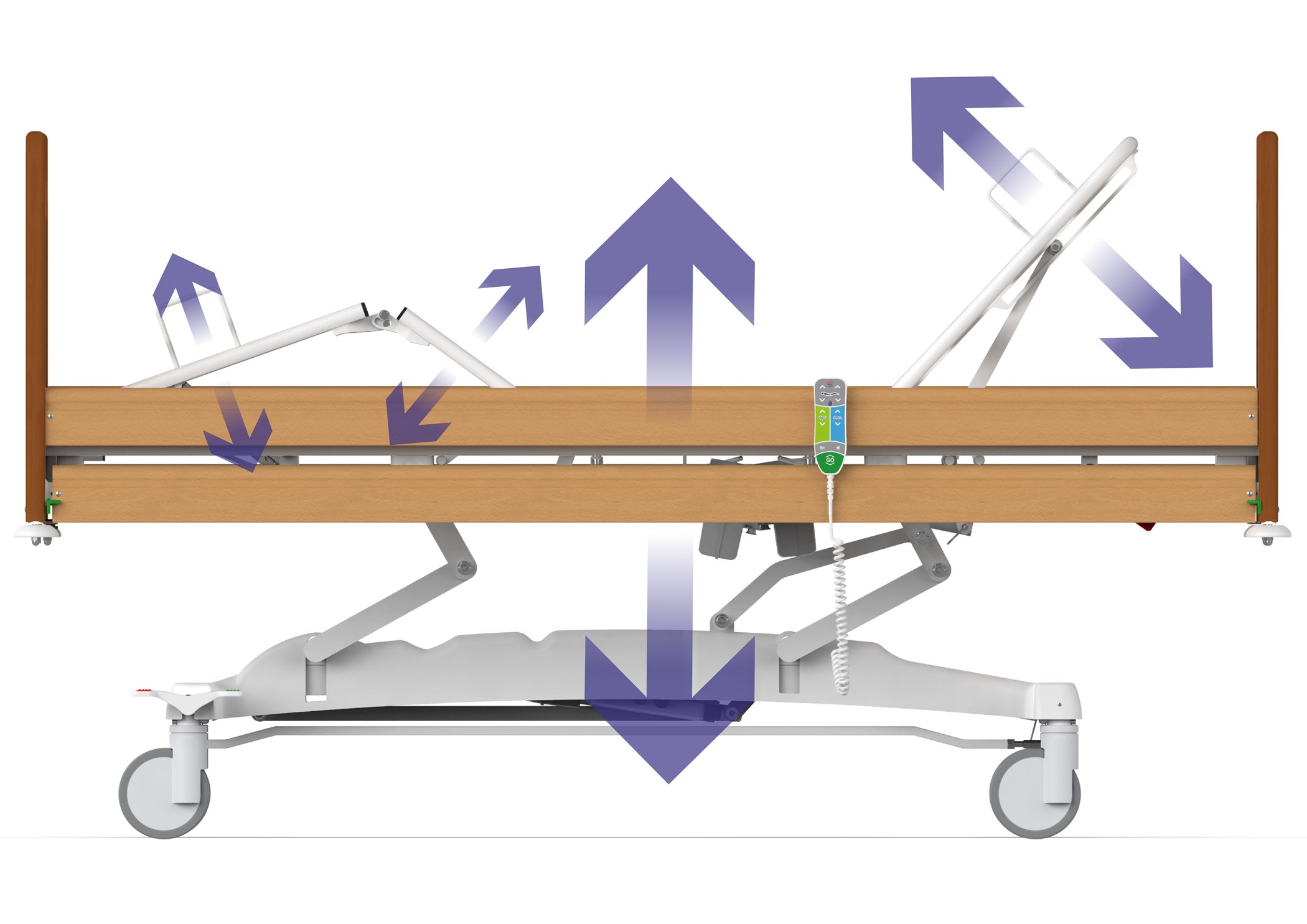

    Comfortable positioning

    The electric positioning of the back and thigh section in combination with the mechanical positioning of the calf section allows a wide range of adjustment of the individual parts of the mattress platform. The staff and client can conveniently adjust the individual positions using the hand control.

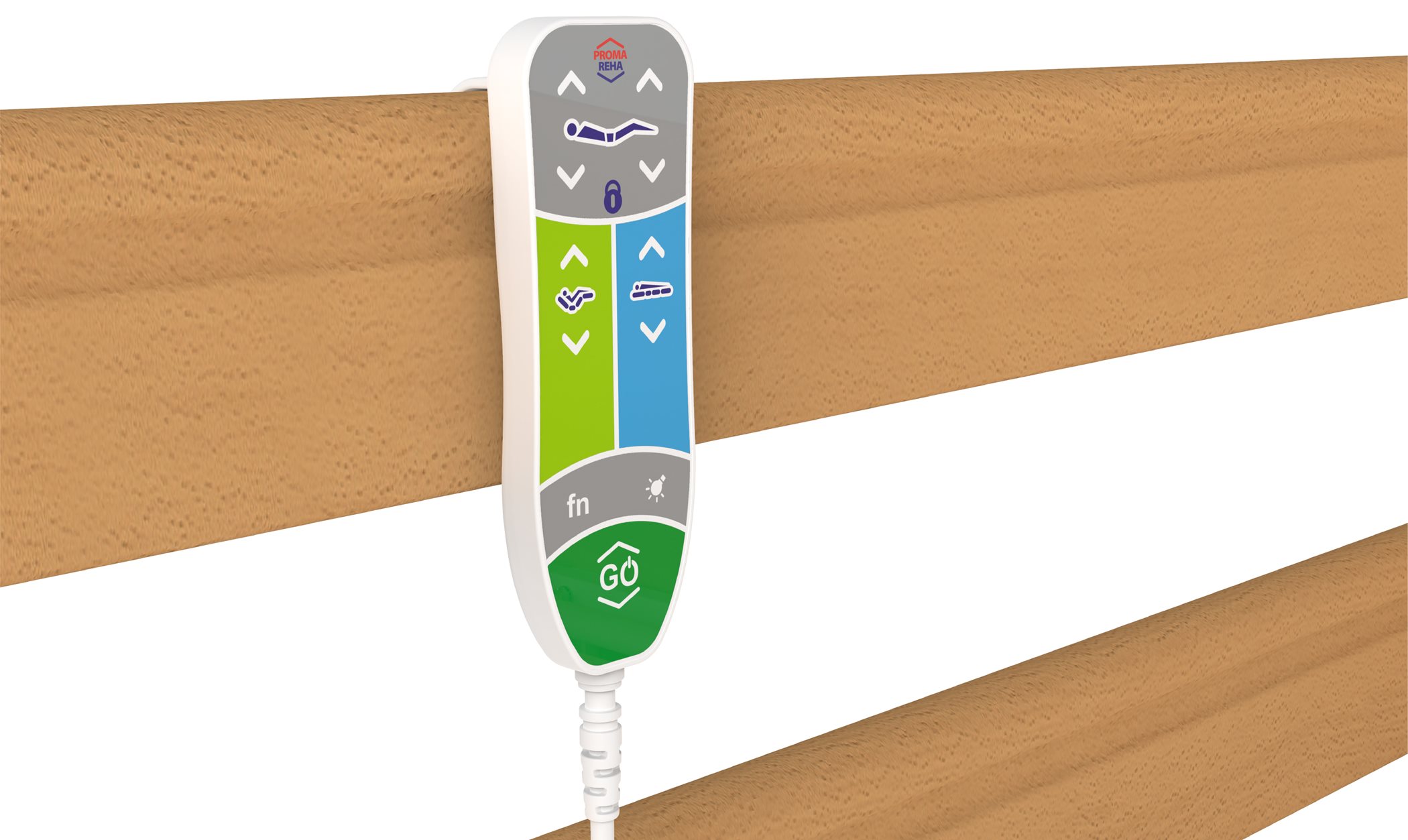

    Patient control

    The bed can be optionally equipped with an ergonomic patient control, which is always at hand of the patient and allows easy control of all basic functions.

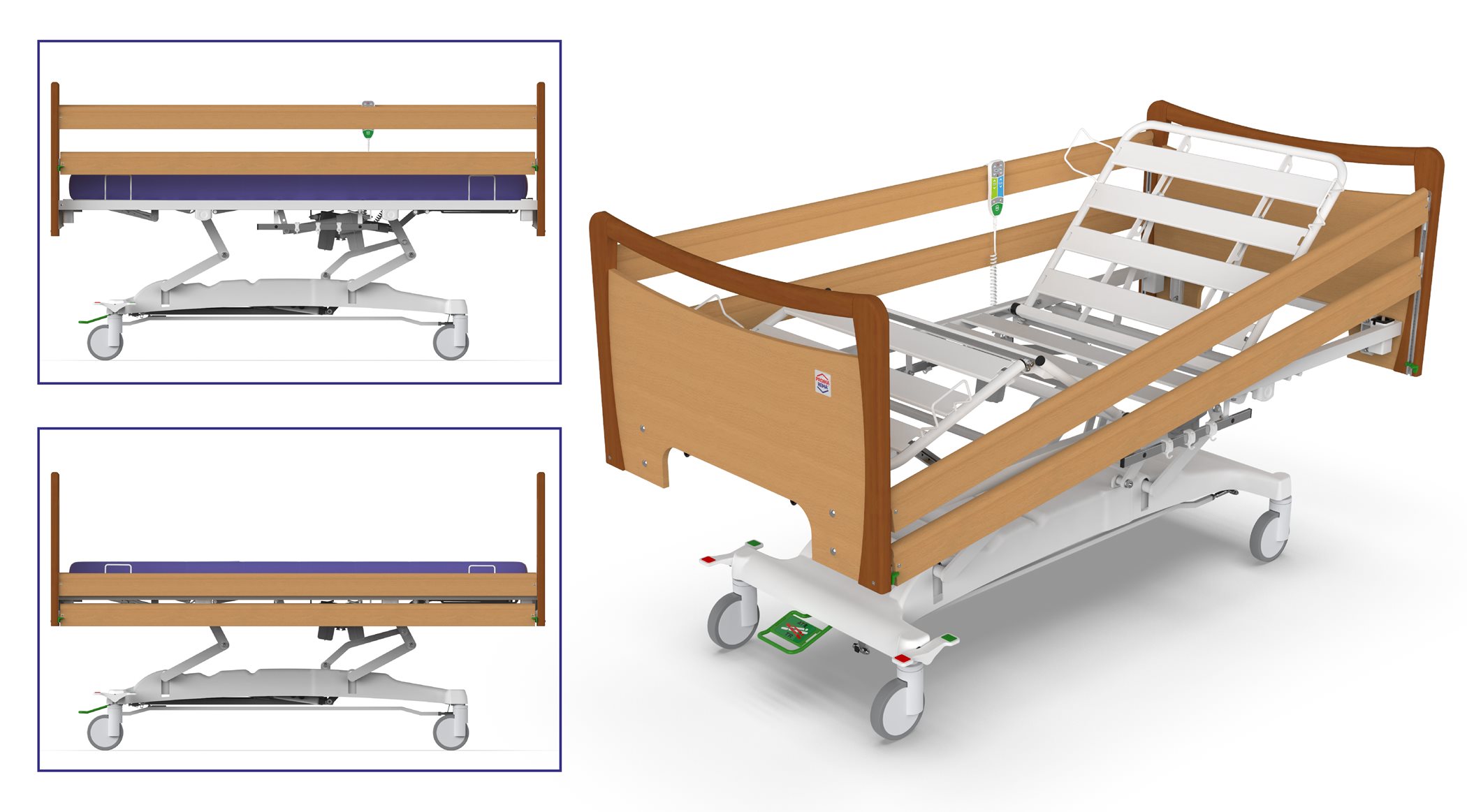

    Foldable siderails

    The safety of the client on the bed is ensured by folding siderails. The easy folding of the side rails with two independent movements significantly reduces the risk of accidental lowering. The folded siderails are positioned sufficiently below the mattress level to allow easy exit from the bed.

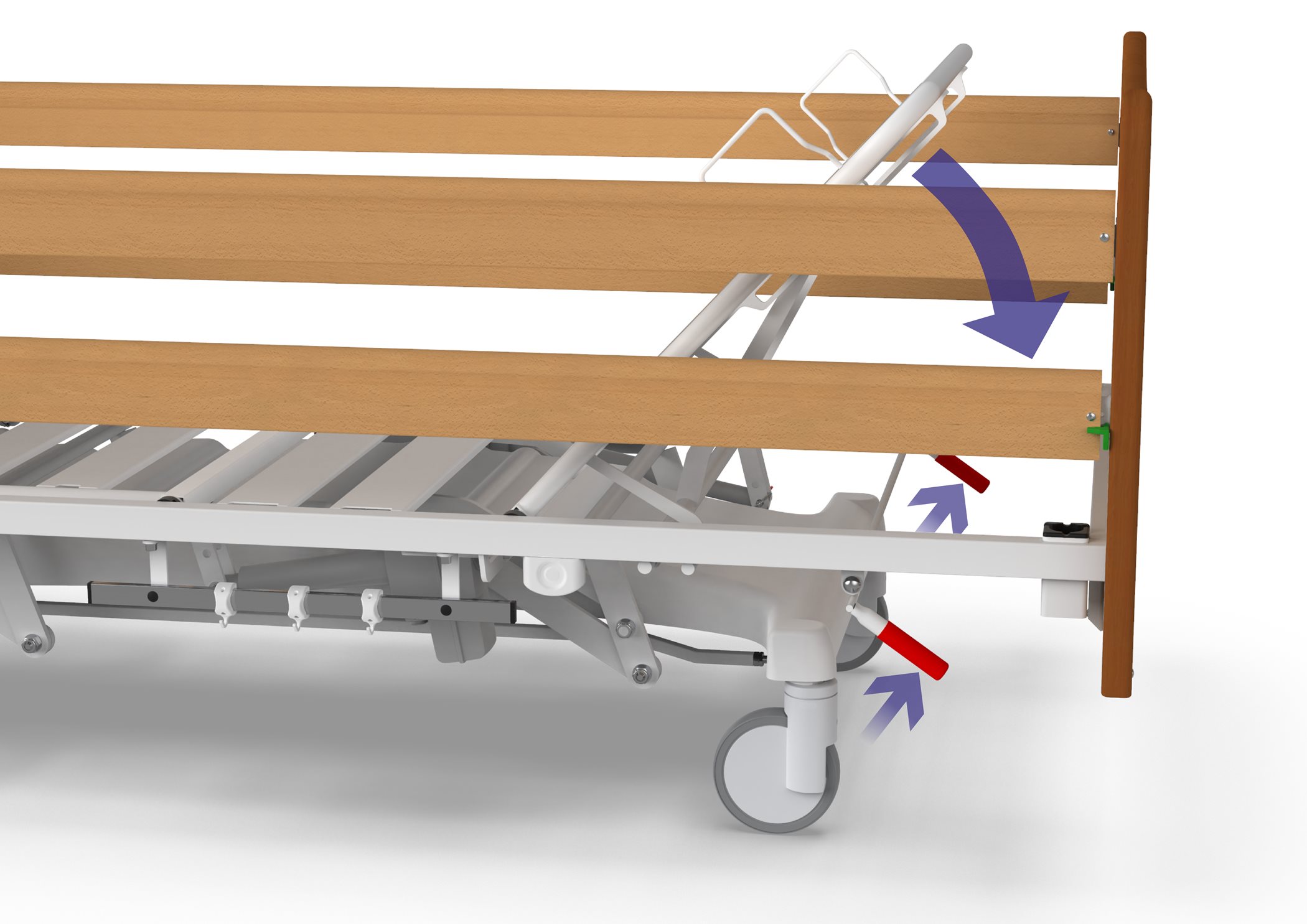

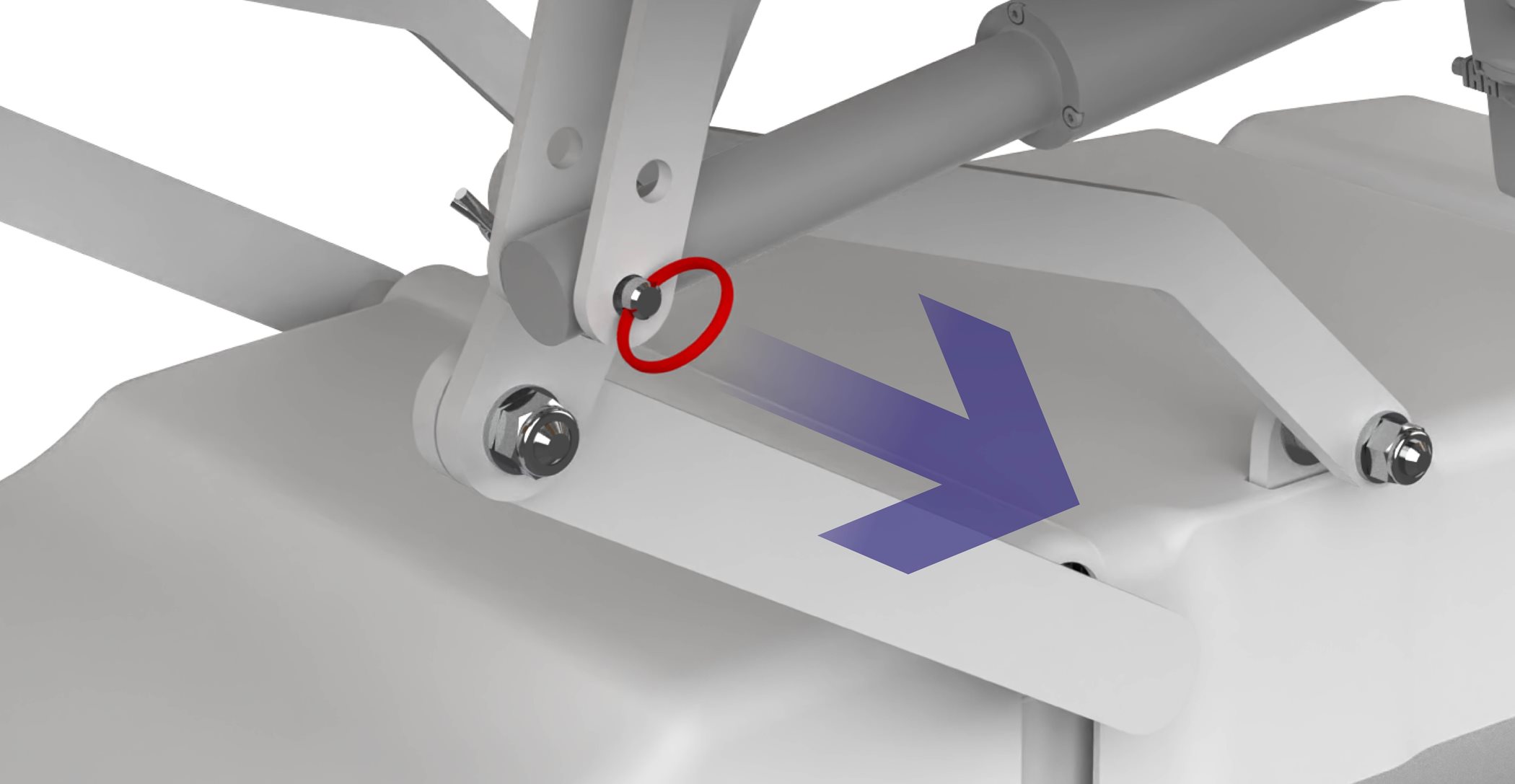

    CPR function

    Using the CPR lever, you ensure safe and quick positioning of the rear part in the optimal position for immediate cardiopulmonary resuscitation.

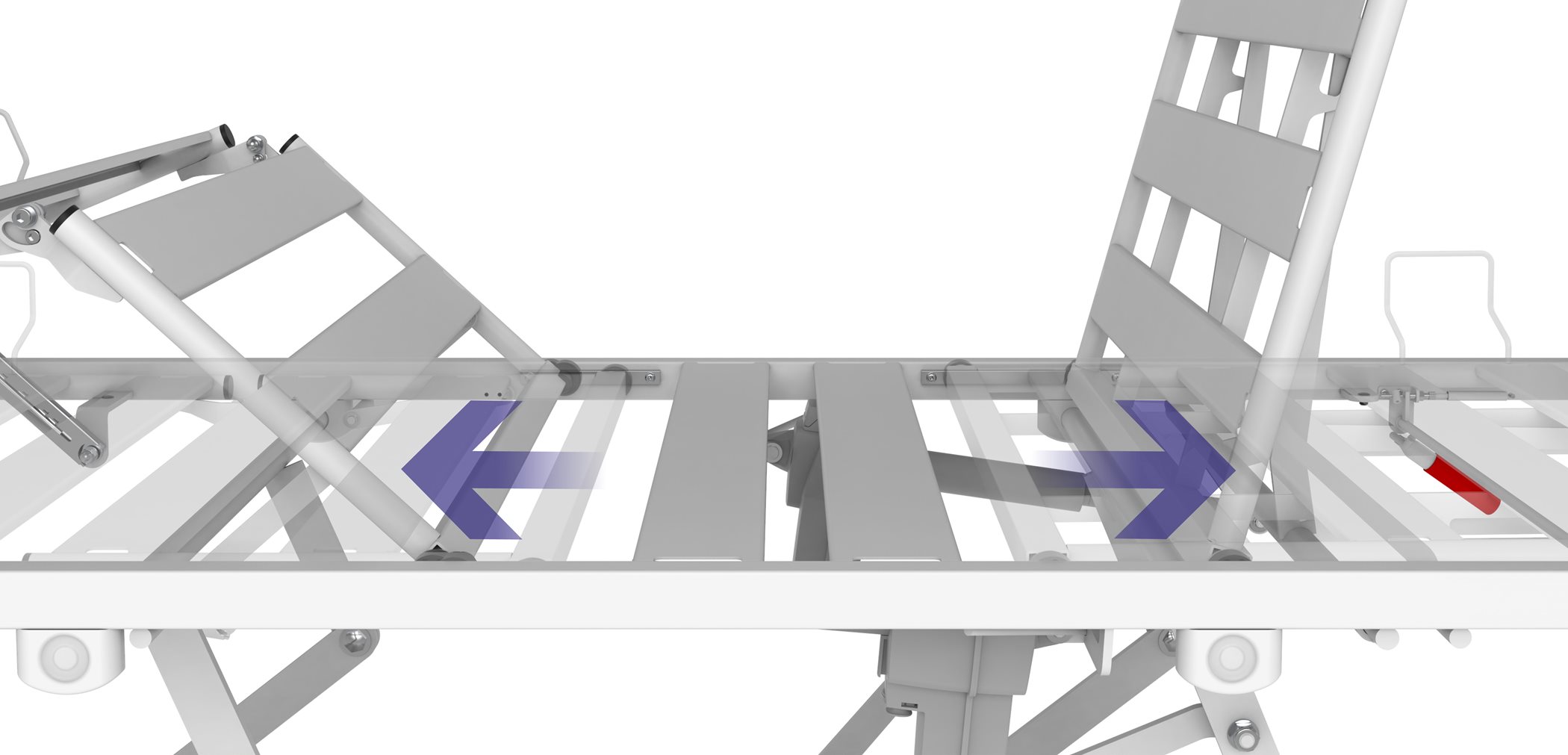

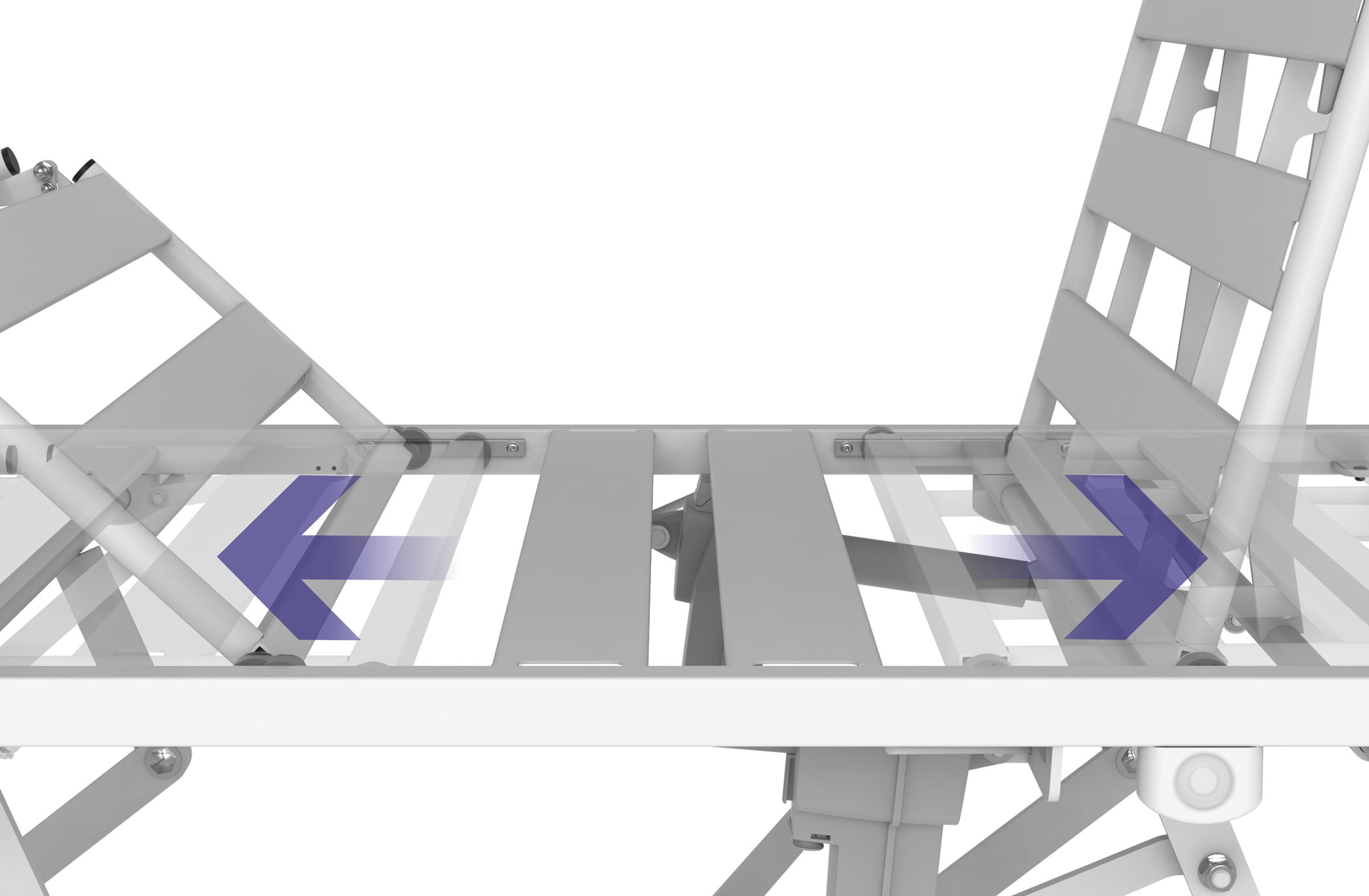

    Double autoregression

    Brings greater comfort to patients, reduces pressure in the abdominal area and reduces the risk of decubitus.

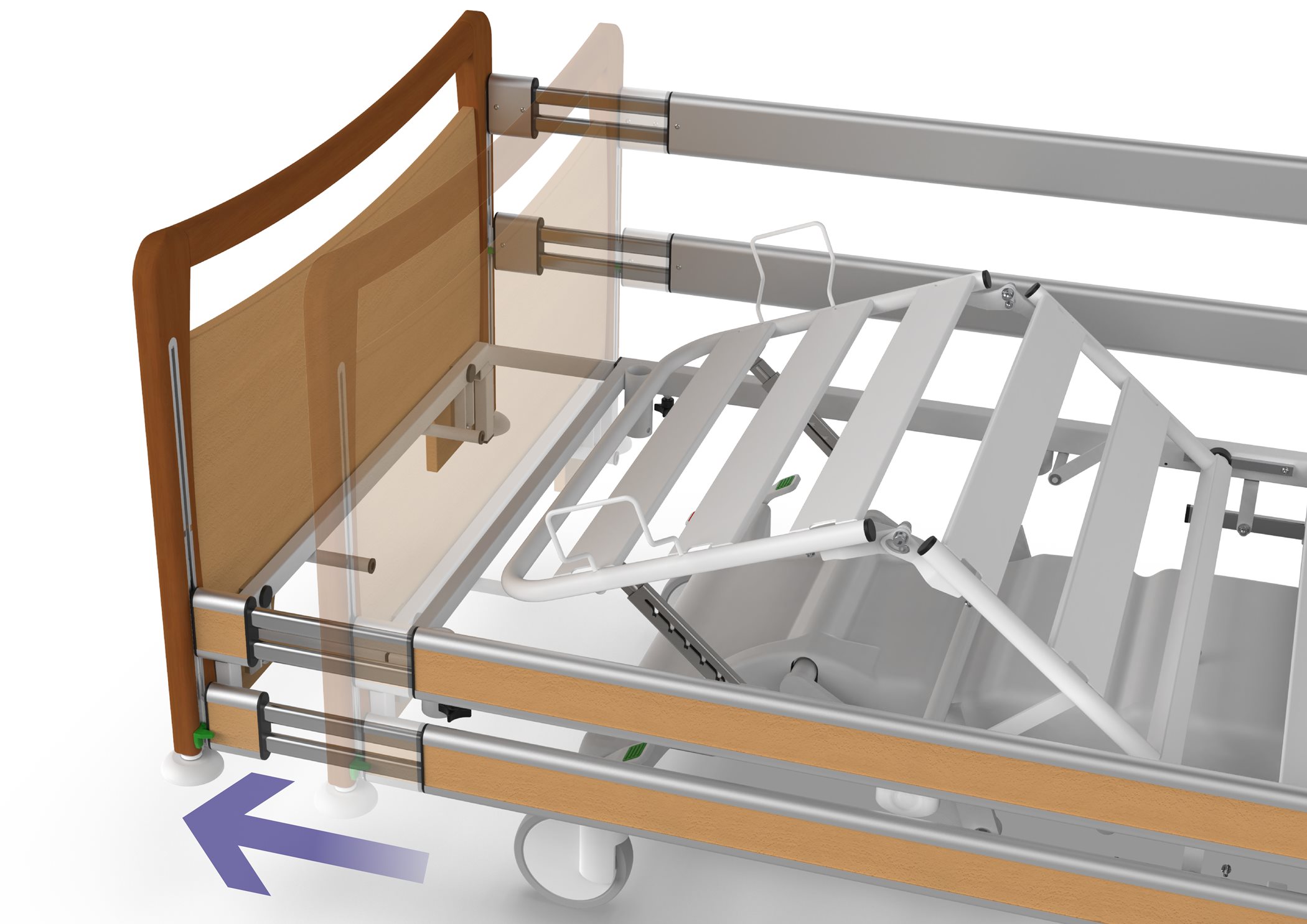

    Extension of the mattress platform

    Extending the mattress platform increases comfort even for taller patients and makes it easier for staff to handle the patient.

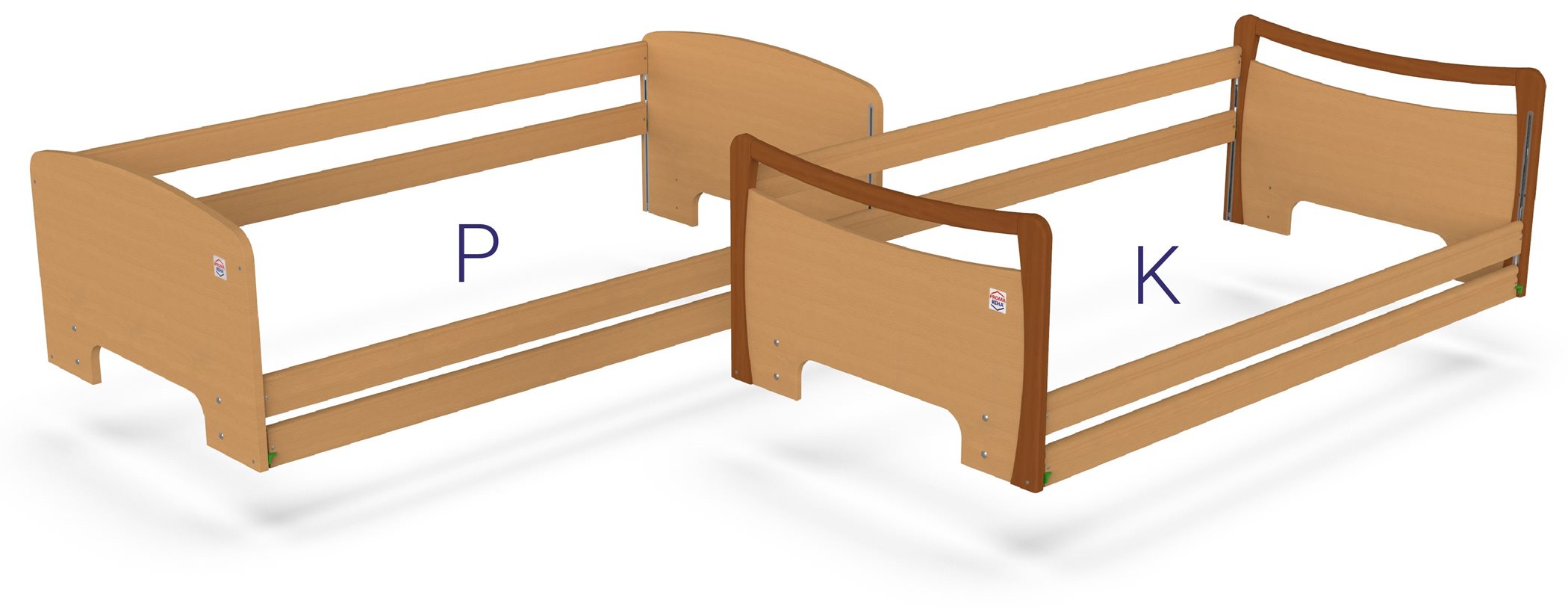

    Choice of bedheads

    We offer you two types of design bedheads in several different decor variants.

    Type of design

    The choice of color design for nursing beds allows clients and nursing staff to create an aesthetic and welcoming space that can help improve mood, comfort and reduce stress.

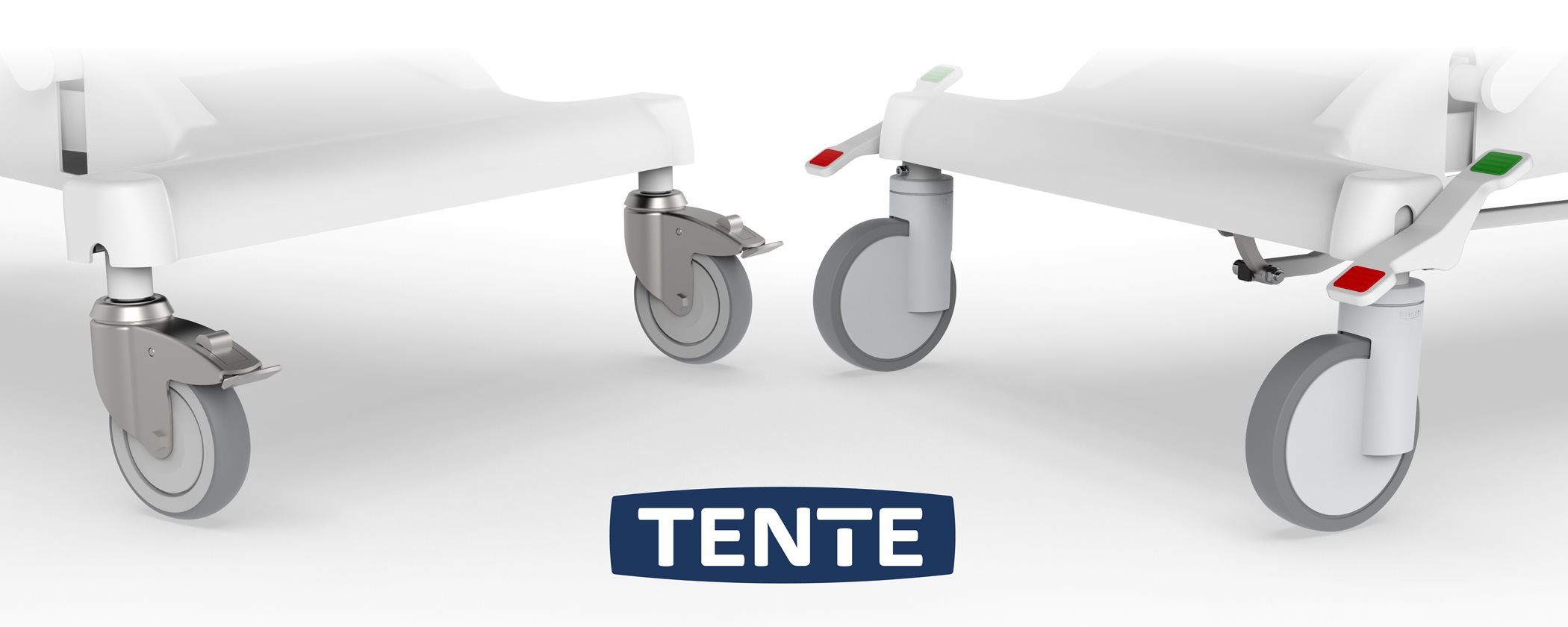

    Castors TENTE

    All PROMA REHA beds are equipped with TENTE branded castors.

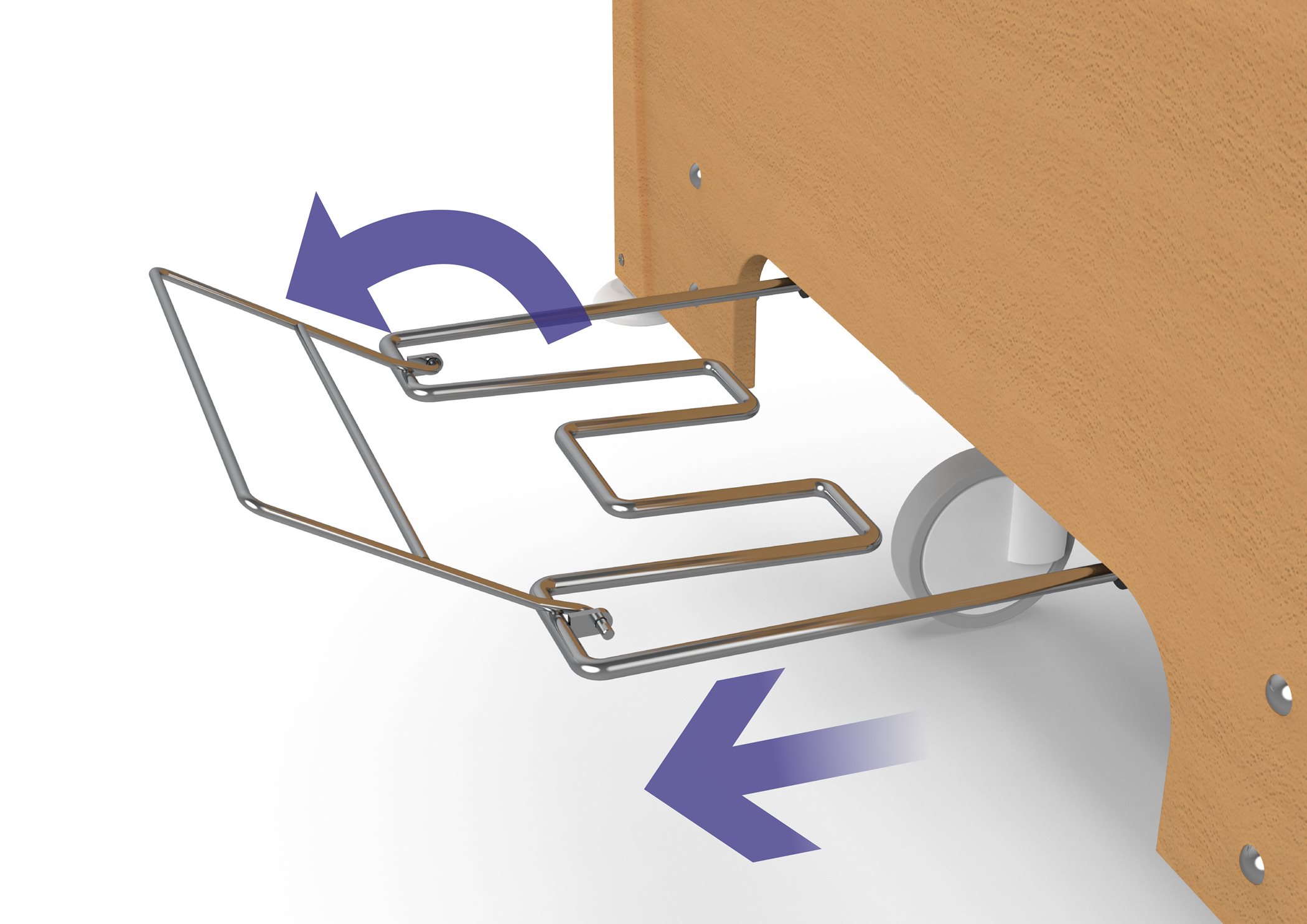

    Bed linen shelf

    The pull-out shelf is a great tool for changing bed linen. The shelf can be used to protect the nurse control from damage or unauthorized use.

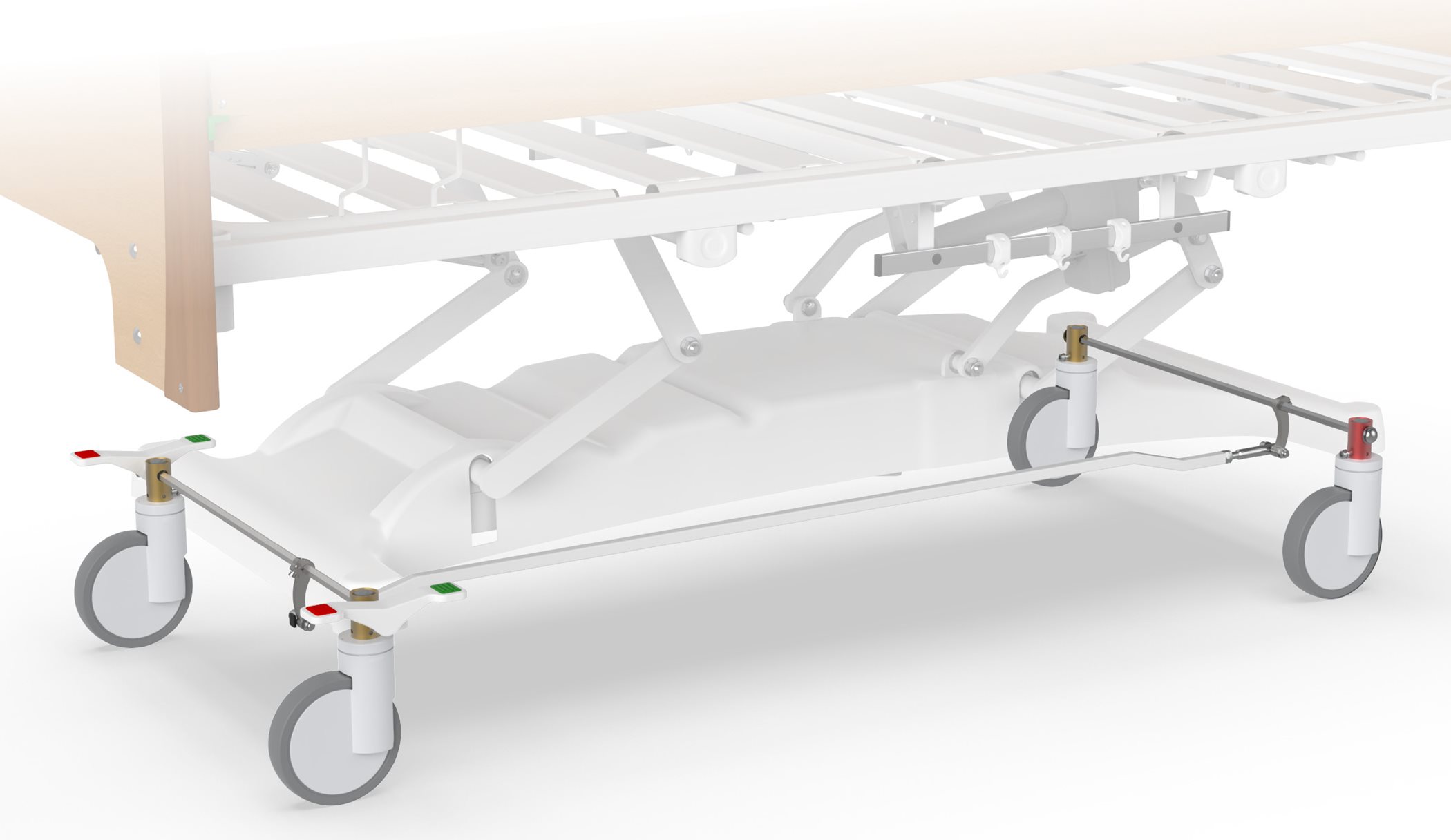

    Central brake

    Safe handling of the bed is ensured by a centrally operated brake. Thanks to the possibility of locking one wheel in the straight direction of travel, the bed can be easily operated by only one person during transport.

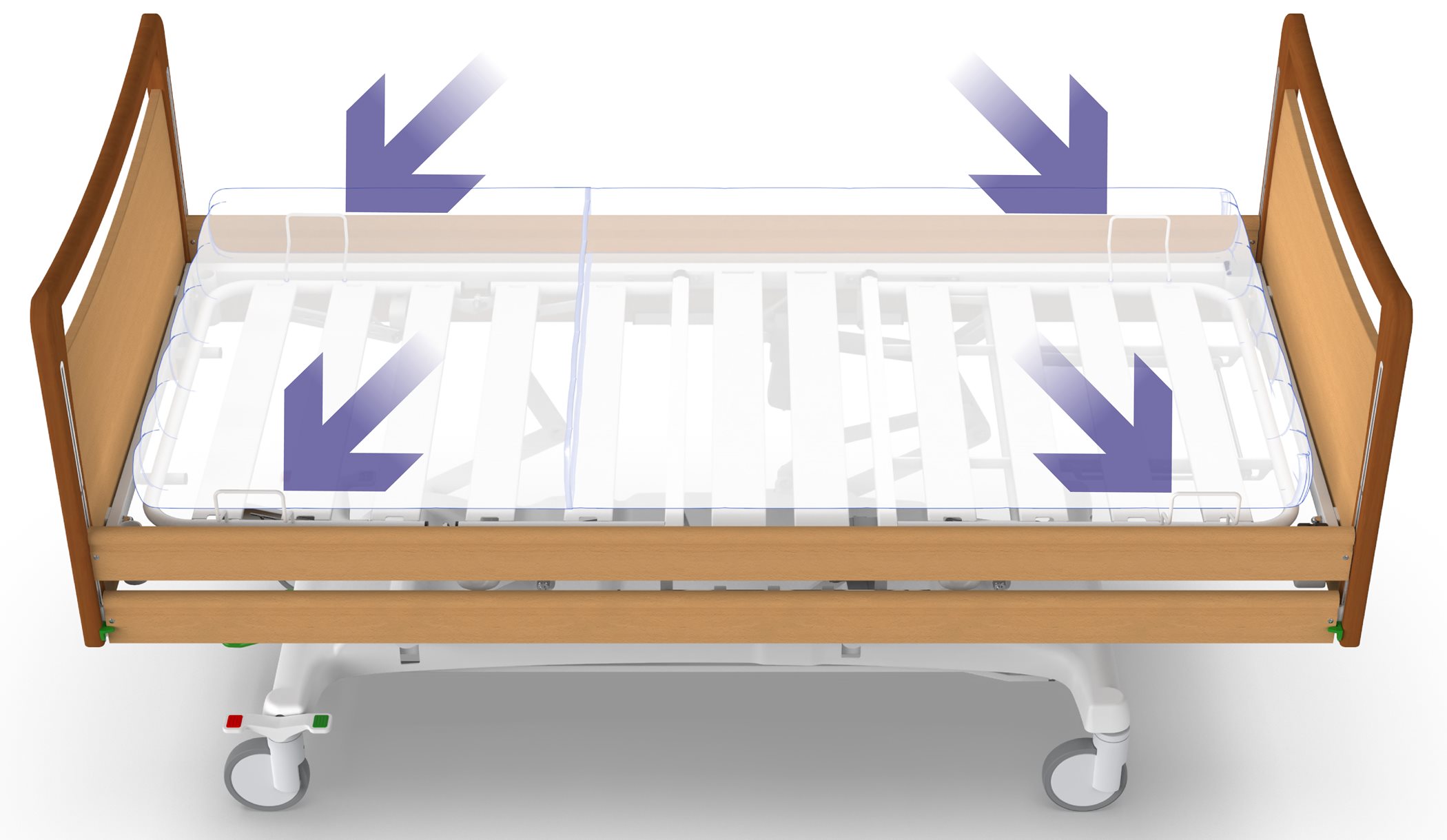

    Mattress holders

    The mattress holders ensure the optimal position of the mattress when positioning the mattress platform.drzaky-matrace-01.jpg

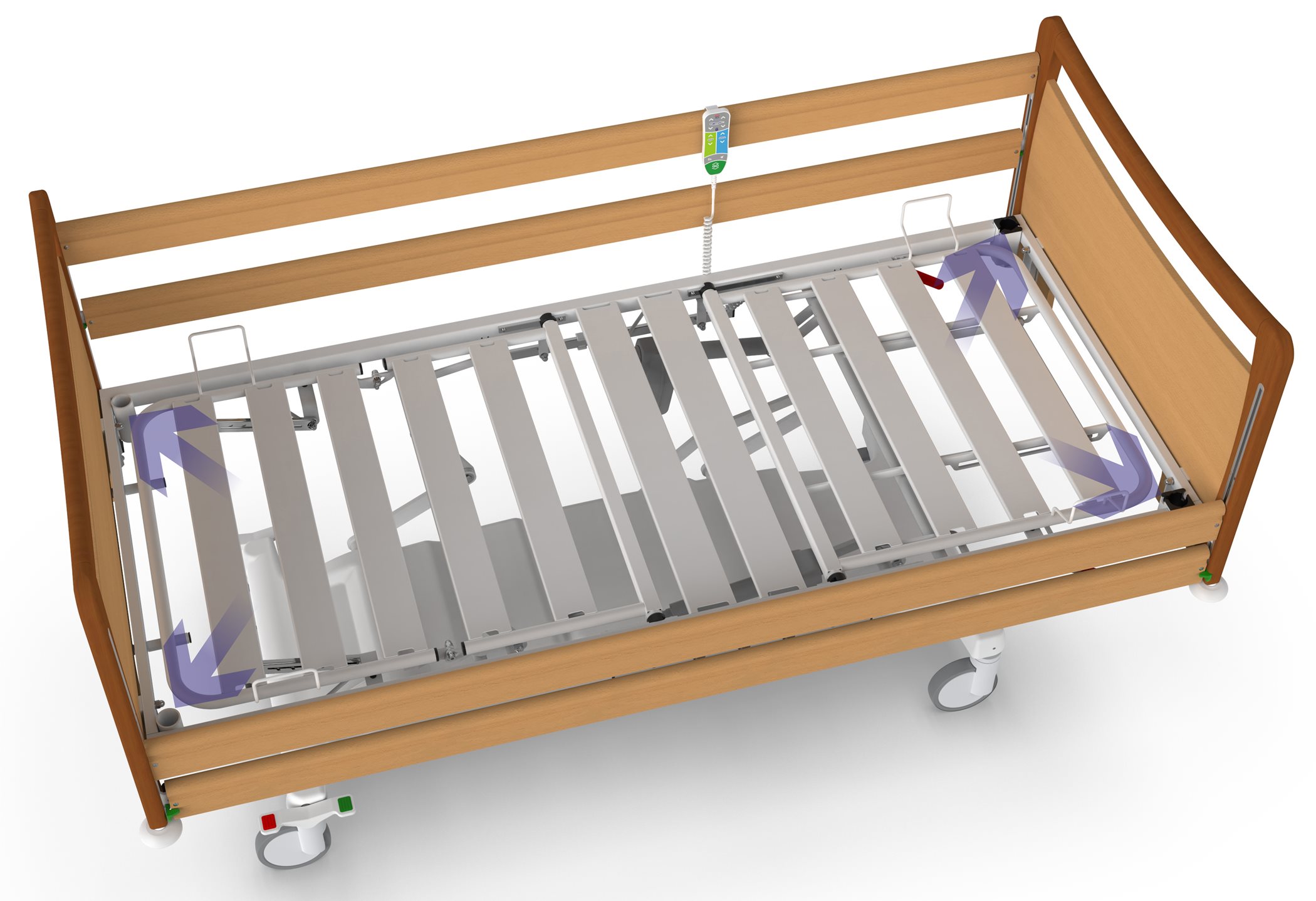

    Universal accessories holders

    Two are located at the head board and two at the foot board. They allow the use of accessories such as: lifting pole and handle, IV pole, monitor holder, additional side rails, bedside lamp or extension kit.drzaky-prislusenstvi.jpg

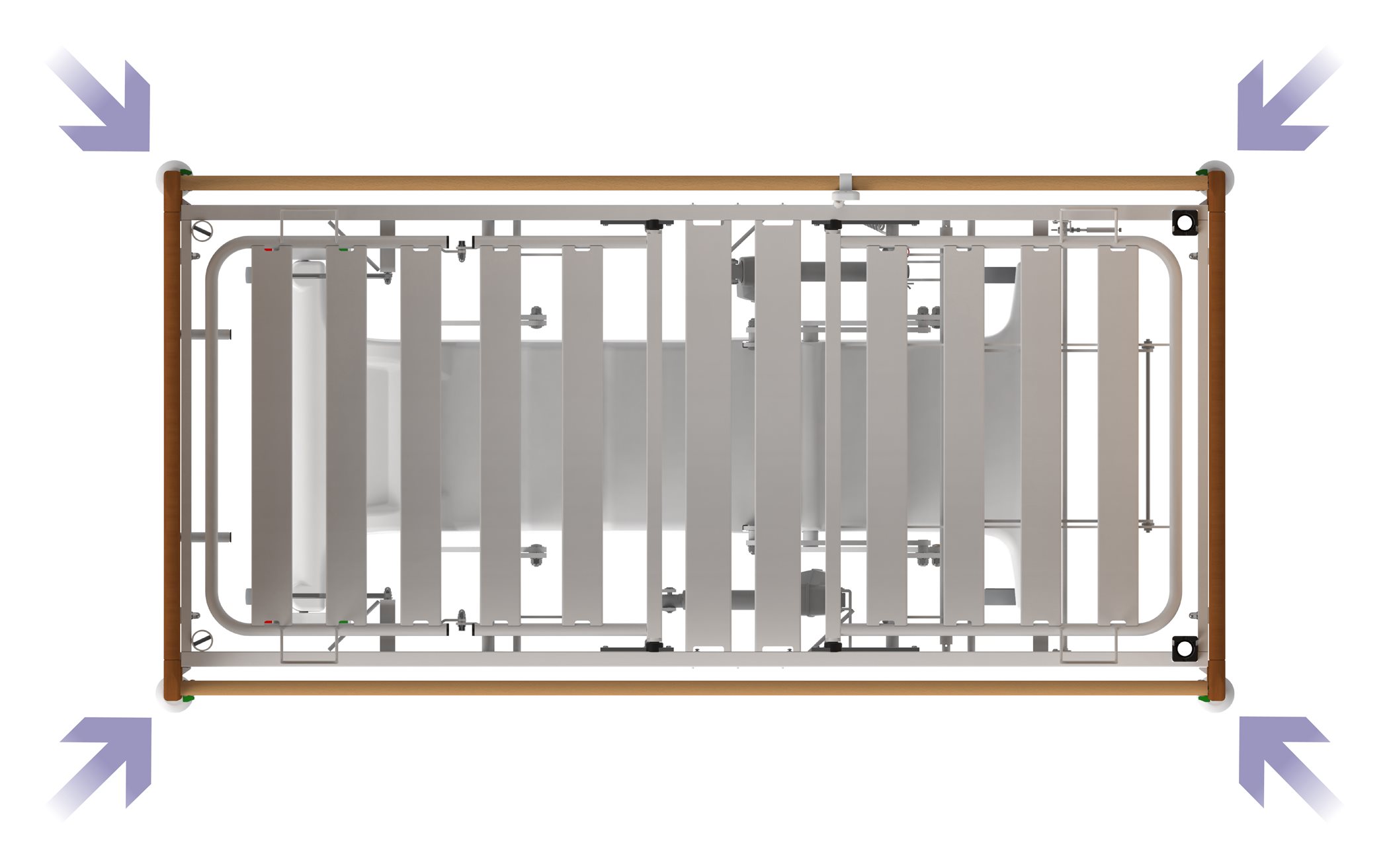

    Bumper wheels

    The bumper wheels located at the four corners of the bed are a great help especially during transport.narazova-kolecka.jpg

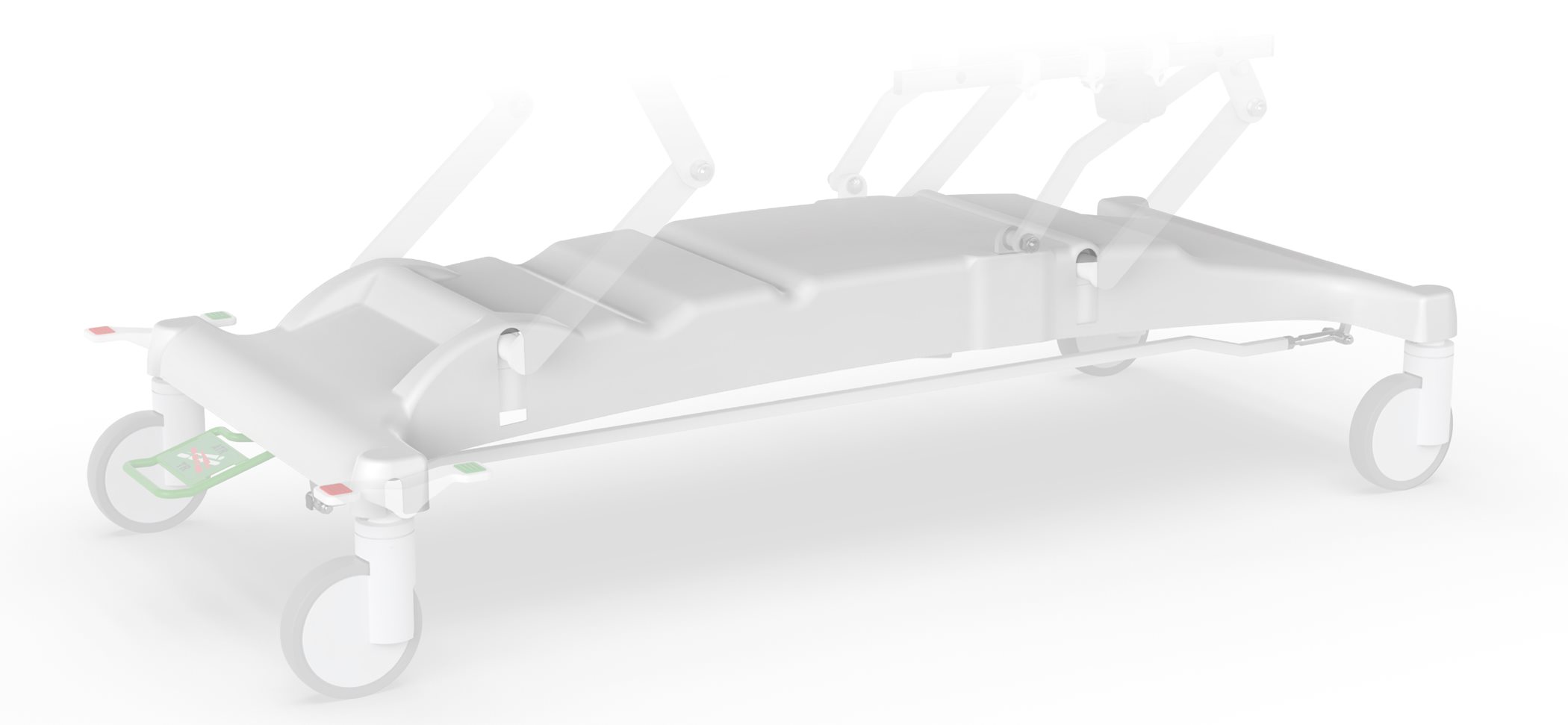

    Plastic chassis cover

    Facilitates and speeds up daily cleaning of the bed. Protects the mechanisms and electrical circuits in the chassis, thus extending the life and reliability of the bed.kryt-01.jpg

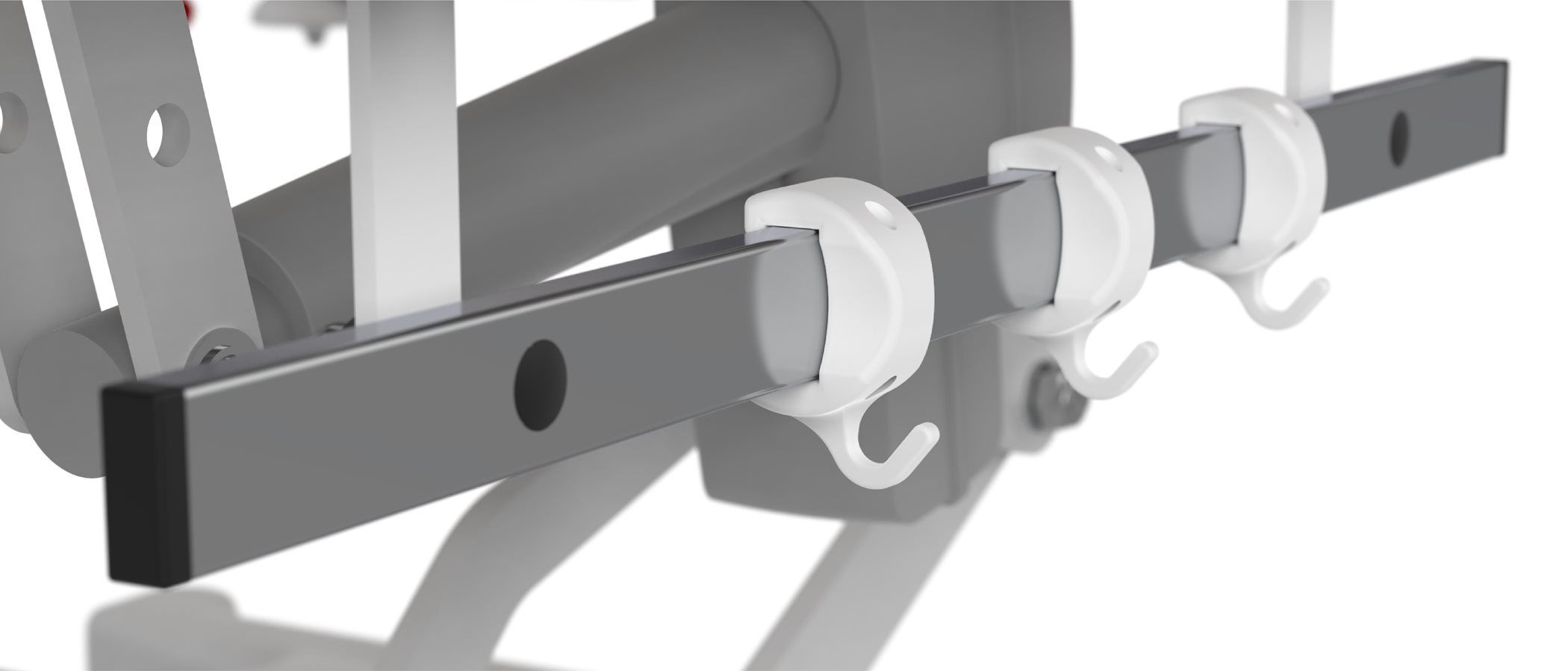

    Horizontal accessories holder

    The standardised stainless steel euro rail for hanging accessories is equipped with three universal plastic hooks on both sides of the bed.



    Technical parameters

    Mattress platform (length x width) 200 x 85 (90) cm
    Outer bed dimensions with bumper wheels (length x width)   206 (207) cm x 98 (103) cm
    Mattress platform height 39,5 - 78,5 cm
    Autoregression back part 12 cm
    Autoregression thigh part 6 cm
    Mattress platform extension 20 cm (optional)
    Weight of the bed 118 kg
    Safe operating load of the bed 250 kg
    Maximum patient weight 215 kg
    R-Ray back part Yes
    CPR back part Yes
    Application environment for bed use 3, 4
    Mattress platform parts - metal slats Yes (optional)
    Mattress platform parts - plastic lamellae Yes (optional)
    Type of bedheads - UNI P, UNI K Yes (optional)
    Type of siderails Removable
    Trendelenburg / Antitrendelenburg 15° / 14° (mechanical)
    Max. angles of adjustable sections - back part 70°
    Max. angles of adjustable sections - thigh part 40°
    Max. angles of adjustable sections - calf part 25° (rastomat)


    Bed equipment

    Castors Plastic, metal (optional)
    Bumper wheels Yes (optional)
    Central brake Yes (optional)
    Horizontal accessory holder   Yes 2x (optional)
    Plastic hook    Yes 6x (optional)
    Plastic chassis cover Yes (optional)
    Universal accessory holder Yes 4x
    Bed linen shelf Yes (optional)
    Patient control Yes
    Backup battery Yes (optional)
    Aretation of bedheads Yes


    Mattress

    Recommended mattress (lenght x width) 200 x 90 (85) cm
    Mattress thickness in normal using   14 cm
    Recommended minimal mattress size 12 cm
    Recommended maximal mattress size  22 cm
