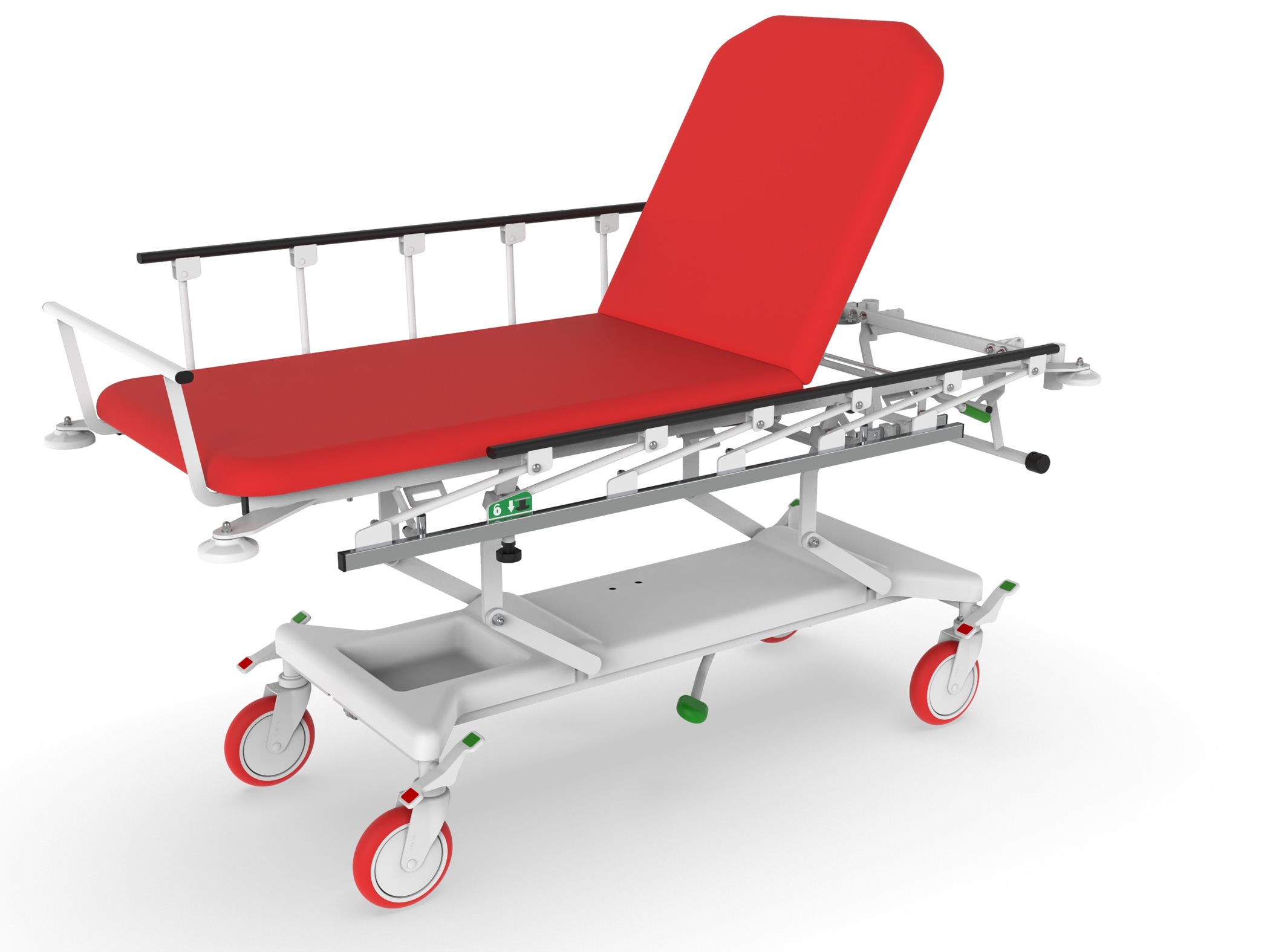

URGENT

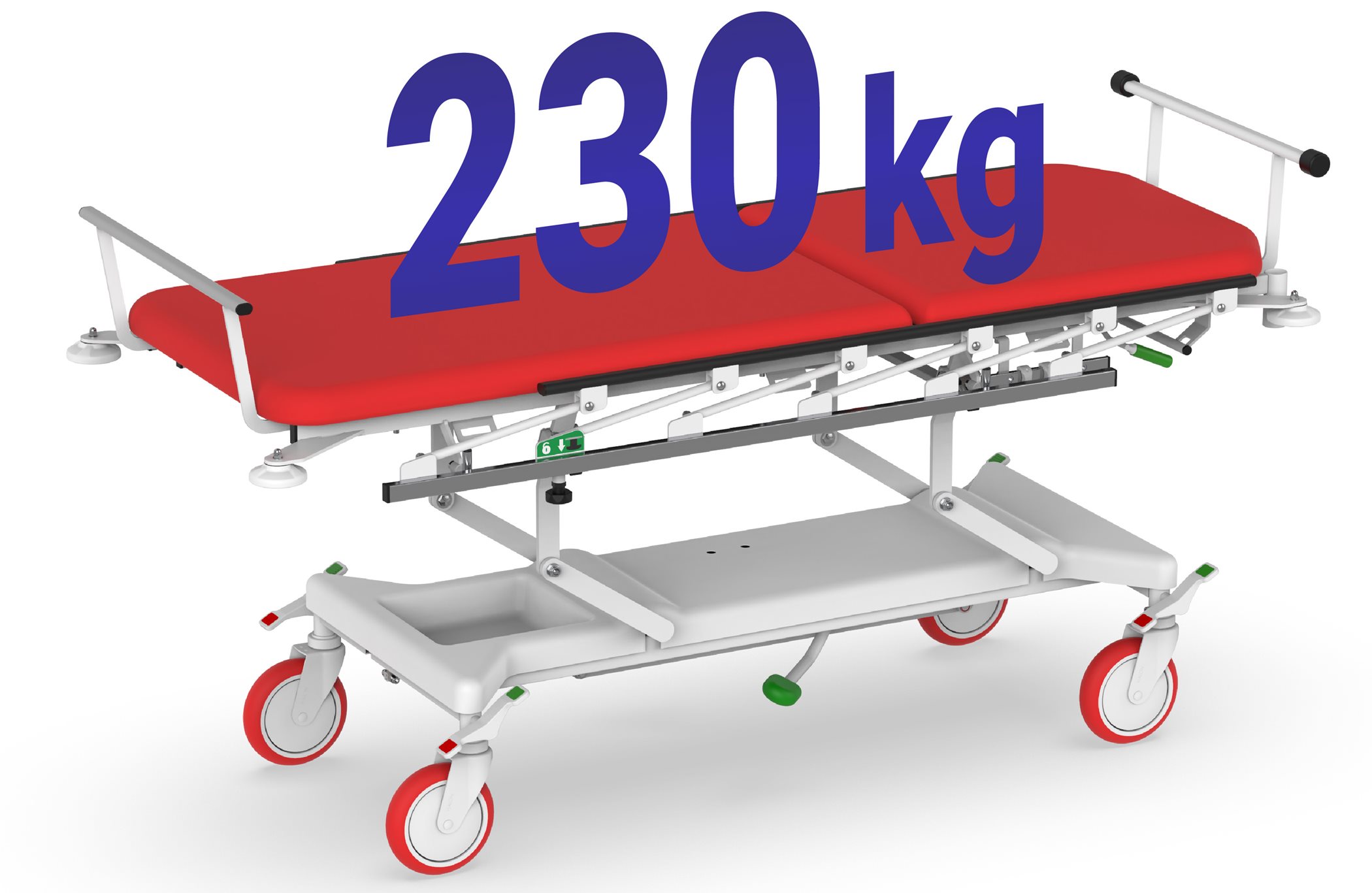

High load capacity
The solid and robust construction with a load capacity of up to 230 kg forms a secure support for patient care.

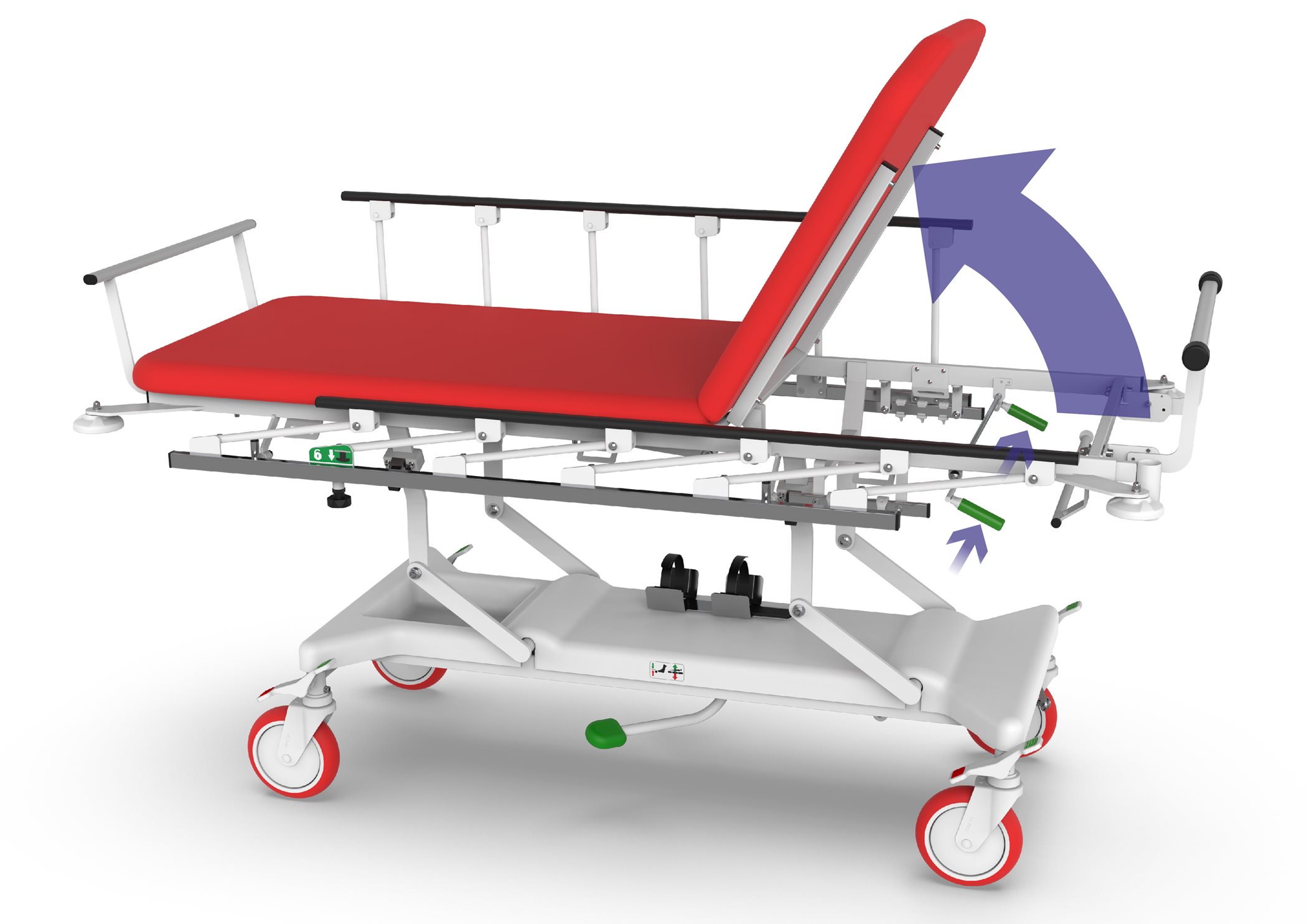

Comfortable positioning
The adjustment of the backrest is facilitated by a gas spring mechanism, which allows for instant positioning without physical effort. The medical staff can conveniently set individual positions using control levers located on both sides of the stretcher.

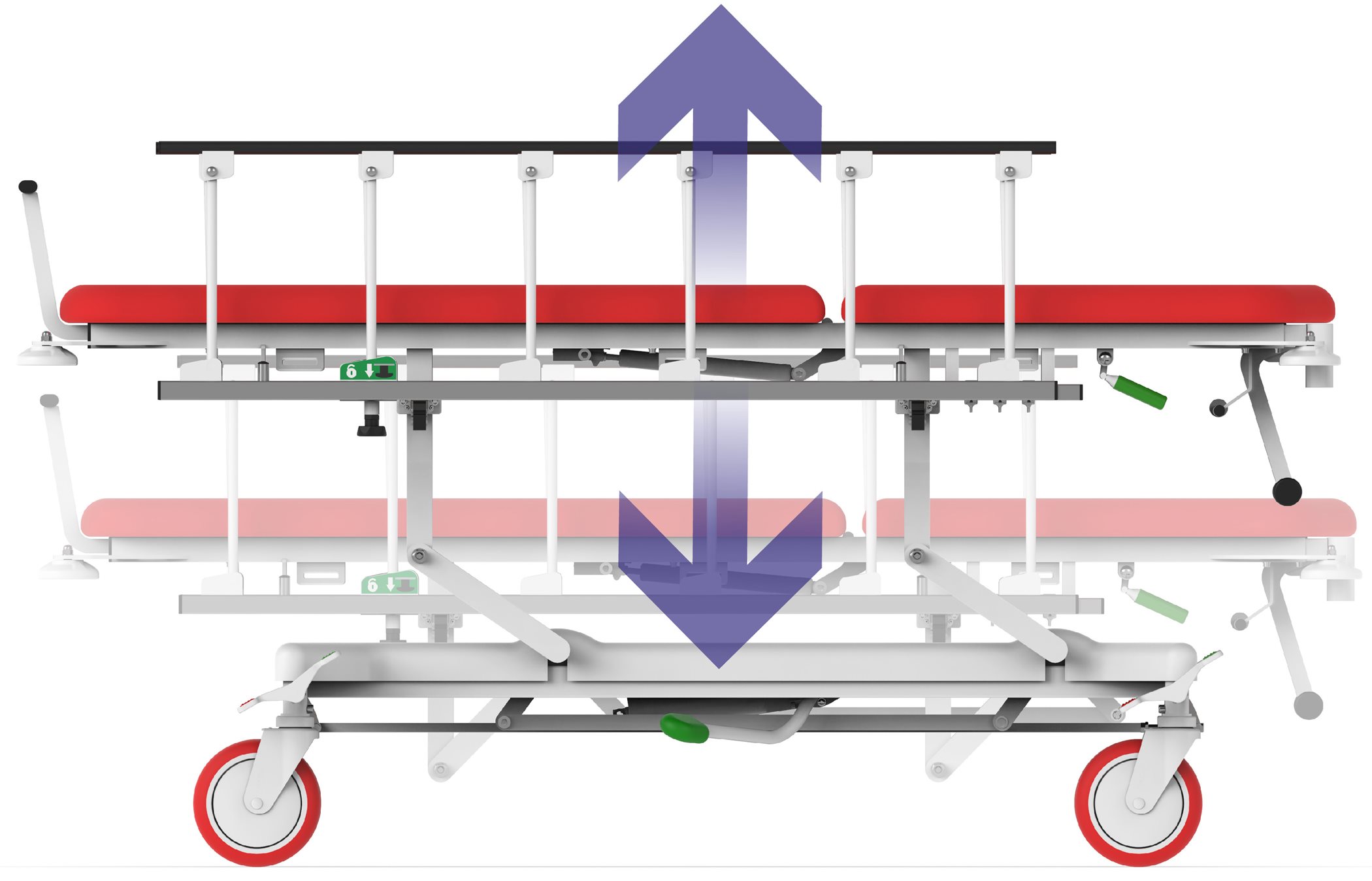

Easy height adjustment
For easier access to the patient, the couch is equipped with a hydraulic lift of the mattress platform ergonomically located in the middle of the couch.

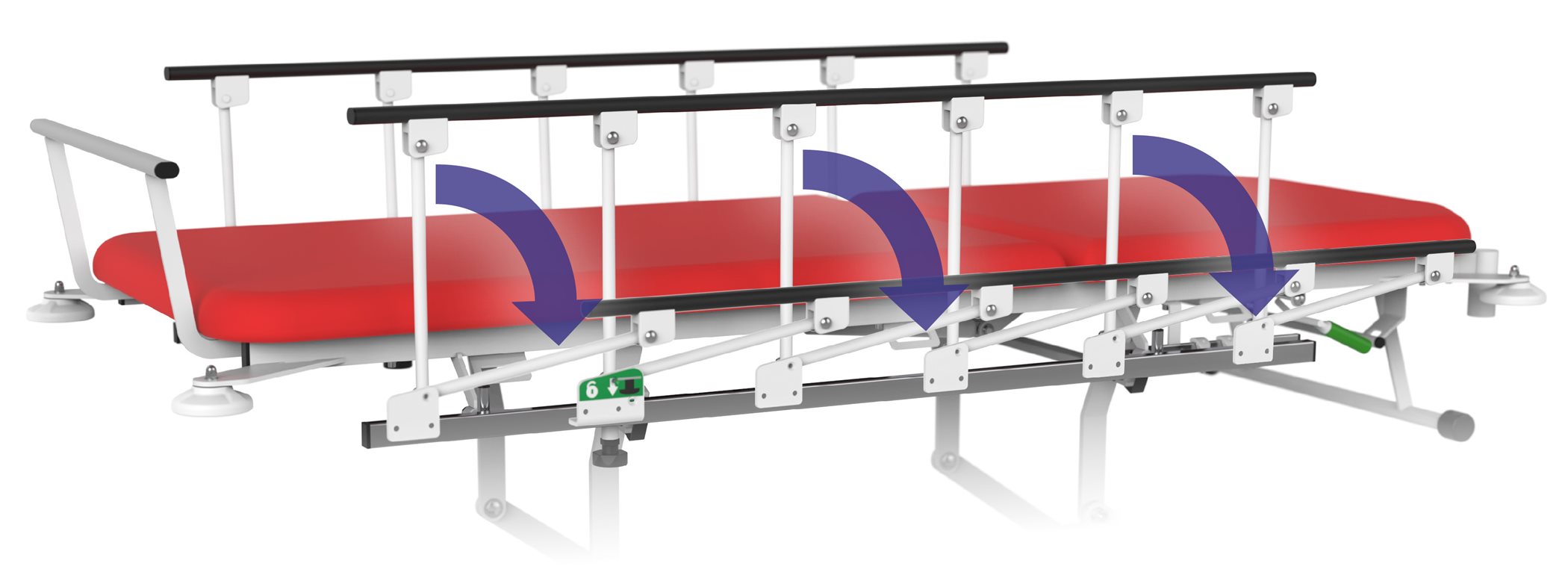

Safe side rails
The protective side rails along the mattress platform can be easily folded down to provide immediate access to the patient. Thanks to the SAFE GAPS safety system, the risk of pinching or trapping the arm during folding is eliminated.

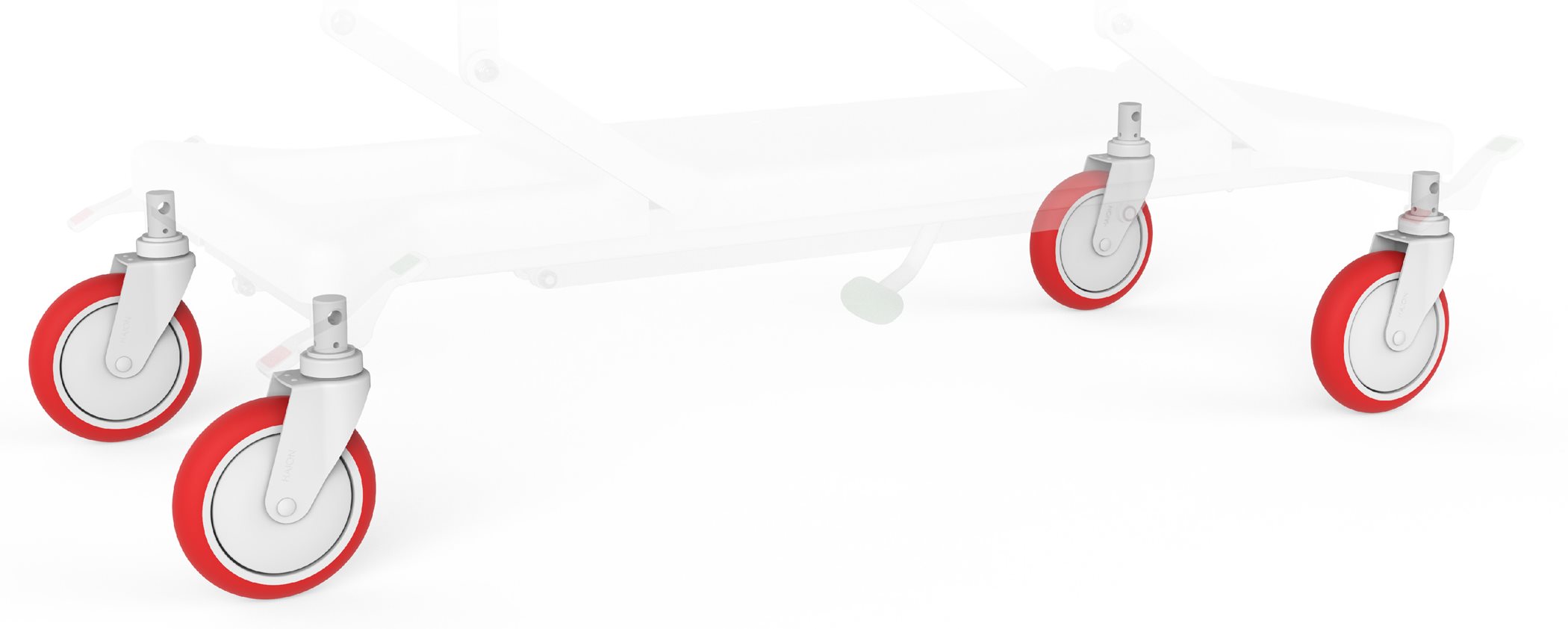

TENTE brand castors
High-quality anti-static medical castors, also suitable for outdoor use, reduce physical strain on medical staff during transport and handling. The castors are made of permanent non-marking material. The covers of the castors facilitate cleaning, protect the bearings from dirt and significantly extend their service durability.

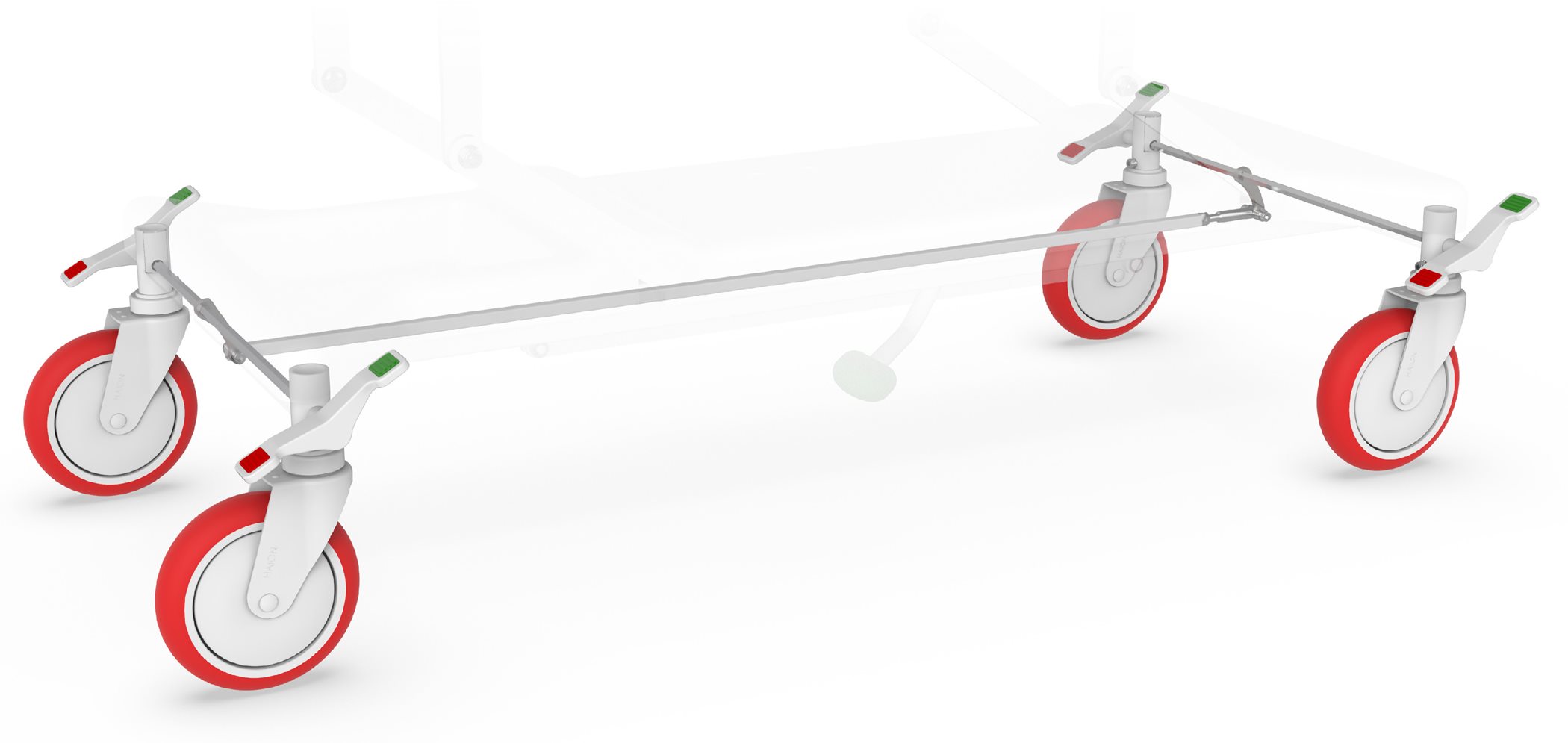

Central brake
The central brake pedals, accessible at both the head and foot sections, allow safe and quick braking. Thanks to the possibility of locking the castors in the straight direction of travel, the stretcher can be easily operated by only one person during transport.

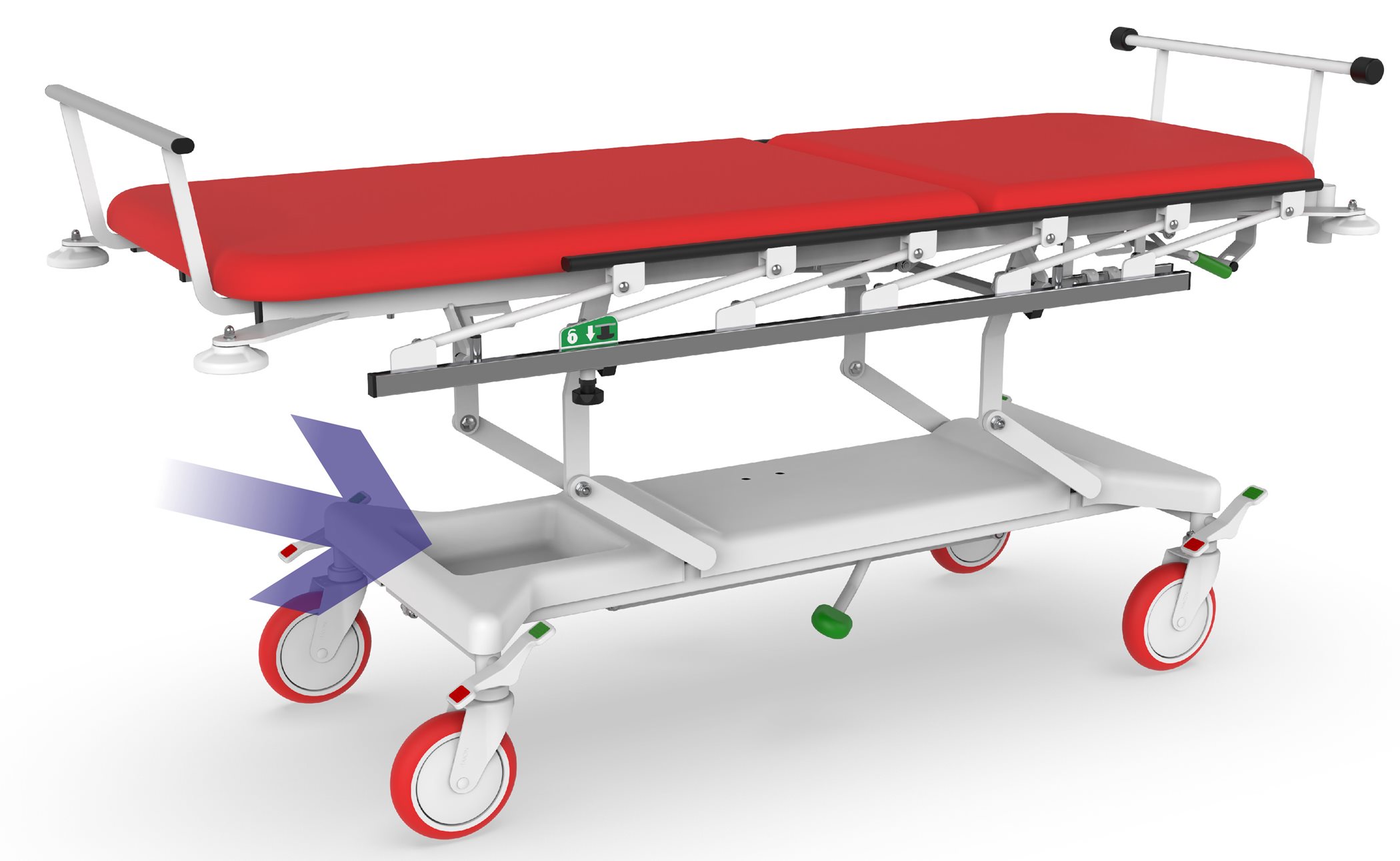

Storage space
The patient's personal belongings or necessary accessories can be stored in the compartment under the mattress platform.
Paper roll holder
The hygiene paper roll holder can be found under the mattress platform.

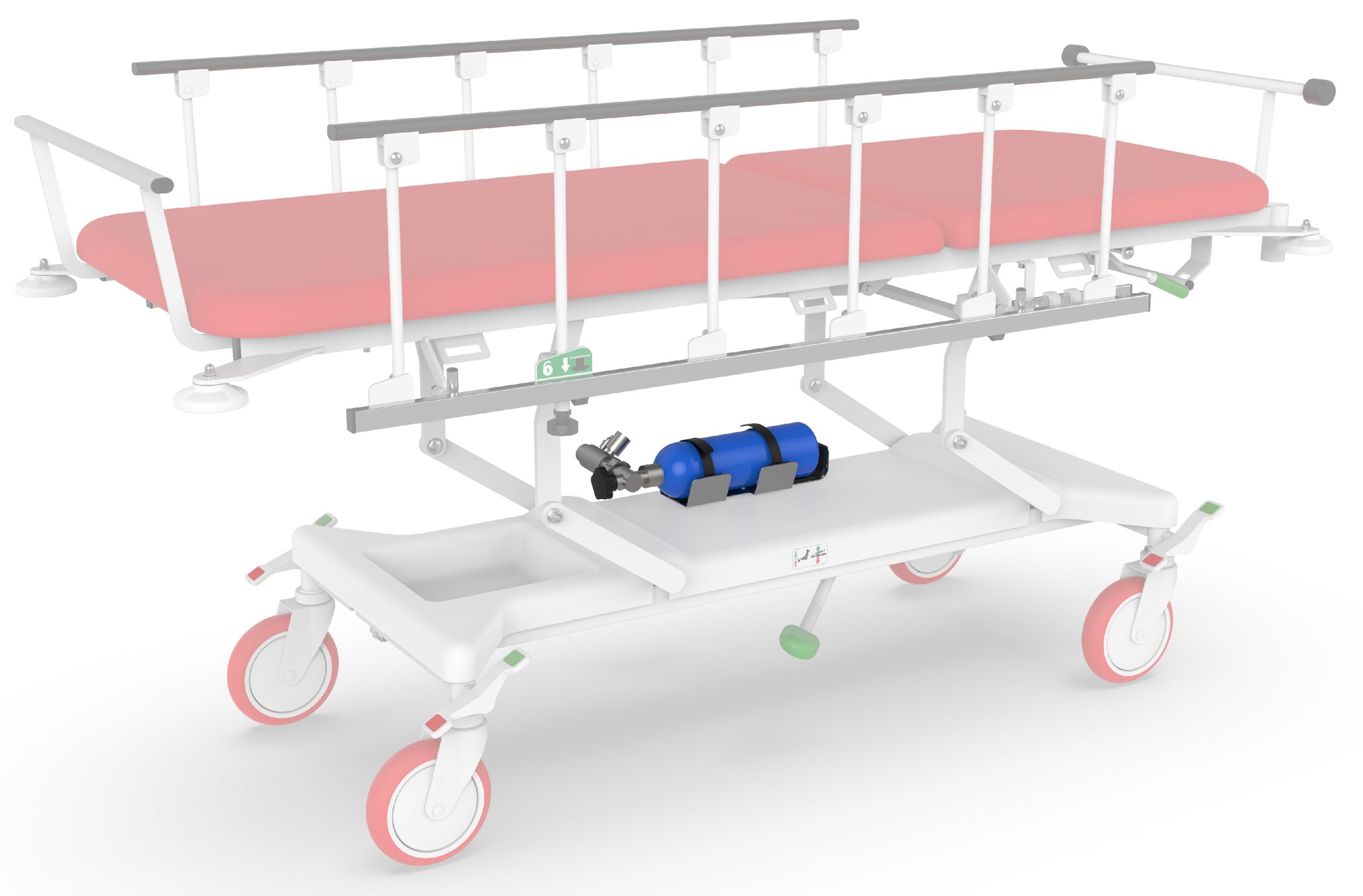

Oxygen bottle holder
The oxygen bottle can be safely stored and transported thanks to the special holder below the mattress platform.

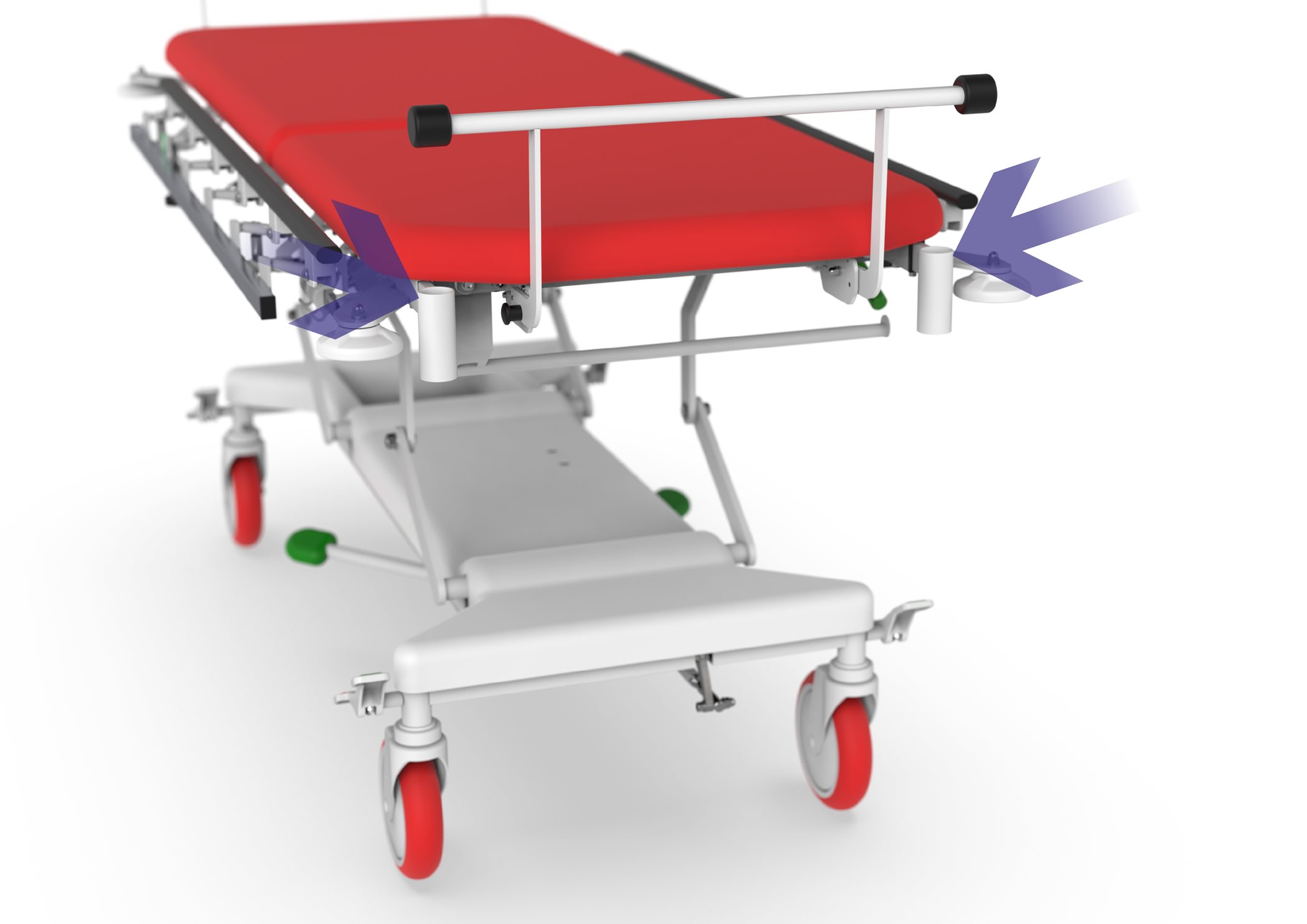

Universal accessory holders
Compatibility of the stretcher with accessories is ensured by means of universal holders located at the head part. They allow the use of the most common accessories such as infusion stands or monitor holders. When not in use, the infusion stand can be simply stored in the special holder below the mattress platform.

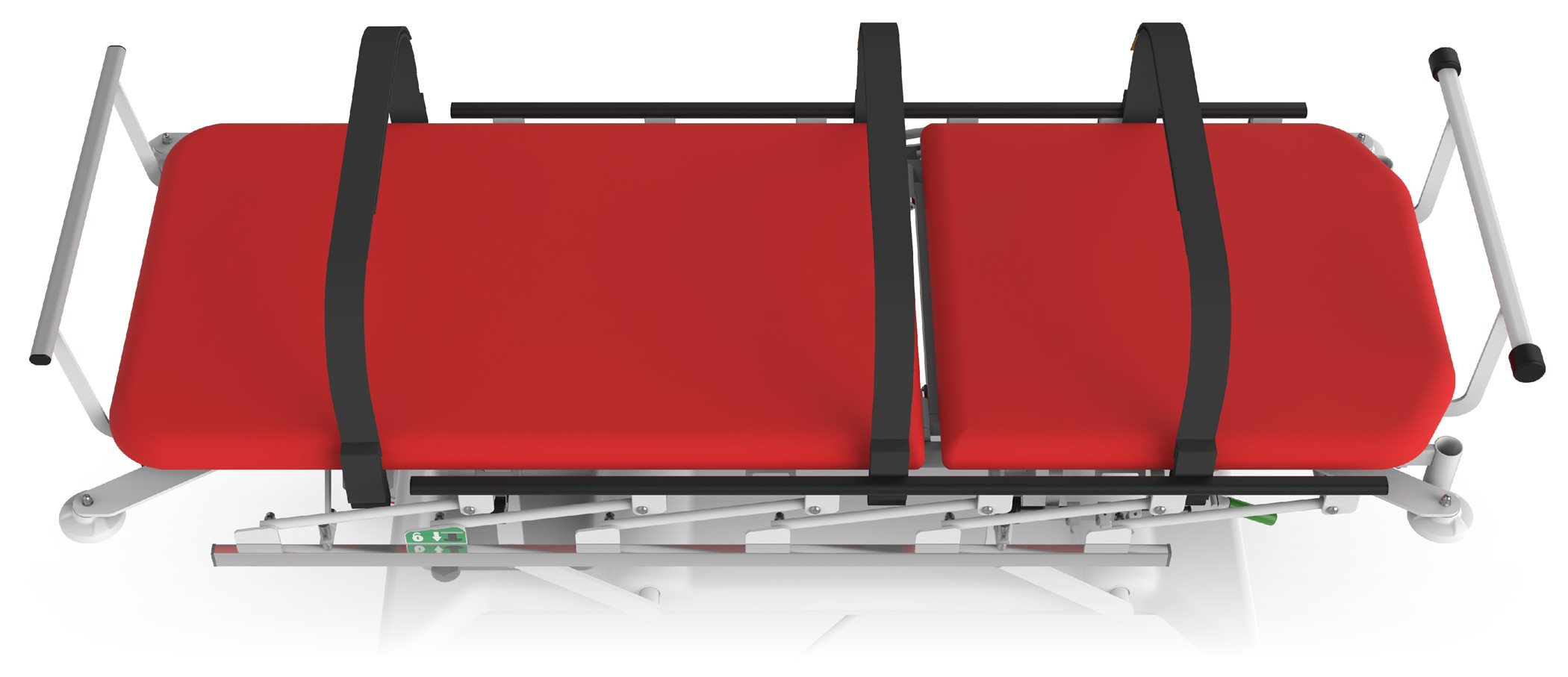

Fixation belt set
A set of three fixation belts is used to secure the patient to the bed during transport, ensuring safe movement.

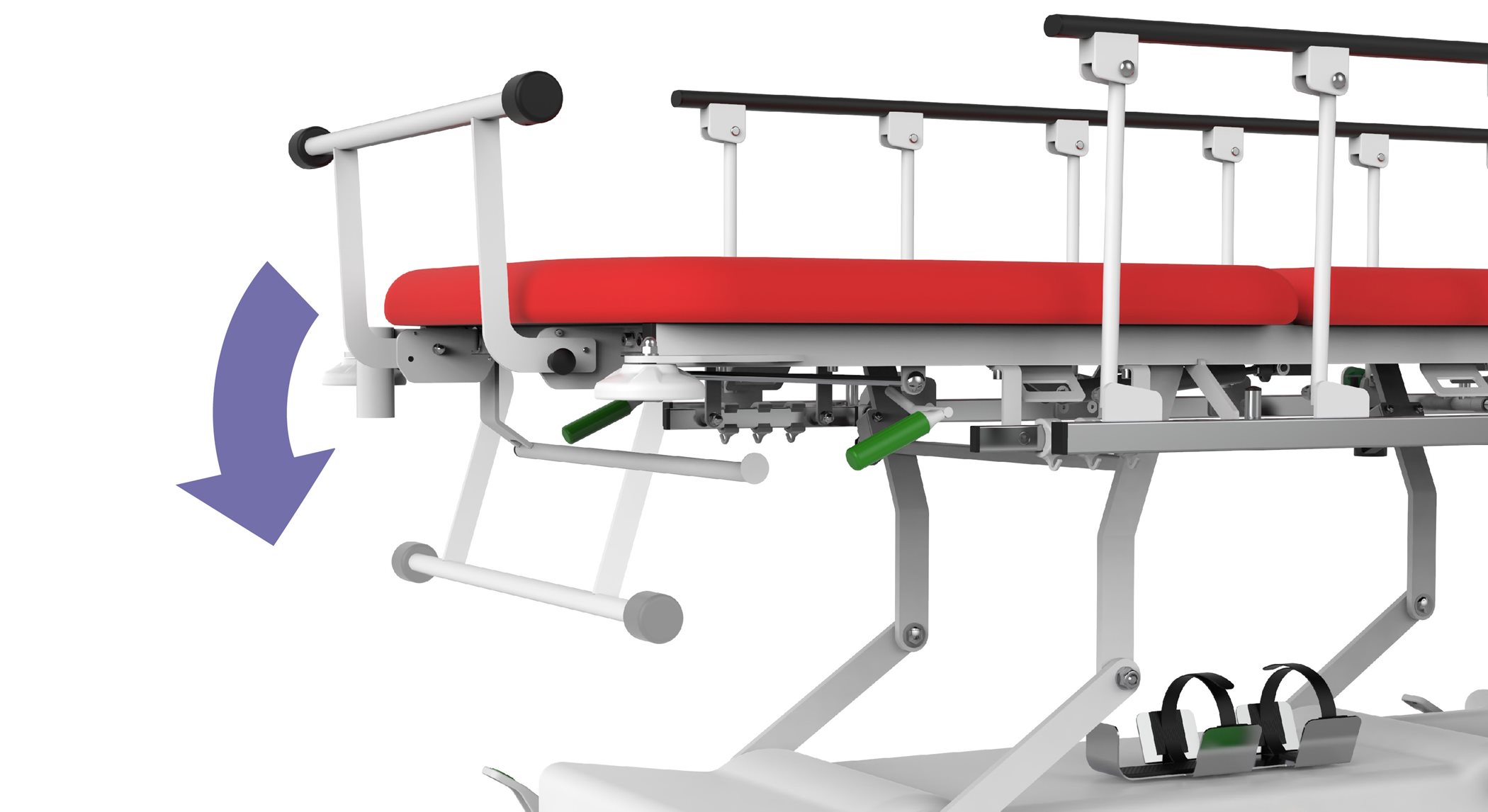

Foldable transport handle at the head section
The transport handle behind the patient's head allows quick folding when necessary.

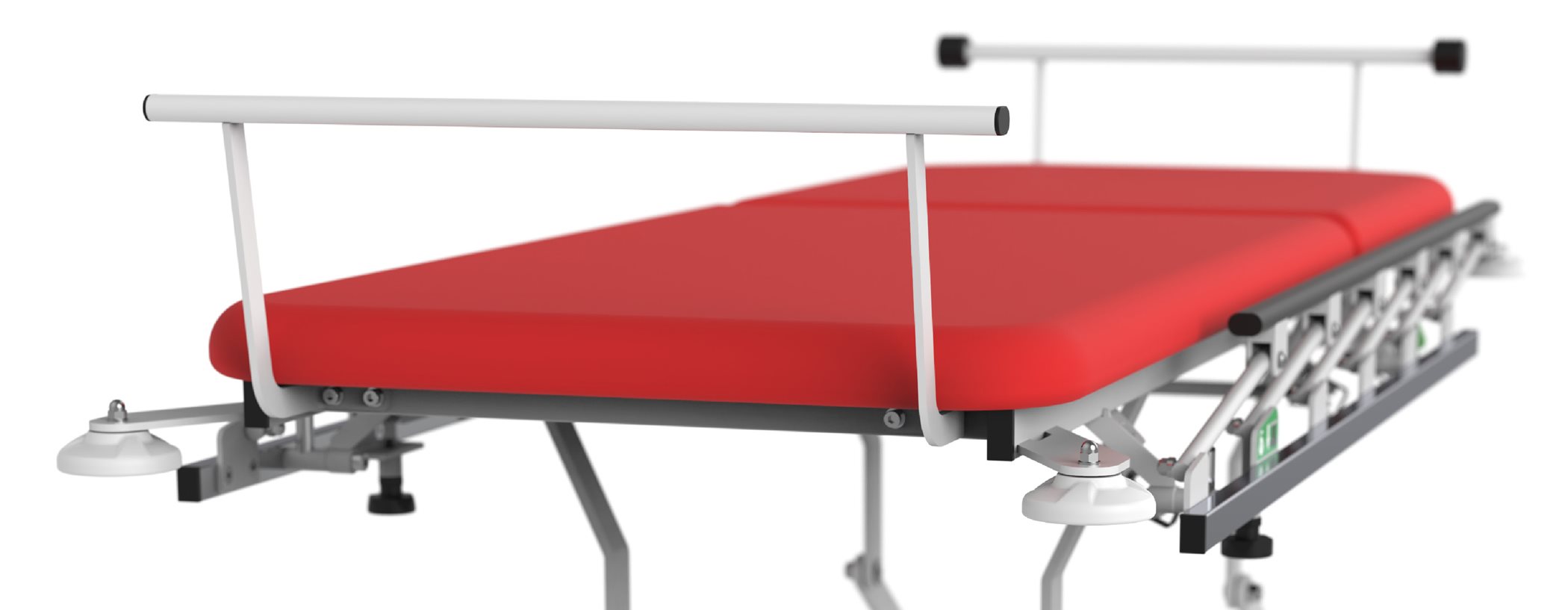

Transport handle in the foot part
For easy patient transport, the stretcher is equipped with a handle in the foot part.

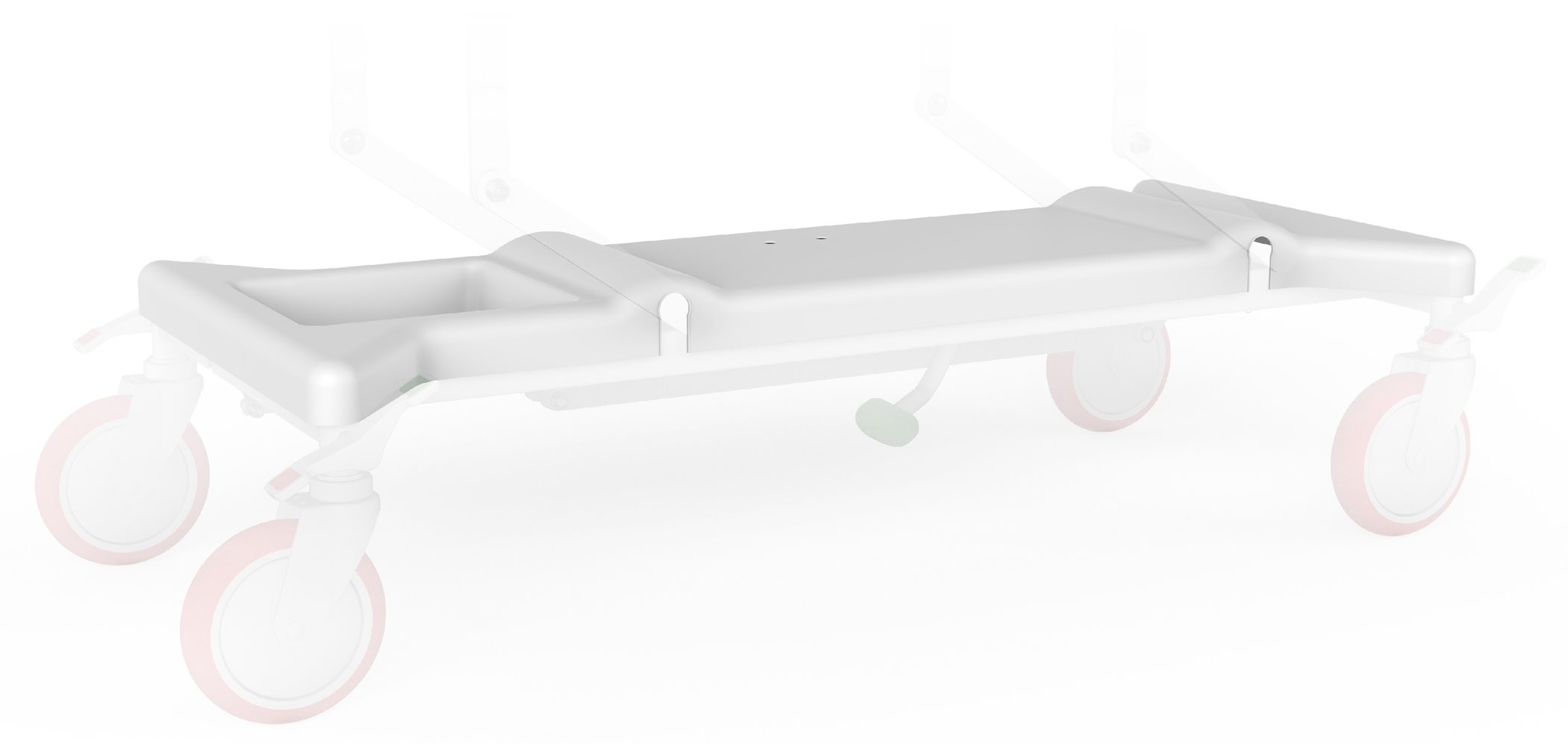

Plastic chassis cover
The plastic cover makes daily cleaning of the stretcher easier and faster. It also protects the chassis mechanisms, thus extending the life of the individual components and the overall reliability of the stretcher.

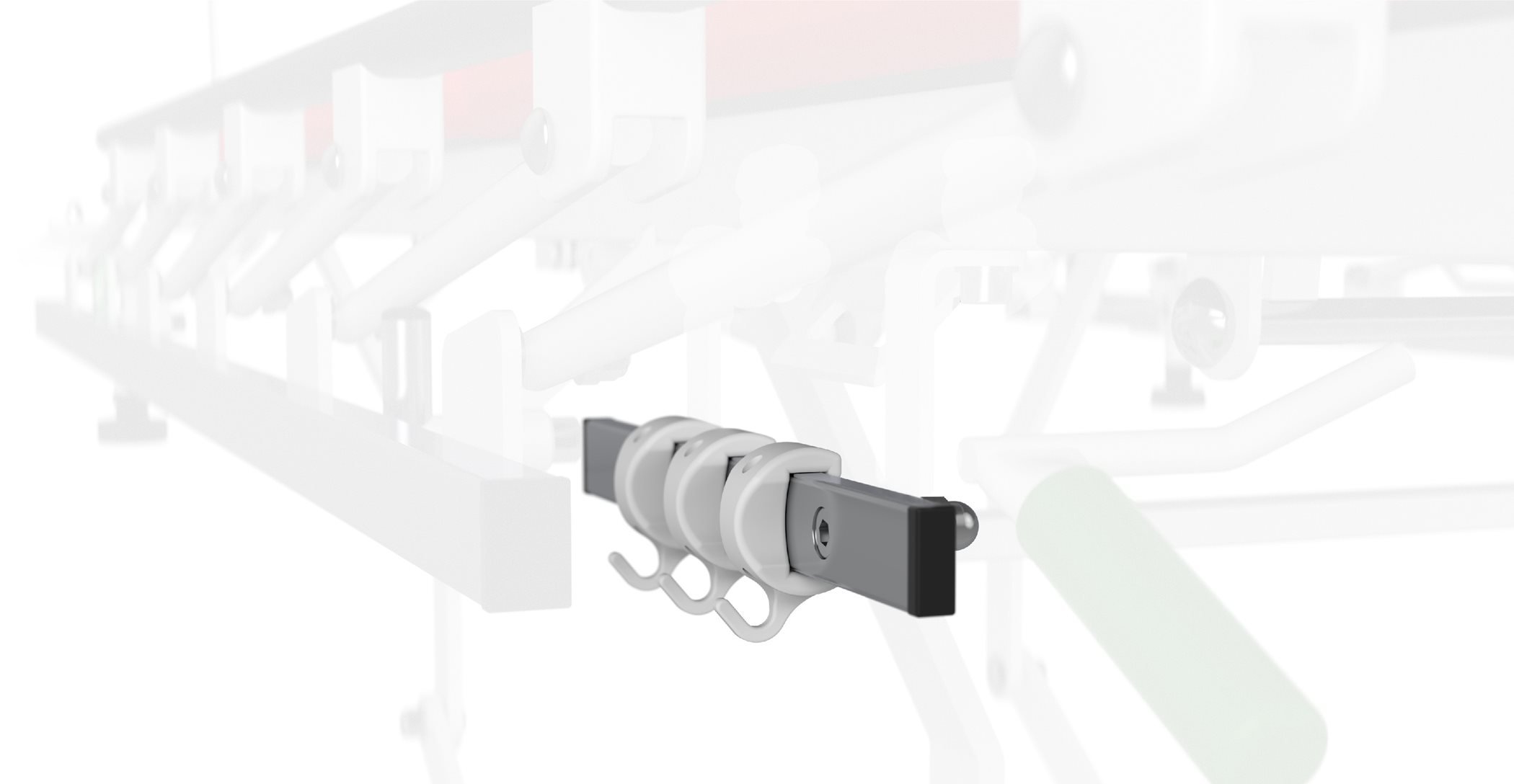

Horizontal accessories holder
The standardized stainless steel euro rail for hanging accessories is equipped with three universal plastic hooks on both sides of the stretcher.

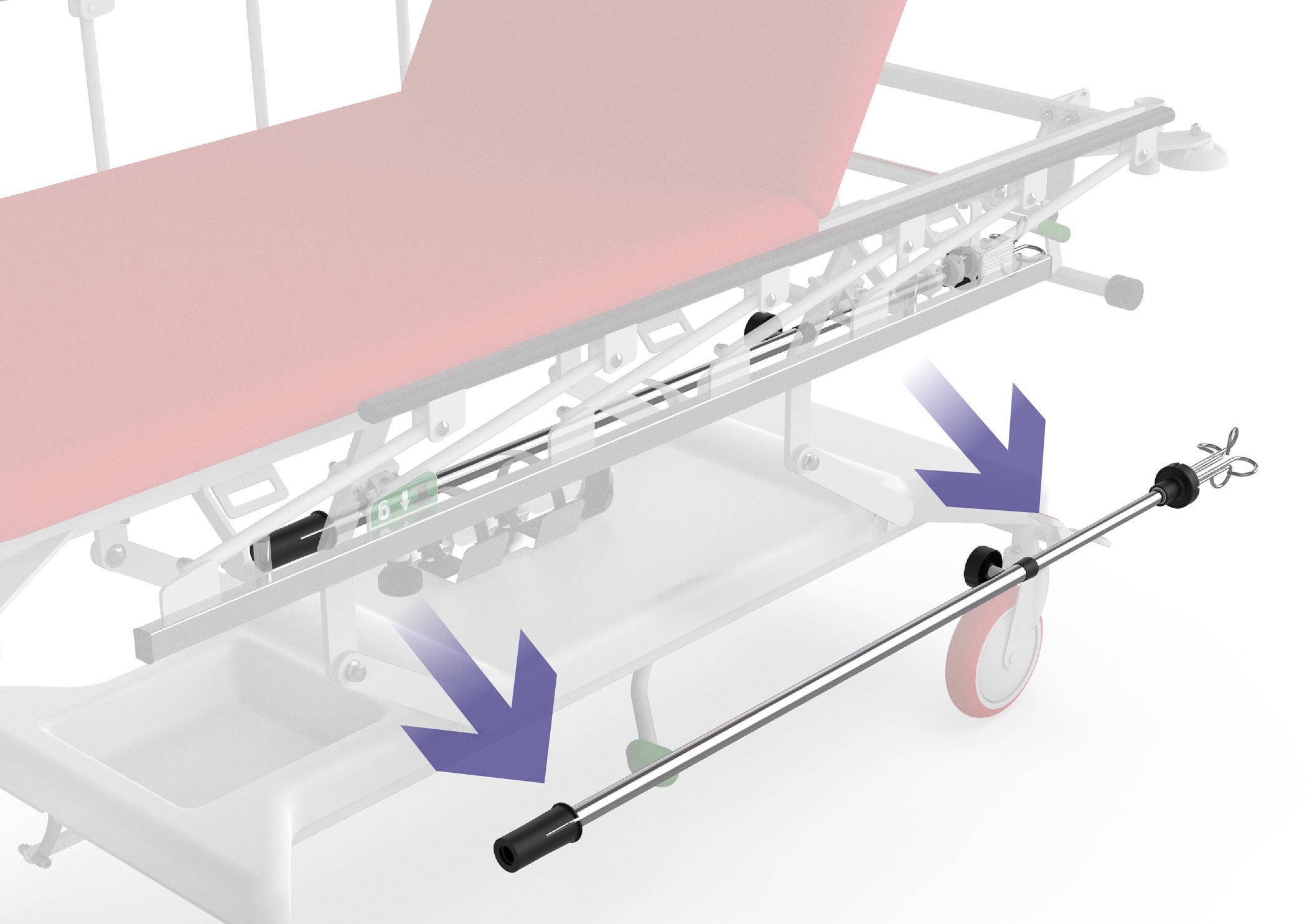

Infusion stand transport holder below the mattress platform
The infusion stand holder is conveniently placed below the mattress platform so that it is always immediately available.

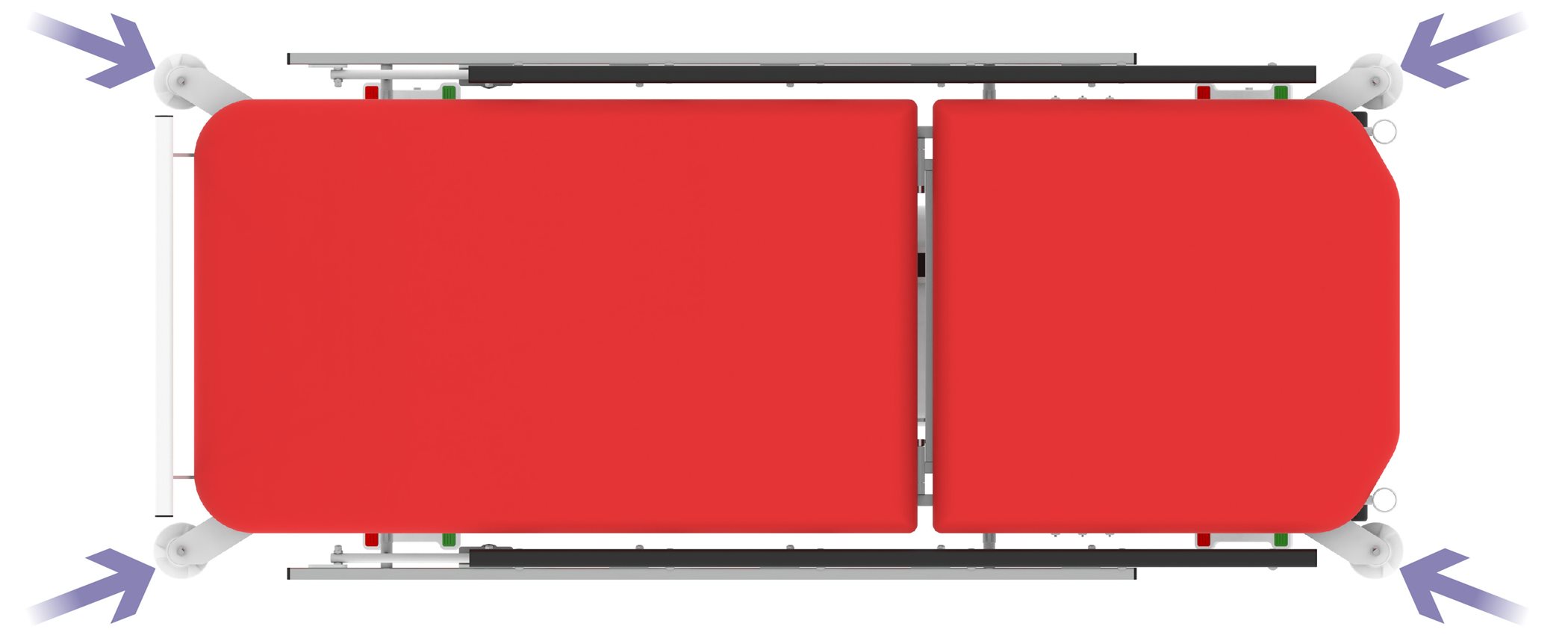

Bumper wheels
The bumper wheels located at the corners of the mattress platform are a great help especially during transport.

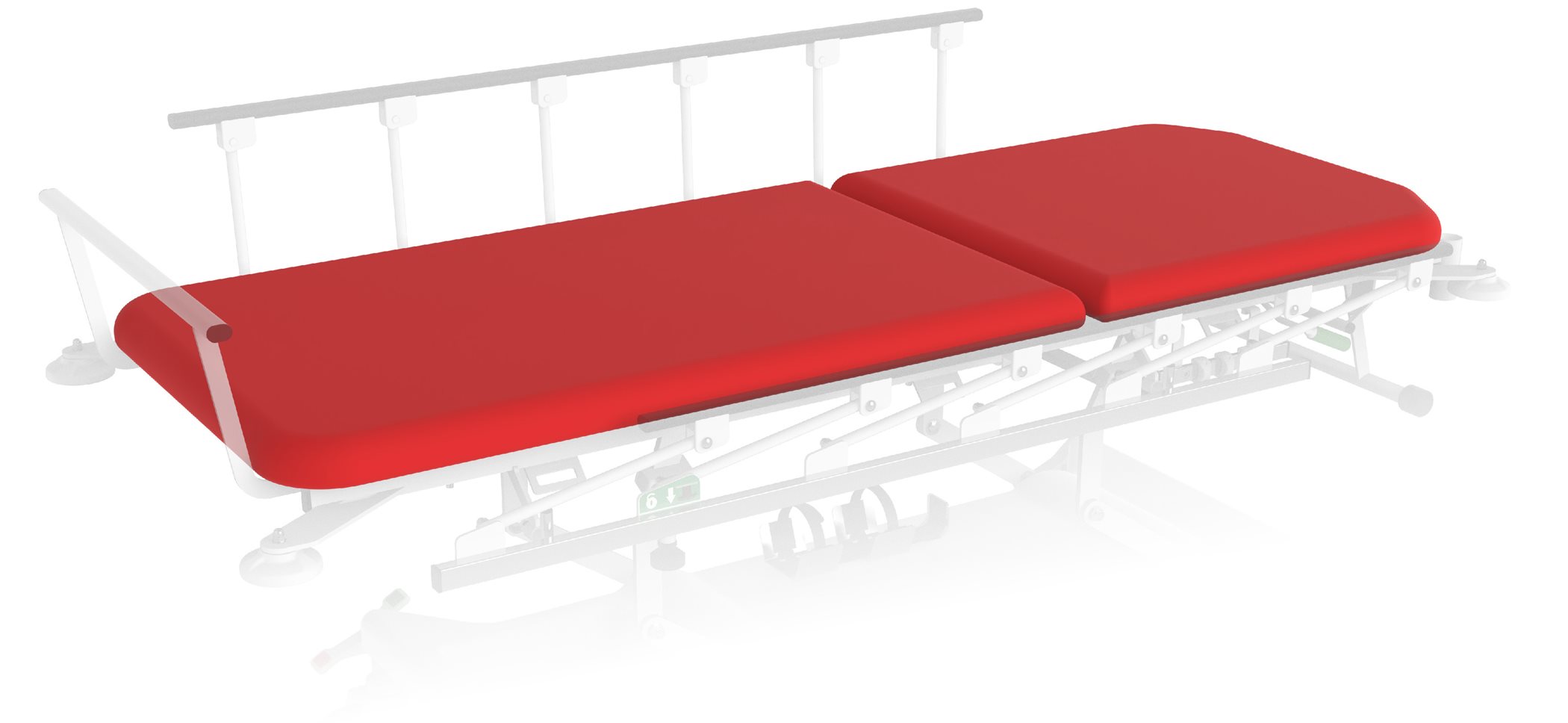

Mattress made of medical leatherette
The comfortable mattress is upholstered in medical leatherette, which has anti-static protection with antimicrobial properties.

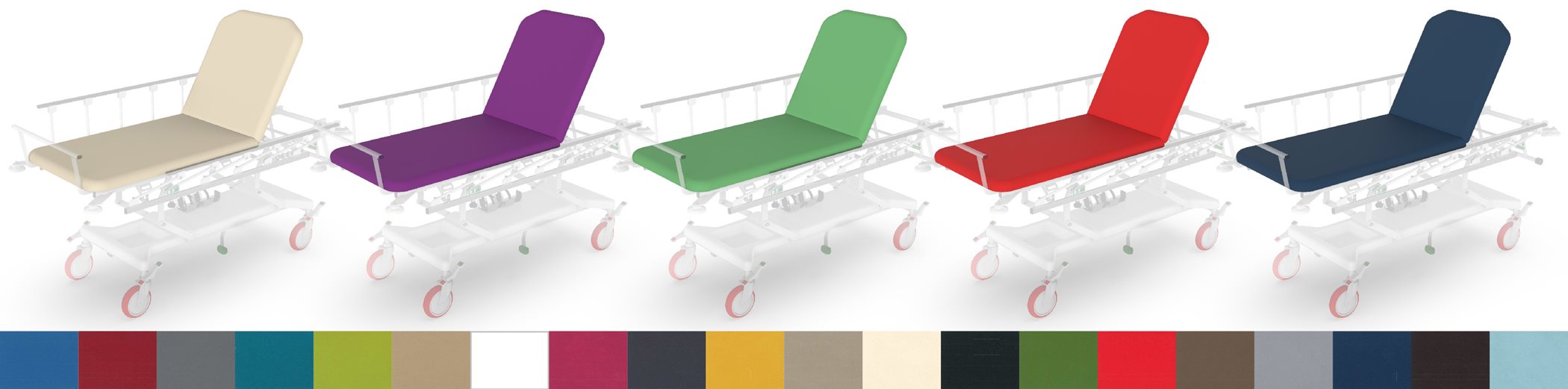

Choice of colour
The choice of colour design for the leatherette of the couch allows patients and staff to create an aesthetically beautiful and inviting space that can help improve mood, comfort and reduce stress.
Technical parameters
Outer dimensions | 208 x 88 cm |
---|---|
Dimensions of mattress platform | 200 x 72 cm |
Mattress platform positioning | Hydraulic |
Backrest positioning | 0° - 85° |
Backrest mechanism | Piston rod |
Safe operating load | 230 kg |
Maximum patient weight | 195 kg |
Weight | 90 kg |
Mobile | Yes |
Type of side rails | Folding, hinged, stainless steel |
Castors | Metal, 200 mm |
Brake type | Central |
Mattress platform material | Upholstered medical leatherette |
Fixation belt set | Yes |
Transport handle at head | Yes |
Horizontal accessories holder | Yes |
IV pole holder | Yes |
Infusion stand transport holder below the mattress platform | Yes |
Oxygen bottle holder | Yes |
Mattress with anti-static cover | Yes |
Bumper wheels | Yes |
Plastic chassis cover | Yes (optional) |
Transport handrail to foot | Yes (optional) |
Paper roll holder | Yes (optional) |
