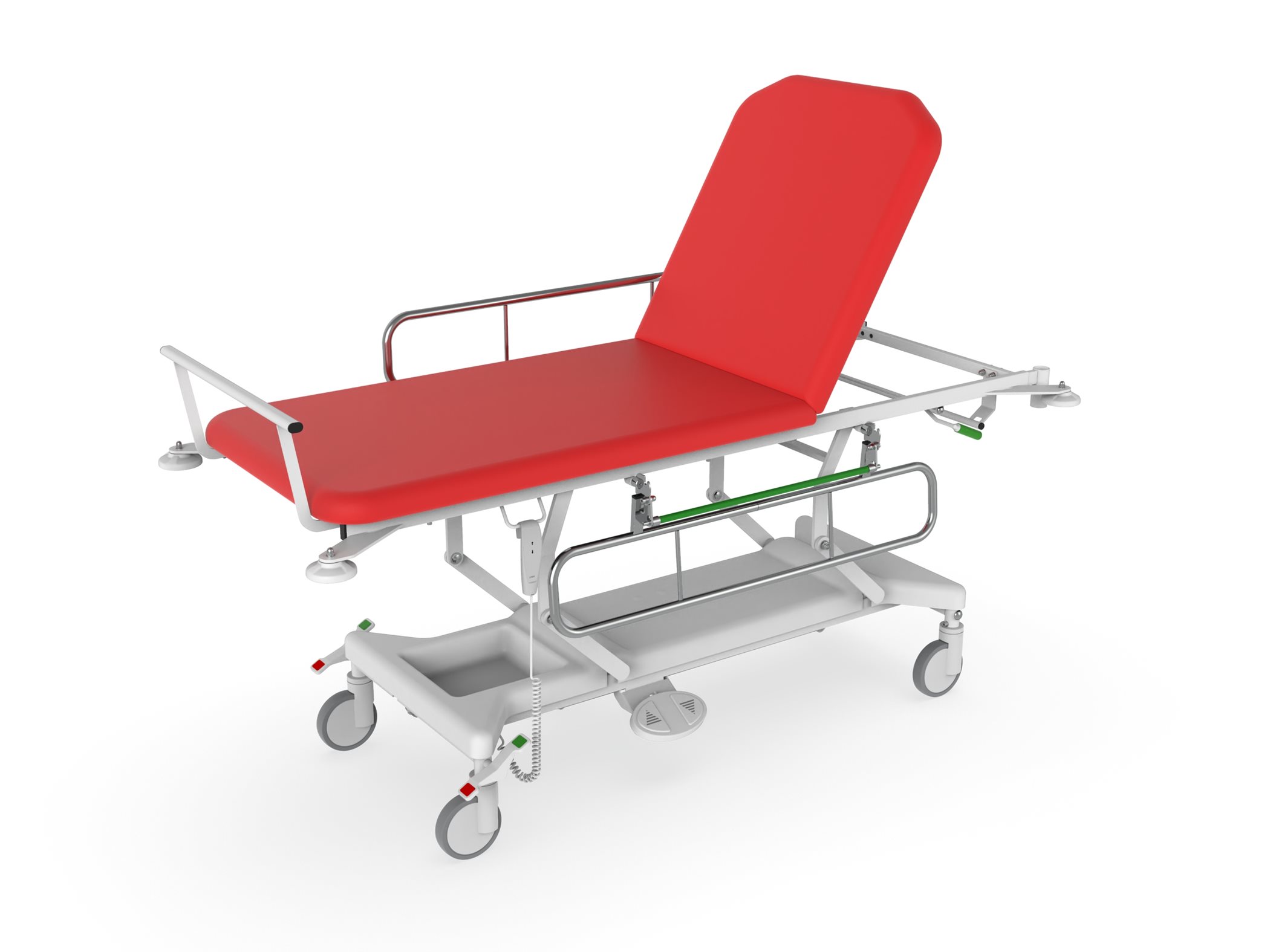

ELEVA E

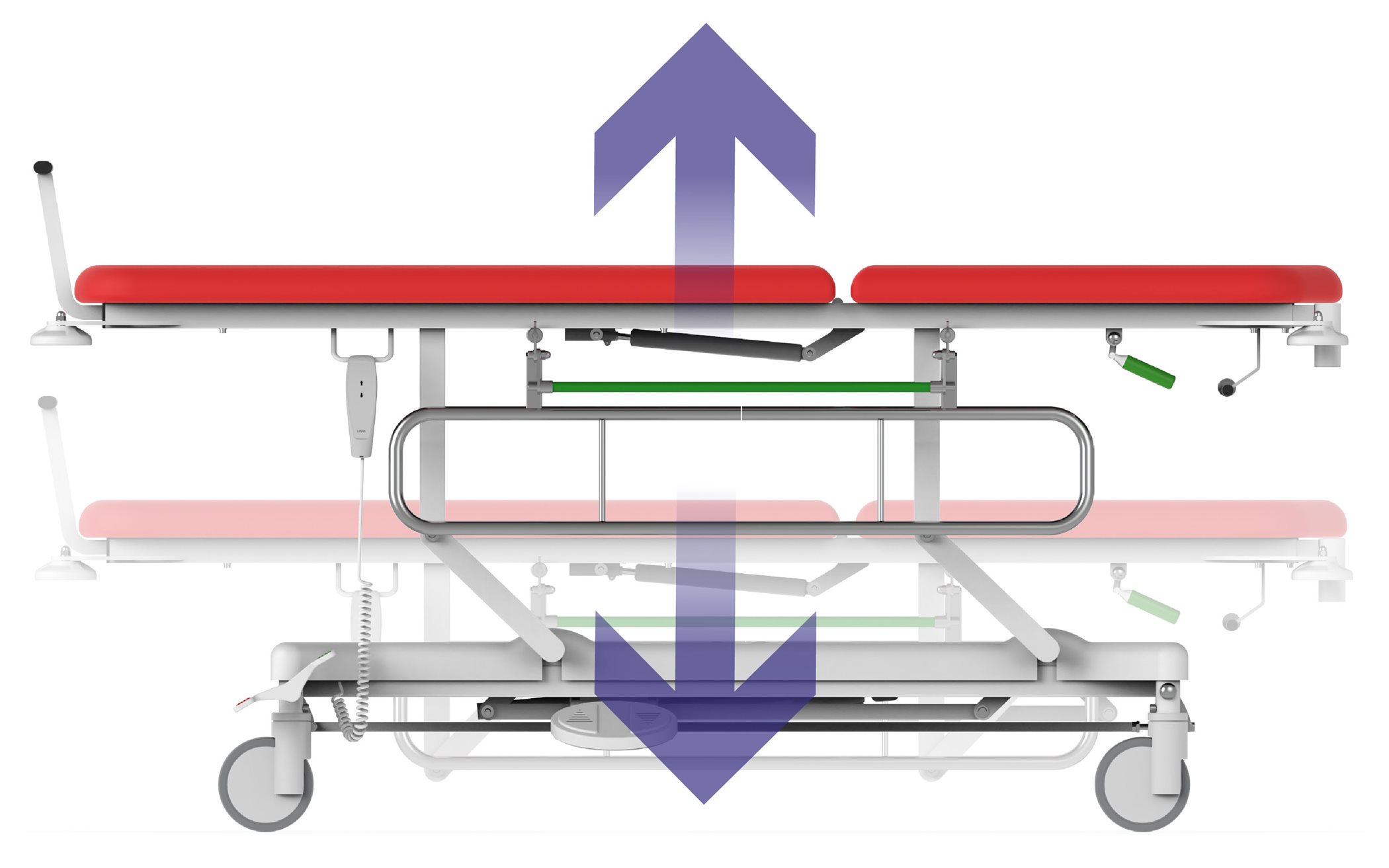

Electric lifting of the mattress platform
For easier access to the patient, the bed is equipped with an electric lifting of the mattress platform.

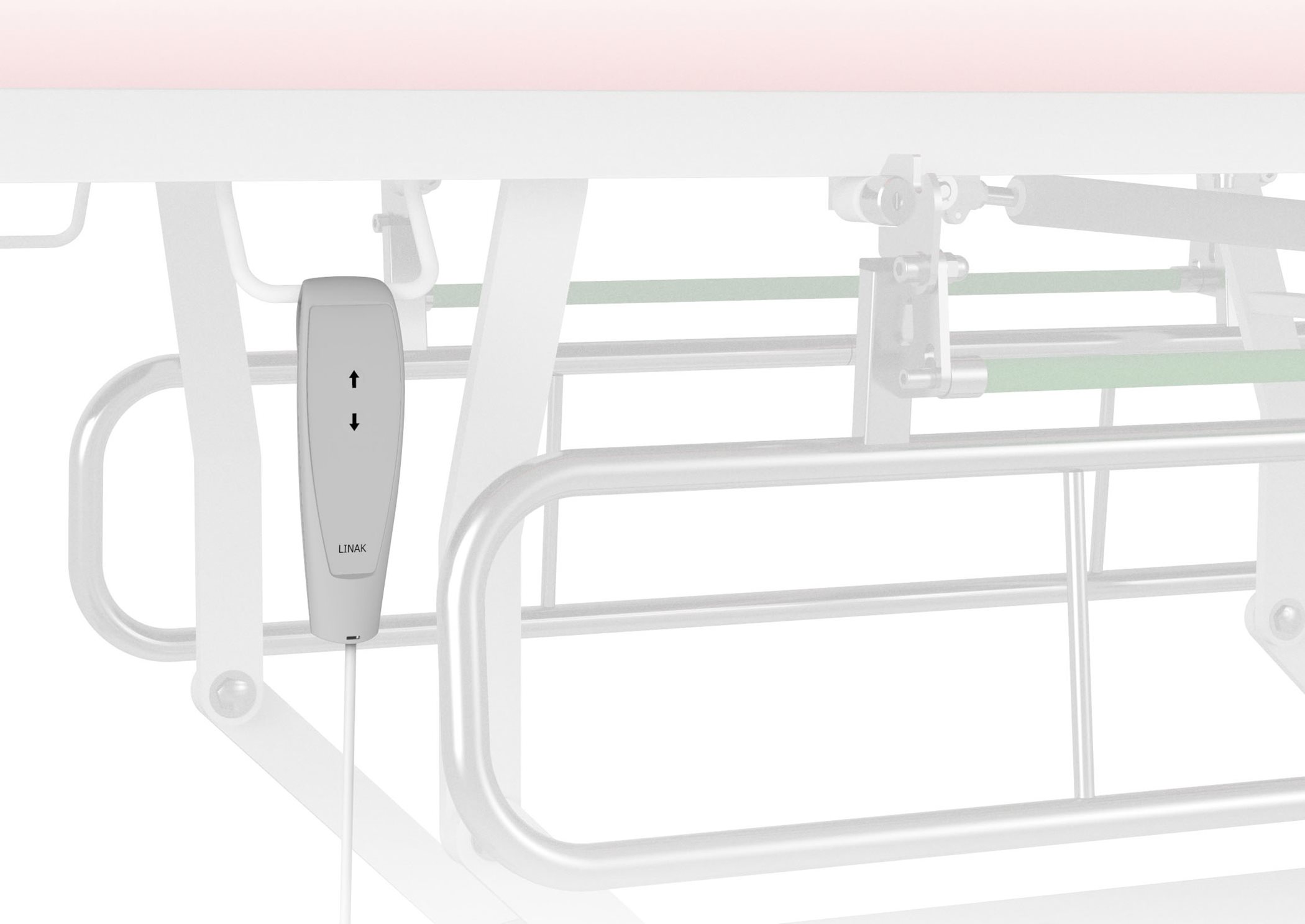

Hand control
The examination couche is equipped with an ergonomic controller that allows easy control of basic functions.

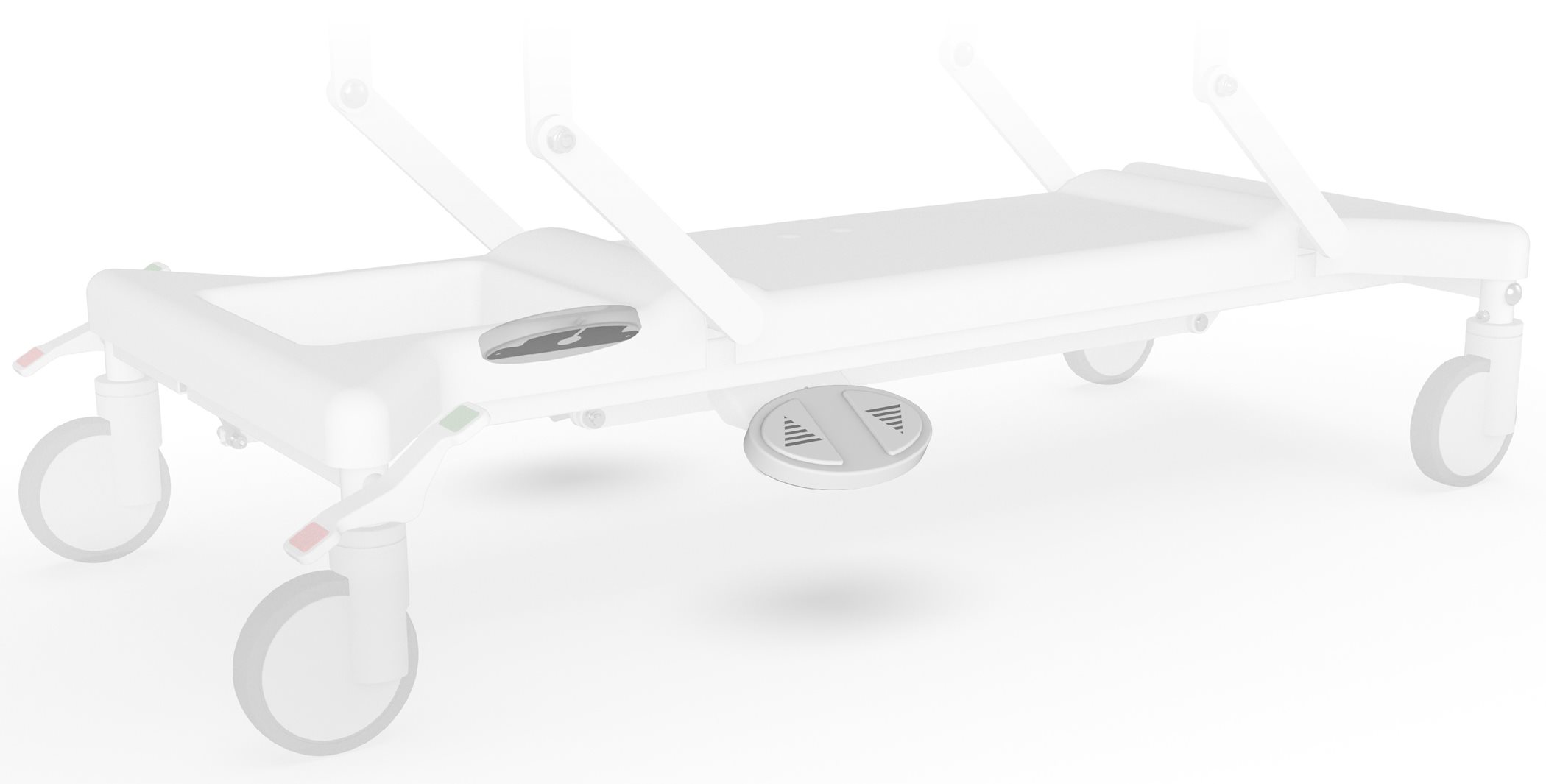

Foot control
Examination couch can also be equipped with foot control on both sides of the couch.

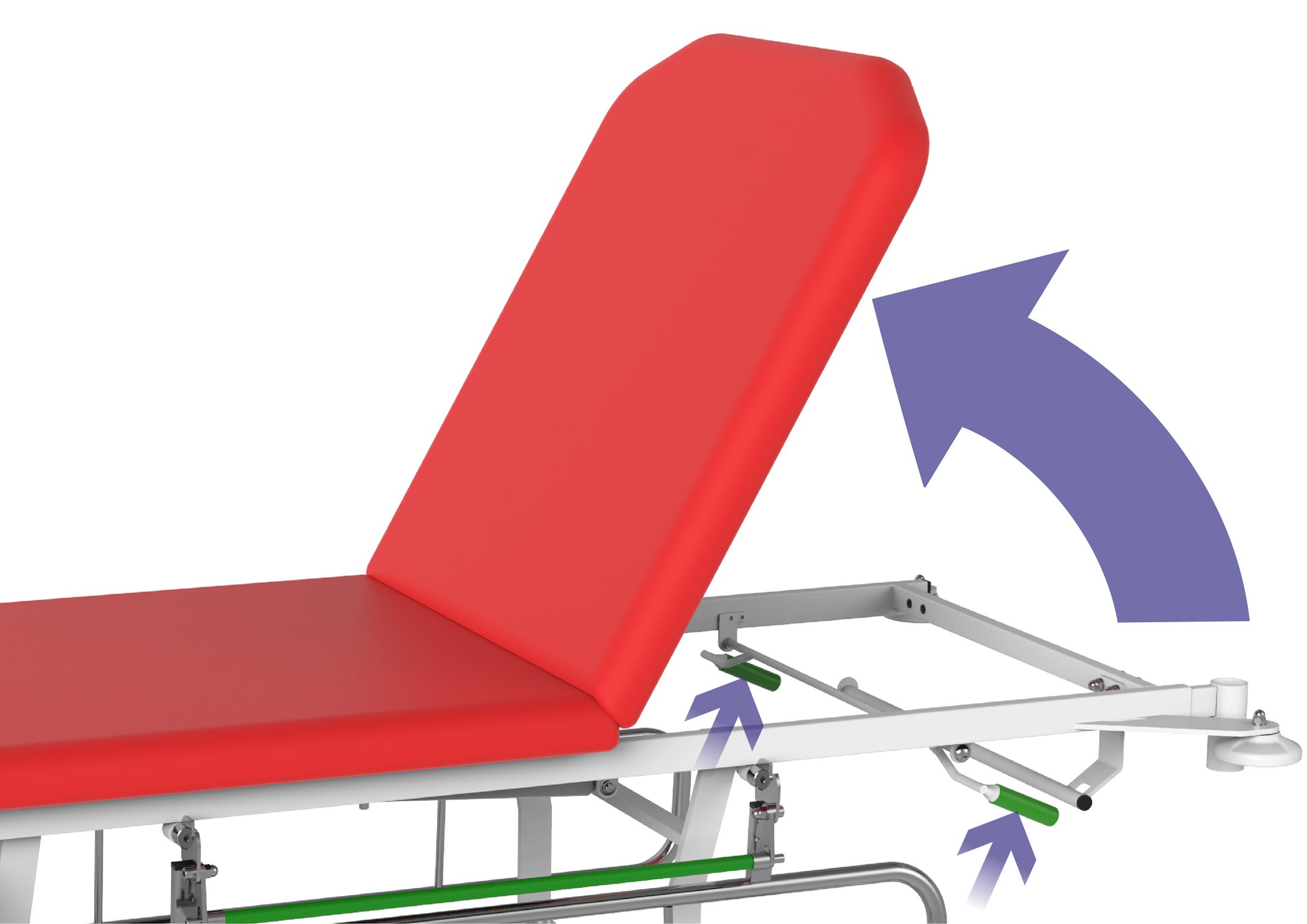

Positioning of the back part
Thanks to the gas piston rod, the positioning of the back part of the examination couch is easy and simple to control.

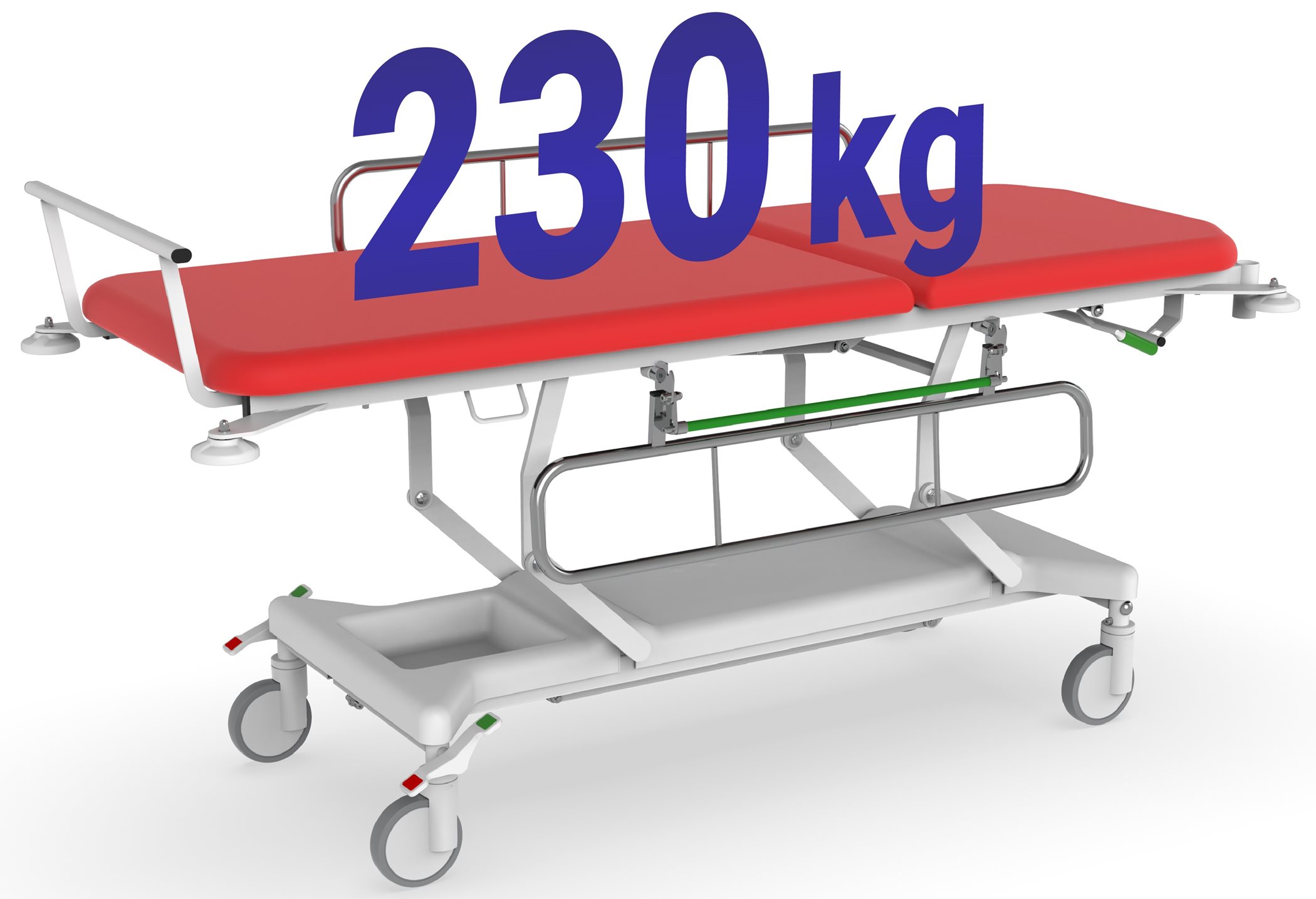

High load capacity
The solid and robust construction with a load capacity of up to 230 kg forms a secure support for patient care.

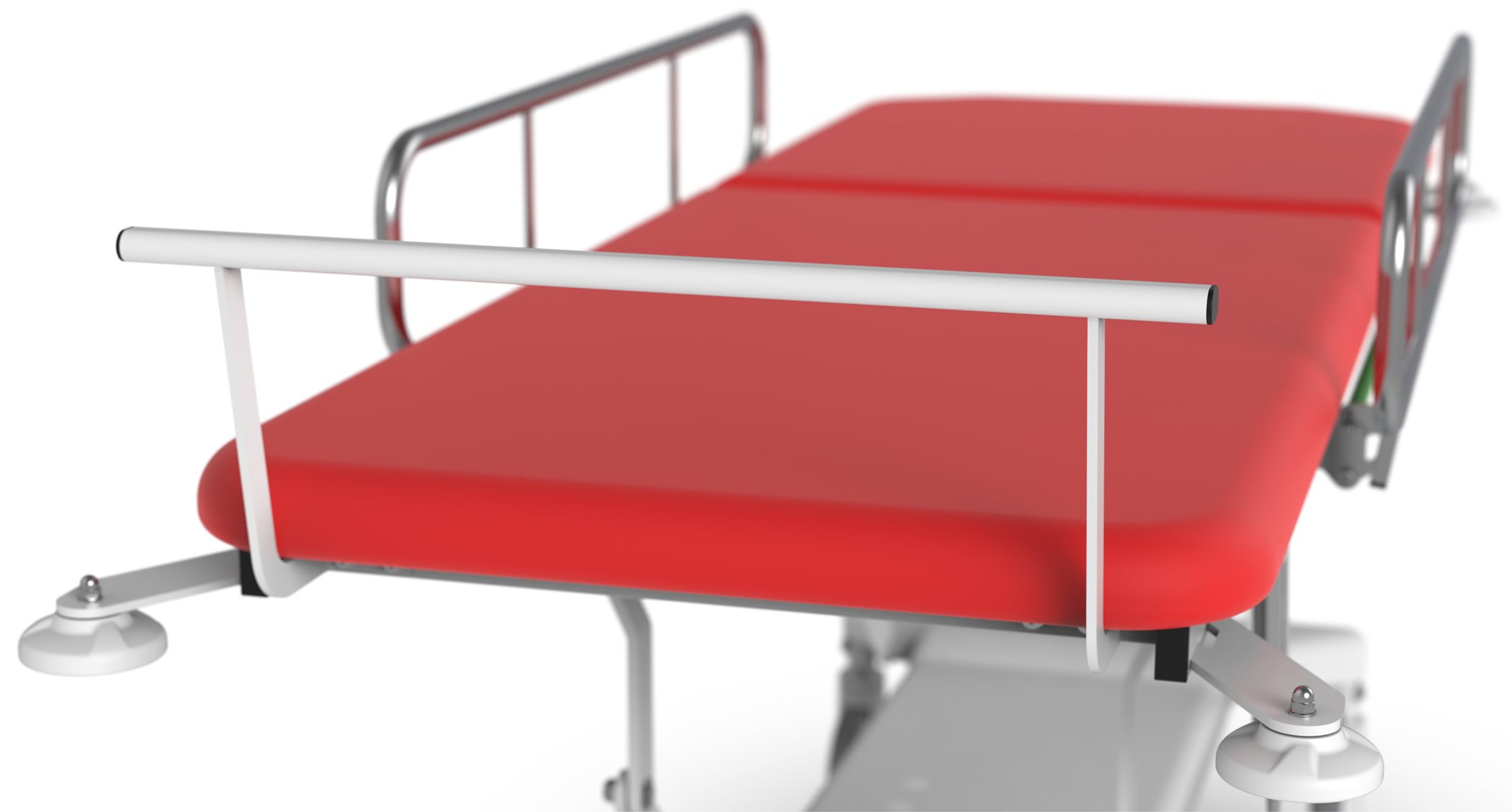

Transport handle
For easy patient transport the examination couche is equipped with a fixed handle.

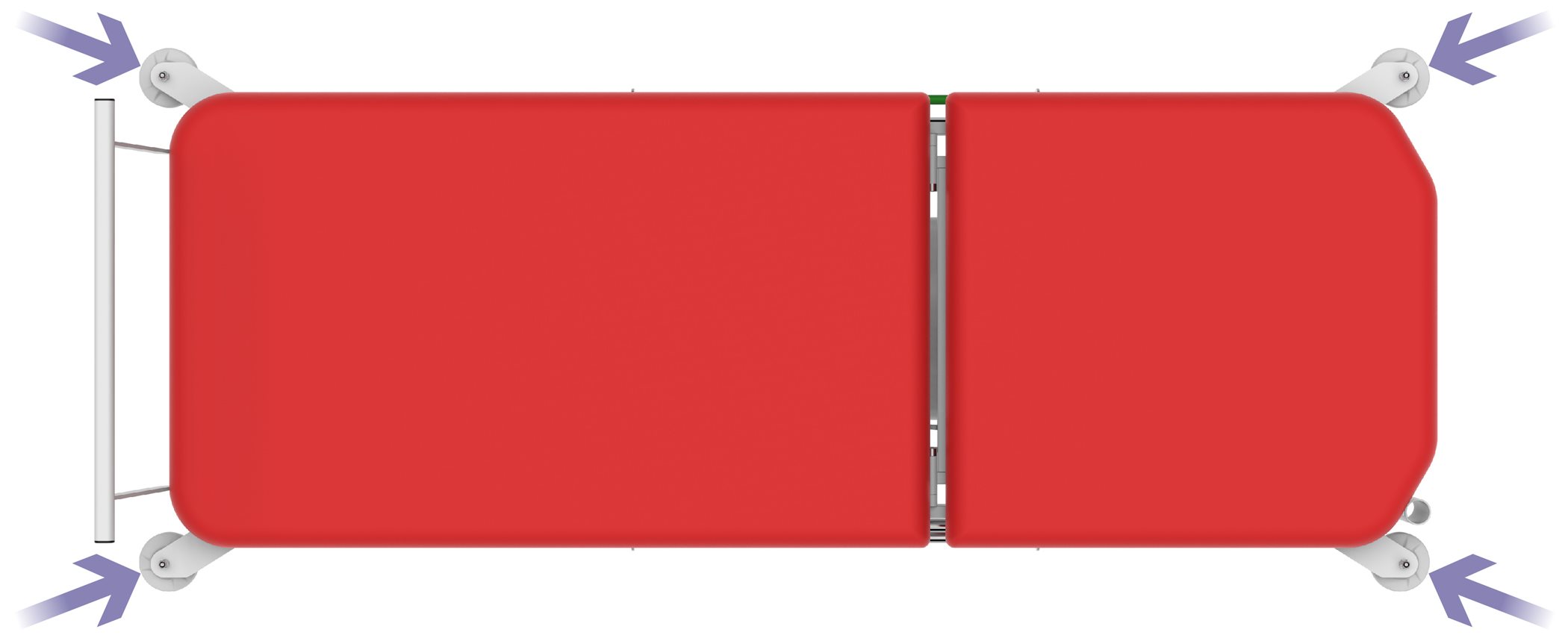

Bumper wheels
The bumper wheels located at the corners of the mattress platform are a great help especially during transport.

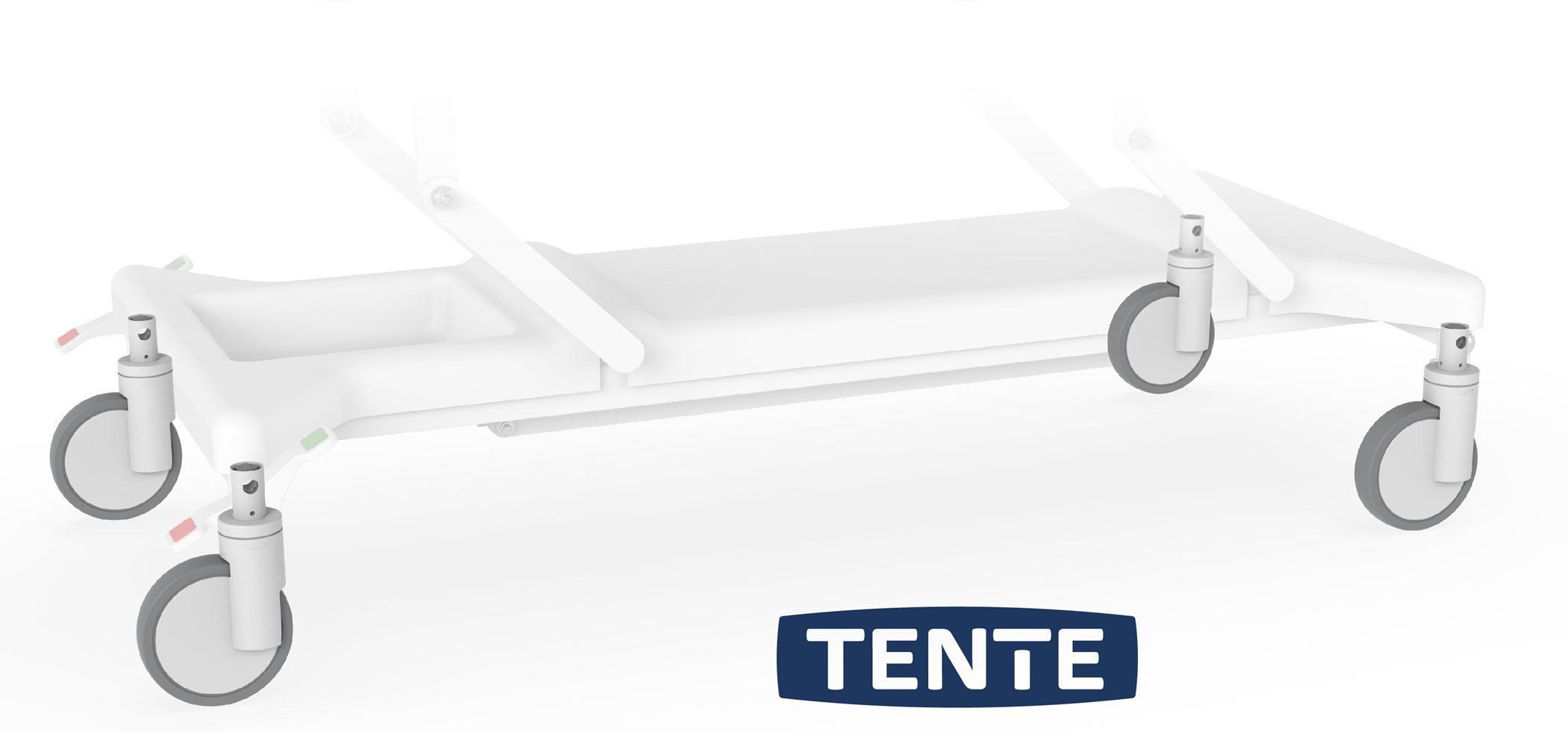

TENTE brand castors
High-quality medical castors with central brake, reducing physical effort for staff. Castors are made of permanent non-marking material. Castor covers facilitate cleaning and extend the life of the castors.

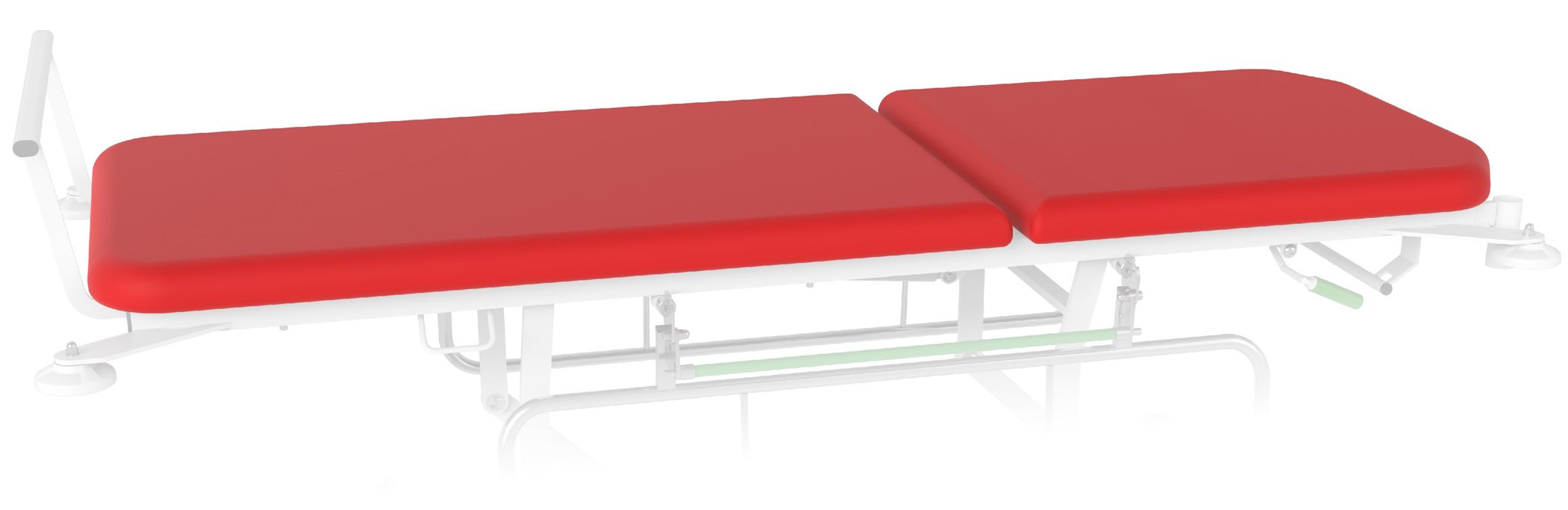

Medical leatherette mattress
The comfortable mattress is upholstered in medical leatherette.

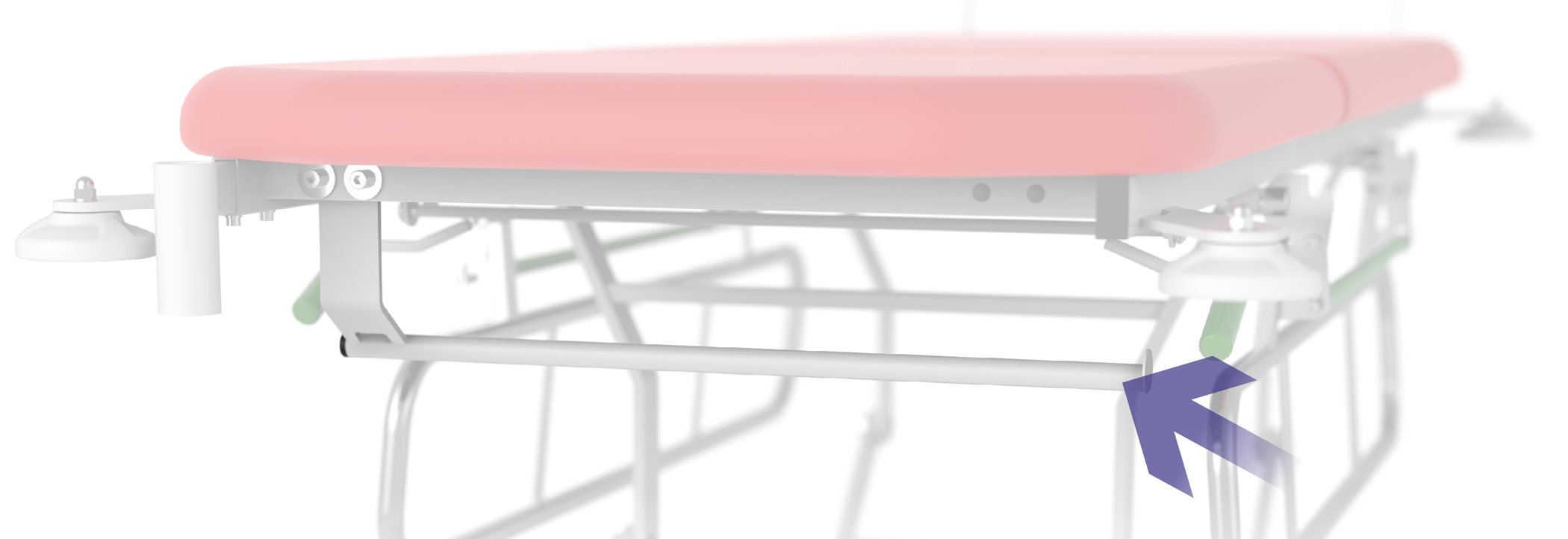

Hygienic paper roll holder
Hygienic paper holder can be found under the mattress platform.

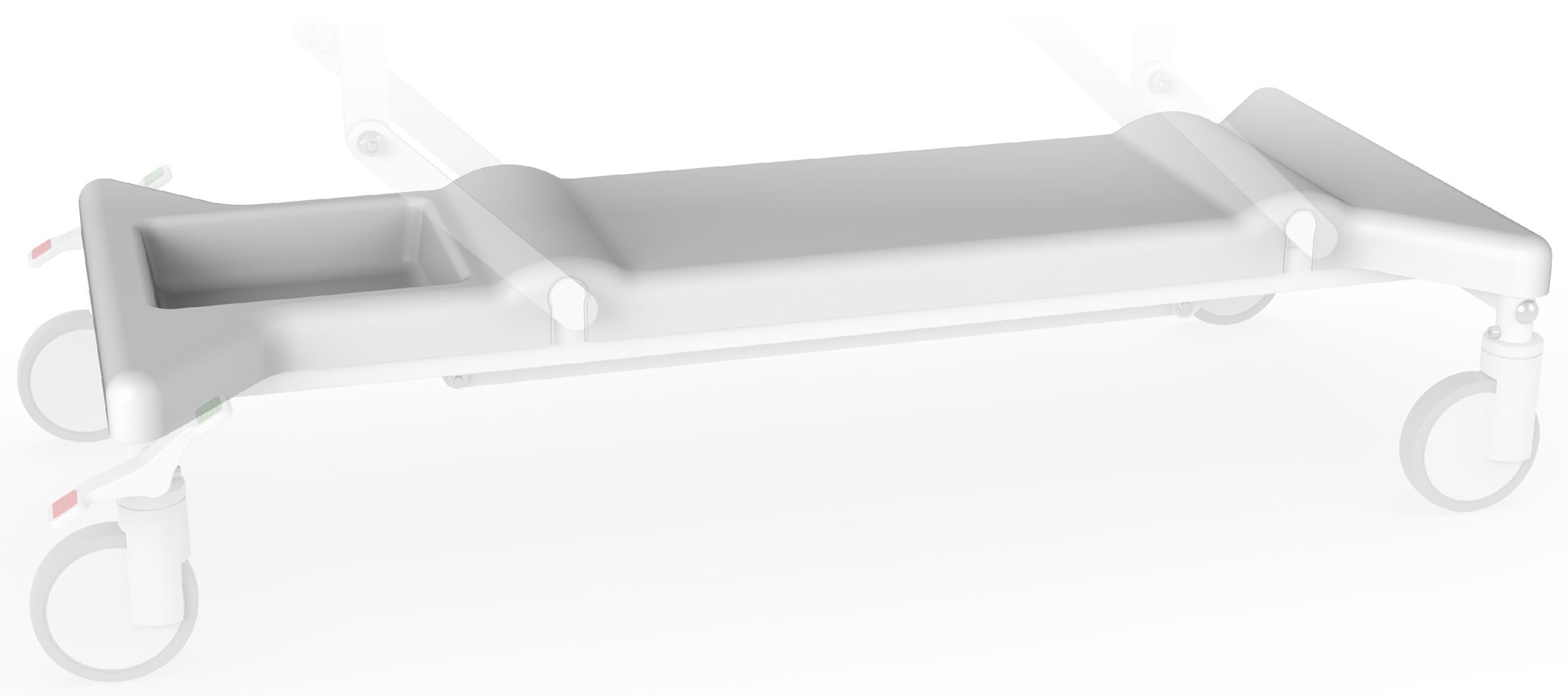

Plastic chassis cover
The plastic cover makes daily cleaning easier and faster. It also protects the chassis mechanisms, thus extending the life of the components and the overall reliability of the examination couche.

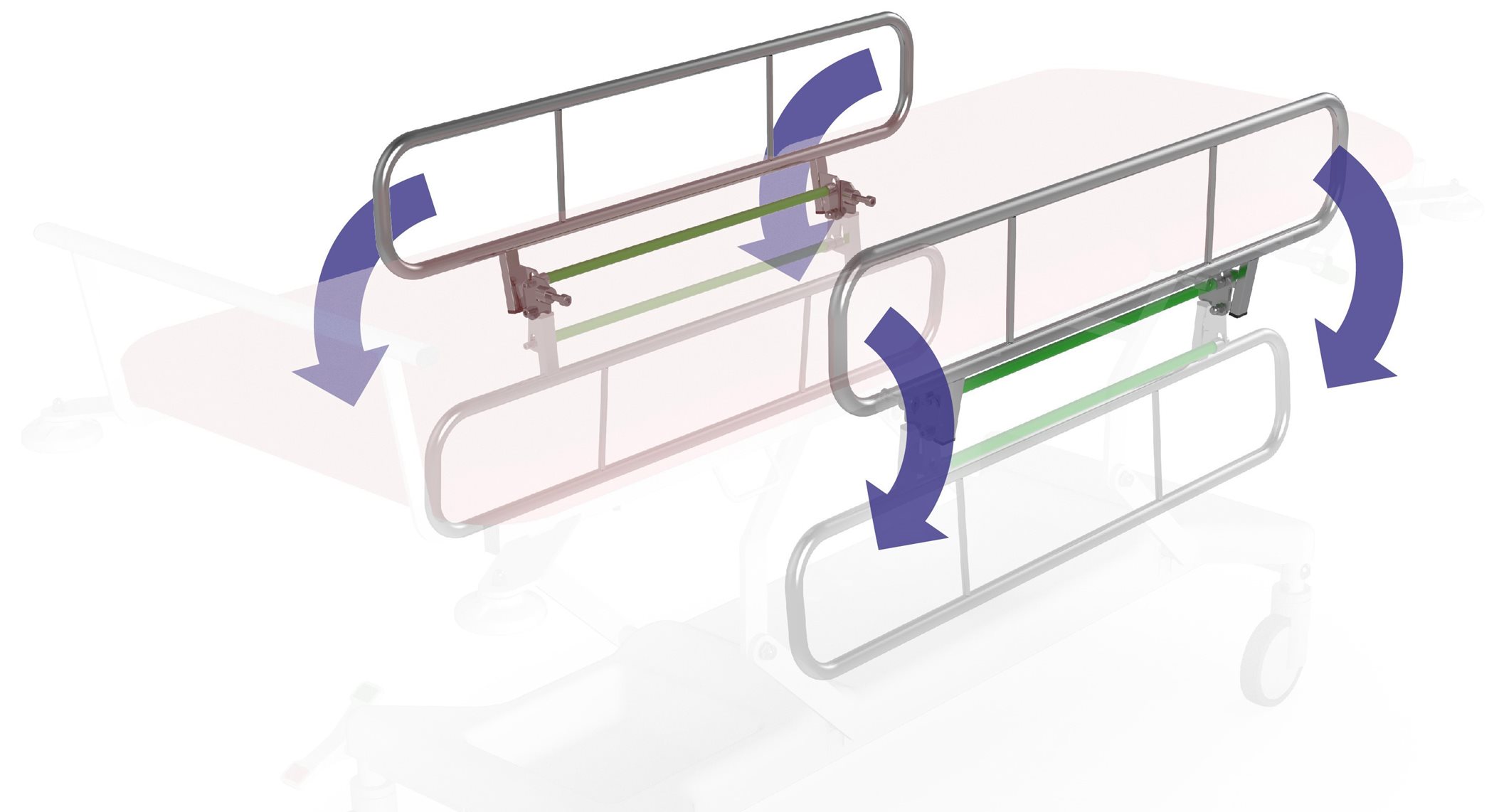

Tiltable side rails
Protective side rails along the mattress platform can be easily tilted to provide immediate access to the patient.

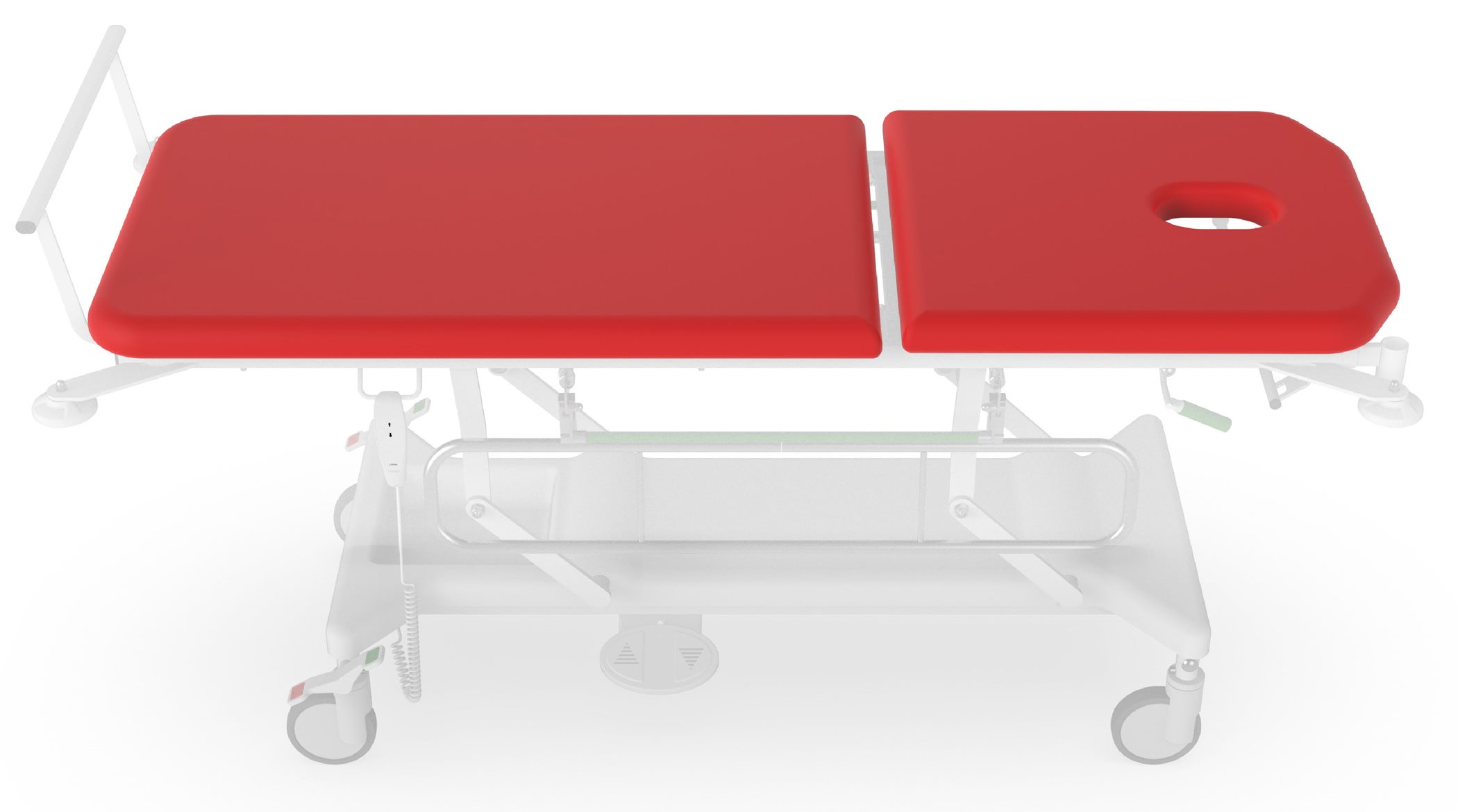

Face hole
The face hole allows patients to lie prone with more comfort and less pressure on the face and eyes. This is especially useful for patients who are recovering from surgery, have back pain or other health problems.

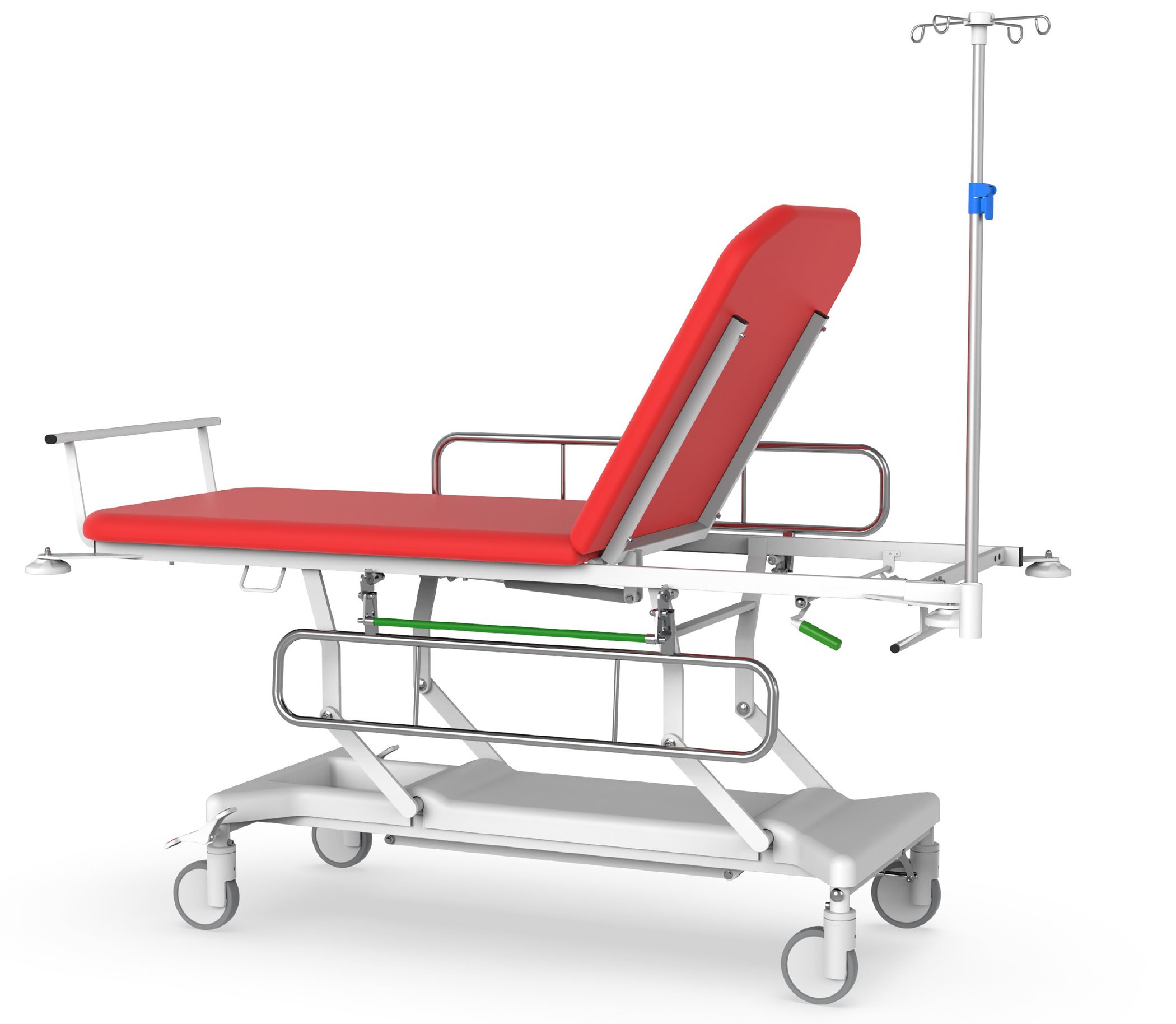

IV pole holder
The examination couche can be equipped with IV pole holder.

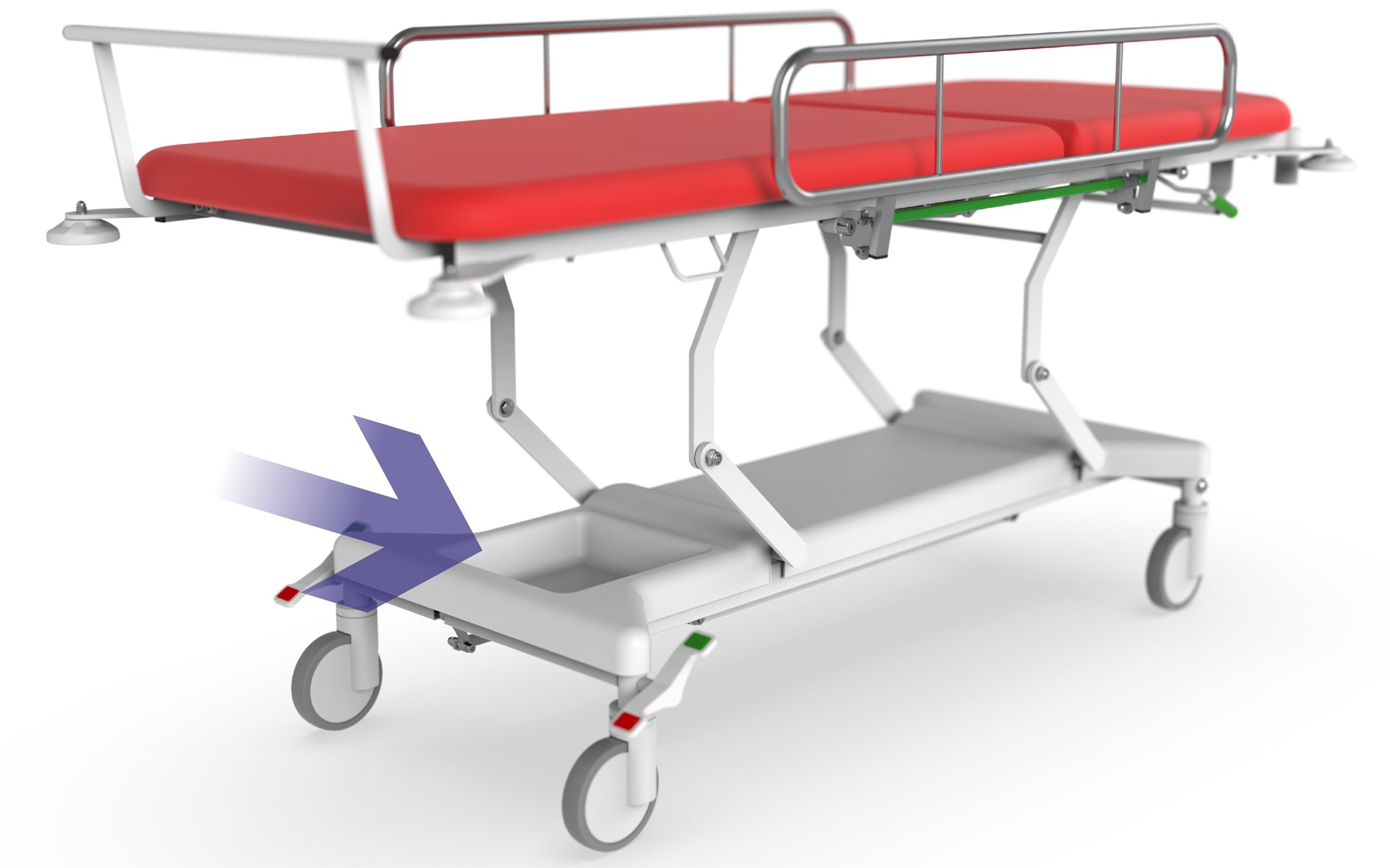

Storage space
The patient´s personal belongings or necessary accessories can be stored in the compartment under the mattress platform.

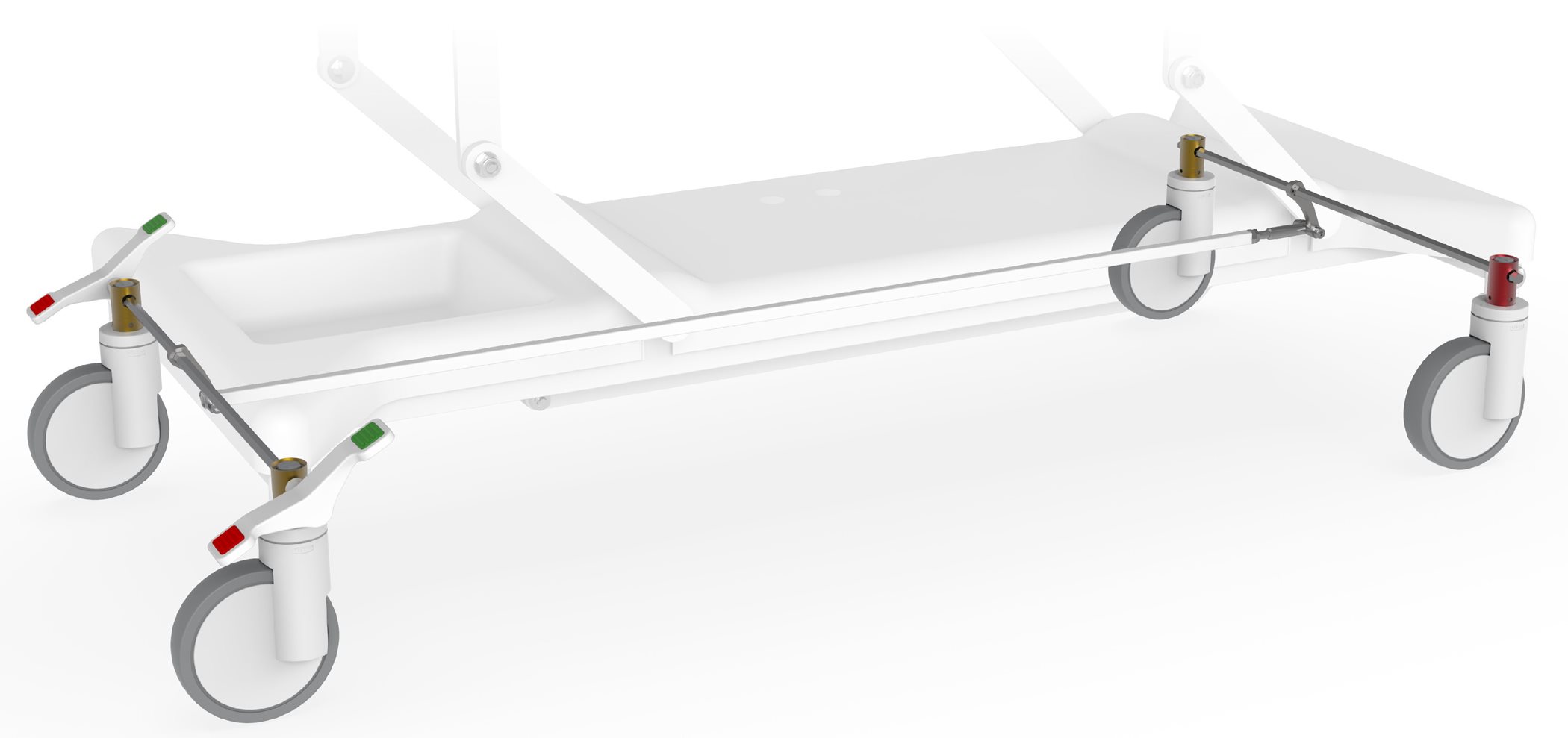

Central brake
The central brake pedals, accessible at both the head and foot sections, allow safe and quick braking. Thanks to the possibility of locking the castors in the straight direction of travel, the examination couche can be easily operated by only one person during transport.
Choice of colour design
The choice of colour design for the leatherette of the examination couch allows patients and staff to create an aesthetically beautiful and inviting space that can help improve mood, comfort and reduce stress.
Technical parameters
| Outer dimensions (l x w) | 208 x 88 cm | |
| Dimensions of mattress platform (l x w) | 200 x 72 cm | |
| Height of mattress platform | 52 - 89 cm | |
| Lift of mattress platform | Electric | |
| Safe operating load | 230 kg | |
| Weight | 78 kg | |
| Maximum patient weight | 195 kg | |
| Castors | 150 mm, plastic | |
| Patient controller | Yes | |
| Foot controller | Yes (optional) | |
| Type of side rail | Tiltable stainless steel (optional) | |
| Material of mattress platform | Medical leatherette | |
| Plastic chassis cover | Yes | |
| Paper roll holder | Yes | |
| Transport handle | Yes (optional) | |
| Bumper wheels | Yes (optional) | |
| Face hole | Yes (optional) | |
| IV pole holder | Yes (optional) |
